Thermal Dynamics Corp.    Chesterfield, MO 63017
Jan 30, 2007 Series XT-300 and XT-301 are offered with SpeedLok attachment design, which facilitates user installation and precise locking of consumable cartridge assembly into torch body. To accelerate changing of consumable parts, only one-half turn is required to fully engage and lock cartridge retainer ring onto torch body. SpeedLok design is also available as retrofit by replacing torch head and retainer ring on consumable cartridge.

OSG Tap & Die, Inc.    Glendale Heights, IL 60139
Jan 30, 2007 EXOCARB® MAX-OIL-AL drill incorporates double margin design for optimal stability, enabling production of consistent, concentric holes from entry to exit at up to 30x diameter. Double margin design also has burnishing effect on material, promoting optimal surface finish quality. While flute design creates small, manageable chips, coolant-through center facilitates chip evacuation. Polished flutes promote lubricity, further aiding in chip evacuation.

Metabo Corp.    West Chester, PA 19380 4243

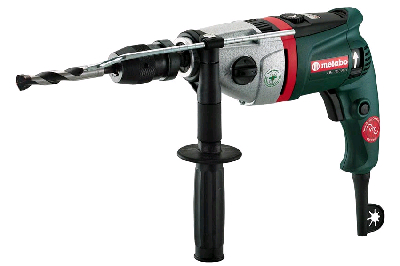

Jan 30, 2007 With input rating of 1,010 W, Model SBE1010 Plus offers max tightening torque of 248 lb-in., no-load speed of 0-900 or 0-2,600 rpm, and 0-50,000 no-load bpm. It provides capacity of ¾ in. in concrete, 5/8 in. in mild steel, and 1½ in. in soft wood. Under extreme conditions, Vario Tach Constamatic speed stabilization increases efficiency by working at nearly 100% of no-load speed up to full rated amp load of 8 A. Ergonomic handle can be rotated 360°.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Jan 30, 2007 Featuring 8.2 A motor, 5.3 lb DW520K ½ in. hammerdrill offers 0-1,000/3,000 rpm and 0-19,000/0-46,000 bpm. Tool features dual drilling modes, and has 5/8 in. capacity in masonry, ½ in. in steel, and 1½ in. in wood. Unit includes 2-speed gear box for adjustment to high-speed or high-torque applications, soft grip handle, and 360° side handle with depth rod for control and accuracy when gauging depth.

PFERD INC.    Leominster, MA 01453
Jan 29, 2007 Whether used for high stock removal or fine machining and deburring, HICOAT® tungsten carbide (TC) burs have proprietary coatings that promote chip removal while minimizing tool wear and heat loads. Available coatings include HC-FE multipurpose, gold coating for work on steel and cast iron; HC-HT silver coating for work on heat-resisting, nonferrous metals; and HC-NFE black, anti-adhesive coating for work on sticky, nonferrous metals that produce long chips when machined or cut.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jan 29, 2007 Made of hardened steel, ASI DIN rail cutter has 4 separate cutting slots for handling popular DIN rail types. Its 1 m gauge with end stop ensures accurate cut lengths from start to finish. In addition to lever action that minimizes required operator force, cutter features bench-top design for location placement flexibility. Burrs and sharp edges are eliminated due to clean cut die design, which also eliminates need for secondary filing or grinding.

Digi International    Minnetonka, MN 55343
Jan 29, 2007 Featuring embedded Sierra Wireless PCI Express Mini Card module, commercial-grade ConnectPort WAN VPN is certified for use on Cingular's 3G UMTS/HSDPA network. SIM cards and encryption features keep data transmissions safe and provide low latency. Designed with 4-port Ethernet switch, 2 RS-232 serial ports, and 1 USB port, router is network independent and upgradeable. It can be managed locally via built-in web interface or remotely using Digi Connectware-Manager software.

DoAll Company    Des Plaines, IL 60016

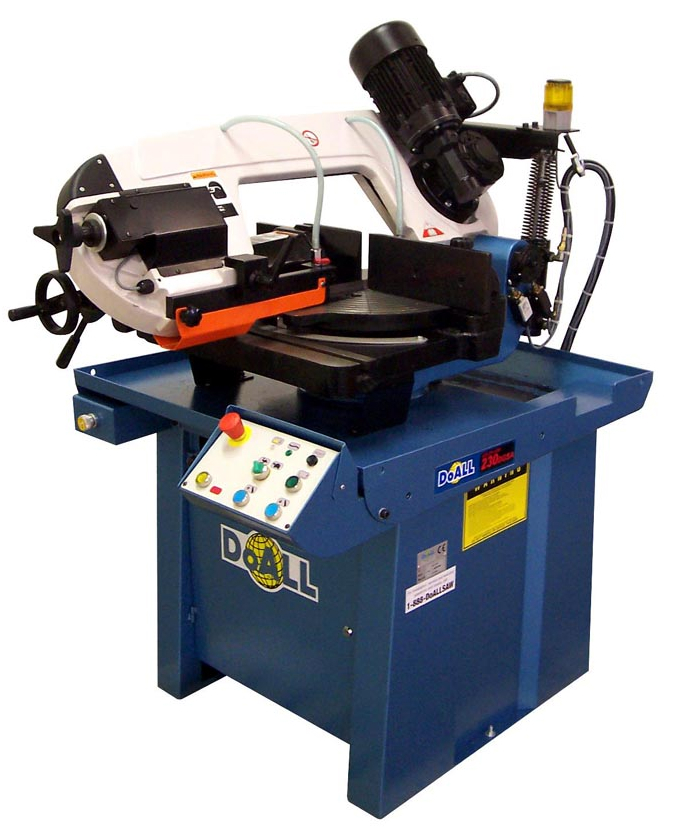

Jan 26, 2007 Model C-230 DGSA cuts rounds up to 9 in. dia and rectangles up to 11 x 6½ in. at 90°, and incorporates head that swivels 45° left or 60° right. Dual output band motor drives 1 in. blade at 115 fpm using 1½ hp output or 230 fpm with 2 hp output. Other features include adjustable hydraulic head feed control, band brush, double tapered bearings on swivel support, manual quick-lock vise, and built-in coolant system. C-230 DGSA has a cast-iron saw arm and swivel base.

CommScope, Inc.    Claremont, NC 28610
Jan 26, 2007 Serving as central unit in fully integrated network, Residential Cabling Distribution Center provides simultaneous distribution of high-speed data, voice, and video signals throughout small commercial buildings. Basic system is pre-designed for voice and data applications, while enhanced system provides plug-and-play functionality for copper and fiber applications as well as flexibility for removing modules. Each system supports all standards and vendor-independent applications.

Netgear Inc.    Santa Clara, CA 96054
Jan 26, 2007 RangeMax Wireless-N Routers, Models WNR834B and WNR854T, are compatible and interoperable with Intel® Next-Gen Wireless N, which is included in Intel® Centrino® Duo mobile technology-based notebooks. Units are equipped with NAT and SPI firewalls, Touchless WiFi security, 64- and 128-bit WEP encryption, and Wi-Fi Protected Access Pre-Shared Key. They also include Denial of Service attack protection, Intrusion Detection and Prevention, and Exposed Host for secure gaming.

Makino Machine Tool Co.    Mason, OH 45040 9695
Jan 26, 2007 Capable of grinding, drilling, boring, and milling, G5 Grinder helps eliminate setups, work in process, and stack-up errors. Machine has B-axis of .5/1.5 sec, C-axis at 100 rpm, and 60-tool automatic tool changer holding up to 8.7 in. dia grinding wheel. Two-axis coolant nozzle allows changes in cutting direction and intermittent rotary dressing, while integral spindle with cooling jacket, coolant chiller, and core-cooled ball screws ensure thermal stability.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Jan 25, 2007 With compact and well-balanced design, screwguns and high-torque drivers feature universal-comfort grip ergonomics and Posi-Lock(TM) depth-retention nose-piece. Screwgun model SG45 has 4,500 rpm, 6.2 A with plastic housing, while SG45M 7.0 A offers metal housing. Model SG45M-50 includes all specifications and features of SG45M with 50 ft twist-lock extended cord. Suited for TEK screws, 179 lb-in. drivers SG25M and SG25MT feature 2,500 rpm, 7.0 A for metal-to-metal fastening.

Strippit, Inc.    Akron,, NY 14001
Jan 25, 2007 Offered in 20 and 30 metric ton models, Verona Series automatically determines exact clamp locations to provide smallest possible no-punch zone. Each model, featuring 1 in. feed clearance, incorporates servo hydraulic press drive, interactive software, and PC-based GE Fanuc 180i control. Able to handle workpieces to 60 x 98.4 in., series punches materials up to .250 in. with max hit rate of 1,000 hpm at 0.04 in. pitch. Finished part accuracy is ±.004 in.

STAMA America    Itasca, IL 60143
Jan 25, 2007 With X-axis live area up to 394 in., System 5 is designed to accommodate large workpieces. Two-station models can be used for multiple workpieces in line or in shuttle system of work-one, load-other production. Direct digital drive 3-, 4-, and 5-axis movements are available in single or dual spindle set-ups. All machine motions are controlled by multi-processor CNC that allows simultaneous production of identical parts, similar/mated parts, or extremely large, complex single parts.

Aremco Products, Inc.    Valley Cottage, NY 10989

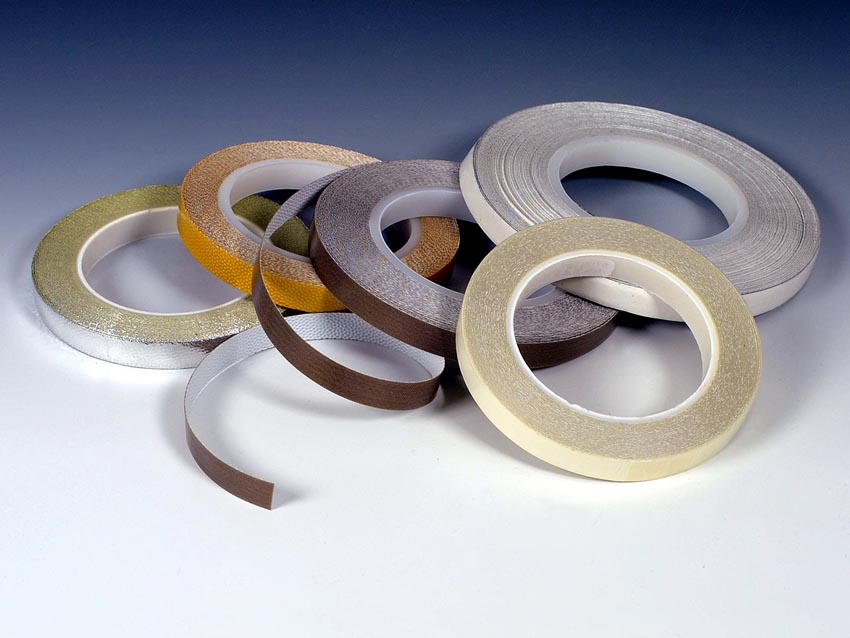

Jan 23, 2007 Pyro-Tape 682-Series tapes are for use in plasma spray masking, heat protection, and abrasion-, chemical-, and electrical-resistance applications. Able to withstand temperatures to 500°F, 682-PM is for plasma spray masking, 682-HR is heat reflective tape for components and pipes, and 682-CR is non-stick and corrosion-resistant. Type 682-DS is double-sided tape, while 682-ER is used for electrical insulation. Used to provide abrasion-resistance, 682-AR functions at up to 200°F.

Pilz Automation Safety L.P.    Canton, MI 48187
Jan 23, 2007 SafetyNET p Ethernet-based system for safety-related, standard control and motion control applications features real-time capability. It scans topology of overall system architecture for identification of network structure, and gives status diagnostics on plant, machinery, and communication links. Decentralization allows controller intelligence to be transferred locally to field level, and open architecture allows implementation in parallel with other industrial Ethernet protocols.

Danaher Motion    Wood Dale, IL 60191

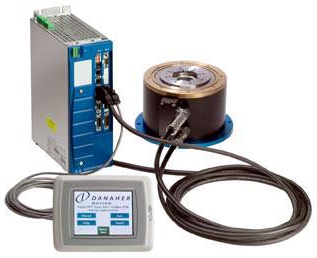

Jan 22, 2007 Rotary Indexer Product Set offers direct drive solution that requires no maintenance over entire system life. With repeatability to ±1.2 arc-sec with no backlash and system accuracy to ±26 arc-sec, compact system. can be programmed to go in any direction, at any speed, at any angle. Index times are also programmable, and no homing is ever required; absolute position feedback maintains position even under power cycling. End users can update motion sequence to satisfy application needs.

Opex Corp.    Moorestown, NJ 08057-4215
Jan 22, 2007 Using Intelligent Robotic Wireless Vehicles, Mail Matrix sorts broad range of media and address formats in single pass. System can process up to 25,000 mixed-mail pieces per shift, including letters, flats, magazines, newspapers, accountable mail, small parcels, and interoffice mail into 1,020 max destinations. Delivery bins and feed rates are scalable at 30-1,020 bins and 600-3,600 pieces/hr. With Windows interface, operators can schedule, modify, update, and maintain database of sorting jobs.

Fasnap Corp.    Elkhart, IN 46515

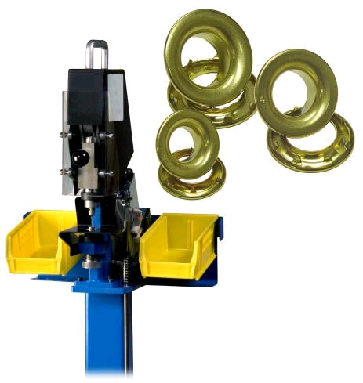

Jan 18, 2007 Pneumatic Model 3P5 punches hole through wide range of industrial fabrics and sets grommet and washer, up to size No. 4 with plain or rolled rim, all in single cycle. Weighing 22 lb, unit is designed to be portable or bench mounted. Machine is suited for variety of applications including signs and banners, marine fabrication, flags, bags, tonneau covers, and tarpaulins.

FUJI Machine America Corporation    Vernon Hills, IL 60061
Jan 18, 2007 Capable of turning, drilling, and milling, TNW-3500R employs twin spindles, gantry robot, and slant bed. Live tool turret performs secondary operations, and live tool motor power is 3/5 hp. Controlled via Fanuc 310i-A CNC, press also features gantry loader with 22 lb capacity and dual 10-tool turrets. System's A2-6 spindle turns with 15/20 hp motor and operates at 4,200 rpm max. It also includes 20-station work stocker, chip conveyor, and set of turret holders.
