Ophir-Spiricon Inc.    Logan, UT 84321
Jul 27, 2007 Model M2-200S Beam Propagation Analyzer features UV operation between 250-370 nm, visible operation from 400-700 nm, and NIR operations from 650-1,100 nm (1,064 nm YAG) and 1,000-1,800 nm (1,064 nm YAG plus telecom). All measurements and translations as well as incremental beam attenuation are automatically controlled by M2-200S software. ISO compliant unit comes in M2x, M2y, Ky, Ky, BPPy, BPPy, width at waist Wy, Wy, and waist location at Zy, Zy.

Sunnen Products Co.    St. Louis, MO 63143

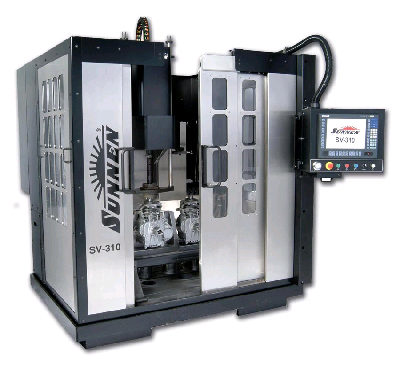

Jul 26, 2007 Providing work envelope of 40 x 70 in. and weight capacity up to 2,000 lb, Model SV-310 delivers 30 in. stroke for bore sizing of small and medium-sized gas/diesel engine blocks, large gears, and air compressors. Machine features 5.5 kW/7.5 hp spindle and servo-controlled X-axis travel of 45 in. to allow automated honing of multi-bore blocks. Built on malleable iron base, Model SV-310 can hone parts with IDs from 0.75-8.00 in., depending on tool options selected.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Jul 26, 2007 Eliminating use of Vernier scale, EWB UP Series offers fine adjusting resolution of .001 mm steps of diameter corrections or .00005 in. on diameter for inch graduated heads. Units include backlash-free tool carriers for direct diameter adjustment, and tool carrier locking system that does not influence diameter and assures repeatability, even under high speed or interrupted cutting. Six heads offer boring range of .787-3.94 in.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707

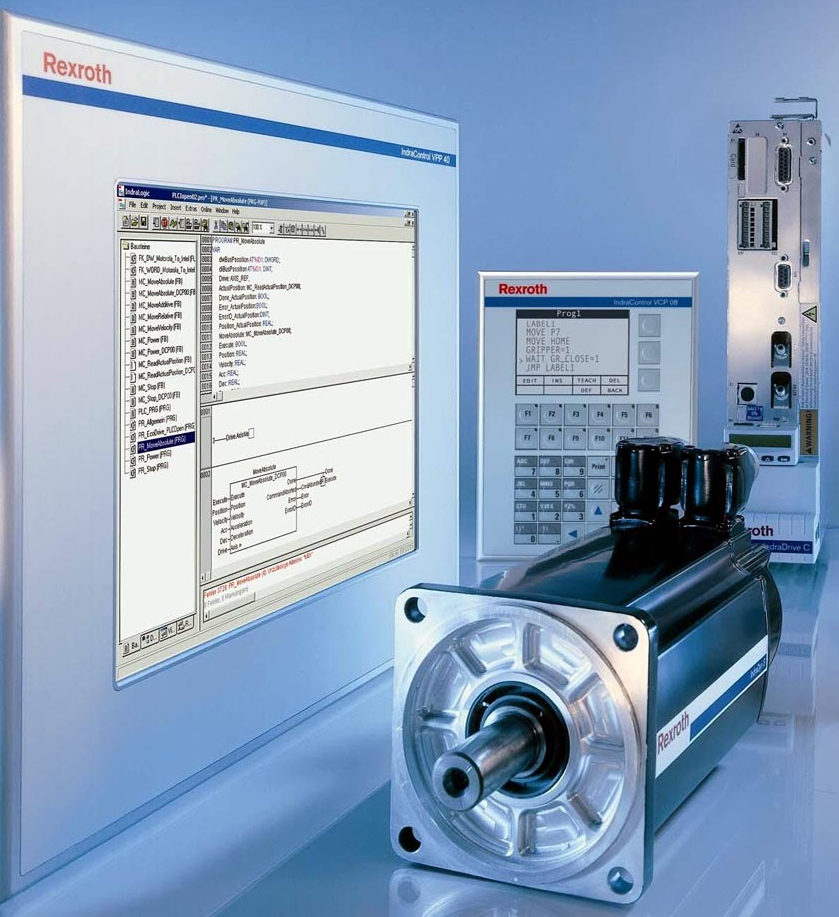

Jul 26, 2007 IndraMotion for Metal Forming is available with scalable Flying Shear solution, which can be extended by OEM or integrator with Metal Forming and IndraDrive function libraries that offer range of motion and control functions. Cutting precision is assured by using measuring wheel, registration probe, or encoder signal of puller axis. IndraDrive runs Flying Shear solution, connecting to drives via Ethernet-based SERCOS III communication (MLD-M).

Pad Print Machinery of Vermont    East Dorset, VT 05253

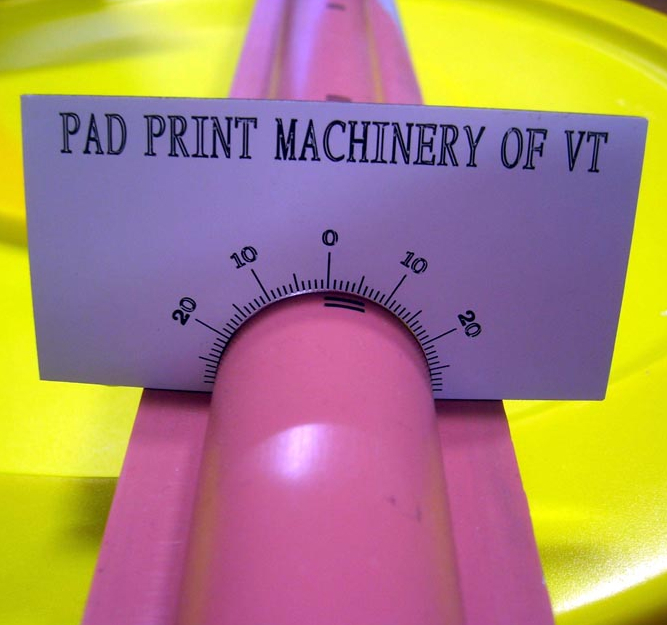

Jul 26, 2007 Catheter Pad Gauge helps catheter printers calibrate print positions of catheter markings from one end of long pad to opposite end. It lets printers with cup slide machine fitted with long pad measure front-to-back distance of image at multiple locations along pad. Print alignment tool minimizes chance for error, promoting consistent catheter printing quality with minimal losses during setup and production.

MAG IAS, LLC    Erlanger, KY 41018
Jul 26, 2007 Offering automatic interchangeable head capability, Model U5-1500 provides work envelope of 15 ft to unlimited X-axis, 8.2 or 12 ft Y-axis, and 3.3 or 5 ft Z-axis. Machine makes heavy cuts in large parts of aluminum, steel, titanium, and difficult, crusty forgings. Head configurations include 50 taper, 22 kW/30 hp, 4,000 or 6,000 rpm; HSK-63A, 30 kW/50 hp, 15,000 or 24,000 rpm; and vertical or horizontal 50-taper heads providing 22 kW/30 hp at 6,000 rpm.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Jul 24, 2007 Model DW713 10 in. miter saw has machined base fence positioned perpendicular to base and adjustable SS miter detent plate. Able to cut molding, sheet materials, lumber, veneer, and nonferrous metal, saw vertically cuts up to 3½ in. base molding and 4½ in. crown molding against fence, and horizontally cuts 2 x 6 in. material at 0° and 2 x 4 in. materials at 45°. It also offers bevel capacity of 48° and miter capacity of 50° to left and right.

Ona America, Inc.    Dayton, OH 45402
Jul 23, 2007 Custom built FlexPro Series EDM machines use modular components, allowing customers to design them with specifications and options that match their work. Options include single or dual heads, C-axis and tool changer options, and 50 combinations of XYZ axes travels up to 118 in., as well as 100, 200, or 400 A power supplies. Able to run unattended, machines feature fixed bed holding up to 55,000 lb and cast iron meehanite modules.

2L inc.    Hudson, MA 01749
Jul 23, 2007 Modular Vac-Vise Vacuum Chucks Kits allow flexible prototyping for CNC vacuum workholding and fixturing without need of any custom vacuum chuck or set up. Offering pallet size of 8 x 12 in., single chuck system suits smaller workholding applications, while 2-pallet kit offers combined pallet size of either 16 x 12 or 8 x 24 in. Three Pallet kit produces total pallet size of either 8 x 36 or 24 x 12 in., and 4-pallet kit achieves pallet workholding area of 16 x 24 in.

Prima North America Inc., Laserdyne Systems Division    Champlin, MN 55316
Jul 20, 2007 Featuring direct drive head and high-speed axes drives that offer 4 g acceleration, RAPIDO EVOLUZIONE 3D laser cutting system integrates with various robotic solutions. Features include breakaway head that can be restored in event of crash, focal position control functionality for uniform cutting quality, Safe Impact Protection System that protects head, nozzle, or sensor from damage between head and work piece, and intuitive CNC control.

TAK Enterprises, Inc.    Bristol, CT 06010 7400
Jul 19, 2007 Suited for wire and narrow strip applications, feed and cut-off system comes with controller that incorporates 5¾ in. industrial touchscreen. Pro-Pack option enables remote operation/monitoring, and throughput rate is controllable via programmable speed setting capability. Along with direct reading for parts/min run speed indication, Ethernet-expandable system offers password protection for sensitive program areas, batch cutting ability, as well as time- or sensor-controlled cutting.

Hitachi Power Tools    Norcross, GA 30093

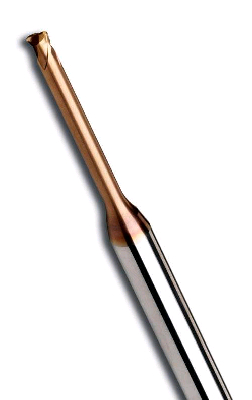

Jul 19, 2007 Available in 0.2-3 mm diameters, EPDR Corner Radius End Mills provide high-speed milling of deep rib grooves, slots, and corners and are suited for die and mold applications. Compound neck shape optimizes breakage resistance and suppresses chatter, while 1.5-6° back taper on peripheral edges allows mills to avoid contact with workpiece. TH Nano-Composite coating, consisting of composite layers of nano-crystal material, provides hardness and heat resistance.

AGI - American Grippers Inc.    Trumbull, CT 06611

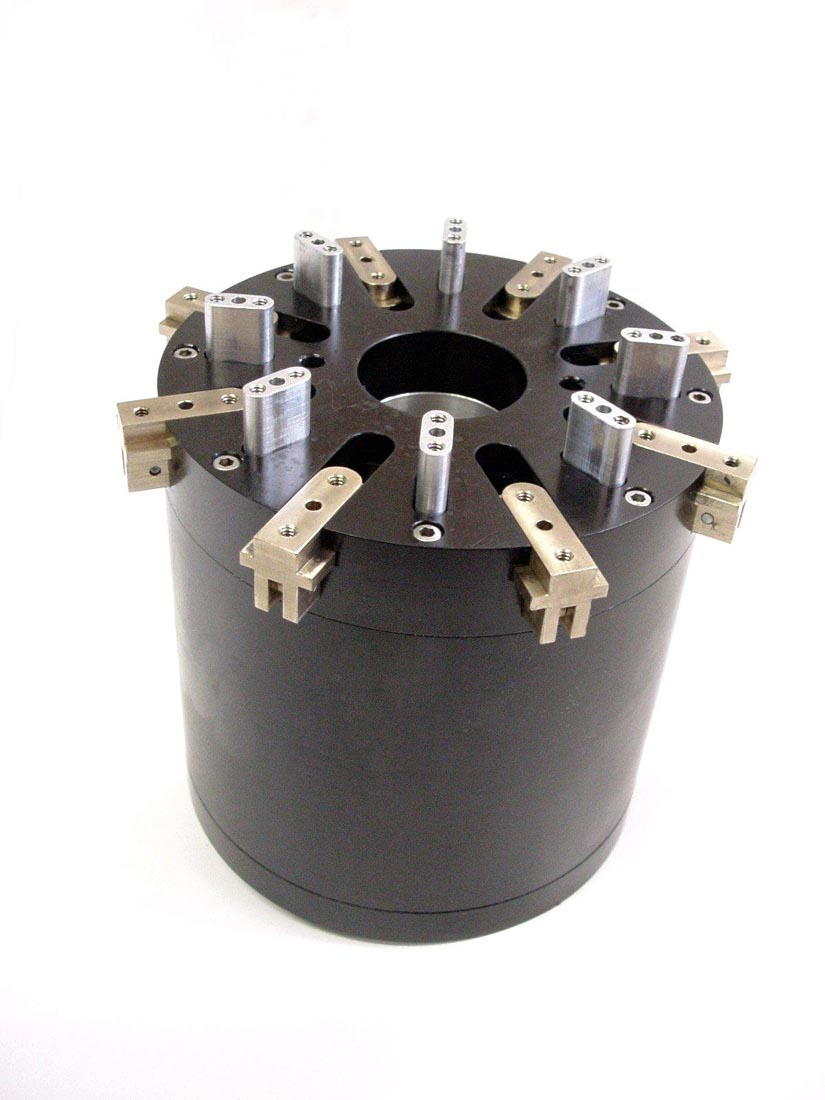

Jul 19, 2007 Able to spread and place up to 12 in. ID seals, AGP-8-OR facilitates part ejection and part seating. Pneumatic parallel gripper offers independent spreading and ejector movements and has 1.5 in. dia through hole. It can be tooled to accommodate all types of rings from .5-12 in. ID, and end of stroke sensing is available. While 8-jaw AGP-8-OR measures 5 in. dia x 5 in. tall, 6-jaw version (AGP-6-OR) measures 2.5 in. dia x 2.7 in. tall and is suited for handling up to 3 in. ID seals.

Datum Point Tool, Inc    Troy, MI 48098
Jul 19, 2007 Radstar(TM) Spot Drill features 1 in. wide insert that fits into 1 in. dia holder, allowing user to spot hole up to and including this size. Carbide inserted drill is available with inserts of 90, 118, 120, 135, and 140º drill points, which all fit the same holder. Also fitting the same holder, 30º chamfer insert for milling is available.

Datum Point Tool, Inc    Troy, MI 48098
Jul 19, 2007 With Tight-Fit ¾ in. Series, users can corner round into tight areas, such as 90° inside corners. Tools can also be used to put radius on edge of small holes or around entire surface of slot. Available with TiALN coating or uncoated, units come with one holder and 4 radii inserts including 1/32 in., 1/16 in., 2 mm, and 1/8 in.

Datum Point Tool, Inc    Troy, MI 48098
Jul 19, 2007 Radicator(TM) inserted carbide back draft milling cutter features 1 in. dia tool holder available in 6, 8, 10, and 12 in. lengths. TIALN-coated or uncoated inserts are offered double-sided for profile work or tapered walls, and single-sided for cutting straight walls. They are available with corner radii of 1/32, 1/16, 3/32, 1/8, 5/32, 3/16, 7/32, and ¼ in.

Almco, Inc.    Albert Lea, MN 56007 2751
Jul 18, 2007 Providing manual separation of metal parts and abrasive media at conclusion of deburring process, VibeMaster VM-3, VM-5, and VM-10 offer tub capacities of 3, 5.3, and 10.6 cu-ft, respectively. They are equipped with extended screen deck and thick, molded polyurethane-lined bowl for protection against part impingement. Additional features include variable adjustable amplitude, ac variable frequency drive, and optional compound pump.

Intertech Worldwide Corp.    Boca Raton, FL 33431 5187

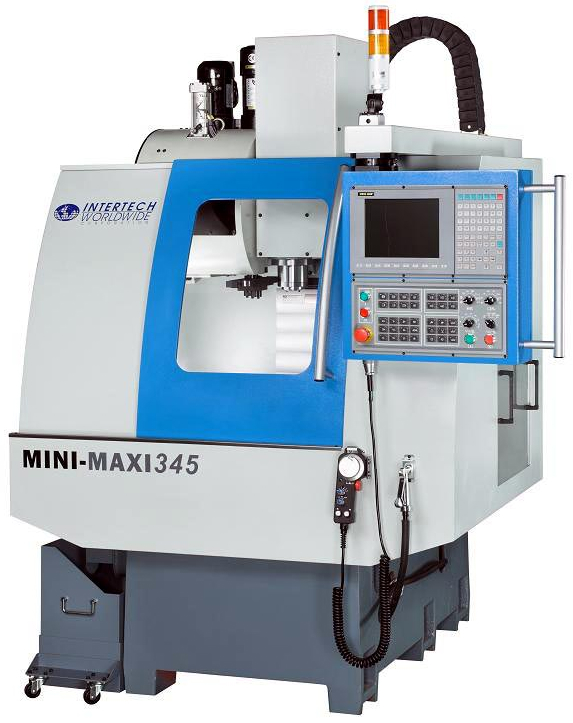

Jul 17, 2007 Built with cast-iron machine base and full splash safety guarding, MiniMAX 3-, 4-, or 5-Axis machining centers offer X/Y working cube of 17.7 x 13.7 in. and standard table size of 21.6 x 11.8 in. Solutions come with standard 12,000 rpm BT30 spindle and 10-tool ATC featuring 6 sec change speed, but 24,000 BT40 spindle and 20-tool arm ATC with 1.5 sec change are available. Capable of 6-axis simultaneous interpolation, PC Control stores up to 128 programs, regardless of length.

Norwood Marking Systems, A Div. Of ITW    Downers Grove, IL 60515
Jul 17, 2007 Designed for plastic, paper, and aluminum bags, off-line NGT Series offers clock and calendar functions as well as serialization, enabling systems to print barcodes, logos, date/time, and batch information directly on bags. Largest model, NGT 8, comes in continuous or intermittent versions that can print up to 8.4 x 20 in. at speeds up to 9.8 ips. Integrated Ethernet card allows access to PC or network, which enables remote operation, monitoring, and diagnostics of print operation.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Jul 16, 2007 Suited for maintenance and repair operations, Model DC415KL can cut door hardware and locks, old anchors, tile, electrical cable, and rusted fasteners. It can also be used to finish ornamental and handrail welds, and prepare for several applications such as rail cable repair, remote cutting and welding, and mounting tabs. Features include Quick-Change wheel release system, protected spindle lock button, jam-pot, low profile gear case, and paddle switch with lock-off system.
