CGW, Camel Grinding Wheels, USA    Niles, IL 60714
Sep 10, 2007 Made from premium zirconia grain and X-weight cotton backing, Z-Flex flap discs are engineered for quick grinding on contoured work pieces such as metal railings and tubes. Flexible products fracture easily in order to promote optimal cutting and lifespan. Stocked in 4½ in. dia, 12 flap discs are available in 40, 60, and 80 grit sizes. They come in type 27 or type 29 shapes with either 7/8 or 5/8-11 in. arbor holes.

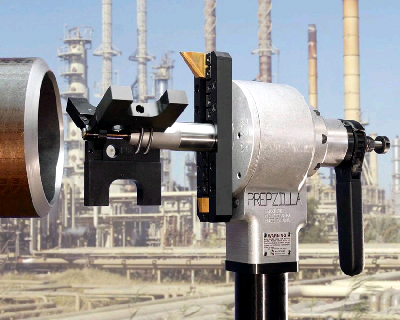

Esco Tool    Medfield, MA 02052
Sep 07, 2007 Featuring one mandrel and 8 sets of interchangeable clamps, Prepzilla MILLHOG® I.D. Clamping End Prep Tool provides single point attachment and can produce preps on all wall thicknesses at any angle. Suited for Super Duplex stainless steel and other alloys, tool has direct-drive gears supported by dual opposed tapered roller bearings, and heavy-duty 2 hp pneumatic motor. It is supplied as complete kit with clamp ribs and pads, hose with filter, lubricator, and metal carrying case.

MC Machinery Systems    Wood Dale, IL 60191
Sep 06, 2007 With resonators available in 4,000 and 6,000 W, NX series features structural configuration that allows optimal G-force and height sensor that promotes accelerated cutting. Also available, 4-axis Waterjet Suprema(TM) series features Intelligent Tapering Control software that automatically corrects natural tapering of cut. CNC control inclines water jet head up to ±2° while pointing jet towards cutting direction. Both series are both operated via Mitsubishi 700 Series Control.

Extrude Hone Corp.    Irwin, PA 15642
Sep 06, 2007 Designed for general manufacturing cells and small or specialty manufacturers, single station Thermal Energy Method(TM) (TEM(TM)) S-250 machine can integrate into lean manufacturing environments. Depending upon component size, compact unit can process million parts or more per yr and can handle small batch or mass production runs with average end-to-end cycle times of 60 sec. It also features computer controls for fine-tuning of process parameters.

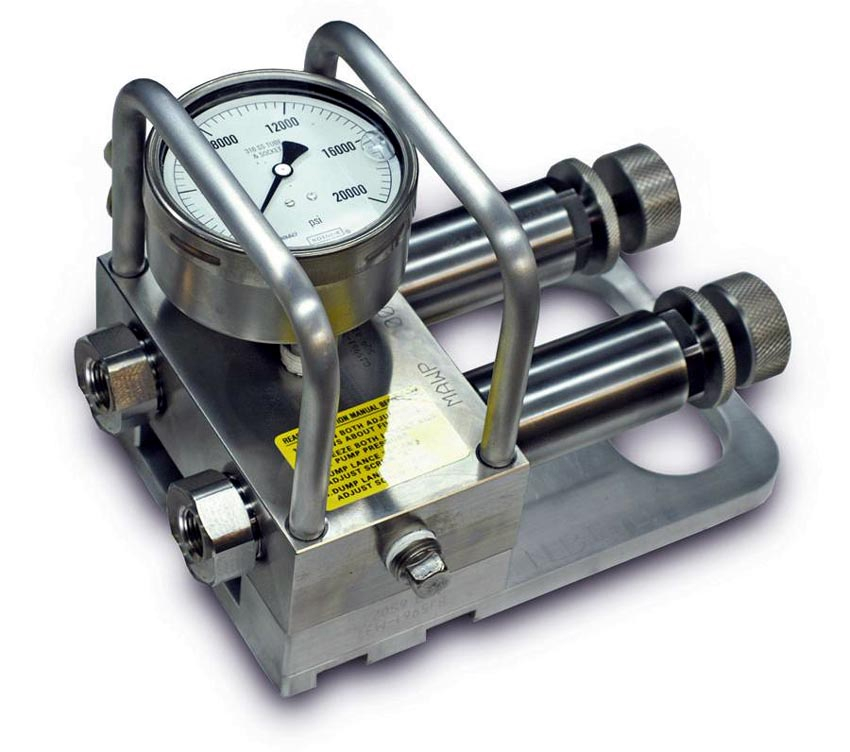

NLB Corporation    Wixom, MI 48393 2824
Sep 06, 2007 Designed for operating pressures from 4,000-15,000 psi and flows up to 30 gpm per side, Model MGV15-3000 comes with disposable screw-in cartridge seal that can be replaced at job site in less than 5 minutes. It comes with mounting plate, guard, pressure gauge, and NPT couplers for inlet/outlet connections, and can be used with any dump-style water jet lance. Each operator independently controls loading and dumping of its own lance, and nozzles in lances can be of different sizes.

ARPAC    Schiller Park, IL 60176
Sep 06, 2007 Designed to minimize risk of damage from dust and water, COVER-PAL 6000® Stretch hood pallet covering system wraps pallets at speeds up to 140 pallet/hr. Transparent pallet cover enables labels to be read without removing film and enables brand messaging to be printed directly onto film. Providing 5-sided coverage without need for top sheet, COVER-PAL 6000® Stretch is suited for products stored in cost clubs, home centers, construction sites, and freight centers.

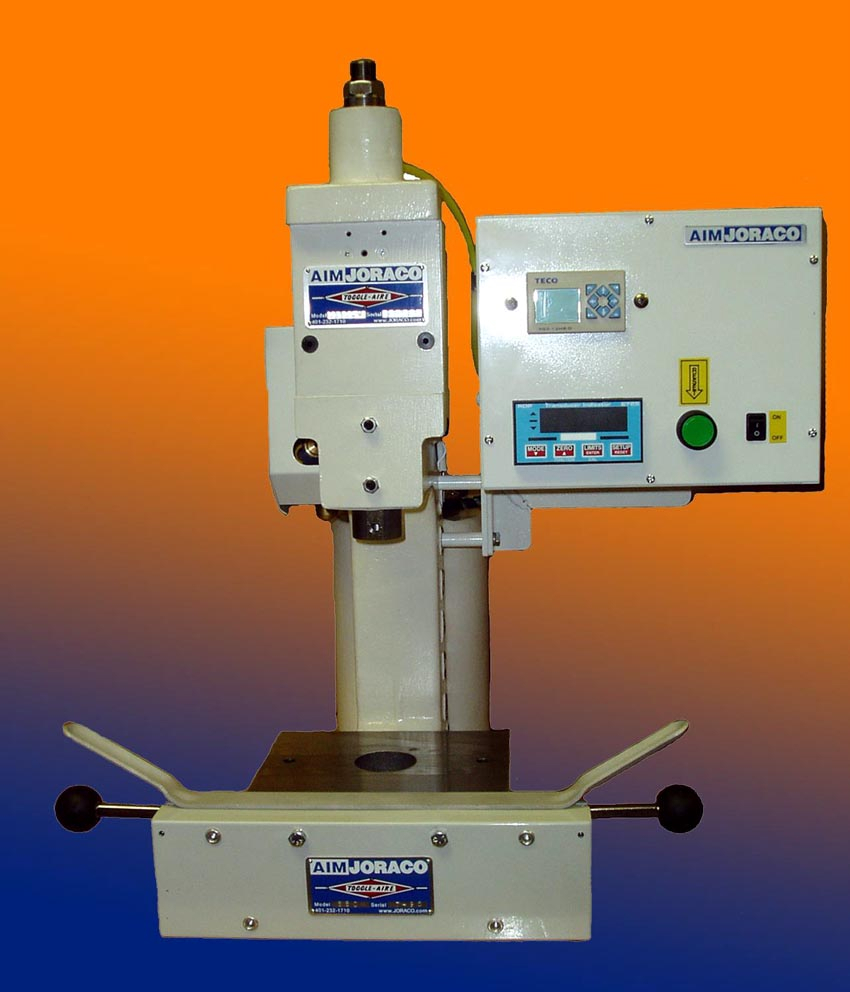

AIM Joraco, Division of Automated Industrial Machine, Inc.    Smithfield, RI 02917
Sep 04, 2007 Toggle-Aire® presses combine mechanical advantages of levers and toggles to produce ram force that builds as it reaches bottom of its stroke. Providing force monitoring, process controls can display ram position to ±0.0005 in. and force to ±0.05% FS as well as link to PC for real-time plotting and graphing. Users can record all press operations via process controls, which promote lot-to-lot manufacturing consistency and can incorporate range of display and signal conditioning devices.

Fancort Industries, Inc.    West Caldwell, NJ 07006
Sep 04, 2007 Featuring 3 in. stroke, Model BP-500 has adjustable column with 11 in. of throat adjustment. It comes with filter/regulator and threaded male cylinder for tool attachment. Base has keyway for mounting of tools and 2 hand safety controls. Measuring 9 x 10 x 16 in., press is constructed with heavy-duty aluminum base and head. Several types of tool attachments are available, including horseshoe collar and T or round collar.

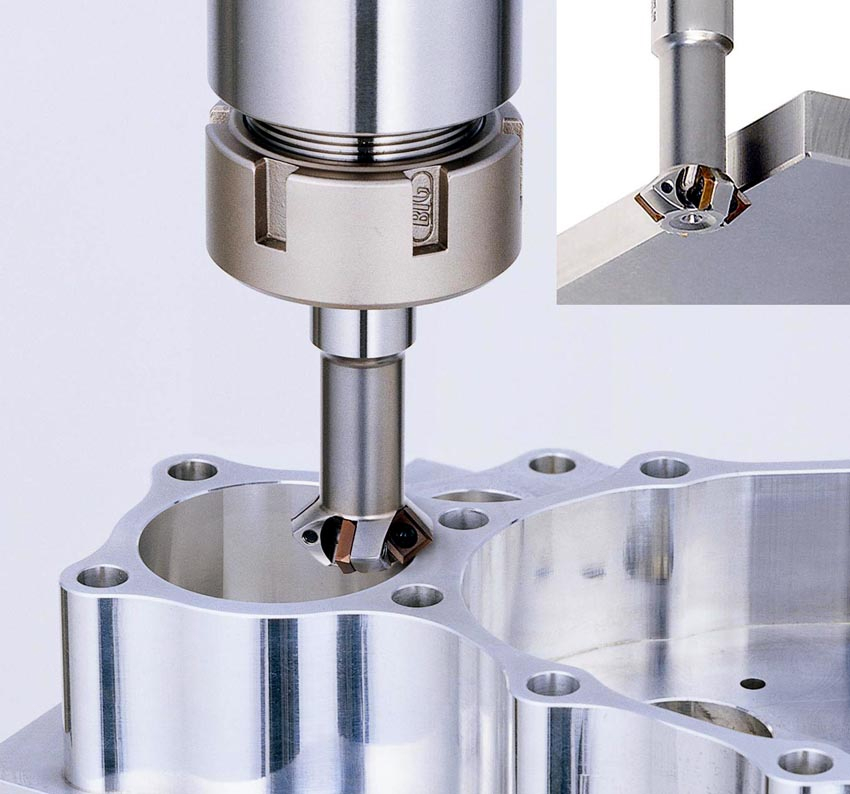

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Sep 04, 2007 Available in single- and 4-insert designs, C-Cutter Mini ultra high feed chamfer mill offers chamfering, high speed back chamfering, and face milling. Single insert design utilizes .197 in. square insert with 4 cutting edges for smaller 45° chamfers and slightly larger insert for 30 and 60° chamfers, while 4-insert design permits 45° chamfering for .433-1.654 in. dia. Face milling is done with 45° chamfering type with .394 in. square insert.

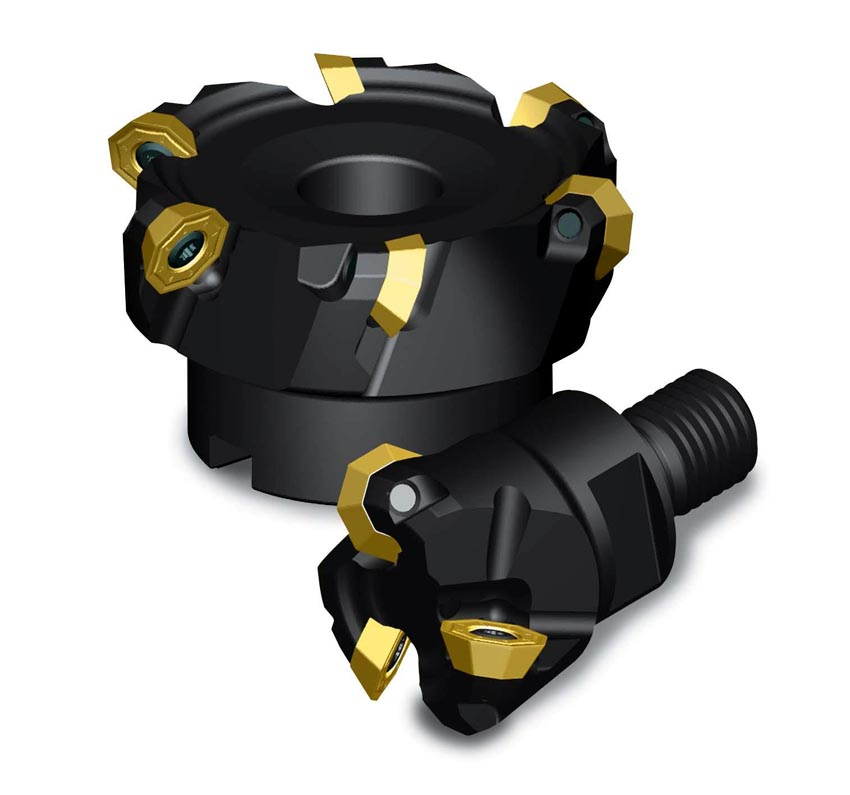

Kennametal, Inc.    Latrobe, PA 15650-0231
Sep 04, 2007 Engineered to be used with single-screw clamping system, 45° lead face KSOM Clampless Cutters are available in 1.25-6 in. dia with up to 0.197 in. depth-of-cut capability. They feature steel body with 8 tungsten carbide cutting edges, 6 or 7 mm inserts, and through-coolant capability. Suited for rough-milling as well as all common milling applications, cutters are offered in medium- and fine-pitch styles with 4 different geometries and 6 specific grades.

Makino Machine Tool Co.    Mason, OH 45040 9695
Sep 04, 2007 Suited for complex parts up to 5,300 mm dia x 3,000 mm tall, MCF Series includes 4 sizes of machines with XYZ travels from 3,550 x 1,800 x 2,000 mm to 5,050 x 2,500 x 3,000 mm. Pallet working area ranges from 2,000 x 1,600 mm to 4,000 x 2,000 mm, and max workpiece dimensions vary from 3,500 x 2,000 mm to 5,300 x 3,000 mm (diameter x height). Built with 18,000 rpm spindle, machine features feed rate up to 16 m/min and utilizes Geometric Intelligence.

Tellabs, Inc.    Naperville, IL 60563
Aug 31, 2007 Tellabs® 7100 optical transport system (OTS) combines unified SONET/SDH and native Ethernet switching fabric, along with Ethernet aggregation capabilities, to enable service providers to deliver optimized packet-based Ethernet services. Carrier Ethernet platform can deliver all types of transport services - ROADM, Carrier Ethernet, SAN, video, and SONET/SDH - and minimizes service provider procurement requirements for stand-alone Ethernet switches and MSPPs.

Rex-Cut Products, Inc.    Fall River, MA 02720
Aug 30, 2007 Layered with non-woven synthetic fiber surface conditioning materials, Rex-Cut® Megabrite T27 Flap Discs expose fresh material as they wear. Units are rated for 13,300 rpm, but provide optimum performance with minimum heat at 6,000 rpm. Available in 4 ½ and 5 in. dia sizes with 7/8 in. holes or 5/8-11 adapters, discs are suitable for cleaning, deburring, blending, and finishing stainless steel, aluminum, and other metals. Color-coded coarse, medium, and very fine grades are offered.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
Aug 30, 2007 Featuring 3-axis, cross-flow resonator design, NX series allows for G-forces of up to 4 Gs, and eliminates need for quartz tubes and turbine blower systems. Dedicated Nano technology ensures high-precision machining, while Diamond-Path technology maintains consistent beam quality by using constant beam length system and provides cutting stability at speeds up to 1,150 ipm across all processing areas. Unit is controlled on a 64-bit, PC-based 15 in. touch screen display to simplify operation.

OSG Power Tools    Bensenville, IL 60106
Aug 29, 2007 Capable of cutting variety of materials such as copper, stainless steel, PVC, and electrical conduit, Model TC-1 features self-centering drive mechanism for vibration-free operation. It includes see-through window for on-mark cutting alignment, clear safety guard for user's protection, replaceable chip-less cutting blade, and horseshoe-shaped cutting head for placement on stationary tube.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Aug 29, 2007 Respectively equipped with 3/8, ½, and ½ in. single sleeve ratcheting chucks, DC742KA/VA (12 V), DC730KA (14.4 V), DC720KA (18 V) drill/drivers, as well as DC725KA (18 V) hammer drill with ½ in. single sleeve ratcheting all metal chuck, are ergonomically designed for balance, comfort, and control. Products range in length from 7.8-8.7 in., weigh 3.8-4.9 lb., and come with LED work light to promote visibility in tight spaces. Each tool has 17 clutch settings and dual-speed operation.

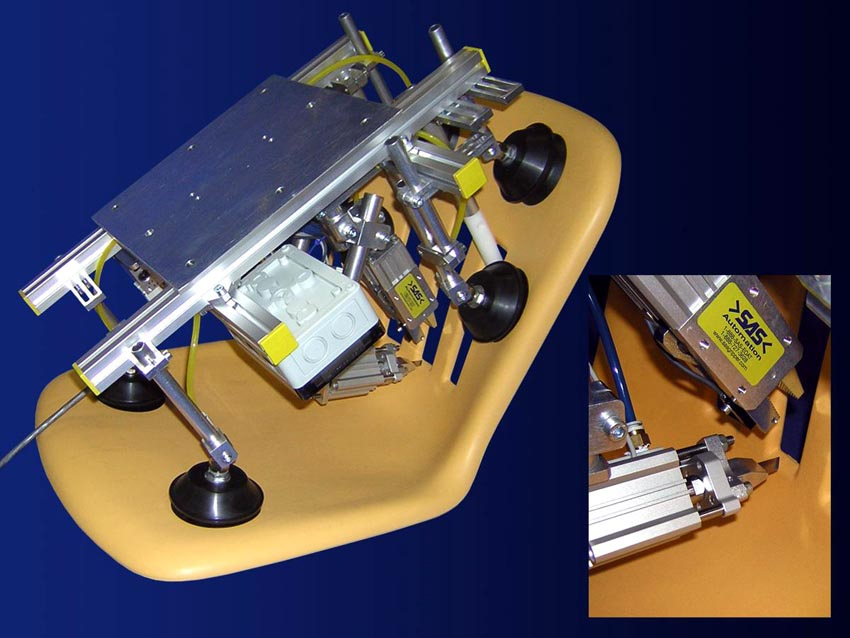

SAS Automation, Ltd.    Xenia, OH 45385
Aug 24, 2007 Equipped with razor sharp blade positioned at 45° angle, Guillotine Gate Trimmer can shear sprue gate in hard to reach narrow places. Equipment holds blade on special cylinder that can be mounted at many angles to actuate gate cutting process. Actuated guillotine motion from cylinder allows precision cutting from awkward locations.

New Vista    Baltimore, MD 21205
Aug 23, 2007 Thread Verification Unit enables robot-guided inspection of internal threads in production parts. This servomotor-powered, all-electric unit checks thread size, depth, and quality by powering gage probe into and back out of thread. Offered in 3 sizes to inspect threads from 3-50 mm (No. 4 to 2 in.), solution performs checks successively. Each inspection takes 1 sec; GO gaging, NO GO gaging, and combination gaging are all possible.

Hitachi Power Tools    Norcross, GA 30093
Aug 22, 2007 Equipped with 15 A motor, 7 in. Model G18SCY and 9 in. Model G23SCY deliver no-load speed of 6,000 rpm. User Vibration Protection technology minimizes full-load tri-axial vibration, reducing end user fatigue. Tools have vibration absorbing main handles, which are connected to motor housing with moving joint mechanisms and padded dampers. To make grinders comfortable for both right and left handed users, on/off switches are center mounted on top of grinders.

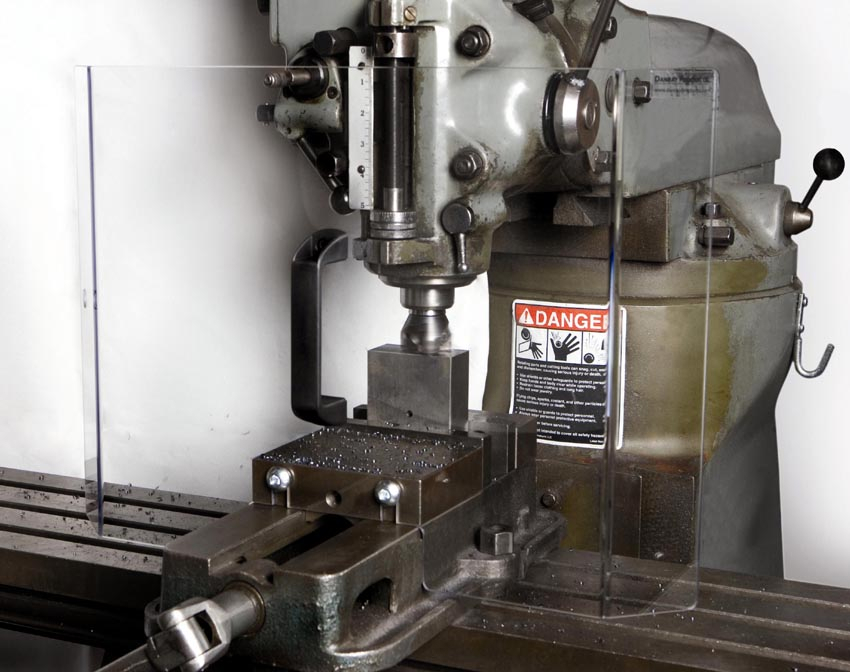

Danray Products LLC    Rockford, IL 61107
Aug 22, 2007 Model SHD-2315MP shield protects personnel from point-of-operation hazards, and flying chips, sparks, coolant, and other particles. It has vise cutout and comes with screws to be attached to standard 6 in. vise. Product complies with OSHA 29 CFR 1910.212 and ANSI B11.8 safety standard for milling, drilling, and boring machines. Shield is furnished with storage hook and fasteners for storage on machine, wall, or post.
