Oce'-USA, Inc.    Chicago, IL 60656
Sep 19, 2007 Single-pass VarioPrint® 6000 series comes with software that promotes automation, workflow management, and interoperability. Existing applications can be directed to system without workflow interruption or reprogramming, and architecture allows for various PDL/ticket combinations. Print production, organized based on scheduling and customer requirements, supports up to 10 customized print queues. Multiple jobs can be bundled and printed as one set.

Oce'-USA, Inc.    Chicago, IL 60656
Sep 19, 2007 Continuous-feed VarioStream® 9510, 9610, and 9710 respectively run 1,136, 1,364, and 1,515 US letter-size images/min. Able to incorporate up to 2 additional CustomTone® colors, systems utilize Job Appropriate Color® technology to balance color and speed for each job. GraphicArts option optimizes exposure and dot modulation for printing graphics and images. Able to be equipped with pre- and post-print finishing equipment, systems offer full UP3I® support and can print on any stock.

Oce'-USA, Inc.    Chicago, IL 60656
Sep 19, 2007 From prepress to finishing, Oce Streamlined Workflow facilitates processes associated with rigid substrates and flexible display graphics media. Digital system consists of Zund digital flatbed cutting table up to 128 x 118 in., appropriate tools, as well as software for preparing and interpreting cutting data. System can be used to finish jobs such as contour-cut point-of-purchase displays, production-quantity decals, and structural projects.

Rex-Cut Products, Inc.    Fall River, MA 02720
Sep 18, 2007 Capable of producing 32 RMS finish on stainless steel and non-loading on aluminum, Cut-N-Finish(TM) Discs are constructed of multiple layers of cotton fiber, fully impregnated with aluminum oxide abrasives, and pressed and bonded together to constantly expose fresh abrasives as they work. Flexible bond can follow contoured surfaces for light grinding and blending of MIG and TIG welds. Offered in 4, 4½, and 7 in. dia, discs come in A24, A36, A54, and A80 grit sizes.

Logansport Matsumoto Co.    Logansport, IN 46947
Sep 18, 2007 Available in carbide or half carbide, Neidlein Ultra Live Centers offer .00020 in. TIR for lathe work and guaranteed .00012 in. TIR for grinding. Bodies and bearings are permanently sealed and lubricated for maintenance-free operation. Full size frontcap protects high-speed seals, which in turn protect centers from contaminants and coolant. Centers are suited for operations with face drivers and other workholding devices, heavy depth of cut lathes, and high-precision grinders.

Cincinnati Incorporated    Cincinnati, OH 45211 0111
Sep 18, 2007 Equipped with Fanuc fast-axial flow resonators, Model CL-840 processes mild steel up to 1 in. and stainless steel and aluminum up to ½ in., while Model CL-825 cuts mild steel up to 5/8 in. and stainless and aluminum to ¼ in. Dual-pallet design allows one pallet to be unloaded/reloaded while second is being processed. Delivering dynamic positioning accuracy of ±0.001 in., linear motor drive provides accelerations exceeding 2.0 G and head positioning speeds to 10,000 ipm.

Emuge Corp.    West Boylston, MA 01583-2121
Sep 18, 2007 Miniature Solid Carbide Thread Mills are designed for machining materials such as stainless steels, titanium, K-monel, hastelloy, and inconel. Available in 1- and 3-flute versions, with latter suited for high-volume output needs, design eliminates possibility and consequences of tap breakage. There is no need for hand tapping during full bottom threading applications, and bottom threading can be performed to within 1 pitch. Thread length varies from 0.125-0.328 in.

SPEX SamplePrep LLC    Metuchen, NJ 08840
Sep 18, 2007 K1 Single Sample Electric Fluxer is one-position unit suited for research labs where sample preparation is small to moderate. It can overlap processing of 2 samples and allows throughput of 5-7 samples/hr. Designed for labs that process multiple samples, K2 Five Sample Electric Fluxer processes 20-25 samples/hr. Both are equipped to prepare disks and solutions for XRF, AA, and ICP and also feature built-in recipes for various substances.

Unitek Benchmark    Goffstown, NH 03045

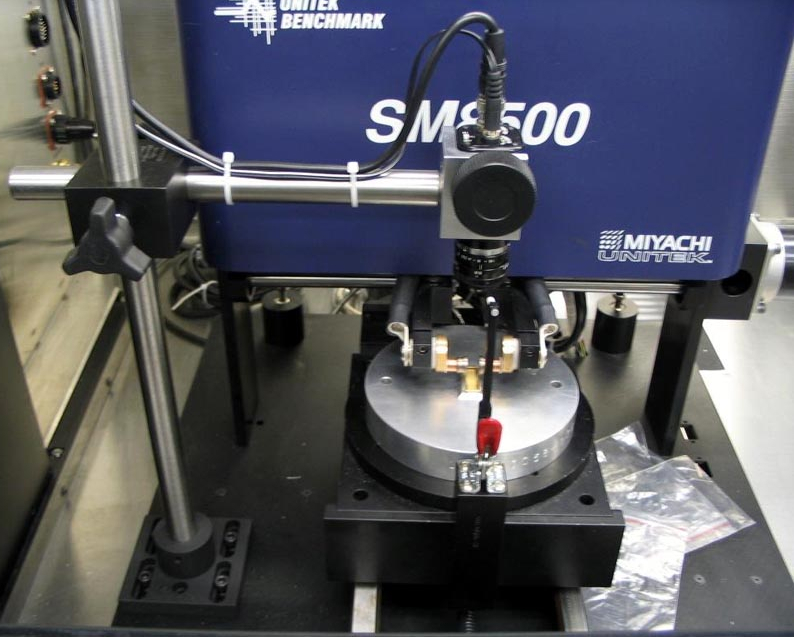

Sep 17, 2007 Model SM8500, available with camera and monitor, optimizes alignment of manually placed lids. When mounted to seam sealer, camera captures image of lid and mating part to form completely accurate lid tacking and sealing system. Lid hold down fixture holds lid in place during tacking (after alignment), and camera zoom facilitates setup for different lid sizes. Placed inside or outside glovebox wherever it is most convenient for user, monitor displays clear black and white images.

Dawley, J. A. Manufacturing Co.    Waterloo, NY 13165

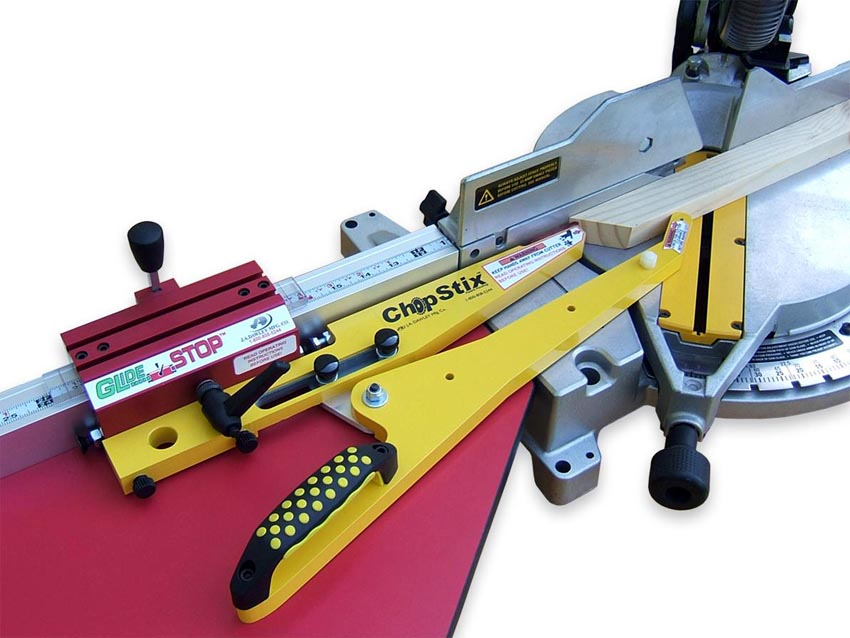

Sep 17, 2007 GlideStop ChopStix is an accessory to GlideStop stop system that can be temporarily or permanently added without need for tools. It includes holding arm that requires placement of user's hand at safe distance from path of blade or cutter during machining operation. Featuring adjustable range to hold work pieces of varying length, arm is constructed of plastic components and will not cause damage in case of accidental contact with blade or cutter.

Republic Lagun Machine Tool Co.    Carson, CA 90745

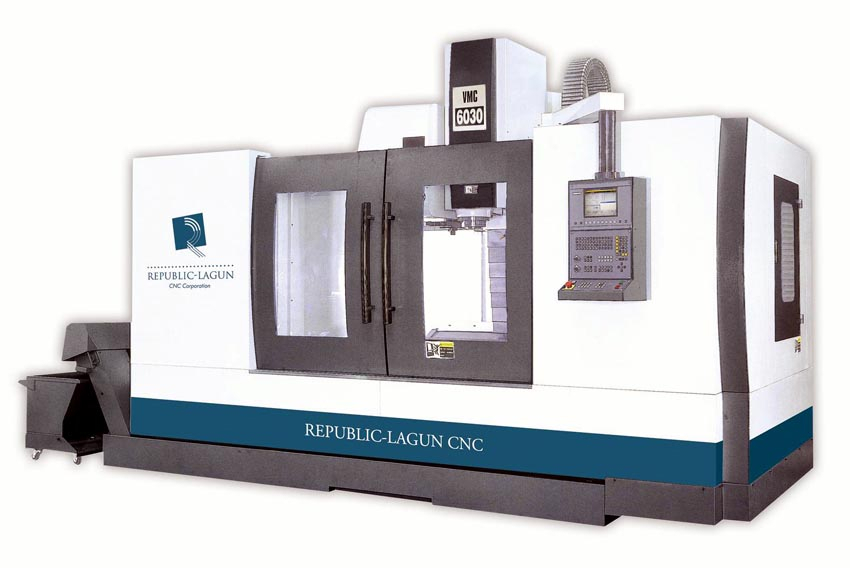

Sep 14, 2007 Equipped with Heidenhain® glass scales for X and Y axis positioning, 33,069 lb VMC 6030 has 4 rectangular square box ways to provide contact over large surface area. Machine has 4,500 lb table load capacity, 7,022 lb peak XYZ axis thrust, 1,175 ft-lb peak spindle torque at 173 rpm, and 1,200 ipm X- and Y-axis traverse. It includes pretensioned ball lead screws, double chip conveyor, wash down system, and spindle chiller system with 1.32 gal capacity.

RIDGID    Elyria, OH 44035
Sep 14, 2007 Equipped with ratcheting mechanism, Model RC-1625 cuts plastic pipe and tubing such as PVC and CPVC, as well as PEX, polyethylene, polybutylene, and rubber hose. Quick-change blade pin enables users to change blades by hand in seconds, while assuring there will be no lost clips or screws. Constructed of lightweight aluminum, RC-1625 has ergonomic handles for comfortable grip and thumb latch that holds cutter closed, protecting blade when cutter is not in use.

Standard-Knapp, Inc.    Portland, CT 06480

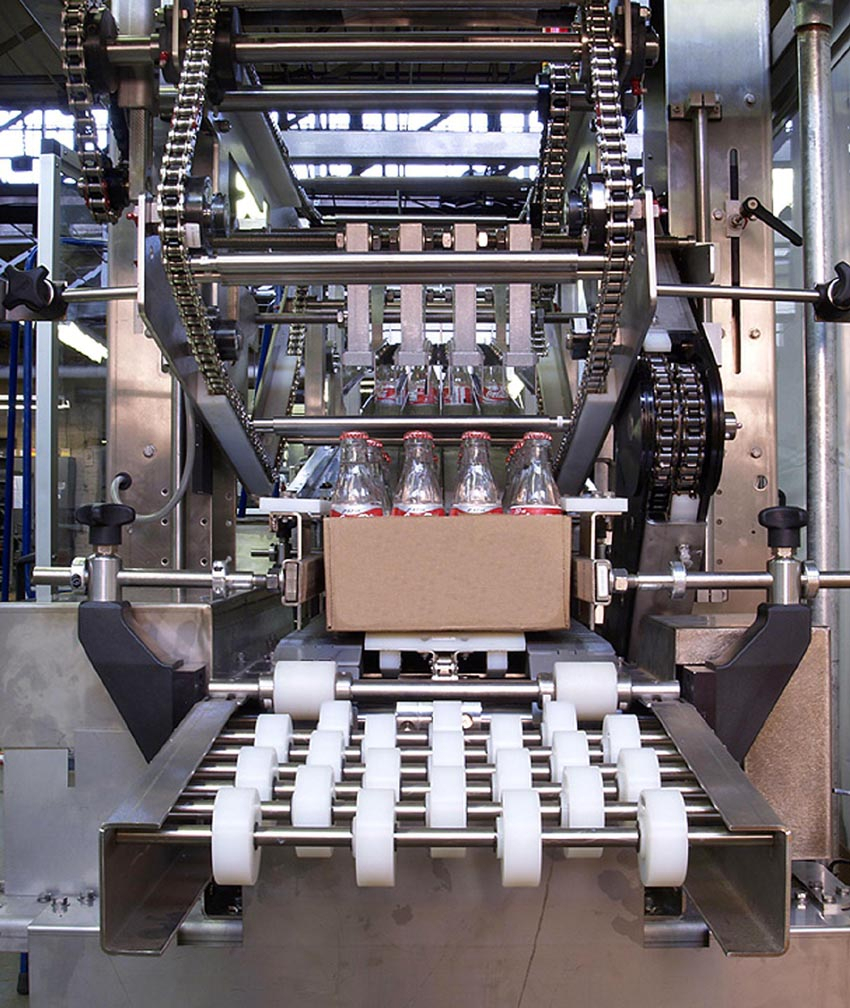

Sep 14, 2007 Designed for packing carbonated, non-carbonated, and hot filled PET bottles into corrugated trays or plastic shells, Model 396 Positron(TM) Case Packer is equipped with Overhead Flight Grouper that provides accurate, positive product control. Continuous motion ensures gentle product handling, while PLC-controlled variable frequency drives automatically adjust to changing line speeds. Powered by two 1 hp motors, unit features stainless steel frame, shafts, and hardware.

Merrow Sewing Machine Co., The    West Wareham, MA 02576
Sep 12, 2007 Specifically engineered for wet, corrosive environments, 70-D3B2-CNP (Nickel-Plated) performs end-to-end continuous loop butt-seaming process. Nickel coating, applied evenly throughout surface of frame as well as each individual part, provides uniform protection against corrosive substances.

PolyScience Div. Of Preston Industries Inc.    Niles, IL 60714 4588
Sep 12, 2007 Featuring adjustable temperature, pressure, and flow rate alarms, 1.5 ton Refrigerating/Heating Chiller provides heating and cooling for semiconductor fabrication processes. Integral 7,500 or 9,000 W heater controls temperature during vacuum chamber or reaction vessel heating, soaking, and cooling cycles. From 5 to 90°C, with ±0.5°C temperature stability, chiller provides up to 6,328 W of cooling. Its ¾ or 1 hp turbine pump accommodates various process flow and pressure requirements.

LENOX    East Longmeadow, MA 01028
Sep 12, 2007 With backing steel preparation and precision cutting edge, Q Performance Solution Series resists breaking. Featuring deep gullet design and extreme positive rake tooth form, QXP Series is intended for solids of mild to moderate machinability such as aluminum, carbon steel, alloy, steel, stainless steel, and bearing steels. Series QGT is developed for solids of moderate to difficult machinability like aerospace alloys, titanium alloys, tool steels, and nickel-based alloys.

REP Corporation    Bartlett, IL 60103-8146

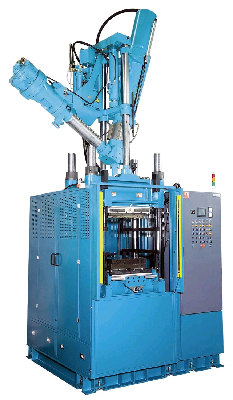

Sep 11, 2007 Offering shot capacities from 34-216 oz, Vertical Injection Presses are based on V-head design that separates plasticizing and injection functions. Platen sizes range from 13.78 x 15.75 in. to 31.50 x 31.50 in., and largest press in series requires only 82.68 x 102.36 in. of floor space. Control cabinet is located in close proximity to work area for access and viewability.

Behringer Saws, Inc.    Morgantown, PA 19543

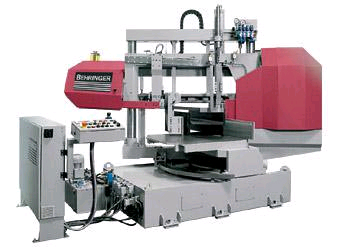

Sep 11, 2007 Featuring miter range of 60° to left and 45° to right, semi-automatic Model HBP-410/723 G has biased saw blade and offers cutting capacity up to 27.5 x 15.7 in. for profiles. Machine utilizes frequency-controlled 5.4 hp main drive motor with variable speed range of 65-460 sfm. Hydraulic hardened clamping jaws ensure steady and precise cuts at all speeds. Measuring 73 x 123 x 103 in., bandsaw is built with cast iron frame as well as heavy-duty guides and wheel bearings.

OvisLink Group    Hsin-Tien City, Taipei   Taiwan
Sep 11, 2007 Providing coverage to 7 km, Model WLA-5200AP features 7 wireless modes all in one unit. AP Mode connects all stations to wired network, while Bridge Mode connects 2 LANs together, and Client Mode turns device into wireless card to connect with remote AP. Additional modes include WDS Repeater, Universal Repeater, WISP Mode, and WISP+Universal Repeater. Access point supports WEP encryption, WPA, and WPA2, which ensure data and privacy are properly protected.

Ethernet Direct    Newburyport, MA 01950
Sep 11, 2007 Featuring password-protected management access as well as support for inactive timeout and loop back mode, BMM-101 provides Modbus communication between Ethernet and serial Modbus devices. With it, Modbus serial slave devices can be incorporated into existing Modbus TCP network, and Modbus TCP slaves can be made accessible to serial masters compatible with Modbus network. Solution supports 10/100 Mbps Ethernet, RS-232/422/485 serial interfaces, as well as LAN and WAN communications.
