Lantech Inc.    Louisville, KY 40299-2316
Apr 10, 2008 Available for retrofit on straddle stretch wrapping systems, Pallet-Grip® locks load to pallet with cable of film rolled into bottom wraps and placed below deck of pallet. System captures any style of pallet ranging from 4-6 in. high, while completely wrapping to top of load. By placing cable above fork-truck entry points, containment force is never compromised by tearing film with forks. Suitable for double stacking loads, Pallet-Grip helps prevent spillage and damage due to shifting.

Weldcraft    Appleton, WI 54911
Apr 10, 2008 Suited for Triad(TM) Tungsten Grinder, Cutting Holder accessory safely cuts 0.040, 1/16, and 3/32 in. diameter tungsten to fixed length of 15/32, 33/64, 19/32, and 43/64 in. Double-Decker Kit allows second, rough-finish grinding wheel to be attached to grinder. Second wheel is included in kit and is intended for scrubbing and/or preparing larger diameter tungsten (3/32 or 1/8 in.). To prevent tungsten contamination, protective Dust Cover attaches to grinding head.

Marvel Marking Products Inc.    Pittsburgh, PA 15203
Apr 10, 2008 Portable Model 5150 grit etching machine incorporates wide gun opening that can etch 17 character VIN number using ¼ in. high rubber numbers and letters inserted into fixture mounted on gun head. System comes with sandetcher, rubber numbers and letters, bottle of aluminum oxide grit, safety equipment, and 8 ft air hose. Model 5150 can also be fitted with fixture that holds rubber mask to create 3 x 1 in. marking area.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Apr 09, 2008 Able to handle .15-.30 mm wire diameters, CUT 20 is constructed with T-shaped base frame that permits loading of large and heavy workpieces. Compact and rigid structure, along with glass scale on X and Y axes, lends to positioning accuracy and repeatable results. Made network-ready via its Windows XP-based HMI, system utilizes Speed technology package that promotes performance for jobs with 1-3 cuts, achieving Ra .60-.35 µm surface finishes.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Apr 09, 2008 Suited for pharmaceutical researchers and manufacturers, GKF HiProTect provides fully integrated containment capsule filling system capable of processing potent substances. Design prevents contact between operator and potent substance, eliminating need for safety equipment, and its filling station processes powder, tablets, pellets, and liquids as well as combination formats. Other features include no-cap/no-fill function, check weighing system, and CIP system.

DATRON Electronic GmbH    Mühltal 64367  Germany
Apr 08, 2008 With set-up area of 1,910 x 1,950 x 2,065 mm, 3-axis M10 features work area of 700 x 1,000 x 240 mm. Portal machine has working table made of granite and spindle with HSK-E 25 interface turns at speeds up to 40,000 rpm. Consuming 4 kW under 80% load, it includes X/Y/Z probe, via which zero and reference points are automatically set up, and PC-based machine control with RAM, Ethernet, and USB interfaces.

Automation Engineering Incorporated    Wilmington, MA 01887
Apr 08, 2008 CMAT(TM) (Camera Module Assembly, Align and Test) systems use machine vision to actively align lens assembly in X/Y/Z axes and across corners in pitch and roll, achieving even focus across focal plane. Remote support capabilities, from diagnostics to process refinement and faultfinding, are based on Virtual Network Computing (VNC) technology. Flexible automation system enables production of different models on same equipment and production lines with minimal changeover requirements.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Apr 08, 2008 Weighing 6.8 lb, 4½ in. V28(TM) Grinder (0725-20) handles wide range of applications including cutting bolt, pipe, angle iron, and grinding weld beam. With 3.0 Ah, 28 V lithium-ion battery, it delivers 8,000 rpm and incorporates overload protection and soft start features. Large spindle lock allows for quick wheel replacement and 5-position tool-free guard facilitates adjustment. Battery fuel gauge indicates remaining run time. V28 Grinder is also available in kit.

Warsaw Machinery, Inc.    Warsaw, IN 46580
Apr 07, 2008 MBDs Model 4400 Robotic Bandsawing System integrates cutting productivity of vertical bandsaw with flexibility of 6-axis robotic arm. Equipped with end of arm tooling to grip material, robot moves material through bandsaw blade to create shape as designated by programmed path. This manufacturing cell delivers consistent feed rates and can also include other operations, such as drilling, routing, and sanding.

Schmidt Feintechnik Corp.    Cranberry Township, PA 16066-6415
Apr 07, 2008 Generating high force at end of stroke, SCHMIDT® ManualPress 311/PressControl 3000 System delivers press forces ranging from 100-2,700 lb. With programmable, electronic stroke lock and mechanical clutch, when preset user criteria are met, clutch engages and releases press ram and operating handle. System features micrometer fine adjustment, touchscreen display, menu-driven software, and overall working height adjustable from 1.97-5.50 in.

Union Process, Inc.    Akron, OH 44313
Apr 07, 2008 Suited for inks, coatings, and paints, production-sized DMQ-10 combines features of horizontal small media mill with circulation grinding. Operators can sample or add ingredients to premix tank at any time, and adjustable product discharge openings in screen accommodate grinding media from .3-2 mm. Along with heavy-duty media separator, mill incorporates indexed discs that provide uniform media distribution. Rail system facilitates maintenance and tank removal.

Klein Tools, Inc.    Lincolnshire, IL 60069
Apr 07, 2008 Designed with ½ in. universal shank to fit all common reciprocating saw tools, Great White® premium and standard reciprocating saw blades can cut through variety of wood, wood with nails, and thin or thick gauge metal. Premium reciprocating blades are 1 in. wide and come in blade lengths of 6, 9, and 12 in., while ¾ and 7/8 in. wide standard blades are available in lengths of 6, 8, 9, and 12 in., and can be used for different cutting applications.

Rondo Doge    Moonachie, NJ 07074
Apr 04, 2008 Made of stainless steel, microprocessor-controlled Rondostar 4000 features color touch screen with large symbols, 4 pre-set programs for booking and sheeting, and memory capacity of 100 programs. For security, programs can be saved on data storage medium. Width of tables is 640 mm, allowing machine to produce dough bands of 620 mm. Billets of up to 15 kilos and more can be processed. With automatic flour duster, dusting frequency and dusting width can be accurately set.

GBI Cincinnati, Inc.    Cincinnati, OH 45237
Apr 04, 2008 Revolution CV4020 is equipped with MTI CV control and has minimum block-processing speed of 50,000 blocks/sec in 8-axis simultaneous movement. It utilizes 80 internal high-speed buffers that continuously shuffle programming data through its software. Spindle operates from 1 to 999,999 rpm and system accommodates up to 253 tools per table. Machining center includes Ethernet, RS-232, and USB and can support up to 2 GB RAM and up to 200 GB hard drive.

CGW, Camel Grinding Wheels, USA    Niles, IL 60714

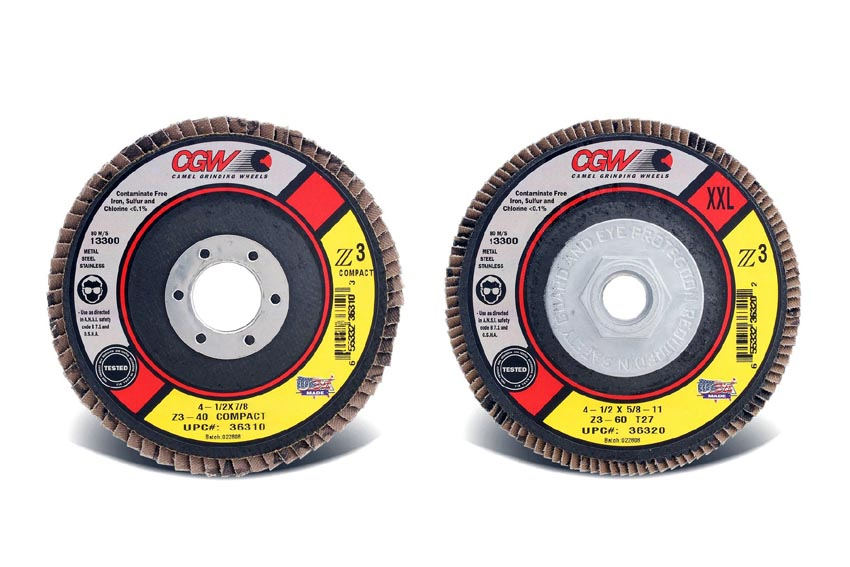

Apr 04, 2008 With polyester/cotton backing material, XXL Z3 and compact Z3 flap discs offer edge and angled work surface solutions. Available in type 27 or 29 shapes with either 7/8- or 5/8-11 in. arbor holes, XXL Z3 line of flap discs consist of 12 discs in 4½ in. dia and 40, 60, and 80 grit sizes. Featuring flaps compressed at 4° angle, compact Z3 line of flap discs include 6 discs and come in 4½ in. dia, 40-80 grit sizes, and 7/8- or 5/8-11 in. arbor holes.

CML USA, Inc.    Davenport, IA 52804
Apr 04, 2008 Suited for bending pipe, tube, squares, solids, and other profiles, as well as ferrous and non-ferrous materials ¼ to 2½ in., Ercolina® 050KD also accepts 2 axis A40/P positioning table for multiple/sequential bends. Heavy-duty gear case includes radii up to 11 7/8 in. centerline radius, and operator control programs bend angles to 180° with individual spring back setting. Unit features standard motor brake, swing away counter bending die vise, and hex mount tooling system.

Makino Inc.    Auburn Hills, MI 48326
Apr 04, 2008 Suited for high-speed hardmilling in materials at 50+ HRc, Model V33i vertical machining center has worktable size of 750 x 450 mm with associated travels of 650 (X) x 450 (Y) x 350 mm (Z) and can accommodate workpiece size of 750 x 595 x 250 mm. Spindle nose configurations are available in Cat #40, HSK 63A and 63F, HSK - E50 and HSK - E32 to support variety of tooling and applications. Hand-scraped guideways provide geometric tolerances and precise positioning and repeatability.

Schunk    Morrisville, NC 27560

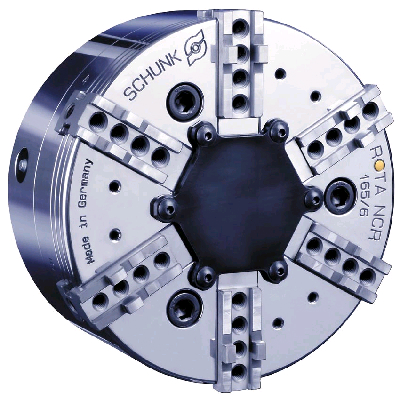

Apr 03, 2008 Suitable for clamping of thin-walled and easily deformed components, ROTA NCR 6-Jaw Power Chucks each consist of central chuck piston with 3 inner pendulums positioned at 120°. Each pendulum is connected to 2 base jaws, so workpiece is centered between 6 contact points, which can be adjusted in pairs. Offered in 165, 200, 250, 315, 400, 500, 630, 800, 1,000, and 1,200 mm sizes, chucks can be employed on virtually all lathes and are also available with centrifugal force compensation.

Northfield Precision Instrument Corp.    Island Park, NY 11558

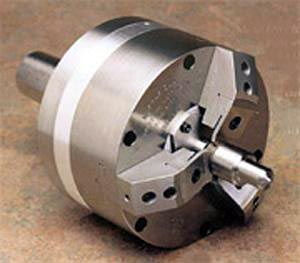

Apr 03, 2008 Model 620CB Air Chuck features precision MT-5 adapter and diesel fuel injection nozzles for OD profile grinding on Tschudin Anglehead grinder. Device has sub-jaws and carbide ball nose shafts mounted on No. 15 taper sleeves. Carbide shafts run concentric to 1/10,000 TIR. Pull down inserts repeat to 1/10,000 TIR and grip nozzle/center base and pull nozzle seat onto nose shaft.

Proxicast, LLC    Glenshaw, PA 15116-1936
Apr 03, 2008 LAN-Cell 2 3G router is available with Cell-Sentry(TM) watchdog application, which monitors cellular usage and alerts administrators via e-mail when user-defined threshold is reached. Firmware feature can also block additional cellular usage via hard not-to-exceed limits to avoid overage charges. Router includes 4 LAN, 1 WAN, and 1 serial ports along with 802.11 a/b/g Wi-Fi access point, full VPN end-point capabilities, military-grade encryption, and X.509 PKI certificate support.
