Techno, Inc. - CNC Router Systems    New Hyde Park, NY 11040

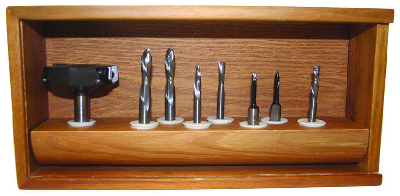

Feb 05, 2009 Suited for nested-based and cabinetry applications, Nested-based Tooling Kit offers component cutters designed to create interlocking shapes needed for cabinet-/drawer-making, surface spoil boards for accelerated table planning, and route through layered materials for increased surface removal. Specific tools include one 2½ in. Surface Cutter with replaceable inserts, two 3/8 in. Compression Bits, two ¼ in. Downcut Spirals, one ¼ in. Compression Bit, and two 5 mm Boring Drill Bits.

Express Imaging Systems    Seattle, WA 98144
Feb 05, 2009 HD Mini Photo Book System, comprised of MyBook software, Europa printer, Express Minibook Maker, custom hard covers, and Masterpress Stamping Machine, produces 4 x 5 in. format photo book with binding that lays flat for full bleed pages. Produced at rates from 5-15,000 pph, pages are 450 ppi silver halide HD prints(TM) bound into book block and manually cased into durable hard cover that can be customized with photo, color, and embossed text.

Stiles Machinery, Inc.    Grand Rapids, MI 49512

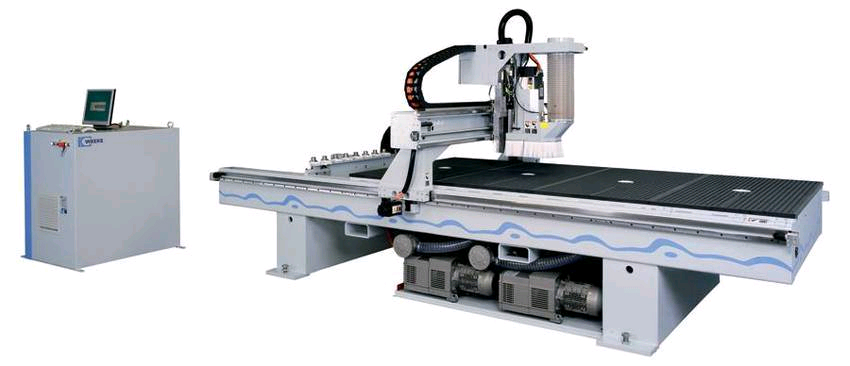

Feb 05, 2009 Available in 4 x 8, 5 x 10, and 5 x 12 ft table sizes, Vantech CNC Routers provide durable foundation to accommodate routers' high speed capabilities and ensure machine longevity. All models feature Woodwop software but can also integrate with other design software packages. Other features include Quik-Pod system for added flexibility, dual drive gantry, and pneumatic positioning pins.

Sandvik Coromant Co.    Fair Lawn, NJ 07410

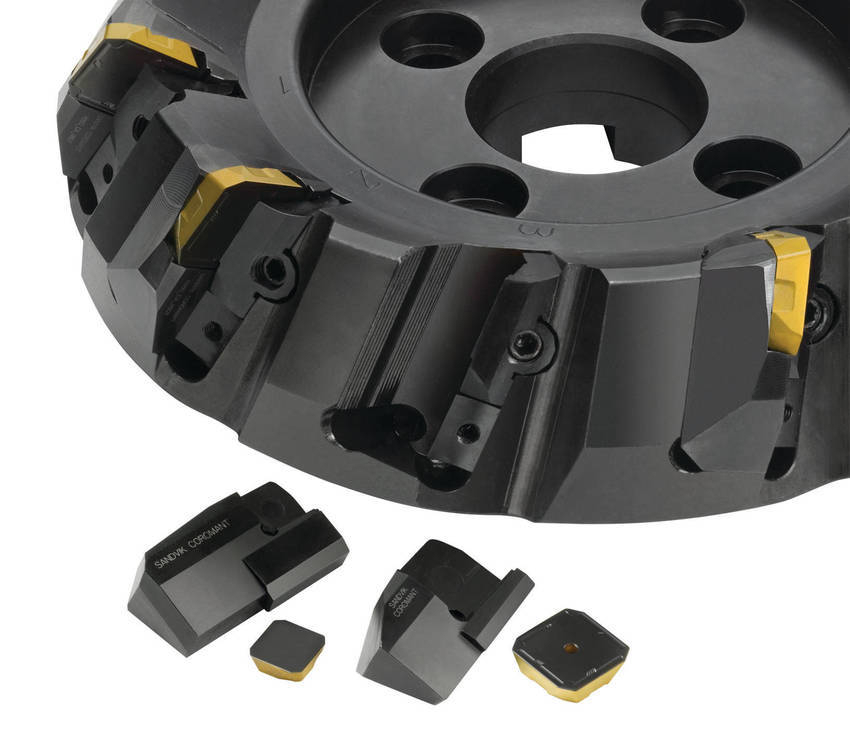

Feb 05, 2009 With maximum cutting depth of .709 in., CoroMill 360 features wedge clamped, quick-release inserts housed in unique exchangeable cassette system whose precise location ensures accurate cutting. Heavy duty milling cutter is available in 6-20 in. dia, in close and extra close pitch design, and Arbor and CIS Arbor shank styles. Inserts are available in .748 and 1.10 in., and can be removed with one turn of wedge screw.

Mitsubishi Heavy Industries America    Leetonia, OH 44431
Feb 04, 2009 Used to grind internally toothed ring gears, ZI20A optimizes grinding speed (sliding velocity) via barrel-shaped and multi-threaded grinding wheel, made of cubic boron nitride (cBN), attached to main spindle. This method enables grinding by high-speed rotation of multi-threaded type grinder wheel. Rotation synchronous control technology achieves grinding speeds through spindle rotations: 15,000 rpm for main spindle that rotates grinding wheel and 6,000 rpm for work-piece spindle.

PAM Fastening Technology    Charlotte, NC 28208

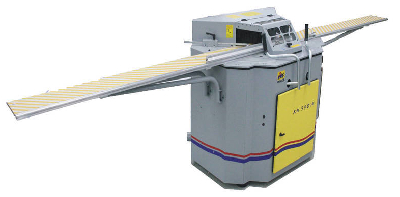

Feb 04, 2009 Developed for precision cutting and producing perfect miter corner joints, Inmes IM-350 employs two 350 mm blades capable of cutting up to 8¼ x 4 1/8 in. molding at 45°. Cable-activated adjustable molding clamps securely hold molding during cutting, and 2 dust ports on rear facilitate connection to collection system. Featuring 2 heavy-duty 2 hp motors that turn saw blades at 4,450 rpm, saw has output rated at 320+ frames per day. Included molding stop promotes production accuracy.

Graco Inc.    Minneapolis, MN 55440
Feb 04, 2009 Designed for precision dispensing, Reactor IPH-25 In-Plant Foam Processing System offers flow rate of 25 lb/min and features 15.3 kW heaters, making it suited for high viscosity materials. System measures volume of material poured and provides repeatability for consistent parts production. Local control module allows up to 25 programmable shot settings and 5 shot sequences. Applications include cooler insulation, solar panels, wall and floor panels, and pipe insulation.

SPI Lasers LLC    Santa Clara, CA 95054
Feb 04, 2009 OEM fiber lasers can be used as standalone devices or incorporated into high-power laser systems for cutting and welding applications within industrial macro market. Available with 400 W output using single emitter integrated pump diodes, products can be supplied with collimated output optics or bare fiber output for integration with either bulk optic or fiber based beam combining technologies. Design facilitates installation and operation.

Palmer Manufacturing & Supply, Inc.    Springfield, OH 45504

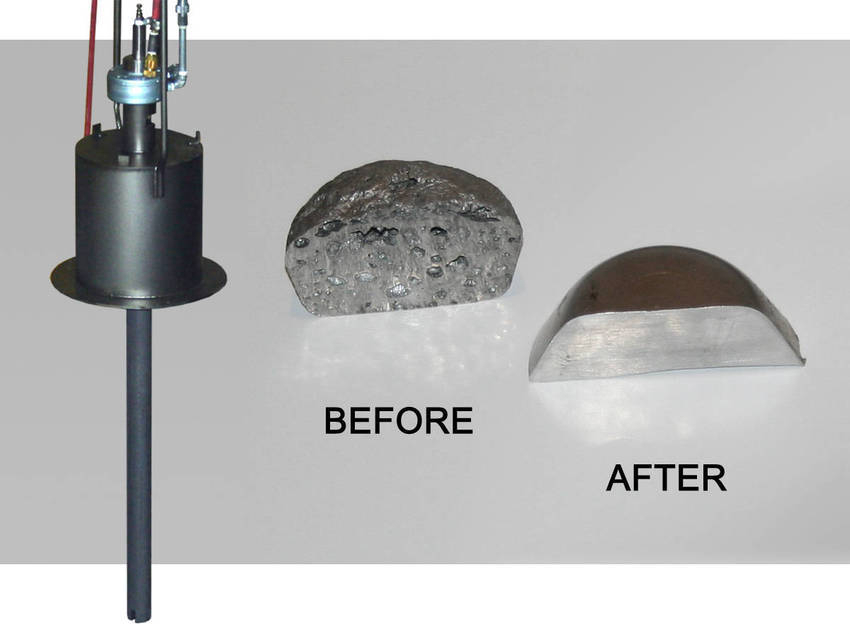

Feb 03, 2009 Portable Rotary Degasser includes ¾ hp, 3,600 rpm variable speed motor and choice of 24 or 36 in. lance. Portable device weighs less than 50 lb, has body size measuring 8 in. in diameter by 17 in. long, with suspension hook 14 in. above body. Featuring durable stainless steel construction, degasser utilizes dry nitrogen or argon and is suited for dip-out or crucible furnaces with capacities from 40-3,000 lb.

Opex Corp.    Moorestown, NJ 08057-4215
Feb 03, 2009 Featuring modular design, multi-purpose OPEX MPS 40 come standard with ImageAdvance imaging system, which incorporates automatic light intensity control, allowing it to compensate for variations in transport speeds. System produces consistent output from camera and minimizes image noise and distortion so mail piece can be read accurately. ImageAdvance technology also minimizes lens distortion and facilitates camera calibration.

Tormach LLC    Waunakee, WI 53597
Feb 02, 2009 Compatible with any small CNC using R8 or MT3 taper, Tension/Compression Tapping Head model PN 31163 includes tapping chuck and nine quick-change collets. It is compatible with ANSI-compliant inch (#0-½ in.) and metric (M1.6-12) taps and has ¾ in. of float built in to maintain coordination of spindle speed and feed rate. Tool works seamlessly with PCNC 1100 mill, and can also be used with other manufacturers' machines that can accept ¾ in. shank.

American Crane & Equipment Corp.    Douglassville, PA 19518
Jan 30, 2009 Designed per CMAA Specification No.70 Revised 2004, Low Headroom Built Up Hoist is available in capacities up to 300 tons and is targeted for high speed and heavy duty service. Features include Magnetek Electromotive AFD controls, hardened steel wheels, and helical travel drive gearing, along with forged steel hook, hardened steel sheaves, and double grooved drum for true vertical lift. Optional features, such as hardened drum grooves and redundant brakes, are also offered.

Kokusai, Inc.    Indianapolis, IN 46268
Jan 30, 2009 Used for testing effects of vibration on everything from small parts to complete automobiles, Shaker series includes 1- to 3-axis machines with vibration speeds up to 300 Hz and displacements of ±50 mm. Some models are capable of 6-axis movement, and others can target loads up to 300,000 N with torsion torque up to 40,000 Nm. Packaging strength, protection, and durability; product resistance to scratching and damage; and any other kind of vibration damage can be simulated.

Lyndex-Nikken Inc.    Mundelein, IL 60060

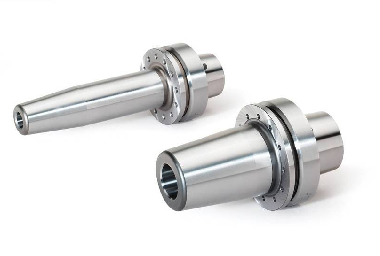

Jan 29, 2009 Suited for Makino MAG machines, HSK80F Shrink Fit Holders are designed for machining of complex aluminum monolithic parts for aerospace. When used in combination with Shrink Fit Machine, holders heat up to expand inside diameter, and as they cool, thermal contraction exerts pressure that shrinks down around tool for uniform gripping. Process allows for tool changes in less than 30 seconds.

Jet Edge    St. Michael, MN 55376
Jan 29, 2009 With exposed tank that accommodates overhead loading, Jet Edge comes standard with one abrasive jet cutting head, while second cutting head can be added to increase productivity. System features direct-couple ac brushless digital servo motors and single or double carriages, while heavy-wall tubular steel construction eliminates vibration. Utilizing industrial PC controller, system can be configured so that all three axes are fully programmable (Z optional).

Enercon Industries Corp.    Menomonee Falls, WI 53052

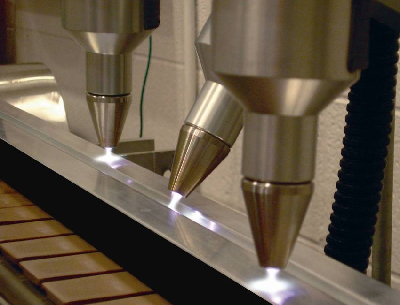

Jan 28, 2009 Suited for conductive and non-conductive material, Dyne-A-Mite(TM) IT Elite etches, cleans, activates, sterilizes, and functionalizes surface. Concentrated blown-ion discharge causes micro-etching or scrubbing effect, removing organic and inorganic contaminants and facilitating application and adhesion of coatings, adhesives, inks, labels, and markings of all types. Quality control is self-regulated by real-time Plasma Integrity Monitoring system.

Reed Manufacturing Co.    Erie, PA 16512

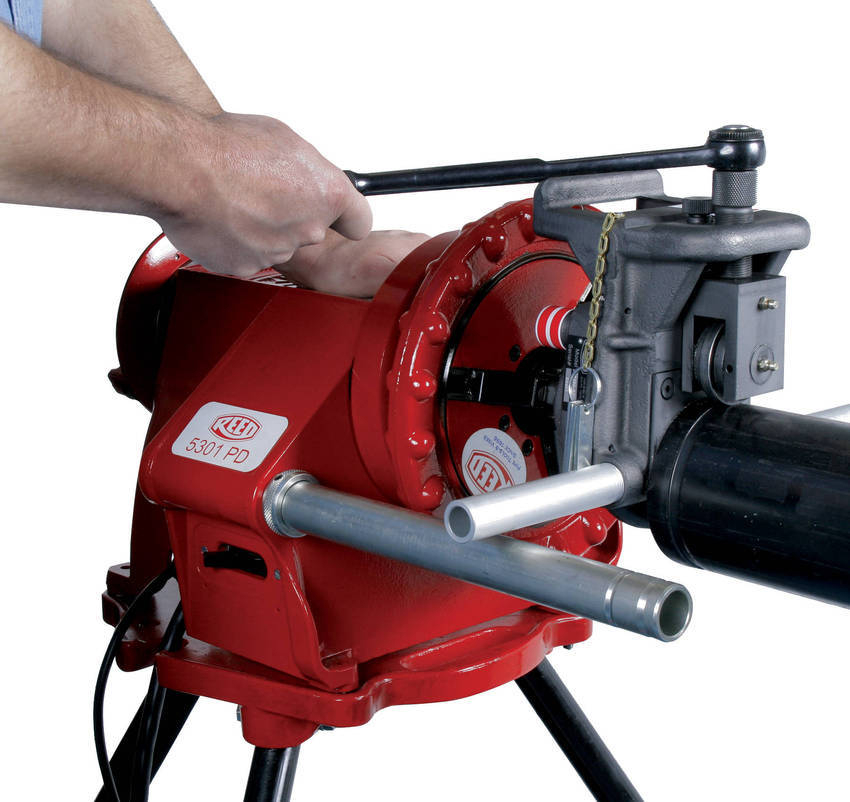

Jan 28, 2009 RGCOMBO2 Roll Groover forms standard rolled grooves in steel, stainless steel and aluminum from 1¼ to 6 in. on Schedule 10-40 pipe. Two-in-one service tool changes in minutes from power machine operation to manual work. Compact and designed for portability, RGCOMBO2 Roll Groover meets jobsite grooving requirements of mechanical piping system installations. Two wrenches are included, one for power grooving and angled one for manual grooving.

Metabo Corp.    West Chester, PA 19380 4243
Jan 28, 2009 Weighing 6.2 lb, 5 in. Stone Master WE14-125VS suits grinding, cutting, and finishing of granite, marble, or concrete countertops as well as grinding and finishing of specialty metals. Features include soft start, CoolFlow technology for unrestricted airflow, aluminum die-cast housing, and secure racket grip and dual grip zones for ergonomic handling. Motor offers 12.2 A and 1,400 W of power and variable speed range of 2,800-10,500 rpm.

Primera Technology, Inc.    Plymouth, MN 55447-4446
Jan 27, 2009 Offered as optional accessory to Primera LX-Series Color Label Printers, FX400 works in-line to apply shiny gold and silver borders, fonts, and other graphics or clear film to inkjet-printed labels. PTFoil(TM) software, included, facilitates process of combining 2 different graphics - one for inkjet printing and one for foil imprinting - on same label. While gold/silver effects promote visibility, clear film adds glossy finish and makes labels resistant to UV rays and water.

Greenerd Press & Machine Co., Inc.    Nashua, NH 03061

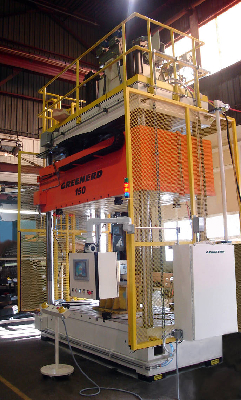

Jan 26, 2009 Designed in 196 x 118 x 234 in. footprint, Hydraulic Presses feature 110 x 60 in. beds and platens, 150-ton capacity, and adjustable stroke up to 56 in. Units include TouchScreen Control that stores over 100 jobs in on-board memory, and hydraulic system with auxiliary manifold and valves for operating specific cylinders within each tool. Guarded by horizontal and vertical light curtain, presses have Serapid quick die change system, which allows user to handle dies and molds safely.
