Vytran    Morganville, NJ 07751
Jun 16, 2009 Using Graphite Filament Fusion technology, Model PSX-3000 produces clean, low-loss splices in standard and large mode area double-clad fibers. True Core Imaging(TM) and Active Alignment technology provide precise core alignment and splice loss determination, while Windows-based laptop PC interface offers configuration and control, and database records all splicing data. Model PSX-3000 can be set up as simple splicer or as integrated system with cleave, clean, splice, and recoat capabilities.

Forrest Manufacturing Co., Inc.    Clifton, NJ 07014
Jun 15, 2009 Available in 2 different sets, Thin Kerf Dados cut grooves in thin plywood, MDF, or melamine boards. Two-piece set includes two 24-tooth outside saw blades and set of magnetic adjusting shims for 3/16 in. cuts, while 3-piece set includes outside saw blades plus 1/16 in. chipper with magnetic shims for creating cuts from 3/16 to ¼ in. Both work on table or radial arm saws with 5/8 in. bore. All feature corrosion-resistant C-4 micrograin carbide saw blade tips and side runout to ±.001 in.

Econocorp. Inc.    Randolph, MA 02368
Jun 15, 2009 Measuring 60 x 32 in., ECONOSEAL E-System 2000 provides solution for automatic, horizontal cartoning at up to 1,500 cartons/hr. System handles cartons ranging from 1 x ¾ x 2 ½ in. to 12 x 4 x 12 in., and accommodates both paperboard and corrugated material. Machine erects all cartons on single product loading station, closes all end flaps using glue seal end or tuck closure methods, and automatically discharges completed cartons for next operation.

D-M-E Company    Madison Heights, MI 48071-2383
Jun 11, 2009 Along with conductive tip design and precise heat profiling, Stellar 5000 series has solid titanium point gate retainer that optimizes heat isolation and shielded mini-coil heater that hastens heat transfer for commodity-grade materials. Embedded brass heater is available for use with engineering-grade materials, and thru-hole tip sub-assembly maximizes wear resistance. Round and rectangular multi-threaded nozzle assemblies feature gate detail geometry that promotes application flexibility.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185
Jun 11, 2009 Converged wired/wireless networking solutions simplify delivery of multiple IP-based services by combining centralized network operations with discrete in-wall access device. Integrating 802.11b/g wireless access point and 4-port wired Ethernet switch, MSM317 installs in standard wall electrical outlet and can be centrally managed by HP ProCurve MultiService Mobility controllers. It connects multiple IP-based devices and reduces power sourcing equipment via integrated PoE support.

Bondhus Corp.    Monticello, MN 55362 9347
Jun 10, 2009 Made from Protanium® steel, full range of inch, metric, and star tools is available with real 14K gold-plated finish and BriteGuard(TM) chrome-plated finish. Visually striking finish helps users locate tools and identify inch vs. metric models. All tools carry lifetime warranty.

Toyoda Machinery USA Inc.    Arlington Heights, IL 60004

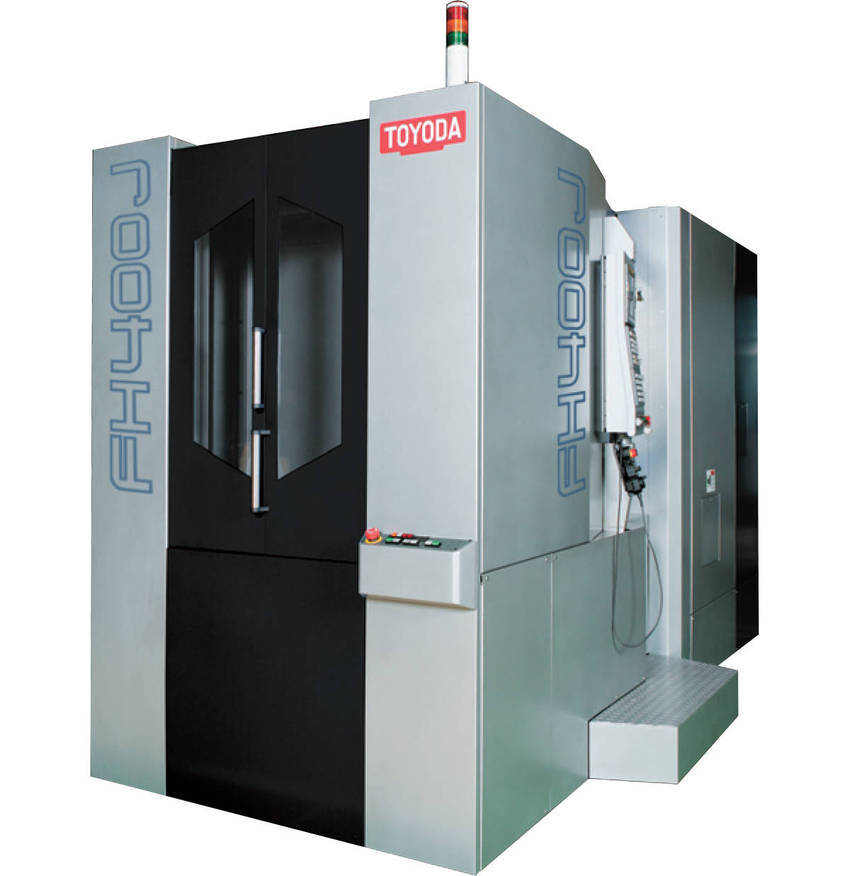

Jun 10, 2009 Compact Model FH400J is equipped with 15,000 rpm spindle for high-speed machining applications. Along with work area that measures 23.6 x 22 x 24.8 inches in X, Y and Z axes and table load capacity of 880 pounds, machine features CAT40 spindle taper and GE Fanuc control. FH400J accommodates up to 40 tools in its magazine, with 2.4 second chip-to-chip tool change time.

Jones & Shipman Precision Limited    Farmington, CT 06032
Jun 08, 2009 Holroyd Gear and Thread Grinder, model GTG2, offers precision grinding of helical/spur gears in diameters up to 350 mm. System enables users to grind small batches of gears to DIN and AGMA quality standards. On-board intelligence includes 3D scanning as well as stress prediction software which allows machine to optimize gear design. Machine can also produce master gears, precision prototyping, and timing gears for use in aerospace applications.

Greenlee Textron, Inc.    Rockford, IL 61109

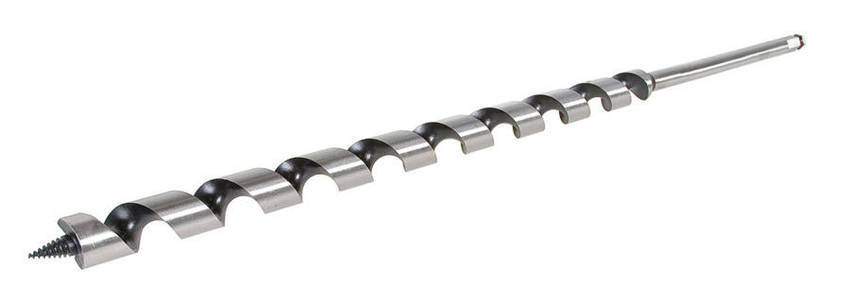

Jun 08, 2009 Designed for drilling holes in salt treated utility poles or wood structures, hardened alloy steel auger bits features self-feeding threaded screw point to draw bit completely through wood, and over center flute design allows for evacuating of chips. Self feed cutting edge can be re-sharpened multiple times, and 7/16 in. hex shank comes with quick change groove for use with impact drivers. Units are suited for use by utility workers and electrical contactors.

Vision Engraving Systems    Phoenix, AZ 85023

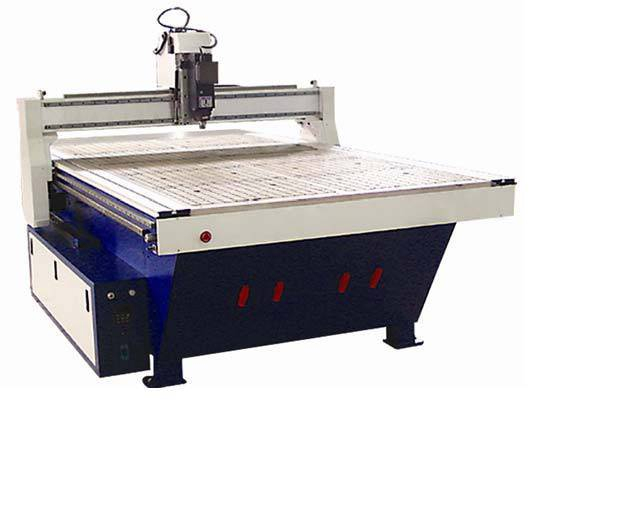

Jun 08, 2009 With 25 x 25 and 25 x 50 in. work areas, models 2525 and 2550 allow users to cut out sheets of acrylic, particle board, aluminum, and plastics in sizes up to 2 x 4 ft. They include automatic surface-setting block, aluminum t-slot table, Vision Series 3 Controller, Vision Pro 8 software, and offer 7 in. of clearance with high gantry. Machines are suited for creating cutout letters and shapes, 2.5- and 3D-designs, ADA compliant signs with Braille, inlays, and control panels.

Vision Engraving Systems    Phoenix, AZ 85023
Jun 08, 2009 Handling wide variety of milling, drilling, contouring, routing, and engraving projects, large-format CNC routers feature aluminum t-slot table, Vision Series 3 Controller, and Vision PRO 8 graphical software with Ethernet interface. They suited for cut out letters, inlays, and ADA and 2.5-D and 3D signs; cabinets, furniture, and other woodworking projects. Options include vacuum table, automatic tool changer, engraving head, and automatic Raster(TM) Braille inserter.

Techno, Inc. - CNC Router Systems    New Hyde Park, NY 11040
Jun 05, 2009 Designed to meet demands of panel process manufacturing, Pro Series Model 4896 features heavy-duty, welded, and stress-relieved base; weighs 3,050 lb; and offers 4 x 8 ft process area. It is equipped with moving gantry, precision ball screw drives on all 3 axes, THK rails/bearings, and high-speed closed-loop servomotors and drives. Options include single- to multi-spindle setups, multi-zone vacuum table, reverse engineering lasers, and 4th axis rotary tables.

Phoenix Contact    Harrisburg, PA 17111 0100
Jun 04, 2009 Available in DIN rail-mount and PCI card versions, industrial-rated FL mGuard Series can protect PCs running all versions of Windows, as well as PLCs, I/O units, bus couplers, and other industrial Ethernet devices. Optional integrated modem can serve as backup connection. Security devices are suited for applications that currently need modem but may migrate to Internet-based VPN connection in future.

Cold Jet LLC.    Loveland, OH 45140
Jun 03, 2009 Using shaved dry ice and feeder technologies technology, i3 MicroClean provides precision plastic manufacturers with environmentally responsible and safe way to clean products with delicate surfaces and complex mold cavities and crevices. Cleaning is performed without abrasion and while molds are still hot and in press. Along with variable feed that allows for optimized ice-to-air ratio and minimum waste, low-flow system has 140 psi blasting pressure and several specific nozzles.

Nilfisk Advance, Inc.    Plymouth, MN 55447 3408
Jun 03, 2009 Featuring counter-rotating cylindrical brushes that sweep and scrub in one pass, Condor(TM) XL cleans floors of distribution centers, manufacturing plants, warehouses, beverage distributors, and food processing facilities. Front-wheel steering provides maneuverability, and Advance AXP(TM) onboard detergent dispensing system delivers chemicals at specific dilution ratio. Other features include 100 gal solution tank and side brooms with Advance DustGuard(TM) dust suppression system.

Ubicom, Inc.    Sunnyvale, CA 94085-3520
Jun 03, 2009 Run on Ubicom IP7100 Router Gateway Evaluation board, Linux-based Ubicom OpenWRT Router Platform includes customizable reference router software with StreamEngine(TM) QoS technology that can automatically classify and prioritize latency-sensitive traffic. Solution is powered by IP7100 series network processor and includes 4 Gigabit LAN ports, one Gigabit WAN port, one USB 2.0 port, 2 MPCI connectors, and UART console.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550

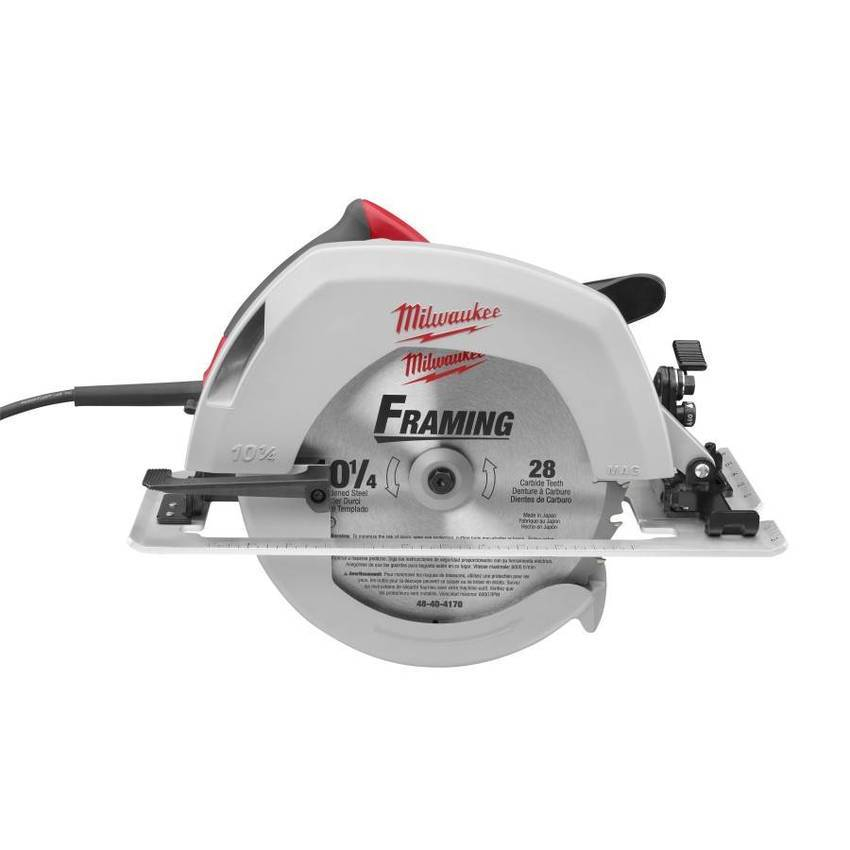

Jun 02, 2009 With bevel capacity of 60°, 10¼ in. circular saw, Model 6470-21, can make extreme bevel cuts required for roof rafters or trusses. Weighing 17.8 lb, it can cut 4 in. material on single pass. Unit features 3¾ in. of cutting capacity at 90°, 2¾ in. of cutting capacity at 40°, and 1¾ in. of cutting capacity at 60°. Saw operates at 5,200 rpm and draws 15 A.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Jun 01, 2009 Featuring 4-pole frameless motor, M18 Cordless ½ in. hammer drill/driver delivers 550 in.-lb of peak torque with M18 XC high capacity Lithium-Ion battery, and 450 in.-lb of peak torque with M18 compact Lithium-Ion battery. It is suited for HVAC technician for duct fastening; commercial plumber as they run conduit or anchor pipe hangers; and professional electrician for running wire, secure conduit clamps, or drill through metal studs.

Makino Machine Tool Co.    Mason, OH 45040 9695
Jun 01, 2009 Designed for production of large titanium and titanium alloy aerospace parts, 5-axis Model T4 includes Active Dampening System, which balances frictional forces with cutting force to suppress vibrations. Machine provides X, Y, and Z axis travels of 165, 78, and 39 in. respectively, and can hold workpieces up to 11,022 lb. Utilizing induction motor technology, HSK-A125 spindle has max speed of 4,000 rpm, 740 lb-ft continuous torque, and 1,100 lb-ft peak torque.

Hirschmann Automation and Control GmbH    Neckartenzlingen D-72654  Germany
May 29, 2009 Equipped with 1 WLAN port and 2 PoE/LAN ports, BAT54-F Single WLAN Access Point is suited for installations that require vibration resistance, and is certified for transportation and railway applications. BAT54-F Client, designed for mobile vehicles or machines, provides EAP encryption and certifications according to IEEE standard 802.1. Unit includes integrated firewall, fast roaming support, and IP router. Both IP65/67 devices include M12 connectors and corrosion-resistant aluminum housings.
