Hydratight    Red Wing, MN 55066
Nov 04, 2009 Suited for use on hard-to-reach pipe flanges whose integrity must be maintained, QuickFace has self-centering design with adjustable collets and clamps that provides concentric operation and accuracy. Portable tool weighs 15 lb and uses ½ in. cutting tools. Interchangeable lead screws make it suitable for resurfacing damaged raised-face and lens-ring joint flanges to varying finish standards. Rotated by hand, tool employs worm-gear mechanism that provides spiral gramophone finish.

Kalamazoo Industries, Inc.    Kalamazoo, MI 49001
Nov 04, 2009 Model C315/350 manual cold saw incorporates double vise assembly, with 6¼ in. maximum opening, that provides holding power on both sides of cut for burr-free operation. Saw includes 14 in. HSS blade; 3.5 hp, 3-phase TEFC motor; 2-speed spindle; totally enclosed transmission; 24 V controls; and built-in flood coolant. It can cut round shapes with up to 4/3¾ in. dia at 90° and 45°, respectively, as well as square/rectangular shapes up to 3¾ x 5 in. at 90° and 3¾ in. x 3¾ in. at 45°.

Knuth Machine Tools USA, Inc.    Lincolnshire, IL 60069
Nov 04, 2009 Featuring rigid construction, RSM Series Multi-Functional ID/OD Grinding Machines offer max grinding diameter of 12.5 in., max center distance of 80 in., and infinite variable spindle speeds. Machines are available with in-process measurement and include separate handwheels for manual grinding on X and Y axis. Optimized with hydraulic tailstock, which operates via foot pedal, RSM Series incorporates max 12 x 1.5 x 5 in. wheel diameter, preloaded ball screws, and automatic central lubrication.

Alcatel-Lucent    Paris 75008  France
Nov 04, 2009 Service Router Models 7750 SR-c12 and 7750 SR-c4 give service providers alternative for offering smaller communities same quality mobile, residential, and business services delivered in larger metropolitan areas. They are powered by FP2 chipset, which delivers network processing and traffic management at speeds to 100 Gbps. In addition to multiple high-availability features, products run under Service Router Operating System and integrate 5620 Service Aware Manager.

INDEX Corporation    Noblesville, IN 46060
Nov 03, 2009 Featuring vertical cast machine bed with heavily ribbed, enclosed modular design, Model R200 utilizes two 18,000 rpm motorized milling spindles and 2 movable 5,000 rpm work spindles that perform machining operations in 2 independent subsystems, each capable of full 5-axis machining of bar stock to 65 mm. System offers B-axis swivel ranges of 270° and 230° and rapid traverse rate of 45 m/min. It can accomplish full reverse side machining as well as parallel machining.

Schunk    Morrisville, NC 27560
Nov 03, 2009 Measuring 10 x 10 in. and suited for 5-axis machining centers, UNILOCK NSA SF achieves precise centering using 4 short tapers on corners, which also compensate for torques and tilting moments. Single clamping module generates 16,860 lb of force. UNILOCK NSA SF is failsafe, using 4 spring driven form-fit, self-locking clamping slides into centering sleeve that can be monitored. To unlock clamping modules, standard air supply pressure of 6 bars is sufficient.

OK International    Garden Grove, CA 92841
Nov 03, 2009 Suited for production soldering, touch-up soldering, and SMD rework, MFR-2200 Series features SmartHeat® power and control technology, which responds to load, delivering energy required for each connection, while protecting sensitive components and substrates from damage. One or two hand-piece operation is chosen via front panel switch. With 2 separate power supplies, full power is available for each hand-piece that is in use. Three handpiece options are available.

AAEON Technology Inc    Taipei   Taiwan
Nov 02, 2009 Supplied in 1U form factor, FWS-7150 comes in 2 models featuring either up to 2.0 GHz VIA C7(TM)/Eden(TM) CPU with 400/800 MHz FSB or 1.0 GHz onboard C7 CPU with 400 MHz FSB. There are 5 LAN ports, which consist of 5 PCI 10/100Base-TX Ethernet LAN ports - 2 of which offer bypass function. Equipped with VIA CN700 +VT8237R+ chipset, appliance offers two 240-pin DDRII 400/533 DIMM sockets that accommodate up to 2 GB max system memory. Range of I/O promotes connectivity as well as expansion.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Nov 02, 2009 Suited for common turning applications, Royal Live Centers feature Royal Roto-Shield with live center point machined from solid bar, and which incorporates coolant slinger. Device's shield also features spring-loaded seal that is resistant to abrasion, high temperatures, and most metalworking fluids.

Schleuniger, Inc.    Manchester, NH 03103

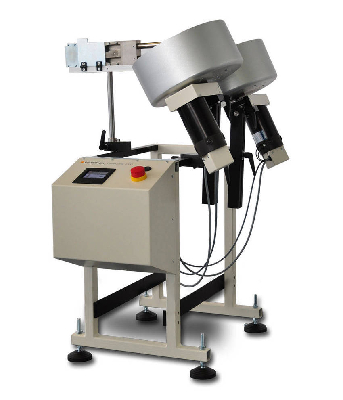

Oct 30, 2009 Designed to interface with cut or cut and strip machines, fully synchronized CableCoiler 1300 features 2 high-speed coiling pans and color touchscreen. All-electric unit is virtually maintenance-free and processes cable diameters up to ½ in. Coiling diameters from 4.3-9.0 in. and coil weights up to 22 lb allow for flexible production. To assure controlled coiling process, coiling pans have anti-slip surface and coiling pins inside.

Schober USA, Inc.    Fairfield, OH 45014
Oct 30, 2009 Used inline at printing press or offline in converting system, Embossing Modules and Tools are applicable for both web and sheet fed processes, in wide variety of materials including paper, board, and laminates. Braille set is comprised of negative segment that includes all possible 288 Braille positions and positive segment, which holds changing Braille embossing patterns.

Powr-Flite    Fort Worth, TX 76140
Oct 29, 2009 Designed for burnishing all types of hard-surface floors, 20 in. Millennium electric burnisher has rotational-molded one-piece housing to absorb vibrations. It has precision-balanced weight distribution, which eliminates need for compensation center or front-mount caster, improving operation and ease of use.

Glenro, Inc.    Paterson, NJ 07501 1799
Oct 29, 2009 Cantilevered Multi-Unwind and Rewind System offers auto edge control that is accurate to ±1 mm, and auto jog that allows material to automatically advance when pulled over load cell roll. System's auto run mode automatically unwinds start tension control when tension set point is reached. Configurable, PID-controlled product allows enable/disable, under/over-wind, tapering, and side-lay of each winder. It is suited for webs up to 18 in. wide with 20 in. roll dia and 100 lb roll weight.

Helical Solutions Llc    Gorham, ME 04038
Oct 27, 2009 Useful for demanding aerospace industry, 7-flute center-cutting HSF-7 End Mills are crafted of certified premium sub-micron grain carbide. Tools are available with AlTiN coating for oxidation resistance and extreme hardness for peripheral milling in steels, stainless steel, cast irons, and titanium alloys, as well as cobalt-, nickel- and iron-based high-temperature alloys. Offered in ¼ to 1¼ in. diameters, end mills come in stub, regular, medium, long, and extra-long lengths.

Rehm Thermal Systems    Blauberen   Germany
Oct 27, 2009 RDS Drying Systems offer thermal oxidation process designed to eliminate challenge of residue contamination stemming from photovoltaic metallization in order to minimize maintenance and provide cleaner process chamber. Process involves heating gas to temperature greater than 500°C, while arrangement of heater and granulate pack lend to space and energy consumption reduction. In order to oxidize hydrocarbons, catalyzers are installed downstream from heating chamber.

Novellus Systems, Inc.    San Jose, CA 95134
Oct 27, 2009 Providing optimal fill and defect density performance for 22 nm technology node and beyond, SABRE Excel Copper Electroplating System features deposition module incorporating IRISCell technology, as well as hardware, software, and communications upgrades. IRISCell employs field shaping elements that enable dynamic current modulation during deposition process, while Multiwave(TM) Entry plating process provides millisecond control of voltage profile during initial stages of copper deposition.

Gravograph - New Hermes Inc.    Duluth, GA 30096
Oct 26, 2009 Designed for flat engraving of identification plates or cutting and engraving of sheets of any material, Model IS 900 can engrave at up to 100 mm/s and handle strips of unlimited length with 660 x 460 mm engraving area. IQ+ electronics enable Point n' Shoot function, which uses laser pointer for visual positioning of engraving on item and simulating engraving work before executing programmed task. Using Terrain Follower, machine follows shape and height of sheet with optical sensor.

PlasticWeld Systems, Inc.    Newfane, NY 14108
Oct 23, 2009 Operating on 110 V power and 80 psi compressed air, semi-automatic HPD-6 utilizes Omron PLCs and operator interface panels, Oriental Motors linear actuators, stainless steel cabinet, and precision machined components. Standard configuration allows drilling along 6 in. length of tubing, but is customizable for any length tube. Bench-top unit measures 24 x 24 x 19 in. and is suitable for clean room production environments. Up to 50 unique hole pattern programs can be stored in PLC.

Security Engineered Machinery Co., Inc.    Westboro, MA 01581
Oct 20, 2009 Based on rotary knife mill in which blades are mounted on solid steel rotor and stationary bed, Models 200 and DS-200 destroy paper, CDs and DVDs, key tape, floppy disks, audio cassettes, ID badges, and credit cards. Dual-stage DS-200 has built-in shredder that can accept 14 sheets of paper with no need to remove staples or paper clips. Measuring 59 x 51 x 25 in., both include 2 x 9 in. feed opening, waste-evacuation/dust-collection system, and 100 35-gal waste collection bags.

Mate Precision Tooling    Anoka, MN 55303
Oct 20, 2009 Designed for machines without bottom stroke forming feature, EasyMark(TM) 5-In-1 Tooling Kit can be used 5 different ways for marking and scribing part surfaces. Using CNC punch press, thick turret application tooling system can write numbers, dates, and other identifying information on part surface; etch sheet metal with permanent marking information; cut or scribe protective film on sheet metal surfaces; create cone-shaped indentations on part surface; and perform high-speed dot matrix marking.
