Art's-Way Mfg. Co., Inc.    Armstrong, IA 50514
Mar 16, 2010 Agricultural 16 foot blade, offering 15° blade tilt for slop cuts and 42° blade angle with blade swing, features 15 in. ground clearance and 30 in. blade height. In addition to replaceable high carbon steel cutting edge, features include 4 hydraulic cylinders and hoses; 3 hydraulic tractor valves (angle, tilt, raise); and swivel hitch. Machine is supported by 11L x 15 tires, and elements of construction include 6-bolt hubs, box scraper ends, and weight box.

Novellus Systems, Inc.    San Jose, CA 95134
Mar 12, 2010 For copper barrier-seed applications, INOVA® NExT PVD system features Hollow Cathode Magnetron (HCM) IONX source technology. Copper barrier-seed physical vapor deposition (PVD) process, intended for through-silicon-via (TSV) packaging market, delivers optimal sidewall and bottom coverage and enables void-free copper fill during subsequent TSV electroplating step. TSVs enable 3D packaging, where multiple chips are stacked on top of each other into one 3D module.

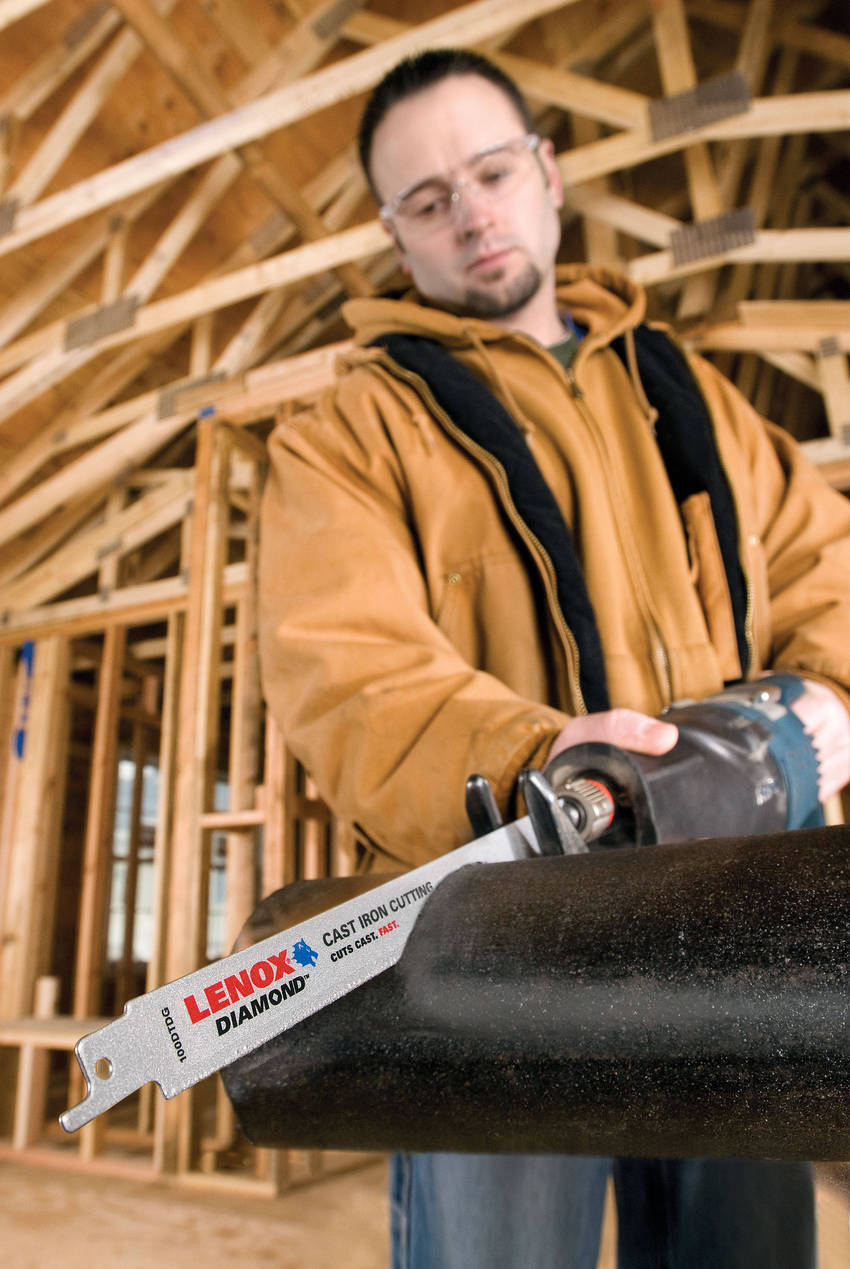

LENOX    East Longmeadow, MA 01028
Mar 10, 2010 Designed for long blade life when cutting through cast iron, LENOX DIAMOND Double Tang reciprocating saw blade is constructed with industrial diamonds brazed to narrow blade edge. Double tang design allows users to flip blade so entire cutting edge can be utilized. Blade can also be used to cut fiberglass and ceramic tile, clay pipe, stone, brick, marble, plaster, cement siding board, and laminate flooring.

Arcadian Networks    Valhalla, NY 10595
Mar 10, 2010 By enabling gathering of real-time information from any converged platform, AE20r router/gateway empowers utilities to manage and monitor assets as well as generate smart grid efficiencies. Solution combines licensed 700 MHz spectrum with WiMAX interface to promote wide-scale coverage, security, and reliability. Furthermore, interfaces support Wi-Fi (802.11b/g/n); 3G/4G (EVDO,GPRS,EDGE,HSPA,LTE); serial, USB, and Ethernet; and 900 MHz (ISM and MAS) industrial radio connectivity.

Forrest Manufacturing Co., Inc.    Clifton, NJ 07014
Mar 09, 2010 Made of corrosion-resistant C-4 micrograin carbide, Woodworker II and Woodworker I Blades are 40-tooth, alternate top bevel blades available in 4 3/8, 4 ½, and 5 3/8 in. diameters with 20 mm, 3/8 in., and 10 mm bores, respectively, to fit Makita®, Porter-Cable, and DeWalt® skill saws. Blades have 20° hook, so each tooth leans forward to help pull wood into blade. Alternate top bevel blades with 5° hook, designed specifically for Festool plunge saws, are also available.

EDAC Technologies Corp.    Farmington, CT 06032
Mar 09, 2010 Used for internal and external grinding of small workpieces, such as fuel injector nozzles, Precision Spindle workhead utilizes hydrostatic bearings that provide radial and axial stiffness of 2,200,000 and 1,995,000 lb/in., respectively. Unit comes with precision variable speed AC motor operating at up to 6,000 rpm, and hollow spindle shaft for power actuated workholding devices. Measuring 14.5 x 6.3 x 7.7 in., unit employs non-contact air seals to prevent oil contamination.

Climax Portable Machine Tools Inc.    Newberg, OR 97132
Mar 05, 2010 Used for in-situ repair and on-site machining of flange surfaces, FF6200/FF7200/FF8200 let users adjust feed rate while machine is running and without reaching into it. Feed rate is infinitely variable from 0.002-0.035 in./rev, and heavy-duty, construction-grade bearings provide rigid performance throughout entire machining range. Turning arm and tool head rotate full 360°, creating variety of chamfers, o-ring grooves, and other angular surfaces as well as generating phonographic finishes.

Netgear Inc.    Santa Clara, CA 96054
Mar 04, 2010 HomePlug® AV-certified powerline kits include Powerline AV 500 Adapter Kit (XAVB5001) and Powerline AV+ 500 Adapter Kit (XAVB5501). Both offer speeds of up to 500 Mbps PHY rates and Gigabit link rates, and latter also integrates filtered pass-through power socket. Compatible with draft international IEEE P1901 powerline standard, energy management, prioritized QoS, and 128-Bit AES encryption are standard.

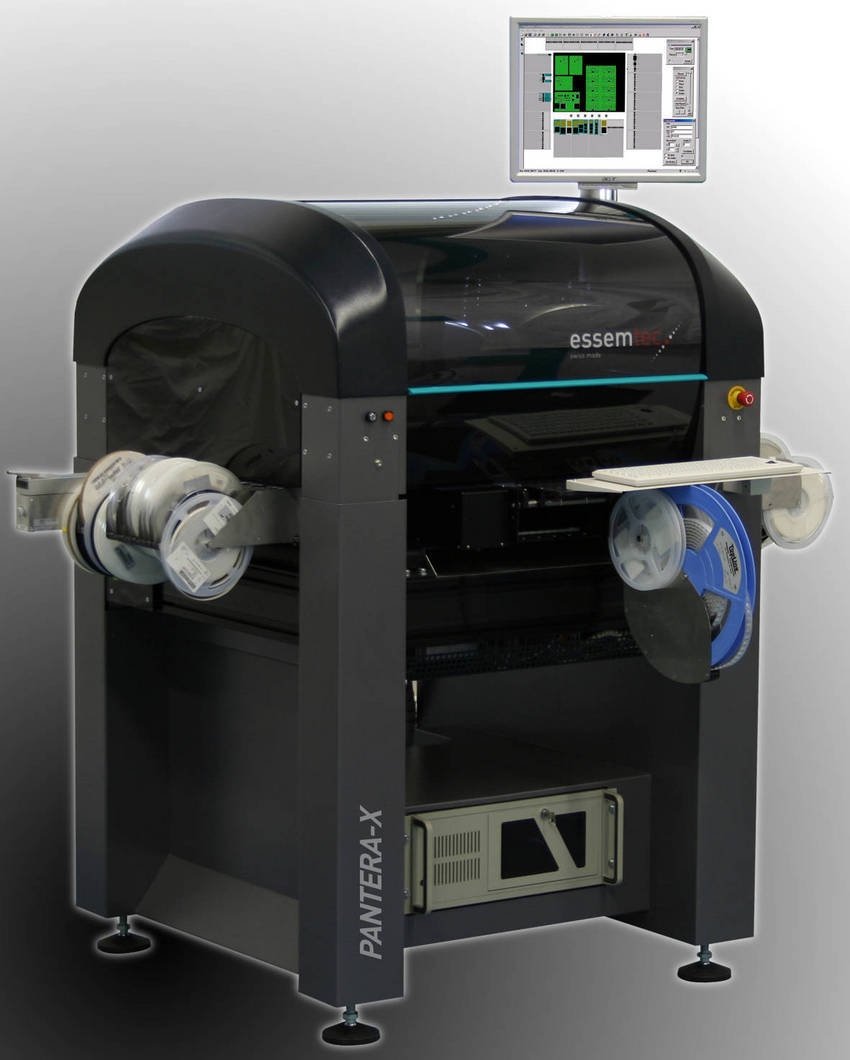

Essemtec Ag      Switzerland
Mar 04, 2010 PANTERA-XV SMD placement machine handles entire SMD range from 0201s, at up to up to 4,500 cph, to 50 x 50 mm QFPs with fine pitch of 0.4 mm. Measuring 1 m², machine offers up to 108 feeder slots and automatically recognizes intelligent tape and stick feeders. Its magnetic linear measuring system has resolution of 1 micron, while integrated laser system and bottom-up vision system ensure alignment. Graphic-based software assists with programming.

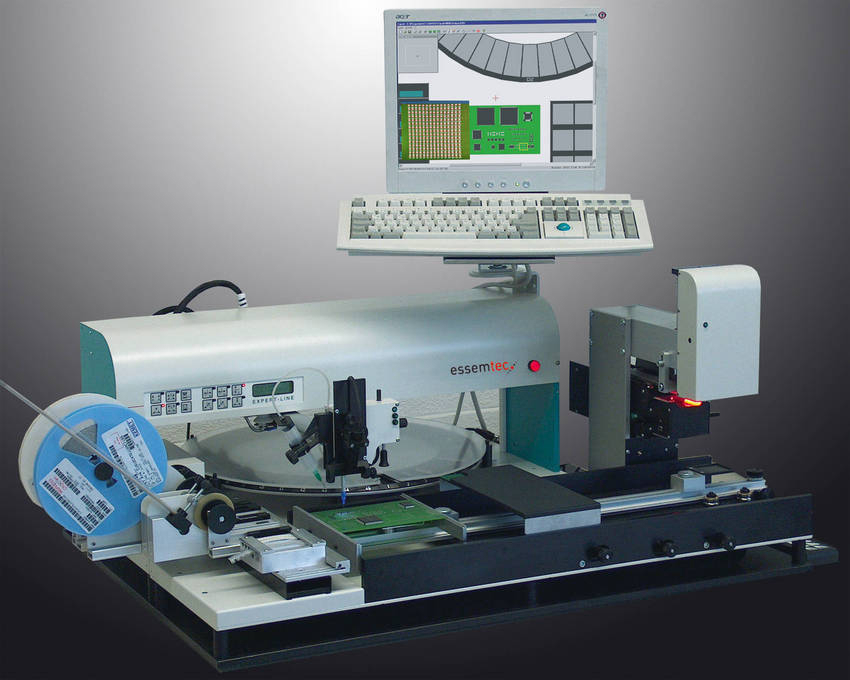

Essemtec Ag      Switzerland
Mar 04, 2010 EXPERT Semiautomatic SMT Prototyping System allows picking of components from reels, sticks, rest tape strips, and loose components. It integrates vision and placement system MPL3100 which features double prisma optical system to display/overlay component and substrate on one screen. Turning station for upside-down components is also included. System connects to computer control to work in semiautomatic mode and placement data can be converted from CAD file or point-by-point.

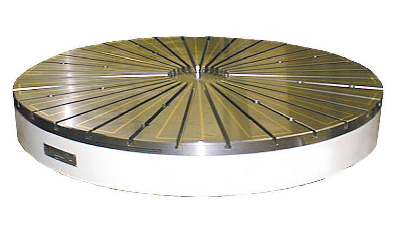

SAV North America    South Windsor, CT 06074
Mar 04, 2010 Designed to hold parts securely while allowing full access in single set-up, Radial Pole High Power Electro-Permanent Magnetic Chucks provide holding force of 245 psi. Units feature solid body construction and separate top plate that is fully sealed to prevent short circuiting due to coolant leakage from machines. Special design features allow for secure holding of parts until programmable release cycle is activated, fully demagnetizing chuck and releasing work pieces quickly and cleanly.

Helical Solutions Llc    Gorham, ME 04038
Mar 03, 2010 With variable-pitch flute configuration and cutting-diameter tolerance of -.0001 to -.0004, H40ALV Series minimizes chatter and tool offset adjustments. Units include full corner radius option ranging from .015-.250 as standard. Made of certified premium sub-micron grain carbide, end mills have shank diameters from ¼-1 in. and come in stub, regular, and reduced-neck lengths. Zirconium Nitride coating provides lubricity for maximum chip evacuation and resistance to abrasion.

Global Metal Spinning Solutions, Inc.    Colorado Springs, CO 80920
Mar 02, 2010 In addition to noise insulation and devices for smoke, fume, mist, oil, and metal chip collection, ECO ZENN models offer regenerative braking that saves energy and feeds it back to power supply. Most functions used by programmers, operators, and maintenance personnel can be accessed while machinery doors are closed, and production flexibly is promoted via 6-tool change station, pressure control system, replay system, as well as auxiliary trimming and beading units.

Sealant Equipment & Engineering, Inc.    Plymouth, MI 48170-0965
Mar 02, 2010 Supplied by pumps or pressure tanks, Servo-Flo® 704-PGM proportions, mixes, and dispenses infinite volumes of 2-part polyurethanes, epoxies, silicones, and acrylics. Dual servomotor design enables system to dispense materials at various fluid ratios and flow rates without making mechanical changes to equipment. Offered in 3 levels, operator interface control selects preset dispense program of fluid volume settings and output flow rates for different-size part batches or extruded bead sizes.

interscience    Saint Nom La Bretèche 78860  France
Mar 01, 2010 Intended for microbiological labs, EasySpiral® provides standardized plating with sensitivity from 30 to 10 million CFU/ml on 1 Petri dish without preliminary dilutions for higher lab capacities. System features rotating arm architecture and disinfection system that avoids cross-contamination risks. Meeting AFNOR V08-100 standards, EasySpiral® offers USB-programmable plating volumes from 10-1,000 µl and exports data via Excel and barcode for full traceability.

Freewave Technologies, Inc.    Boulder, CO 80301
Mar 01, 2010 Suited for signal reporting and replication applications, I2-IO radios can add wireless I/O capabilities without need to obtain spectrum licenses, run wires, place conduit, or dig trenches. Users can get both wireless I/O and signal replication even in locations where 900 MHz spectrum is congested by other devices. In addition to measurement accuracy of 0.1% over temperature, features include built-in diagnostic capabilities via FreeWave Technologies Tool Suite(TM) software.

ITW Rocol North America    Glenview, IL 60025
Feb 25, 2010 Formulated with chlorinated and non-chlorinated EP additives, respectively, Rustlick PowerCool MaxLife and PowerCool MaxLife CF coolants provide biostability and performance for heavy-duty cutting and grinding applications. They can be used on ferrous/non-ferrous metals, aluminum, brass, bronze, and copper. Available in 5 or 55 gal containers, products suit wide range of low to heavy-duty applications, including machining and milling. PowerCool MaxLife CF can also be used on titanium.

Axiom Analytical, Inc.    Irvine, CA 92714
Feb 25, 2010 Available in manual and auto-sampling versions, FST-600N Series Near-IR Transmission Sampling Systems can analyze pharmaceutical and chemical samples over path lengths from 0-5 mm. Operation is based on moveable fiber-optic probe mounted on rack and pinion stage with electronic path length readout. Featuring computer control of path lengths, auto-sampling version can be programmed to sequentially analyze multiple samples at fixed path length or series of path lengths.

LENOX    East Longmeadow, MA 01028
Feb 24, 2010 Formulated with Extreme Pressure additive, CYCLE HD is suited for moderate to heavy-duty machining of ferrous and non-ferrous metals. Product resists bacteria, extending sump life and providing odor control. Fluid is prepared with small oil droplets that prevent separation of oil from water, which leads to stable emulsion. Low foaming and low misting, CYCLE HD offers optimal performance in sawing, drilling, milling, tapping, and turning applications.

P. J. Noyes Co., Inc.    Lancaster, NH 03584
Feb 24, 2010 Using semi-automatic equipment, P.J. Noyes can fill hard gelatin and vegetable-based capsules with very little excess powder waste, making service suitable for startups, short runs, and products with unusually expensive ingredients. Capsugel Ultra 8 II filler has tooling for capsule sizes 1, 0, and 00 and can fill approximately 10,000 capsules per hour. Each capsule shell can be pre-printed with product name.
