Ideal Industries, Inc.    Sycamore, IL 60178
Jun 02, 2010 IDEAL PowerBlade(TM) installs like drill bit on any corded/uncorded drill with 3/8 in. drive shaft. Drill's turning action provides force needed to slice through up to 750 MCM hard-drawn copper cable or up to 1,000 MCM aluminum cable with minimal distortion. Adjustable torque arm securely holds drill in place, while ergonomic and textured Santoprene® grip promotes control and reduces vibration. Grip also has protective shield to prevent accidental contact with user's hand.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Jun 02, 2010 Accommodating workpieces up to 77 lb, CUT 1000 OilTech uses wires as small as 0.02 mm dia and surface finishing technology to achieve finishes down to Ra 0.05 µm in continuous operation. Machine uses oil as inert dielectric, eliminating effects of corrosion in workpiece due to long periods of immersion. Programmable via machine control, machine is able to work with 2 wire spools, each with different wire type, and switch between wires of different diameters automatically.

Pregis Corp.    Deerfield, IL 60015

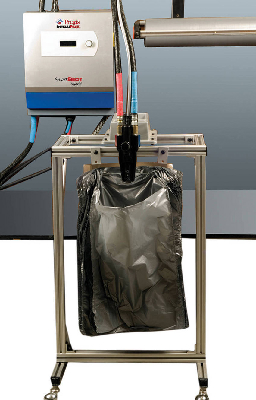

May 28, 2010 For large, heavy, low-volume applications, IntelliPack SmartShot(TM) Hybrid offers hand-held option, which allows operator to remove dispenser nozzle from housing unit and pull attached hose over to shipping case. Channel is created between item and internal corrugated wall, and liquid foam is injected into channel. For smaller, high-volume production-line parts, wall-mounted machine converts to bagging mode, where bag of predetermined size is dispensed and liquid foam is injected into it.

D-M-E Company    Madison Heights, MI 48071-2383
May 28, 2010 Able to reduce mold construction time, Quick Strip eliminates need for ejector plates and pins, risers, and clamping plates. Absence of ejector pin holes also lends to cooling systems optimization and accelerated cycle times. Because this tool lifts part from mold cavity without leaving any marks, overall aesthic quality of part is ensured.

Thomas & Betts Corp.    Memphis, TN 38125
May 28, 2010 Designed for use with virtually all types of flexible conductors, Color-Keyed® HEX-FLEX(TM) Crimping Dies create hex-style crimp on top of connector and indent crimp in bottom for pull-out resistance. Units are color-coded for matching with Color-Keyed lugs and splices to help eliminate errors. Made from high-carbon tool steel with black oxide plating for corrosion resistance, dies fit most 6- and 14-ton compression tools, as well as 15-ton tools with 15500-TB adapter.

Datron Dynamics, Inc.    Milford, NH 03055
May 27, 2010 In addition to offering 40 x 28 in. work area within 79 x 83 in. footprint, M10 Pro has direct-drive, liquid-chilled, 40,000 rpm spindle using HSK-25E tool holders with less than 1 micron run-out. Linear scales on all axes are driven by larger motors and drives, yielding ±5 micron position accuracy and rapids up to 30 m/min. Along with high-speed CNC control for 3-6 axes, machining center features gantry construction and supports palletized work-holding and probing functionality.

Metabo Corp.    West Chester, PA 19380 4243
May 27, 2010 Equipped with 12.2 A motor, 6 in. WEP14-150 Quick Angle Grinder/Cut-Off Machine delivers 1,400 W of power, 31 lb-in. torque, and no-load speed of 9,000 rpm. Vibratech side handle minimizes vibration, while deadman function maximizes user safety by turning off automatically when released or dropped. Additional features include Quick toolless wheel change system, burst-proof locking wheel guard with 7 positions, and S-Automatic safety slip clutch to protect operator from kickback.

Sunnen Products Co.    St. Louis, MO 63143

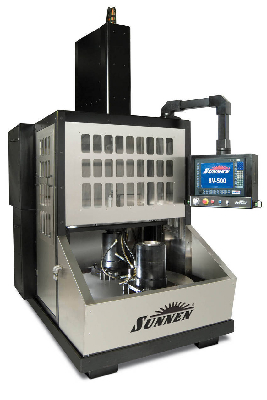

May 26, 2010 Featuring 20 hp vertical spindle with max stroke length of 60 in., max stroke rate of 90 fpm, and 0-300 rpm speed, SV-500 Series creates whole-bore, constant crosshatch, and custom profiled or tapered bores up to 12 in. dia, or larger. Servo-stroking system enables honing of complex parts, such as those with interrupted, tandem, blind, or geometrically flawed bores. Electromechanical design ensures consistent performance over time, eliminating drift inherent to hydraulic machines.

Weidmuller, Inc.    Richmond, VA 23236

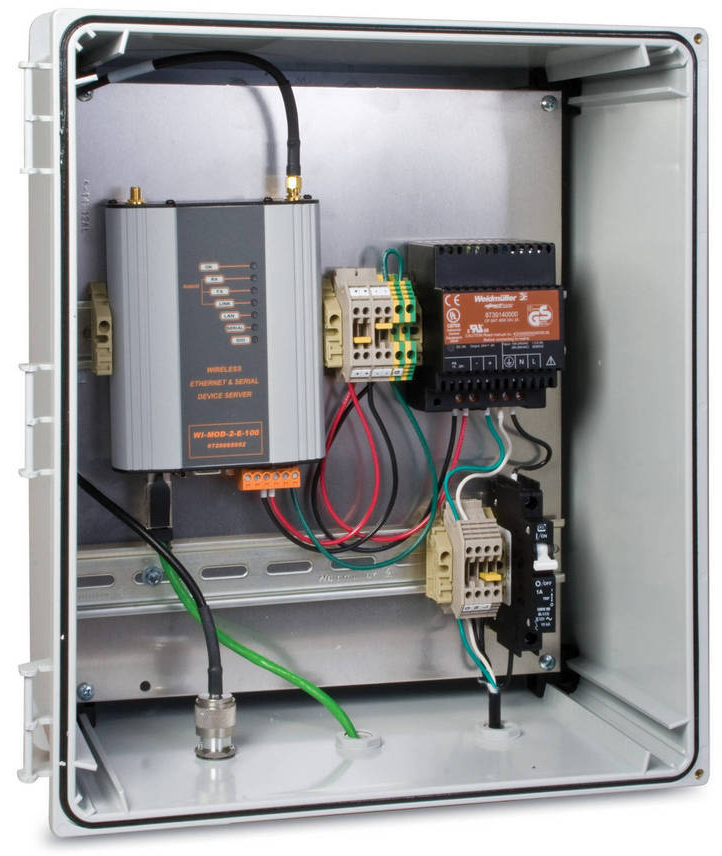

May 26, 2010 Rated to NEMA 4X and IP67, Wireless in a Box solutions include Ethernet and I/O versions that provide wireless connectivity for remote monitoring/sensing. Ethernet version has WiFi 2.4 GHz modem, while I/O version features 2 pre-assembled plastic enclosures that separately house transmitter and receiver which operate on 900 Mhz radio bands. Power supply, circuit/surge protection, antenna and connecting cables, and terminal blocks come standard with both versions.

Emco Maier    Columbus, OH 43228
May 26, 2010 In addition to 2 spindles, 2 turret tool systems with total of 24 driven tools, and VDI25 rapid change system, Hyperturn 45 includes Y axis with 70 mm travel in upper slide system and Z2 axis in lower slide system. Main and counter spindles are equipped with integrated water-cooled spindle motors with drive power of 15 kW, max speed of 7,000 rpm, and 100 Nm torque. Maximum turning diameter is 300 mm. For programming, machine includes Siemen's Sinumerik 840D-sl control and drive system.

NT Tool Corporation    Franklin, TN 37067

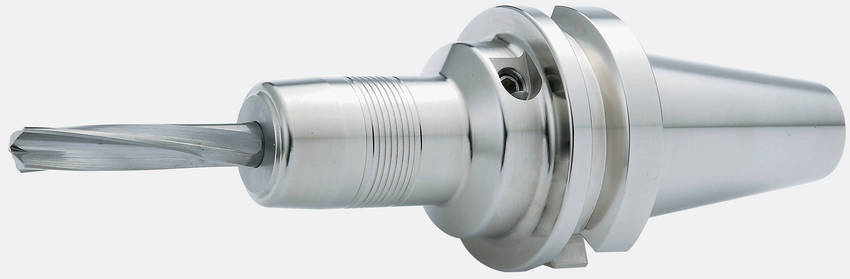

May 26, 2010 PHC (Power Hydro Chuck) Series offer runout accuracy of 3 µm or less at projection length of 50 or 100 mm, depending on cutting tool diameter. Designed for machining applications such as precision drilling, reaming, fine boring, and finish end milling, toolholders offer optional adjustment mechanism for adjustment of cutting tool projection length via hex wrench. Available styles include CAT, BT, HSK, and AHO, while bore diameters range from ¼-1 ¼ in. and 6-32 mm.

Dynabrade, Inc.    Clarence, NY 14031
May 26, 2010 With speeds of 500, 1,000, 2,400, 3,600, 5,500, and 20,000 rpm, .4 hp Pistol Grip Drills feature ¼ chuck, air motor, and finger platforms on both sides for stability and support. Angle Head Drills, also rated at .4 hp, are 11 in. long and provide speeds of 950 and 3,200 rpm. Designed to connect to central vacuum systems, Vacuum Drills include vacuum shroud, which compresses around drill bit to capture chips and debris.

Aztec Products    Montgomeryville, PA 18936
May 25, 2010 UltraGrind propane-powered planetary head concrete grinding and polishing machine weighs 500 lb and provides 40 lb of head pressure per diamond abrasive. It includes 2 in. exhaust ports for concrete dust vacuums as well as 8 gal water tank that allows user to rewet floor while polishing. Unit is powered by 20 hp Kawasaki 603 cc engine with heavy-duty canister air filter.

Royal Plastic Mfg., Inc.    Minden, NE 68959

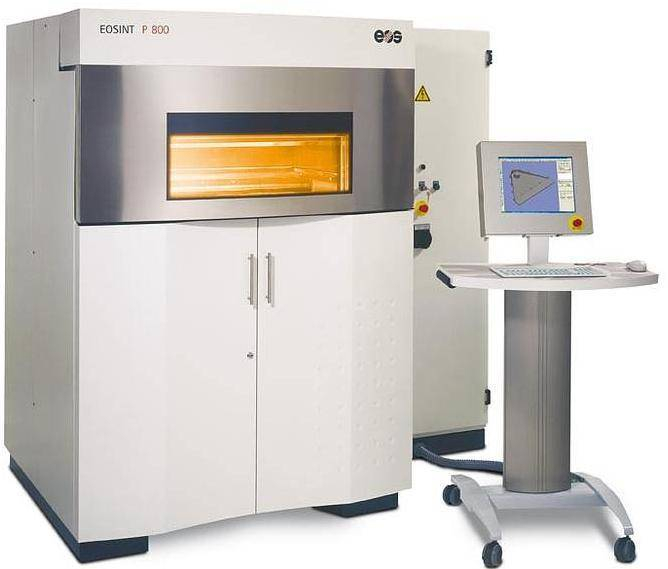

May 21, 2010 Featuring 27.6 x 15.0 x 21.7 in. build volume, EOS P800 offers high-temperature laser sintering capability for polymeric part manufacturing. With this process, both functional and prototype parts can be manufactured directly from 3D CAD definition into components made from PEEK polymer. Melting or sintering together of thin layers of powdered material can achieve design complexities outside those supported by traditional machining or injection molding processes.

Hyde Industrial Blade Solutions    Southbridge, MA 01550

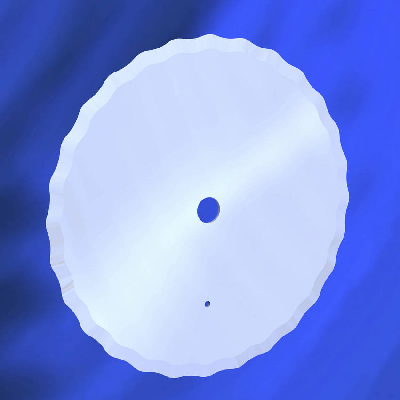

May 21, 2010 Designed with sharpened recessed curves along edge, professional-grade Wavy Scallop Edge Blades have sharp points at leading edge of cut to offer linear cutting surface. Scallops on blade's edge optimize cutting ability by providing single point penetration into work being cut. Unlike abrasive wheels that generate heat, smoke, and debris that can contaminate hydraulic cutting systems, blades slice cleanly through work, eliminating large volumes of waste.

Haas Automation, Inc.    Oxnard, CA 93030

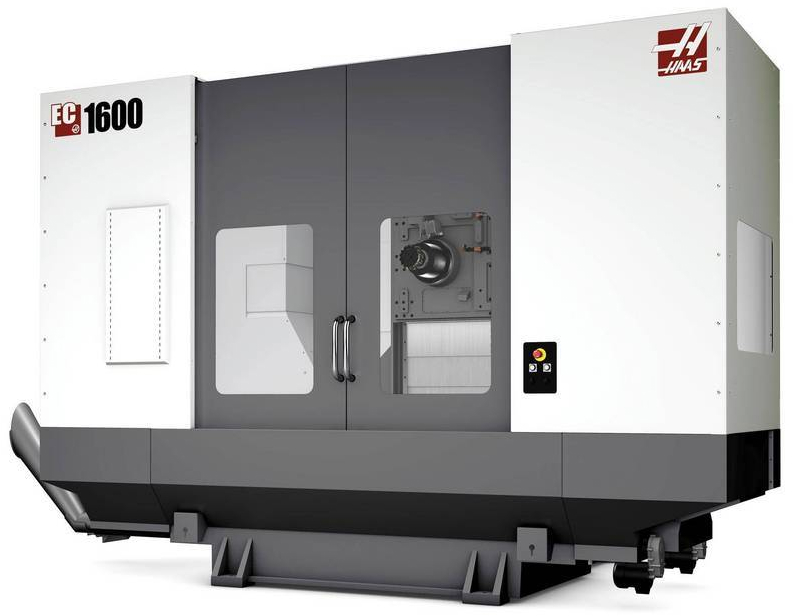

May 21, 2010 To accommodate large-volume machining, EC-1600 features 64 x 50 x 32 in. work cube; 64 x 32 in. T-slot table that supports up to 10,000 lb parts; and 6,000 rpm, geared-head, 50-taper spindle. Fully enclosed machine also includes multiple chip augers to evacuate chips and 95 gal flood coolant system. Cast-iron construction provides rigidity and dampens vibration, and 30 hp vector drive system provides 450 lb-ft torque to spindle for heavy cutting.

Wilmington Machinery, Inc.    Wilmington, NC 28406 7308
May 21, 2010 Operating with single stack injection mold, Pallateer System PM-2 produces up to 450,000 single deck nestable pallets per year, and can alternatively produce 225,000 double deck 2-piece pallets. Pallateer system PM-4 operates with 2 stack molds and produces up to 900,000 single deck or 450,000 double deck pallets. Using structural foam injection method which provides for strength at light weights, both models can also process 100% recycled material, even in granulated flake form.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
May 21, 2010 Capable of cutting threaded rod, uni-strut, conduit, and other metal materials, lightweight 18 V bandsaw model DCS370 offers portability on jobsites and is suited for cutting material on lift or accessing tight spaces. Bandsaw features heavy-duty glass filled nylon base, centered handle for balance in overhead applications, and 2½ in. cutting capacity. Unit is available with 18 V Lithium-Ion battery, 18 V Nickel-Cadmium battery kit, or as bare tool without battery.

MAG IAS, LLC    Erlanger, KY 41018
May 20, 2010 Adding surface finishing to processing capabilities of vertical turning centers, automatically changed Grinding Attachment allows finishing of ID, OD, and plane surfaces on parts up to 185 in. diameter. VTCs equipped with 22/33 kW grinding attachment can produce better than 10 µin. finishes and roundness of less than 60 µin. with diameter size control of 0.001 in. Utilizing wheel sizes up to 15.75 in., attachment produces 295 lb-ft torque and max speed of 3,000 rpm.

Schunk    Morrisville, NC 27560
May 20, 2010 Transforming precision toolholders into versatile units for narrow spaces independent from spindle interface, TENDO-SVL Hydraulic Expansion Extension is available in 4 sizes with shank diameter of 32 or 20 mm, clamping diameter of 20 or 12 mm, and length of 150 mm. Maximum torque of hydraulically clamped extension ensures that tools are held securely for all drilling, reaming, and finish milling operations.
