Positrol Workholding    Cincinnati, OH 45227
Jul 09, 2010 Designed to operate trouble-free in rough environments, Six-Jaw Chuck locates and pulls back in 12 separate locations, minimizing scrap rates and eliminating distortion of part during machining. Parts are gripped and held securely to withstand cutting forces generated in production machinery.

Rex-Cut Products, Inc.    Fall River, MA 02720
Jul 09, 2010 Available in Type 1 straight-sided and Type 27 depressed-center styles, Aluminator(TM) cut-off wheels are formulated with 46 grit abrasive and resin bonding system for cutting aluminum products fast without clogging. Suited for die- and angle-grinders, units come in sizes from 4-7 in. dia. Applications include cutting tube, pipe, rails, bar stock, sheet, and trimming castings.

Arthur G. Russell Company, Inc.    Bristol, CT 06011-0237
Jul 09, 2010 Designed to operate at extrusion pressures up to 1,500 psi with 64 orifices/in., laminated stainless steel melt-blown nano-fiber die produces less than 0.5 micron dia nano-fibers from polypropylene (PP), polyethylene (PET), PBT, and other resins. Die can produce 400 nm fibers at basis weight of 0.10 g/sq-m and production rate of 1,200 m/min, and has capacity to block contaminants under 0.3 microns. Applications include surgical/medical devices and clean room HEPA filtration devices.

Knuth Machine Tools USA, Inc.    Lincolnshire, IL 60069
Jul 08, 2010 Designed for drilling, tapping, and reaming, KSB Series is built with rigid cast-iron box-column, heavy ribbing, and dovetail table guide mounted to cast-iron body for torque-proof results. Systems provide drill capacity up to 3 in. and handle wide variety of materials. Available in up to 12 speeds with left-hand single-lever control, tapping feature automatically reverses upon reaching preset depth. Coolant system, halogen work lamp, and operating tools are included.

Kadant Johnson, Inc.    Three Rivers, MI 49093
Jul 07, 2010 ProFlake(TM) doctor blades utilize bi-metal technology that optimizes blade life and flaker performance. Doctor blades are made from non-brittle, wear-resistant alloy that allows blade tip to maintain its doctoring edge throughout useful life and also has low-friction design that is gentle on drum surface. Variety of blade widths, thicknesses, and bevel configurations are available.

Aztec Products    Montgomeryville, PA 18936
Jul 07, 2010 Along with 21 in. pad to accommodate smaller spaces, 21 in. Answer Floor Burnisher has completely modular design, full cast aluminum body with centered deck, and adjustable wheels for fine tuning pad pressure. Kawasaki 603cc engine, rated to 3,600 rpm, drives pad at speeds to 2,000 rpm while emitting no more than 80 dB during operation. Floor buffer machine is suited for use in areas such as schools, convenience stores, small grocery stores, and other smaller facilities.

Aztec Products    Montgomeryville, PA 18936
Jul 07, 2010 Grand Finale is rugged floor chemical application machine that applies floor finish, concrete densifiers, hardeners, and sealers and also works as floor wax applicator to complete Aztec Sidewinder(TM) Stripping System. Unit can lay down smooth, uniform coat of fresh floor finish at average rate of 50,000 sq ft/hr. Eliminating baseboard splash and product waste associated with finish puddling, product is suitable for use in janitorial/sanitation industry.

Cold Jet LLC.    Loveland, OH 45140
Jul 07, 2010 Providing pulse-free performance, variable feed Aero V features aluminum frame, 360° turning radius for navigation in tight areas, and stainless steel isolated hopper with vibrator to keep pellet fluidized. Single-hose electric system uses high-density dry ice made from reclaimed carbon dioxide as cleaning medium, providing non-abrasive, non-conductive, chemical- and water-free process that lifts away dirt and contaminants and will not damage surfaces or equipment.

Doosan Infracore American Corporation    Suwanee, GA 30024
Jul 06, 2010 Lynx 300 features 10 in. dia, 3-jaw power chuck that turns 3 in. bar stock at speeds up to 3,500 rpm. Unit's bed is 1-piece Meehanite casting that absorbs vibration and dissipates heat. Linear motion guideways allow traverses of 945 ipm on X-axis and 1,181 ipm on Z-axis, and 12-station turret has 8.26 in. dia curvic coupling and 11,465 lb of hydraulic clamp force. Indexing repeatability is ±0.0005° and turret indexing is non-stop and bi-directional, with 0.15 sec next-station index time.

SNK America Inc.    Elk Grove Village, IL 60007

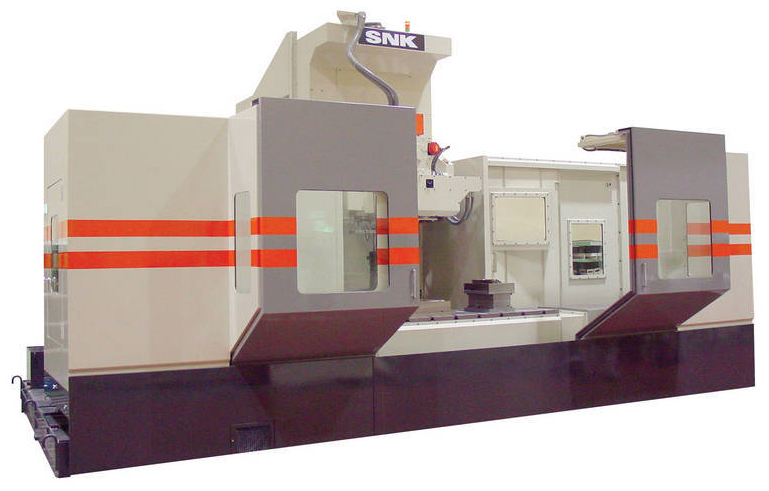

Jul 06, 2010 In addition to 31.5 x 78.7 in. table with 8,800 lb capacity, FSP-80V incorporates 30/22 hp, gear-driven spindle with 1,185 Nm continuous torque; Fanuc 31i-A5 CNC system with Fanuc servomotors and drives; and 40-position ATC. Big Plus spindle adaption system enables heavy cutting capability, while A and B axes respectively offer ±30° swivel saddle and head rotation. Feed rates (rapid/cutting) are 787/393 ipm for X and Y axes, 393/196 ipm for Z axis, and 500 dpm for A and B axes.

Roland DGA Corporation    Irvine, CA 92618
Jul 06, 2010 Designed for creating copings, crowns, and bridges in zirconia and wax, DWX-30 features integrated clamping system and virtual panel. Three types of clamps are included, one for discs and 2 for blocks, while integrated dust collection system removes debris and keeps machine and lab environment clean. Using DWX-30, materials can be cut on top, bottom, and at ±20° for complex geometry. Unit also includes tool sensor for automated machine and tool setup.

Kyocera Industrial Ceramics Corp., Industrial Ceramic Products Group    Mountain Home, NC 28758
Jul 05, 2010 Designed for machining gray and ductile cast iron, CA4505 and CA4515 carbide cutting tools utilize Bright Black coating technology for resistance to premature wear and fractures. CVD coating provides anti-peeling performance through combination of ultra-fine TiCN layer, alpha-alumina layer, and special-surface top layer, which minimizes material build-up on insert cutting edge. CA4505 is suited for continuous machining, while CA4515 is suited for continuous or interrupted machining.

Sunnen Products Co.    St. Louis, MO 63143
Jul 02, 2010 Using standard collet connection, KRQ tool requires no indicating for parallel or conical runout - accelerating setup and job changeover. This enables shops to inventory range of tool sizes for efficient processing of short production runs. Available in diameters of 5.0-19 mm in increments of 0.10 mm, tool can work with controlled-force honing technology to enable shops to obtain precise bore size control. Mandrel works with diamond and CBN superabrasives and utilizes carbide shoes.

Ethernet Direct    Newburyport, MA 01950
Jul 02, 2010 Supplied in IP68-rated housing, Falcon FWO-732 is dual-band (5.8 and 2.4 GHz), IEEE 802.11a/b/g-compliant, outdoor wireless access point (AP) and bridge for industrial Ethernet applications. It links 2 or more separate networks to create one expanded LAN network and supports 108 Mbps max data rate. Built-in PoE support minimizes cabling concerns, and built-in 64-/128-/152-bit WEP encryption and WPA function secures information.

Strippit Inc.    Akron, NY 14001-1321
Jul 02, 2010 As retrof for VX, V, VT, S, and ST-Series CNC turret punch presses, PA-Series Load/Unload systems provide continuous processing of materials up to .140 in. thick. With material bundle capacities of 2,500 and 3,000 kg, respectively, model PA-1225 supports sizes up to 98.4 x 49.2 in. and model PA-1530 handles materials up to 60 x 120 in. Both systems work with min sheet sizes of 500 x 1,000 mm. Space-saving design loads and unloads material from same side of turret punch press.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Jul 01, 2010 Speed-X Hammer Carbide features centric carbide tip, side cutters that power their way into concrete, as well as head design and dust clearing channels that allow it to perform better as holes get deeper. Flutes minimize vibration in deep drilling, while vacuum-optimized brazing and heat treatment of carbide tip provide resistance to impact and thermal stresses. Wear mark on carbide tip alerts users when tip is worn and bit will stop precision anchoring at start of drilling.

Techno, Inc. - CNC Router Systems    New Hyde Park, NY 11040
Jul 01, 2010 Designed to simplify metal cutting operations, HPLC CNC Plasma Cutter Series is built from heavy-duty welded steel and includes precision drive system and fully automated CNC Plasma Interface to guide users through cutting process. High-quality plasma torch as well as electronic circuitry for automated torch functions promote smooth operation. Unit is available with choice of 3 standard table sizes, which can handle up to 1¼ in. thick material.

Aztec Products    Montgomeryville, PA 18936
Jul 01, 2010 Designed for high-speed honing and polishing of concrete floors to mirror-like finish, DiamondShine employs EPA- and CARB-certified, 17 hp Kawasaki propane engine that drives 3 diamond heads at 1,100 rpm. Combination of speed and over 400 lb of head pressure makes this unit suited for honing, polishing, and light grinding of commercial and institutional concrete floors.

Cold Jet LLC.    Loveland, OH 45140
Jun 30, 2010 Offering blast pressure from 20-250 psi, Aero 40 HP uses high-density dry ice made from reclaimed CO2 as cleaning medium to provide non-abrasive, non-conductive, chemical- and water-free process that will not damage surfaces or equipment. Design optimizes pellet integrity, cleaning aggression, and blast stream reliability, while SureFlow system prevents clogging and pellet sublimation to ensure uninterrupted cleaning performance.

Agie Charmilles, LLC    Lincolnshire, IL 60069
Jun 30, 2010 Model CUT 20P wire EDM features dielectric unit with 3 vertical Grundfos pumps and integrated collision protection on X-, Y- and Z-axes that prevents breakage of sensitive parts and elements. Unit also includes 17 in. LCD console as well as HMI built on Windows XP platform to enable integration into data network via LAN. Speed technology package allows unit to provide optimal precision, time, and surface roughness when machining jobs with 2-4 cuts.
