SYMETIX    Walla Walla, WA 99362

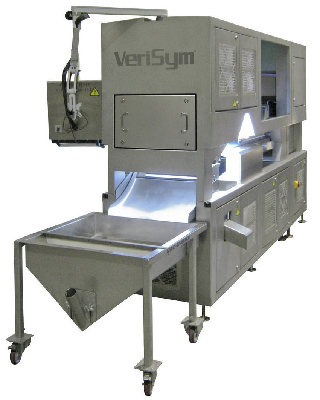

Oct 01, 2010 Utilizing 2 inspection cameras located above and below product stream, VeriSym® SL inspects up to 500,000 softgel capsules or tablets per hour, verifying product color, size, and shape while removing defects and foreign capsules and tablets from product stream. FDA-compliant system can be programmed to send alarm or stop product flow when unconfirmed object is detected. VeriSym SL/N version is designed for nutraceuticals, while VeriSym SL/P is intended for OTC and regulated pharmaceuticals.

HD Communications Corp.    Ronkonkoma, NY 11779
Sep 29, 2010 Model HD28650 is in-wall 802.11B/G/N access point that is designed for locations wired for Category5, Cat5e, or Cat6 cable or planning to wire for Ethernet cable. Powered via Ethernet through Cat5E or Cat6 cable, device fits into single-gang, low-voltage box and can be mounted vertically or horizontally. Product is suited for homes, offices, hotels, motels, and educational facilities and its cover plate can be switched to white, ivory, light almond, or black.

Reed Manufacturing Co.    Erie, PA 16512
Sep 28, 2010 Supplied with foot pedal, pipe cutter, reamer, and dies, ½ hp Model 5401TMSO centers and chucks pipe and conduit and rotates it while cutting, threading, and reaming operations are performed. Three-spoke handwheel with gear and rack system moves high clearance carriage and starts die onto pipe for threading. Using self-priming pump, oil system generously floods pipe with oil while threading. Nominal threading capacity is ¼-2 in. for bolts and 1/8-2 in. for pipes.

Vernon Tool Co.    Oceanside, CA 92054
Sep 28, 2010 Suited for small- to medium-sized fabricators of tube frame assemblies, MasterPipe(TM) Profiler (MPP) 2-axis, CNC pipe cutting machine is powered by Windows®-based OS and operated via touchscreen. It consolidates setup, programming, and cutting into one operation, and pre-loaded cut library optimizes pipe configuration flexibility. Capable of performing range of standard cuts, machine handles 1-12 in. OD pipe in lengths up to 40 ft.

Lyndex-Nikken Inc.    Mundelein, IL 60060
Sep 28, 2010 Equipped with 3-phase 220 V power connector, Shrink Fit Machine can insert cutting tool into shrink fit holder in 2 sec. Induction coil allows unit to handle cutter bodies made from HSS, heavy metals and carbide, and automatic cutter size detection function eliminates need for inputting size of cutter shank, reducing set up time. Device is compatible with all holders with varying geometries, shrinking 2-40 mm with same inductor.

Seco Tools Inc    Troy, MI 48083
Sep 27, 2010 Power 4(TM) copy milling cutter features anti-rotating insert system with 4 facets on insert clearance side and matching locations on pocket seats to keep inserts from rotating during machining process. Seat pockets have sealed design to keep chips and dirt out. All unit parts are coated with Nickel Chromium surface hardening treatment, resulting in hardness of approximately 65-70 HRc. Cutter also features internal through coolant holes, and is available in grades T350M and MS2500.

CGW-Camel Grinding Wheels    Niles,, IL 60714
Sep 24, 2010 Able to accommodate aggressive applications, trimmable Z3 flap discs have disc backing designed to trim down to expose flaps. This extends working life while minimizing disc change frequency. Hybrid compact flap design compresses and compacts flaps at 4° angle for additional edge strength. Manufactured from premium zirconia alumina grain and polyester and cotton flap backing, discs are available in 4½ and 5 in. dia with 7/8 in. arbor holes and 40, 60 and 80 grit sizes.

Emuge Corp.    West Boylston, MA 01583-2121
Sep 22, 2010 Made from carbide for wear resistance, TiNox-Cut End Mills offer cutting solution for nickel alloys like Inconel and Stellite, all grades of titanium, and tough stainless steels. Heat-resistant lubricious coating and cutting edge design maximize tool life by minimizing friction and evacuating chips. Available in 6-20 mm diameters, end mills come in two 4-flute variations for roughing and finishing and one 5-flute extra long version for finishing processes.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Sep 21, 2010 Available in standard and The Ax(TM) profiles, SAWZALL® Blades feature aggressive 5 TPI (teeth per inch) pattern that enables increased cutting speed. Nail Guard(TM) tooth design prevents nails from fracturing blade's teeth upon impact; cutting edge of tooth form remains engaged with nail, rather than allowing nails to drop into gullets and cause teeth-fracturing impacts. Also featured are one pair of fang-like teeth and extra large gullet for accelerated plunge cuts.

Jet Edge    St. Michael, MN 55376
Sep 21, 2010 Spyder Abrasivejet Radius and Circle Cutting System features self-aligning centering pin for setup, motion components made from non-ferrous materials, and cutting head manipulators powered by pneumatic motors. Available in 1-6.5 in. ID/16-48 in. OD and 3-12.5 in. ID/27.5-56 in. OD sizes, portable unit can be set up on side of tanks, small vessels, and large diameter piping. System is powered by 60,000 psi waterjet intensifier pumps available in electric or diesel models up to 280 hp.

Emuge Corp.    West Boylston, MA 01583-2121
Sep 21, 2010 TiNox-Cut series promotes tool life when machining challenging materials, namely nickel alloys such as Inconel and Stellite, all grades of titanium, and stainless steels such as Super Duplex. Accommodating production demand for parts machined from said materials, end mills have heat-resistant, lubricious coating as well as optimized cutting edge design that extends tool life by minimizing friction and efficiently evacuating chips. Series includes two 4-flute and one 5-flute versions.

D-Link Systems, Inc.    Fountain Valley, CA 92708
Sep 20, 2010 Intended for use in SOHO environments, Powerline AV Wireless N Extender model DHP-W306AV utilizes existing electrical wiring to make high-speed network accessible to digital media devices, print servers, computers, and network storage devices. Solution features 802.11n wireless speeds up to 300 Mbps and HomePlug AV data transmission speeds to 200 Mbps. To facilitate setup, wired/wireless encryption keys can be configured by pressing button atop device.

Makita U.S.A., Inc.    La Mirada, CA 90638
Sep 17, 2010 Weighing 4.2 lb, GA4534 is 4 ½ in. paddle switch angle grinder with non-protruding brush holders and motor that lend to reduce barrel diameter of 2 3/16 in. Side handle is positioned at increased 20° angle for comfort and control, and 6 A motor delivers 11,000 rpm. Engineered with machined bevel gears, grinder also features labyrinth construction that seals and protects motor and bearings from dust and debris. All-ball bearing design and metal gear housing promote durability.

Sidel, Inc.    NOrcross, GA 30092
Sep 16, 2010 Bottle Switch(TM) improves blow molder flexibility by reducing mold changeover time in order to adapt to accelerated product changeover times on filler. Less than 1 min is required to change mold, reducing machine downtime while helping to avoid investment in storage silos or intermediate palletization. Semi-automatic solution places required blowing station directly in front of operator, who is only required to change molds. Removal/installation in mold support units is tool free.

Quintech Electronics and Communications Inc.    Indiana, PA 15701
Sep 15, 2010 Compact QE3, 64 x 64 RF matrix router features Q-ROUTE that provides internal signal path redundancy by automatically rerouting around failed signal path. It also features Q-SENSE that provides external signal path redundancy by automatic switching back-up input signals. Programmable automatic gain control and attenuation on all inputs allows user to adjust input signal level for optimum performance. Unit's touchscreen and embedded web browser enable front panel or remote PC access.

Zierick Manufacturing Corp.    Mount Kisco, NY 10549
Sep 14, 2010 Accommodating PCBs from 0.030-0.120 in. thick and up to 30 in. square, Model 9700 features modular tool sets that facilitate changeover. Automatic actuation system helps maximize productivity, while locator light assists in positioning of PCB hole over anvils. During insertion cycle, all terminals are automatically splayed and locked into place. Obstruction sensor aborts cycling if foreign object interferes with operation.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Sep 14, 2010 Powered by menu-driven WinMPM, Windows®-based OS, MasterPipe(TM) Profiler (MPP) 2-axis, CNC pipe cutting machine consolidates set-up, programming, and cutting into one operation. Once pipe is loaded, programming consists of inputting pipe dimensions and selecting types of cuts from pre-loaded library. Machine can cut and profile 1-12 in. OD pipe with lengths to 40 ft, while WinMPM is also available off-line for use on any computer and is compatible with many CAD/CAM packages.

Mazak Corp.    Florence, KY 41042 3092

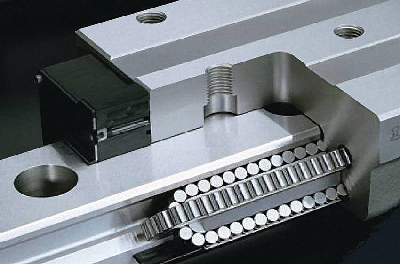

Sep 13, 2010 Designed for integration with Mazak machines, MX Hybrid Roller Guide System features X-Design, which distributes load in 4 directions - radial clockwise and counterclockwise, reverse radial, and lateral. X-Design also minimizes reversal errors for optimal cornering. In addition to consuming minimal amounts of oil for Greener operation, system provides vibration dampening capability, which extends tool life.

Tornos    Lombard, IL 60148
Sep 13, 2010 Able to work with/without guide bush, EvoDECO series includes 16a and 16e models that accept 2-16 mm dia bar stock. Fully synchronous drives optimize accel/decel, reducing cycle times for parts that require increased stopping. Ten axes + 2 C axes on 16a (8 + 2 on 16e) are managed simultaneously with perfect interpolarity between axes, and 4 independent tool systems on 16a (3 on 16e) allow simultaneous bar and secondary operation work. Machines can go from 0-8,000 rpm in milliseconds.

Standard-Knapp, Inc.    Portland, CT 06480
Sep 10, 2010 Suited for wine and beverage industries, PikMore uses gripper heads that revolve around center carousel to remove empty glass bottles from cases, allowing for expedited refilling and packaging down process line. Uncaser gently places bottles on conveyor as they leave machine to minimize bottle damage. Equipped with graphic operator interface screen, Uncaser is designed to run largely operator free. Machine can be programmed for auto lubrication and is free of servo motors.
