Tapeswitch Corp.    Farmingdale, NY 11735

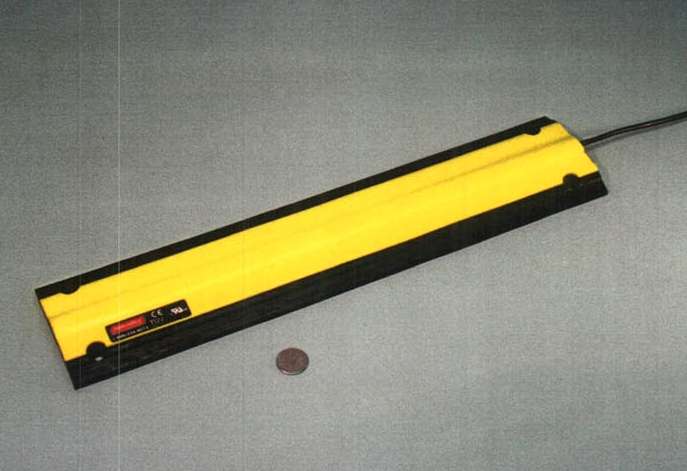

Apr 22, 2004 Non-corroding, Vehicle Detection Switch provides contact closure when depressed at any point. Made from extruded PVC which has been UV stabilized and double sealed, it is immune to messy weather. Flexible housing allows mounting on contoured or irregular surfaces. Switch has nominal operating force of 20 lb and comes in lengths up to 16 ft. Applications include vehicle or axle counting, floor-mounted emergency stops, vehicle positioning, and intrusion detection.

Elsner Engineering Works, Inc.    Hanover, PA 17331
Apr 22, 2004 ZFV Series automatic folding machines utilize servo controls for stack separating and lowering and cut-off knife operation. Various fold styles can be made on machine, including Z, C, and specialty folds, and cut lengths can be selected in increments from 3.5–10.5 in. Products convert web widths from 20–80 in. to any cut length and fold size. Central console displays product count, web speed, production rate, wetting saturation rate, and other data.

Linear Technology Corp.    Milpitas, CA 95035
Apr 22, 2004 Model LTC3831-1 synchronous, switching DC/DC controller guarantees output voltage regulation of 0.75 V or lower for systems needing active bus termination. Unit generates termination voltage with ±1.6% accuracy and can sink and source as much as 15 A at up to 90% efficiency to satisfy small to large DDR/QDR memory banks. Operating from 3-8 V, device drives 2 external MOSFETs synchronously and eliminates need for current sense resistor.

Rockwell Automation / Allen-Bradley    Bloomington, MN 55438

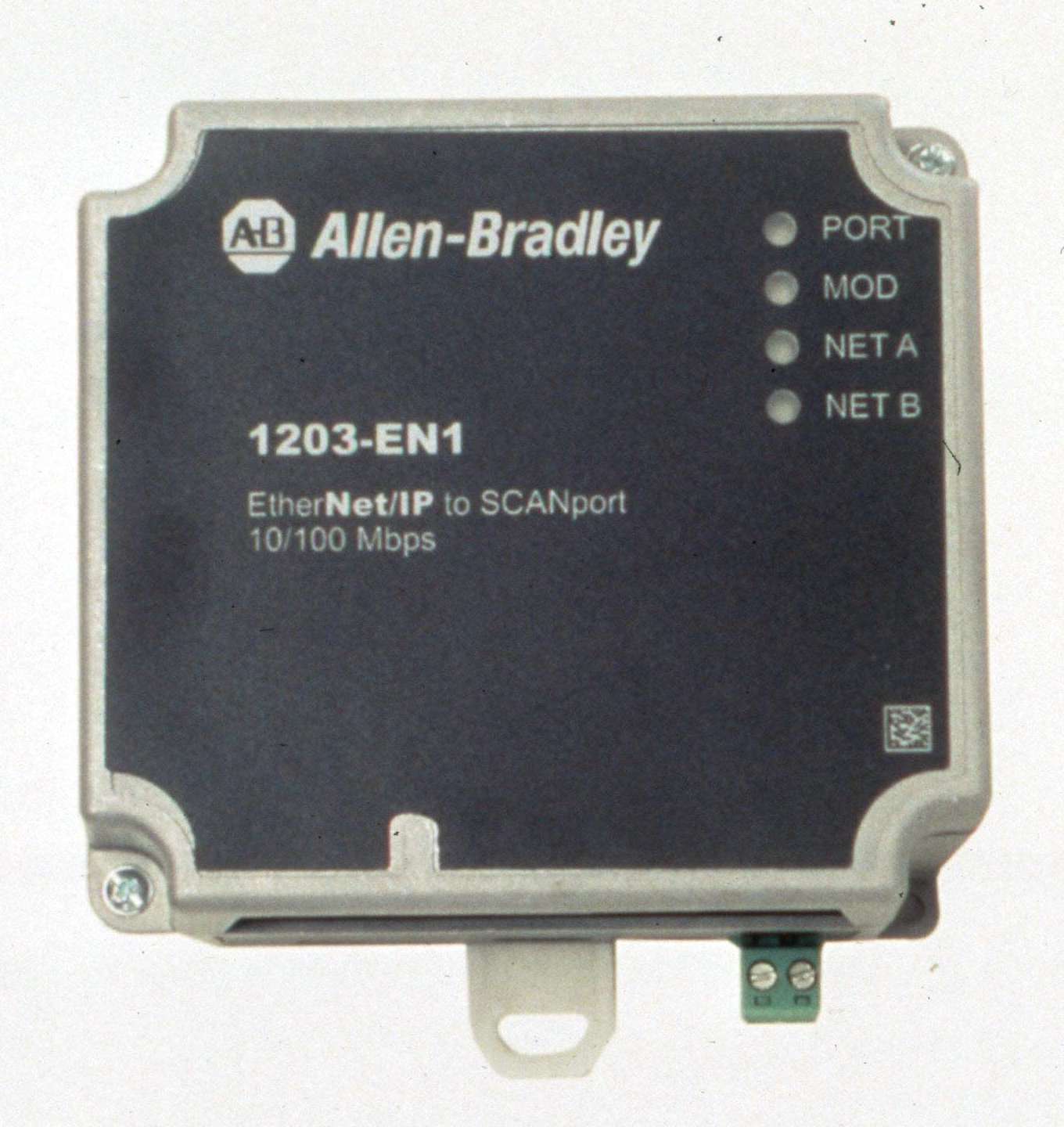

Apr 22, 2004 Allen-Bradley® 1203-EN1 gives Ethernet-based control and data access to SCANportâ„¢-enabled drives. Both new and legacy systems can be controlled, configured, and have data collected over EtherNet/IP. Module sends and receives drive operating and metering data, provides parameter read/write access, and offers additional Ethernet/IP features such as Web-page monitoring and e-mail notification. It can serve as second network to existing control network.

Dwyer Instruments, Inc.    Michigan City, IN 46361

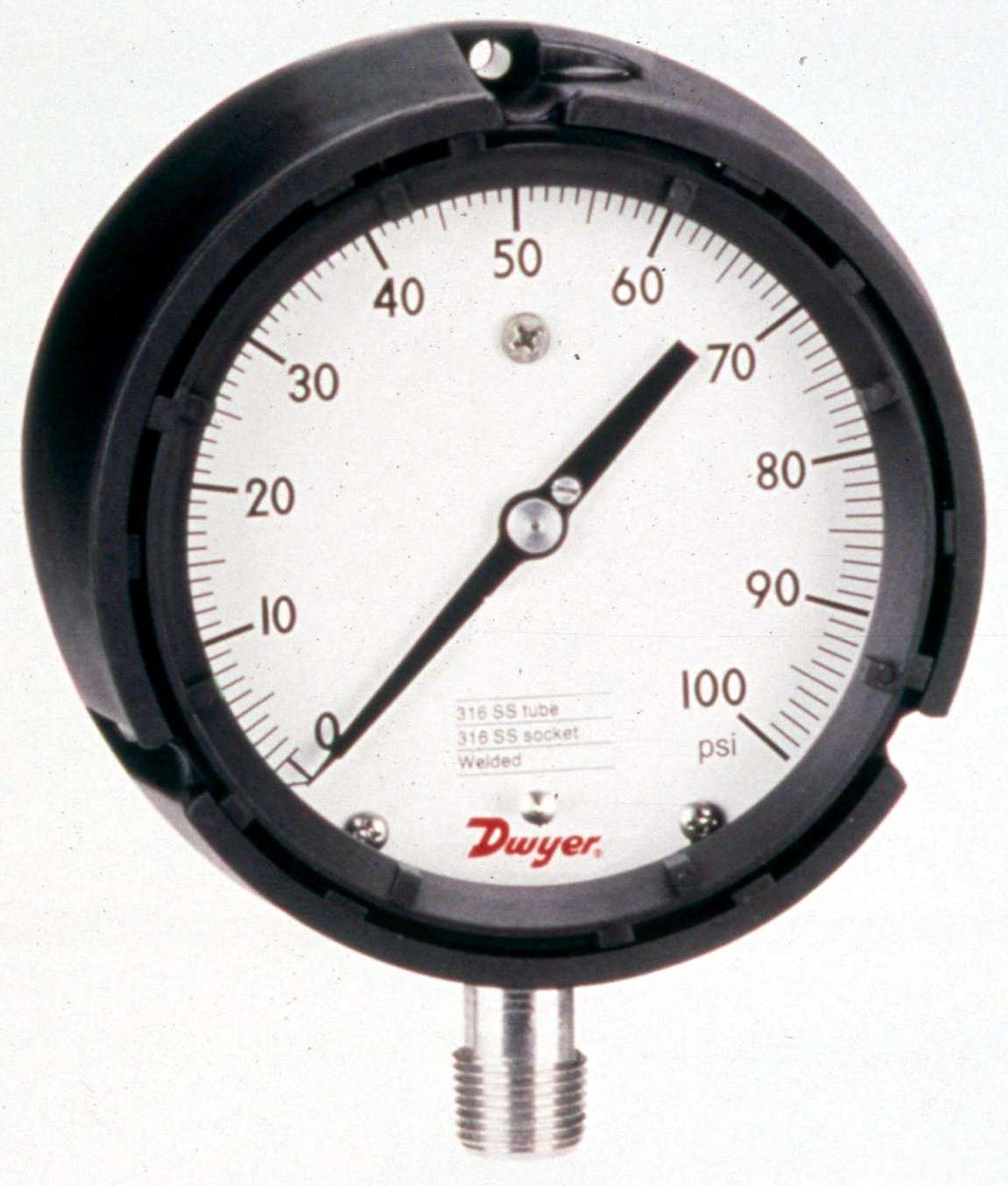

Apr 22, 2004 Designed with 316 L stainless steel tube and socket for chemical compatibility, Series 760 Liquid Filled Pressure Gage is suited for applications where vibration, pulsation, mechanical shock, and pressure spikes are common. Units feature glycerin fill and micrometer adjustable pointer.

Garon Products, Inc.    Wall, NJ 07719 1924

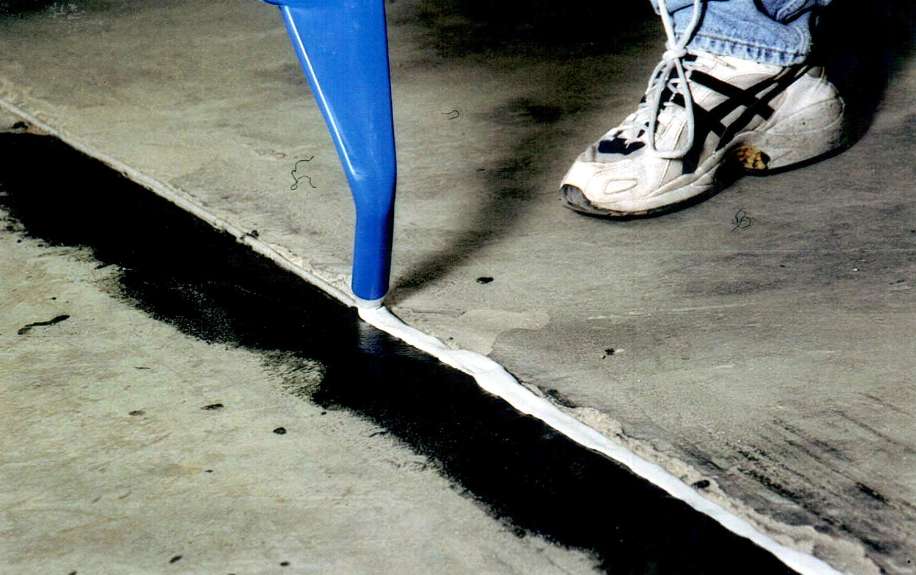

Apr 22, 2004 Joint Guardâ„¢ fills expansion joints with flexible epoxy seal that will not become brittle or break out as sections of floor expand and contract in response to temperature changes. With 100% solids formula, product flexes up to 50% and withstands heavy traffic and chemical contact. Pourable, self-leveling, self-priming, non-shrink sealant prevents contaminants from pooling in joint areas.

ID Technology Corp.    Fort Worth, TX 76106

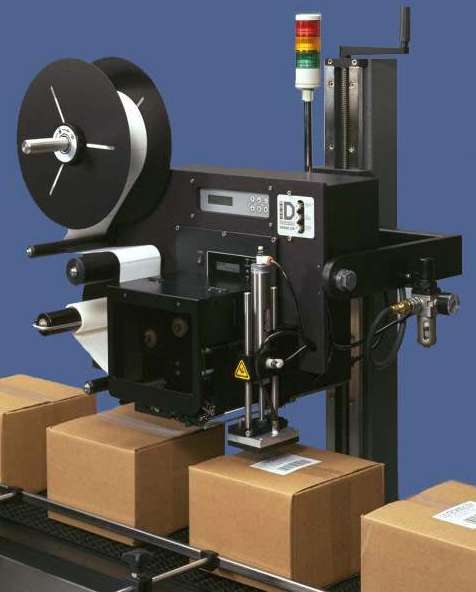

Apr 22, 2004 IDT 250 Series printer applicator includes RFID print engine from Sato, Zebra, or Datamax. RFID upgrade allows users to address immediate requirements while providing flexible, long-term path for system-wide RFID deployment. Engine is also available as upgrade to pre-deployed IDT 250 Series printer applicators.

TTI, Inc.    Williston, VT 05495

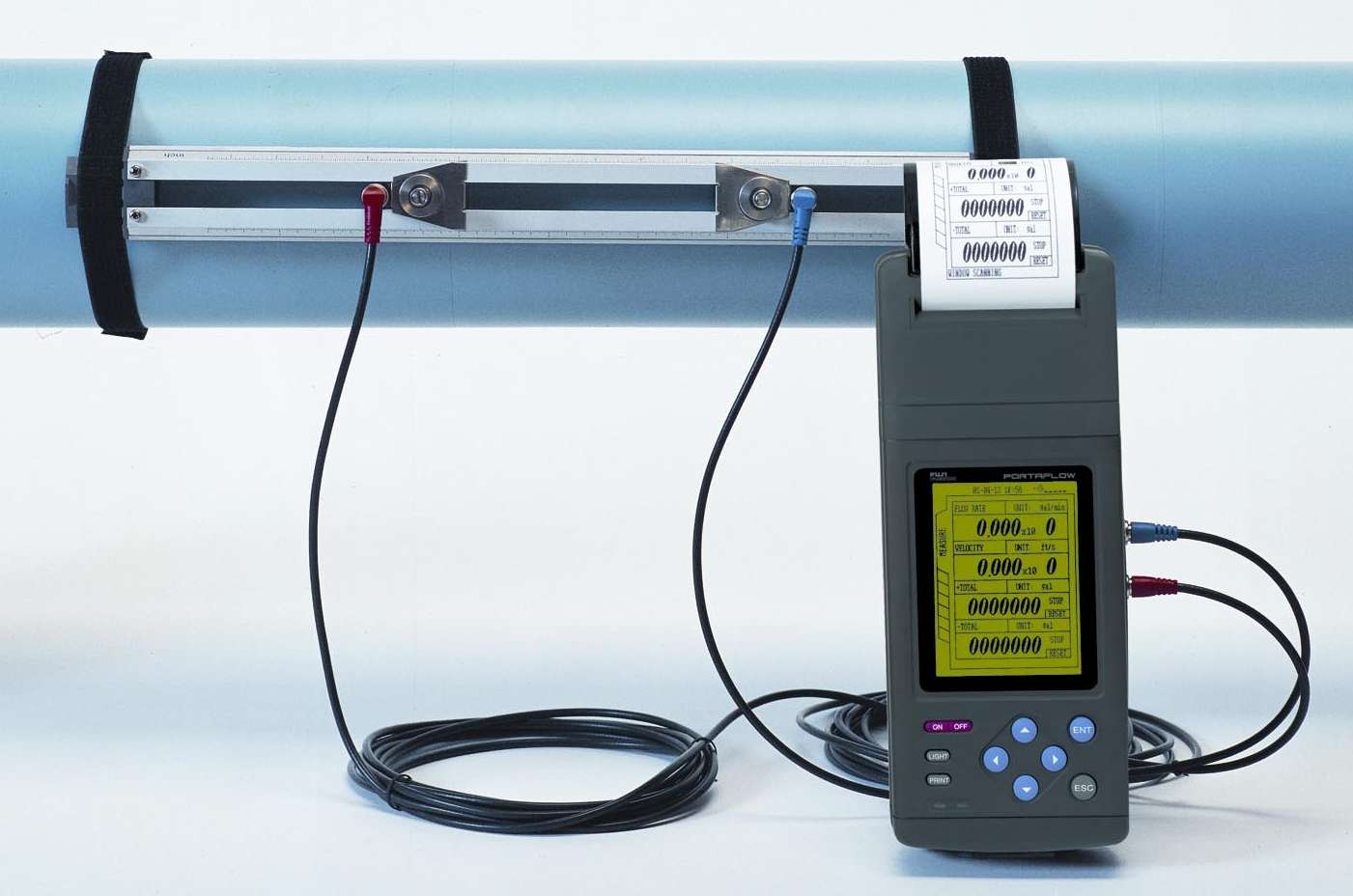

Apr 22, 2004 Portaflow-X hand-held flowmeter uses transit time difference principle to measure flow rates through 0.50–235 in. dia pipes from outside. Non-invasive setup enables multiple flow measurements of different running systems. Used as a backup flowmeter or standalone flowmeter system, compact, 3.3 lb unit features backlit display, built-in data logger, and RS-232C serial communication. Optional thermal printer mounts to top of converter.

Arques Technology    Austin, TX 78728

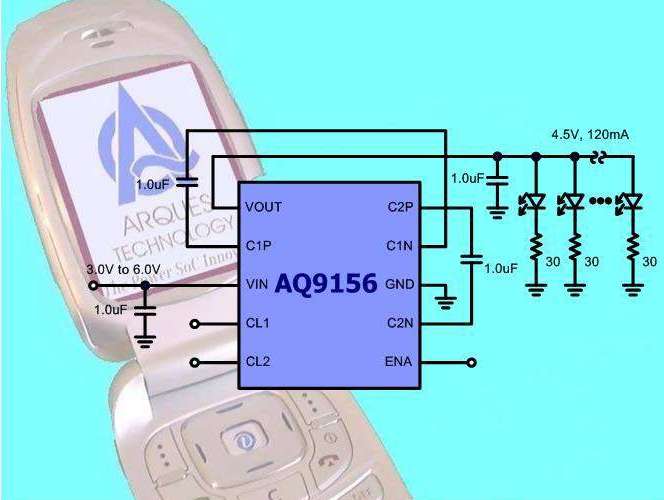

Apr 22, 2004 Model AQ9156 features 1.5X charge-pump circuit that uses 2 ceramic bucket capacitors and 2 filter capacitors for VIN and VOUT. Unit drives up to 6 parallel white LEDs, with typical operating input voltage from 3.0–6.0 V. It offers selectable switching frequency of 8, 32, 262, or 650 kHz. LED brightness can be adjusted via applying PWM signal on either ENA pin or CLK2 pin. Internal over-temperature and over-current management provides short circuit protection.

Walchem Corp.    Holliston, MA 01746 1460
Apr 22, 2004 Microprocessor-based, menu-driven WBL310 is equipped with 4 feed/alarm outputs, allowing 4 different chemical feed methods to occur simultaneously. It uses time proportional blowdown method of water consumption sampling and performs automatic checks on conductivity to eliminate flushing problems. Utilized with contacting or Hall Effect style watermeter, product features automatic temperature compensated conductivity.

Tempil, Inc.    South Plainfield, NJ 07080

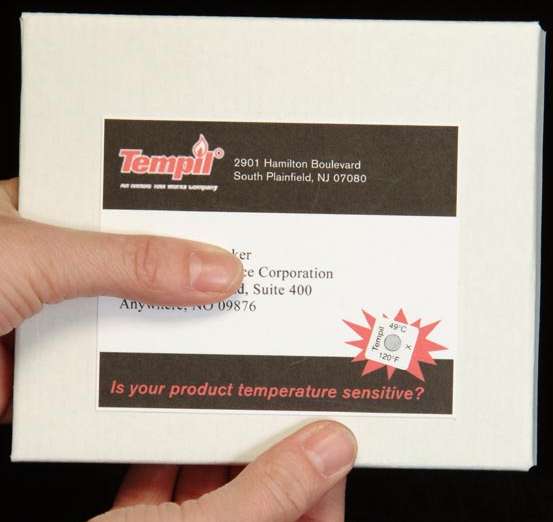

Apr 22, 2004 Accurate to within ±2% of rated temperature, self-adhesive Tempilabelº measures temperature during storage, shipping, and manufacturing of heat-sensitive medical or pharmaceutical materials. Indicator irreversibly changes from light gray to black if temperature rating is reached. Product comes in single-temperature ratings from 100 to 500°F in ½ in. square size with 3/16 in. indicating window as well as 5/16 in. dia bulls-eye style with 1/8 in. window.

Kulicke & Soffa Industries, Inc.    Willow Grove, PA 19090
Apr 22, 2004 CuPRA™ handles copper wire from 0.8–3.0 mil thick. It offers bonding performance comparable to gold bonds on various pad materials. Unit is suited for wide range of applications from fine pitch wire bonding of over 500 I/Os to low pin count devices found in power and automotive applications.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
Apr 22, 2004 Suited for high cycle pick-and-place applications, Push-In Valve Vacuum Cup Assemblies feature Delrin® probes that protrude from center and open up vacuum flow when they come in contact with object. Otherwise, assemblies remain normally-closed to prevent air loss. Products allow objects to be selectively picked-up and are available with flat suction cups in 10 sizes from 1.26–5.98 in. OD.

Fox Electronics    Fort Myers, FL 33905 5022
Apr 22, 2004 Voltage-Controlled, Temperature-Compensated, Crystal Oscillator, Model FOX783 features standard frequency stability of 2.5 ppm over operating temperature of -40 to 185°F. Frequency tolerance is ±5.0 ppm, with tighter tolerances to ±1.0 ppm available upon request. Pullability is ±7.0 ppm at 1.65 V ±1.0 V, and input current is 50 mA. Unit is suited for telecommunications, base station, avionics, satellite, and military applications.

InterlinkBT, LLC    Minneapolis, MN 55441
Apr 22, 2004 System BL67 allows up to 32 electronic modules and up to 256 digital or 64 analog I/O. Gateway coordinates I/O data exchange and generates diagnostic information for control platform. Modules are available in digital, analog, temperature, and RS232/485 with 2, 4, or 8 channels. Power distribution module supplies 24 Vdc to electronic modules and can create isolated groups of I/O. Base modules are available with eurofast®, minifast®, and picofast® connectors.

Aculight Corporation    Bothell, WA 98011
Apr 22, 2004 Based on erbium-doped fiber technology, Model PF1550-30 delivers 1.54 µm light output via single-mode fiber. It generates nominal 1 ns pulses at repetition rates between 100 kHz and 1 MHz. Producing 1 W of peak power at 1 MHz, unit is suited for laser range finding, range imaging LIDAR, fiber optic sensing, and communications. Diffraction-limited output also makes it suited for micromachining where extremely small spot size is critical.

Sensor Developments, Inc.    Orion, MI 48359
Apr 22, 2004 Able to withstand high radial loads to rotating shaft structure, torque sensor employs bearing design that also allows sensor to be sensitive for low-torque measurements. Applications include CV and U-joint performance evaluations. Variety of torque ranges and custom designs are available.

Pinpoint Laser Systems    Peabody, MA 01960
Apr 22, 2004 Microgage Flatness Checking Kit monitors flat moving surfaces, precision machine slides, X-Y stage travel, and robot positioning accuracy. Laser transmitter is mounted on precision base that can swing laser reference beam through flat plane. Digital receiver is placed on surface to be measured, and hand-held display provides reading of height of surface relative to laser beam to 0.0001 in. It can be used over ranges of 1-85 ft and has precision machinist's level.

Interactive Enterprise    Burlington, MA 01803
Apr 22, 2004 On-Demand Service Gateway module enables broadband operators to offer prepaid data, voice, and video services. Product lets operators define flexible fixed-usage and fixed-duration service plans; sign up and renew subscribers through secure walled garden portal; and interface with bank or credit card payment clearing gateways or billing systems. It also provides end-users with information about usage metrics and initiates/terminates service without manual intervention.

ACUITIV    Batavia, IL 60510
Apr 22, 2004 ACUITIV v4.0 provides transient model visualization, multi-PC visualization sessions, and steady-state model support. It can be used enterprise-wide to analyze, communicate, and collaborate on designs. Software reads fluent transient datasets and offers interactive tool for visualizing complex datasets through contours, isosurfaces, streamlines, pathlines, streaklines, timelines, and point queries. It supports transient analysis across multiple computers and platforms.
