IDEAL Scanners & Systems, Inc.    Rockville, MD 20852
Apr 28, 2004 IDEAL/Contex large format scanners, bundled with WiseImage Pro GEO software, provide full color scanning technology with raster drawing editor and raster-to-vector converter customized for cadastral and GIS market. Software has Windows XP-style interface and supports VBS and JavaScript. Geo focused processing tools assist with developing custom scripts. Multiple raster images can be loaded, and number of images handled simultaneously is unlimited.

Compuware Corp.    Detroit, MI 48226
Apr 28, 2004 Vantage v9.1 ties infrastructure management to service management, helping to align use of IT resources with requirements of business. It allows organizations to manage bandwidth subscriptions, perform server consolidations, and rehost applications without compromising application service. Vantage provides IT professionals with insight to understand business impact of infrastructure changes by monitoring applications from end-user perspective.

XAware, Inc.    Colorado Springs, CO 80920
Apr 28, 2004 XA-Xchange Hubs employ J2EE text transformation engines that integrate structured, semi-structured, and unstructured text. Able to aggregate text data from multiple formats, organizations can seamlessly integrate legacy data and applications with new-world messaging protocols and transport. Text engine transforms structured text with delimiters such as comma, tab, and space; tagged-values; fixed-field; and application formats such as Microsoft Excel.

Rohm & Haas Co.    Philadelphia, PA 19106 2399
Apr 28, 2004 Amberlite® PWA2 is designed for selective removal of perchlorate, which can interfere with iodide uptake into the thyroid gland. It can be used to treat both potable and non-potable water.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 28, 2004 At 500 MHz, TMS320C6413 digital signal processor (DSP) employs parallel architecture with 8 parallel functional units in DSP core and 256+ KBytes on-chip memory. Tailored telecom peripherals include 2 multi-channel buffered serial ports, 2 audio serial ports, 2 IIC control serial ports, and 3 general 32-bit timers. Chip's 1 mm ball pitch on BGA package facilitates 4 layer board routing. Device also features on-chip oscillator.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Apr 28, 2004 Models TMS320C6410 and TMS320C6413 include 2 standard McBSPs for multi-channel clocked serial communication, 2 Audio Serial Ports compatible with IIS and common stereo codecs, 16-/32-bit microprocessor Host Port Interface, and 2 IIC control serial ports. Model TMS320C6410 runs at 400 MHz with 160 Kbytes total memory, while 500 MHz Model TMS320C6413 offers 288 Kbytes total memory. Both come in 23 x 23 mm flip-chip BGA package.

AAF International    Louisville, KY 40223 6169
Apr 28, 2004 PerfectPleat ULTRA Filters provide MERV 8 efficiency without use of electrostatic charge, which can cause degradation. Intersept® antimicrobial is incorporated to preserve media throughout service life. Available in 1 and 2 in. depths, filters can be identified by blue media tint on air-leaving side. They offer optimum pleat spacing and media consistency for maximum airflow and dust holding.

Festo Corp.    Hauppauge, NY 11788
Apr 28, 2004 Series DGE-RF features electrical toothed belt axis with internal roller guide. It has sufficient grease reserves that can be replenished without reaching into housing. System includes axes, motors, gearing, coupling, and controller. Coupling concept supports attachment of non-Festo drives. Mounting options on 3 sides of main profile allows DGE-RF to adapt to multi-axis modular system.

B & K Precision Corp.    Placentia, CA 92870
Apr 27, 2004 Model 325 True RMS AC/DC Clamp Meter provides non-invasive measurements up to 400 kW, 400 Aac, 600 Vac, and 600 Vdc utilizing pair of standard test leads. It measures up to 4,000 ohms of resistance and 40 ohms of audible continuity. Portable, battery-powered unit includes front-panel 3¾ digit LCD display, max jaw opening of 1.41 in., automatic range selection, over-range and low battery indicators, and automatic power-off after 30 min.

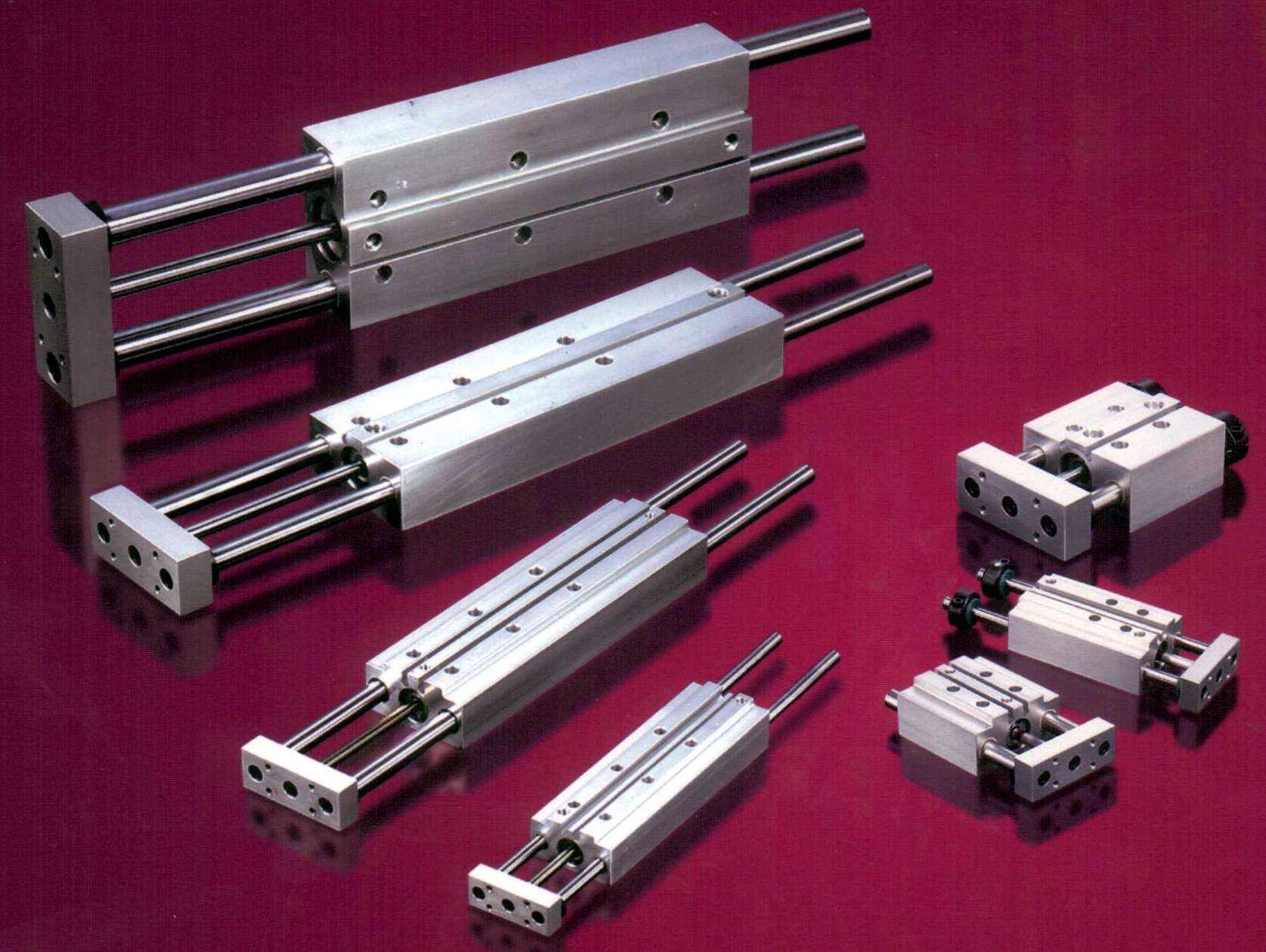

PHD, Inc.    Fort Wayne, IN 46899
Apr 27, 2004 Series SxH Slides, with precision-machined TC fluoropolymer composite bearings, are offered in 8, 10, 14, 20, and 32 mm bore sizes. Slide bodies incorporate twin switch slots and are available in imperial and metric versions. In addition to above features, Series SxL Slides feature self-lubricating polymer bearings with hard chrome plated shafts. They are available in 8, 10, 14, 20, and 32 mm bore sizes and provide travel lengths to 3 in.

NexTek, Inc.    Westford, MA 01886
Apr 27, 2004 SurgeGuardâ„¢ coaxial lightning protectors, offered in connector styles from F-type to 7-16, feature watertight construction. They protect against lightning surges with transient capacities to 100 kA, have 0.1 dB insertion loss, 1.1 VSWR, and are tuned up to 6 GHz. Products employ gas-tube or quarter-wave lighting protection technologies and are made of solid brass with nickel or tri-metal plating. Protectors are suited for any coaxial cable connection.

Moritex U.S.A., Inc.    San Jose, CA 95119
Apr 27, 2004 Furnished with portable, 12 V battery pack, rigid and flexible borescopes and endoscopes employ halogen bulb in probe tip that provides illumination for conducting visual inspections in small, dark cavities. Products are available in 5, 6, or 8 mm dia and 170, 230, and 350 mm lengths, providing 70° viewing direction with 90° field of view. Waterproof scopes are constructed of stainless steel with optics that provide clear, focused image with true color rendition.

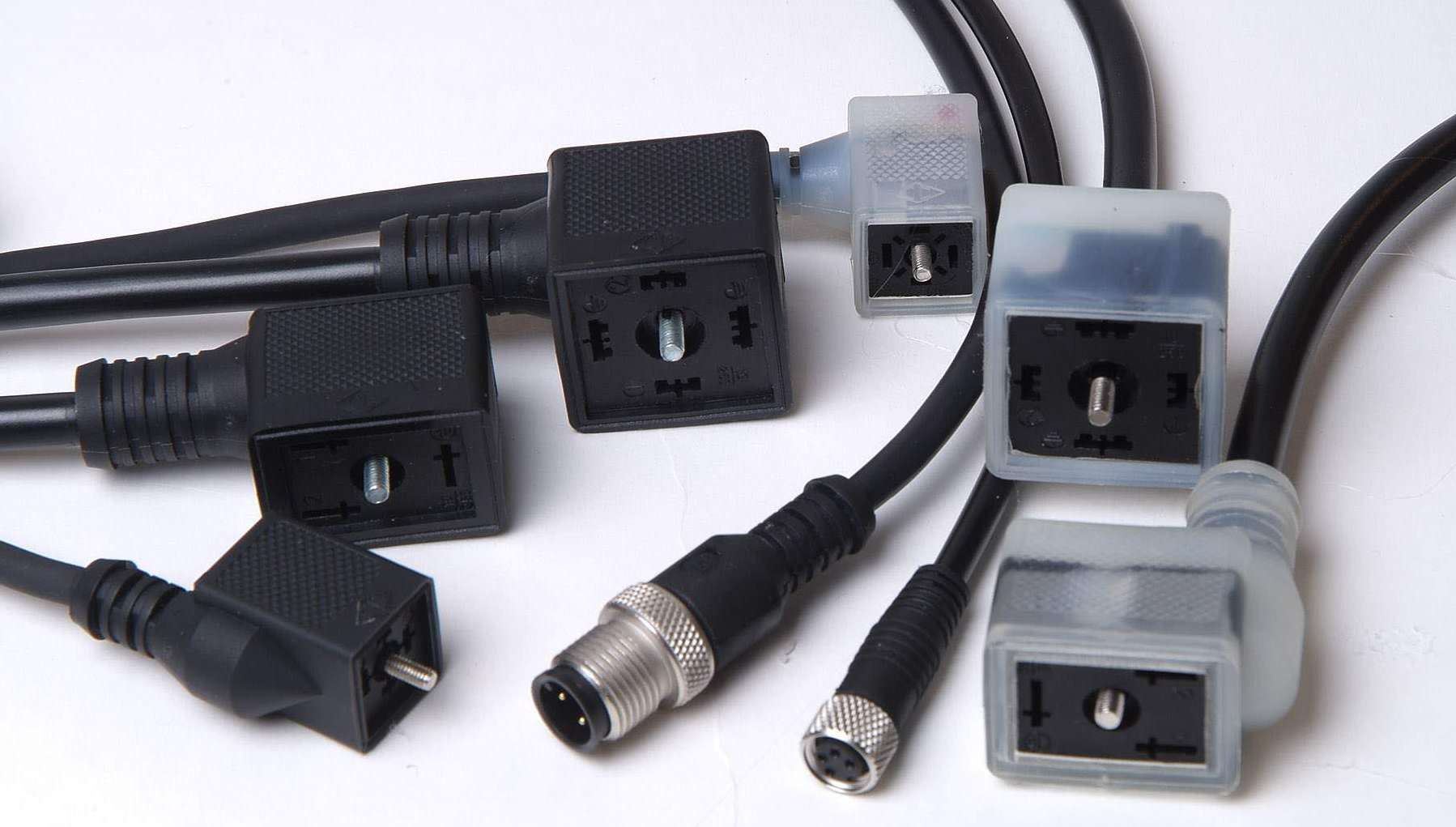

Canfield Connector Div., Canfield Industries Inc.    Canfield, OH 44514
Apr 27, 2004 Virtually indestructible 5F&J solenoid valve connectors come with molded-in screws and gaskets and are available in ISO, Mini, 8 mm, and 9.4 mm sizes. Options include straight or right angle wire orientation, lighted and surge suppressed, as well as standard or custom wire lengths. Round connectors, 8 and 12 mm sizes, offer 3–5 pin configurations and come in molded or field-wire versions.

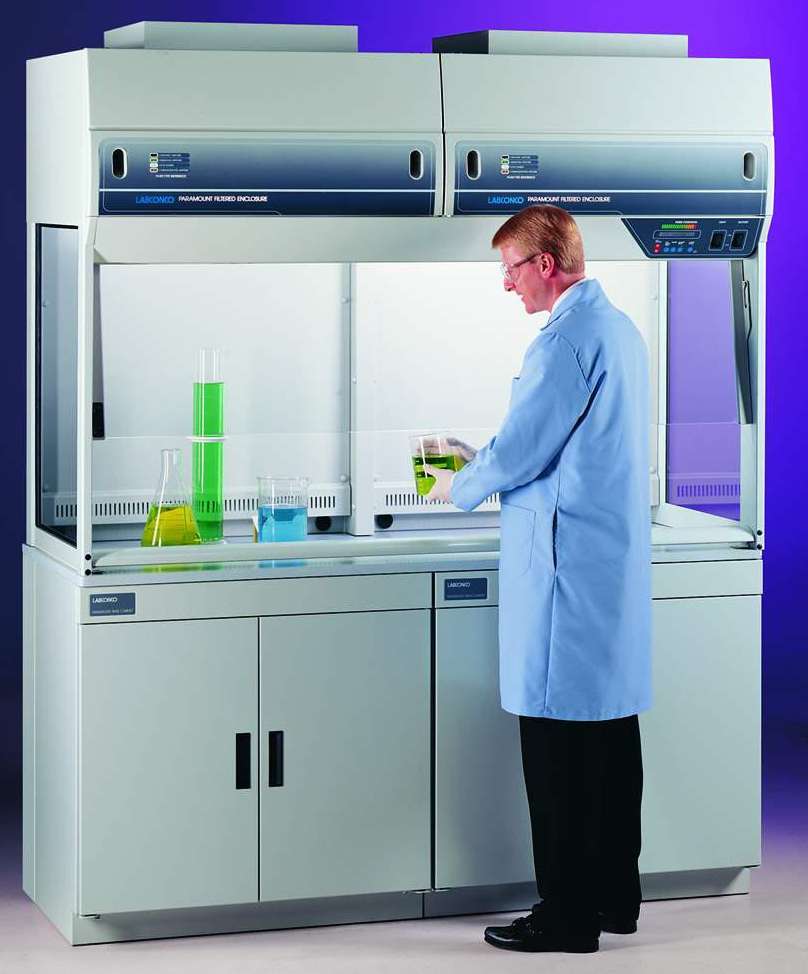

Labconco Corp.    Kansas City, MO 64132 2696
Apr 27, 2004 Available in 3 and 6 ft widths, Paramount® Filtered Enclosure incorporates color-coded Filter Cells that detects various chemicals specific to filter type. Filters, able to remove gaseous contaminants such as fumes from organic solvents, acids, formaldehyde, and ammonia, change color in presence of contaminants. Self-contained workstation requires no ducting and utilizes internal blower; 2 internal, carbon-based filters; and front air foil.

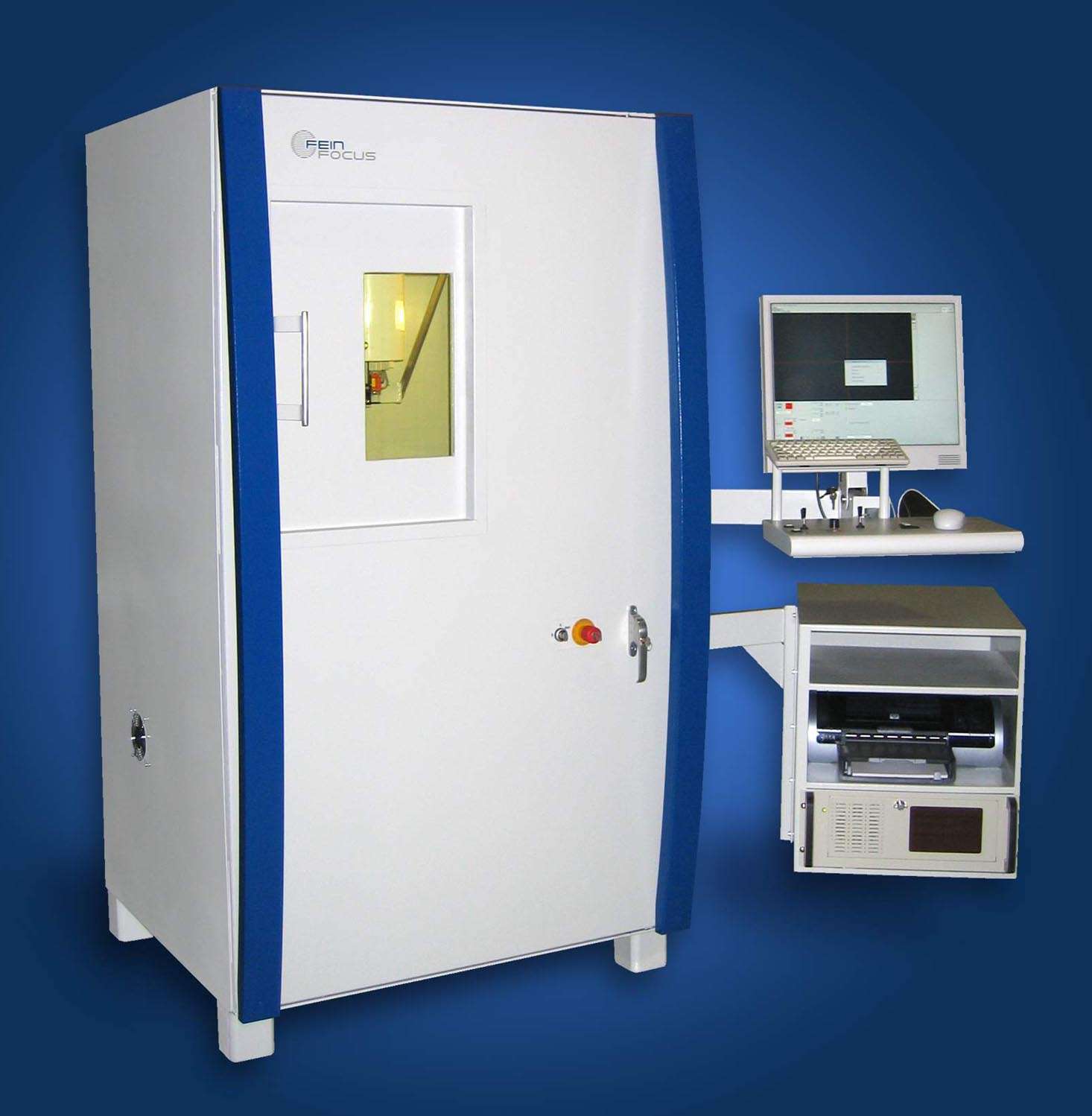

FeinFocus USA, Inc.    Stamford, CT 06902
Apr 27, 2004 COUGAR-VXP offers basic platform for further equipment and accessory implementation, depending on needs of user. Initial configuration includes microfocus X-ray tube up to 160 kV, True X-ray Intensity Control, 4-axis manipulator, real-time image processing system, and real-time image chain with 4 in. image intensifier and flat-screen monitor. Users can add CNC capability, higher-bit image chain, direct digital detector, and multifocus X-ray tube.

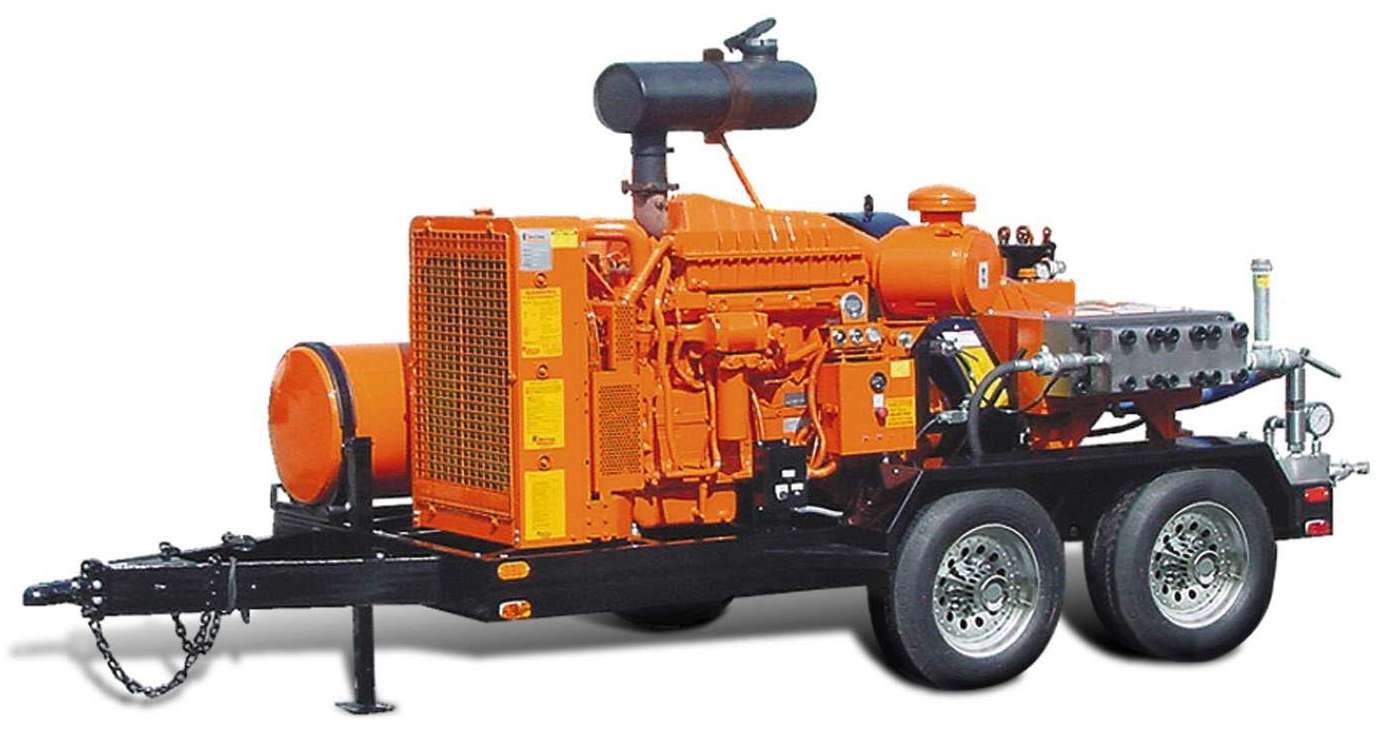

NLB Corporation    Wixom, MI 48393 2824
Apr 27, 2004 Offering corrosion-resistant stainless steel construction, Series NLB 350D convertible water jet pump provides 350 or 425 hp with flow ranges from 27-74 gpm. Users can convert to any of 6 pressures to suit job: 8,000, 10,000, 13,000, 15,000, 17,000, or 20,000 psi. Diesel-driven unit is trailer-mounted for portability, and slow-running triplex plunger pump and hard-coated valves and plungers reduce wear.

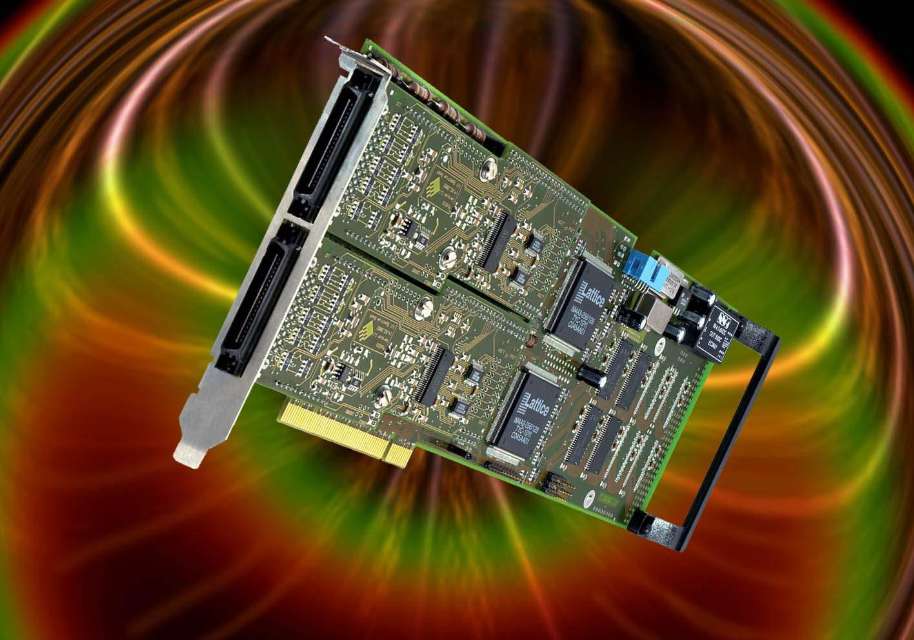

Strategic Test Corporation    Woburn, MA 01801-1915
Apr 27, 2004 Supporting all logic families, Ultrafast UF7221 full-length PCI card provides maximum output rate of 40 MHz on 32 digital channels. Each 4 bit (nibble) can be programmed with different high and low output levels from -2 to +10 V in 10 mV increments to generate ECL, PECL, TTL, LVDS, LVTTL, CMOS and LVCMOS signals. Output rate of signals can be programmed from DC to the 40 MHz max output rate. A 6U CompactPCI version and 3U PXI version also available.

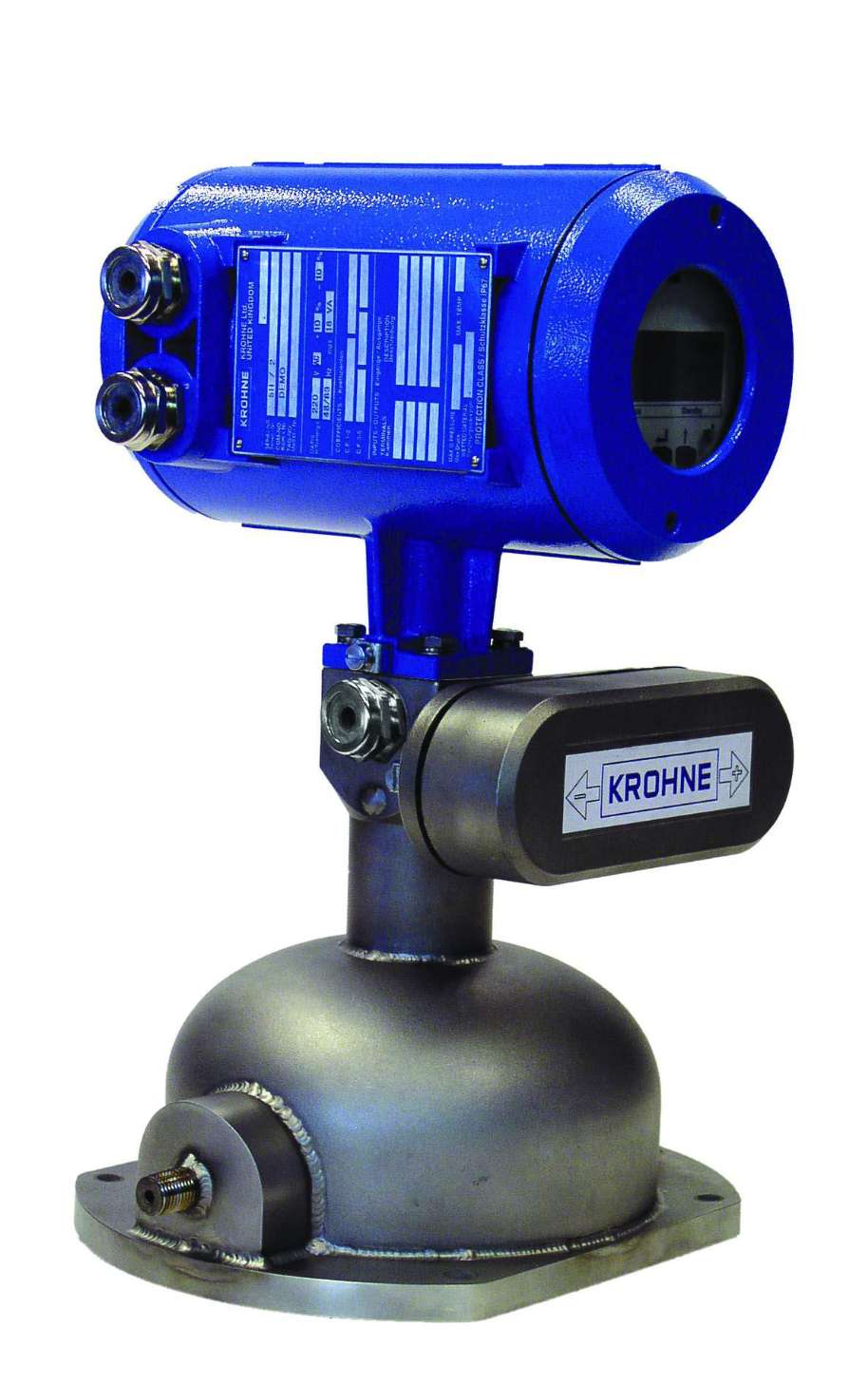

Krohne, Inc.    Peabody, MA 01960-3803
Apr 27, 2004 Series OPTIMASS 7100 single-Z tube flowmeter is suited for precise blending, dosing, and batching applications. It handles flow rates from 0.66 to 16.5 lb/min. while also measuring density, temperature, and concentration. It has secondary pressure containment with option of heating jacket, and includes wetted parts in stainless steel and Hastelloy®. Flowmeter approved for hazardous environment applications.

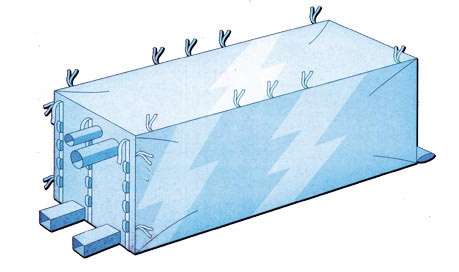

Packaging Concepts, Inc.    Virginia Beach, VA 23462
Apr 27, 2004 UNSA Polypropylene Container Liners install in as little as 10 min, converting standard ISO container into bulk transport system. They handle all types of loading and discharging including top hatches with spouts, conveyor loading through doors, and discharge with spouts and letterboxes. Liners also provide contamination protection for all dry flowable materials.

Octagon Systems Corp.    Westminster, CO 80021
Apr 27, 2004 Ruggedized XE-800 operates over a -40 to +75°C temperature range. It provides Pentium performance and features 4 USB 2.0 ports, 2 USB 1.1 ports, and 2 RS-232/422/485 serial ports. Computer also provides 48 lines of digital I/O, 10/100 Base-T Ethernet, and CompactFlash socket for bootable and removable memory to 2 GB. Product is suited for embedded military, security, industrial, and mobile applications.
