Bee Valve Inc.    Elyria, OH 44035

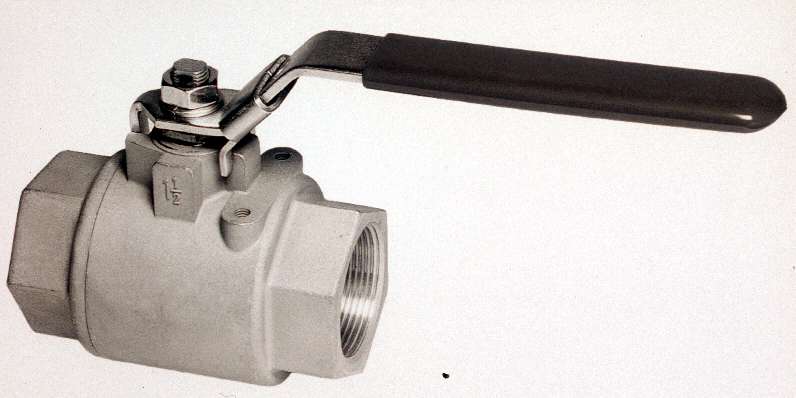

May 26, 2004 Made from 316 stainless steel, high-pressure ball valves are available in 3/8–3 in. full port sizes for application in water, oil, and gas transmission and handling. They feature polished stainless steel balls, Teflon® seats and seals, and locking handle for safety. Replacement parts are available.

ERGOtech, Inc.    Centerville, MN 55038

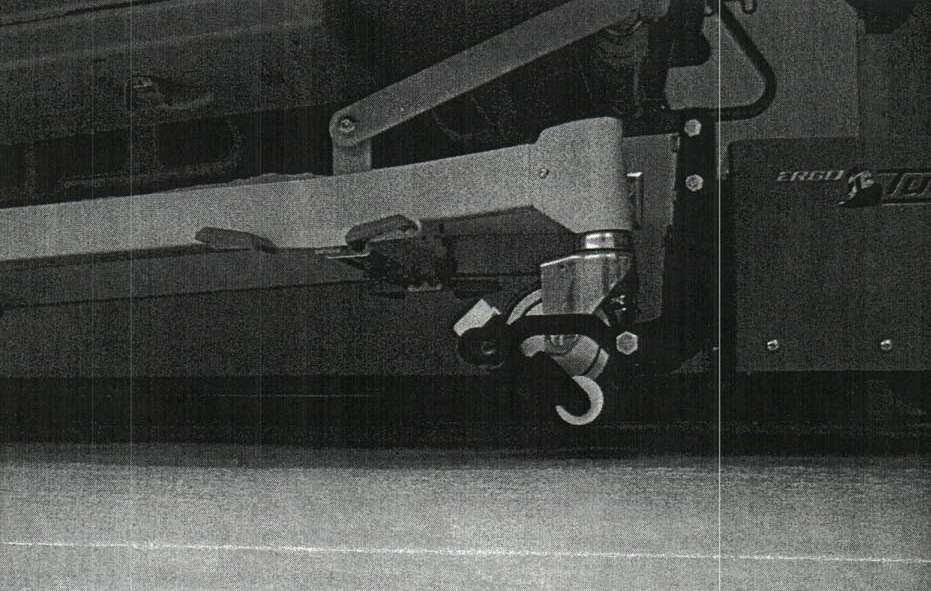

May 26, 2004 Measuring only 13 in. high, battery-driven ERGOtug M² slides under one end of bed, while automatic hitch slightly lifts 2 of bed's wheels off ground. Operator can reposition bed using controls on handle to turn, stop, back up, or go forward. ERGOtug M² can remain attached to bed frames during transport in elevators. It offers load capacity up to 1,800 lb and maximum speed of 4.5 fps.

Elsner Engineering Works, Inc.    Hanover, PA 17331
May 26, 2004 Series GS-4 handles range of products such as gift wrap, plain plastic films, and metallized films. Operating in core, coreless, or sheet-stiffened modes, system handles 1.25–2.0 in. rolls with web widths of 31.5 or 40 in. and production rates of 820 fpm. Cut lengths are electronically adjustable in millimeter increments from 3.3–40 ft with accuracy of ±0.1 in. Manual adjustments can be made without tools through lever locking system.

Pactiv Corp.    Lake Forest, IL 60045
May 26, 2004 Pactiv 9000 Air-Paq® inflates through single intake valve that allows air to travel from one independent chamber to another through one-way check valves. If one section is punctured, others remain inflated and provide protection for enclosed product. Envelope shape suits pharmaceuticals and individual assembly components. Box shape protects consumer electronics such as DVD players, PDAs, and cell phones. Wraparound structure suits large appliances such as refrigerators.

Bradley Corp.    Menomonee Falls, WI 53051

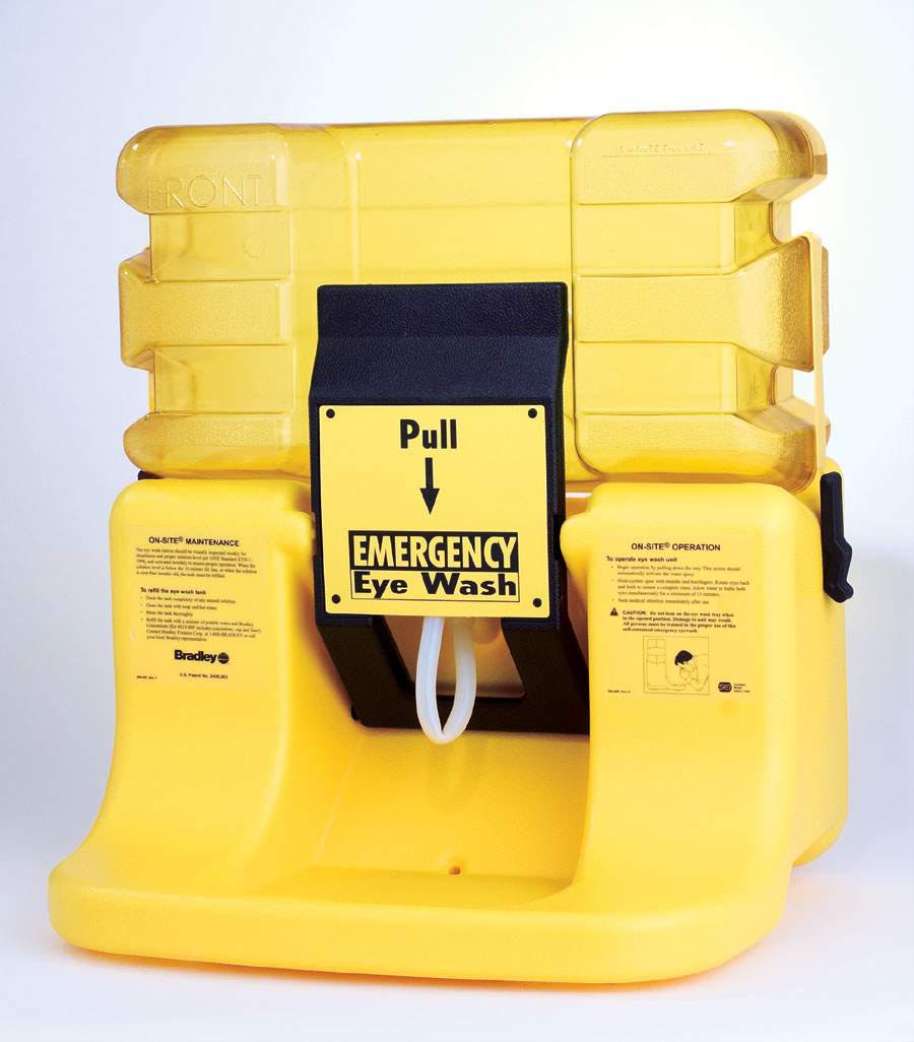

May 26, 2004 On-Site® Model S19-921 Gravity-Fed Eyewash provides mobility between locations without plumbed water supply. It is suitable for transporting when properly secured, even when tank is full. Bracket clamps hold transparent polycarbonate tank securely to pedestal, and connection between tank and pedestal is fully sealed. Eyewash meets ANSI Z358.1 standard with constant flush for 15 minutes, using 7 gal. of solution.

Tracewell Systems, Inc.    Westerville, OH 43081-8846
May 26, 2004 Model DH-242 features 8 independently regulated outputs that deliver full-rated current. Max output is 1488 W at 45°C with 400 LFM of air, and typical efficiency is 90%. Output of 12 Vdc operates system fans. Each output is independently thermally protected and multiple supplies can be combined with full load sharing. Power supply operates from 48 Vdc system bus, which suits portable or battery powered applications. RS-485 communications allow power supply to be remotely monitored.

French Technology Press Office, Inc.    Chicago, IL 60601
May 26, 2004 Kerasep Diamond(TM) filtering membranes resist abrasion and are suitable for clarification process of glucose syrups and extraction of fermentation broths. Multi-channel geometries make them compact and resistant to chemical constraints and aging. Manufactured with FDA-approved materials, membranes are available in cut-off sizes between nanofiltration and microfiltration.

Micronas GmbH    Frieburg D-79108  Germany
May 26, 2004 MicModule allows TV manufacturers to add digital terrestrial video broadcast functionality to existing analog chassis. It is equipped with universal tuner and can be directly connected to any VHF/UHF input. MicModule uses DRX 8872C DVB-T COFDM demodulator IC and MDE 9515B digital audio, video, and graphic controller IC for decoding and processing of digital MPEG-2 signal. CI slot supports major conditional access systems required for pay-TV applications.

TISCOR    Poway, CA 92064
May 26, 2004 Asset Track, part of Track Pak product line, comprises software, hand-held computer, and bar codes, allowing users to track receiving, storing, and transferring of assets. System provides information on status of assets as well as location of each asset, eliminating manual paper tracking processes. Label module prints bar coded labels that can be attached to items, and report module allows users to document movement of items over specified time periods.

Edmund Optics    Barrington, NJ 08007
May 26, 2004 Tech Spec Series consists of 7 shortpass filters with cutoff wavelengths of 400, 450, 500, 550, 600, 650, and 700 nm. All are 3 mm thick with 25 mm diameter and 80% clear aperture. Surface quality is 20-10, with wavefront distortion of 1/10 wave. Made from UV-grade fused silica, filters offer average transmission of 85% and blocking optical density of 2.0. They are suited for fluorescence applications, separating spectral orders, and as part of custom bandpass filters.

Controlotron Corp.    Hauppauge, NY 11788
May 26, 2004 SonicGas(TM) System 1010GC is a field clamp-on, ultrasonic flowmeter for checkmetering, flow survey verification, and allocation applications. It features typical accuracy of 0.5-1%, calibratable accuracy of 0.10-0.25%, repeatability of 0.05%, and turndown of 50:1 or better. Zeromatic Path(TM) feature eliminates zero drift and offers zero point setting continuously without shutting flow or blocking line.

EZE-LAP(TM) Diamond Products, Inc.    Carson City, NV 89721
May 26, 2004 Available in 5/32, 3/16, and 7/32 in. sizes, CSGâ„¢ Diamond Chainsaw Sharpeners have precision guides and accommodate any chainsaw. Each features 1/8 in. shank and sharpening surface that utilizes industrial-grade diamonds. Design allows for foolproof sharpening, ensuring smooth, safe chainsaw operation. Products, available in 1- and 2-packs, come showcased in informative blister-pack.

Walls & Forms Inc.    Dallas, TX 75374
May 26, 2004 Concept(TM) 2001 system facilitates organization of mechanical and electronic workstations, tool cribs, laboratories, and production lines. Modular panels, shelves, and accessories can be arranged for any job, putting tool and parts storage within reach of workers. Vertical storage unit is available with interchangeable shelves, hooks, brackets, and bins. Panels feature 100% plastic construction and will not chip, break, warp, rust, or absorb dirt and grease.

EAD Motors, Eastern Air Devices    Dover, NH 03820
May 26, 2004 NEMA Size 23 Motor features permanently lubricated ball bearings and dynamically balanced rotors. It is configured with up to 6-wire unidirectional on/off operation for controlling speed, direction, and tachometer output. Internal drive provides interface functions needed for speed and direction control of motor. Drive is rated at 24 Vdc but can be configured for voltages up to 48 Vdc. Continuous current ranges from 1-5 A with peak currents up to 10 A.

Tapeswitch Corp.    Farmingdale, NY 11735

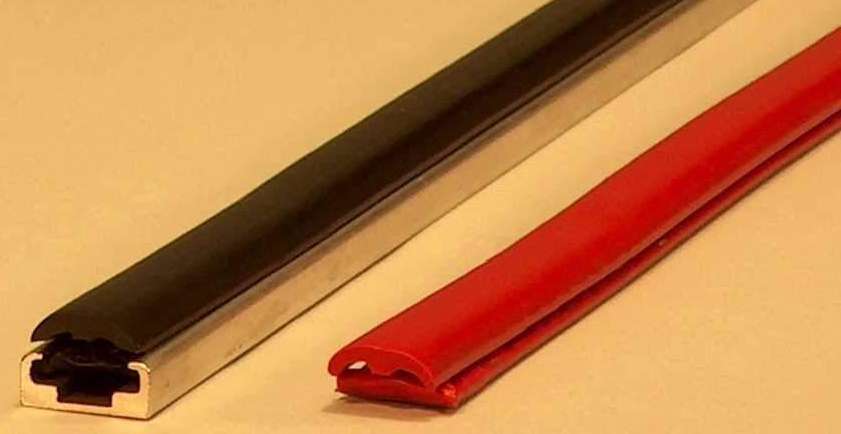

May 26, 2004 Measuring ½ in. wide and 5/16 in. high, TS-3 Micro Sensing Edge is resistant to water, oil, gasoline, hydraulic fluids, and coolants. With sensitivity of 3 lb, switching element is rated for 3 million operations at any point. Applications include pinch point protection, impact detection, and patient location on medical tables. It is also suitable for pressure-sensitive detection, signaling, or emergency stops on assembly lines/conveyor systems.

Pentek Inc.    Upper Saddle River, NJ 07458

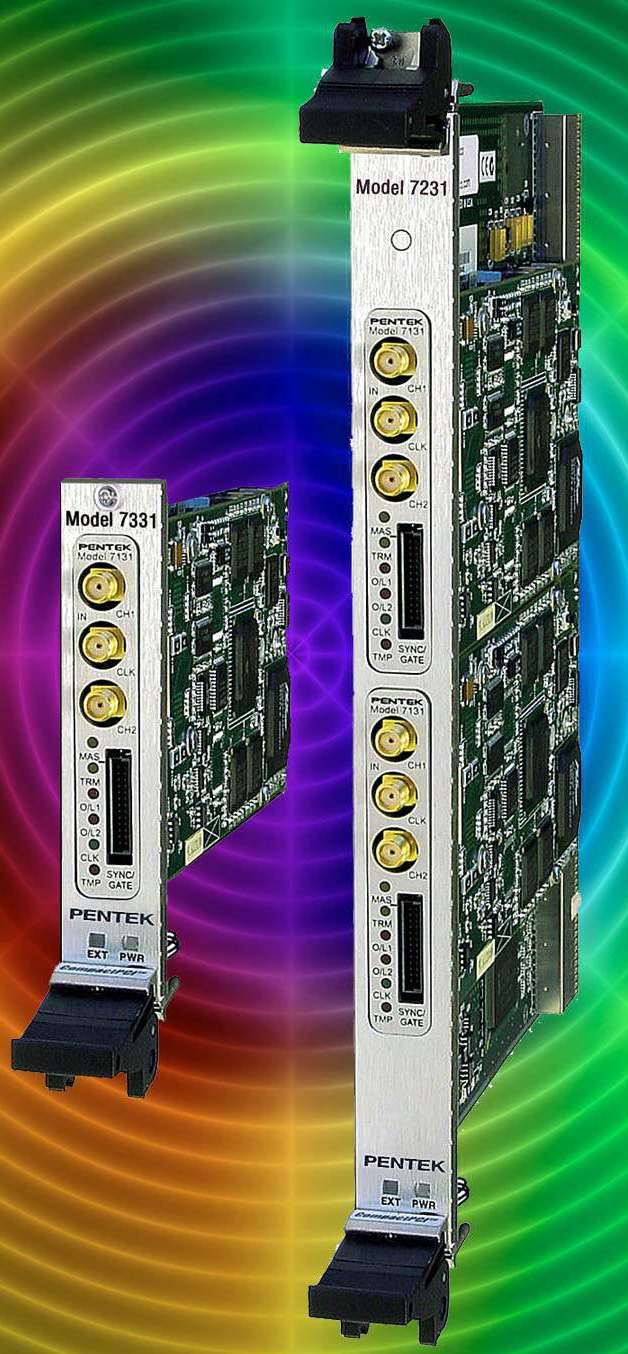

May 26, 2004 Equipped with synchronization system that supports up to 1280 channels, multiband-receiver boards are offered in 3U, 16-channel and 6U, 32-channel models. Both feature four 14-bit A/D converters and two 3-million gate Xilinx Virtex-II FPGAs for signal processing. Boards consist of one or two Model 7131 digital receiver PMC modules and PMC-to-cPCI adapter assembled as one cPCI board. Features include front-panel LVDS Clock/Sync bus and cPCI interface.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866

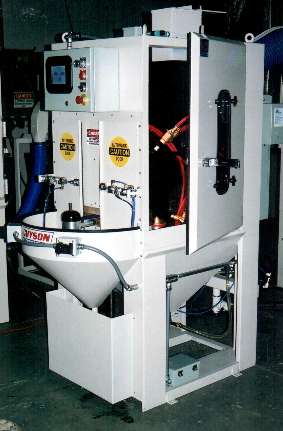

May 26, 2004 Measuring 34 x 36 in., Model RXS-400 provides shot peening, deburring, descaling, cosmetic finishing, and technical surface preparation. Two sealed and abrasion-protected ball bearing spindles are mounted on rotary table. Component-holding fixtures that are interchangeable can be secured on each spindle. As component rotates at controlled and adjustable speed, it is exposed to blast from multiple nozzles that are pre-positioned at correct angles and distances.

Philadelphia Mixing Solutions    Palmyra, PA 17078 9518
May 26, 2004 Mixer Caddy(TM) offers safe, portable batch mixing of tanks or totes. It meets most container specs and handles portable mixers from ¼-5 hp, eliminating need for dedicated mixers at each tank or tote. Made from welded steel tube, unit has onboard hand-crank winch capable of lifting up to 500 lb, and locking pins to ensure proper mixer alignment and position. Orange safety paint and safety end caps ensure high visibility and operator safety.

EAO Switch Corp.    Milford, CT 06460
May 26, 2004 Enclosed by protective, silicone rubber case, watertight, vandal-resistant keypads are constructed using click-dome matrix. Keys provide tactile feedback, and their layout can be varied depending upon model. Keypads, offered in 8, 12, 16, and 20-key versions, meet IP67 level of protection when mounted behind panel. Units are offered with plastic or anti-pull-off metal keys, and AVLE model can be illuminated with red, green, or yellow LEDs.

IDEC Corporation    Sunnyvale, CA 94089-2209
May 26, 2004 With time ranges from 0.1 sec to 600 hours, RTE timer meets wide range of timing requirements. It has 10 A contacts and is rated for 100–240 Vac/dc, 24 Vac/dc, or 12 Vdc. Unit is UL listed and CE marked.
