Shimadzu Scientific    Columbia, MD 21046

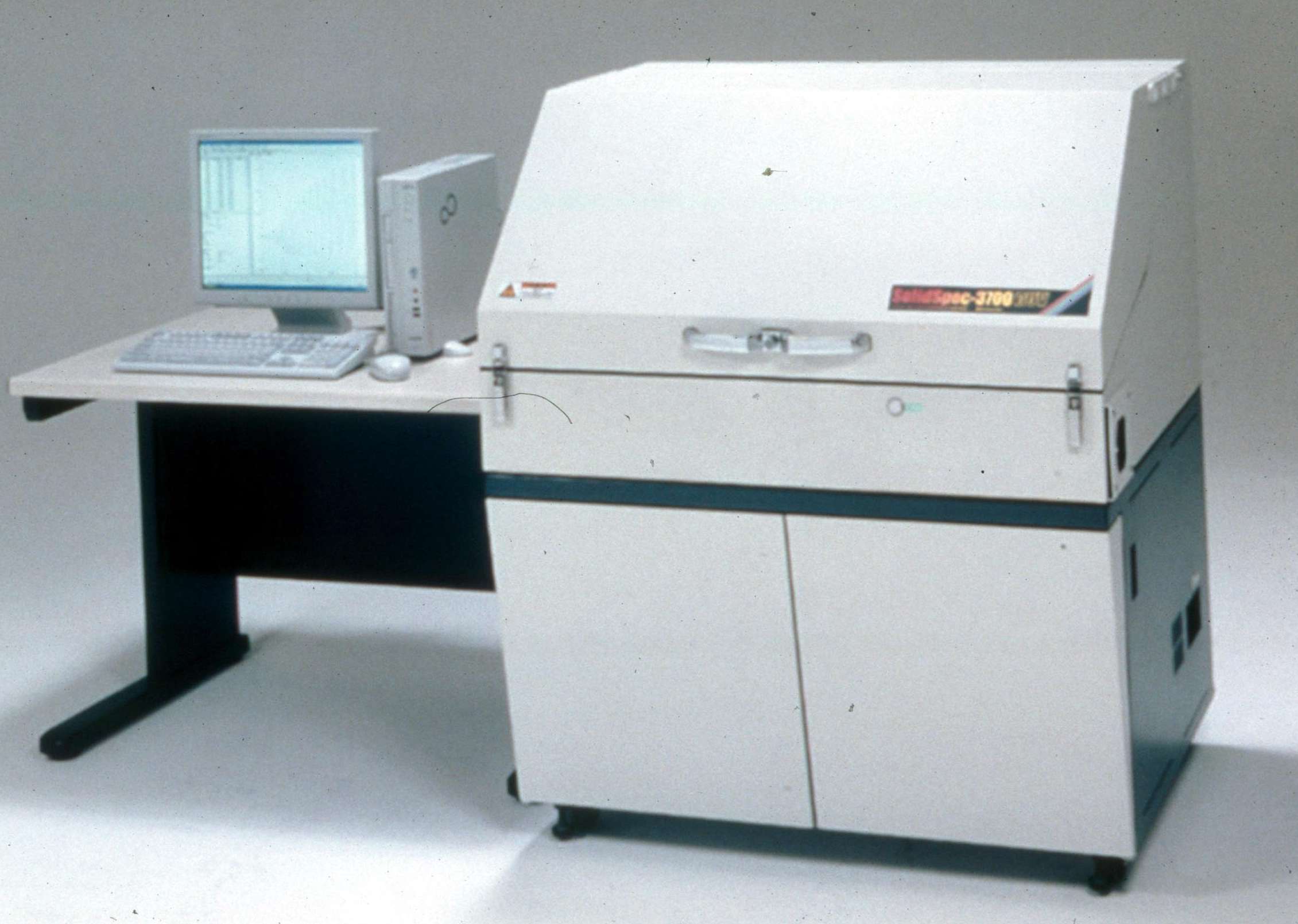

Apr 28, 2004 SolidSpec-3700 is for standard applications, while SolidSpec-3700DUV is intended for UV measurement to 165 nm. Both units include photomultiplier tube for UV-Vis region, and InGaAs and PbS detectors for NIR region. Measurement range varies from 165–3,300 nm depending on application and use of integrating sphere and optional Direct Detection Unit. UVProbe Software enables data analysis and processing functions plus provides audit trail.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 28, 2004 Designed to protect voltage-sensitive components against ESD and EFT conditions, switching transients, and induced RF, surface-mount TransZorb® transient voltage suppressors (TVSs) employ glass-passivated junction construction. They are offered with 500, 800, and 1,000 W peak pulse power ratings and come in unidirectional and bidirectional versions in SMA and SMB packages. Products are offered with max stand-off voltages in increments from 5–40 V.

Diversified Technology Inc.    Ridgeland, MS 39157
Apr 28, 2004 Based on Embedded Technology Extended form factor, Model eTX-Lx15 features Intel® Pentium® M processor at speeds from 1.1–1.7 GHz, Intel® 855GME chipset, and up to 1 GB PC1600/2100 DDR SDRAM on single 200-pin SODIMM socket. Integration of Intel's Extreme Graphics 2 controller provides 2D/3D performance with up to 64 MB dynamic video memory, dual channel LVDS, and simultaneous digital flat panel and CRT output. Unit targets medical, military, and industrial control markets.

Midwest Tool & Cutlery Co.    Sturgis, MI 49091
Apr 28, 2004 Made of hot drop-forged moly alloy steel, Seamer Tongs feature cushioned grips that allow users to bend and form metals as well as grip and hold metal sections or panels being joined. Models, with one-piece, straight or curved handles, have 3 in. wide blades and throat capacity of 1 1/8 in. Dual blades have raised ribs in ¼ in. increments on outer surfaces for positioning of tongs, and overall tool length is 9½ in.

LEDtronics, Inc.    Torrance, CA 90505

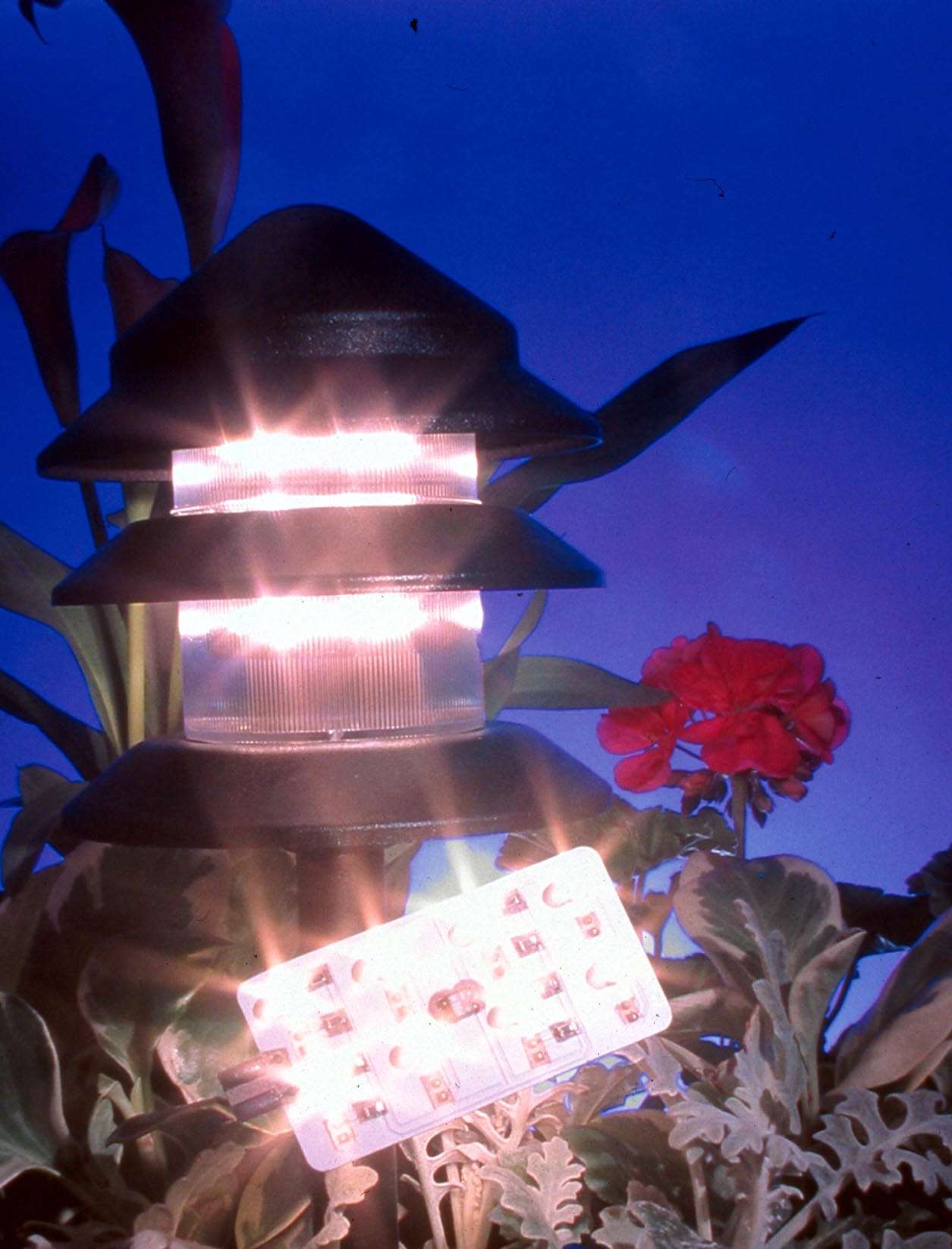

Apr 28, 2004 GardenLED Series GDL001 LED Bulbs replace 7 Watt LV526 T5 Wedge Base Incandescent lamps used in malibu-styled landscape lighting fixtures. Linear-configured LED lamps feature T5 wedge base and 16 white 5 mm LEDs on double-sided PCB. Units draw 1.3 W of power and are used in 12 V systems, making them suited for solar-powered systems and other alternative power generating systems. LEDs offer average life span of 100,000 hr and are impervious to environmental extremes.

Astrodyne Corp.    Mansfield, MA 02048
Apr 28, 2004 With 70 W output power, REL70 Series enclosed switching power supplies accept universal input from 85-264 Vac with active power factor correction (PFC) to 0.98. Products provide single, dual, triple, and quad outputs from 2.5 V to 48 Vdc and feature soft-start circuitry, integral EMI filtering, and output adjustment potentiometer. Measuring 4.5 X 2.5 X 1.22 in., products also feature overvoltage and short circuit protection circuitry and 3000 Vac I/O isolation.

B & R Industrial Automation Corp.    Roswell, GA 30076
Apr 28, 2004 Model PP15 offers integrated I/O points for control, positioning, and visualization tasks. Offering IP65 protection on front, display features 4 x 20 character resolution, 16 function keys, and 12 LEDs. Two versions of Model PP15 are available, one with 16 integrated digital I/O, and one with 4 analog I/O in additon to 8 original I/O. Units can access additional decentralized I/O points or servo drives via CAN interface.

B & R Industrial Automation Corp.    Roswell, GA 30076
Apr 28, 2004 Designed with IP67 protection, X67 system provides remote I/O directly on machine and indicates status information via LEDs or software. Unit, measuring 2 x 3.3 x 1.26 in., tolerates distances up to 300 ft between modules and offers diagnostic functions and performance characteristics of less than 1 ms update for 1,000 digital plus 50 analog I/O. It supports CAN, CANopen, DeviceNet, Profibus DP, and ETHERNET Powerlink(TM) protocols.

VWR Scientific Products    West Chester, PA 19380
Apr 28, 2004 VWR Signatureâ„¢ Pipettors are available in variable volume, fixed volume, and multichannel models. Variable volume units cover 0.2–5,000 µl range in 9 single channel units. Offered in 8- and 12-channel versions, multichannel pipettors cover 1–300 µl range. Both feature continuously variable volume adjustment from thumbwheel or dispenser button and are fully autoclavable. Fixed volume pipettors are supplied in 10 standard volumes with adjustable/removable tip ejector.

Caron Products & Services, Inc.    Marietta, OH 45750 0715
Apr 28, 2004 Polystat temperature control products provide temperature range from -30 to +200°C and are fitted with independent over-temperature protection device and bath-fluid level alarm. When activated, units give visual and audible warnings and shut down to stand-by mode. Controllers allow administrator to lock out functions that are not required or should not be accessed by operator. Available in 3 versions, interchangeable controllers offer plug & play functionality.

Asahi/America    Malden, MA 02148
Apr 28, 2004 Available in PVC, PP, and PVDF, molded FloSonexâ„¢ Vortex Flowmeters offer variety of line connections, including sanitary, union, and Butt. They are produced using high-purity cleanroom procedures, making them suitable for USP purified water, institutional laboratory, deionized water systems, and aggressive chemical systems. Units are wet calibrated at factory and come with NIST traceable certificate of calibration.

Littelfuse, Inc.    Des Plaines, IL 60016
Apr 28, 2004 Offering precise mating to TVS components, Littelfuse Varistor Surge Protection fuse protects TVSS products and survives 8 x 20 µsec lightning surges without opening. UL-Recognized MOV Protector Fuse, rated for peak surge currents from 5–100 kA, protects TVSS by opening Varistor circuit when it is shorted due to energy beyond its rating. Series has 200 kA max interrupt rating at 600 Vac. Packaging includes ferrules, bolt-down, and through-hole solder styles.

Stoody Co.    Chesterfield, MO 63017
Apr 28, 2004 Stoody® 1334 alloy exceeds wear life of typical amorphous type alloy when twin-wire arc sprayed. Stoody 1334 coatings provide increased bond strength and wear resistance when deposited on boiler tubes and Yankee drier rolls. It demonstrates sprayability and is best finished with diamond wheels. The 1/16 in. diameter twin wire is available on 25 lb fiber spool.

Brown & Sharpe Mfg. Co.    North Kingstown, RI 02852
Apr 28, 2004 PRIMA Direct Computer Control CMM is available in 5 models ranging in size from 78.7 x 47.2 x 63.0 in. to 157.5 x 63.0 x 82.6 in. Open-sided design and large work area facilitate automatic loading and use of fixturing systems such as DEA FIVE U-nique system. Thermally compatible structural materials and built-in linear thermal compensation system reduce effects of ambient temperature on measurement results. AURODUR® optical scales provide system resolution of 1 µm.

Hodge Mfg. Co., Inc.    Reno, NV 89502
Apr 28, 2004 Made of polyethylene copolymer, Hook-On-Bins(TM) are available in 5 sizes to accommodate many types of small items. Each has back tab hook for hanging on louvered work cabinets, carts, and benches. Molded top edge permits secure stacking when hangers are not available, while molded side grips help user place and remove bins. Built-in front slot holds part identification cards or other bin labels. Lowered front edge allows visibility of parts.

Wintriss Engineering Corp.    San Diego, CA 92121
Apr 28, 2004 Compatible with PCI bus configured PCs, Gigabit Fibre Channel (ANSI X3.230) Board enables communication at gigabit speeds for fiber optic and copper cable applications. It incorporates TLK1501 bi-directional, serial, point-to-point transceiver chip. Balanced, twisted pair Fibre Channel copper cables can be used for runs up to 200 m, and runs to 2 km are possible with fiber optic cables. Compact PCI version is also available.

Jewell Instruments LLC    Manchester, NH 03103
Apr 28, 2004 Series LDF offers input power supply range of 6–50 Vdc and customizable bandwidth from dc to over 50 Hz. Available with RS-422 or RS-232 serial interface, sensor includes dc analog output for operation with systems requiring analog input. Unit is housed in sealed package with military, subminiature, cylindrical connector that is scoop-proof and has bayonet lock coupling. Inclinometer provides 24-bit resolution, 0.10% scaling accuracy, and 0.02% nonlinearity.

Peter Paul Electronics Co., Inc.    New Britain, CT 06050
Apr 28, 2004 With pressures to 500 psi, Magnetic Latching Valve is offered in 6–60 Vdc and draws approximately 7 W when energized. Encapsulated into single package, coil and rare earth magnet assembly come with either lead wire or male DIN style connection. Valve requires only 30 ms of power application to latch or unlatch. It is suited for tight spaces and remote areas where continuous power may not be available, or in battery-powered portable equipment.

Spectronics Corp.    Westbury, NY 11590
Apr 28, 2004 Leaks in oil-based lubrication and hydraulic systems are made visible by Spectroline® OIL-GLOâ„¢ 22 dye. Product escapes with oil and accumulates at site of each leak where it glows bright yellow-green when illuminated by UV or UV/blue light lamp. Dye remains safely in system until oil is changed, enhancing preventive maintenance. Periodic inspections with lamp will detect any future leaks before they cause damage to equipment.

B & K Precision Corp.    Placentia, CA 92870
Apr 28, 2004 Triple-output, benchtop Model 1672 provides 2 variable voltage outputs of 0–32 Vdc/0–3 A and one fixed 5 Vdc/3 A output. It offers CV/CC operation, independent control of voltage and current for variable output, and overload indication LED for fixed output. Four panel-mounted, 3-digit displays read volts and amps of both A and B supply. Voltage meter resolution is 0.00–99.9, and amperage meter resolution is 0.00–9.99.
