Goal Semiconductor Inc.    Montreal, QC H3B 1H4  Canada
Apr 30, 2004 Model VMX1016-QAI16, based on single cycle 8051 processor, includes 56 K in-circuit re-programmable flash memory, 1,280 bytes RAM, and 24 programmable I/O pins. Hardware Arithmetic Unit performs simultaneous 16-bit signed multiplication and 32-bit addition with inclusion of 32-bit barrel shifter. Integrated SoC features onboard I²C interface, 5-Channel 12-bit A/D Converter, four 16-bit resolution PWM outputs, and 2 timer capture inputs.

ITT Goulds Pumps    Seneca Falls, NY 13148
Apr 30, 2004 Model 3196 features TaperBoreâ„¢ Plus seal chamber, which keeps solids, air, and vapors away from seal faces. Radial clearance between mechanical seal and chamber facilitates liquid circulation for heat removal, while Vane Particle Ejector directs solids away from seal faces.

SMC Networks    Irvine, CA 92618
Apr 30, 2004 TigerSwitch standalone Model SMC6709GL2, with 8 auto-MDIX 10Base-T/100Base-TX ports and one 1000Base-SX port, supports distances of up to 550 m. Offering aggregate bandwidth up to 3.6/1.6 Bbps, Models SMC6709GL2 and SMC6708L2 have non-blocking switching architecture making them suited for multimedia applications. Both include QoS, IEEE 802.1Q VLAN, GVRP, and priority queuing to ensure smooth delivery of data and security for different multicast groups.

Kanotech Information Systems Ltd.    Edmonton, AB T5S 1J9  Canada
Apr 30, 2004 CivicCenter Data Capture and Standards Integration 2004 software enables efficient drafting of CAD standards-compliant mapping in Autodesk Map, which can then be imported directly into CivicCenter GIS solution. Data capture tools enable creating closed parcel polygons, inserting water, sewers, signs, and emergency support symbols, linking symbols to database records, populating database records, and creating required files for Autodesk MapGuide Author.

Thomas Products Division    Sheboygan, WI 53081

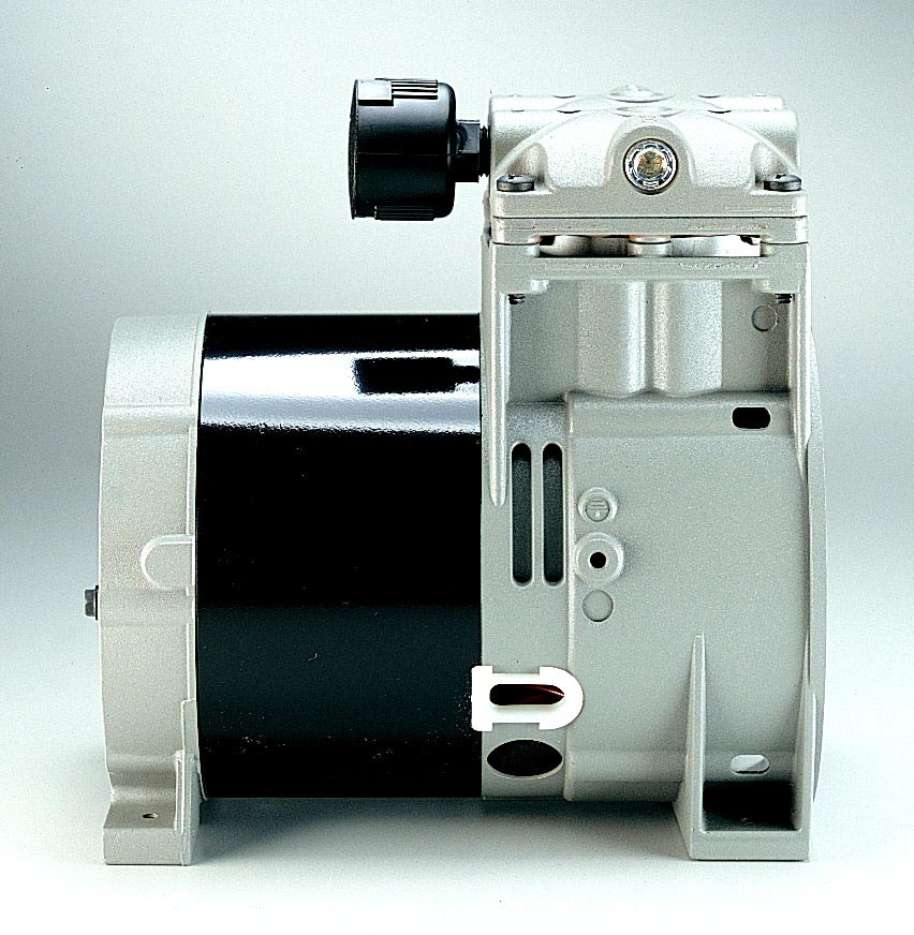

Apr 30, 2004 Series 668/688 WOB-L® Piston Pump provides 27.6 Hg of vacuum or 100 psi of pressure with maximum flow rate of 1.6 cfm. Oil-less piston and cylinder plus intake filter provide non-contaminated air flow. Pump incorporates single-phase AC motor with permanent split capacitor design to eliminate need for starting switch. Unit suited for use in oxygen concentrators, blood analyzers, dental carts, and ozone generators.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 30, 2004 Cisco MDS 9000 offers network analysis and troubleshooting as well as integration with Cisco Fabric Manager. It assists users implementing multiprotocol-capable SAN infrastructure by providing security and manageability to consolidate geographically dispersed SANs. When used with optional Cisco MDS 9000 Fabric Manager Server Package, adapter records original size of truncated Fibre Channel frames as they are encapsulated and transferred over Ethernet.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 30, 2004 Designed for use with Enterprise Tape Drive 3592 Model J1A, 9 models of TotalStorageâ„¢ Enterprise Tape Media 3599 support Write-Once, Read-Many (WORM) feature. Models 021, 022, and 023 provide 300 GB of WORM storage, while Models E21, E22, and E23 provide WORM storage on 60 GB WORM cartridge. Also, Models E11, E12, and E13 provide 60 GB of rewritable storage. All media models offer flexibility in specification of prelabeled and initialized data cartridges.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Apr 30, 2004 External SCSI Port Enablement Cable provides one external SCSI port to pSeries® 615 Model 6E3/6C3 servers and IntelliStation® POWERâ„¢ 275 workstation. Product connects SCSI internal controller to external port, allowing attachment of external SCSI devices to system. Installation prevents use of second four-pack DASD enclosure and uses one PCI-X slot.

Edwards Signaling & Security Systems    Plainville, CT 06062

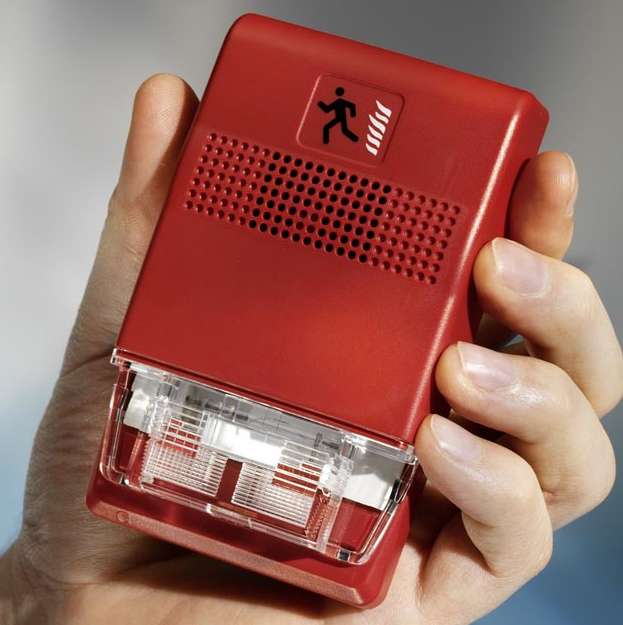

Apr 30, 2004 Available in neutral white or fire-alarm red, Genesis EG1 Series is offered in horn, strobe, horn/strobe, or electronic chime models. Units are similar in size to one deck of playing cards and feature FullLight® technology, which employs mask-and-cavity design that channels and conditions light to produce controllable distribution pattern. Genesis horns feature iconographic symbol indicating purpose of device and are self-synchronizing and UL-Listed.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Apr 30, 2004 Hysol® FP4547FC is compatible with clean and no-clean flux residues. It protects lead-free flip-chip devices and allows them to meet JEDEC Level 3/260°C moisture test requirements. Incorporating 2 additives that remove and neutralize flux residues from between flip-chip die and substrate, product provides moisture resistance and facilitates assembly process. In most cases, post-assembly flip-chip cleaning processes may be eliminated.

Kintz Plastics, Inc.    Howes Cave, NY 12092
Apr 29, 2004 In-house painting facility runs 3 shifts so thermoformed part can be prepped, painted, and shipped within hours after it is formed. Screen Printing and Hot Stamping place logos, model designations, warnings, and other prominent information on thermoformed part. RFI and EMI shielding to interior of panels for electromechanical and electronic products is applied to exact specifications. Unlimited combination of surface finishes and textures are offered.

Belden    Richmond, IN 47375

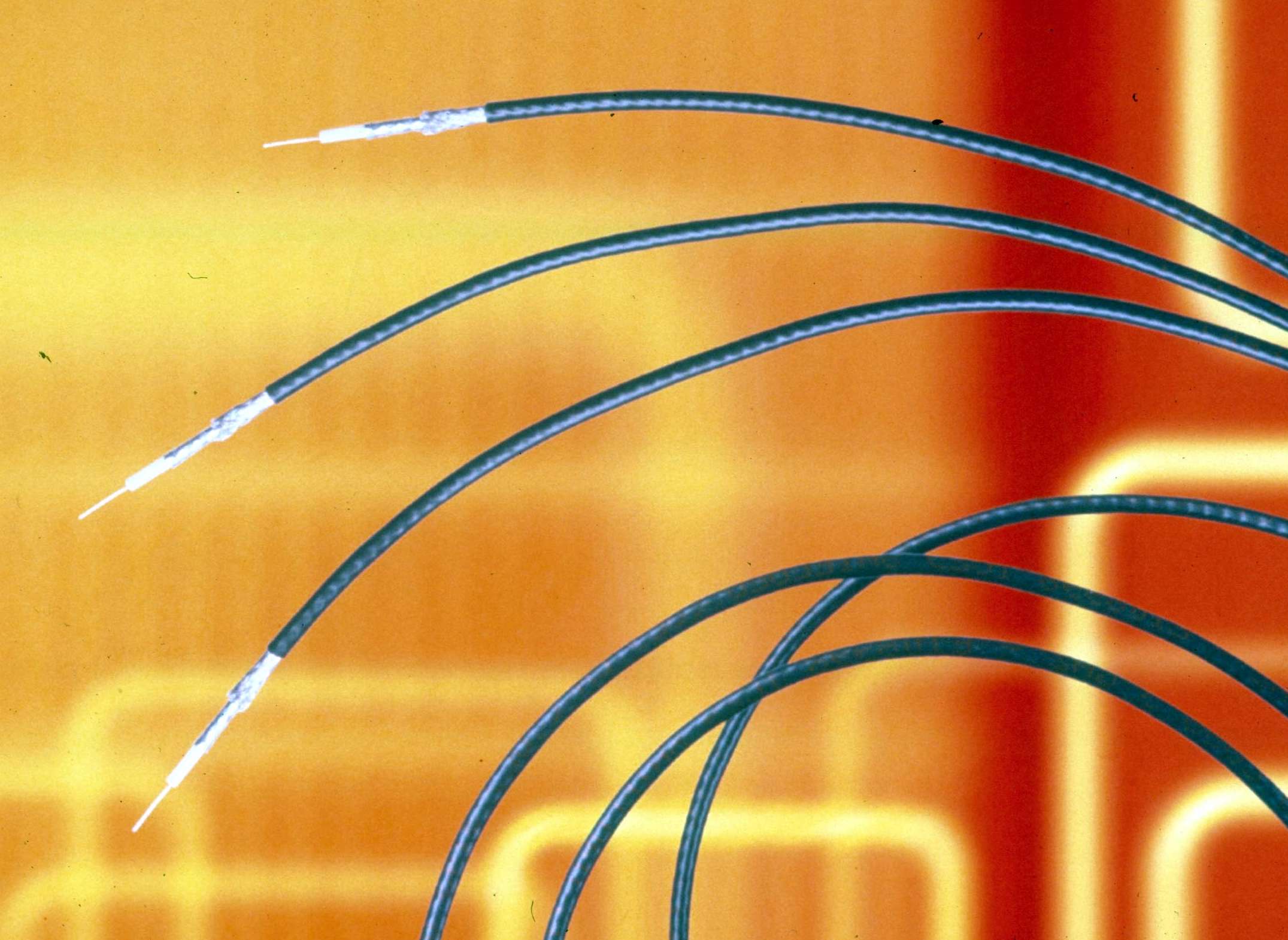

Apr 29, 2004 With nominal OD of 0.100 in., Brilliance DigiTruck(TM) 179DT Precision Video Cables feature crush-resistant, foamed high-density polyethylene dielectric. Guaranteed return loss is 21 dB when sweep tested to 3 GHz. Fold/braid shield design offers lightly bonded Duobond® tape that can be left bonded to insulation for termination with 1-piece connectors, or removed for multi-piece connector designs. Ten jacket colors are available.

SKF Motion Technologies    Lansdale, PA 19446
Apr 29, 2004 Type LST-L NILOS-Ring Seals offer protection for grease-lubricated roller bearings in applications where wash-down or regular exposure to liquids may be required. Stainless steel, non-contact labyrinth seals incorporate Viton® gasket for extra sealing, especially when liquids are in permanent contact with bearings. With 4 mm profile, units come in range of sizes to accommodate various internal and external bearing dimensions.

Lock Inspection Systems, Inc.    Fitchburg, MA 01420 6094
Apr 29, 2004 Model MET 30+ hf offers food manufacturers and packers heightened sensitivity for non-ferrous and stainless steel metals. Using single, high-frequency oscillator, unit will inspect dry foods at 875 Khz. It is available as horizontal system, employed at end of line for final screening of dry, polywrapped, finished products. Touchscreen keypad incorporates ADC software, which displays signals from metal detector in graphical format.

ITT Standard    Buffalo, NY 14227 1233

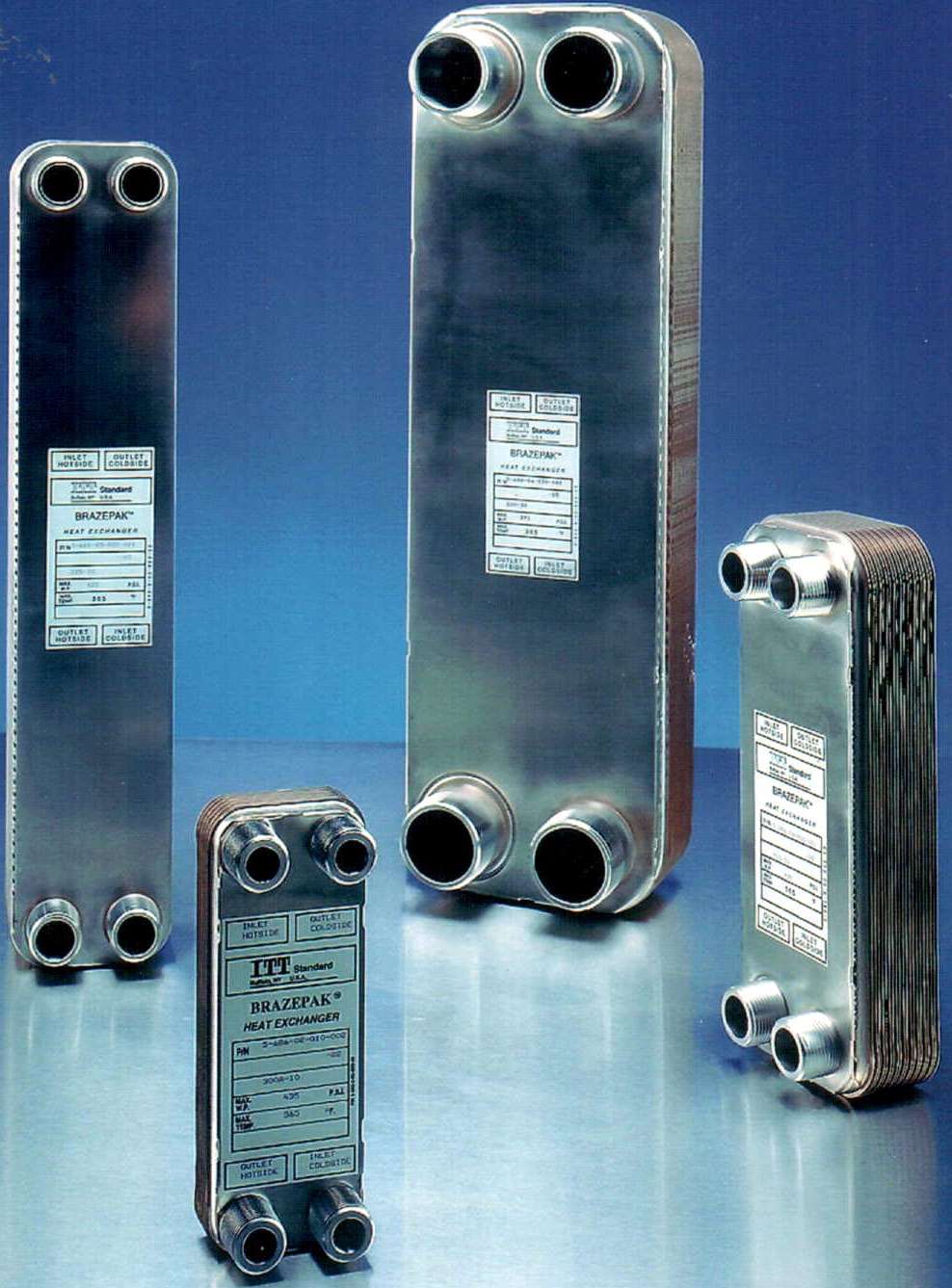

Apr 29, 2004 Able to withstand elevated pressures and temperatures, Brazepakâ„¢ heat exchangers consist of brazed-plate units constructed using brazing process that bonds together 316 stainless steel plates with corrugated design. Brazing process also eliminates need for gasketed or rolled joints. Requiring no pressure-retaining parts, products are suited for refrigerant condensers and evaporators as well as oil coolers in engines and machinery.

Reell Precision Mfg. Corp.    St. Paul, MN 55110-5103

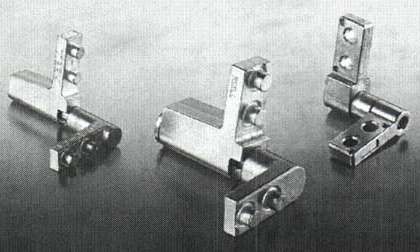

Apr 29, 2004 Utilizing C-shaped clips that grip hardened steel shaft, hinges provide constant torque throughout full range of motion. With housings and connecting flanges precision cast from zinc, products deliver useful life of 25,000 cycles with no backlash and typical spring-back of less than 1°. Hinges with 5 and 7 mm outside housing diameters are available with consistent torque ratings from 1.7–5.2 lb-in., while 9 mm hinges are rated from 5.2–19.0 lb-in.

Komet Of America, Inc.    Schaumburg, IL 60193 4544

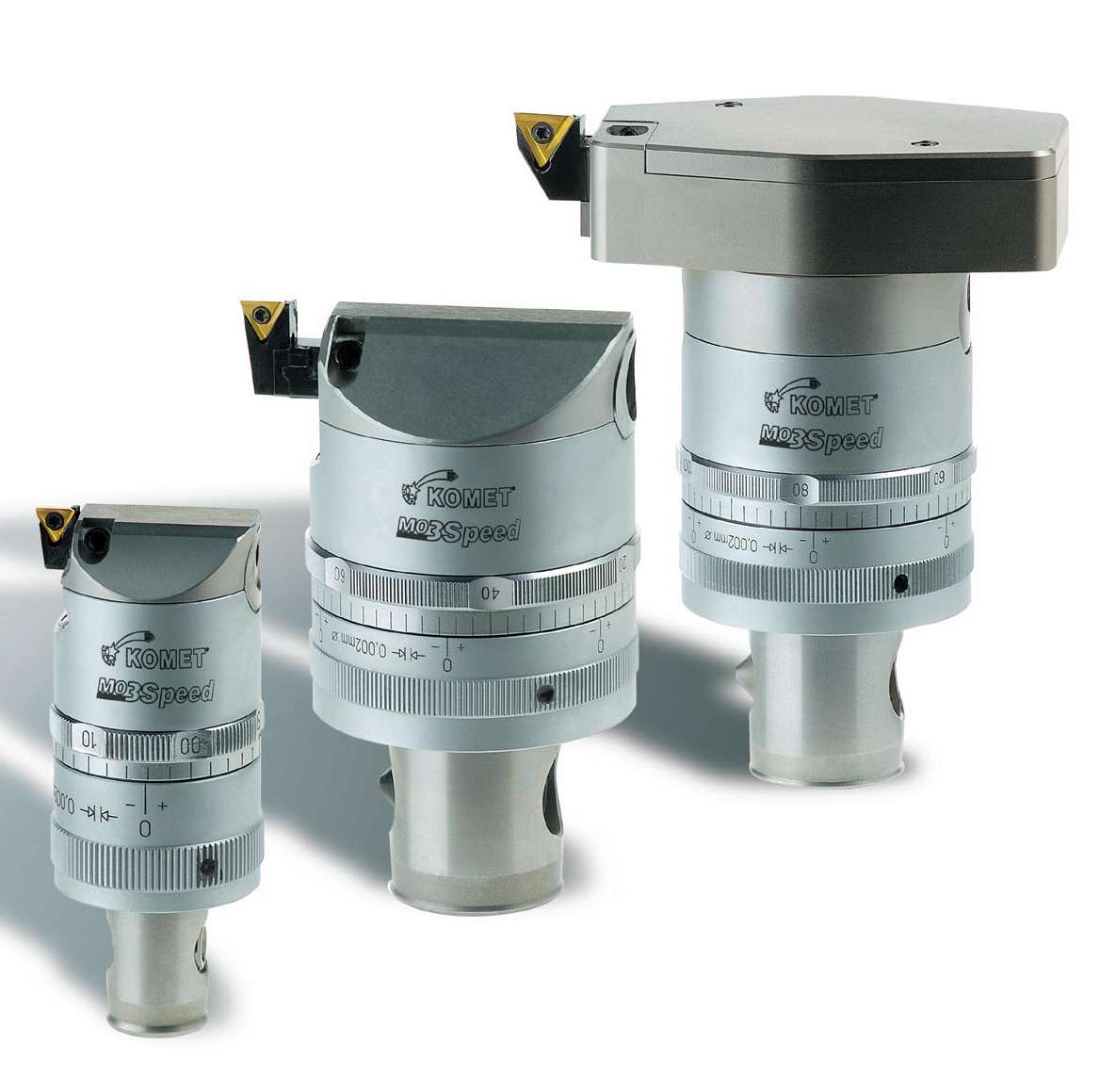

Apr 29, 2004 Model M03/Speed Boring Head offers 7 tool bodies to cover boring diameters from 24.8-206 mm. Rough adjustment of rotating clamping holder to graduation collar on external diameter allows fine adjustment up to 0.00008 in. To compensate for insert wear, fine adjustment can be accomplished while tool is still mounted on machine spindle. When insert position is changed, automatic balancing adjustment is made via weight that lies diametrically opposite.

Storopack Inc.    Cincinnati, OH 45246 1106
Apr 29, 2004 Able to conform to any product shape, PAD LOC® protects products that require additional cushioning due to weight, size, value, or irregular shape. Supplied in ready-to-use pads, product offers surface protection with no abrasion or scratching. Pads can be used as end caps, for blocking and bracing, as moldable cushions, and for wrapping and stuffing. Reusable product is offered in 3 standard sizes, optional printing and custom sizes also available.

STMicroelectronics    Lexington, MA 02421
Apr 29, 2004 Housed in 32-lead package, STB6000 replaces discrete component tuners in set-top boxes used for receiving digital TV or web-based material via satellite. It has integrated RF processing circuitry and is programmed via 2-wire serial interface. Input frequency range is 950-2,150 MHz, and unit supports symbol frequency rates from 1-45 Msymbols/second. Chip includes integrated local oscillator and phase locked loop, differential I/Q outputs, and buffered XO output.

Stafford Mfg. Corp.    Wilmington, MA 01887

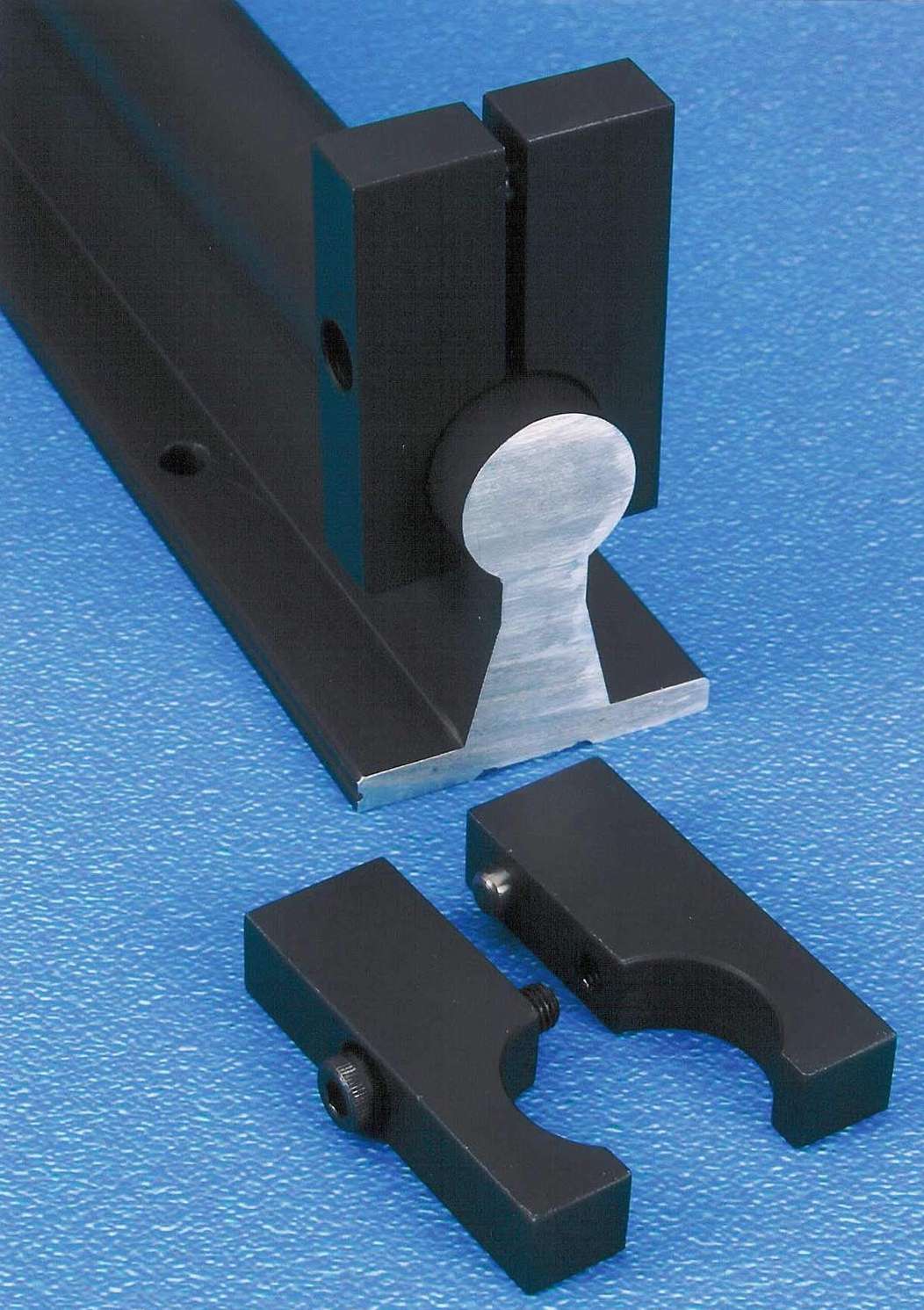

Apr 29, 2004 Stafford Rail Clamps function as positive mechanical end stop or mounting block on rail-mounted shafts. Clamp-style devices slide over end of both shaft and support rail and separate to permit assembly anywhere on shaft. Machined from steel with black oxide finish, products are offered in 6 sizes from ½â€“1½ in. bore and adjust using hex wrench. They can include drilled and tapped holes for mounting components and can be made from stainless steel.
