Dresser Instruments, Dresser Measurement & Control, Dresser Inc.    Stratford, CT 06614-5145
Jun 08, 2004 Stainless steel, submersible ebro® EBI-80 records temperatures from -31 to +176°F with resolution of 0.2°F and accuracy of ±0.9°F. Unit is pressure-resistant to 300 psi and waterproof to IP68. User can choose between endless measurement, Start/Stop operation, or Start with predetermined measuring interval. Logger offers battery life of 3–5 years. Data can be downloaded and communicated via e-mail with ebro® EBI-Quicklogâ„¢ software.

Linear Technology Corp.    Milpitas, CA 95035
Jun 08, 2004 Synchronous dc/dc Model LTC3802, with 3-30 V input range, operates without sense resistors. Current limit is adjustable, and overcurrent is detected by sensing voltage drop across external MOSFET. With nominal 550 kHz switching frequency, phase lockable from 300-750 kHz, controller regulates output voltages as low as 0.6 V. IC employs modulation architecture and features programmable up/down tracking with ratiometric and coincident options.

Production Basics, Inc.    Watertown, MA 02472
Jun 08, 2004 Hand Crank Adjustable Table provides smooth movement and precise positioning of work surface. Frame, constructed of heavy-duty steel, supports up to 450 lb. Hydraulic cylinders that raise and lower work surface are enclosed in legs of table, and epoxy powder-coat finish resists abrasion and wear of industrial environments. Ergonomic table offers on-the-fly height adjustment for different operator heights and tasks, reducing worker injury and increasing productivity.

Milltronics Mfg. Co.    Waconia, MN 55387
Jun 08, 2004 Built with ribbed, 20,000 lb, cast iron frame, VM30XP utilizes roller type linear ways for increased rigidity. Its 50 taper, 8,000 rpm spindle is designed around 2-speed geared head capable of delivering 425 lb-ft of torque from 50–400 rpm. This 50 x 30 in. machining center also delivers 1,500 ipm traverse rates and features 32-pocket, arm-type automatic tool changer.

Quantitech Ltd.    Milton Keynes MK12 5NP  United Kingdom
Jun 08, 2004 InfraRanâ„¢ Specific Vapor Analyser provides real-time, on-site measurements of Sulfur Hexafluoride (SF₆) down to below 1 ppm. With measuring range of 0–10 ppm, resolution of 0.01 ppm, and response time of 5–10 sec typ, instrument is suited for tracer and leak detection applications. Factory calibrated unit features menu-driven software, internal data logging, 8.2 kg weight, and ability to run up to 8 hr on internal, rechargeable NiMH battery pack.

Quantitech Ltd.    Milton Keynes MK12 5NP  United Kingdom
Jun 08, 2004 Vienna U-DMA is used with Condensation Particle Counter to create complete Sequential Mobility Particle Sizer and Counter. Extension kit allows user to change particle size range from 5–350 nm to 10–1100 nm. Remote operation can be via modem, but built-in battery pack, data logging, and auto-reboot facility means that totally independent operation is possible. Automatic self-test operation checks that system is functioning correctly before measurements.

Linear Technology Corp.    Milpitas, CA 95035
Jun 08, 2004 Model LTC2601 integrates voltage output 16-Bit DAC in 10-pin DFN package. It allows multiple DACs to be controlled with 3 wires using daisy-chainable SPI serial interface. Operating with voltages from 2.5-5.5 V, unit's DAC output can directly drive capacitive loads to 1,000 pF or current loads to 15 mA. Asynchronous update pin enables DAC update to be synchronized to hardware signal as well as simultaneous updates of multiple DACs in system.

Linear Technology Corp.    Milpitas, CA 95035
Jun 08, 2004 Synchronous, fixed-frequency, buck-boost Model LTC3443 optimizes battery run-time for single-cell Li-Ion, multi-cell alkaline, or NiMH battery-powered applications. It operates from input voltage of 2.4-5.5V and can provide up to 1.2 A of output current at fixed output voltage between 2.4-5.25V. Operating frequency is set internally to 600 kHz and can be synchronized up to 1.2 MHz. Burst Mode® operation allows internal MOSFETs to operate intermittently based on load demand.

TechniDrill Systems Inc.    Kent, OH 44240
Jun 08, 2004 Able to drill holes with diameters from .030–.375 in. and depths to 18 in., Model HS-375 maintains its degree of hole concentricity due to counter-rotation of workpiece and speed of drilling. Counter-rotation system allows variable speeds from 500–1,500 rpm, while drilling tool can be variably controlled from 5,000–20,000 rpm. Product incorporates 300 gal coolant system and 2 independently operating spindles on separate ways.

Orbimatic GmbH    Peterborough PE7 3FT  United Kingdom
Jun 08, 2004 TIGER Welding Station allows single operator to handle 6 m lengths of tube or pipe during welding operation. Tube/pipe clamp, located on Easi-Glide X-Y slide, rotates to allow 45° and 90° elbows to be welded to tube lengths. It also removes any ovality from tube for perfect joint fit-up. Head stock uses internal purging and clamping mechanism, which allows tube to be welded to fittings or fittings to be welded to elbows.

Snap-on Industrial    Kenosha, WI 53141 1410
Jun 08, 2004 Weighing 37.5 lb., Blue-Pointâ„¢ RACEJACK requires 7 strokes to attain full height capacity of 17.52 in. Jack features one-piece casting lift arm and rubber bumper on handle bottom to protect vehicle finish. Double knurl top on 2-piece, 47.25 in. long handle helps user maintain grip during operation, and front roller wheel adds to stability. Breather valve prevents hydraulic lock and ensures smooth lifting.

Snap-on Industrial    Kenosha, WI 53141 1410
Jun 08, 2004 Extended Cab System comprises 5 different units featuring two 50 in. wide top drawers with depths of 3 and 5 in. and up to 10,000 cubic-in. of storage. Cabinets feature Lock'n'Roll® drawers that stay closed for safety, non-slip drawer liners, double steel wall construction, rubber mat to protect top surface, ball bearing slides for smooth drawer operation, and heavy-duty casters. They are available in three 54¼ in. wide models and two 72 7/8 in. wide models.

Seco-Larm    Irvine, CA 92606-5012

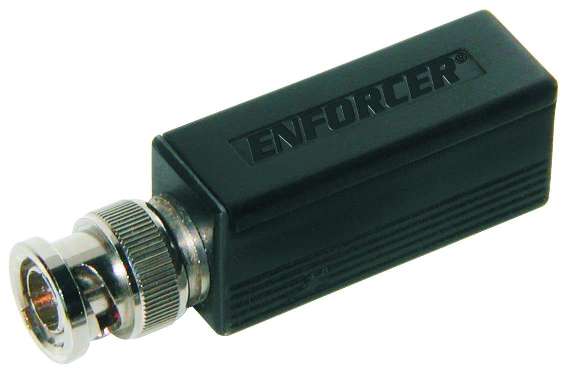

Jun 08, 2004 Model EVT-PB1 connects CCTV cameras to monitor, multiplexer, or video recorder at up to 1,950 ft for B/W or 1,300 ft for color. Measuring 2 ¾ x ¾ x 5/8 in., miniature device includes quick-connect screwless terminal blocks for twisted pair wire connections. With balun, video signal can be transmitted over CAT5 unshielded cable instead of coax cable. Video formats such as RS170, NTSC, PAL, SECAM, and CCIR are supported at frequencies ranging from dc–5 MHz.

Vapore, Inc.    Richmond, CA 94801
Jun 08, 2004 Capillary Force Vaporizer combines capillary force and phase transition to generate powerful jet of pressurized vapor from unpressurized liquid, with no moving parts. When used with consumer products such as fragrances or insect repellant, CFV can disperse active ingredients directly, eliminating need for propellants, fillers, and disposable aerosol cans. When used with liquid fuels, vapor produced by CFV burns like natural gas.

CeramTec North America Corp.    Laurens, SC 29360
Jun 08, 2004 Available in thicknesses of .008, .010 and .015 in., Rubalit® HSS aluminum oxide ceramic substrate is available in standard dimensions up to 5 x 6.5 in. Based on 3 Point Method for testing bend strength, substrate measured more than 700 Mpa, with modulus of elasticity rated at 335 GPa. Bulk density tests out at 4.35 g/cm³. Applications include automotive, power supply, sensing, durable goods, telecom, medical, and aerospace systems.

FatWire Software    Mineola, NY 11501
Jun 08, 2004 Spark 6 pCM accentuates and extends strengths of SUN Javaâ„¢ System Portal Server. It uses Sun Java System Identity Server user and group management for single sign-on authentication and authorization, and supports JSR 168 standard. Featuring content management and document mangagement interfaces, software installs with 4 pre-built delivery portlets and job postings, corporate communications, documents, and advertisements.

Cotronics Corp.    Brooklyn, NY 11232
Jun 08, 2004 Bond-It(TM) 7056AL is filled with activated, aluminum metal creating fast-set, machinable, repair epoxy. With 1:1 mixing ratio, product is dispensed, mixed, and troweled on without running, dripping, or sagging. It cures at room temperature without objectionable or sulphur odors and hardens in 4-8 min. Bond-It 7056AL adheres to smooth, rough, or porous surfaces, including most plastics, metals, ceramics, glass, and wood.

Research, Inc.    Brooklyn Park, MN 55428
Jun 08, 2004 DryIR® Model 6040 concentrates IR heat directly to desired area, resulting in immediate evaporation. Designed for drying applications that require clean, responsive, non-contact heat source on target areas up to 4 in. wide, IR energy emitted from each heater can be adjusted to match specific heating requirements. Featuring modular construction, air-cooled unit incorporates digital power controller, aluminum construction, integral fan, and quartz lamps.

Milltronics Mfg. Co.    Waconia, MN 55387
Jun 08, 2004 Model TT22 operates 2 independently-controlled, 22 in. square work tables that travel from parked position outside normal work area to spindle, eliminating pallet systems. Entire bridge assembly travels up and down, offering peak rigidity anywhere along Z-axis travel. Machine offers 2,000 ipm rapid traverse rates, 40 taper spindles up to 15,000 rpm, and double arm style automatic tool changers with 16, 24, or 40 pockets. Work envelope is 22 x 22 x 22 in.

Elscint Automation    Pune 411026  India
Jun 08, 2004 Auto Loading and Unloading System handles shafts ranging in length from 150 mm up to 1 m. Shafts are kept on inclined table where pneumatic cylinder feeds one shaft at a time to belt conveyor, which then feeds shaft to centerless grinding machine. After grinding, unloading belt conveyor takes shaft out and turns it around using transfer station. Shaft is then fed to another belt conveyor for transfer back to loading station.
