BTC Electronic Components    Raleigh, NC 27616
May 13, 2004 Y-ConRJ45 Field-Bus Connector System consists of RJ45 plugs and associated jacks intended for CAT5 Industrial Ethernet networks with 100 Mbps transfer rates. Both plugs and jacks offer 2 additional integrated power supply contacts, making second wiring and contact point for current unnecessary. Shock resistant up to 50 g, units are IP67, IP68, and IP69K protected, making them suited for harsh industrial applications.

EnerSys, Inc.    Reading, PA 19612-4145
May 13, 2004 With 22.1 x 4.9 in. footprint, 12V155FS front terminal, valve-regulated lead-acid (VRLA) battery has cover made from UL94 V-0 flame retardant ABS material, which is resistant to shock and vibration. Acid spills are avoided through separators encased in low-resistance microporous glass fiber, which absorbs electrolyte in event of accidental damage to battery. With 155 Ah capacity, product employs positive and negative plates in lead-tin-calcium construction.

Thompson Scale Co.    Houston, TX 77055
May 13, 2004 Sonic 350 In-Motion Checkweigher offers conveyor speeds in excess of 250 fpm and production rates up to 200 units/min. Standard I/O will interface to new or existing metal detector, offering control of up to 3 reject devices for low/high/metal reject outputs. Model 4693 controller offers 75-product memory storage and adjustable 5 weight zones per product. Metering, pacing, reject, and material handling conveyors are available.

Iveco Motors    Carol Stream, IL 60188
May 13, 2004 CURSOR Series consists of 6-cylinder, 24-valve diesel engines that can be configured to meet applications in industrial, agricultural, marine, and power generation industries. Available in 8, 10, and 13 liter versions, engines have total electronic control to monitor operating conditions. Compliant with emission and noise regulations, engines feature noise level below 95 dBA at maximum power. Select models offer variable geometry turbochargers.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 13, 2004 ThinkPad® T42 features Intel 855 PM chipset and is available with 1.5, 1.7, or 1.8 GHz Intel Pentium M processor and choice of Intel PRO/Wireless network connection 802.11b, 11a/b/g Wi-Fi wireless, or IBM 11b/g wireless. Standard memory is 256 or 512 MB, expandable to 2.0 GB. Measuring 1.0 in. thick with starting weight of 4.5 lb, unit features 400 MHz FSB with 333 MHz DDR memory. Active Protection System protects HDD from damage caused by shock.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 13, 2004 Powered by Intel Pentiumâ„¢ M processor, ThinkPad® T42p mobile workstation notebook includes Active Protection system that helps protect HDD from damage caused by shock. Features include Intelâ„¢ Centrino mobile technology, 855 PM chipset, and PRO/Wireless Network Connection 802.11b or IBM 11a/b/g wireless. Measuring 12.2 x 10.0 x 1.0–1.2 in., computer incorporates 60 GB HDD that runs at 7,200 rpm and titanium and magnesium composite covers.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 13, 2004 ThinkPad® Multi-Burner Ultrabayâ„¢ Slim Drive delivers rewritable DVD technology suited for archiving data or authoring DVD video content. It supports DVD Forum DVD Multi Player/Recorder specifications and provides buffer underrun protection and 2MB memory buffer. Features include software for creation, authoring, and reading of media; MPEG-2 decoding software for video and DVD playback; and IDE (ATAPI) interface.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 13, 2004 Weighing 2.4 lb, Model M400 features DDP2000 chipset from Texas Instruments. It offers native XGA resolution of 1024 x 768, contrast ratio of 1800:1, and 120 W lamp with 1,100 lumen output. When no video signal is detected after several minutes, power shuts down to conserve lamp life. Security lock slot lets user lock projector to secure surface with optional locking cable. Projector uses DVI-I to VGA connector and includes integrated laser pointer and mouse control.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 13, 2004 M400 Projector syncs in seconds and features 1024 x 768 XGA resolution and 120 W lamp with 1,100 lumens output. Compact, sleek design measures 7.2 x 6.4 x 1.9 in. and weighs 2.4 lb. Unit delivers 1800:1 contrast ratio, digital ±15° vertical keystone correction, and remote control with integrated laser pointer and mouse. Equipped with 0.5 W mono speaker, product uses front/rear, desktop projection method.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
May 13, 2004 Scalable, 4U xSeries® 445 Servers feature Intel Xeon MP 2.0 GHz processor with 1 MB L3 cache and 2 GB high-speed PC2100 DDR SDRAM memory. They include integrated dual port 10/100/1000 Mbps Ethernet and dual channel Ultra320 SCSI controllers with integrated RAID-1 support. Units offer six 64-bit active PCI-X slots, XA-32 second-generation chipset, 64 MB XceL4 server accelerator cache per SMP expansion module, and active memory with hot-swap and hot-add support.

Delta F Corp.    Woburn, MA 01801 1087
May 13, 2004 Model DF-330 provides measurement ranges from ppm levels to 100%. Voltage is applied across sensor so that oxygen molecules can move through solid electrolyte and be measured. No reference gas is required to make measurement. Sensor can be mounted in-situ or sample can be extracted from gas path to flow through sensor. Digital electronics offer options for alarms, relays, and RS232 or RS485 output.

Supply Corporation, The    Lake Geneva, WI 53147-0100
May 13, 2004 Rolmar heavy-duty counter brushes, available with soft or medium polyester bristles, are suited for dusting shelves, cartons, or conveyors and removing flour, sugar, crumbs, or scraps from counters and tables. Available with white, red, blue, green, or yellow bristles, products feature sanitary white foam block with hang-up hole. Applications include bakeries, flourmills, food processing plants, restaurants, and anywhere dust or debris accumulates.

EnWave Optronics, Inc.    Irvine, CA 92614
May 13, 2004 Compact, fully integrated HRC-10 features FSL series 400 mW NIR frequency-stabilized/narrow linewidth diode laser. Other features include Enwave's HRP series high Rayleigh rejection/throughput fiber optic probe, sampling software, and CCD-based, high-resolution/throughput spectrograph. Product is suited for condensed material identification and process control.

Watt Stopper, Inc., The    Santa Clara, CA 95050
May 13, 2004 Intelligent Power Pack Model LC-100 features 2 relay outputs and dimming channels for up to 100 ballasts per channel. It contains inputs for connecting occupancy sensors, photosensors, building automation systems, and relay-based lighting control panels, enabling dimming, daylighting, load shedding, and blink warnings for 2 separate lighting loads simultaneously. Unit operates at 120 or 277 Vac and installs as standard power pack.

Littelfuse, Inc.    Des Plaines, IL 60016

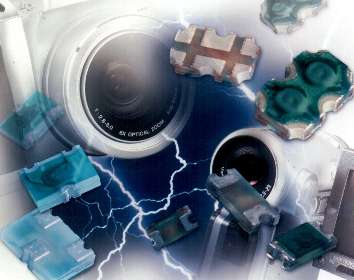

May 13, 2004 PulseGuard® Series PGB1 ESD Suppressors are RoHS compliant and compatible with high temperature reflow cycles. They offer ESD protection on high-speed signals such as HDMI, DVI, USB 2.0, and FireWire. With capacitance of 0.055 picofarads and ESD event response time of less than 1 nanosecond, units offer protection without waveform distortion. All devices are compatible with lead-free manufacturing processes.

Acopian Technical Co.    Easton, PA 18044
May 13, 2004 Series A and B Power Supplies, with outputs from 5–125 Vdc, are available with contacts for controlling external audible or visual alarm, or for signaling computer. They switch if power supply's output voltage deviates by 2 V or more from nominal rating. Because they are SPDT, both alarm and normal operation indicator can be controlled.

Union Process, Inc.    Akron, OH 44313
May 13, 2004 Model DMQ-05 small media, ½-liter tank-sized mill utilizes Delta discs, eliminating shaft whip and mill vibration. Discs are indexed to provide directed and uniform media distribution throughout mill chamber. Ring screens can be adjusted to accommodate use of grinding media from 1 mm to as small as .3 mm. Large open screen area positioned at end of mill facilitates cleaning. If required, mill can be produced metal-free for ceramic applications.

J.S.T. Corporation    Waukegan, IL 60085
May 13, 2004 Simplex Typc LC Connectors are pre-assembled, with ferrule included, in either singlemode or multimode. They feature 1.25 mm Zirconia ferrules and support 1.6 and 2 mm cable types. Maximum insertion loss is 0.4 dB with minimum return loss of 40 dB in singlemode. Multimode version has maximum insertion loss of 0.3 dB and minimum return loss of 22 dB. Suited for LAN, MAN, and WAN applications, connectors use RJ 45 type latching, which produces audible sound when properly mated.

Rex-Cut Products, Inc.    Fall River, MA 02720
May 13, 2004 Heat- and wear-resistant Rex-Cut® Double-Cut Carbide Burs perform heavy, fast stock removal with minimal vibration. Products come in straight shapes for deburing edges, conical shapes for working in corners, and ball shapes for deburing radii. They are offered in industry-standard sizes with 1/8 and 1/4 in. shanks. Torque-tested units can be used on stainless steels, titanium, inconel, cast iron, other high-nickel alloys, and aluminum.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089
May 13, 2004 Hot-pluggable, 4-channel optical transceiver uses internal media converter to extend signal transmission reach of copper interface up to 300 m at 2.5 Gb/s or 100 m at 3.125 Gb/s over multimode fiber ribbon cable. High-speed electrical socket is based on microGiGaCNâ„¢ differential copper I/O connector, and module has 0.8 W typical power dissipation. Case operating temperature range is 0 to 70°C, and LEDs indicate presence of power or error condition.
