Ocean Optics, Inc.    Dunedin, FL 34698
May 12, 2004 Curie Fluorescence System detects picomolar-range concentration of fluorophores in solutions. High-sensitivity, 2048-element, CCD-array detector is coated with order-sorting filter to eliminate 2nd and 3rd order effects. Built-in, linear variable filters spectrally shape excitation energy from onboard pulsed-xenon lamp, and eliminate need for scanning monochromators. Users can move each filter's transmission or blocking band throughout UV or visible wavelengths.

Axeda Systems Inc.    Mansfield, MA 02048
May 12, 2004 Axeda DRM v3.7 device relationship management (DRM) enterprise software enables users to remotely organize devices into systems and organize those systems into hierarchies by locations, regions, and organizations. Scalable product features device topology display, server managed device communication, and automatic archiving. Axeda Policy Managerâ„¢ allows authorized personnel to establish and enforce security and privacy policies for data transfer and remote operation.

Linear Technology Corp.    Milpitas, CA 95035
May 11, 2004 Housed in 8-pin MSOP and DFN, 3 x 3 mm packages, LTC4301 supply independent, hot-swappable, 2-wire bus buffer allows I/O card insertion into live backplane without corruption of bus data and clock lines. IC provides capacitive isolation between backplane and I2C busses, and SDA and SCL pins withstand 8 kV ESD. When I2C is distributed over a backplane, backplane bus sees only capacitance of buffer ICs, 10 pF each, increasing number of nodes that can be supported.

STMicroelectronics    Lexington, MA 02421
May 11, 2004 Model TS3431 can be programmed with external resistor bridge to output any voltage from 1.24-24 V. It will then hold that voltage with accuracy of ±2%, ±1%, or ±0.5%, depending on which version user chooses. Part will sink between 400 µA and 100 mA of current and maintain accuracy over industrial operating temperature of -40 to +125°C. Applications include computer motherboards, set-top boxes, instrumentation, battery chargers, and SMPS.

Lutze, Inc.    Charlotte, NC 28273

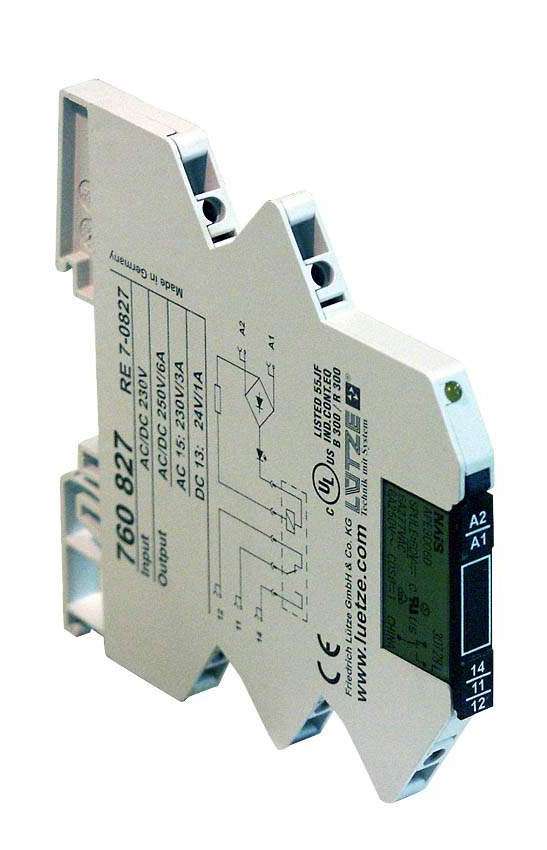

May 11, 2004 Plug-in Coupling Modules are offered with normally open, normally closed, with changeover contacts, as well as in solid-state versions. They work from all power supplies ranging from 5–230 Vac/dc, and can switch AC or DC loads up to 250 V at 6 A. Using eject lever, defective relay can be swapped out without unclipping module itself. During initial installation, electrical connection is facilitated by screw terminals being accessible from front.

Sterling    Milwaukee, WI 53223 0435
May 11, 2004 Available for variety of temperature control units, microprocessor controller Model M2B+ features 2 line x 20 character LCD display screen, system status, and password protection. It has sensor inputs for pressure switch, pump rotation/phase loss, safety thermostat, weld contact, and high and low water level for pump tank applications. Alarm outputs are provided for temperature, low or high flow, low water pressure, and pump failure.

Scapa North America    Windsor, CT 06095

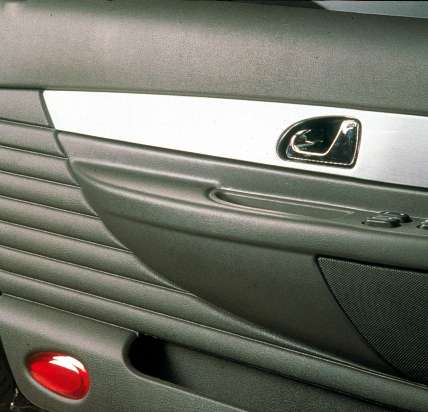

May 11, 2004 Dublfilm® S812A is a thin polyester film coated on both sides with high-tack, high-peel acrylic pressure-sensitive adhesive. Adhesive offers resistance to environmental extremes, and polyester film carrier provides dimensional stability. Dublfilm® S812A bonds well to ether and ester foams, as well as low surface energy plastics including untreated polyolefins.

Astrodyne Corp.    Mansfield, MA 02048

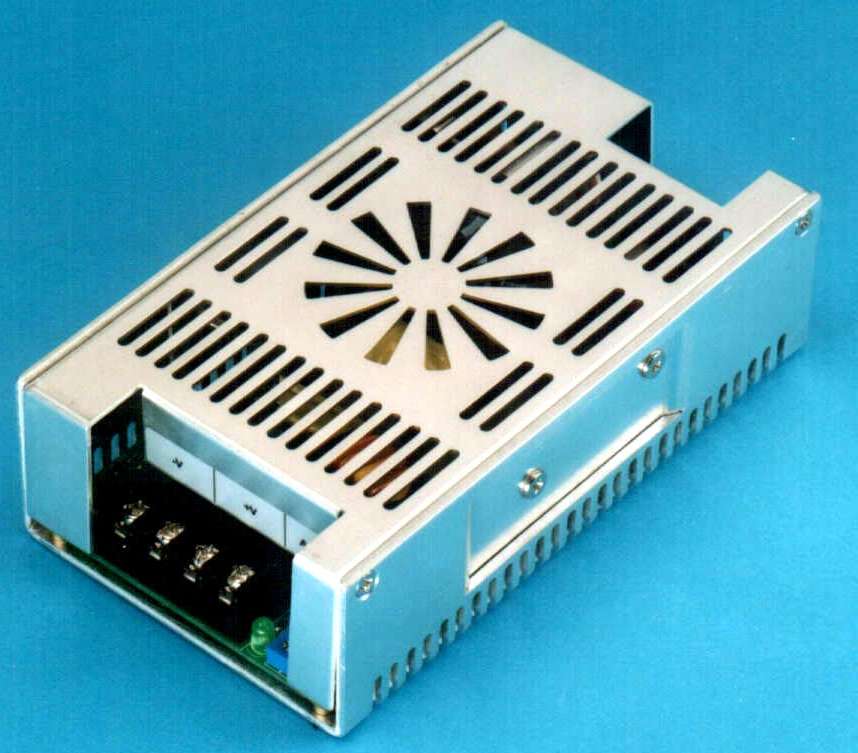

May 11, 2004 Approved to EN60601-1 safety specifications, MMK150-Series provides output power of 150 W to low and moderate power medical systems and instrumentation. All models accept universal input from 85-265 Vac, and 4 models provide single outputs from 5-24 Vdc. With SMT construction, series offers power densities to 4 W/in.³ and features integral power-good LED indicator and output adjustment potentiometer. All models offer over voltage and short circuit protection.

International Surface Preparation    Houston, TX 77054
May 11, 2004 Powered by gas or liquid propane, Blastrac® GPX 16-65 strips, cleans, and profiles concrete or steel surfaces. Dust collection system uses compressed air pulse to clean 6 dust cartridges and does not draw power from product's 65 hp engine. This directs additional horsepower to blast wheel for increased shot flow. With 16 in. blast cleaning path and travel speed of up to 200 fpm, product cleans up to 3,000 ft² of concrete per hour.

Delavan Spray Technologies    Monroe, NC 28110
May 11, 2004 Model SDX V delivers hollow-cone spray pattern of uniform particle size, even at low operating pressures. It features interchangeable, 5-piece construction and tungsten carbide wear parts with silicon or Viton O-rings. Installation requires no wrenches or tools. Flow rates are certified to within ±5% of rated capacity at 1,000 psi. Operating temperatures and pressures can be as high as 700°F and 10,000 psi, respectively.

Kates, W.A., Co., A Taube Co.    Clawson, MI 48017
May 11, 2004 Model DQ Valve combines matched set of characterized orifices with internal differential pressure regulating valve. By controlling pressure drop across orifices, flow rate remains constant. Since control portion is immersed in media, response time to pressure variations is immediate and hunting or oscillation is eliminated. Flow setpoint is adjusted through electronic 24 Vdc binary input. Up to 256 discreet settings are possible using 8-bit input.

Pacific Press Technologies    Mount Carmel, IL 62863

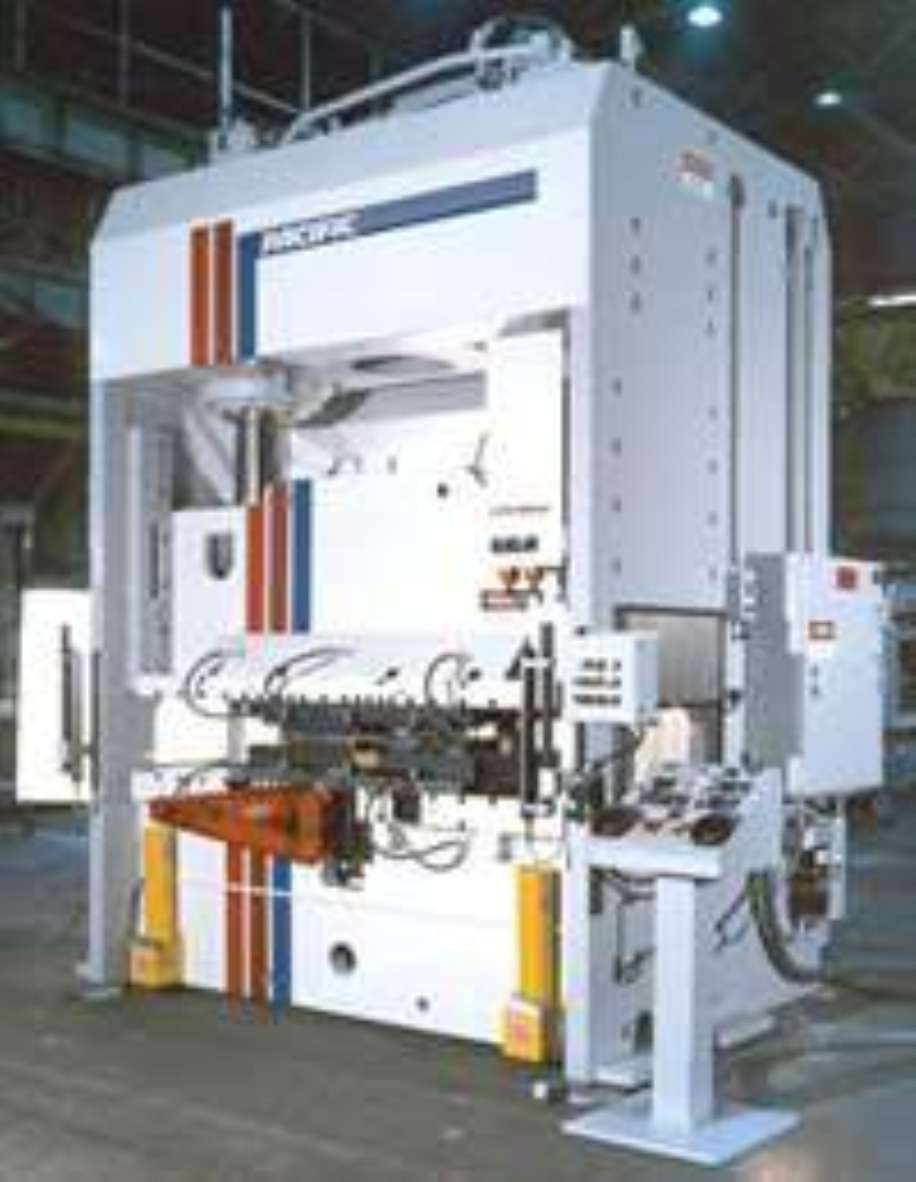

May 11, 2004 Series OBM and OBL, offered in respective 100–500 and 200–1,000 ton models, feature interlocked steel design that absorbs and evenly distributes full force capacities. Self-contained hydraulic system delivers automatic cylinder synchronization, overload protection, automatic decompression, and 3 advance speeds. PLC has programmable interface and 2-line display and keypad, while built-in interlocks and light guard safety system interface allow for automated operation.

E Instruments International LLC    Langhorne, PA 19047
May 11, 2004 Designed for one-hand operation, Mini Gas Sniffer is equipped with 5 LED scale indicator and beeper to pinpoint leaks of gaseous hydrocarbons from piping or appliances. Compact, ergonomic unit features 8 in. long, flexible probe; 0-640 ppm range; and 40 ppm sensitivity. Response time is rated at less than 2 sec, and unit provides 25 hr of continuous operation. Soft vinyl case and belt support accessories are included.

Acromag, Inc.    Wixom, MI 48393 7037

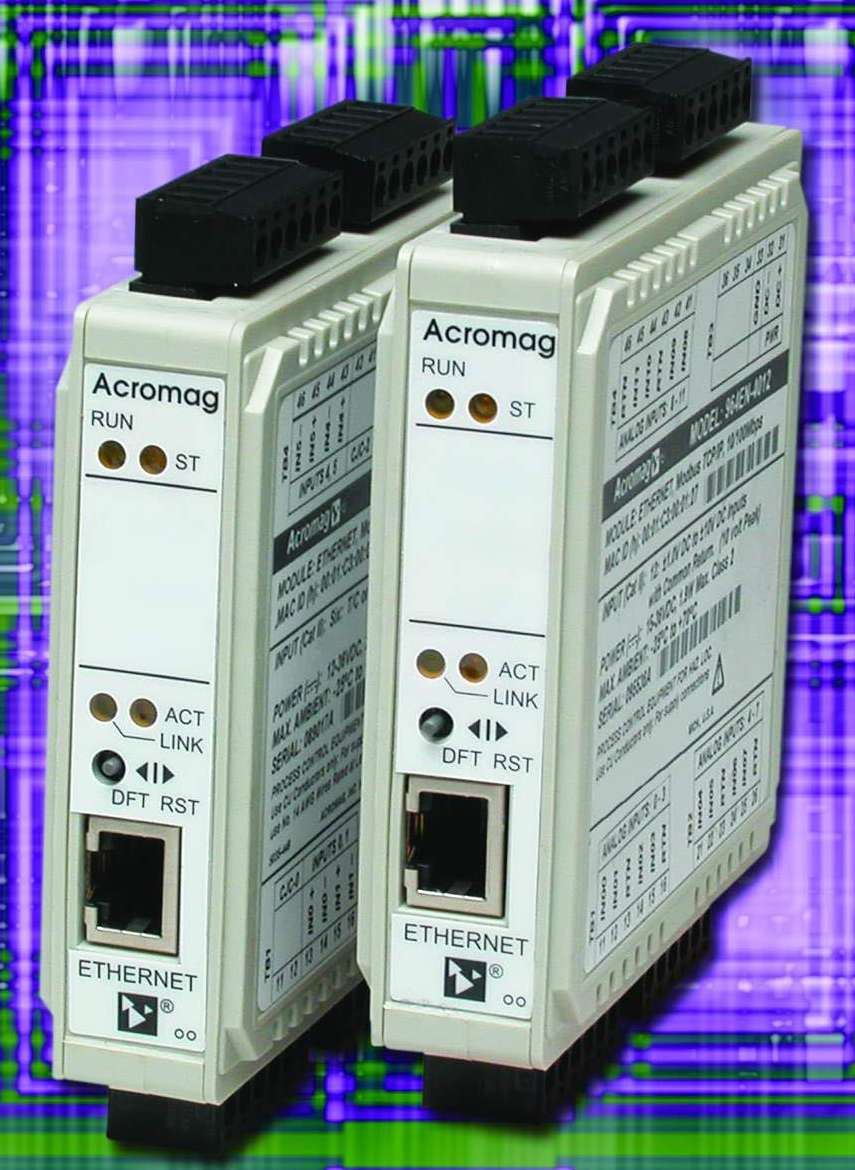

May 11, 2004 BusWorks® 961EN and 962EN directly interface 6 differential DC voltage or DC current signals from remote sites to Ethernet Modbus/TCP 10/100 network. Embedded web pages allow configuration via web browser, and automatic negotiation arbitrates 10/100 Mbps and full/half-duplex communication. Measuring 1 in. wide, DIN-rail mounted products support up to 10 sockets and include watchdog timers, self-diagnostic capabilities, and internal microcontroller.

WAGO Corp.    Germantown, WI 53022
May 11, 2004 WAGO-IO-PRO CAA 759-333 is fully compliant with IEC 61131-3 open programming standard, across suite of languages, data types, and operators. Suited for WAGO 750 Series PFCs and 758 Series Industrial PCs, software also allows users to program/configure other Automation Alliance Partners hardware. It offers visualization elements, library management, online functionality, import of S5/S7 projects, code generators, and hierarchical graphical PLC configuration.

Mack Corp.    Flagstaff, AZ 86004

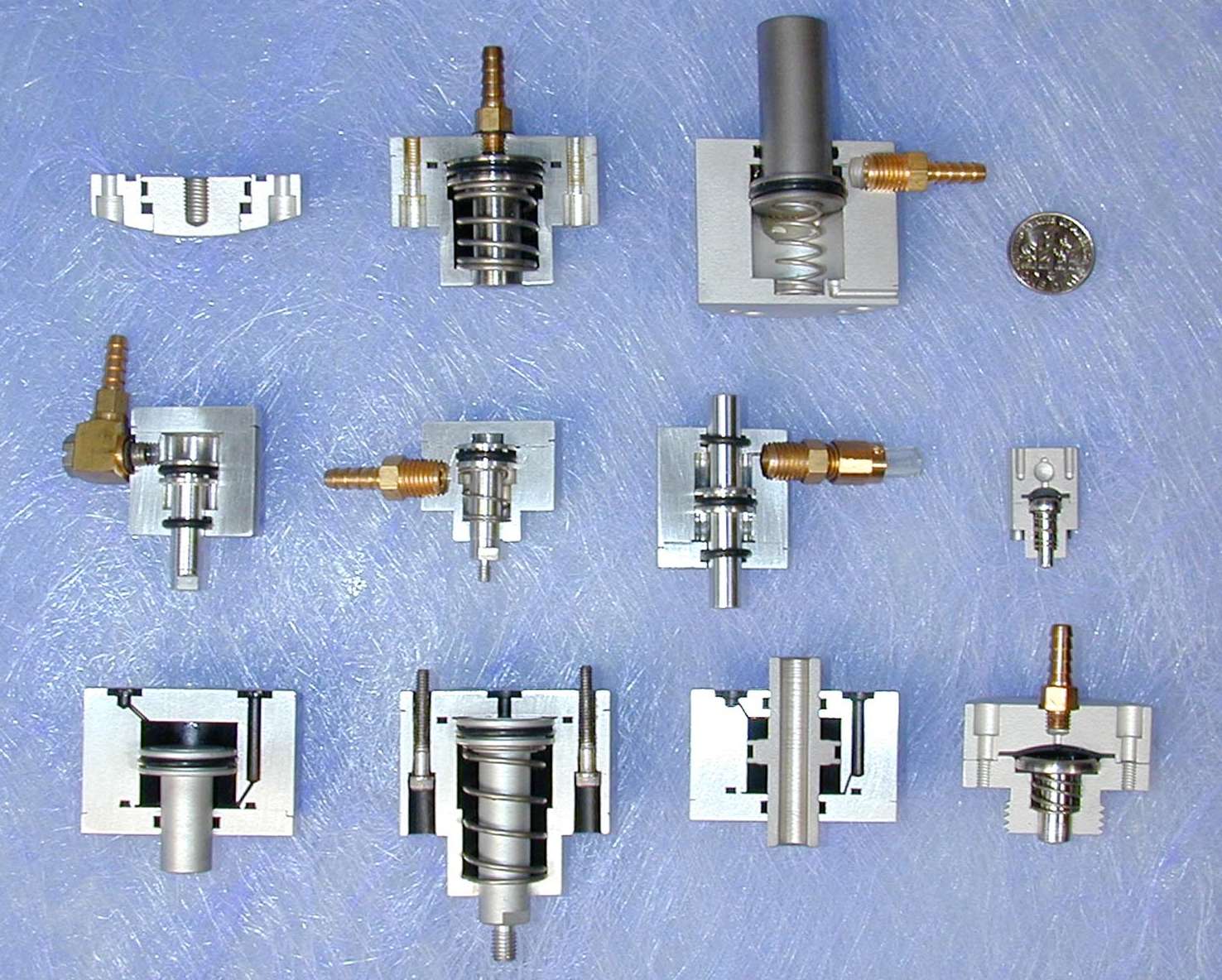

May 11, 2004 Miniature Air Cylinders operate on plant air using standard valve circuits with wide choice of mounting and porting options in various materials. Cylinders are suited for production tooling, automated processes, and general-purpose industrial applications. Basic design is to US Customary specifications, but all products are offered in metric versions.

Phoenix Contact    Harrisburg, PA 17111 0100

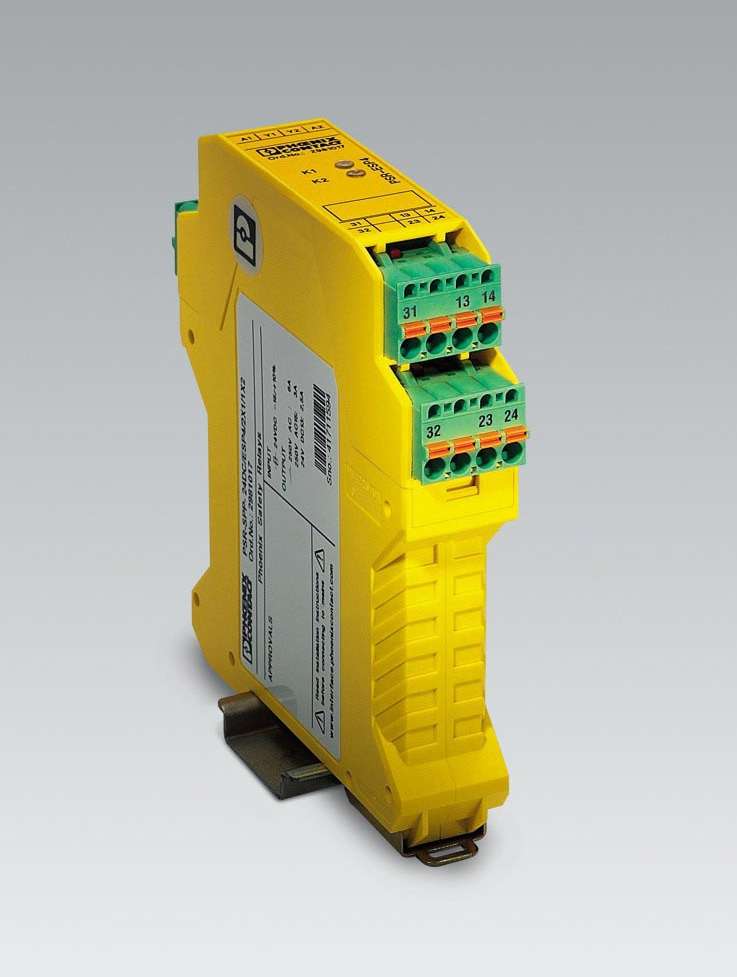

May 11, 2004 Series PSR offers optmized startup behavior approved to SIL3/IEC 61508. Units provide 2 safely isolated, redundant, normally open contacts and 1 normally closed contact that can switch up to 250 Vac/6 A in 22.5 mm housing. They are suitable for adjusting voltage or power and electrically isolating field applications from control systems.

Andax Environmental Corp.    St. Marys, KS 66536
May 11, 2004 Portable De-Con Roller System facilitates decontamination of immobilized victims in De-Con Pacâ„¢ de-con station. Two people can stretch it though station for dis-robe, de-con, and re-robe. Conveyor system expands to 16 ft, 9 in. and compresses to 4 ft, 6 in. Five sets of wheeled legs each offer adjustable height, 3 of which can be locked. All-steel system comes with cinch strap for secure compression and Copper Stopperâ„¢ storage sac to prevent rust and corrosion.

Micropump, Inc., A Unit Of IDEX Corp.    Vancouver, WA 98684

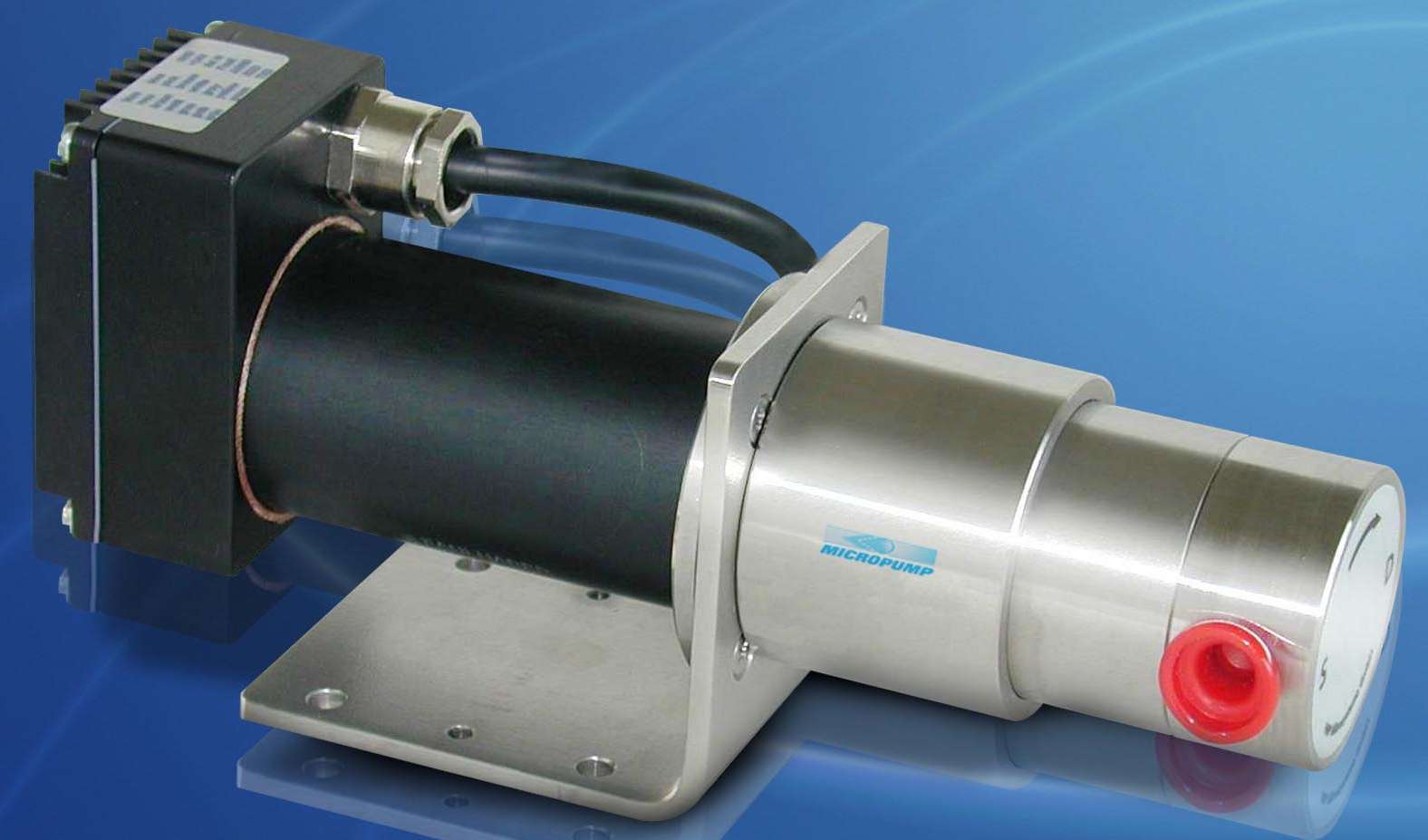

May 11, 2004 Compact micro annular gear pump minimizes pulsations for smooth, constant flow. It helps conserve valuable liquids such as flavorings, reagents, solvents, inks, dyes, and cleaning agents. For maximum dosage accuracy, rotors provide tight flow rate control, even at differential pressures to 1,160 psi. They allow pump to dispense volumes down to 0.5 µl and handle flow rates from 0.3-288 ml/min with accuracies within ±1%.

American Meter Co. - Industrial Sales Div.    Horsham, PA 19044
May 11, 2004 With max inlet pressure of 150 psi, Series 1800 models offer outlet pressures from 3.5 in. wc to 5 psi and can be ordered as Full Relief, Partial Relief, or No Relief Regulators. Non-relieving Series 2000 models allow max inlet pressure of 150 psi and outlet pressure range of 0.5–15 psi. Complete pressure control and automatic shutoff packages are available for protection against extreme variations in inlet or outlet gas pressure.
