Strategic Test Corporation    Woburn, MA 01801-1915

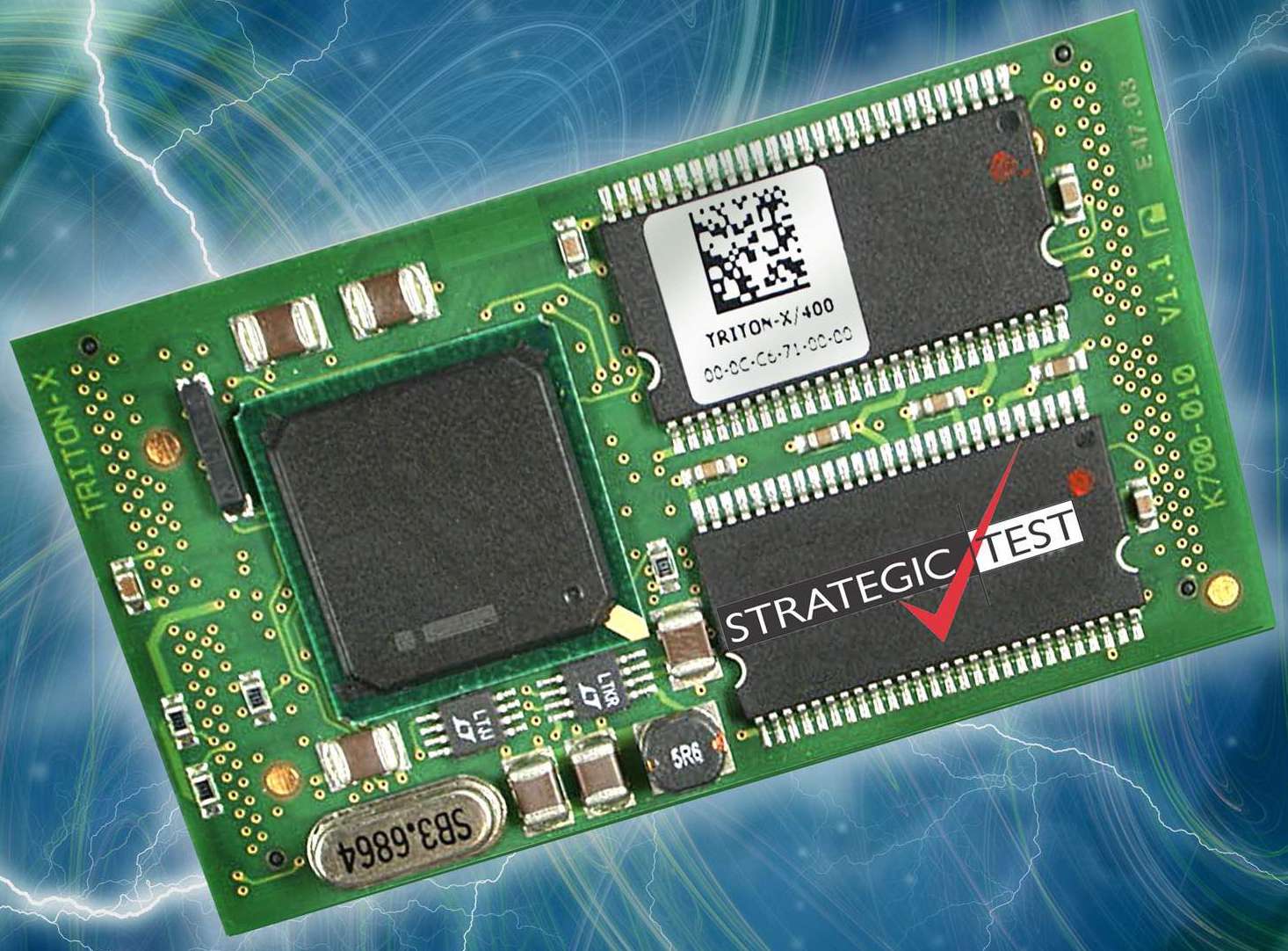

May 07, 2004 Running Linux or Windows CE.NET, TRITON-XXS delivers complete PXA255 computer, optimized for portable embedded designs that require low-power consumption and diminutive size. Programmable core power enables core operating voltage to be varied from 0.9-1.5 V. Card comes with 400 MHz PXA255 CPU; 64 Mbyte SDRAM; 32 Mbyte Flash; LCD controller; PCMCIA interface; and two 100-pin, surface-mounted connectors that permit full access to 32-bit memory address range.

Kulicke & Soffa Industries, Inc.    Willow Grove, PA 19090
May 07, 2004 WaferPRO plus single-pass stud bumper bonds 22 bumps/sec, depending on bump type, size, and pitch. It offers +5 µm positional accuracy at 3 sigma and can bump down to 65 µm. Various manual chucks and fully automatic wafer handling options are available. WaferPRO plus kit, which includes hardware, specialized servo code, and motion profiles, provides upgrade path for existing WaferPRO users.

Express Digital    Austin, TX 78746
May 07, 2004 Express Digital Darkroom(TM) provides wide-range image capture, proofing and editing, photo storage and mangement, image enhancement tools, and connectivity to Adobe PhotoShop. It integrates with Labtricity.com network of photo labs and PhotoReflect.com internet storefront to sell photos. USB Darkroom Key provides security and protection of digital images. Software includes over 150 borders and templates and built-in green screen drop out technology.

Ortronics, Inc.    New London, CT 06320
May 07, 2004 Connect System provides single point of management and distribution for all media, including voice, high-speed data, audio/video entertainment, internet access, and security monitoring equipment. Enclosure is available in 10, 20, and 36 in. heights and holds range of single purpose and combination modules. System includes 5-port 10Base-T hub with switchable uplink port, 8-port 10/100Base-T switch, and broadband router with 4-port 10/100Base-T switch.

Best Electronics and Components Company, Inc. (BECCI)    Santa Clara, CA 95054

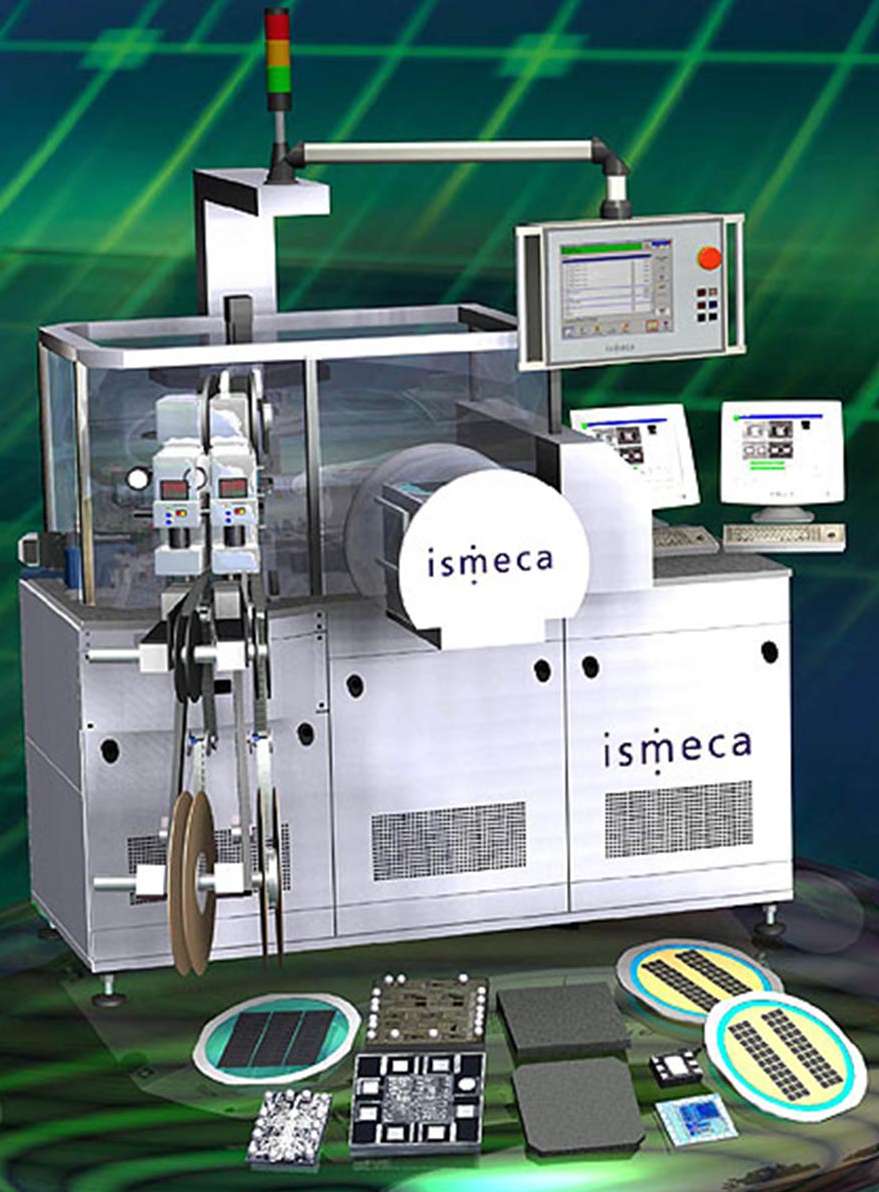

May 07, 2004 Chip Scale Package (CSP) Production Line electrically sorts, laser marks, visually inspects, tapes, and reels multiple wafer scale devices such as standard or bumped die as small as 0.5 mm² and QFN packages. Inkless process, based on wafer mapping program, electronically merges bump maps, electrical sort maps, and vision inspection maps into one composite map that controls selection and taping of devices. Punch-through tape allows die to be removed from either side of finished tape.

Nidec America Corp.    Canton, MA 02021 3704
May 07, 2004 Miniature, brushless, 12 V Model LB16-120-BB uses 120:1 spur geartrain to provide rated torque of 3.5 oz-in. at 100 rpm, and achieves continuous load range of 0–6.9 oz-in. Peak torque of 50 oz-in. at 0.8 A is available for starting and accelerating conditions. Input voltage varies from 3.5–13.2 Vdc for variable speed control operation. Measuring 0.63 in. OD x 1.31 in. long, motor weighs less than 1 oz and is protected by current limiting circuit.

Hougen Mfg. Inc.    Flint, MI 48501 2005
May 07, 2004 Operating with most models of handheld electric drills, Holcutter Speed Reducer offers 4:1 gear reduction ratio. It attaches to drills having ½ in. male threaded spindle or to 3/8 in. diameter models with use of adaptor. At working end, reducer features male quad-lead thread mount for attaching 14,000-Series Holcutters without need for intermediary arbor. Speed reducer is suited for applications involving tough-to-cut materials such as stainless steel.

Cosense Inc.    Hauppauge, NY 11788

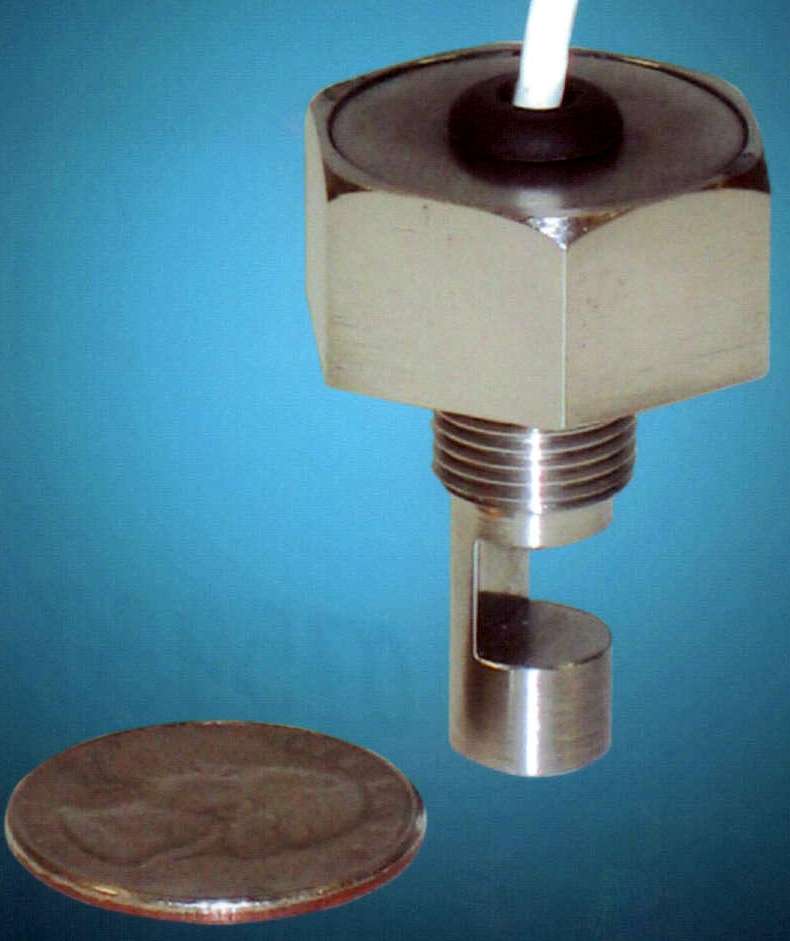

May 07, 2004 SENTIO® LL-01 Series serves as direct replacement for mechanical float type liquid level devices. Utilizing ultrasonic technology and solid-state, surface-mount integral electronics with 6–30 Vdc input power and transient reverse polarity protection, it provides reliable operation in any liquid. Switch incorporates epoxy-sealed electronics, 1/4 in. NPT mechanical connection, and 316SS sensor construction. Several output options are available.

Eagle MHC    Clayton, DE 19938
May 07, 2004 Available in full-size heights of 62 3/8 in. or half-size heights of 49 3/8 in., vibration-dampening tray cart stores and transports trays of vibration-sensitive electronic components. ESD protection is provided via aluminum split sleeves and drag chain or ESD cable grounding device. Product employs polyurethane, 50-shore A casters with expander stems and 5 in. swivels, with brakes on two. Offered in side- and end-loading models, cart has open-wire construction.

Renco Encoders, Inc.    Goleta, CA 93117
May 07, 2004 RCM15si combines brushless motor commutation pulses and incremental position feedback in one optical encoder. Index and commutation information is transmitted via RS 485 serial interface, which also allows for motor and controller setup. Available with resolutions up to 2048 lines, encoder provides commutation for 4, 6, or 8 pole brushless motors. It features slide/gap mechanism and built-in servo groove that allows ±20° rotation of encoder.

Applimotion, Inc.    Roseville, CA 95678
May 07, 2004 Frameless Series ULT ranges from 3–15 in. diameter with through holes from 2.5–14 in. High-resolution angular error map allows users to compensate for mechanical error electronically. Resolver is suited for systems requiring large through holes with low-profile mechanics and limited angle of rotation. It is insensitive to temperature variations and meet shock, drop, and vibration requirements of industrial and military devices.

ITW Vortec    Cincinnati, OH 45242-4719

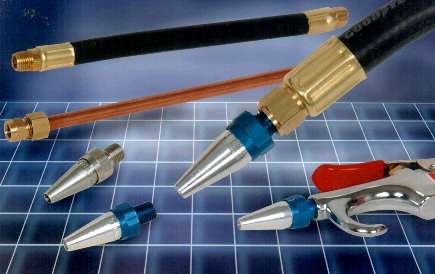

May 07, 2004 Adjustable-thrust DuraBlastâ„¢ Nozzles never need replacing because of clogging. Design forces compressed air through adjustable gap that accelerates airflows, entraining surrounding air as it exits nozzle. OSHA-compliant units come in aluminum and stainless steel, with positionable flex hose or copper tube mountings. Single setscrew allows easy cleaning and micrometer-style adjustment of thrust for any blow-off cleaning, cooling, or drying application.

Norgren    Littleton, CO 80120

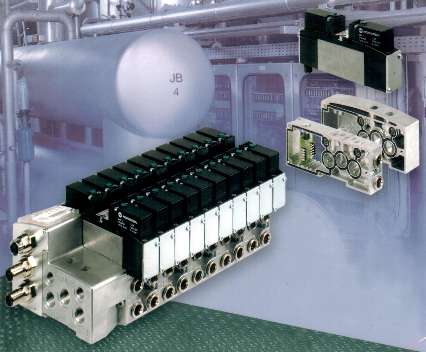

May 07, 2004 Series VS plug-in, subbase valves are available in soft seal spool models and glandless spool and sleeve units with operational figures of 200 million cycles. Offered with 3 different port options, valves come in 18 or 26 mm widths, with flow rates of 550–650 l/min and 1,000–1,350 l/min, respectively. Units accommodate Profibus-DP, DeviceNet, CANopen, Interbus-S, AS-interface, and AB RIO protocols. They include IP65, NEMA 5, CE, ATEX, and UL 429 approvals.

Metabo Corp.    West Chester, PA 19380 4243
May 07, 2004 ChoiceCutsâ„¢ Super-Slicer Wheel provides increased cutting speed and minimal burr when cutting hard and heavy-gauge metals, such as stainless or abrasion-resistant steels, high-tensile alloys, chrome, and hastelloy. Aluminum oxide Type 1 cut-off wheel is available in 4½ and 6 in. versions. Rigid cutting wheel is 0.045 in. thick and coated with blended grain that provides up to 300% increase in wheel life. Wheel leaves no contaminants behind, such as sulfur, carbon, or chlorine.

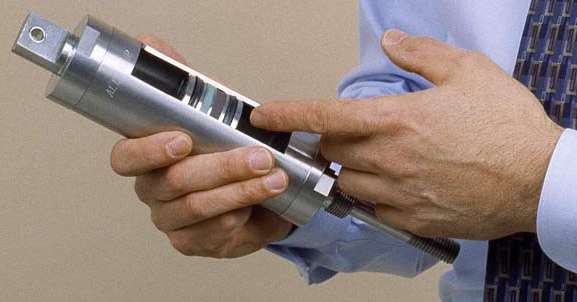

Allenair Corp.    Mineola, NY 11501
May 07, 2004 Cylinders, designed for food processing and pharmaceutical applications, are manufactured from 300 or 316 series stainless steel for severe environments. With threaded construction, cylinders are fully repairable and employ crevice-free design that facilitates wash downs and clean up. Products are available in 1 1/8, 1 1/2, and 2 in. bore sizes. Various mounting options are offered.

Hypertronics Corp.    Hudson, MA 01749 2978

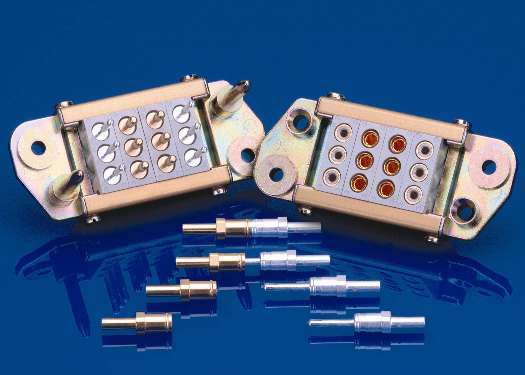

May 07, 2004 Hot Plug Contact allows frequent engagement and disengagement of live electrical systems, without causing system failures and downtime. It provides live plug capability to over 50 mating cycles, is immune to shock and vibration, and is tested to UL1977 Safety Standard. Contact is rated to 16 A for hot plug applications and 28 A for non-hot plug applications. Size is 2.0 mm or larger, with crimp, solder cup, or straight dip terminations.

Landa Water Cleaning Systems    Camas, WA 98607
May 07, 2004 Series MP includes 3 models powered by 11, 13, and 24 hp Honda gasoline engines. All feature 1¼ in. steel roll cage with lifting eye, 50 ft high-pressure hose, and 24 in. hose guard. Units ride on steel chassis with 2 or 4 pneumatic tires. Spring-loaded, insulated trigger gun features straight-through pressure wand for remote operation of spray. Washers are suited for descaling flow lines in ships, stripping rust from metal, and blasting concrete from steel forms.

Square D Co.    Raleigh, NC 27611
May 07, 2004 ConneXium(TM) Ethernet Switch enables sites to implement Ethernet communications for real-time control, data access, and decision-making. Five-port unit operates at 100 Mbps full-duplex, 100 Mbps half-duplex, 10 Mbps full-duplex or 10 Mbps half-duplex. Ports support speed and duplex auto-negotiation, auto-polarity, and auto-MDI/MDIX. They can be connected to data terminal equipment or other network segments using stright or crossed over twisted pair cable.

Tennessee Mat Co., Inc.    Nashville, TN 37210-4123

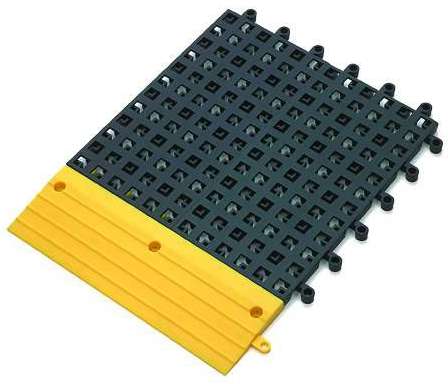

May 07, 2004 Suited for use as anti-fatigue matting or as entire flooring system, ErgoDeckâ„¢ professional-grade, 18 x 18 in. tiles are designed with optimal durometer to prevent standing worker fatigue. Underside flex-points are systematically spaced to provide flexibility underfoot. Incorporated LockSafeR interlocking system works like permanent connection, even under heavy use, but tiles can be separated and reconnected to accommodate redesigned work-spaces.

Kyocera Display America, Inc.    Plymouth, MI 48170

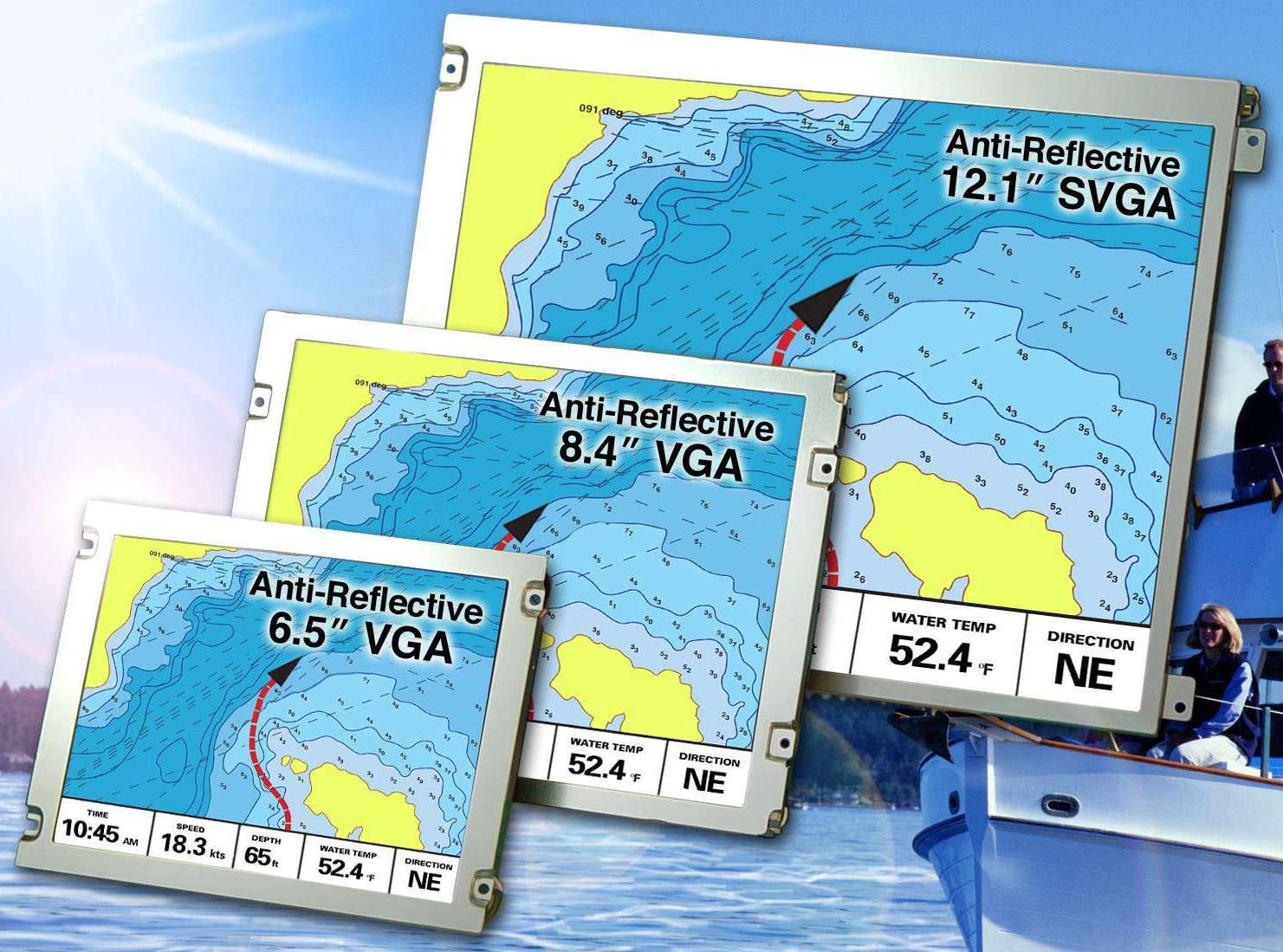

May 07, 2004 Industrial TFT color LCD modules feature anti-reflective surface treatment on front polarizer that improves high-ambient-light legibility and image clarity. Treatment makes 6.5 in. VGA, 8.4 in. VGA, and 12.1 in. SVGA TFT LCDs suited for applications with varying ambient light conditions, including outdoor environments, while exhibiting no glare or decrease in luminance or contrast. Surface reflectivity, after treatment, is reduced to ~0.3%.
