Proper Storage Systems, Inc.    Seguin, TX 78155

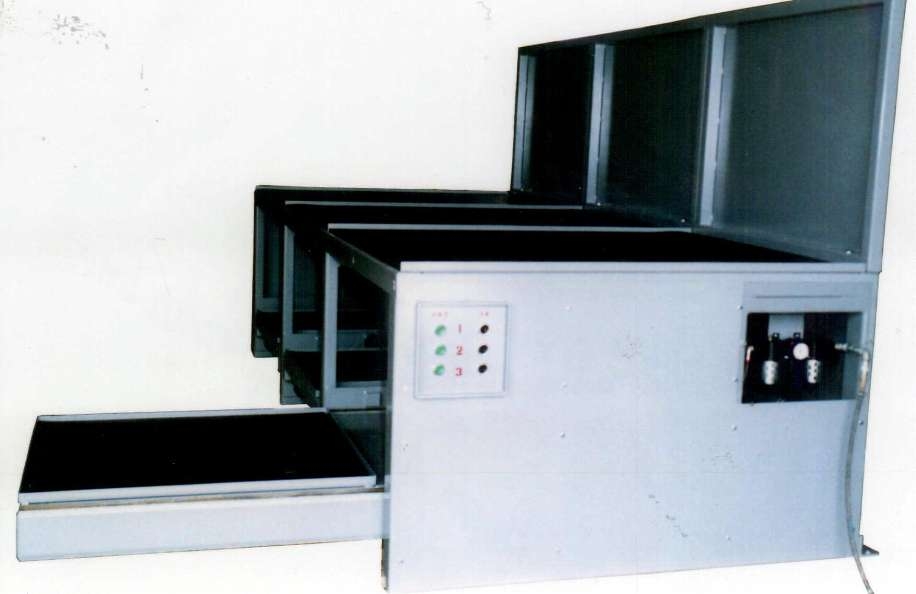

Jun 09, 2004 Storage unit employs three, 3 x 3 ft, 5,000 lb capacity shelves, controlled by air-piloted valves and activated by pushbutton valves. Shelves and 20,000 lb capacity top have 1 in. lip with anti-fatigue mat insert. Unit also employs pressure regulator, filter, and lubricator. Hanson Quick Connect, located at side of unit, facilitates re-location, and 3 ft high partition at back provides space for hanging tools.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112

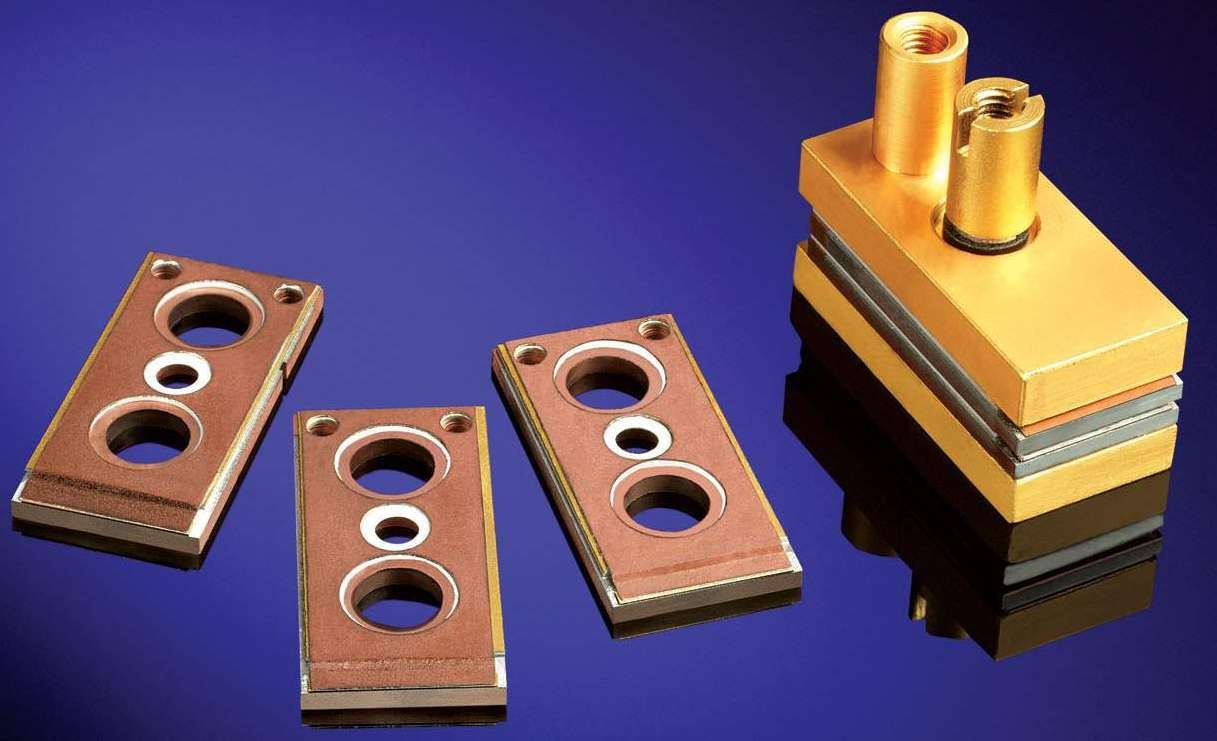

Jun 09, 2004 Suited for use in direct-diode materials processing and as pump source for diode-pumped lasers, LightStoneâ„¢ produces 80 W continuous-wave output at 808 nm. It is based on macro-channel-cooled platform and can be stacked vertically or horizontally. This 90% fill-factor bar has operating current and voltage of 104 A @ less than 2.1 V, and beam divergence is less than 35º by less than 10º FWHM. Product is MBE-grown and has aluminum-free active area design.

National Instruments Corp.    Austin, TX 78759-3504

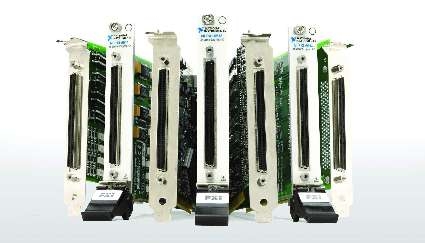

Jun 09, 2004 Series NI 651x consists of optically-isolated, digital I/O devices for applications in discrete, batch, and process automation. Each includes watchdog timers, programmable power-up states, programmable input filters, change detection, and 24 V logic levels, which offer connection to sensors and actuators and are software programmable without jumpers. Series provides NI-DAQmx driver software technology on both Windows and LabVIEW operating systems.

Micrel Semiconductor Inc.    San Jose, CA 95131
Jun 09, 2004 MICRF505 RadioWire® transceiver operates from 850–950 MHz and supports frequency shift keyed modulation at data-rates to 200 kbps. Functions are user-programmable, including frequency synthesizer. Through high integration, external components are limited to few capacitors, one inductor, and one crystal. Unit incorporates frequency error estimator, internal clock recovery circuit, and integrated transmit/receive switch, which results in no switch losses.

Agilent Technologies, Inc.    Santa Clara, CA 95051

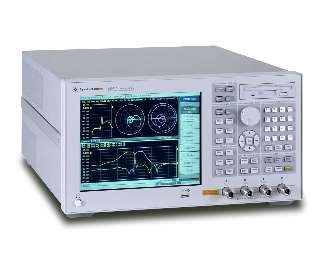

Jun 09, 2004 Series ENA RF Network Analyzers with E5070B/71B-008 ENA RF frequency-offset mode option offer vector- and scalar-mixer calibration capabilities in single instrument without external PC. Vector-mixer calibration enables RF engineers to make absolute group delay measurements, which verify phase linearity of RF components. Scalar-mixer calibration automatically corrects for errors resulting from input and output port mismatches on device under test.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 09, 2004 Model N5230A PNA-L 4-port, 20 GHz vector network analyzer enables RF and microwave engineers to characterize components. It offers capabilities for measuring multiport, balanced components such as filters, duplexers, and RF modules. Characteristics include trace noise down to 0.005 dB rms @ 100 kHz bandwidth and dynamic range up to 120 dB @ 2 GHz. Included optional electronic calibration module provides single-connection calibration technique.

Agilent Technologies, Inc.    Santa Clara, CA 95051

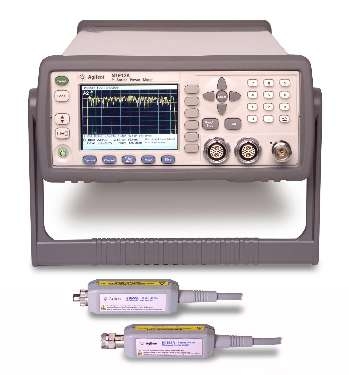

Jun 09, 2004 P-Series offers measurement frequency range up to 40 GHZ and backward compatibility with Agilent 8480 and E-Series power sensors. Maximum sampling rate of 100 Msamples/sec and video bandwidth of 30 MHz enables engineers to capture single shot events and perform repeatable peak power measurements. Continuous sampling capability means that multiple measurements of peak power and rise time of DUT, under same conditions, provide identical results.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 09, 2004 Signal Source Analyzer, Model E5052A replaces complex rack of test equipment with single instrument by measuring phase noise, modulation domain, power, frequency, and DC current consumption. It provides spectrum monitor function and 2 ultra-low noise DC sources for DUT. For transient measurements, it offers frequency resolution from 5 Hz to 7 kHz with 10 ns to 160 ms sampling resolution. Analyzer includes Windows® style user interface and 10.4 in. TFT LCD touchscreen.

Danaher Motion/Pacific Scientific    Rockford, IL 61105 0106
Jun 09, 2004 Available in ball or roller profile configurations, Thomson 500 Series features insert molded re-circulation paths that eliminate metal-to-metal contact outside load zone. Optimized geometries with minimal transitions through re-circulation path eliminate potential misalignment. With simplified installation on joint-free rails up to 6 m long, products feature internal grease pockets, multiple lubrication inlet points, and built-in longitudinal seals.

Waterloo Industries, Inc.    Waterloo, IA 50704 2095
Jun 09, 2004 Traxx® TR-Series includes 12 models of professional-grade chests, carts, cabinets, and accessories. Units range from Intermediate Chests to Tool Carts with 1,200 lb load rating. Easy-glide ball bearing slides allow drawers to open smoothly, while sidewall posts add strength, and locking system with over-molded keyed-lock provides security. Units include 5 x 2 in. casters, 14-gauge caster support channels, and tubular steel handle.

Cyber Technologies    Ogdensburg, NY 13669

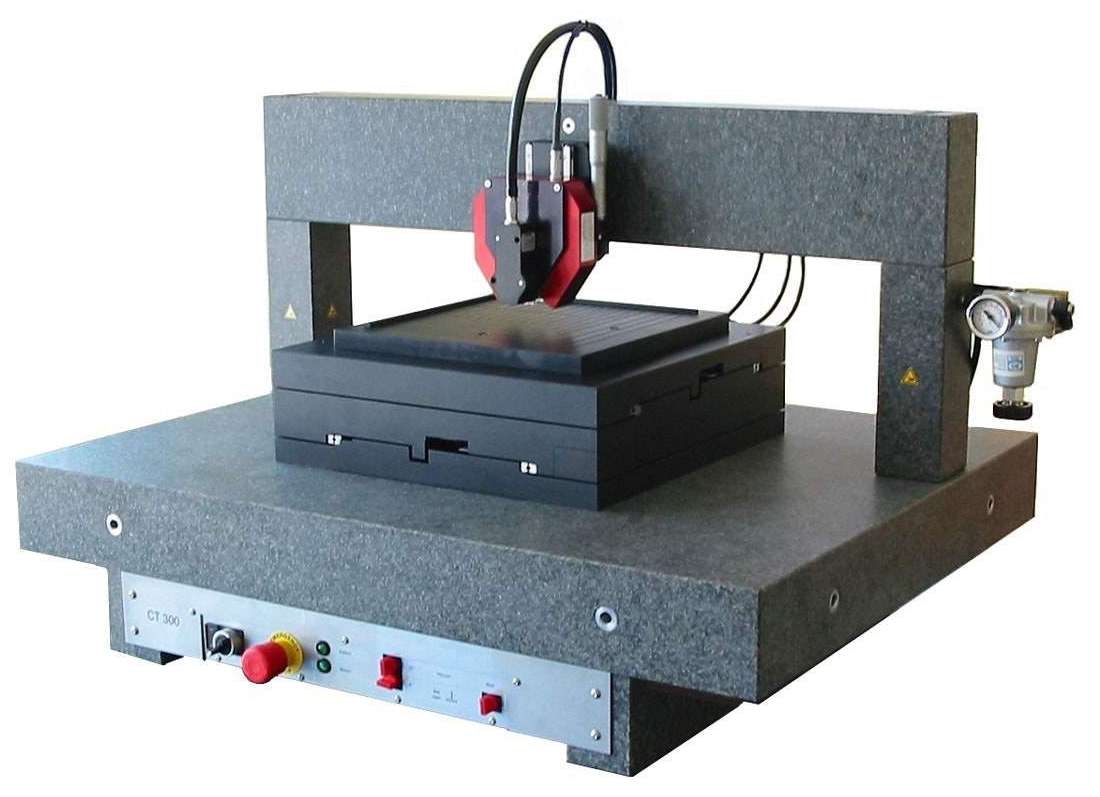

Jun 09, 2004 Laser-based CT 300 combines digital sensor technology and x- and y-translation stages with 12 x 12 in. travel. Height measurement system employs digital laser sensors and computer-controlled motion to produce 2D profiles and 3D raster scans, which then produce 3D topographical map. Unit features 0.1 µm encoder resolution and 16 x 16 in. platform size, stabilized by ~450 kg granite base. DRS digital sensor technology automatically compensates for variations in surface reflectivity.

Stabilus    Gastonia, NC 28052
Jun 09, 2004 Offering short, compressed installation length, Bloc-O-Lift-T® functions with flat spring characteristic curve from 1.3-1.5 and supplies even force support throughout stroke. Low compression damping allows fast and comfortable table height adjustment. Actuation tappet can be mounted pointing up for hand actuation, or at bottom for foot actuation. Spring is suited for stand-up tables, desks, nightstands, speaker pulpits, and work surfaces.

Bostik Findley, Inc.    Middleton, MA 01949-2128
Jun 09, 2004 Bostik® GPS1 construction-grade sealant, suited for general-purpose sealing of dissimilar substrates, may be used in interior or exterior construction applications. Due to solids content, elastomeric urethane sealant produces seals that will not shrink or become brittle with prolonged exposure to weather extremes or UV rays. Physical properties include 135 psi tensile strength, 550% elongation rating, and 35-40 Shore A hardness value.

Carr Lane Manufacturing Co.    St. Louis, MO 63119

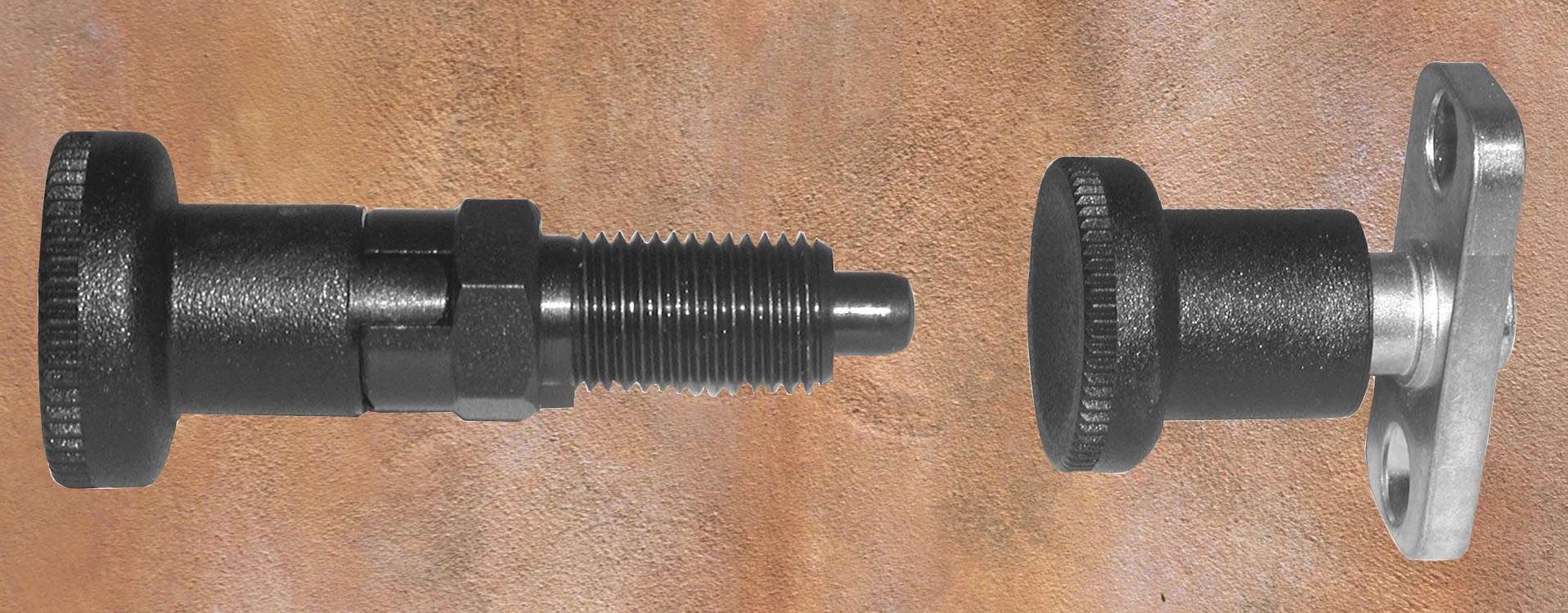

Jun 09, 2004 Available in threaded-body and mounting plate versions, precision indexing plungers feature knob handle for retraction. Both versions are come in locking and non-locking types. Former locks in retracted position by turning 90°, while latter stays extended via spring force except when manually held in retracted position. Knob is matte black, fiber-reinforced, nylon thermoplastic; plunger is heat-treated steel; and body is steel with black oxide finish.

ITW Rocol North America    Glenview, IL 60025
Jun 09, 2004 Targeted for use in reaming, tapping, and drilling operations, ROCOLâ„¢ TRI-Logic RTD consists of viscous fluid containing pressure additives. Product reduces friction, adding to cutting performance and is suitable for all metals, including hardened steels, titaniums, and stainless steels. Designed to emulsify in water, Tri-Logic RTD fortifies pressure cutting properties and enhances tool surface finish. Residue removes using aqueous cleaning agents.

ATR-Strothmann    Cambridge, ON N1R 7H7  Canada
Jun 09, 2004 Stand-alone Blank Washing System consists of conveyor belt that transports blanks through washer and lubricator, 2 high-speed shuttles, 4 blank carts that run on RoundTrack® in-floor rail system, and centering station. Detached configuration allows press line to run during washer stoppages. SRLS 2/120 material handling robots enable acceleration rates up to 1,120 m/s², velocities up to 5.5 m/s, and payload capacity to 150 kg. Transfer distances of 6.3 m can be achieved.

Stabilus    Gastonia, NC 28052

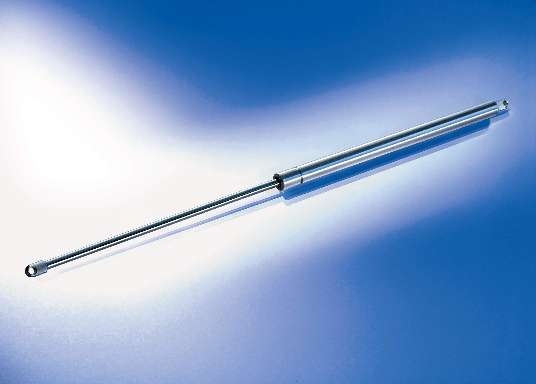

Jun 09, 2004 Constructed from 316 stainless steel, Lift-O-Mat® INOX gas spring allows opening and closing of doors and lids, and can securely hold door in open or closed position. Oils used are biodegradable and classified as no hazard to water. Offering speed-controlled dampening, cushioned end motion, and flat force curve, spring is suited for marine, medical, food processing, and kitchen applications.

Fujitsu Takamisawa America, Inc.    Sunnyvale, CA 94089

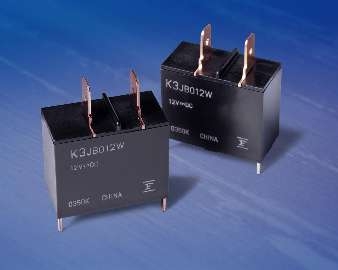

Jun 09, 2004 Model FTR-K3, a 1 Form A relay with nominal operating power of 780 mW, measures 30.1 x 15.7 x 23.3 mm. Rated for max load of 20 A at 250 Vac, it is suited for switching compressor and inverter loads in air conditioners and refrigerators. Relay features 8 mm clearance distance and 9.5 mm creepage distance between coil and contacts for high insulation resistance. Made from lead-free materials, it has surge-withstand voltage of 8,500 V and operating temperature of -40 to +60°C.

Orion Fans/Knight Electronic    Dallas, TX 75243
Jun 09, 2004 Suited for cooling electrical equipment and enclosures, 115 Vac Model OA109AP-11-1TBXC and 230 Vac Model OA109AP-22-1TBXC fans utilize capacitor-run induction motor. Only 3 fans, each measuring 120 x 38 mm, are required to produce airflows in tray applications that previously required 4 fans. Applications include electronics enclosures, industrial control cabinets, and telecommunications equipment.

LMT-Fette    Cleveland, OH 44135
Jun 09, 2004 HSC Feed is made with sub-micrograin substrate and AL2 plus PVD titanium aluminum nitride coating for wear resistance. With chip loads up to .031 in. per tooth and cutting speeds over 650 sfm, table feeds exceeding 500 ipm are possible. Solid-carbide endmill is suited for P20, H13, and S7 materials with hardness up to Rc 60, as well as carbon steel, alloy steel, cast iron, and stainless steel. Center cutting design facilitates 3D contouring, pocketing, helical interpolation, and slotting.
