Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
May 19, 2004 Lift and Sealâ„¢ Hydraulic Container Dumper accepts then rotates containers 150°, discharging contents into surge hopper. Surge hopper includes bolted top cover with inlet valve and male quick coupling to discharge material into existing pneumatic conveying system. System features stainless steel product contact surfaces and metal safety caging. It hydraulically seals containers to pour hood with discharge valve, eliminating product contamination/spillage.

Bete Fog Nozzle Inc.    Greenfield, MA 01302

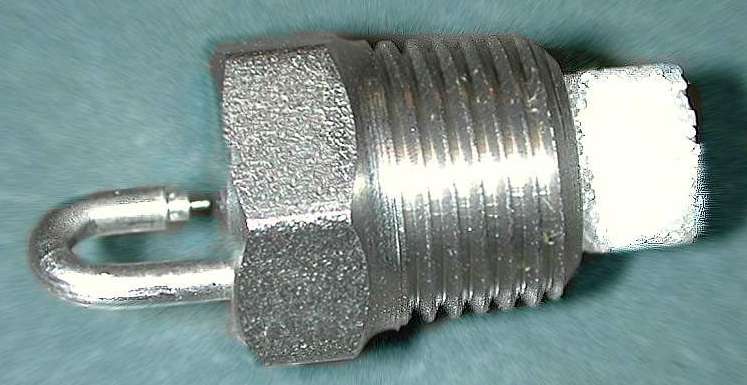

May 19, 2004 Series PJ incorporates replaceable, porous, plastic filter that removes particles as small as 70 microns, preventing small impingement nozzle from clogging with particulate matter such as dirt, burrs, and bits of sealing tape. Filter increases surface area so contaminants are removed upstream of nozzle. Nozzle works at temperatures up to 155°F, is resistant to chemicals, and offers minimal pressure drop resulting from filter insertion.

Groschopp    Sioux Center, IA 51250
May 19, 2004 Offered in respective lengths of 7.55 and 8.61 in., PM10816 and PM10818 are 1/3 hp compact motors that deliver 90 Vdc at 2,500 rpm and 130 lb-in. start/stall. Mounted brush design is suited for personal mobility devices and industrial winch applications. Features include square end bells, ½ in. output shaft, and Class B rating with class F insulating materials. Housing is sealed to IP44 specifications.

Peddinghaus Corporation    Bradley, IL 60915
May 19, 2004 Designed for processing flat and plate sections in one pass, FPDB 2500/3 incorporates punching, drilling, scribe marking, and thermal cutting via plasma or oxy-fuel into one machine. It processes flat bar and plate stock from ¼â€“3 in. thick with capacity up to 96 in. wide and 20 ft in-feed length. Depending on part thickness, multiple hole diameters can be created via punching or drilling. Thermal cutting capabilities handle any contoured shape or length.

Newport Corp.    Irvine, CA 92606
May 19, 2004 Based on sintered and pressed stainless steel technology, Suprema Series kinematic optical mounts incorporate 100 TPI precision actuators against ultra-flat carbide pads. Adjustable products accept 1 in. dia transmissive or reflective optics and provide independent qx and qy adjustment. SS series utilizes symmetrical closed aperture design and threaded mounting interface, while SN series features Clear Quadrant geometry and interchangeable actuators.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

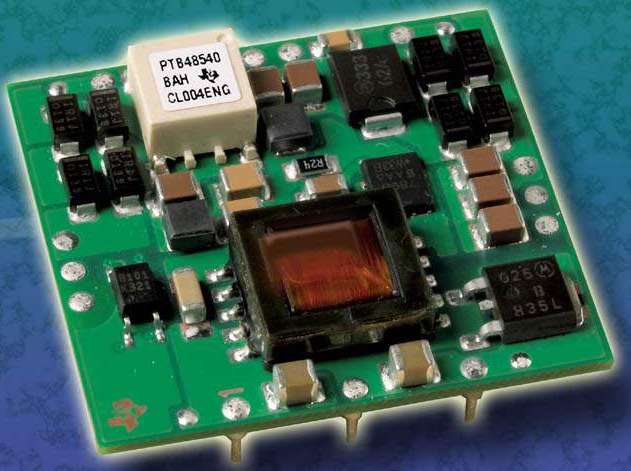

May 19, 2004 Model TPS2375 IC controller manages discovery, classification, and delivery of dc power to powered device, while providing power management control and protection. It withstands transients to 100 V and features 15 kV system-level ESD capability. Power-over-Ethernet plug-in power module PTB48540 helps detect, classify, and deliver up to 10 W of dc power. Requiring external Power-over-Ethernet isolation transformer, low-profile, IEEE 802.3af-compliant module is available in 3.3, 5, or 12 V outputs.

Magnatex Pumps, Inc.    Houston, TX 77063
May 19, 2004 Silicon carbide (SiC-D) bearings, available in Magnatex® MP, MMP, MPT, and MPH pumps, have surface treatment that reduces friction coefficient and diminishes harmful effect of heat shock during dry-run conditions and start-ups. Chemical-resistant products operate in dry-run condition for 105 min with no cracks or breaks and show no signs of heat-shock damage after operating for 1 hr under dry-run conditions in temperatures to 320°F.

Norgren    Littleton, CO 80120
May 19, 2004 Utilizing quick connect concept, Q2 plastic body valve can be assembled into motion or fluid control circuit. Product delivers minimal pressure drops and is designed to be durable, handling pressures from 5–120 psi. Lightweight unit, which carries NSF and cURus approvals, operates in environments that require ambient temperatures from -10 to +100°F.

Ona America, Inc.    Dayton, OH 45402
May 19, 2004 Model DB 300 Electrical Discharge Machine (EDM) incorporates high-speed pulse technology based on accelerated head action and servomotor control. CNC incorporates technology tables specific to machining of ribs, while automatic program generation produces best-suited program for rib or cavity being machined. Able to operate 24/7 in unattended mode, Expert Erosion System controls entire machining of workpiece from roughing to final finishing.

Denison Hydraulics Inc.    Marysville, OH 43040
May 19, 2004 Available with Electronic Proportional Compensator (EPC), Series PV hydraulic, open-circuit pumps are available with flows of 6, 10, 15, 20, and 29 gpm at 1,800 rpm. Four pumps are rated at 3,500 psi continuous, 4,500 intermittent, and largest is rated at 3,000 psi continuous, 4,000 intermittent. EPC is suited for applications where pressures are required to vary on-the-fly or where multiple pressure settings are required.

Datum Filing Systems, Inc.    York, PA 17404
May 19, 2004 Technical Furniture Systems provide solutions for organizing offices, computer rooms, assembly areas, and shipping stations. Creating clutter-free appearance, modular systems feature printer shelves, tack boards, adjustable shelves, and cable guides that organize cords and cables. Anti-knockout tabs make sure computer equipment remains safe, and units may be connected together to create customizable systems.

Square D Co.    Raleigh, NC 27611
May 19, 2004 Powerpact 150 A H-frame and 250 A J-frame molded case circuit breakers simplify installation and utilize varied types of actuation, including cable-operated handles, rotary handles, and electrical motor operators. They share common mounting points and handle locations and are equipped with thermal magnetic trip system. Field-installable accessories include auxiliary switches, alarm contacts, and shunt trips.

Linear Technology Corp.    Milpitas, CA 95035
May 19, 2004 Housed in SOT-23 package, LTC3459 consists of 10 V synchronous boost DC/DC converter with onboard output disconnect and inrush current limiting. It operates from input voltage of 1.5-5.5 V, and, at 5 V input voltage, generates 8 V @ 30 mA. Features include constant off-time architecture, short circuit protection, and Burst Mode® operation, which uses only 10 µA of quiescent current. Product maintains regulation of VOUT even when below VIN.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214
May 19, 2004 Custom, mill-duty vacuum lifters raise non-magnetic materials from top surface and set them into position without need for blocking or hooks. Featuring beam and vacuum pad attachments with foam seals, they are available with capacities up to 30,000 lb depending on surface area provided for lifting. System controls can be integrated with crane, and other features include parking stands and monitoring system with audio-visual alarms.

Waddington Electronics, Inc.    Cranston, RI 02920
May 19, 2004 Non-contact SONA-TROL® ST-6 performs loop measurements up to 100 times/sec for controlling tension and can provide slack material to next part of process without touching it. Unit assures smooth operation and prevents dragging of extruded materials between processes. Sensor head can be mounted from 18 in. to 20 ft above loop and measures changes in stock distance as small as .010 in. Product also offers provisions for external measurement control.

BTM Corp.    Marysville, MI 48040
May 19, 2004 THIN Air Powered Toggle Press features reduced compressed air consumption, accomplished via Piston Arm and force multiplying Toggle Link design. Presses are available in 1, 2, 5, 10, 20, and 40-ton models with mounting options such as Bench, Floor, and Tool mounts. Uses include Clinching, Piercing, Riveting, Stamping, and Bending. Featuring close stacking capability, press offers options such as self-equalizing units, die set adapters, and control packages.

Kinetic Systems, Inc.    Boston, MA 02131
May 19, 2004 Series 8002 Series Active Electronic Vibration Isolation Workstation isolates all 6 translational and rotational modes of vibration. With natural frequency of less than 1 Hz, it does not produce low-frequency resonance or require air supply. Features include active feedback control system and microprocessor-controlled, automatic leveling mechanism. Tabletops range from 24 x 36 in. to 60 x 72 in., and 600 or 1200 lb load capacities are available.

Sarva Bio Remed LLC    Trenton, NJ 08608
May 19, 2004 SpillRemed provides safe, environmentally friendly, on-site remediation of accidental oil spills in commercial, industrial, and residential buildings. No removal of soil or water is necessary to achieve successful clean up. Product uses cultures of indigenous populations of oil degrading bacteria to effectively dissipate fuel oil. No genetically modified organisms are released in treatment process.

Morgan Electro Ceramics    Cleveland, OH 44146-5418
May 19, 2004 Designed for circuits with high peak current and repetition rates, laser discharge ceramic capacitors use strontium-titanate based dielectric material, which exhibits negligible piezoelectric/electrostrictive effect. This allows capacitors to be used in high peak current/high shot life applications. Products offer low dielectric loss, resulting in low self-heating. High breakdown strength/permittivity of material allows for storage of high energy density per unit volume.

ConProTec Inc.    Salem, NH 03079 2060
May 19, 2004 MIXPAC® Hand-Held Cartridge Dispensing System consists of manual or pneumatic dispensing gun and static mixer that dispenses 2-component adhesives in 1:1 volumetric ratio. Molded of polypropylene, 75 ml cartridges utilize twist-and-lock static mixers and allow users of MIXPAC System 50 to dispense greater volumes without requiring new gun.
