Shunra Software    New York, NY 10018
May 24, 2004 Using network emulation technology, Shunra/Stratus v2.0 enables developers to perform unit and integration testing for distributed application code under true-to-life network conditions. It gives developers ability to record and play back production environment directly from desktops, but still allows them to work collaboratively, sharing pre-defined network scenarios, or in stand-alone mode, manually entering/adjusting basic network parameters.

Noran Engineering Inc.    Garden Grove, CA 92845
May 24, 2004 NE/Nastran v8.3 Finite Element Analysis (FEA) software handles structural, dynamics, and heat transfer analysis problems. Model Interpolation, used for 2D or 3D models with scalar or vector data, allows mapping of data from one simulation mesh to another, and CWELD spot weld element allows weld connection to exist at any position in shell mesh. Software includes solver support for parallel processing; Eigenvalue Analysis; and substructuring and model reduction/export.

ScriptLogic Corporation    Boca Raton, FL 33487
May 24, 2004 Solution Packs address 4 specific mission-critical network management areas: File Server Management, Data Migration, Security Management, and Desktop and Active Directory management. Software allows administrators to control and standardize desktop configurations as well as manage and modify Active Directory security and group policies. Packs also provide tools for managing permissions and file migration and creating solutions for secure data migration and server consolidations.

ANCA Inc.    Farmington Hills, MI 48335
May 24, 2004 Primarily suited for tool sharpening, RX7 is also capable of tool production. All axes use proprietary direct-drive technology, and machine features ToolRoom software suite, Digital Servo Drives, and 5DX CNC with touchscreen interface, USB port, and UPS. Motor and ball screw are coupled directly in-line, eliminating problems of backlash and loss of position. Unit employs single direct-drive, multi-directional spindle with dual wheel packs, positioned at either end of spindle.

Acnodes Corporation    Walnut, CA 91789
May 21, 2004 Integrated Monitor Keyboard Drawer Model KD9171N allows for efficient rack use. Drawer slides out from rack and LCD flips up for display. When not in use, it can be slid back and stored. Features include: compact 1U design with heavy-duty steel construction, 17 in. TFT LCD display, slide rail drawer, on-screen display function, built-in PS/2 keyboard, and standard mouse.

Convertech    Wharton, NJ 07885 1800
May 21, 2004 Available in 3–12 in. dia, chucks expand pneumatically for positive, instant lock up and release. Suited for all shaftless unwinds and rewinds, products incorporate steel body and expandors, and are available with flange or cantilevered type mountings. When running different core diameters, interchangeable adapters are available that can be fitted onto one base chuck.

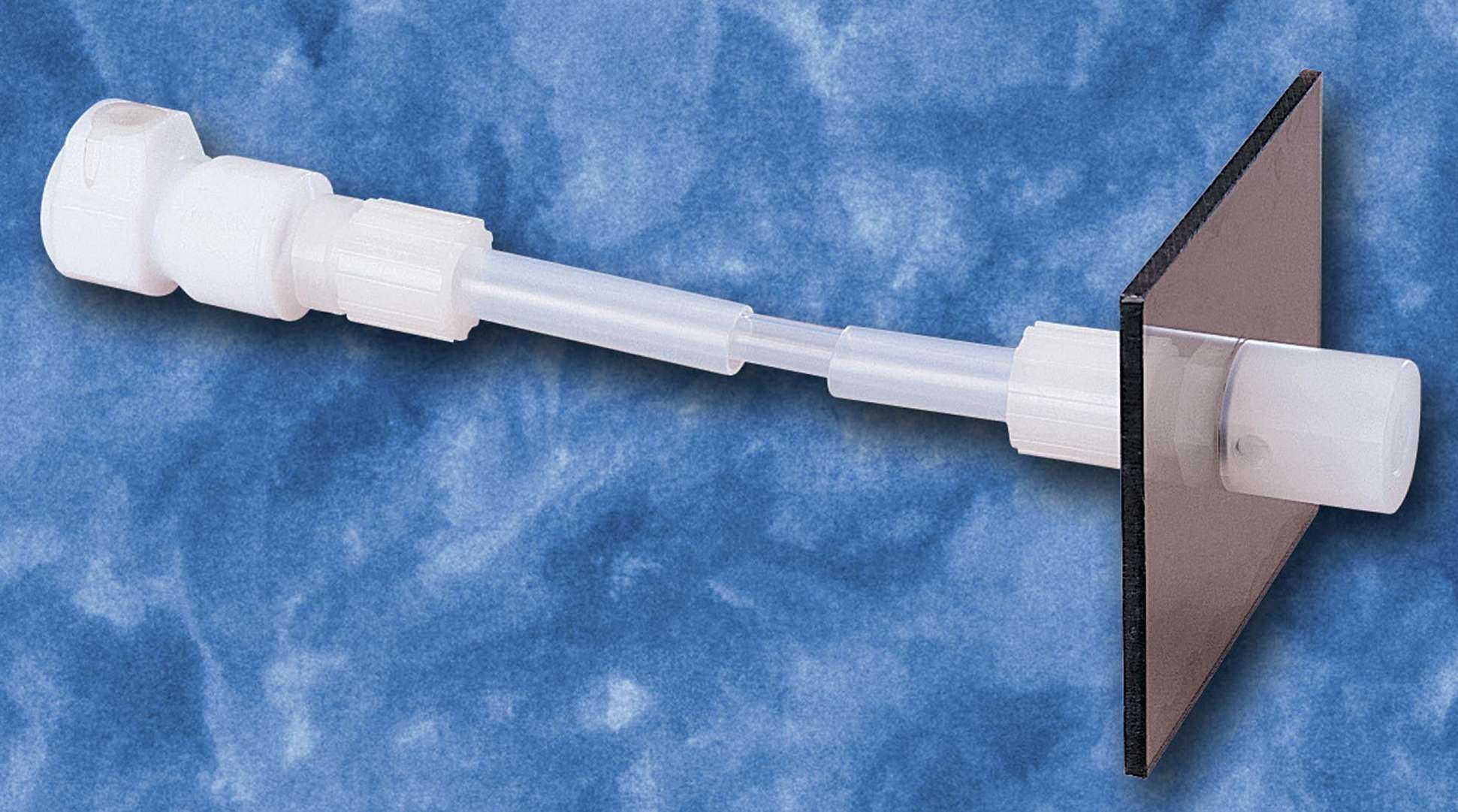

Colder Products Co.    St. Paul, MN 55114
May 21, 2004 ChemQuik® Dual Containment flare nut and panel mount flare fitting enable double containment of chemical handling fluid lines between coupling or fitting and CDU or pump. Weep port relieves pressure that builds between primary and secondary tubing in case of leak, or if chemical media permeates through primary line over time. Available in line sizes of ¼, ½, and ¾ in. OD, standard materials are natural virgin polypropylene with PVDF secondary flare nut.

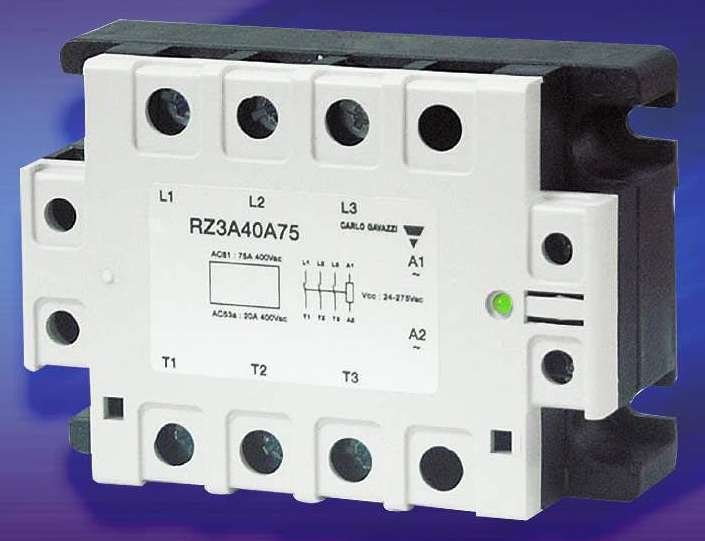

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
May 21, 2004 Packaged in 3-phase industrial housing, RZ3A Series electronically switches 3 poles up to 75 A (RMS) and can be driven by input currents from PLCs and temperature controllers. It uses zero-switching technology, regulated DC or AC control inputs, and direct copper bonding technology. Built-in over-temperature protection switches off load during abnormal operating conditions. Features include touch safe cover, LED indication, and self lifting saddle clamps.

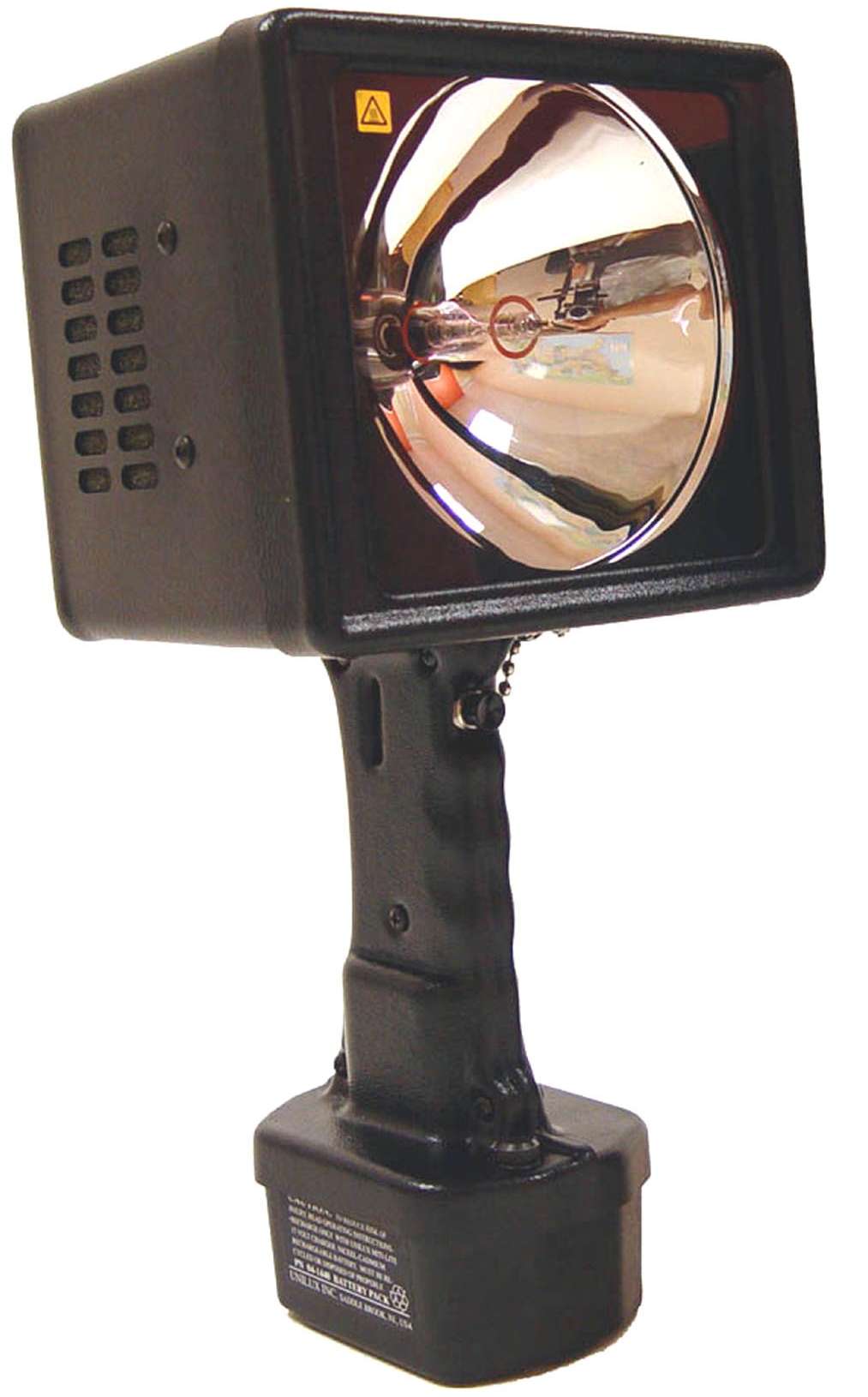

Unilux, Inc.    Saddle Brook, NJ 07663
May 21, 2004 Beacon stroboscopic spotlight illuminates 18 in. target area at 800 LUX from distance of 15 ft, making it capable of looking across the wire on papermaking machines. It can be synchronized to cameras through discreet signal triggers to record images and is designed to pinpoint specific areas on rolls and rotating machine parts for diagnostics. Unit runs up to 14 min at full power on rechargeable battery at trigger rates to 18,000 flashes/min.

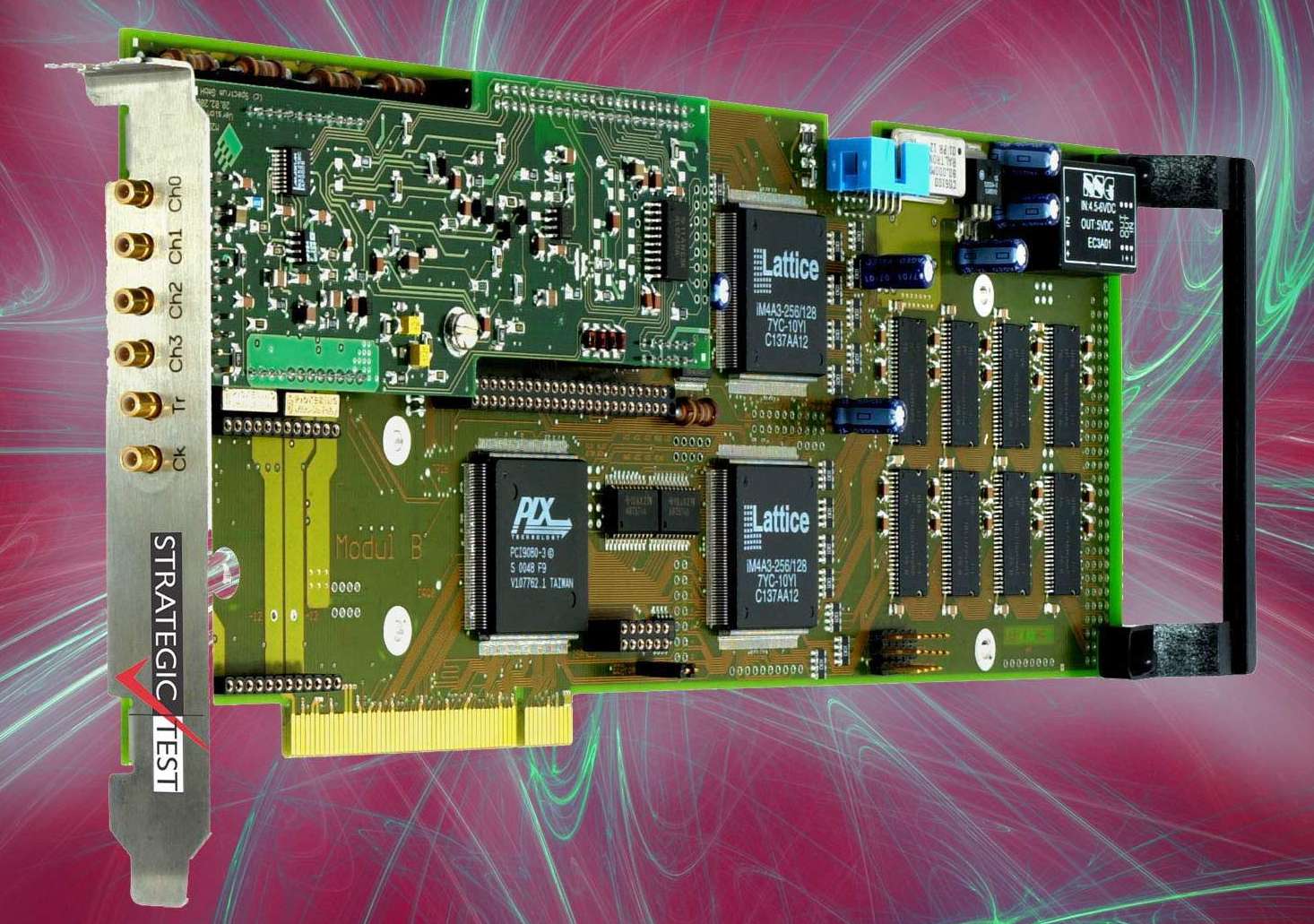

Strategic Test Corporation    Woburn, MA 01801-1915
May 21, 2004 Using 14-bit D/A converters, UF6031 Arbitrary Waveform Generator (ARB/AWG) PCI card for PCs generates complex analog signals at rates of 125 MS/s on both channels. Device also includes up to 512 MB onboard signal memory that allows each channel to generate signals up to 256 MS. It features 3 software-selectable hardware filters, external clock and trigger connectors, and Total Harmonic Distortion of better than -57 dB.

Channellock, Inc.    Meadville, PA 16335-0519
May 21, 2004 Designed with reinforcing edge and CHANNELLOCK BLUE® comfort grips, TG-1 gift set contains No. 420 tongue and groove plier coupled with No. 440 plier. The 420 is 9½ in. long with 5 adjustments and 1½ in. max jaw capacity, while the 440 measures 12 in. long with 7 adjustments and max jaw capacity of 2½ in. Undercut tongue and groove design prevents jaws from slipping out of adjustment during use, and PermaLock® fastener will not break or become loose.

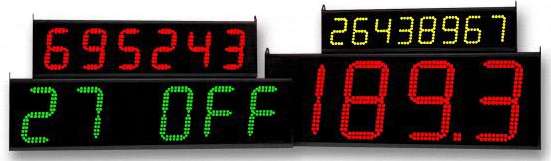

Vorne Industries, Inc.    Itasca, IL 60143 1849
May 21, 2004 Using red AlGaAs LEDs, 87 Series production displays generate 4, 6, 8, or 12 in. high digits readable at distances to 400 ft. Yellow and green LEDs are available, as well as a tri-color display option. Functions include rate, count, elapsed time, tact time, and efficiency, and combinations can be displayed or reported to host computer. Unit is equipped with programmable RS-232 communication port and has optional RS-422 communication card.

New Pig Corporation    Tipton, PA 16684 0304
May 21, 2004 PIG® Twin IBC Roll-Top Hardcover Storage Unit provides protected storage of IBCs, indoors or out. Corrosion-resistant, weather-tight design keeps IBCs up to 52 x 52 x 61 in. clean and secure. Lockable doors and roll-top covers open from both sides to provide access to contents. Features include 22 in. deck height for access to valves and fittings, 2-way forklift entry to facilitate relocation, and 535 gal sump for containment of leaks and spills.

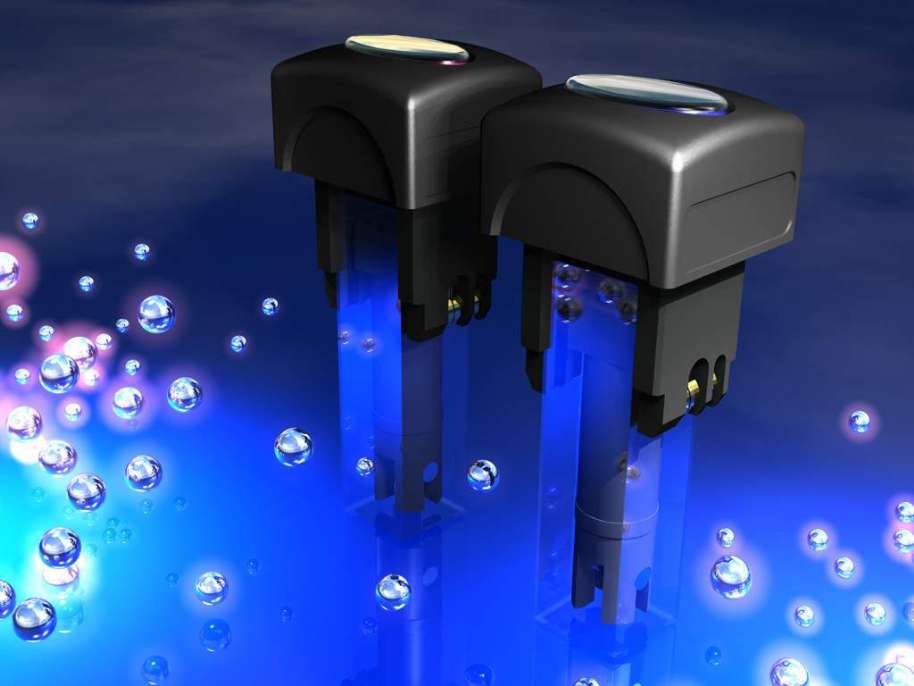

Malvern Instruments Inc.    Westborough, MA 01581
May 21, 2004 Dip cell combines with company's Zetasizer Nano three-in-one system for particle size, zeta potential, and molecular weight measurement of molecules and nano-sized particles. Dip cell extends range of sample types that can be included for zeta potential measurement. PALS technology provides accurate results, and size measurements can be performed in same cell without changing sample. Dip cell also suits use with samples in aqueous media, in glass, or disposable polystyrene cuvettes.

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707
May 21, 2004 Featuring leak-free fluid connection ports, CDT1 Series NFPA hydraulic cylinder incorporates removable rod bearing, sealing system, and secured air bleed. With nominal pressure of 1,500 psi, bore diameter from 1–8 in., and piston rod diameter from ½â€“5½ in., product accommodates fluid temperature range of –4 to +176°F at stroke velocity up to 20 ips. It features 18 standard NFPA mountings, stroke up to 120°, and SAE straight thread standard connection port.

Parvus Corp.    Salt Lake City, UT 84115 2913
May 21, 2004 Single-slot PCMCIA PC Cardâ„¢ adapter is added to Xpand104â„¢ line of modular PC/104 PCMCIA controller boards. Simple-to-use expansion card for adding Type I, II, or III PC Card functionality to embedded computer, board integrates XT/AT PC Card slot together with Intel® PCMCIA to ISA bus controller fully compatible with PCMCIA V2.1 and JEIDA V4.1 standards. Adapter requires single +5 V power supply for operation and is available in standard and extended temperature versions.

Gardner Denver Welch Vacuum Technology, Inc    Skokie, IL 60077
May 21, 2004 Model 3100 and 3200 Liquid Pump Systems come with 25 ft of general PVC tubing to connect pump to application, 6 silicone tubing cartridge assemblies, pump, and pump head. With out-of-the-box functionality, systems can run dry, are self-priming, and may be sterilized. Features include bi-directional flow control potentiometer (Model 3100) and switch (Model 3200); max flow switch; universal electrical design rated 90–230 V, 50/60 Hz; and flow rates from 3-300 ml/min.

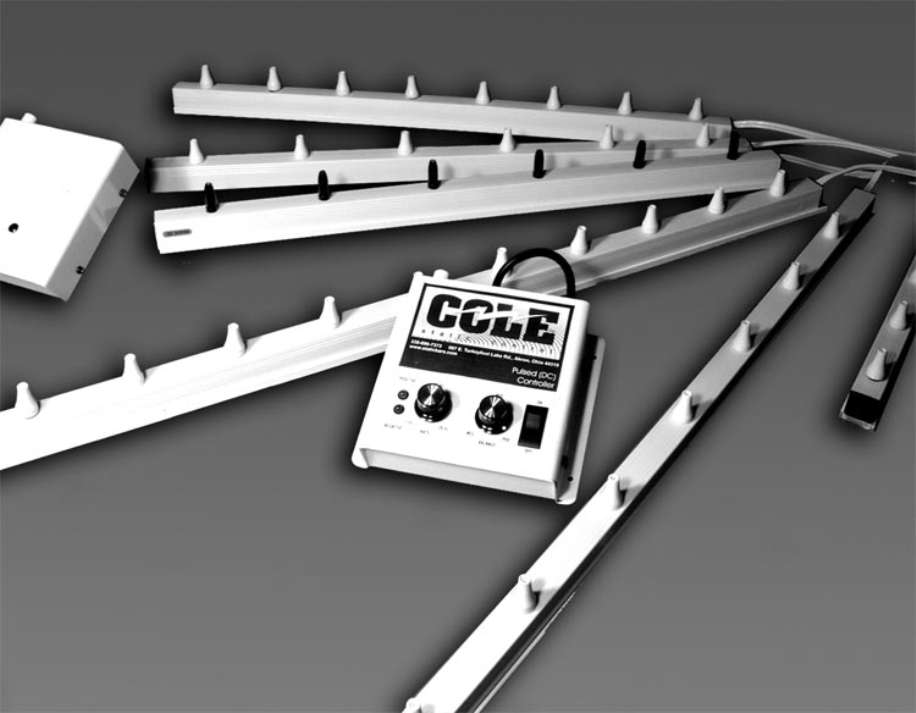

Cole Static Control, Inc.    Akron, OH 44319
May 21, 2004 With effective range of 6–10 ft, Model 1526 pulsed DC controller and static elimination bars are used for ionizing and dust control where air may be necessary to reach static-prone areas. Manufactured in lengths to 144 in., bar may be controlled to emit 50% of positive and negative ions or adjusted so only one polarity of ions comes from bar. Ion pulse rate is also variable, and unit can be mounted over manufacturing equipment or benchtops.

Cortec Corp.    St. Paul, MN 55110
May 21, 2004 Cor-Pak® VpCI® Bubble Bio incorporates Cortec® patented Vapor Phase Corrosion Inhibition Technology, which provides clean, anti-corrosion protection to components with metal parts. Used for dunnage, void fill, and interleaving applications, it leaves no residue or chemicals and does not contain toxic compounds. Film suits applications where environmental issues are of concern.

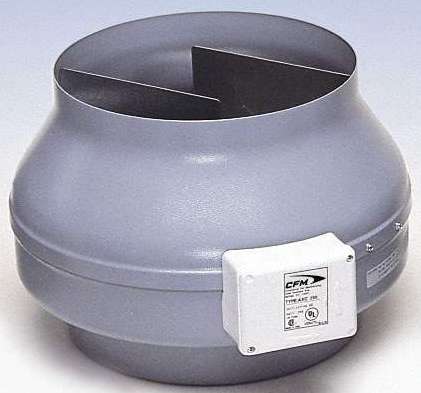

Continental Fan Mfg. Inc.    Buffalo, NY 14215
May 21, 2004 AXC In-Line Duct Fan provides air moving solution for commercial and residential applications where quiet air delivery is required. Controllable via optional VSC3 Solid State Speed Controller, fan combines airfoil impeller and shielded ball bearing motor in galvanized steel housing. Options include supply and exhaust grilles, backdraft dampers, and pressure switch, dehumidistat, and timer controls.
