OnLine ToolWorks Corporation    Portland, OR 97229
May 26, 2004 SmartBatch 2004, with 100% native .NET implementation, allows users to automate applications using scheduling options, job dependencies, status information, and history tracking. Enterprise Edition allows user to leverage idle computing resources with load-balancing application grid. Any computer in grid can be sent application activity. When activity is staged for processing, software will determine which computer in grid has most resources available.

Cape Clear Software Inc.    Waltham, MA 02451
May 26, 2004 Cape Clear Business Integration Suite for BEA® WebLogic® consists of Enterprise Service Bus (ESB) built around Web Services standards, which support BEA WebLogic features. Software delivers standards-based approach to integrating diverse applications and data inside organization by using Web Services and Service-Oriented Architectures (SOAs). It also helps simplify integration of those systems with customers and trading partners.

NanoInk, Inc.    Chicago, IL 60607
May 26, 2004 NSCRIPTORâ„¢, suited for fabrication of nanoscale electronic components, incorporates bias control option that delivers functional capability of creating electric field between probe tip and sample substrate. This allows researcher to perform oxidation nanolithography and enables deposition of conductive nanoscale structures onto semiconductor surfaces via electrochemical Dip Pen Nanolithographyâ„¢ (DPNâ„¢) methods. System also incorporates multi-pen writing arrays.

Linear Technology Corp.    Milpitas, CA 95035

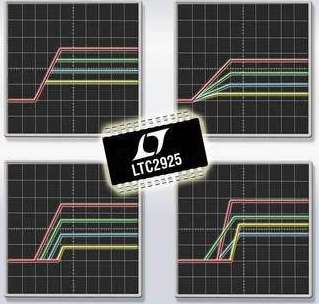

May 25, 2004 Available in 24-pin SSOP and 24-lead DFN packages, LTC2925 power-supply tracking controller provides power-up and power-down profiles for systems with up to 4 supplies. By configuring resistors, IC ramps supplies up and down together with voltage offsets, time delays, or different ramp rates. Power-up timeout circuitry turns off supplies if external voltage monitor fails to indicate that all supplies have entered regulation within specified time-out period.

JAI, Inc.    San Jose, CA 95134

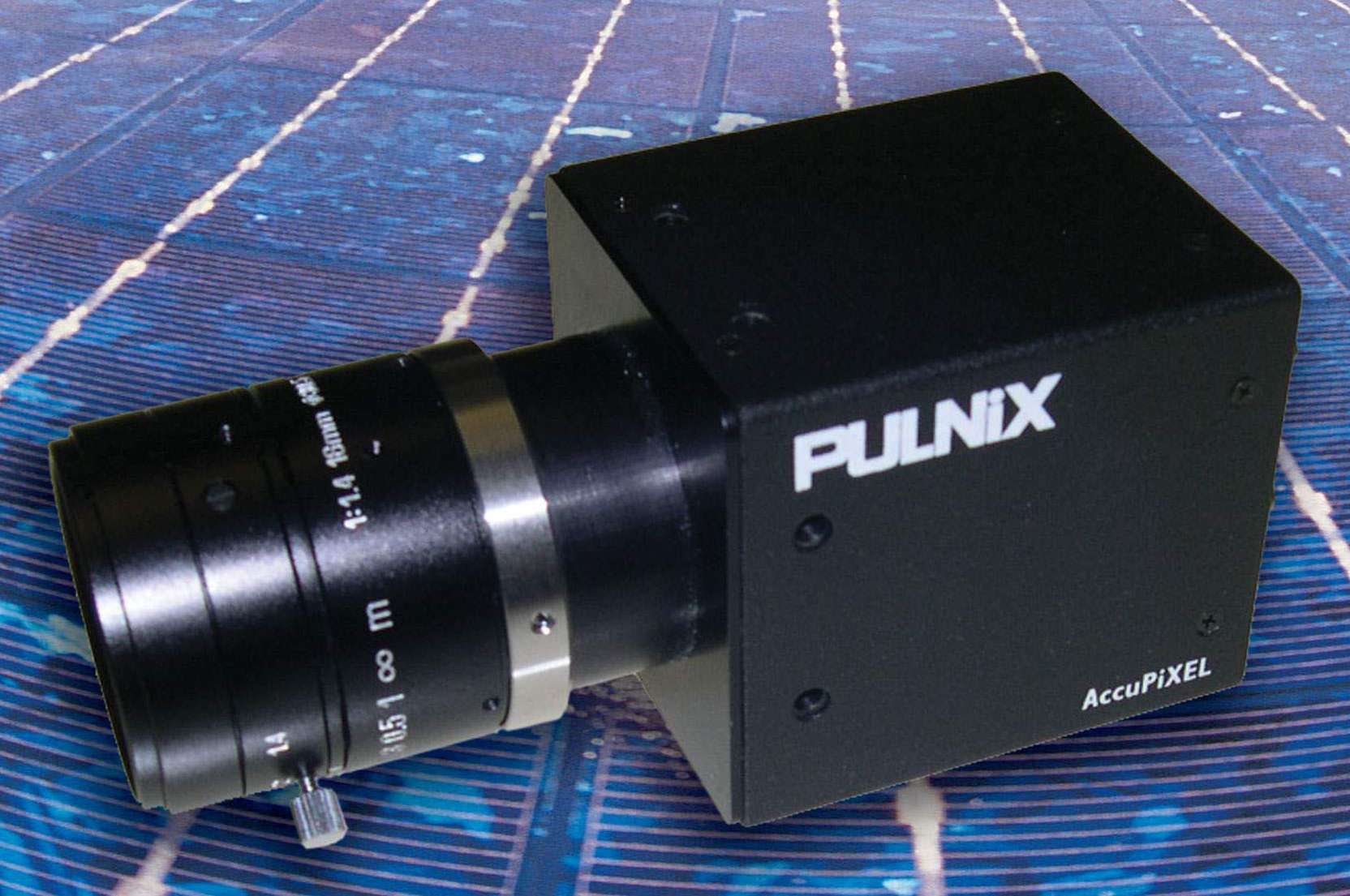

May 25, 2004 Based on Kodak KAI 1010 CCD sensor, TM-1020-15 miniature, progressive-scan camera offers 1008 x 1018 pixel resolution. Interline transfer CCD provides full vertical and horizontal resolution with electronic shutter speeds to 1/16,000 sec. Included in AccuPiXEL line of digital cameras, product features asynchronous reset with external pulse width exposure control; 9 x 9 µM pixels; look-up table (LUT) for 10-bit to 8-bit pre-processing; and digital and analog outputs.

E Instruments International LLC    Langhorne, PA 19047
May 25, 2004 Portable, handheld BTU 3000+ consists of boiler tuning unit and emission monitor with up to 4 sensors for O₂, CO, CO₂, NOx, and SO₂. It includes built-in impact printer, flammable gas leak detector, and draft and differential pressure meter. Large LCD with 4-line display is provided, as well as direct function keys, 250 test memory, and RS232 interface with DBGas 2000 Windows software.

Bud Industries, Inc.    Willoughby, OH 44094

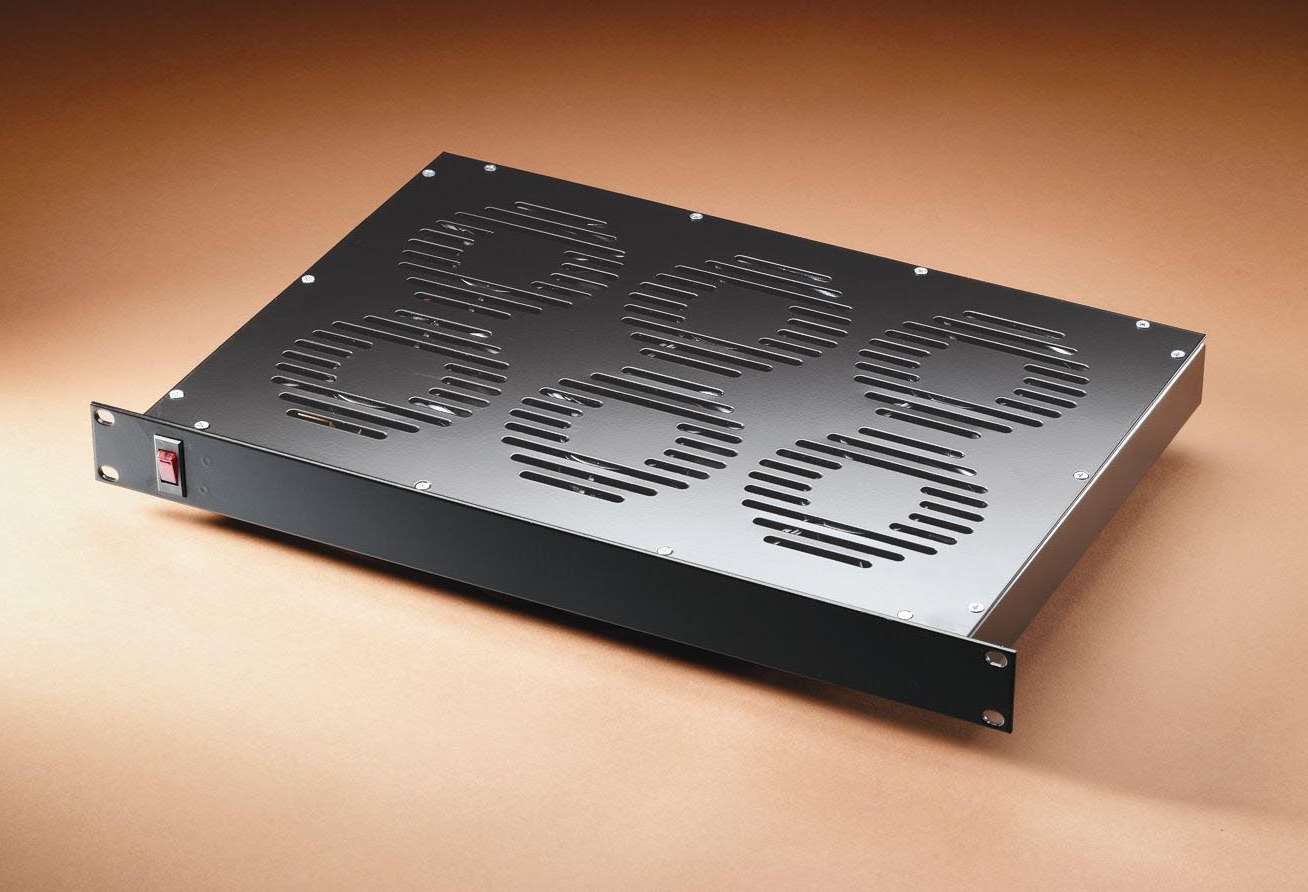

May 25, 2004 Available with 3, 6, or 9 fans per unit, Fan Tray Assemblies produce more than 100 cfm per fan. Each has standard EIA 19.00 x 1U notching for panel mounting. Depth of fans ranges from 7.00–17.25 in. Suited for controlling waste heat generated by equipment within cabinet, assemblies feature UL and CSA approved motors for 115 Vac, 60 Hz operation. They include 84.00 in. long, 3-prong power cord and lighted on-off switch on front panel.

Aromat Corp.    New Providence, NJ 07974 1507
May 25, 2004 SUNX Model LS-H21F spot-reflective type sensor provides detection range of 1,000 mm. Line-reflective Model LS-H22F offers detection line of 200 mm, while coaxial retro-reflective Model LS-H91F provides up to 7,000 mm detection. All feature 11.2 mm wide sensor heads with built-in spot adjuster and produce 1 mm spot diameter. Two 4-digit displays of amplifier show incident light intensity and threshold value simultaneously. Set-up and operation is via MODE NAVI user interface.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913

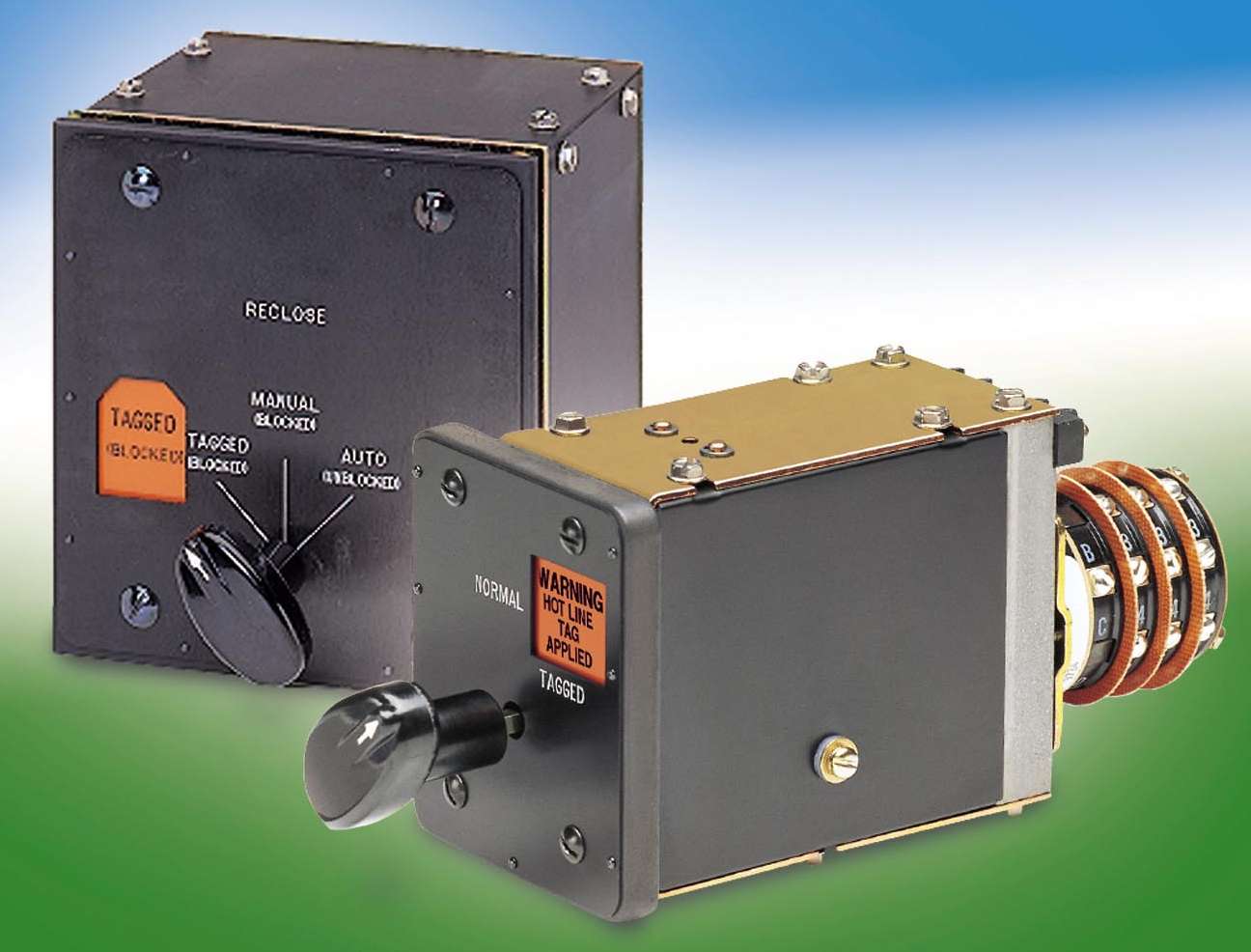

May 25, 2004 Electroswitch Series 24 and 31 Tagging Relays feature orange warning hot-line tags to ensure personnel safety in compliance with utility requirements. Available with serial communications for network control, they allow remote reclosure cutoff and facilitate expansion of remote-control SCADA systems. Available with 2 or 3 positions and multiple decks, relays allow bi-directional operation and have 2 NO and 2 NC contacts per deck.

Orion Fans Div., Knight Electronic    Dallas, TX 75238
May 25, 2004 Designed to cool electronics enclosures, XC Series 6 in. AC fan is available in 115 or 230 Vac models and features dual ball bearings with capacitor-driven motor. Frame size is available in 6.7 x 5.9 x 2 in. and 6.7 in. round sizes. Developed for use in fan tray and standalone applications, products are also suited for use in industrial control cabinets and telecommunications equipment.

Xycom Automation Inc.    Saline, MI 48176

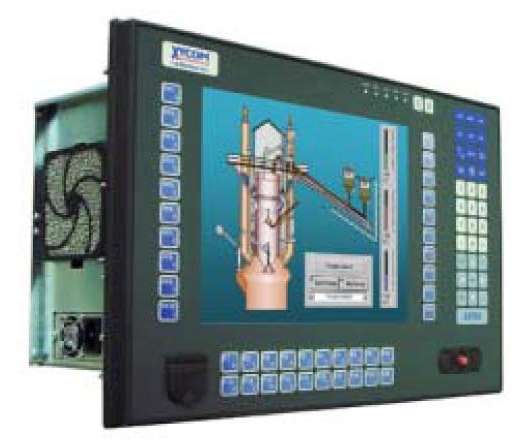

May 25, 2004 Measuring 7.4 in. deep with 6.4 in. mounting depth, 3712KPM all-in-one industrial computer comes with 12.1 in. SVGA flat panel LCD; Celeron® 850 MHz CPU; 256 MB RAM; 20 GB hard drive, and CD-ROM and floppy drives. Operator input options include keypad with integrated industrial mouse; touchscreen is optional. Able to be used with PC compatible devices, unit has onboard 10/100 Base-T Ethernet, USB port, parallel port, 2 serial ports, and PS/2 keyboard/mouse port.

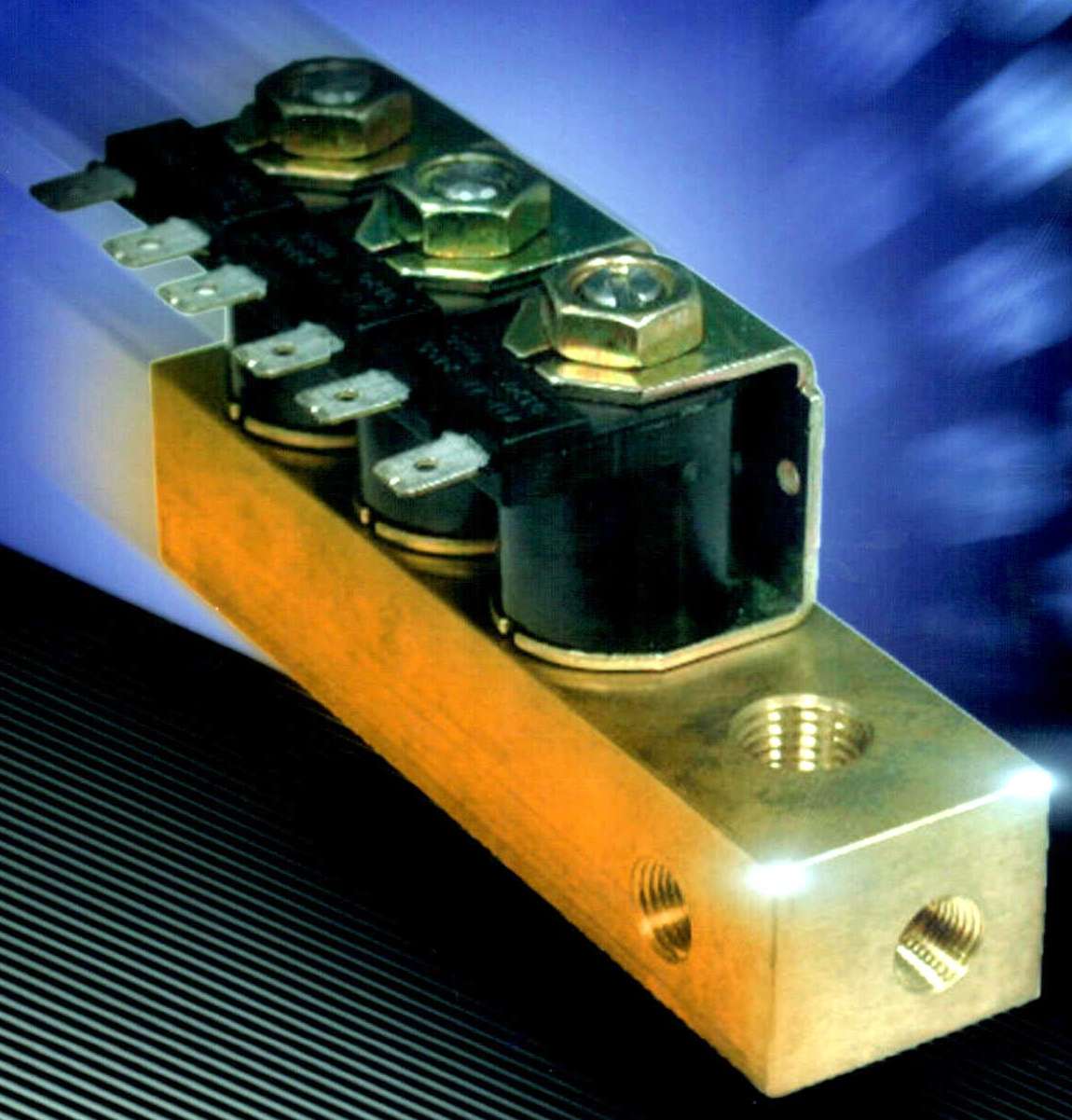

Norgren    Littleton, CO 80120
May 25, 2004 Suited for deployment in systems that require gang mounting of solenoid valves, KIP manifold assemblies can integrate system components such as pressure switches, check valves, regulators, and gauges into one package. Maintenance or replacement of valves is accomplished by unplugging valve, and user does not need to disconnect pneumatic plumbing. Manufactured in materials such as brass, aluminum, and PVC, manifolds are available different port sizes.

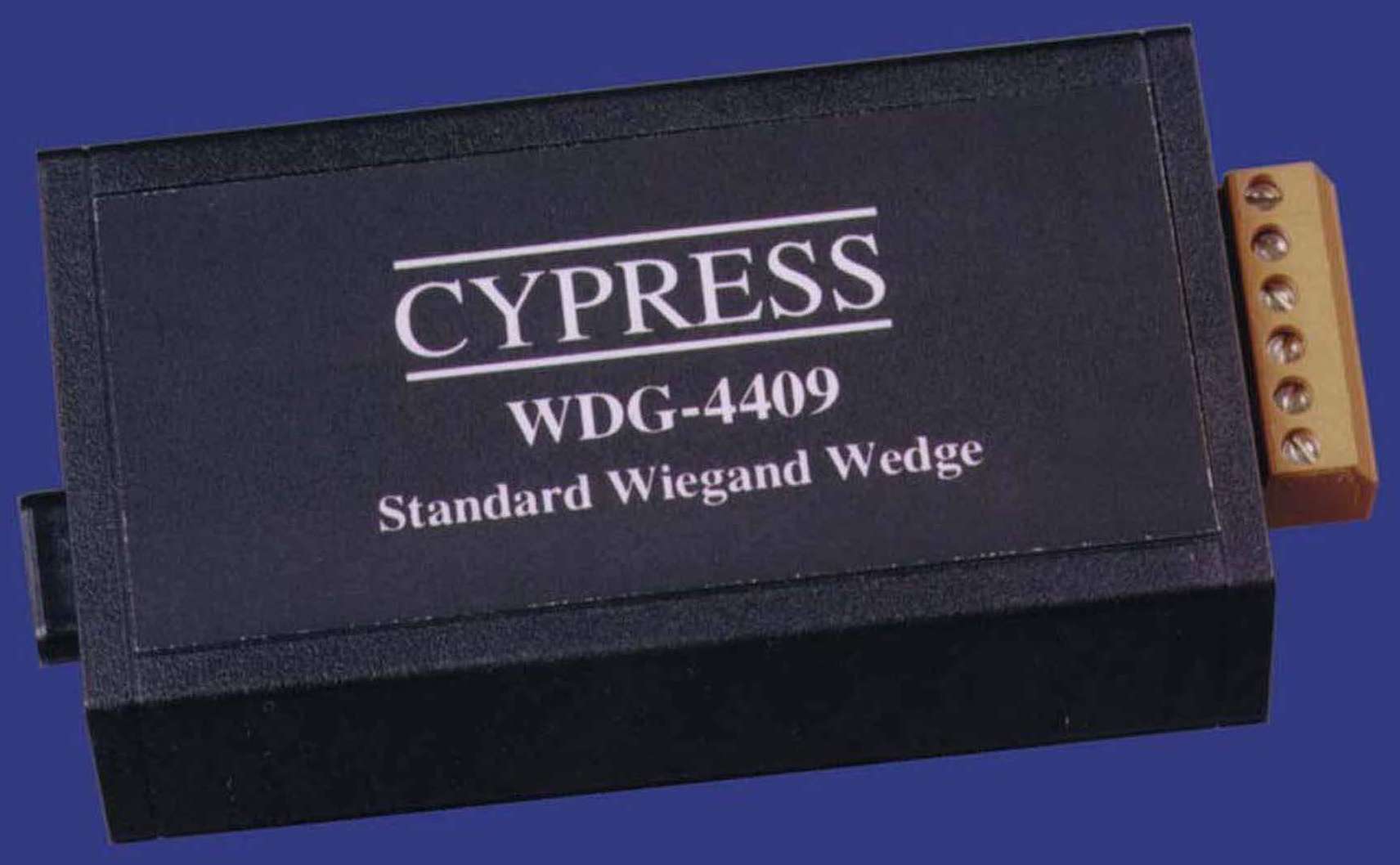

Cypress Computer Systems    Lapeer, MI 48446
May 25, 2004 Suited for data entry and conversion, FCC-approved Data Wedge employs processing board that allows in-field reprogramming. With use of employee/student ID badges, data can be streamlined for reporting and security purposes. Able to program custom Wiegand, MagStripe, and F/2F formats, unit also stores accumulated badge formats in on-board memory. It can be used with IBM and compatible PC systems as well as POS terminals.

Swagelok Company    Solon, OH 44139 2764

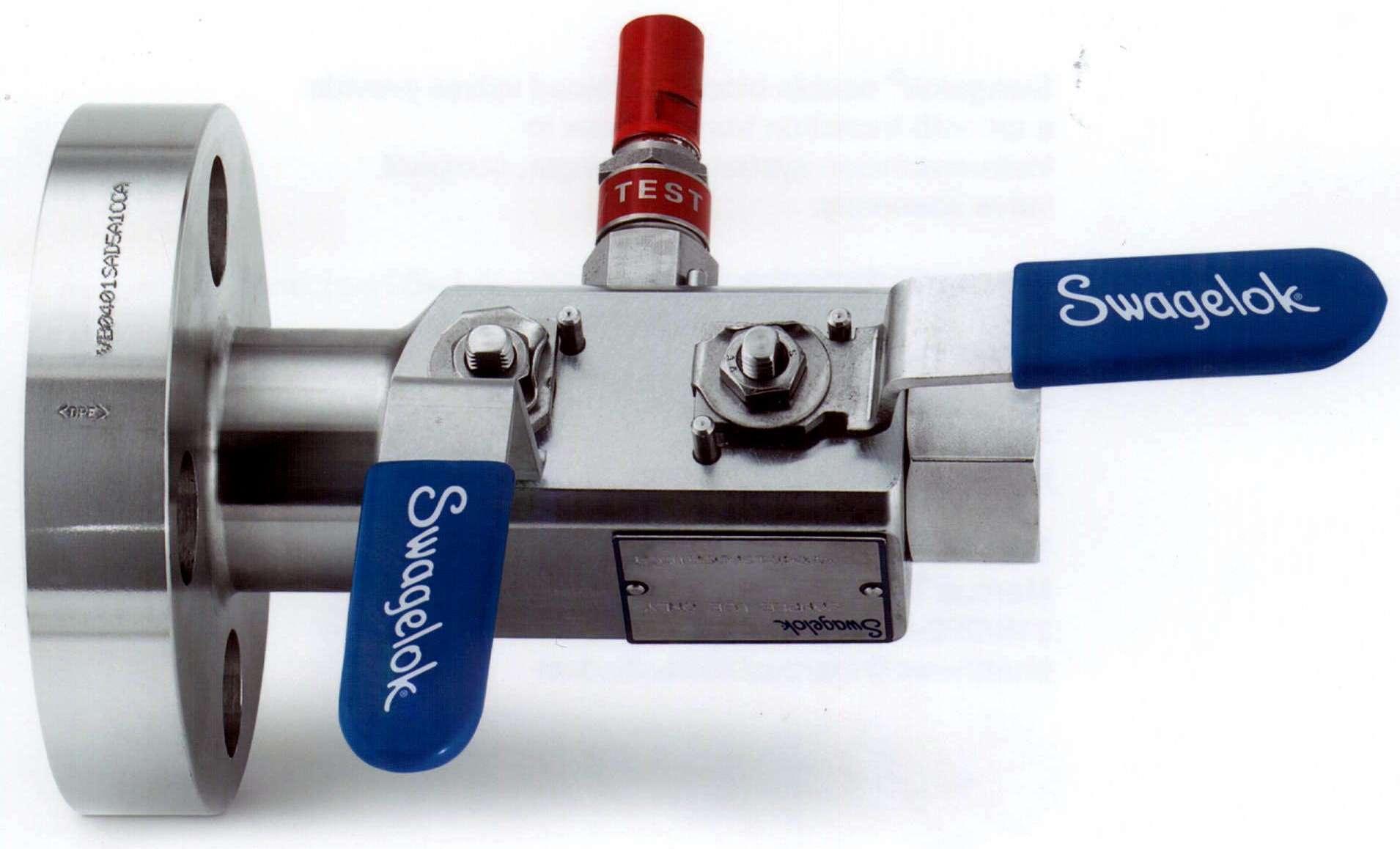

May 25, 2004 Kenmac series double block-and-bleed valves provide smooth transition from process to instrumentation systems. Each one-piece forged body incorporates primary isolation valve and various secondary block-and-bleed valves. Available in sizes from ½â€“2 in., flanged connections are manufactured to ASME 16.5 RF and RTJ. Valve is rated to temperatures from -50 to +400°F, and pressure ratings are in accordance with ASME B16.34, 150–2500 lb class.

ZOOK Enterprises, LLC    Chagrin Falls, OH 44022 0419

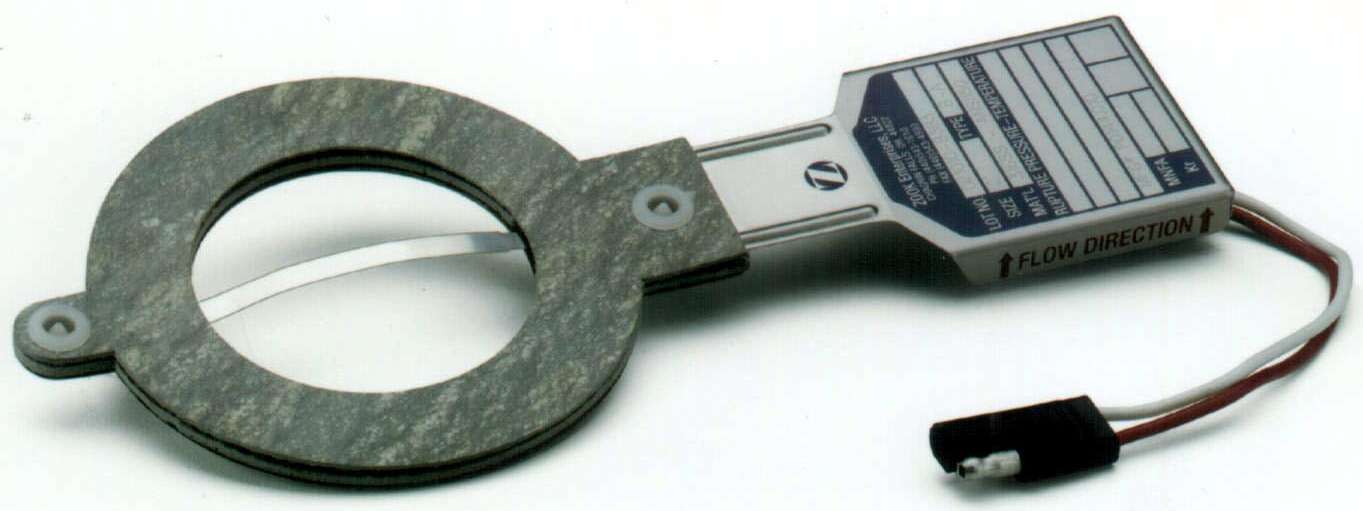

May 25, 2004 BA Series rupture disk burst sensor is actuated when one end of 316 stainless steel conductor is pulled from retaining slot. It operates at pressures as low as 1 psi and works in conjunction with rupture disks or relief valves. Suited for use in temperatures up to 700°F, sensor is offered in sizes from 1–24 in. and includes non-asbestos gaskets, 316 stainless steel ID tag, and moisture- and abrasion-resistant connector with 2-pin bullet terminal.

Revere Products    Cleveland, OH 44135 0311
May 25, 2004 Constructed from heavy-duty metal, TRAFFIC STRIPERâ„¢ produces 2–4 in. wide lines on asphalt, concrete, or turf. It rolls on 13 in. base created by four 6¾ in. rubber wheels, producing straight, even lines. Wind guard feature allows striping on windy days, minimizing over spray. Unit uses TRAFFIC STRIPE aerosol paint, emptying can with little or no waste, and can hold one case of paint. It is suited for use on parking lots, driveways, and sidewalks.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910

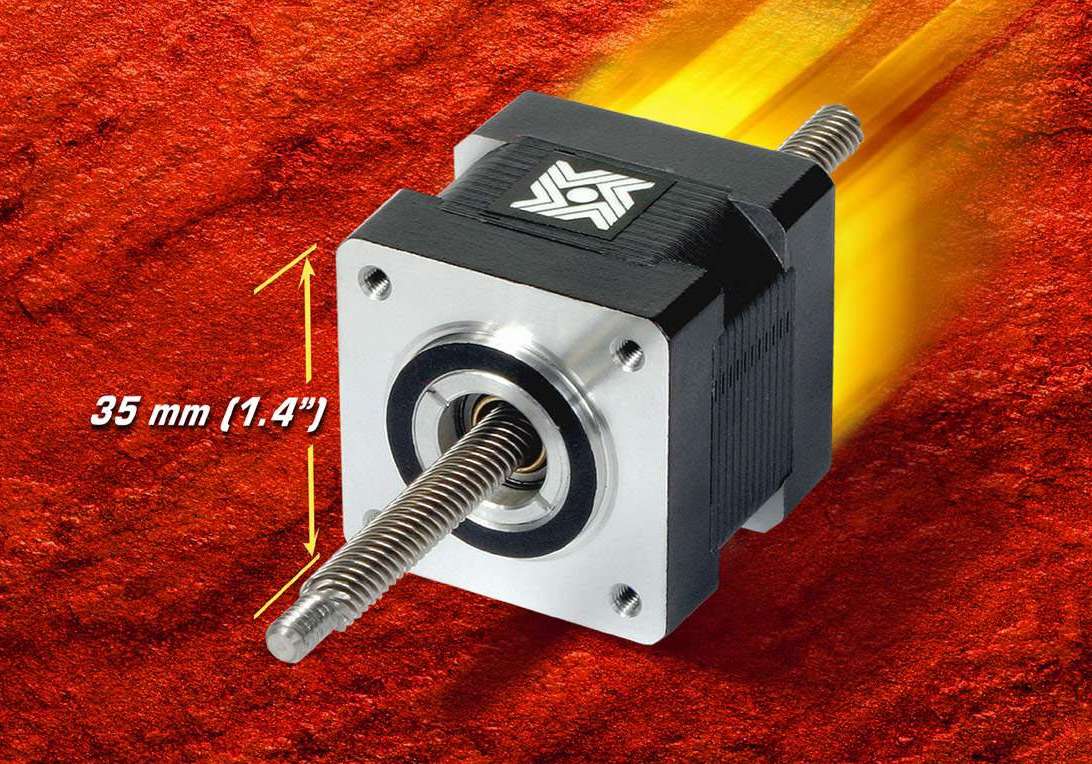

May 25, 2004 Size 14 non-captive, hybrid linear actuator features engineering thermoplastics in rotor drive nut and stainless steel Acme lead screw, which runs axially through center of motor and must be restrained from rotating for proper operation. Suited for long linear travel requirements, actuator offers resolutions from 0.00012–0.00192 in. per step. Typical applications include medical equipment, X-Y tables, automation of any kind, and valve control.

Delavan Spray Technologies    Bamberg, SC 29003
May 25, 2004 Variable Coating Nozzles deliver batch production cycles lasting up to 18 hours, depending on liquids being processed. They offer independent and remotely controlled spray widths, atomizing air and flow of liquids. Air Cap Cylinder helps eliminate clogging by sucking out excess coating spray around nozzle tip. With orifice diameters sized from 0.8–2.5 mm, nozzles feature 319 SS wetted parts and push-in connectors.

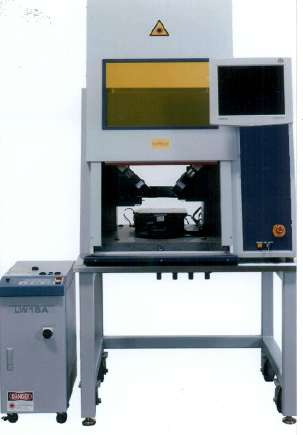

Unitek Miyachi Corporation    Monrovia, CA 91017 7133
May 25, 2004 Utilizing A Series pulsed Nd:YAG Laser Welder, Delta Series Workstations feature steel chassis, class I CDRH compliant work envelope, safety viewing window, safety interlocks, and fume extraction ports. Choice of multi-axis CNC motion stages, control hardware, and Windows® software is available. Additional features include vibration isolation footings, modular control panels, e-stop and fire command buttons, and laser emission indicators.

ERICO    Solon, OH 44139-2631
May 25, 2004 Suited for iron pipe or copper tubing, CADDY® MICROFIX features hinged design that eliminates need to disassemble clamp prior to installation. Setscrew catches in locking plate, so no tools are required to position pipe in clamp. Final tightening can be completed with one hand or screwdriver, depending on pipe size. Integrated rubber gasket minimizes vibration and rattling and eliminates clamp-to-pipe contact.
