Astrodyne Corp.    Mansfield, MA 02048
Jun 03, 2004 High-density, U-channel, ac/dc Series USP225 accepts universal input from 85-264 Vac with active power factor correction and 3,000 Vac isolation. Six models provide single outputs from 3.3-48 Vdc. All units contain soft-start circuitry, integral EMI filtering, over-voltage and short circuit protection, power-good LED indicator, output adjustment potentiometer, and Molex-style I/O connections. Ambient operating temperature is -10 to +50°C without derating.

Eraser Company, Inc., The    Syracuse, NY 13221
Jun 03, 2004 Air-operated Model HCA20 cuts materials from 0.010-1.25 in. OD, including most non-ferrous conductors such as copper and aluminum. Guillotine-style blade provides clean, square cutting, while dual activation buttons ensure operator safety during cutting cycle.

Allegro MicroSystems Inc.    Worcester, MA 01615

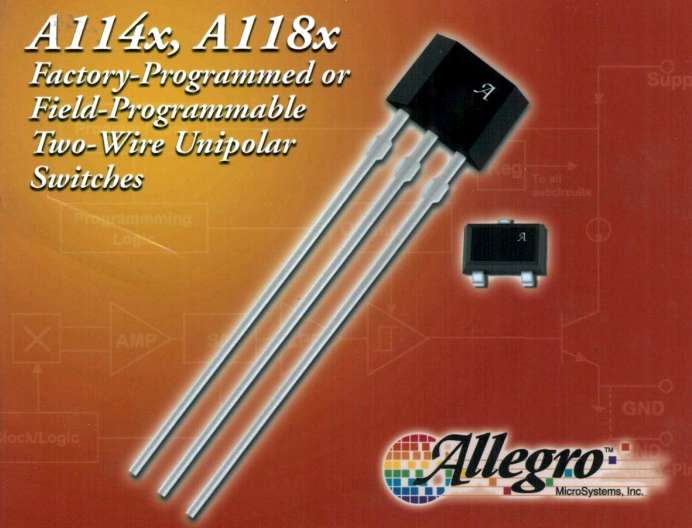

Jun 03, 2004 Dual-wire, Hall-effect unipolar switches A114x and A118x use chopper-stabilization technique on DABIC5 BiCMOS process to achieve magnetic stability over operating temperature range. Field-programmable A118x lets users externally trim operate points, while factory-programmed A114x provides preset magnetic operate points. Both series offer inherent diagnostic capabilities and internal Zener clamp that protects against over-voltage conditions on supply line.

Steinmeyer Inc.    Bedford, MA 01730
Jun 03, 2004 UltraThrust Precision Ground Ball Screws are offered in 50 x 20, 63 x 20, 63 x 30, 80 x 20, 80 x 40, and 100 x 20 mm sizes, all with 15 mm load carrying balls. UltraThrust 63 x 20 mm ball screw offers dynamic capacity of 430 kN, compared with 179 kN for standard series 1416 ball nut, which uses 11 mm balls. UltraThrust ball screws are suited for very large transfer line modules or to replace hydraulic drives in injection mold machines.

Square D Co.    Raleigh, NC 27611

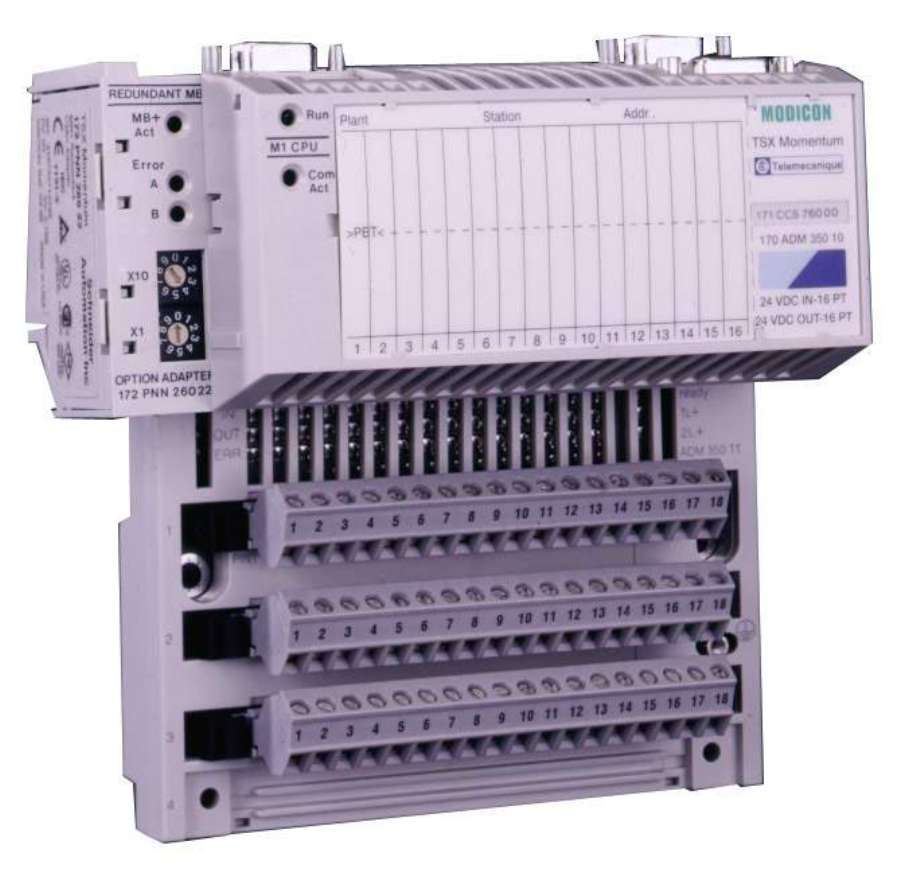

Jun 03, 2004 Modicon® Momentum(TM) programmable logic controllers (PLCs) are available with conformal coating that enable them to withstand corrosive and high-humidity environments. Coating acts as barrier against fungus, dust, humidity, salt mist, temperature, mixed flowing gas, and ISA. With coating, PLCs can be placed in NEMA 1 or 2 enclosures instead of those rated NEMA 4 or 4X. Snap-together controllers are suited for small to mid-range applications.

Rosenberg, Paul, Associates    Larchmont, NY 10538 0729

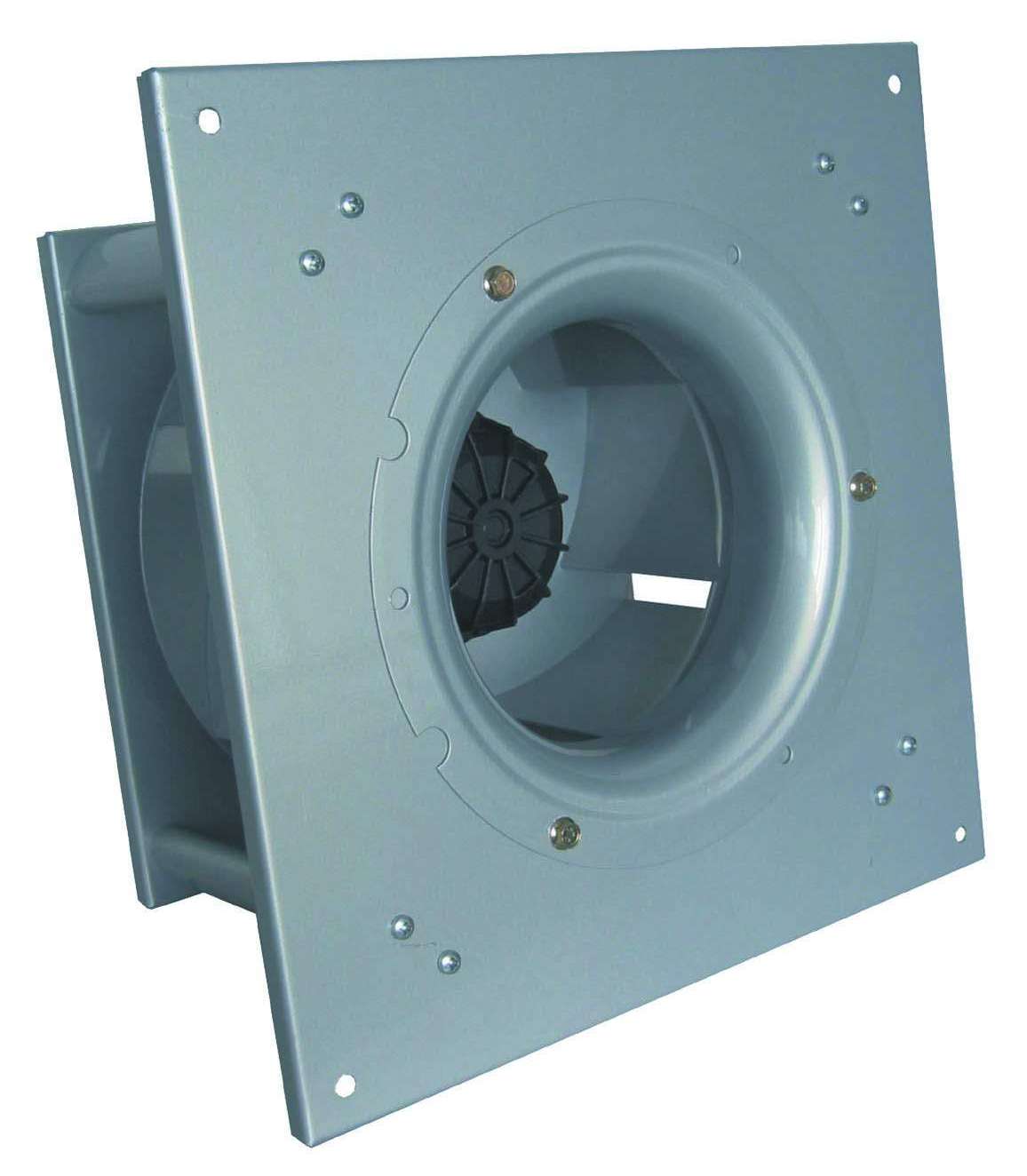

Jun 03, 2004 Series KH features free-running, backward-curved impellers made of waterproof aluminum for ventilation of air and non-aggressive vapors and fumes. Closed, external rotor motor is 100% speed-controlled, with sealed ball bearings and Class IP 44 protection against humidity. Air volume is adjustable using pressure and temperature controls. Fans are suited for air handling units, hygienic systems, filter units in clean rooms, and RLT units.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783

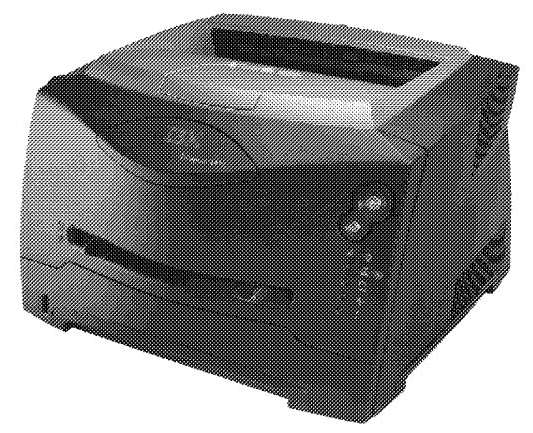

Jun 03, 2004 Utilizing 200 MHz processor, Infoprint® 1412 offers up to 27 ppm monochrome printing rates and first page out time as fast as 8 sec. Unit delivers 1,200 x 1,200 dpi resolution at up to half speed. Features include 32 MB memory, standard, and 160 MB maximum memory. Options include token-ring, Ethernet connectivity, and wireless connectivity on network model.

NKK Switches    Scottsdale, AZ 85260-3420

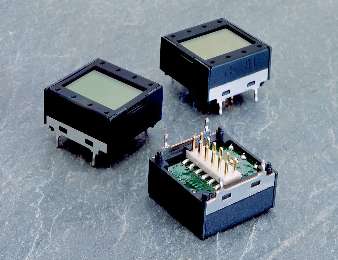

Jun 03, 2004 Complementing fully programmable IS Series SMARTSWITCH(TM), STN Liquid Crystal Display provides wide, high-contrast viewing area of 13.9 x 10.6 mm. It is suited for compact electronic devices that require display of graphics, text, or moving images in tight-fitting locations. Available with straight PC terminals, dot matrix display features multi-color LED backlighting with standard or super-bright options.

MadgeTech    Warner, NH 03278
Jun 03, 2004 Designed for use in harsh environments, TEMP1000P can log internal temperatures in real-time before, during, and after processing. Stand-alone device features 100 ohm platinum RTD sensor in rigid probe for recording -40 to +125°C temperatures with ±0.5% FS accuracy and 0.05°C resolution. With less than 1 min response time, waterproof recorder automatically measures and logs up to 32,767 temperature measurements; all data is date stamped and NIST traceable.

DTIC Dispensing Technologies    S. Lancaster, MA 01561

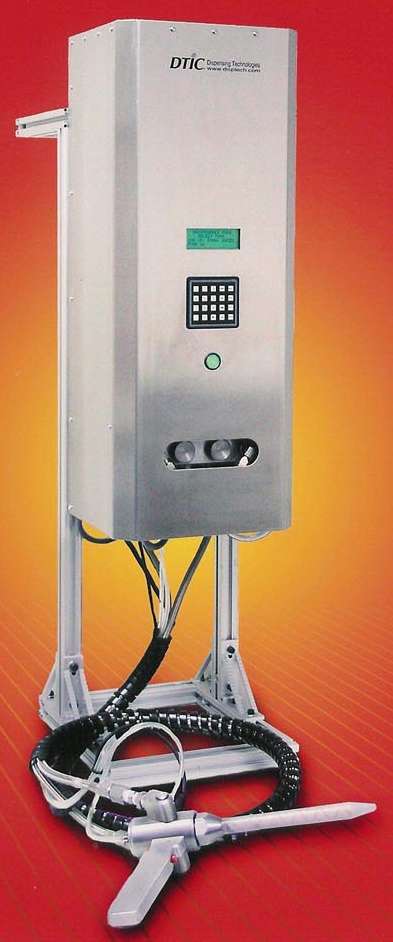

Jun 03, 2004 EZ-mix®VR Variable Ratio Meter-Mix Dispense System consists of piston-based, user-programmable, positive displacement system that provides repeatable shots with 0.1 cc accuracy. Featuring Constant-Flowâ„¢ technology, system can be hooked up to any size reservoir. Meter-mix dispense system allows on-the-fly variable ratio dispensing to hundredth’s value and stores parameters such as mix ratio, dispensing speed, and piston pump refill speeds.

Sena U.S.A,    San Jose, CA 95134

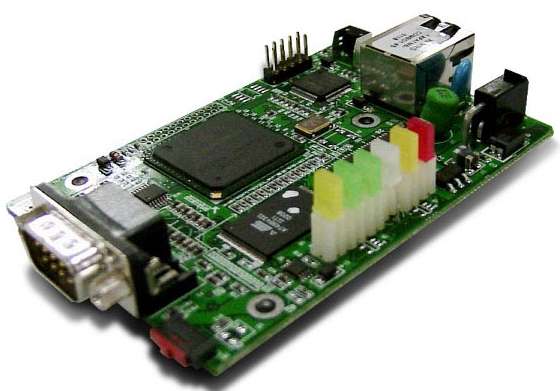

Jun 03, 2004 Single-port serial Ethernet communication board, PS100B, brings RS232/422/485-based industrial devices under control of 10 Mbit/s Ethernet network. It incorporates selectable RS232/422/485 serial interface and transfers industrial device data up to 115 Kbit/s. Offering voltage from 9-30 V, it accommodates power requirements in industrial automation environments. Features include device management and control capabilities, status display, and static key based 3DES data encryption.

Taiyo Yuden (USA), Inc.    Schaumburg, IL 60173

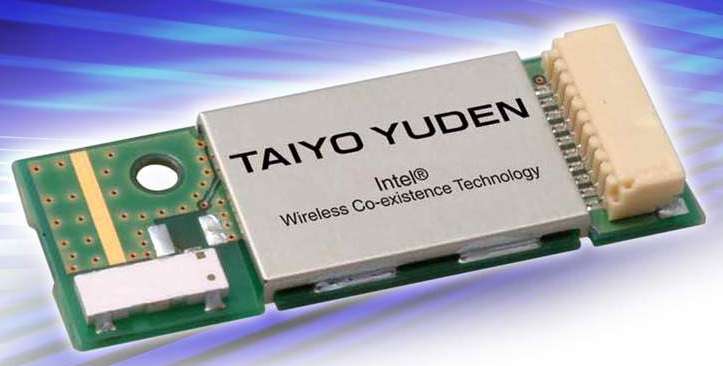

Jun 03, 2004 All-in-One Bluetooth Wireless Technology Package provides integrated Bluetooth customer support solution for laptop PCs that solves coexistence concerns of 2.4 GHz frequency band when integrating Bluetooth technology. Bluetooth V1.2-compliant module implements Adaptive Frequency Hopping and Enhanced Synchronous Channel Operation, while chip antenna provides dedicated connector interface with PC motherboard. Package also includes Bluetooth protocol stacks.

E Instruments International LLC    Langhorne, PA 19047
Jun 03, 2004 Offering hands-free operation, Mini CO Sniffer is equipped with highly-sensitive, 5-LED Scale and Beeper to warn user of even smallest presence of carbon monoxide in ambient. It features 0-500 ppm range with 8 ppm sensitivity, less than 30 sec response time, and 180 hr of continuous operation. Soft vinyl case and belt clip are included.

Brimrose Corp. Of America    Baltimore, MD 21236
Jun 03, 2004 With compact, solid-state design, miniature Model 5030 AOTF-NIR Portable Analyzer is battery-powered, enabling users to perform laboratory tasks anywhere in plant. Attachments facilitate switch-over from solids to liquids, and LCD shows instant results. Insensitive to ambient light, product is also immune to vibration, dust, and dirt. Suited for harsh production environments, wireless instrument can transmit data to Main Plant PLCs or DCS.

Upchurch Scientific, Inc.    Oak Harbor, WA 98277

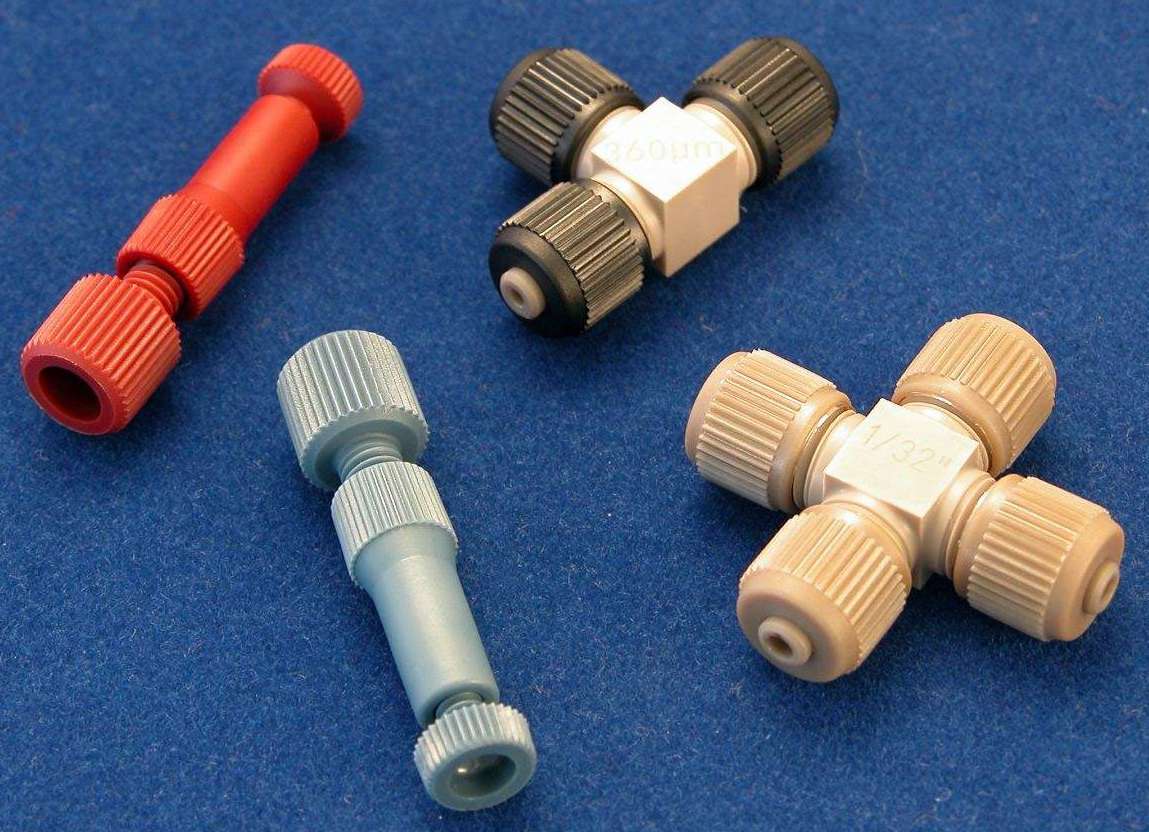

Jun 03, 2004 Without using sleeves, Upchurch Scientific® MicroTees, MicroCrosses, and MicroTight® Adapters are suited for direct connection of 1/32 in. and 360 µm OD tubing. Made of chemically resistant PEEKâ„¢ polymer, adapters provide true zero dead volume connections between 1/16 in. OD tubing and capillary tubing. MicroTees and MicroCrosses have .006 in. thru holes and swept volume as low as 29 nL.

EGS Electrical Group    Skokie, IL 60077
Jun 03, 2004 SOLATRONâ„¢ Plus 3-Phase Power Conditioner protects against common power problems by providing true voltage regulation, surge protection, and noise isolation. Within input voltage range of -25 to +15%, unit produces output voltage of less than ±5% of nominal voltage regulation to maintain stable power for critical processes. Common voltage configurations include 20, 30, 50, and 75 KVA in combinations of 208, 480, and 600 V offerings.

Linear Technology Corp.    Milpitas, CA 95035
Jun 03, 2004 Housed in pin-compatible SSOP-16 package, 8-channel, 200 ksps LTC1867 offers 16-bit no missing codes over temperature and ±2 LSBMAX INL. It draws 1.3 mA at full speed, and supply current automatically drops at reduced speeds. Unit includes serial interface and multiplexer that allows any combination of single-ended inputs or differential inputs in unipolar or bipolar mode. Accuracy is independent of shift clock frequency, and commercial and industrial temperature ranges are available.

Strategic Test Corporation    Woburn, MA 01801-1915
Jun 03, 2004 UltraFast UX3131 3U PXI Card allows engineers and scientists to acquire all 4 channels at sampling rates to 25 MS/s for SONAR, LIDAR, and ultrasonic measurements. Card combines 12-bit resolution, 8 input ranges, programmable input offset, up to 64 MS memory, and optional high-speed digital inputs. Each channel can be programmed with 1 of 8 input ranges ±50 mV to 10 V, and input signal can be offset adjusted by up to 100% of each range.

Fire Control Instruments, Inc.    Waltham, MA 02451 1122
Jun 03, 2004 NetSOLO® Broadband delivers full-network control and communications, digital messaging, live voice instructions, and fire fighter telephone communications through distributed network fire alarm system, all on single pair of wires. It incorporates existing 7100 panels and can be expanded to meet growing application demands. System uses Boolean logic programming and Digital Signal Processor.

Microscan Systems, Inc.    Renton, WA 98057
Jun 03, 2004 By using EZ button on side of Model MS-860, calibration process is initiated to optimize read settings for specific bar code. Button also activates user-definable features such as sweeping raster and auto-framing capability. Auto-framing enables raster to adjust to height and width of bar codes, optimizing scanner performance for reading stacked 2D codes such as RSS/Composite and PDF417. Green flash provides visual confirmation of good read.
