Weiler Corporation    Cresco, PA 18326 0149

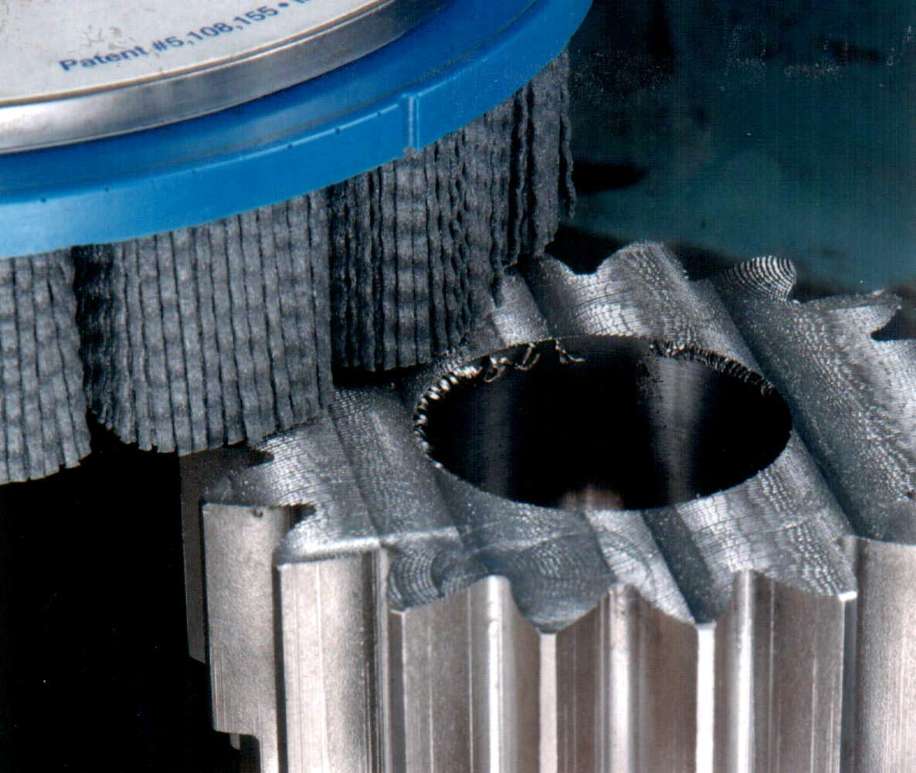

Jun 01, 2004 Burr-Rxâ„¢ 3 and 5 in. dia abrasive nylon disc brushes employ proprietary high-aggression filaments that facilitate removal of larger burrs. Products do not alter part dimensions and are suited for use on custom-designed machines or in CNC machining centers.

Spectracom Corp.    Rochester, NY 14623
Jun 01, 2004 Installed in PCs, workstations, and servers, TimeCode Reader/Generators can stamp events such as computer log-ins, e-mail messaging, and data transmissions. Additional uses include capturing video and audio data, such as identifying times and sequences of video frames and voice data. Military applications involving communication time stamping and weaponry performance are also possible.

Spectracom Corp.    Rochester, NY 14623
Jun 01, 2004 Wireless clocks eliminate need for hardwiring, allowing flexibility in clock displacement. Event alert feature enables clocks to signal when specific events are taking place. Combined with proprietary NTP Time Server, clocks can be synchronized and programmed with computer network systems to record time documentation in order to support project data and insurance or legal claims.

Advantech Automation Corp.    Cincinnati, OH 45240

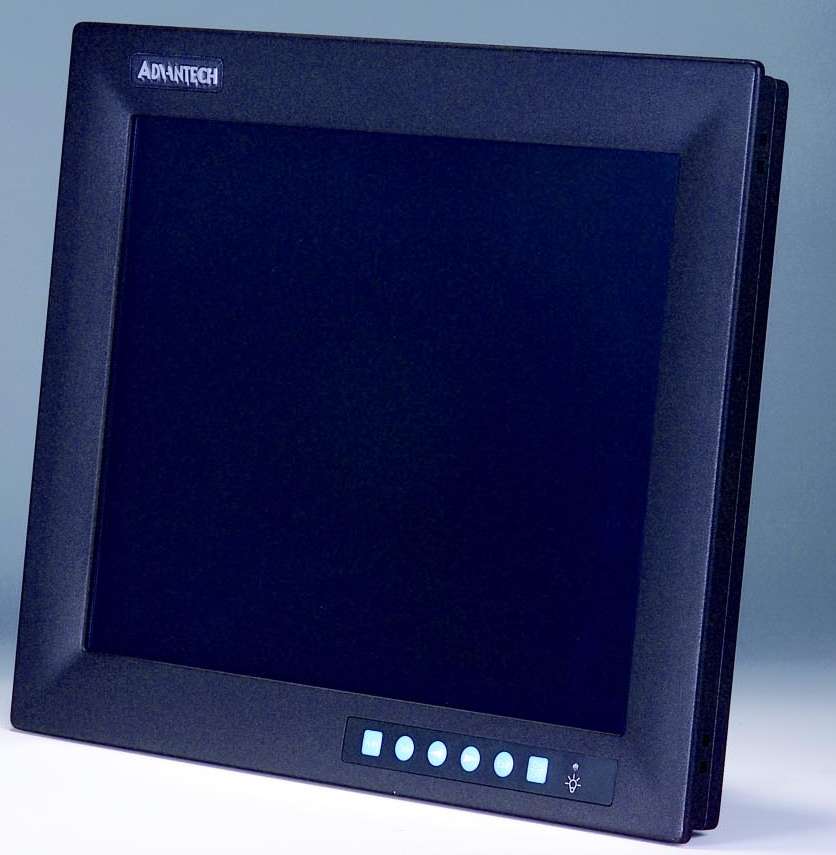

Jun 01, 2004 Featuring 15 in. XGA color TFT LCD screen, stainless steel chassis, and Al-Mg front-panel, FPM-2150G mounts on panel, wall, rack, desktop, or VESA arm. Its PS/2 connector facilitates connection of mouse or keyboard, and optional 8-wire resistive touch screen is available. With NEMA4/IP65 certification, unit resists heat, vibration, EMI, and ingress of liquid. On-screen-display function lets users adjust display factors and turn backlight on/off.

Aries Electronics, Inc.    Bristol, PA 19007-6810

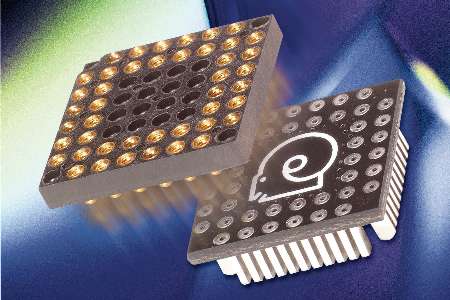

Jun 01, 2004 Model 44-301695-XX can debug and test circuit board prototypes as well as interface additional circuitry to existing design. It is available with cable soldered directly to plug, or socket or header on topside of plug. UL94V-0 rated body is 0.62 in. thick, glass-filled FR-4 material with 1 oz of copper traces. Male pins are brass alloy 360 with 200 µin. tin over 100 µin. nickel. Socket version pins are phosphor bronze alloy.

RKC Instrument    South Bend, IN 46628
Jun 01, 2004 Non-contact Model LTM-100 allows user to monitor temperature by holding measurement button down. It includes switchable °C/°F, auto-power off, and adjustable emissivity. Water-proof, dust-proof sensor can be washed with water or antibacterial resin. It is suited for applications where contact may cause contamination, operator may be at risk due to high temperature, or when object is in motion.

Almco, Inc.    Albert Lea, MN 56007 2751

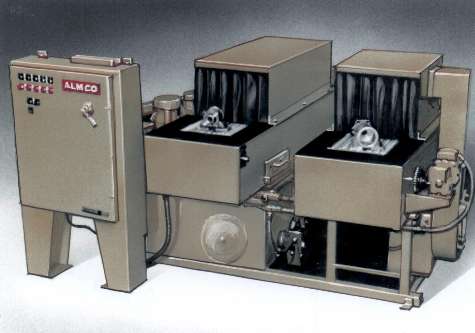

Jun 01, 2004 Model PWRB9-36EU features 9 in. wide flat wire belt, rinse and blow-off capabilities, and U-bend design that allows single operator to load and unload parts from one location. Heated cleaning solution is sprayed from multiple adjustable nozzles at top, bottom, and sides of 36 in. long cleaning chamber. Built-in cyclonic filtration equipment provides recycling of liquids for reuse and for environmentally safe disposal of solid particles and floating matter.

ROMI Machine Tools, Ltd.    Erlanger, KY 41018

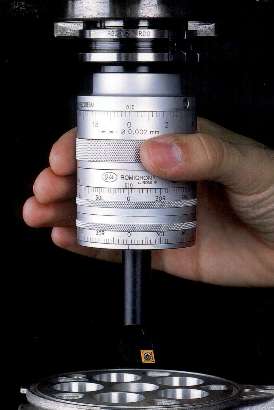

Jun 01, 2004 Romicron Systems finish high-precision bores by adjusting tip of boring tool. Series SVS includes 10 models with through-the-tool coolant, boring range of 25-183 mm, and spindle speed of 3,000-10,000 rpm. With bore range of 71-326 mm, Series SVU can be balanced to G 6.3 according to ISO standard 1940 by adjusting one dial. Spindle speeds range from 6,000-10,000 rpm. SVUBB1/SVUBB2 boring heads use replaceable boring bars that allow boring range of 4.0-16.5 mm and 6-25.5 mm, respectively.

FisherCast Global Corporation    Peterborough K9J 6Y9  Canada
Jun 01, 2004 Suited for difficult-to-clamp components, FIXTURBLOK® uses metal alloy as fixturing medium to encapsulate components, distributing pressure points across surface. Fixturing metals used to form retaining block solidify at temperatures from 140–720ºF. After machining, component is released from fixturing medium by mechanical operation or melt-off process. Unit accommodates components measuring 1 x 1 x 2 in. to those over 2 ft in diameter.

Hyson Products, Associated Spring    Brecksville, OH 44141
Jun 01, 2004 Dyne-A-Cam® Models RC2-30, RC2-50, and RCP2-150 provide piercing forces of 30, 50, and 150 kN, respectively. Each can be mounted at any angle, with 50° angle required between user-supplied driver and motion of cam. Units feature precision guiding for off-center loading and upside-down installation, built-in return stroke dampening, and heavy-duty roller bearing to transfer force from driver to cam. Return force on all models is generated by gas springs.

A & A Manufacturing Co., Inc.    New Berlin, WI 53151-2708
Jun 01, 2004 GorFrame Bellows is formed over rigid framework to protect mechanisms of medical, dental, and imaging tables, as well as amusement rides and other applications. Available in any width, length, or vertical travel, unit can be fabricated from wide range of materials, including some that meet UL burn standards or incorporate anti-microbial agents. It is clean-room compatible and suitable for washdown.

Vaughan & Bushnell Mfg. Co.    Hebron, IL 60034
Jun 01, 2004 Steel Drywall Hatchet offers 1¾ in. cutting edge and flat head striking face for close-in corner nailing. Steel Shingling Hatchet features 1¾ in. cutting edge for lath and shingles, as well as retractable blade for asphalt and composite shingles. Both tools are 14 oz. Weighing 3 lb, Steel Hand Drilling Hammer strikes metal tools such as star drills, chisels, and punches. Steel Ball Peen Hammer has polished head and face, and is offered with head weights of 8, 12, 16, 24, and 32 oz.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Jun 01, 2004 By employing two 2 mm diameter round belts, Series CSR20 moves small parts such as thin, card-shaped items which can't be carried stably by flat belt conveyors. Standard belt lengths between pulleys range from 132–500 mm, and belt widths range from 10–200 mm. All conveyors include ac/dc, fixed, or variable speed motors and drives. Custom lengths and speeds are available.

MadgeTech    Warner, NH 03278

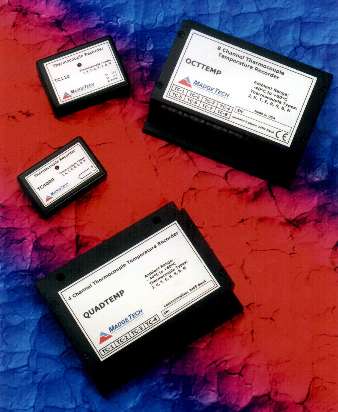

Jun 01, 2004 Thermocouple-Based Temperature Recorders feature non-volatile solid state memories for data security, and can be used with PC for real-time data monitoring. Eight-channel OctTemp reads and records up to 14,563 measurements/channel, while 4-channel QuadTemp handles up to 26,214 measurements/channel. Single channel units record 32,767. Providing ±0.5°C accuracy at 25°C and 16-bit resolution, recorders offer read rates from 1 every 5 sec to 12 hrs.

STMicroelectronics    Lexington, MA 02421
Jun 01, 2004 Featuring 2 Kb capacity, Model M34E02 fufills Serial Presence Detect function used in high-speed memory modules conforming to JEDEC DDR2 specification. Set of parameters stored and locked in lower 128 bytes of EEPROM record module's access speed, memory size, configuration, and manufacturer and are accessed by PC's CPU through I2C serial interface. Model M34E02 offers minimum data retention of 40 years and guaranteed read/write endurance of more than 1 mil cycles.

Slaughter Test Systems    Ardmore, OK 73401
Jun 01, 2004 Models 2512 and 2515, rated 250 and 500 VA respectively, feature electronic ramp and dwell timers as well as memory storage for test parameters. Instruments control most functions remotely through switches and analog inputs and outputs. With PLC remote control, test, reset, and interlock inputs are provided. Outputs include test in process, pass, fail, and reset. Both testers offer microprocessor control and 100 mA of test current.

Bray International, Inc.    Houston, TX 77041
Jun 01, 2004 Available in 3 ON-OFF models with 100, 300, or 600 lb-in. output torque, rectangular Series 73, R5 offers interference-free access to terminal block wiring and infinitely adjustable cams. Low-profile design incorporates 120 or 220 Vac, single-phase, permanent, split-capacitor, reversible induction motor. Other featuires include heavy-duty spur gear train with precision cut, multi-staged gears and shafts and valve position indication system.

SEI Electronics    Raleigh, NC 27604

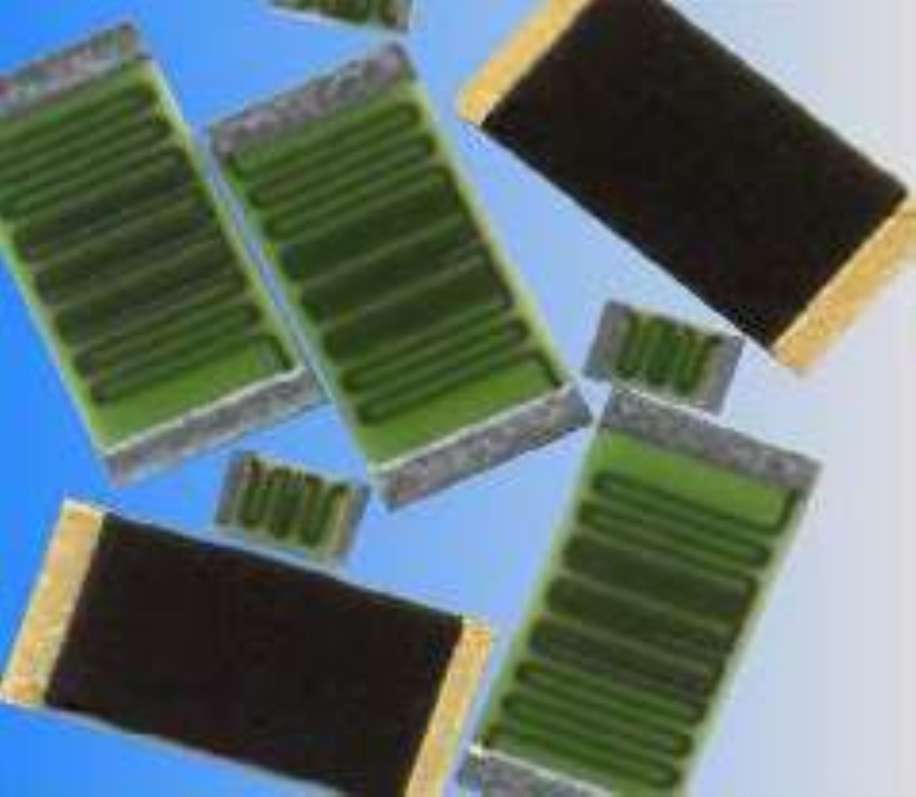

Jun 01, 2004 Offered with limiting element voltages of 2,500, 5,000, and 10,000, HVC Series surface mount chip resistors are available in 1206, 2010, and 2512 industry-standard chip sizes, respectively. Power ratings range from 0.3–1 W @ 70°C, and resistance values vary from .1 W to 2 T W, with tolerances down to 1%. Operating temperature range is 55–150°C. Medical applications include defibrillators, imaging systems, neurostimulators, and analgesia syringe pumps.

Rite-Hite Corp.    Milwaukee, WI 53224
Jun 01, 2004 Dok-Guardian(TM) SB-5000 helps protect employees and equipment from falling off vacant loading dock. Using tension roller system, red PVC-coated fiberglass unit manually extends across opening up to 10 ft, 5 in. providing 44 in. tall highly-visible barrier. Three heavy-duty polyester safety restraining straps help Dok-Guardian stop 10,000 lb fork truck traveling up to 4 mph. Pocket-design keeps barrier out of harm's way when stored inside guards.

Wonderware    Lake Forest, CA 92630
Jun 01, 2004 InTouch v9.0 incorporates SmartSymbol feature, which integrates object-oriented technology with InTouch graphics and transforms them into reusable templates. Changes made to templates propagate throughout application, even across multiple networked PC nodes. Users can create displays that can be viewed from workstations, PDAs, and browsers. IOSetRemoteReferences script function modifies datasource for ArchestrA Objects or InTouch tag references at runtime.
