Solvay Engineered Polymers    Auburn Hills, MI 48326
May 28, 2004 NexPrene® 9000 fully vulcanized materials range in hardness from 40 Shore A to 50 Shore D. They exhibit resistance to oil swell and compression set. Each offers consistent, natural color with yellowness index of less than 16. Bright whites can be obtained using concentrations of titanium dioxide as low as 0.5%. Since materials do not absorb moisture from atmosphere, they do not need to be dried prior to processing.

Hyde Park Electronics, LLC    Dayton, OH 45420 4017

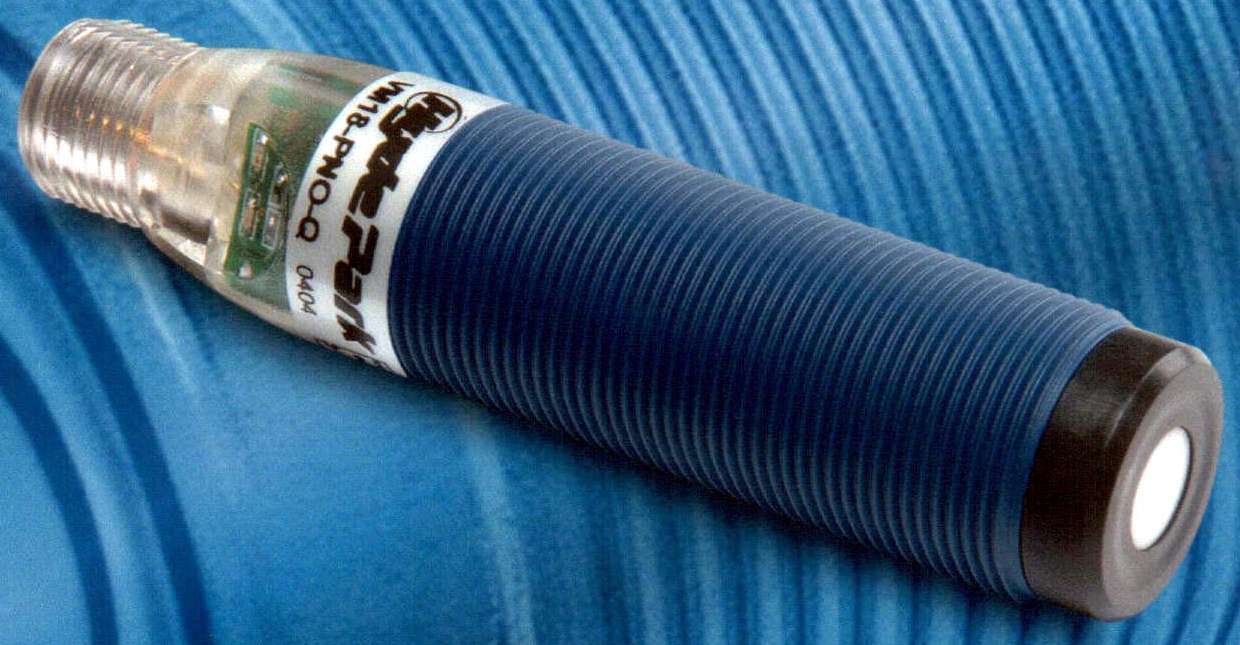

May 28, 2004 Virtu18â„¢ features teach-in window capability and does not require downtime for sensor recalibration when colors, materials, or shapes change. Unit has VALOX® housing, operates on 12–24 Vdc, and provides sinking (NPN) or sourcing (PNP) output. Shielding and filtering make fully encapsulated sensor immune to radiated or conducted energy. With sensing ranges from 2–20 in., product has UL enclosure ratings of Type 4X and IP67.

Spirax Sarco, Inc.    Blythewood, SC 29016
May 28, 2004 Model SX25 MA features one 4-20 mA output, while Model SX25 VMD includes integral valve motor drive output. Both may be used with electric or pneumatic control valve actuators. Control variables include temperature, pressure, level, differential, or flow. Inputs may be RTD Pt100, thermocouple, 2-wire transducer, or any linear 4-20 mA or mV signal. In addition to manual PID tuning, SX25 offers autotuning, with choice of step response or natural frequency methods.

Caron Products & Services, Inc.    Marietta, OH 45750 0715
May 28, 2004 Standard and customized test chambers simulate various types of conditions involving temperature, humidity, and light. Temperature and humidity capabilities range from -20 to +80°C and 2–98% RH. Typical applications include stability and photostability testing, light fastness studies, freeze-thaw cycling and freezer storage, accelerated testing, forced degradation, plant growth, and TAPPI testing.

Aremco Products, Inc.    Valley Cottage, NY 10989
May 28, 2004 Pyro-Paintâ„¢ 634-BN high-temperature, non-wetting coating protects metal and refractory surfaces from corrosion by molten glass, metals, plastics, and salts in applications to 1560°F. Single-part, water-dispersible coating provides highly lubricious, chemical- and erosion-resistant interface between molten material and underlying metal or refractory structure. Water-based formulation is odorless, contains no VOCs, and dries at room temperature in 1–2 hr.

Load Cell Central    Monroeton, PA 18832
May 28, 2004 Underwater load cells in UWTL Series eliminate guessing of cable loads in marine operations. Designed for 5,000 m depths and beyond, products are engineered for undersea conditions with welded, hermetically sealed, stainless steel construction. Products incorporate SEA CON® sub-sea electrical connectors and are built to order with user-specified dimensions, cable length, mV/V, and internal signal conditioner outputs.

MSA    Pittsburgh, PA 15230 0426

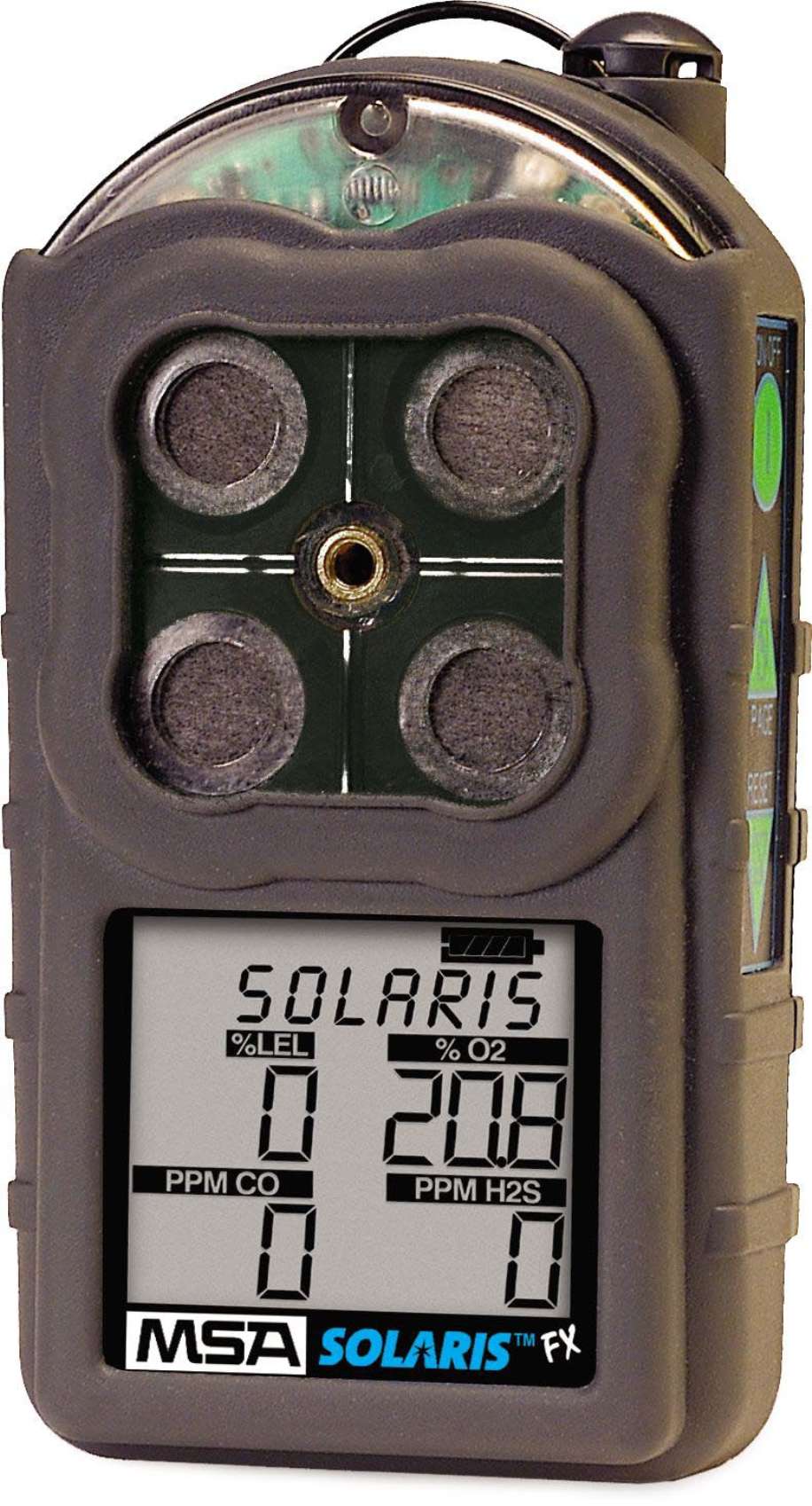

May 28, 2004 Ergonomic Solarisâ„¢ FX Multigas Detector simultaneously detects of CO, O₂, H₂S and combustible gas. Encased in rubberized armor that absorbs impact, unit has IP 65 rating for protection against liquid and dust and LEL sensor that facilitates response and release times for toluene, xylene, and other aromatic hydrocarbons. Display features backlighting for readability in low-light conditions, and calibration is done via one button.

Bacou-Dalloz    North Smithfield, RI 02917
May 28, 2004 Clarityâ„¢ C1, C2, and C3 Sound Management Earmuffs feature uniform attenuation technology that filters out harmful noise while allowing users to hear warnings, alarms, and coworkers' voices in loud industrial environments. Multiple noise attenuation levels allow users to choose amount of protection for application and safety needs. Available in 3 models with noise reduction ratings of 20, 23, and 27, products employ dielectric design that protects against shock.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
May 28, 2004 Series ADS5500 consists of three 14-bit ADCs and three 12-bit ADCs available in speeds of 80, 100, and 125 MSPS. Models ADS5520 and ADS5521 are 12-bit units operating at 125 and 105 MSPS with SNR of 69 dB at 100 MHz input frequency. Model ADS5522 is a 12-bit converter operating at 80 MSP with SNR of 70 dB. Models ADS5541 and ADS5542 are 14-bit, 105 and 80 MSPS devices with 710 and 670 power, respectively. Applications include communications, medical, video, and imaging.

Linear Technology Corp.    Milpitas, CA 95035

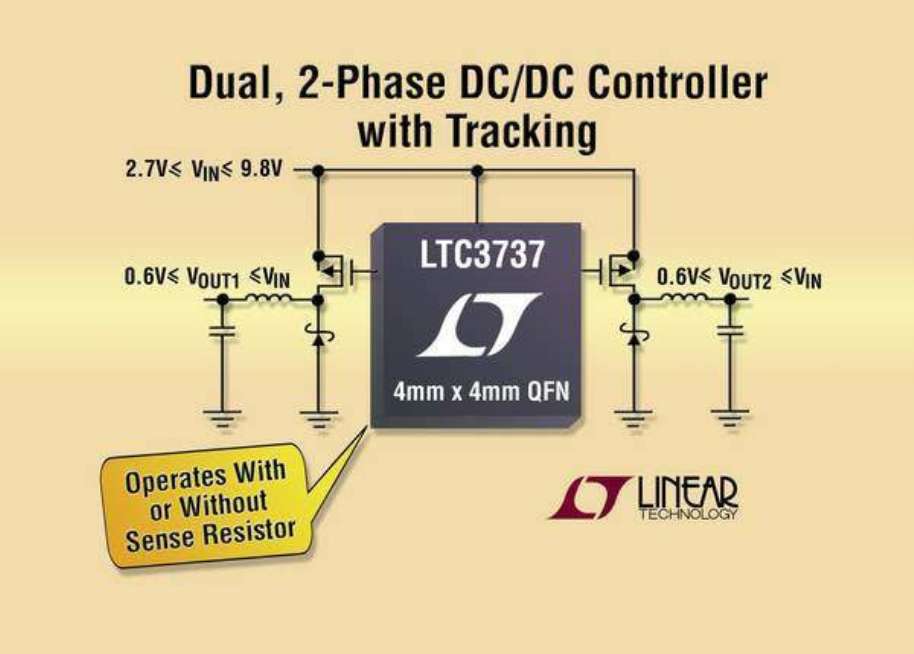

May 28, 2004 Model LTC3737 2-phase, 2-channel DC/DC step-down switching controller offers output tracking for proper startup of multiple voltage systems. Device features user-selectable mode to specify light load operation at high efficiency or low output ripple. For operation over max range of battery voltage or minimum input-output voltage differential, LTC3737 operates at up to 100% duty cycle regulating each output voltage from 0.6 V up to voltage equal to input supply.

Kanguru Solutions    Millis, MA 02054

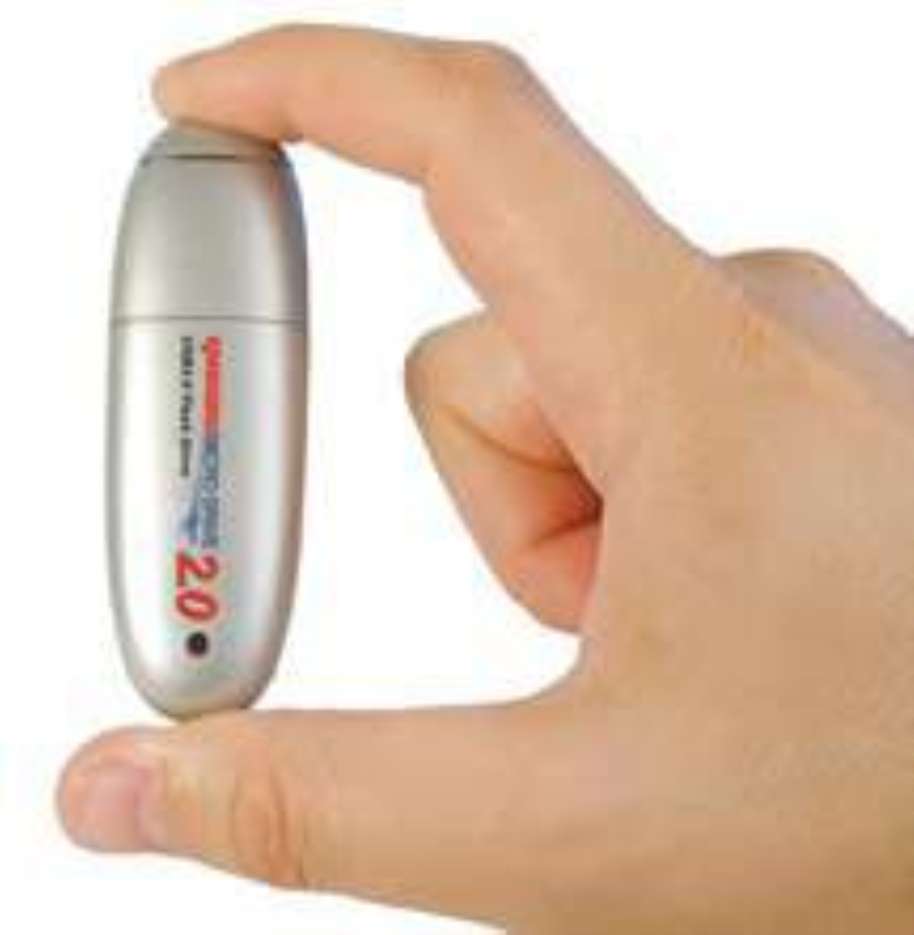

May 28, 2004 Drive2.0 is a USB 2.0 Flash Drive that offers storage capacity from 32 Mb to 4 Gb. Compression and encryption features are incorporated in the form of 2 special folders. Drive is equipped with 128 bit encryption and DES, Triple DES, and Blowfish encryption formats are also available. Measuring 3 in. long and weighing 21 g, Drive2.0 provides storage solution for mobile users. It works with Windows, Macintosh, and Linux, and offers plug-and-play capabilities.

Saelig Co., Inc.    Pittsford, NY 14534

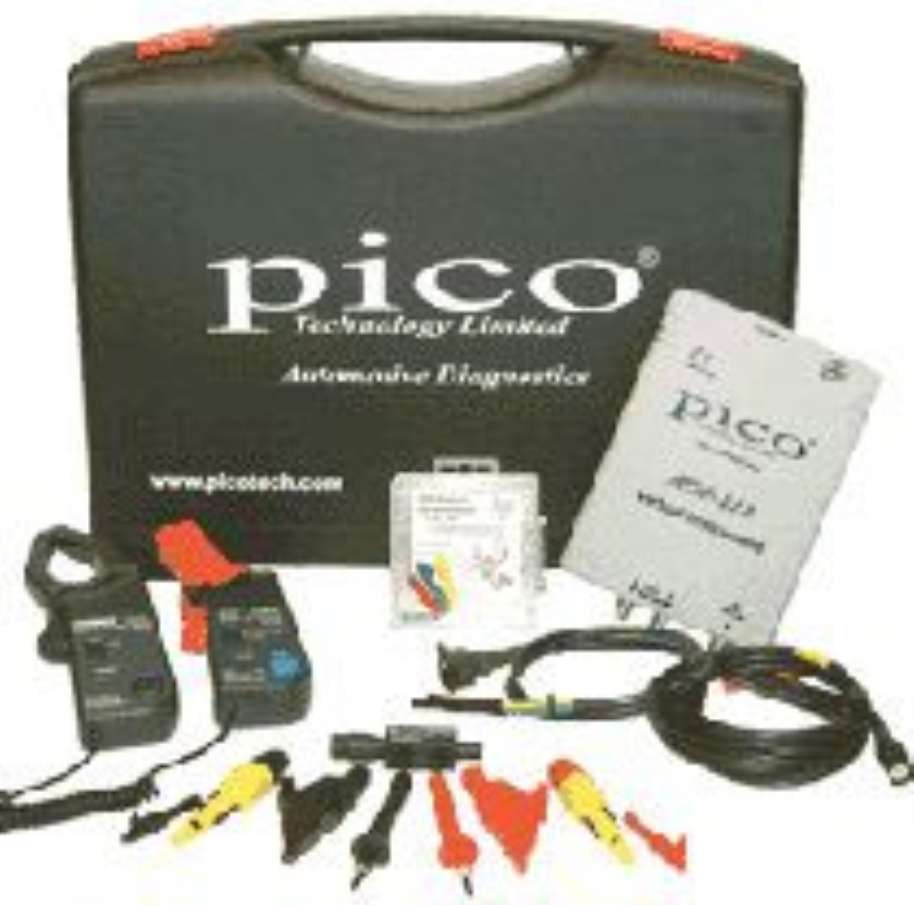

May 28, 2004 Pico Automotive Test Kit(TM), available in 4 versions, measures and tests electrical and electronic components and circuits in vehicles including: primary and secondary ignition; injectors and fuel pumps; starter and charging circuits; ABS sensors; crank and cam sensors; lambda, airflow, knock, and MAP sensors, glow plugs; timer relays; and relative compression tests. Kit is based on ADC-212/3 PC-based oscilloscope and includes PicoScope automotive software package.

Trico Mfg. Corp.    Pewaukee, WI 53072 3954
May 28, 2004 Streamliner V applies precise flow of grease to critical machine parts. It comes pre-filled in 250 cc reservoir and has variable feed rates of 1, 2, 3, 6, and 12 months with auto purge cut-out. Unit contains electro-chemical drive that produces inert gas, nitrogen, for operation. Unit can be deactivated and adjusted as necessary.

Liquid Control Corp.    North Canton, OH 44720
May 28, 2004 Equipped with touch screen interface, Posiratio® Mini Advanced model allows operators to calibrate, adjust, and monitor all dispensing functions. Features include process data and maintenance screens, programmable shot size selector, and adjustable ratio pumping mechanism. Unit also incorporates pneumatically actuated Twinmixer® with adjustable snuff-back, disposable Posimixer® motionless mixers, and Posiload® positive displacement piston pumps.

Optronic Laboratories, Inc.    Orlando, FL 32811 6590
May 28, 2004 Designed to work in conjunction with OL 770 High-speed LED Test and Measurement System, OL 700-10 controls LED and small incandescent source drive currents of 50 mA, 200 mA, and 2 A with 0.02% accuracy. It comes with all necessary software controls for USB interface as well as ActiveXâ„¢ controls for custom programming.

Honeywell Sensing and Control    Golden Valley, MN 55422

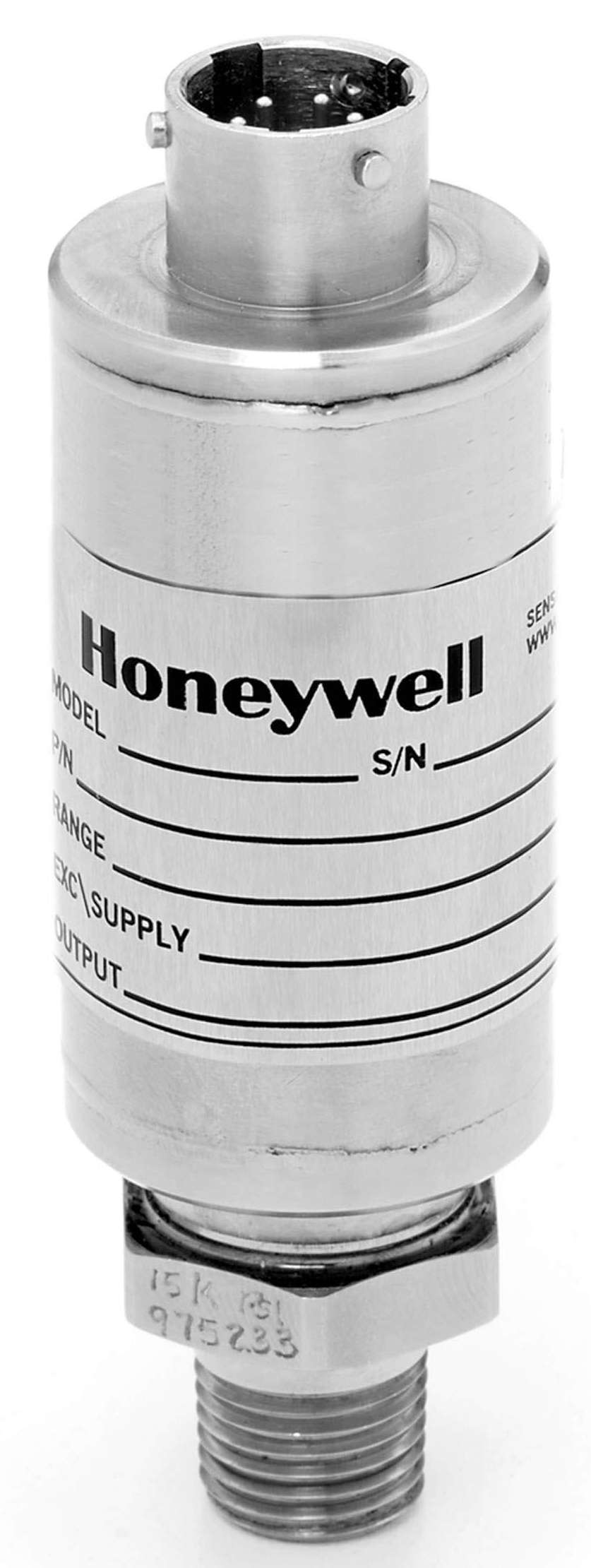

May 28, 2004 Constructed from all-welded stainless steel, Model BDR universal pressure transducer/transmitter handles any process gas or fluid. It features configurable electrical connections that maximize adaptability to varied applications and delivers accuracies of ±0.5% or ±0.25% BFSL. Available in ranges from 0-150 psi through 0-15,000 psi, unit features ±0.01% FS/°C thermal error and serves as drop-in OEM replacement for older sensors.

Plymouth Rubber Co., Inc.    Canton, MA 02021
May 28, 2004 Heat-resistant 61 and 61A Varnished Dacron Glass tapes are manufactured by impregnating Dacron® and glass woven fabric with electrical insulating varnish. Thermosetting acrylic pressure sensitive adhesive is applied to one side of 61A tape, allowing it to stick even under high-heat conditions. Available in ¾ in. x 60 ft or 1½ in. x 108 ft sizes, tapes conform tightly to irregular shapes and surfaces and feature dielectric strength of 1,300 V/mil.

EXAIR Corporation    Cincinnati, OH 45249-1621
May 28, 2004 Super 2 in. Air Nozzle has .015 in. air gap opening that is set with stainless steel shim positioned between body and removable cap. Air is released through thin slot across flat surface, resulting in wide, forceful stream of high velocity, laminar airflow. Air consumption is 21.8 scfm at 80 psig with noise level of 77 dBA, and force of 22 oz when mounted 12 in. from target. Force may be increased or decreased by installing different shim thicknesses.

Linear Technology Corp.    Milpitas, CA 95035
May 28, 2004 Available in SOT-23 and DFN packages, LTC2908 hex supply monitor is suited for densely packed systems with multiple, low-voltage supply rails as well as 5 or 3.3 V logic supplies. Product holds reset low with as little as 500 mV of input supply voltage. With 1.5% threshold accuracy over -40 to + 85°C operating temperature range, unit ensures reliable reset operation without false triggering. It features 2 adjustable inputs with nominal threshold of 0.5 V and 4 fitted thresholds.

Spectracom Corp.    Rochester, NY 14623
May 28, 2004 TTS Series NTP Network Time Servers offer time synchronization for building, network, and operational security. They also enable end-users to establish and maintain synchronization securely behind firewall protection. Servers use precise GPS by tracking up to 12 satellites simultaneously to provide consistent and accurate time reference. Products are suited for synchronized time recording for video surveillance systems.
