ADM Tronics Unlimited, Inc.    Northvale, NJ 07647 1904
Jul 06, 2004 Water-resistive, Wasser-Stat 730 is applied using conventional coating apparatus and offers fast drying capability. Product acts as film former, is useful for freezer-board applications, and is repulpable under alkali repulping processes. Application of 3–5 lb of dry-coat weight per ream is recommended.

Matthews International Corp., Marking Products Div.    Pittsburgh, PA 15206 4407
Jul 06, 2004 S.C.I.F.I.™ 3400 prints information necessary for assuring quality and freshness of cartoned eggs. To enable traceability, timing, and health, system prints packing date, sell-by date, and any other pertinent information in print sizes from 1/8–13/16 in. Different color inks can be applied from same printhead, and non-clogging design reduces maintenance. Wash-down system rated to IP65 is also available.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jul 06, 2004 Featuring slide design, fully integrated Motion Control Dispense Stations control any Loctite® syringe, cartridge, or dispense valve. They offer height, position, and angle of dispense point adjustments, as well as stroke adjustment of 0-2 in. Vacuum suck-back eliminates drips during syringe dispensing. Repeat mode cycles units continuously with foot switch. Stations are suited for applications that require circular dispense patterns or advancing dispense valves.

Dwyer Instruments, Inc.    Michigan City, IN 46361

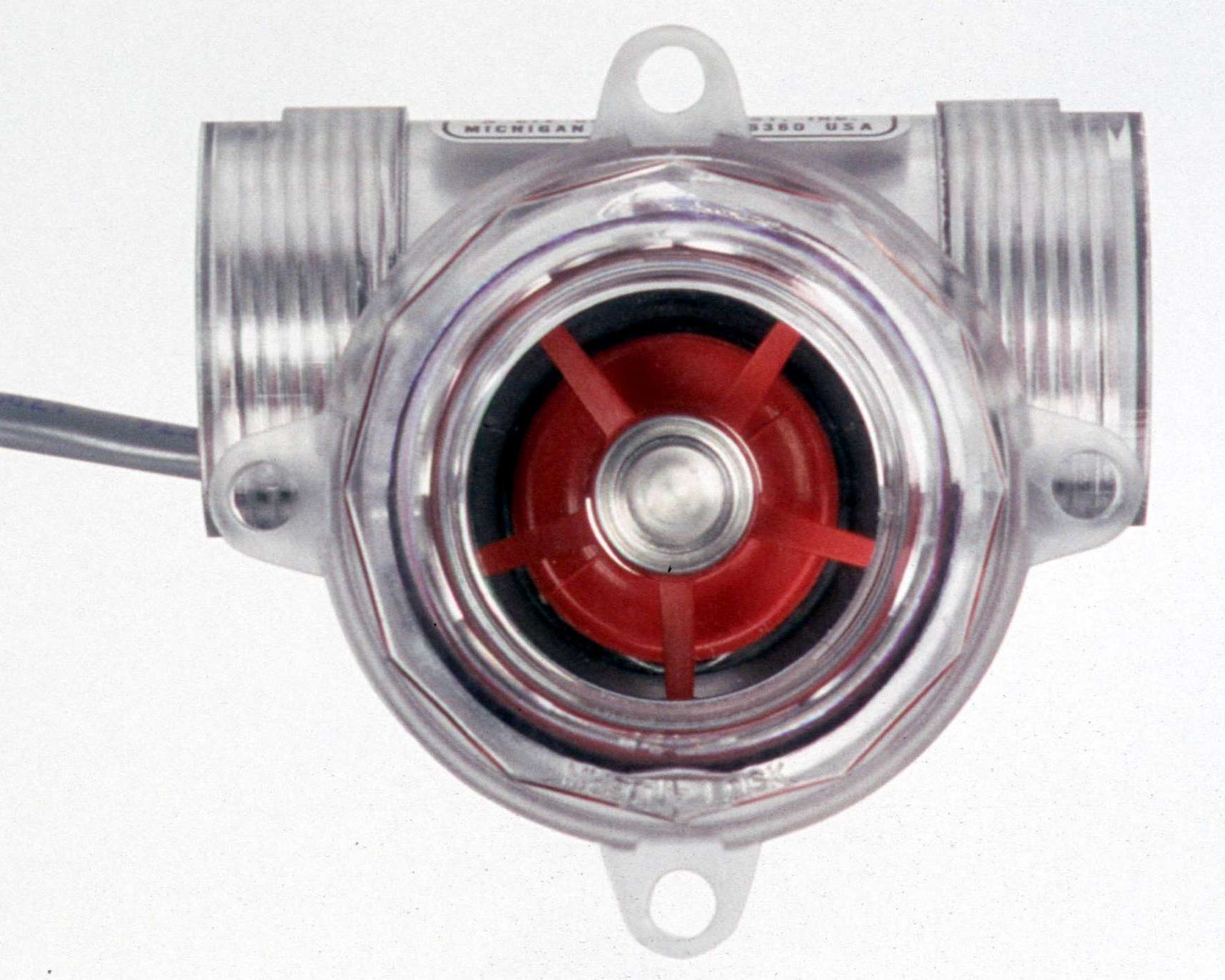

Jul 02, 2004 Rotor-style Series SFI-801 has clear polycarbonate body, which enables 360° viewing of red PBT rotor. It features pressure rating of 125 psi and temperature rating of 130°F. Optional A-711 output sensor has Vdc output with pulsing for flow totalization and proportional frequency change for flow rate. Indicator is made of all UV-stabilized materials for outdoor service. Output choices include 5 Vdc or dc voltage equal to input power supplied.

The David Round Co., Inc.    Streetsboro, OH 44241
Jul 02, 2004 Built from modular gearboxes, off-the-shelf motors, and standard brakes, Series EH is custom-designed to meet headroom, clearance, speed, duty-cycle, and environmental requirements. All hoists feature sealed gearing and are available with variety of control options including flux vector drives.

Fire Control Instruments, Inc.    Waltham, MA 02451 1122
Jul 02, 2004 Series ADP Photoelectronic Air Duct Smoke Sensors detect smoke at air-speed velocities of 110–4,000 fpm. By sampling air currents passing through ducts, units shut down fans, blowers, and air conditioning systems, preventing spread of toxic smoke and fire gases. Series includes Model ADP non-relay, 2-wire device requiring signaling line circuit power only and Model ADP-R 4-wire, relay unit requiring signaling line circuit power and 24 Vac/dc or 120/240 Vac.

Scapa North America    Windsor, CT 06095

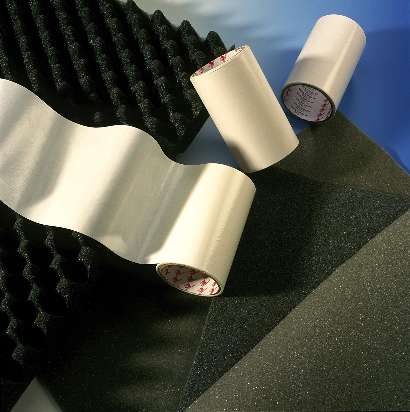

Jul 02, 2004 Dublfilm® SP454E polyester film is double-coated with high coat weight of aggressive, pressure-sensitive, acrylic adhesive. It offers high tack and peel, and resistance to environmental extremes. Film bonds to low surface energy plastics and is suited for foam fabrication, bonding to EPDM rubber, and difficult splicing applications.

Anderson Power Products    Sterling, MA 01564
Jul 02, 2004 Press-Fit contacts, for PowerMod products, incorporate Flat Rock feature that eliminates need for special tooling to press connectors into board. Contacts are available for straight-through male and female connectors. Based on compliant termination, they are designed for 2 ranges of pcb thickness of .092–.177 in. and .177–.255 in. Nonstandard sizes are also offered. Connectors are UL listed to 23 A per circuit for board-to-board applications.

ALGOR, Inc.    Pittsburgh, PA 15238
Jul 02, 2004 ALGOR v15 features Superdraw sketching and modeling tools for 2D design and analysis within FEMPRO finite element modeling, results evaluation, and presentation interface. Sketching tools enable engineers to draw points, lines, rectangles, arcs, circles, and splines and then modify objects with commands. Software includes built-in library of materials; mechanical event simulation capabilities; and tools for linear static stress, heat transfer, and fluid flow analysis.

Newport Corp.    Irvine, CA 92606

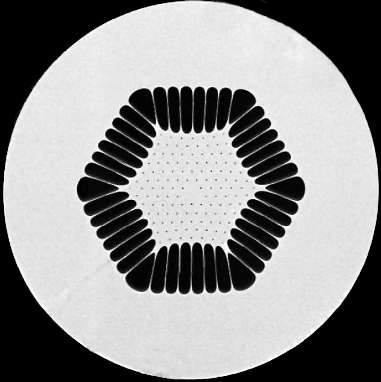

Jul 02, 2004 Dual clad, Ytterbium-doped, Series F-DC is available in several core sizes up to 40 microns. Some fibers are co-doped with photosensitive materials to allow fiber grating inscription with UV laser. Outer cladding material is air, allowing pump light to be coupled into inner cladding at numerical aperture greater than 0.6. Core has structured PCF cross-section to provide large mode area, which enables high-power, single-mode operation without non-linear optical effects.

Servo Magnetics, Inc.    Canoga Park, CA 91303

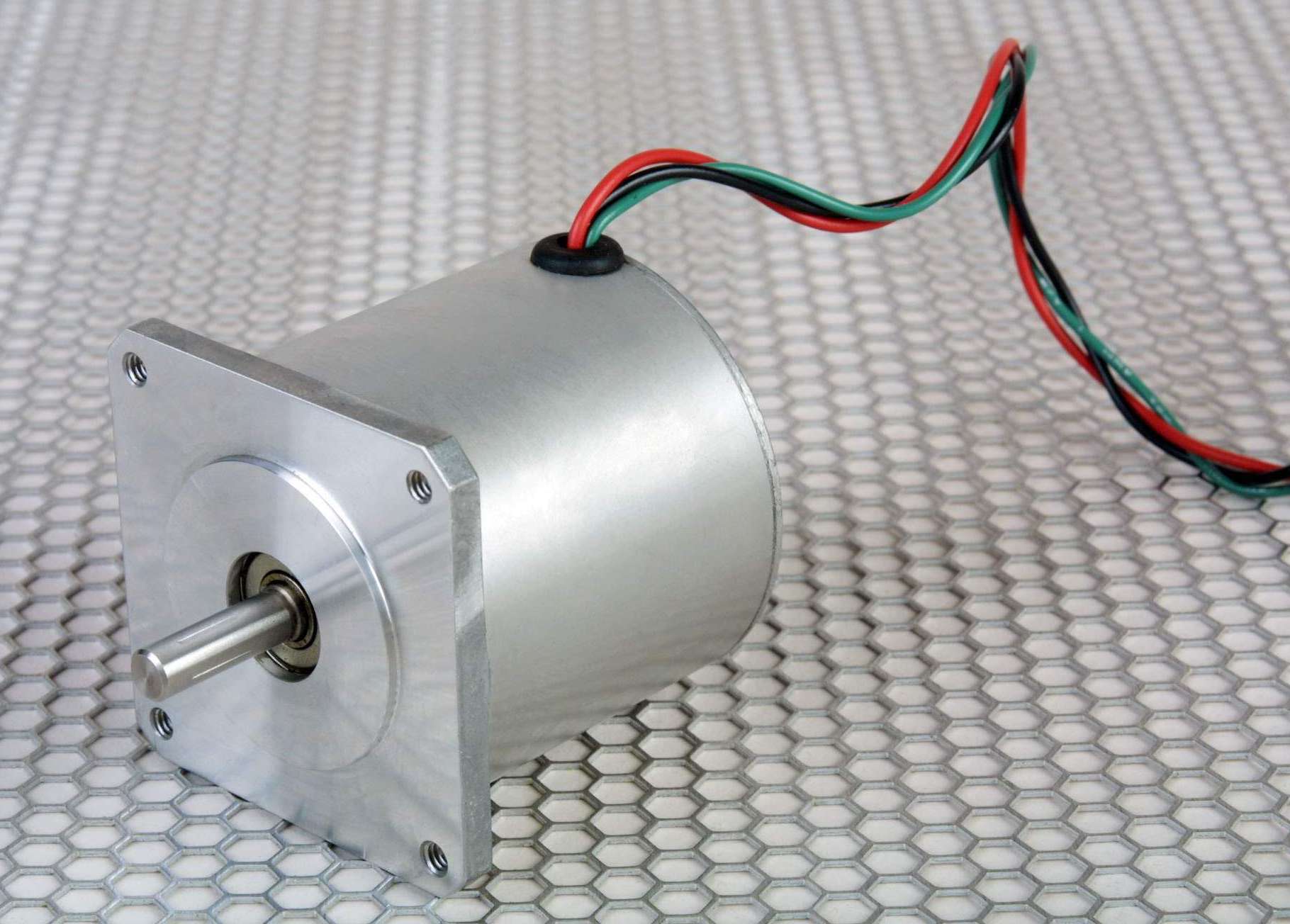

Jul 02, 2004 With operating voltage of 12 V, Model 000-0222 delivers 25 oz-in. continuously or in excess of 80 oz-in. peak torque. Measuring 2.25 in. dia x 2.23 in. long, it utilizes cast end bell and front NEMA-23 style plate mount. Motor is intended for reciprocating load requirements and is suited for blower, pump, and industrial process applications. It is configured for Hall-effect sensors, but can be also supplied with encoder option.

Banner Engineering Corp.    Minneapolis, MN 55441
Jul 02, 2004 PresencePLUS® P4 GEO inspects for correct features regardless of product orientation in sensor's field of view. Remote TEACH function allows sensor to learn new features without connecting to PC or shutting down line. Live video image output lets user view inspections in real-time and view failed inspection images without PC. Sensor can inspect up to 6,000 parts/min, and interfaces to factory networks via 10/100 Ethernet connection, RS-232, or discrete I/O.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 02, 2004 Single- and Dual-Channel, 10 MBd Optocouplers combine input LED with integrated optical photodiode IC detector for applications requiring high data rates. They feature CMR values up to 10,000 V/µs, typical PWD of 2.9 ns, and typical propagation delay of 50 ns. Available in DIP-8 package with choice of 2 surface-mount options and one 400-mil-wide lead form through-hole configuration, optocouplers include reinforced insulation per IEC60950.

Beckhoff Automation LLC    Minneapolis, MN 55337
Jul 02, 2004 Available with integrated, Intel Pentium-compatible, 266 MHz CPU, Series CP67xx and CP77xx use standard operating systems such as Windows CE and XP Embedded. They include 256 Mb RAM, 8 kb NOVRAM, IDE interface for Compact Flash, 2 Ethernet interfaces for 10/100 Mbps, and 2 USB master interfaces. Featuring anodized metal housings, panels are equipped with normal and PLC keys, touchscreen, and touchpad. Display sizes include 6.5, 10, 12, and 15 in.

Power Measurement Ltd.    Saanichton, BC V8M2A5  Canada
Jul 02, 2004 Optimized for commercial office and retail properties, ION® EEM features browser-based dashboard, which delivers information for facility managers to make informed energy decisions in real-time. It automatically collects meter data and continuously analyzes, aggregates, normalizes, and reports enterprise-wide consumption for electricity and all other utilities. Trend-analysis functions compare consumption and costs over time by location, building, or process.

Reell Precision Mfg. Corp.    St. Paul, MN 55110-5103
Jul 02, 2004 Models EC5, EC15, EC20, and EC30 provide up to 1 million actuations at dynamic load capacity. Electromechanical wrap spring clutches provide torque in only one direction, which permits overrunning. Once spring has wrapped down, each clutch can accelerate loads from 0 to full speed in less than 3 msec. Typical operating speeds are 100–800 rpm with 1,400 rpm max.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Jul 02, 2004 CMOS-based, 8-bit Series FXL4245 provides low-noise buffered interface with up to 24 mA drive current between any 1.1–3.6 V logic state. Both models accommodate bi-directional voltage translation over variety of logic voltage levels, including 1.2, 1.5, 1.8, 2.5, and 3.3 V. Configurable voltage supplies for input and output allow translation from low to high or high to low. Featuring MLP packaging, units withstand lead-free PC board attachment processes up to 250°C.

Delta Industries    King of Prussia, PA 19406
Jul 02, 2004 Smart Handle Proâ„¢ Line includes 18 tools with curved handle that allows workers to use body's strongest muscles within natural range of motion. Some handles are long and rigid, while others are adjustable so users can grip them at most comfortable height. Third variety swivels 360° to eliminate repetitive motion. Made of thick-wall aluminum, handles feature comfortable gripping surface and will not weaken due to rust, mold, or bacteria growth.

Rittal Corporation    Springfield, OH 45504
Jul 02, 2004 Modular Immersion Chiller combines chiller, refrigeration circuit, and electrical system. Serpentine stainless steel evaporator with agitator ensures maximum heat transfer, while nonferrous construction and powder-coated finish provide corrosion resistance. Modular design facilitates maintenance of all components including copper or stainless steel cooling coils that can collect slime as fluids build up. Interior components can be maintained through removable panels.

Micro 100, Inc.    Los Angeles, CA 90029
Jul 02, 2004 Engineered for shrink-fit tool holding, 2-flute Metric End Mills feature positive rake angle that supports cutting in soft, medium, and hard materials for side milling and slotting. Cutter diameters range from 0.2–6.0 mm with shank diameter of 6 mm, which is held within -0.0025 to -0.005 mm. Cutter diameter tolerance is +0.000-0.014 mm on sizes up to 3.0 mm and +0.000-0.018 mm on larger sizes. End mills are 57 mm long and available with AlTiN coating.
