Eriez Magnetics    Erie, PA 16506

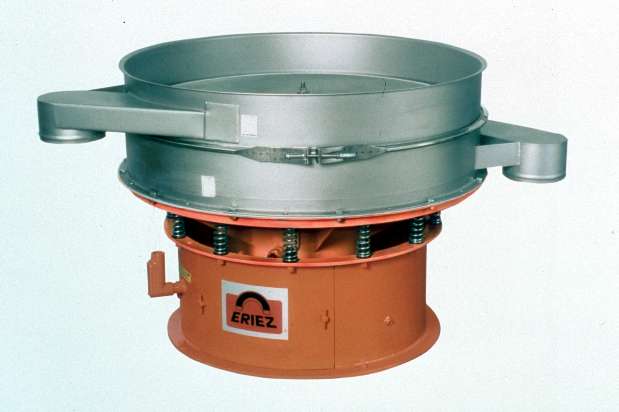

Jul 15, 2004 Fixed-rate, circular Syncro-Sieve® is powered by rotary motor with adjustable weight system, allowing application-specific separation control. By positioning eccentric weights, flow pattern on screen decks is affected, increasing or decreasing product retention time and efficiency. Available in 24, 36, 48, and 60 in. sizes, Syncro-Sieve is suited for slurries, wastewater, minerals, chemicals, and other dry or de-watering applications.

Eraser Company, Inc., The    Syracuse, NY 13221
Jul 15, 2004 Using rotating insert, L2S Bench Wire Stripper removes film insulations from round wires ranging between 8 and 29 AWG, including enamel, Formvar, ML, armored poly-thermaleze, and epoxy. Able to be used for other applications, such as deflashing wires, cleaning legs of electronic components, and cleaning pins on transformers and coils, product also cleans wire wrap, DIP, and relay sockets. It also removes oxidation, flashing, and contaminated solder.

Acqiris LLC    Monroe, NY 10950 1430

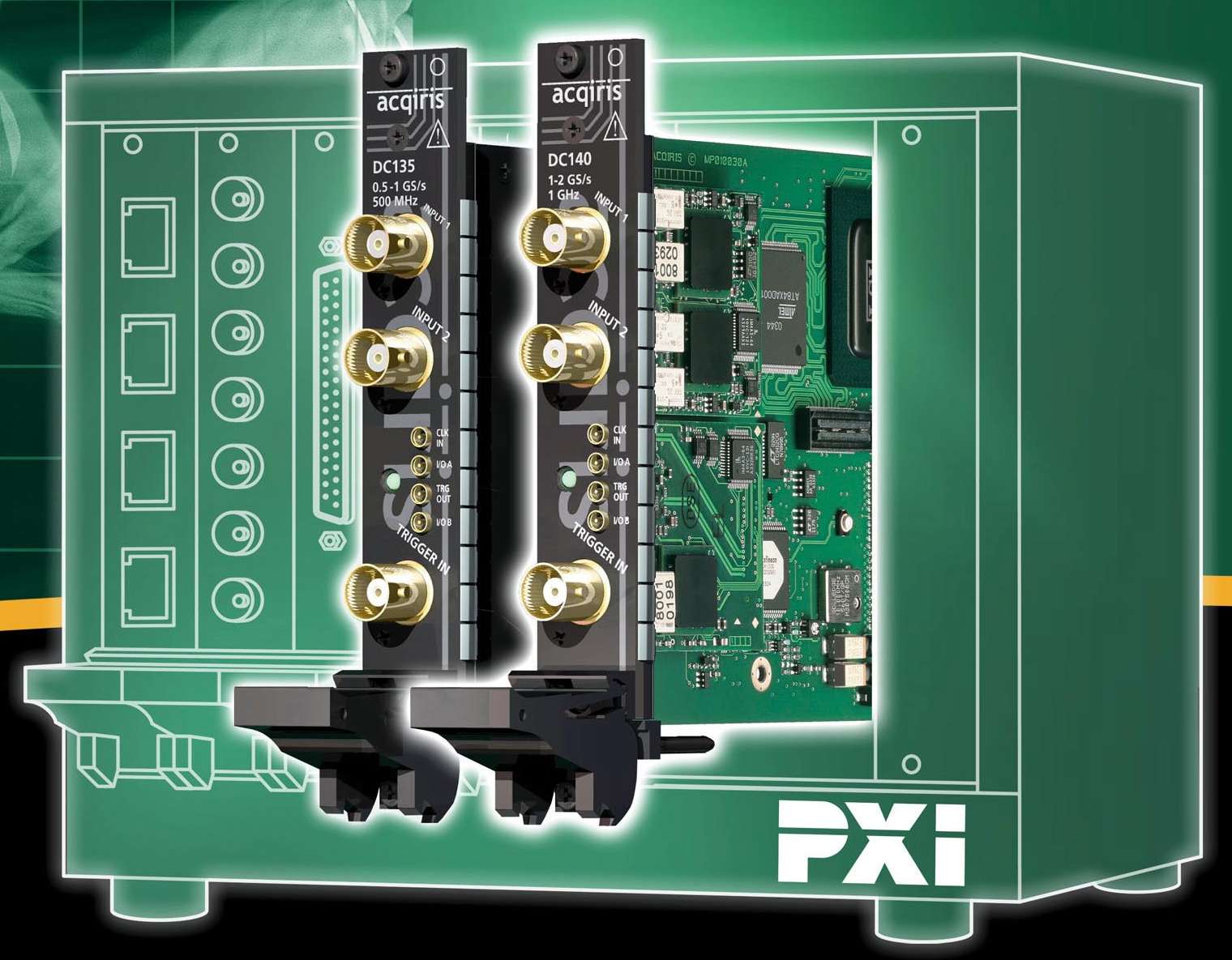

Jul 15, 2004 Delivering respective bandwidths of 1 GHz and 500 MHz, PXI digitizers DC140 and DC135 provide high-speed waveform recording solutions with channel multiplexing capability. Model DC140 provides synchronous sampling on both input channels of 1 GS/s with up to 8 Mpoints of acquisition memory. Model DC135 offers dual-channel sampling rates to 500 MS/s and 2 Mpoints of acquisition memory per channel. Both products suit single- and dual-channel applications.

Techni-Tool, Inc.    Worcest, PA 19490-1117

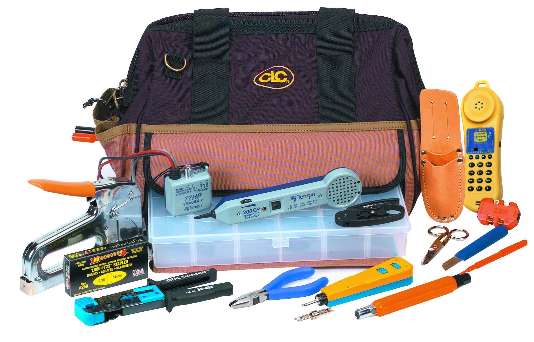

Jul 15, 2004 VoIP Installer's Tool Kit includes connector crimping pliers, tone and probe kit for tracing lines, telephone test set, and impact tool with 2 reversible 66/110 blades. All tools fit into 19 x 16 x 12 in. tote bag featuring 14 outside pockets to store tools, as well as built-in compartment with parts box, allowing storage of connectors, tapes, ties, and other accessories. Also included in kit are cable splicer knife set, cable stripper, and can wrench.

Indco, Inc.    New Albany, IN 47151
Jul 15, 2004 Drum agitators with lids are designed for light agitation of materials in 55 gal drums. When carbon steel lids are placed on drum, agitators can be rotated manually with handle or attached to drum agitator drive.

Sensidyne, Inc.    Clearwater, FL 33760

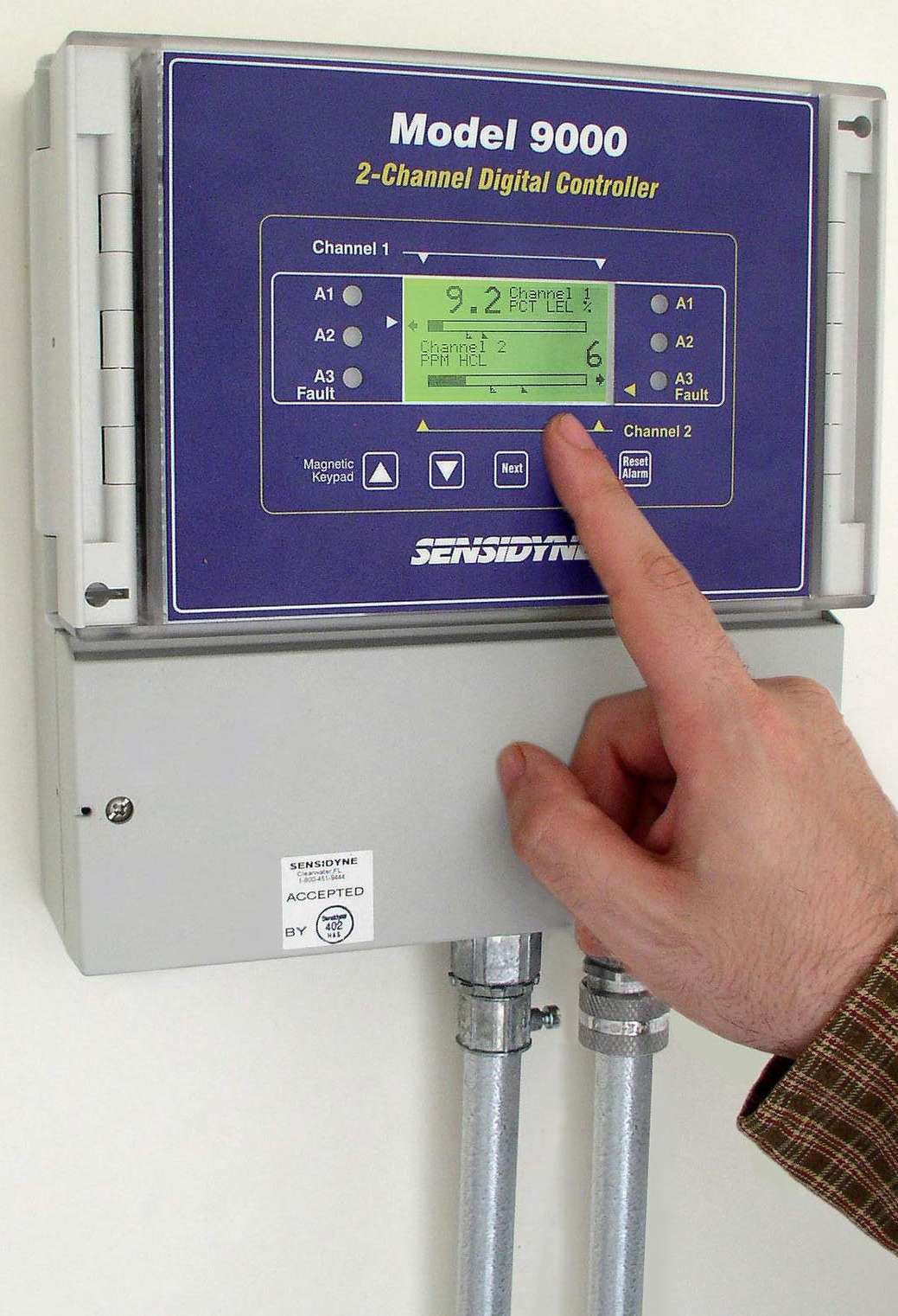

Jul 15, 2004 Model 9000 Controller works with toxic and combustible gas sensors as well as with IR and universal transmitters. With user-configurable alarm relays that can be set as NO, NC, latching, or non-latching, product features configurable alarm delay, 4-20 mA ouput, password protection, and CE Mark and CSA approvals. Backlit LCD shows bar graphs for each sensor channel, displaying current gas level along with high and low alarm set points.

Phoenix Contact    Harrisburg, PA 17111 0100

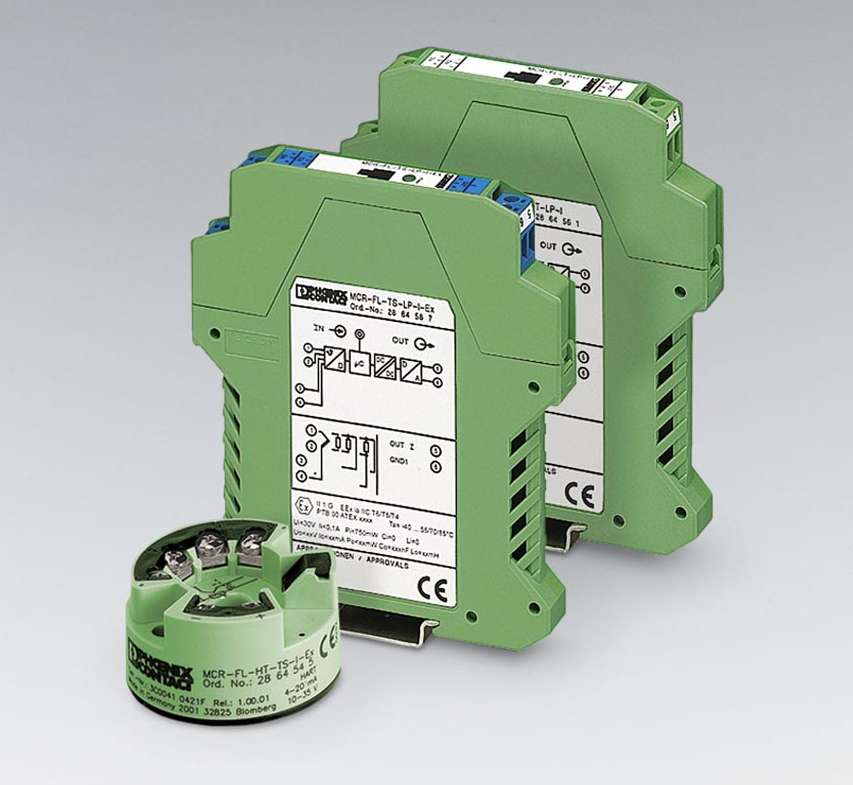

Jul 15, 2004 Loop-powered Series MCR converts temperature signals from RTDs, thermocouples, potentiometers, and sensors with linear mV characteristic curves into 4–20 mA analog signals. Units can be mounted in hazardous, Division 1 areas for intrinsically safe applications. Housings include head mount version for DIN-B style field installations and 12.5 mm version for DIN-rail mounting. LEDs facilitate maintenance and diagnostics in event of wire break or short circuit.

Anver Corp. - Anver.Com    Hudson, MA 01749 3214

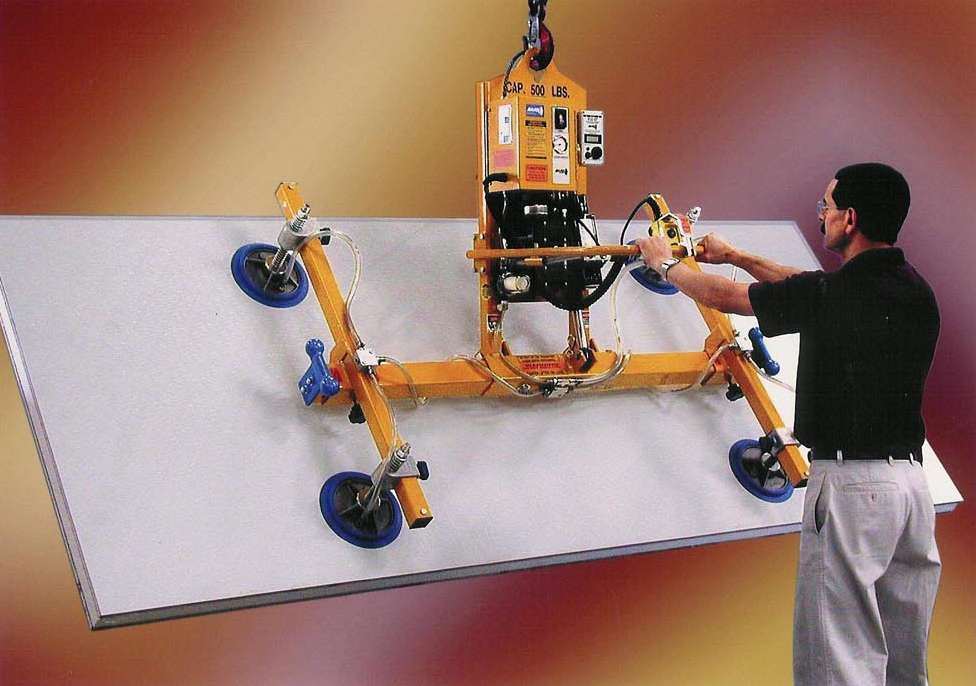

Jul 15, 2004 Custom-configured Powered Vacuum Lifter/Tilters let one person handle wood, plastic, composite, or steel panels from their face. With front handlebar controls for vacuum and hoist, products have soft rubber suction pads that protect panel surface while lifting. Units are available in electric- and compressed air-powered models with fully adjustable cross arms, audible and visual alarms, and capacities of 250, 500, 1,000, and 2,000 lb.

Mettler Toledo, Inc.    Columbus, OH 43240
Jul 15, 2004 Model 8442 incorporates large tower display featuring dual LCD messages. Retailer PC applications can be used to create custom label formats and to maintain all scale related data. Integrated printer offers large label capacity, slides out for access and label loading, and provides default label formats for all specified label types.

Autosplice    San Diego, CA 92121

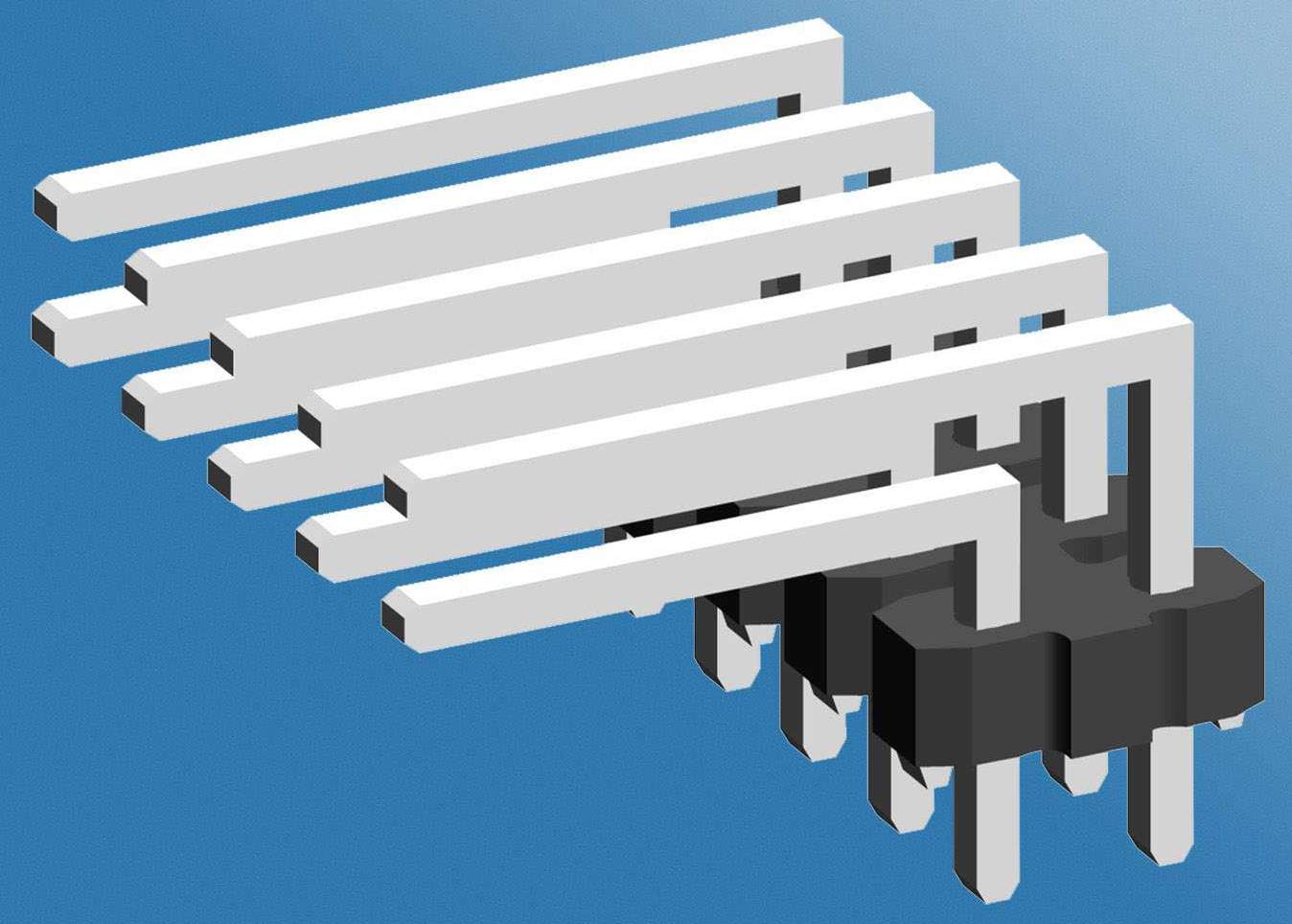

Jul 15, 2004 Right-Angle Autoheader technology provides automation-friendly option for creating PCB interconnects. Autoheader can sequentially provide different length pin headers from one continuous reel. Ordered in single- or double-row configurations, components are available in various pin lengths, diameters, and position counts, including .45 x .45 in. configurations with standard 0.100 in. center-to-center spacing.

Stanley Vidmar    Allentown, PA 18105 1151

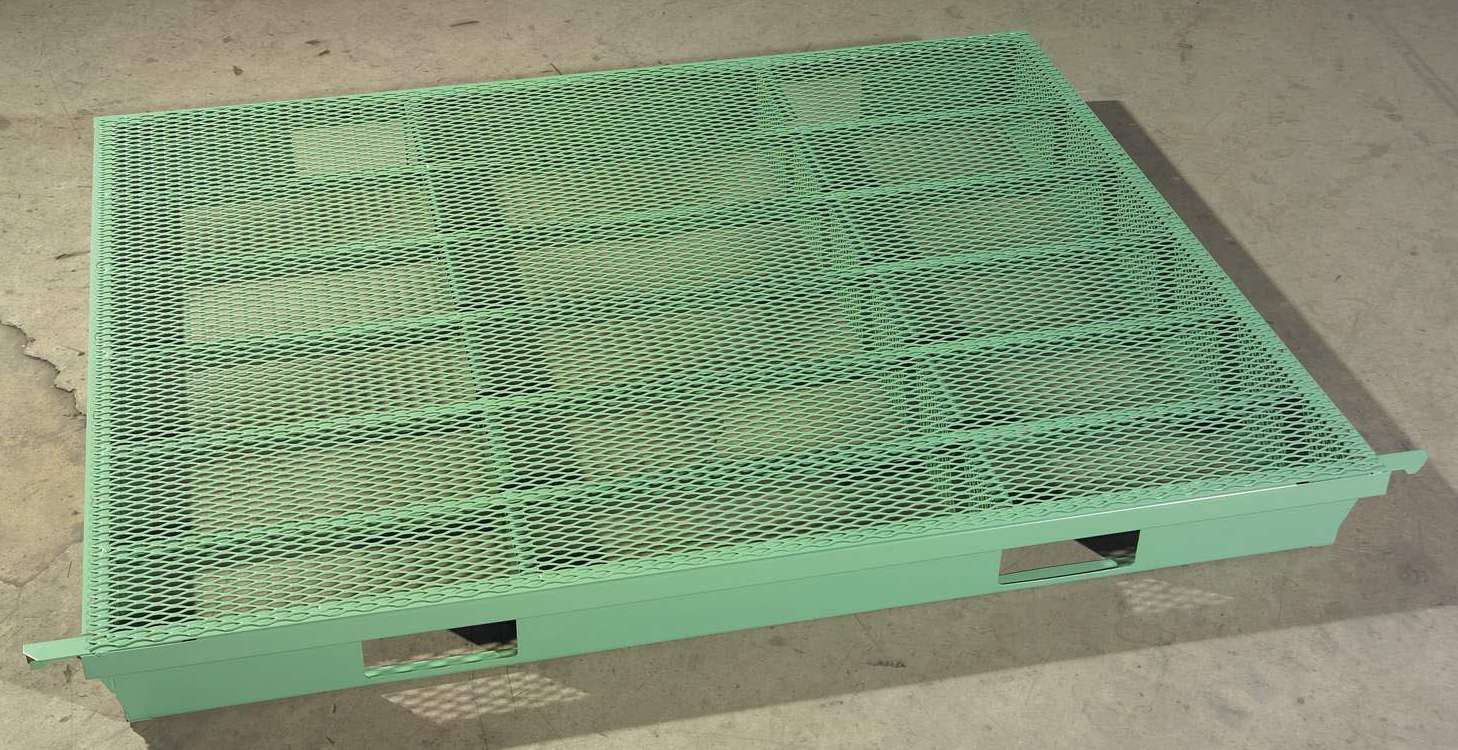

Jul 15, 2004 To help increase coverage from fire sprinklers, Flow-Through Pallet uses open grate design that lets water from overhead sprinklers flow down through upper level pallets to those located below. Where local codes permit, this gives users option of installing one set of overhead sprinklers instead of installing sprinkler heads at every level. Products, available in all standard STAK sizes, support loads up to 2000 lb.

MadgeTech    Warner, NH 03278
Jul 15, 2004 Battery-powered, Tri-Axial SHOCK101 measures and records shock as peak acceleration levels over user-defined interval and can be started and stopped directly from computer. Featuring Windows®-based software that lets user collect, display, and analyze data, recorder has serial interface and is compatible with Palm Pilot®. Sampling at 500 Hz, unit stores peak value for selected interval from 8 readings/sec to 1 reading/hr and stores 43,690 readings/channel.

Schleuniger, Inc.    Manchester, NH 03103
Jul 15, 2004 Model ECM 550 3.3 ton press offers adjustable shut height and 4 crimping speeds. Integrated safety shield protects operators and opens completely to facilitate exchange of applicators. For quality assurance, optional crimp-force monitor can be added and integrated into complete quality network with pull test and crimp height measurement devices.

Schleuniger, Inc.    Manchester, NH 03103
Jul 15, 2004 Designed for use with side- and end-feed banded terminals with open- or closed-barrel construction, UNI-A applicator body and base are machined from one block of metal. Product features toolless adjustments of insulation and wire crimp heights and can be used in 30 and 40 mm stroke presses. Backstroke adjustment is not required. Forward-stroke and bell-mouth adjustments can be made while applicator is mounted in press.

Pressure Profile Systems Inc.    Los Angeles, CA 90045
Jul 15, 2004 Model T3000 turnkey tactile pressure measurement system enables real-time analysis of objects in direct physical contact. Windows®-compatible software converts raw sensor data into color-coded, 3D representation of pressures on irregularly shaped objects. Scalable system delivers out-of-the-box data collection with parallel-scanning architecture and capacitive sensing technology. It supports sensors, individually or in multiple-sensor arrays, at acquisition rates to 128 kHz.

Ergotron, Inc.    Eagan, MN 55121-1627
Jul 15, 2004 Mounted to any vertical or horizontal surface, HD Dual Combo Arm provides stable platform for 2 LCD monitors, weighing up to 20 lb each, and one keyboard. It provides access and ergonomic comfort, with vertical adjustment range of 15 in. accommodating 95% of population. Pivot system and incorporated handle enable monitor and arm adjustment while maintaining touchscreen stability.

ATI, Inc.    Mt. Vernon, IN 47620
Jul 15, 2004 Modular Track Systems feature rubberized idlers and bogies for cushioned ride, permanent lubrication, and auto-tensioning system to absorb impact. Positive drive system combined with 30 or 36 in. rubber track provides traction. Modules weigh 6,000 lb each and can be retrofitted to range of off-road machinery via installation kit. Applications include tractors, seismic vibrators, vibratory compactors, milling machines, agricultural equipment, and mining equipment.

Endicott Research Group, Inc.    Endicott, NY 13761
Jul 15, 2004 DMAD Series DC-AC inverter powers LCDs backlit by 2 CCFLs (cold cathode fluorescent lamps, or tubes) that are used where high brightness and wide dimming flexibility are required. On-board dimming signal mates to most controllers to facilitate integration. Measuring 4.76 x .86 x .50 in., product features up to 12 W of output power and integrated I/O connectors. It also includes external control and onboard PWM dimming with dimming ratio that approaches 500:1.

Douglas Machine    Alexandria, MN 56308 3399
Jul 15, 2004 With speeds to 30 cycles/min, Contourâ„¢ Series S-30 Shrink-Wrapper features scalable heat tunnel with heat and airflow management funtions. Machine also includes servo-driven wrapping wand and function-specific electrical cabinets. Velocityâ„¢ Servo Carton Stacker provides continuous product flow to 600 cartons/min. Tool-free changeovers are accomplished via adjustments and interactive steps provided through machine's HMI.

Techs4Biz Corporation    Markham M5M4N5  Canada
Jul 15, 2004 Pervidiâ„¢ Trade Show Lead Retrieval v2.0 lets users collect and capture full visitor information and data at trade shows. It operates on handheld computer and can transfer information to any PC or laptop. With customizable interface, software captures customer leads and information with help of scanner and swipe-card reader. Options are provided for categorizing, characterizing, and interviewing trade show visitors. System includes PDA, bar-code reader, swipe-card reader, and software.
