MRC Bearings    Lansdale, PA 19446
Jun 23, 2004 Offered with shaft dia from ¾ to 1-15/16 in, bearing units have integrated inserts with set-screw locking capabilities to prevent rotation in housing. Hi-Temperature model has 316 stainless steel inner rings with 304 stainless outer rings to withstand temperatures up to 500°F. Submersible model features 316 stainless steel inner sleeves and polymer outer rings to resist corrosion and wear. Units meet USDA approval for meat, poultry, and dairy applications.

Universal Laser Systems, Inc.    Scottsdale, AZ 85260
Jun 23, 2004 Series XL-9200 features 36 x 24 in. field, and Series XL-12000 features 48 x 24 in. field. Both accommodate broad range of materials. Machine is compatible with 25–150 W air-cooled lasers in single or dual laser configurations for maximum laser power of 300 W. Automatic detection of installed options ensures rapid and error-free machine setups. Optional High Power Density Focusing Optics™ reduces focused spot size and produces finer, more detailed engraving.

MGE UPS Systems    Costa Mesa, CA 92626
Jun 23, 2004 Pulsar EX RT features hot-swappable batteries and form factor suited for use in free-standing tower or compact 2U rack configurations. Online double-conversion UPS topology with built-in automatic bypass enables addition of extended battery packs or fuel cell modules. Other features include 15 A NEMA input plug, 8 standard receptacles, as well as USB and serial ports for communication and power management. Powershare technology allows remote rebooting of systems.

ANCA Inc.    Farmington Hills, MI 48335
Jun 23, 2004 TapX manufactures taps from blank to finished product. All grinding operations, including threading, are performed in one clamping and set-up. Included iTap software compliments machine by allowing flexible tap design and manufacture. With its purpose designed tooling and automation, machine eliminates need for several special-purpose machines. It is offered with pallet loader with 220 tool capacity and robotic loader with 800 tool capacity.

AEMC Instruments    Foxborough, MA 02035
Jun 23, 2004 Personal Voltage Detector, Model 44SVD detects voltage from 2.4 kV and up without physical contact. As unit is moved closer to voltage-carrying conductor, AC sensor plate picks up radiated electric field, which is amplified and processed by internal circuitry. Once process signal is above threshold, it triggers input of integrated circuit, which turns on both buzzer and LED. Detector includes pocket-sized case with built-in belt clip.

Camfil Farr Company    Jonesboro, AR 72401
Jun 23, 2004 V-bank Durafil® Air Filter features high-impact plastic frame and media pack supports for resistance to corrosion. It uses water-resistant glass media in pleat-in-pleat design with up to 200 sq ft of media area. Suited for variable air volume systems, filter handles airflow capacities up to 3,000 cfm, with final pressure drop capability to 2.0 in. wg. Four efficiencies include MERV 11, 13, 14, and 16 based on ASHRAE 52.2 (60–65%, 80–85%, 90–95%, and 99%).

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317

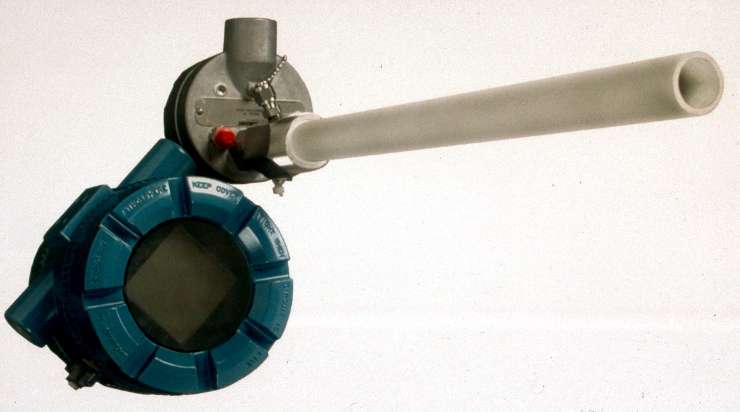

Jun 23, 2004 In Situ Analyzer, Model 5081 FG utilizes zirconium oxide sensor cell constructed of ceramic materials to measure excess oxygen in process temperatures ranging from 1,022-2,550°F. HART® protocol delivers device status and diagnostic data via handheld infrared remote control to technicians servicing and calibrating systems. Mounted close to furnace or radiant section of process flue gas system, unit provides accuracy of ±1.5% of reading.

RF Engines    Newport, Isle of Wight PO30 5WB  United Kingdom

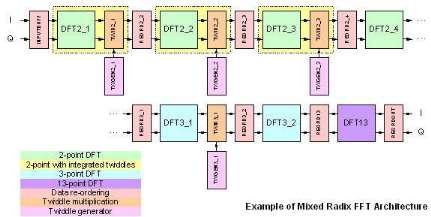

Jun 23, 2004 Matrixâ„¢ digital radio channelizers offer mix and match way to create FFT solutions that maximize silicon efficiency. Range of channel banks, along with rate converter and numerically-controlled oscillator cores, allows channelized receivers to be developed on small FPGA devices. Modules can be used on both Xilinx and Altera FPGA families and can achieve continuous real-time processing of complex data at up to 200 MS/s.

Koona, LLC    Arlington, VA 22202

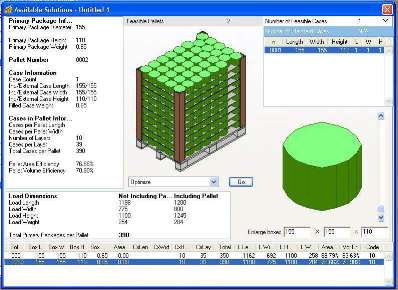

Jun 23, 2004 Available for Windows, Mac OSX, and Mac Classic, Quick Pallet Maker v3.2 calculates and displays optimal pallet loads based on Primary Package or Box dimensions and load restrictions. Version includes container fill feature, KDF flat case view, various pallet views, and HTML output.

PFU Systems, Inc.    Santa Clara, CA 95051-3501

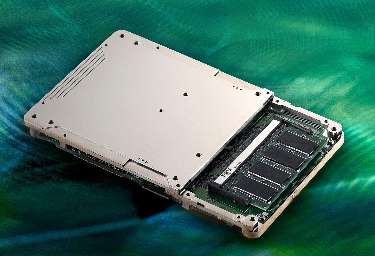

Jun 23, 2004 Plug-N-Run 1.8 GHz G3 Module features Intel® Pentium® M processor 745 for VoIP convergence network applications. Its 2 MB L2 cache combined with up to 1 GB of PC2700 ECC memory is useful in handling large call volumes. High integer and floating point performance make it possible to implement VoIP PBX Host Media Processing server in volume slightly larger than 3.5 in. HDD, or to combine several modules in shoe-box for management, call processing, and N+p redundancy.

Pressure Systems, Inc.    Hampton, VA 23666

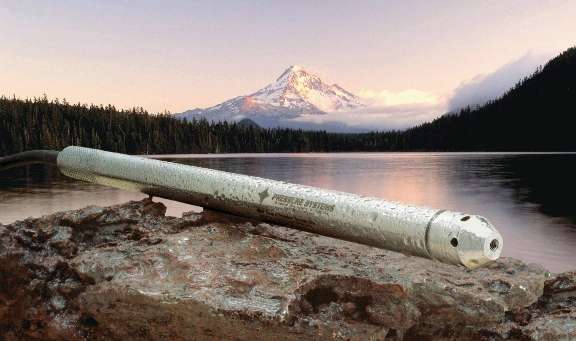

Jun 23, 2004 Series 550 waterMONITOR consists of submersible hydrostatic level transducer capable of storing up to 600,000 level, temperature, and time stamp measurements. It has RS-485 electrical interface using SDI-12 protocol with selectable baud rates up to 19,200. Transducer incorporates 2 or 4 Mb internal non-volatile memory and uploads data at 100 scans/sec. Full-scale level ranges from 0-10 to 0-692 ft of water with +0.05% FS total error band accuracy.

Graco Inc.    Minneapolis, MN 55440

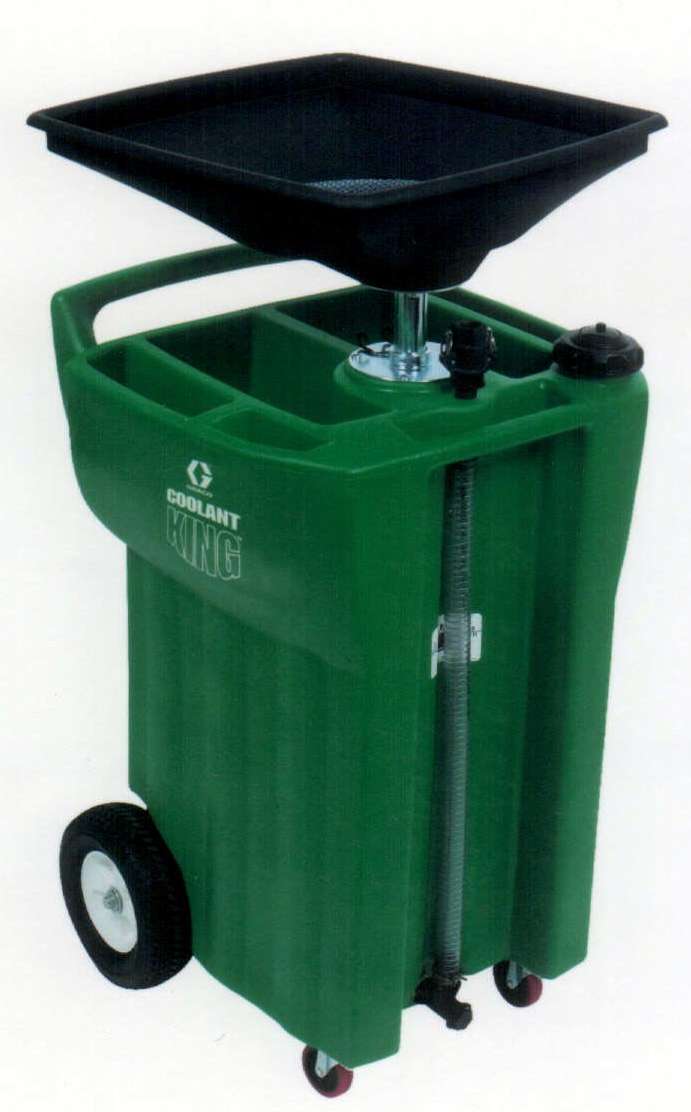

Jun 23, 2004 Green in color, portable Coolant Kingâ„¢ has 25 gal capacity with large 22 x 24 in. rotating collection bowl with removable filter screen that prevents debris from entering tank. Collection bowl is mounted on adjustable neck with working heights from 3 ft 9 in. to 6 ft., and neck features positive-locking clip that prevents slipping. Other features include bottom drain, top evacuation port, and fluid level gauge.

ASSALUB AB    ATVIDABERG S-597 26  Sweden

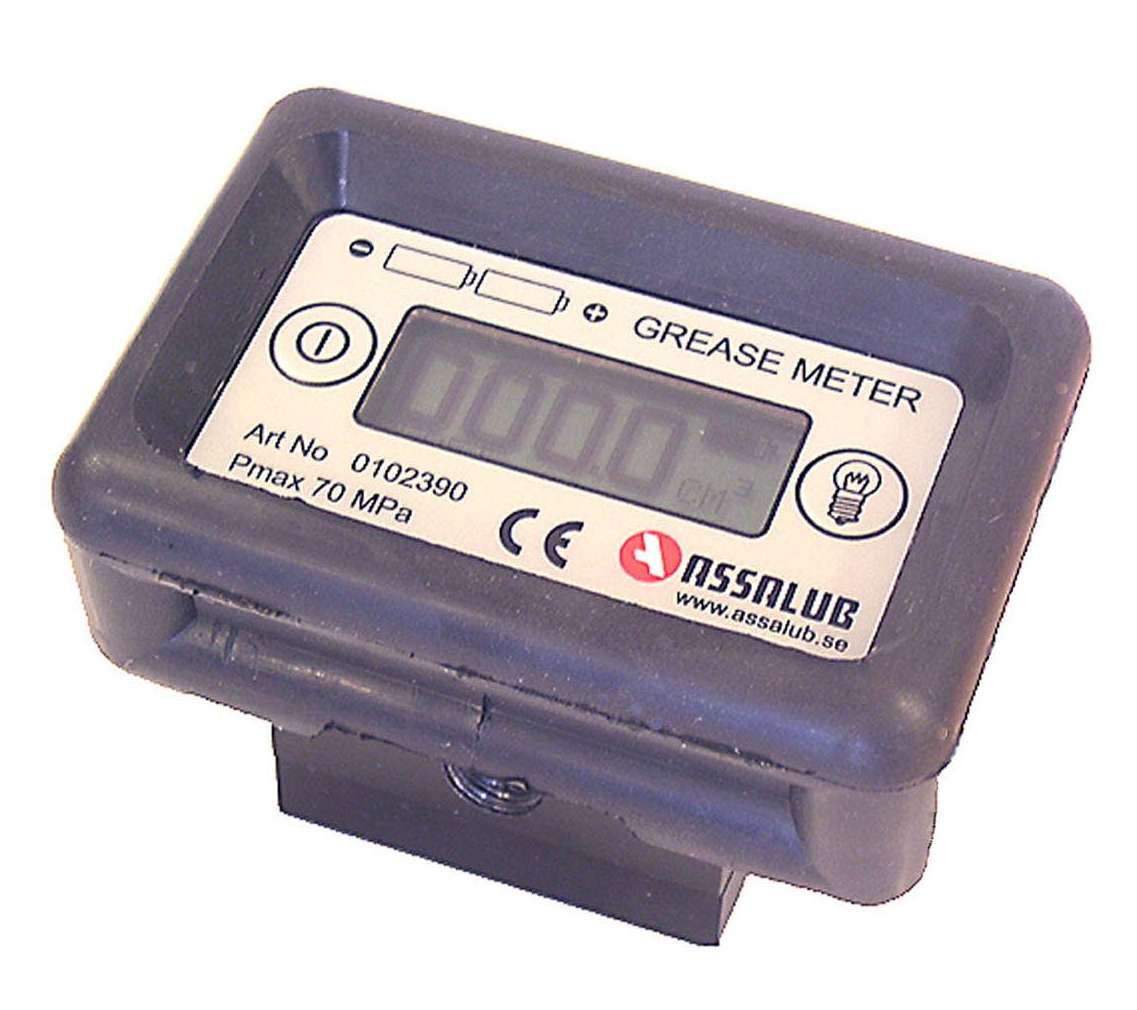

Jun 23, 2004 Using measurement principle based on oval gearwheel, Grease Meter provides tool to lubricate each bearing per manufacturer's recommendations. It can be fitted to all normal hand pumps and valve handles for grease lubrication. Outflow quantity is indicated in g, cm³, oz, or fl-oz on 4-figure, backlit display. Meter has total counter in tons.

Linear Technology Corp.    Milpitas, CA 95035

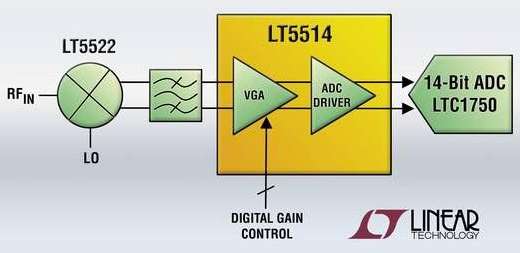

Jun 23, 2004 Model LT5514 850 MHz, programmable-gain, broadband amplifier exhibits output 3rd order intercept of 49 dBm at 70 MHz. It has 2nd and 3rd order distortion products lower than -87 dBc, while delivering 2 V peak-to-peak output into 200 ohm load. Variable gain is adjusted by on-chip, digitally controlled attenuator in combination with fixed gain amplifier. Unit is suited for 12- and 14-bit, 65 MS/sec or faster A/D converters in communication systems.

Proper Storage Systems, Inc.    Seguin, TX 78155

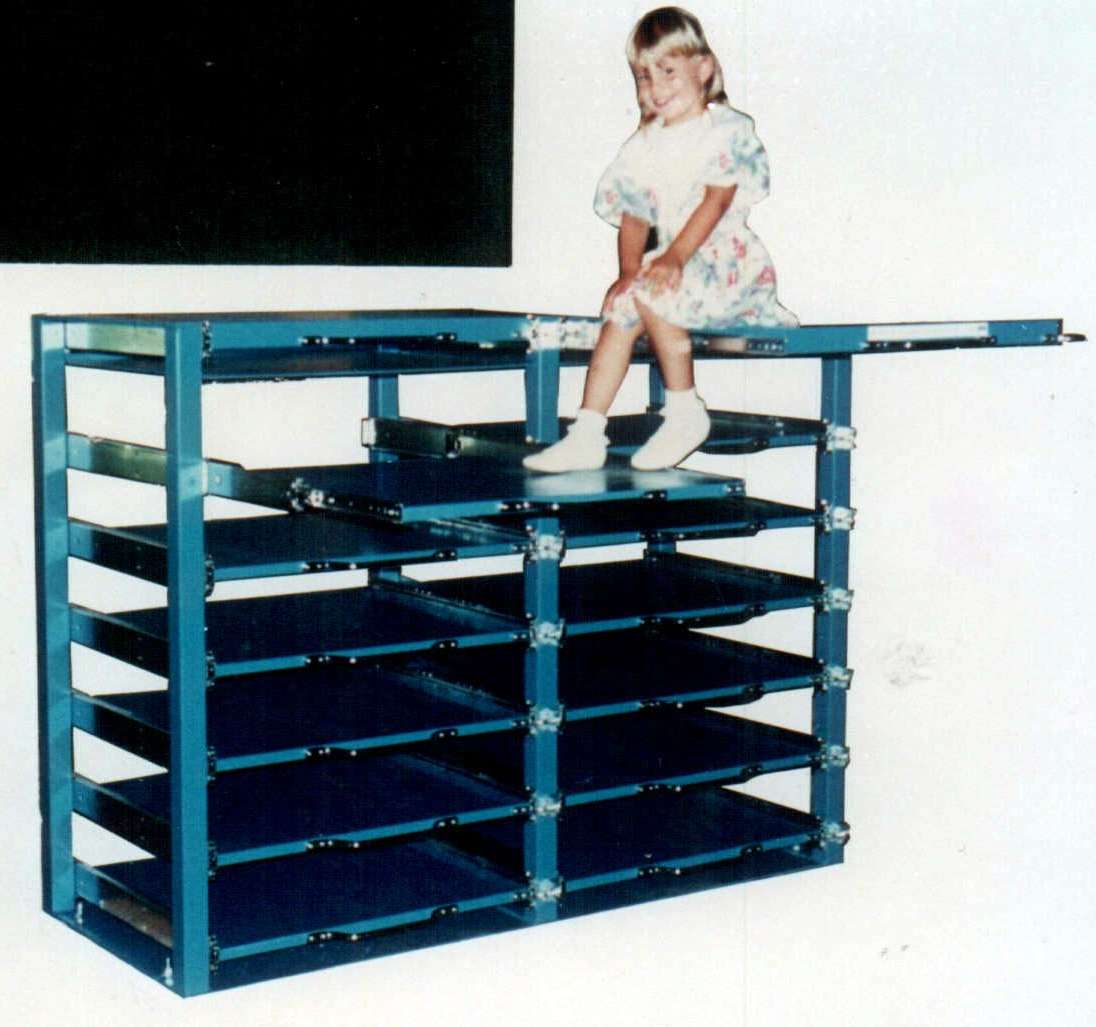

Jun 23, 2004 Full extension shelf and drawer cabinets allow users to store more parts in less space while promoting accessibility. This reduces risk of back injury caused by maneuvering heavy parts in stationary shelving. Users can roll out shelf and manually pick up part or use overhead crane for heavy parts. Units are also available for freezers and ovens. Shelf sizes and capacities are offered to suit unique needs.

Nanomotion    Ronkonkoma, NY 11779
Jun 23, 2004 Available from single-element motor that provides .45 kg of force to ark 8-element motor that provides 3.6 kg of force, HR series can drive linear and rotary stages. HR-V vacuum series is rated up to 10-7 torr, and HR-UV is rated up to 10-10 torr. Both configurations are suitable for bake out and operate without any magnetic field. This makes them suited to E-Beam writing and inspection and other processes sensitive to magnetic fields.

Jerguson Gage & Valve, A Div. Of The Clark-Reliance Corp.    Strongsville, OH 44136

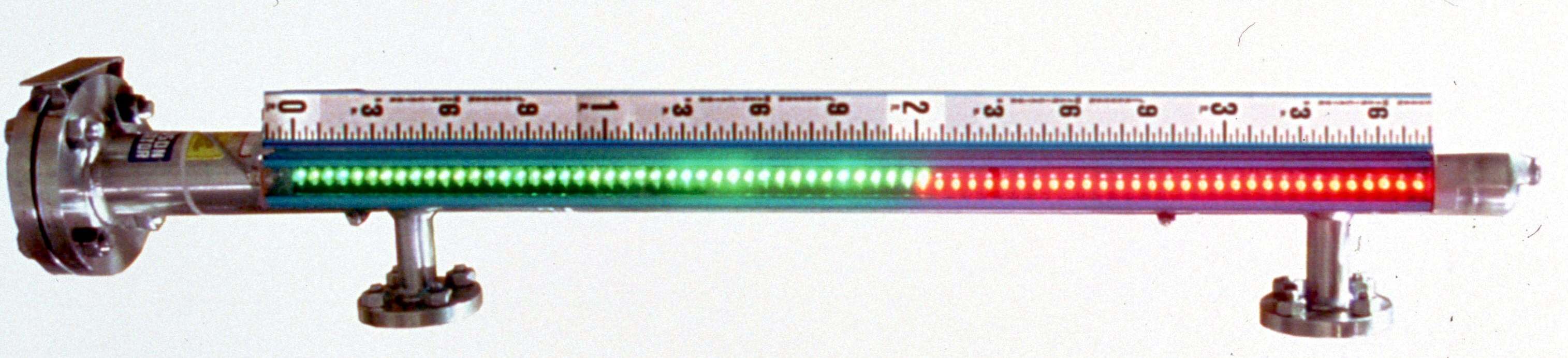

Jun 23, 2004 Suited for Magnicator II® magnetic level gages, LevelStar bi-color LED indicator delivers across-the-plant visibility in day and night conditions. Lights provide continuous service life exceeding 80,000 hr. With no mechanical or moving parts, product is available in 120 and 240 Vac options and FM Approved for use in hazardous environments. Standard and customized color options are available.

Bradford Div. , DVCC    Brookfield, WI 53005
Jun 23, 2004 Made with 304 and 316L stainless steel materials, I-line series includes clamps, end caps, ferrules, elbows, tees, laterals, reducers, valves, and gaskets. Offered as alternative to flange-end stub joints, system consists of male and female ferrule, gasket, and heavy-duty wing nut style clamp. Bolted type clamp is also available for use in high-pressure applications. Products suit sanitary line operations such as juice plants and wineries.

KWALITY PHOTONICS PVT. LTD.    HYDERABAD 500 062  India
Jun 23, 2004 Super Flux LEDs operate at current levels of 170 ma to deliver brightness output of 25,000 mcd, and can also operate at lower current levels of 20 ma with brightness output of 3,000 mcd. LEDs can be used to simulate point light source for enhanced optical performance. They suit applications such as traffic control lights, automobile brake lights, outdoor signs, backlighting, and status indication for industrial controls and machinery.

Systat Software, Inc.    Richmond, CA 94840
Jun 23, 2004 SYSTAT 11 provides statisticians and professional researchers with integrated desktop statistics and graphics software package. It delivers Markov chain Monte Carlo (MCMC) algorithms, Quality Analysis features, and probability distributions with associated probability calculations. Random sampling and fitting distributions procedures are also included, as are regression suite and user interface with interactive graphics features.
