Tyco Electronics Power Systems    Mesquite, TX 75149
Jun 28, 2004 Providing 220 A @ 92% efficiency and less than 5% total harmonic distortion on ac input, GALAXYâ„¢ 595LTâ„¢ Rectifiers convert ac input voltage into dc voltage level required to power end-user equipment. Parallel operation with digital load sharing evenly balances load current among multiple rectifiers. Other features include intelligent fan-speed control, overvoltage and overcurrent protection, and digital meter for current, temperature, or rectifier alarm messages.

Georg Fischer Piping Systems    Tustin, CA 92780
Jun 28, 2004 Manufactured to ANSI specifications with EPDM rubber and TFM (modified PTFE) covering exposed to fluid stream, chemical-resistant SYGEF® Gasket has self-centering design and is offered in sizes from ¾-10 in. Unit fits on outer surface of SYGEF flange adapter, allowing perfect alignment of gasket and creating tight, leak-free seal. Memory properties allow multiple installations.

Dekker Vacuum Technologies, Inc.    Michigan City, IN 46360
Jun 28, 2004 Vmax^VFD liquid ring, oil-sealed vacuum pump produces vacuum on CNC router to hold workpieces on router tool table. Variable speed technology allows equipment to respond precisely to different loads and varies motor speed to match changing machine and usage requirements. Soft start eliminates amperage spikes, reducing energy consumption. Pump operates below 70–80 dBa, depending on size, and is available in 35-5000 cfm.

Artesyn Communication Products Inc.    Madison, WI 53717
Jun 28, 2004 Equipped with dual PowerPC® MPC7447A processors, KatanaQp features 4 PTMC expansion sites, redundant IPMI-based system management interfaces, and PICMG 3.1-compliant AdvancedTCA interface with 10 Gigabit-Ethernet channels. Both processors feature Altivec® vector processing unit, 512 Kb on-die L2 cache, and cache coherency mechanisms for symmetric multiprocessing. KatanaQp is suited for SS7/SIGTRAN signaling, media gateways, traffic processing, and wireless base stations.

AIT Business Services    San Francisco, CA 94114
Jun 28, 2004 Intelligent Commerce Exchange® v1.0 enables organizations to deploy advanced Ecommerce environment, creating alternate buying path for customers, without typical high-end infrastructure, support, and license fees. It offers order-management functionality, administrative toolset, intelligent reporting module, and open architecture-based ERP integration with user maintainable data mapping. Both stand-alone and ERP integrated products are available.

Access Innovations, Inc.    Albuquerque, NM 87110
Jun 28, 2004 MAI-Chem(TM) helps researchers find and index or tag documents that contain variations of chemical names and compounds buried in collections of electronically stored information. First, concepts are compared against proprietary knowledge domain. Program then takes retrieved list of tagged concepts and analyzes their association with other words in document. Words and expressions identified are further compared to database of synonyms and related chemistry phrases.

Creative Science Systems, Inc.    Campbell, CA 95008
Jun 28, 2004 NetZyme Enterprise v6 provides complete interoperability between all versions of Java and ANSI C languages. It operates on any version of Windows; UNIX and Linux; AS/400, S/390 and RS/6000 mainframes; mobile platforms; and all other platforms supporting Java. IDE/GUI is included for rapid development and can be used to design and manage .NET application. NetZyme reduces integration effort with non-intrusive transformation of aging system-dependent programs into distributed applications.

Pacific Bearing Co.    Rockford, IL 61125
Jun 27, 2004 Mini-Rail®MS self-lubricating, motorized, screw-driven miniature linear stages provide smooth and quiet linear motion control. Units require no sealing, emit no particulates, are corrosion-resistant, and tolerate high temperature extremes. Available with 3 different leads, units are suited for semiconductor processing, clean rooms, scanning and input devices, packaging machinery, medical devices, and material handling applications.

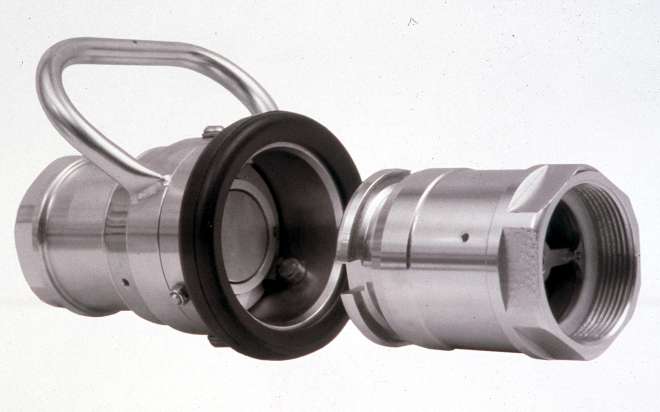

Dixon Valve & Coupling Co.    Chestertown, MD 21620 1135
Jun 25, 2004 Available in sizes from 1½â€“4 in., stainless steel Dry Disconnect Couplings are suited for transfer of chemicals, solvents, and fuels. They allow for connection and dis-connection of hoses and pipelines while eliminating accidental spillage and product loss. Built-in swivel allows operator to use push-and-turn action to connect and start product flow. Turn-and-pull action disconnects coupler and stops product flow.

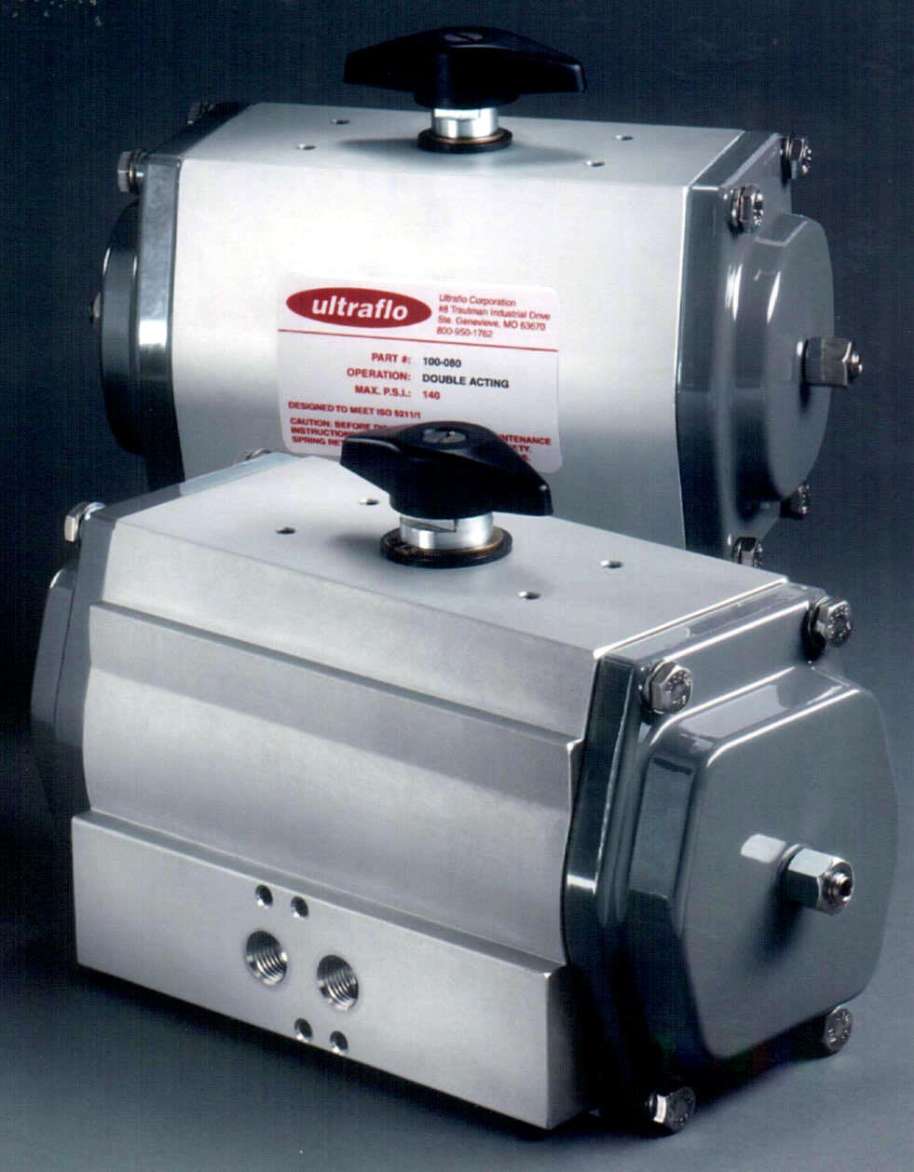

Ultraflo Corp.    Sainte Genevieve, MO 63670
Jun 25, 2004 Series 100 rack and pinion actuators are offered in double acting and spring return designs. Eight models provide output torque at 80 psi from 300–29,000 lb-in. and provide pneumatic actuation up to 140 psig at temperatures from -40 to +200°F. Pre-loaded spring packs eliminate need for end caps and retaining bolts. Fully enclosed unit has integral porting, one-piece pinion, permanently lubricated acetal bearings, and die-cast aluminum pistons.

Engis Corp.    Wheeling, IL 60090 6038
Jun 25, 2004 To facilitate grinding, Megasonic Cooling System uses highly accelerated and focused coolant streams produced by vibration transducer of megahertz order placed in nozzle. Resulting permeability and vibration acceleration removes fine particles. System is suited for grinding of hard materials, such as LCD glass-edge polishing and super-hard metals. Optional sacrificial front nozzle, made of soft material, has exit which faces grinding wheel.

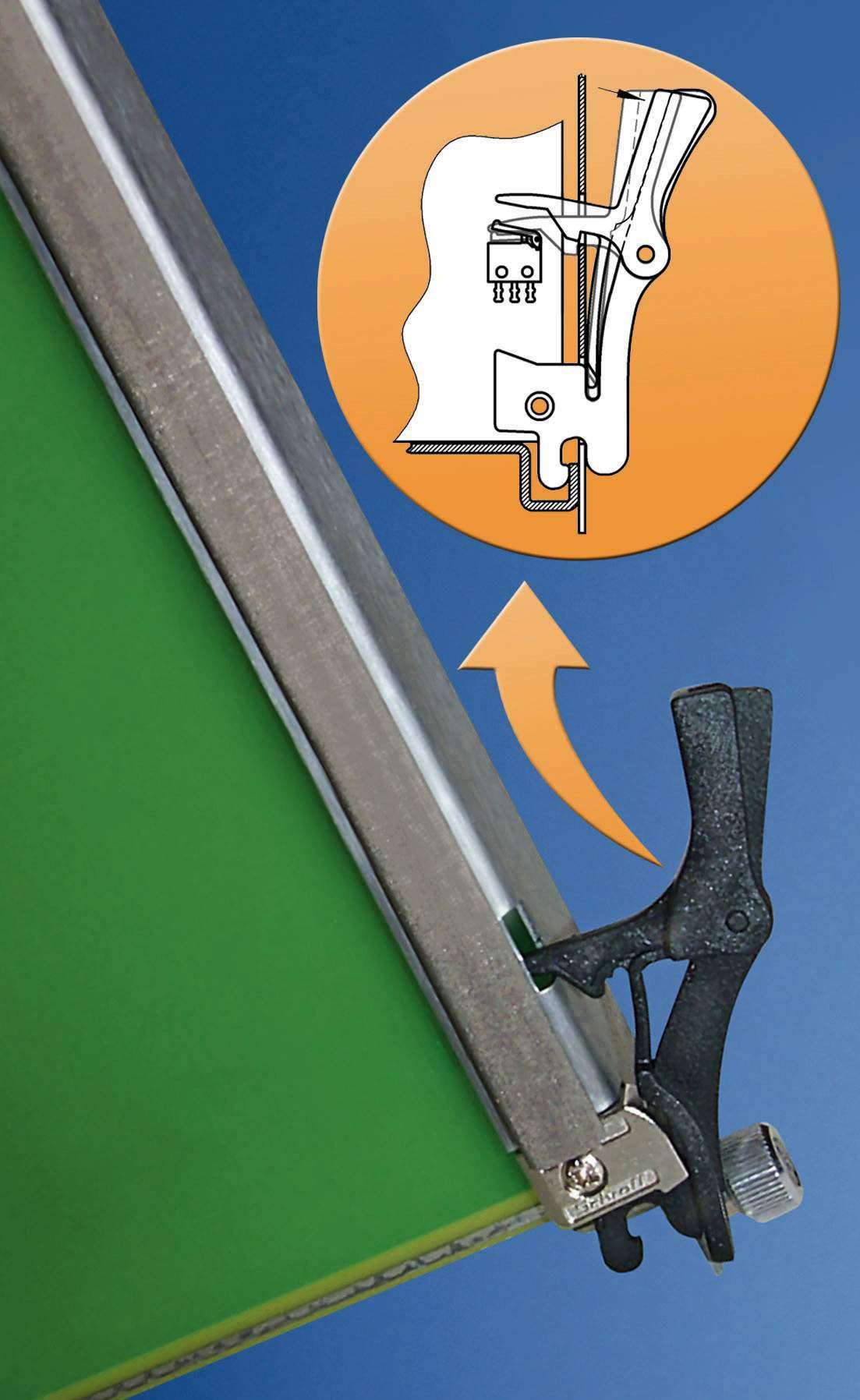

Schroff, Inc.    Warwick, RI 02886
Jun 25, 2004 Addressing requirements of PICMG 3.0 specification, inject/eject hot swap handle for AdvancedTCA(TM) boards is ergonomically designed with intuitive open/close mechanism that separates switch actuation of hot-swap microswitch from inject/eject process. Dual-stage design permits board to shut down electronically before mechanical ejection process begins. Handle locks in open position, preventing accidental board insertion and reducing tilting of board while inserting.

Danaher Motion/Kollmorgen    Radford, VA 24141
Jun 25, 2004 Configurable, modular IDC DS4 Precision Positioning Tables feature IDEAL-SEAL™ system for properly tensioned seal strips. With travel lengths from 50–600 mm, tables incorporate low-profile shuttle carriage, magnetic stainless steel seal strip technology, and precision ballscrew drive with 5 and 10 mm leads. Other features include single-piece carriage and precision-machined aluminum base that accepts inline and parallel motor mounting options.

Fishman Corp.    Hopkinton, MA 01748
Jun 25, 2004 Industrial Polypropylene Syringes, offered in 3 colors and 6 sizes, dispense light and viscous fluids. They feature zero-draft barrel IDs, drip-free pistons, .092 in. wide dispensing orifice, and ANSI/HIMA MD70-1-1983 standard luer lock threads. Offered in 1–50 cc sizes, silicone-free syringes are available in black for visible curing applications, yellow UV block translucent for up to 390 nm, and clear for dispensing epoxies, adhesives, glues, and solder paste.

EPIX, Inc.    Buffalo Grove, IL 60089 6934
Jun 25, 2004 Model PIXCI-SV6 PCI bus master can be installed in 3.3 or 5 V signaling PCI slots. It provides 3-input video multiplexer, which allows signal selection from two BNC and one S-Video input, and supports S-Video, NTSC, RS-170, CCIR, and PAL video formats. Programmable gain, hue, brightness, saturation, and contrast adjustments can condition video signal. Four TTL inputs and 4 TTL outputs synchronize image capture and control external devices.

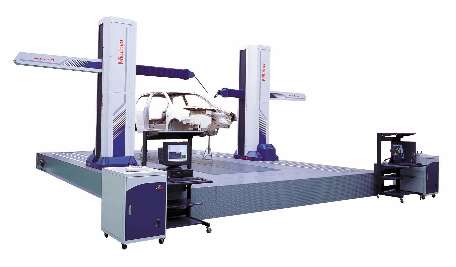

Mitutoyo America Corp.    Aurora, IL 60504 9176
Jun 25, 2004 Auto Body CMM is configured around single or optional dual, horizontal CNC/CMM 3-axis probe head system operating, respectively, from 1 or 2 pylons positioned alongside open bay. Multi-sensor system utilizes Metris LCâ„¢-series non-contacting digitizing probes and variety of scanning, vision, or conventional touch probe inputs. It provides measurement and inspection of best fit, edge/hole search, surface fit, and large data-cloud processing.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Jun 25, 2004 Quick Vision STREAMâ„¢ Series CNC non-contacting video system employs progressive camera with stroboscopic illumination bundled with QVPak® software to enable machine to register measurements while camera-head is in motion. Software enables programming of non-stop mode via intuitive GUI and supports extended 3-D data processing. Machine is suited for measurement and inspection of processes such as molding of plastic or metal parts and PCB assembly.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Jun 25, 2004 Quick Vision Apex® Series CNC systems provide non-contact measurement of IC chips, IC packages, hybrid chassis, lead frames, and molded parts. Programmable power turret tube lens provides zooming for wider field of view at high levels of image detail. Systems are driven by QVPAK software, which displays measurement results in 2D/3D graphics and includes 3-D data processing functions, support of touch-probe measurement with video/TP calibration, and 2 illumination tools.

Nova Analytical Systems Inc.    Niagara Falls, NY 14301 2398
Jun 25, 2004 Model 300 CLD Analyzer continuously measures total concentration of oxides of nitrogen within gaseous sample. Method is based upon chemiluminescent reaction between ozone and nitric oxide (NO) to form nitrogen dioxide and oxygen. Features include 8 switch selectable ranges from 0–3 ppm to 0–10,000 ppm NO/NOx, critical flow orifice flow control, and digital diagnostics.

Metabo Corp.    West Chester, PA 19380 4243
Jun 25, 2004 With torque ranges from 265–575 lb-in., SBP 18 Plus provides drill setting for rotation only as well as hammer drill setting for rotation with impact. Product runs on 18 V battery and features 2-speed gearbox, 5 torque settings, and Variospeed technology. Impuls system lets user drive screws as well as drill in metal and ceramic without center punching. With 1/2 in. keyless chuck, drill provides 22,400 bpm and no-load speeds of 0–400 and 0–1,400 rpm.
