Schroff, Inc.    Warwick, RI 02886
Aug 09, 2004 Card guides feature UL94-V0 flammability rating, tapered entrance, and positive retention installation clips. Screw-down feature is available on molded card guides, and extruded aluminum guide is mechanically screwed into position. Customizable for specific applications using 3-part guide, products include 160 and 220 mm deep SBC guides and 80 mm rear transition board guides. Line supports 4.4 in. board heights and modular disk drive housings.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Aug 09, 2004 PolySwitch TRF600-150 helps provide resettable overcurrent protection in telecommunications equipment that must comply with UL 60950 and TIA-968-A standards. Physical dimensions facilitate use in space-constrained customer premise equipment and permit drop-in replacement for existing designs. Compliant with RoHS Directive 2002/95/EC, product utilizes lead-free construction, has 150 mA hold current, and interrupts power faults.

Plastic Safety Systems, Inc.    Cleveland, OH 44104 2505

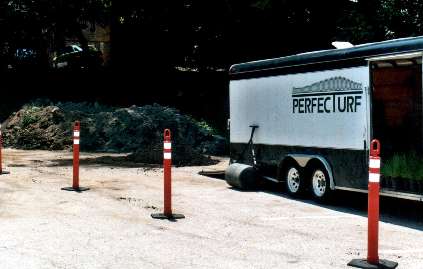

Aug 09, 2004 Navigator Tubeâ„¢ features molded handle that facilitates placement and pick-up from truck bed, as well as multiple unit handling. In addition to providing roping off mount for traffic, pedestrian control, and dangerous construction sites, handle also accepts signs or Type A and C warning lights. Available in 28, 36, 39, and 42 in. heights, Navigator Tubeâ„¢ holds up to 2 bands of 4 in. reflective sheeting. Bases are available in 8, 10, 12, 18 lb.

Eriez Magnetics    Erie, PA 16506

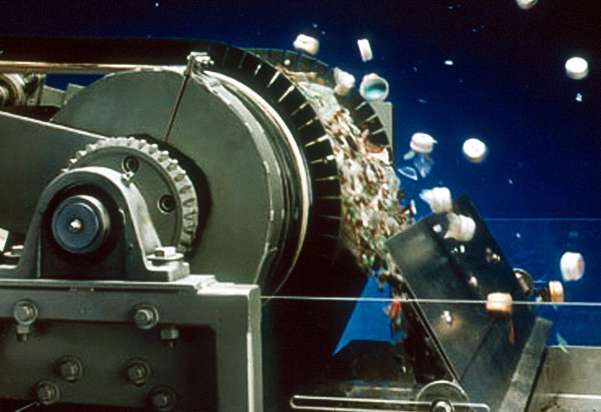

Aug 09, 2004 Eddy Current Separators utilize Erium(TM) 3000 permanent, non-electric rare earth magnets in rotor element to separate non-ferrous materials in plastic, glass, electronics, wood scrap, recycling, and automotive shedder residue. When nonferrous metal passes over rotating separator at high speeds, eddy currents are created in nonferrous metal, generating magnetic field. When polarity of magnetic field is the same as rotating magnet, nonferrous metal is repelled from magnet.

American Stress Technologies, Inc.    Cheswick, PA 15204
Aug 09, 2004 Used with XStress 3000 System, PC-controlled X, Y, Z Table positions parts and maps test information from part. User programs movement between each measurement and stores it as template. To retest, user opens template.

BT Prime-Mover, Inc.    Muscatine, IA 52761 8800
Aug 09, 2004 Eagle Series RTX features hydraulic design and Feather Control Reach and Retract Systemâ„¢, allowing operator microscopic control. Double Reach Model RTX30 has 3,000 lb capacity with 180° steering and max lift height of 360 in. Model RTX35 has 3,500 lb capacity and 270 in. max lift height, while Model RTX45 delivers 4,500 lb capacity and 360 in. lift height. All feature 3-stage, clear-view mast with nested channels and side-mounted cylinders for visibility.

Florida RF Labs Inc.    Stuart, FL 34997
Aug 09, 2004 Gold-plated, Wire Bonding Islands can be mounted between 2 components being wired together using shorter wire leads, reducing overall parasitics in circuit. Units feature option of using tab for connection to circuit with standard thickness of 0.015 in. Made from alumina substrate, devices feature wire-bondable gold conductor, silver ground plane, and gold-plated, beryllium copper tab contact.

Sloan Valve Co.    Franklin Park, IL 60131
Aug 09, 2004 Solisâ„¢, designed with European styling, incorporates touch-free electronics and power plant storage cell that transforms light from any source into electrical energy. Single-hole faucet has no moving parts in waterway and comes with temperature control, electronic sensor, and 0.5 gpm aerator to regulate water flow. With batteries that provide back-up energy that can last up to 10 years, faucet assists with energy and water conservation.

Delta Computer Systems, Inc.    Vancouver, WA 98682
Aug 09, 2004 Model Exp70-D8 provides up to 32 discrete I/O, in 4 software-configurable sets of inputs and outputs, to RMC70 Series motion controllers. It has 12–24 V input range, while outputs can switch 100 mA in same voltage range. Field-changeable unit delivers mix and match flexibility for motion controllers targeted towards hydraulic, pneumatic, and electric servo motion control applications with position, speed, and position-pressure or force needs.

Continental Fan Mfg. Inc.    Buffalo, NY 14215

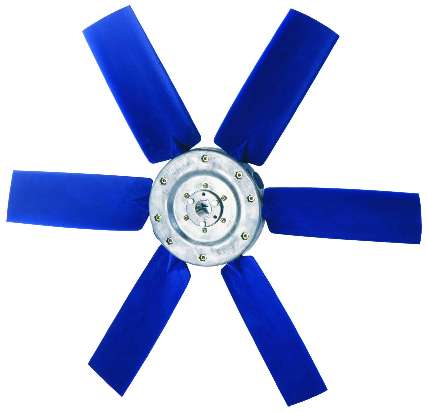

Aug 09, 2004 Designed using computer-aided technology, ELTA Axial Impellers feature pressure cast aluminum hubs and adjustable pitch blades. Available in diameters from 12–79 in., they accommodate up to 18 blades and deliver airflows to 200,000 cfm. Typical OEM applications include general ventilation, cooling towers, heat exchangers, process cooling, radiator cooling, and bulk drying.

ERICO    Solon, OH 44139-2631
Aug 09, 2004 CADDY® BCISN Beam Clamp enables easy installation of 3/8 in. threaded rod for attachment to beam flanges up to ½ in. Without using tools or added nuts, clamp positions on 3/8 in. threaded rod and allows fine tuning and adjustment after rod is locked in place. Standard BC model supports ¼ in. and 3/8 in. threaded rods, S-hooks, electrical boxes, conduits, and bridle rings. Both BCISN and BC are reversible on flat flanges and can be removed when necessary.

EGS ELECTRICAL GROUP • APPLETON    Rosemont, IL 60018
Aug 09, 2004 Series PCD2 photocontrol protects against corrosion, windblown dust and rain, splashing water, hose-directed water, and external icing. It automatically turns fixtures on at 3 ftc brightness and off at 8 ftc. Unit suits use with 120, 208, 240, and 277 V, 35–400 W HID, incandescent or fluorescent, 50/60 Hz fixtures. Applications include petrochemical and chemical plants, paint factories, and wastewater treatment centers.

Research, Inc.    Brooklyn Park, MN 55428
Aug 09, 2004 Available in heated lengths of 10, 16, 25, and 38 in., ChamberIR Model 4069 provides clean heat source that does not contact product being heated. Quartz halogen lamps reach 90% of full operating temperature within 3 sec of cold start and cool down instantly in response to power control signals. Radiant energy dissipates to 10% at 5 sec after power supply is disconnected. Heater is suited for test specimens or products in continuous processes.

FAG Bearings Corp.    Danbury, CT 06813 1933
Aug 09, 2004 X-Lifeâ„¢ products include 4 types of bearings. E1 spherical-roller bearings feature optimized surface finishes and bearing and roller geometries. Angular-contact ball bearings are manufactured with brass, TVP, or pressed steel cages, while SL series cylindrical-roller bearings are available with brass or plastic cages. KUVE and RUE ball and roller monorail guidance systems, suited for dynamic traverse motion and positioning motion, help provide long-term mechanical accuracy.

Oseco, Inc., A Halma Group Co.    Broken Arrow, OK 74012-1449
Aug 09, 2004 PRO+ Rupture Disk features 95% operating ratio to guard against fatigue and premature disk rupture for both gas and liquid services. It operates without using cutting teeth. One-piece design and smooth surface prevent product buildup. With burst pressures from 8-750 psig, disk is compatible with wide range of applications and performs consistently in high- and low-pressure environments.

Newport Corp.    Irvine, CA 92606
Aug 09, 2004 Working with lasers over wide resistance range, Diode Laser Current Driver Circuit is based on switching power supply that drives output current regulator. Key design features include voltage regulator to power current regulator, circuitry to equalize voltage drop across circuit elements, and placement of each on separate heatsinks. By placing 2 heatsinks face-to-face, they can be cooled by single fan for physically compact configuration.

ITW Ransburg Electrostatic Systems    Toledo, OH 43612
Aug 09, 2004 Evolver is available in 60° and 90°, single- and dual-head modules, in either HVLP or conventional air spray, with adapters for all types of robots. Four different modular gun configurations allow correct gun to be selected that best fits application. All valves are grounded within manifold, allowing atomizer to apply more conductive solvent-borne materials, and change color sequence during spraying with no loss of tip voltage.

Times Microwave Systems    Wallingford, CT 06492 5039
Aug 09, 2004 Suited for LMR® low loss coaxial cables, clip hangers are available for sizes 600–1,700 and standard hangers for sizes 400–1,700. Designed for supporting single runs of cable in wireless systems, both types of hangers are fabricated from corrosion-resistant, stainless steel for use in extreme weather conditions. Clip hangers feature locking mechanism, while standard hangers have pre-formed design that allows cable to be snapped into place.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018
Aug 09, 2004 Xgard Gas Detector detects combustible and toxic gases, oxygen, high-volume concentrations of certain gases mixed with air or other gases, and hydrogen sulphide at high temperatures and high background gas levels. It is constructed from A356 marine grade aluminum with polyester coating and is UL approved for flameproof and intrinsically safe configurations. Detector offers accessories for harsh or wet conditions, and collector cone for lighter-than-air gases.

Wizard Industries, Inc.    Van Nuys, CA 91411
Aug 06, 2004 Safety Sport Specs are ANSI Z87.1-2003 compliant, bifocal glasses, offering full frontal impact protection. Side protection is provided by wraparound design that hugs the face curve. Glasses feature 28 mm flat-top bifocal reading segment, and are available in strengths from 1.0–3.0 diopter, in 0.5 diopter increments.
