Chicago Rawhide, Inc.    Elgin, IL 60123
Jul 08, 2004 Featuring solid silicon-carbide sleeve, PDX Cartridge Seal is installed in positive displacement process pumps. Bi-directional annular units insure positive sealing of both thick and thin fluids and allow pump reversing. Available in many materials, seal contains no moving O-rings, no faces to stick or wear, and no springs to clog. It offers dry running capability and is not affected by axial-end play or intermittent operation and torque.

Bardons & Oliver, Inc.    Cleveland, OH 44139
Jul 08, 2004 Double-End Part Machining System is capable of facing, centering, chamfering, and turning both ends of bar stock or tubing. Material previously cut to length by any method may be loaded into machine magazine for transfer through system and finish machining of both ends of part. Set-up for various sizes is facilitated via servo-driven slides and part transfer system. Tooling is quick-change mounted on taper holder.

Elsner Engineering Works, Inc.    Hanover, PA 17331
Jul 08, 2004 Model ESW-48 rewinds and wraps aluminum wire screen and fiberglass insect window screening. Cut lengths of 7-25 ft are standard. Roll widths range from 24–48 in. with finished roll diameter up to 4.25 in. Integral wrapper automatically introduces wrapping film into extended tail of roll as it exits rolling head. Overwrap shrink-film rolls, up to 54 in. wide and 10 in. diameter, can be used. After wrapping, roll ends are automatically tucked and shrunk.

LDPI Lighting    Eau Claire, WI 54703
Jul 08, 2004 Fluorescent Light Corner/Hip Mount features one-piece, 20-gauge, pre-painted steel housing and can be installed at 45° angle, either vertically in corner, or horizontally between wall and ceiling. Unit helps eliminate shadows in paint booths and other areas where proper lighting and detail are critical for illumination of products. Mount is intended for use with Model 390440 Slim Light, 4 ft/4 lamp, fluorescent light fixture.

Sena U.S.A,    San Jose, CA 95134
Jul 08, 2004 Model SS110 enables users to send messages to multiple signboards and access signboards from multiple locations across network. It supports TCP/UDP multicasting enhancement transmission method. Users specify host PC's IP address and port number in configuration menu. In TCP Server Mode, unit can accept TCP connection from control host and provide dual-direction transmission between control host and signboard.

Littelfuse, Inc.    Des Plaines, IL 60016
Jul 08, 2004 Surface-mount, RoHS (Restriction of Hazardous Substances)-compliant Nano² fuses feature gold finish on nickel-plated brass caps. They are available in subminiature and miniature formats, including very fast-acting, fast-acting, Sio-Blo® (time delay), UMF, 250 V UMF, and surge-resistant versions. With 100% tin finish, RoHS-compliant PICO II subminiature axial-lead fuses are available up to 250 V in very fast-acting, Time Lag, or Slo-Blo versions.

Hospital Specialty Co.    Cleveland, OH 44101 4763
Jul 08, 2004 Duo-Sanâ„¢ Dual Action Sanitation System dispenses biodegradable, nonhazardous fluids to clean and deodorize urinals and toilets between regular maintenance. Lasting up to 30 days, cartridge continuously releases agents that eliminate offensive odors caused by ordinary use. Product also promotes airflow over internal scented wick to release fragrance as air circulates through restroom. Molded from ABS, dispenser mounts inline from top or side, or direct to urinal.

W.A.C. Lighting Company    Port Washington, NY 11050
Jul 08, 2004 Series G913 QuickConnect Pendants are offered as accent lighting in 3 colorations: clear frosted, opal cut, and opal etched. Ceiling pendants utilize plated die-cast brass fittings and metal cord sets finished in platinum, chrome, and satin brass. Components include socket set with 6 ft of braided cable and hang-straight tube. Pendant shade is 11¾ in. tall and 2½ in. wide at bottom.

Photovac Inc.    Waltham, MA 02451 1166
Jul 08, 2004 Weighing less than 15 lb and measuring 13.0 x 10.5 x 5.0 in., PetroPRO(TM) high-speed, portable gas chromatograph screens common VOCs on site. It analyzes benzene, toluene, ethylbenzene, and m-xylene compounds in less than 2 minutes down to parts per billion levels. Linear photoionization detector reports concentrations from low PPB to high PPM. Applications include OSHA compliance, fenceline monitoring, petroleum tank pre-entry, and emergency response.

Universal Instruments Corp.    Binghamton, NY 13902 0825
Jul 08, 2004 Platform-based Genesis Lightning features dual heads, each with radial array of 30 modular, individually controlled spindles. Each plug-in spindle module contains tiny venturi vacuum generator to maintain very short vacuum path. Dual on-the-head optics allow machine to address components from 01005 to 30 x 30 mm. Machine supports component preorientation as well as on-the-head rejection for small parts. Windows-based UPS+ software provides graphics-based interface.

Snap-on Industrial    Kenosha, WI 53141 1410
Jul 08, 2004 Model SWR1 Oxygen Sensor Wrench facilitates removal and installation of hard-to-reach, 7/8 in. O2 sensors. Specifically adapted for accessing the O2 sensors of 5.4 and 4.6 liter modular engines, product eliminates need to loosen or remove other exhaust system components in order to access oxygen sensors. Unit has 10.75 in. overall length, steel construction, and chrome finish. Its 7/8-inch hex head measures 1.5 in. dia and has 0.3 in. slot width.

Snap-on Industrial    Kenosha, WI 53141 1410
Jul 08, 2004 Spark Plug Socket Set, Model 2005SPS features self-centering, tapered hex design that provides secure manipulation and release of spark plugs, while eliminating need for rubber inserts, magnets, or springs. Set includes 9/16 and 5/8 in. hex standard length sockets, as well as 5/8 in. hex universal retention socket. Six inch, quick-release locking extension provides extra reach, while medallion gap gauge offers accurate measurements. All are ANSI compliant.

TRUMPF Power Tools    Farmington, CT 06032
Jul 08, 2004 Weighing 18.3 lb, N 700-2 Nibbler employs planetary gear for even power distribution. Equipped with 1,500 W motor and starting current limiter, product nibbles 0.275 in. thick steel and 0.196 in. thick stainless steel. It handles workpieces with bends of up to 90°, double sheets, and welded sections. Operating with minimal vibration, tool features indexable base that can be set for 4 cutting directions and die base that allows machine to cut min radius of 5.3 in.

TRUMPF Power Tools    Farmington, CT 06032
Jul 08, 2004 Model TC L 3030 Plus 5 x 10 ft flatsheet laser cutter integrates Plus axis technology, allowing machine to accelerate at rates up to 1.5 g. Included software automatically evaluates geometry of each part and optimizes job process for efficiency. Machine features Nitrojet high-pressure cutting, Advanced Process Control, and laser resonator with frictionless turbine. Laser is available in power levels of 2000, 2700, 3200, and 4000 W.

Uniloy Milacron, Inc.    Manchester, MI 48158

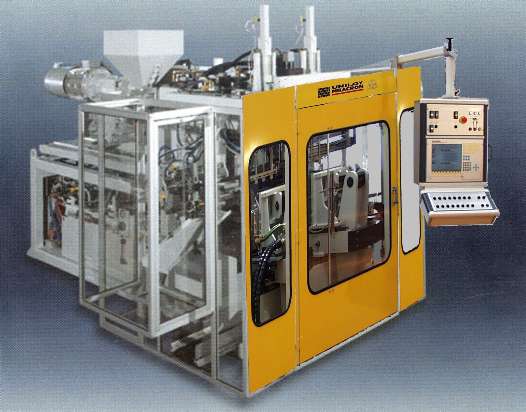

Jul 08, 2004 Shuttle Blow-Molding Machine, Model BW F4 can be configured for single or double stations, each allowing 1, 2, 3, or 4-parison molding of bottles ranging from 0.2–1.5 l capacity. Machine accepts molds up to 12.40 x 10.63 in., while providing 11.02 in. horizontal shuttle stroke and 5.91 in. max daylight opening. PC-based controller includes touch-screen interface, Windows graphic display, bus system, Ethernet connectivity, and tele-diagnostic capability.

U.S. Laser Corp.    Wyckoff, NJ 07481
Jul 08, 2004 Turnkey 3- and 4-axis cutting systems, with conventional or fiber-optic beam delivery, include stent cutting types. Short-pulsed Nd:YAG laser (303-5TSP and 303-50MSP) delivers drilling and cutting results with little or no dross. Touchscreen controller facilitates programming and profile storage. System provides real-time power monitoring for process control. Kerf width of less than 25 mm is achievable.

Gardner Denver Welch Vacuum Technology, Inc    Skokie, IL 60077

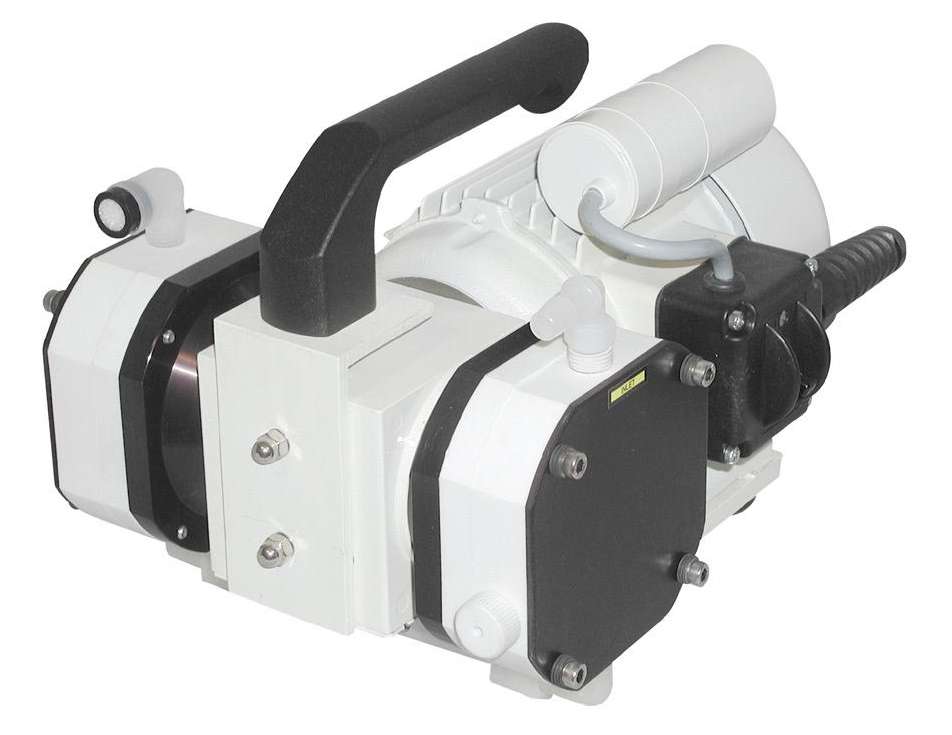

Jul 08, 2004 DryFast Ultra 2-Torr chemical-duty diaphragm vacuum pumps, models 2021 and 2031, are oil-less, 2-stage pumps designed to strip solvents. With respective pumping capacities of 22 and 32 L/min, models 2021 and 2031 are rated for pressure to 29.8 in. Hg and generate flow and vacuum level needed to handle high boiling point solvents (less than 160°C). They utilize corrosion-resistant PTFE on all wetted surfaces and do not require cold traps to operate.

Meetinghouse, Inc.    Portsmouth, NH 03801
Jul 08, 2004 AEGIS Client for Sharp Zaurus(TM) SL-6000 handheld mobile data terminal provides 802.1X wireless LAN security for mobile enterprise users. It supports Extensible Authentication Protocol (EAP) methods such as Cisco-LEAP, EAP-MD5, EAP-TLS, EAP-TTLS, and EAP-PEAP. Software also delivers enterprise-class security for Linux-based mobile data terminal and 802.1X and Dynamic WEP support that defeats presence of rogue and other unauthorized access points.

Toyota Material Handling U.S.A., Inc.    Irvine, CA 92623-7419
Jul 08, 2004 Built on 5,000 lb chassis, 7-Series Electric Stand-Up Rider Counterbalance Lift Trucks are available in 3,000–5,000 lb capacities. They feature independent, function-specific motors and ergonomic features such as operator compartment with flexible side stance position, multifunction control handle, ERGOMAT® floor pad, and cushioned lean points. Additional features include Separately Excited drive motors, Transistor Control System, and multifunction digital display.

PTI - Piezo Technology, Inc.    Orlando, FL 32804 2780
Jul 08, 2004 Utilizing AT-cut or SC-cut resonator technology, Series XO5080 is available for frequencies between 10-125 MHz. Frequency stability is ±.07 ppm for AT version and ±0.02 ppm for SC version, over operating temperature of 0 to 70°C. Series features single +5 V supply and is housed in 1.03 x 1.16 x 0.53 in. true SMT reflow package. Sine and HCMOS logic outputs are available.
