Mi-T-M Corporation    Peosta, IA 52068
Jul 14, 2004 Series HSP portable, self-contained hot water pressure washer utilizes Electro Magnetic Firing system that eliminates need for blower motor, transformer, alternator, battery, or generator. Features include top-fired dual spiral coil with powder coated heat exchanger, direct drive triplex ceramic piston pump, built-in low pressure detergent injection, pressure and high limit safety controls, and reinforced powder coated steel tube frame with center balanced lifting hook.

Edwards Vacuum Technology    Wilmington, MA 01887
Jul 14, 2004 Harsh duty, Model iH-F is available in range of peak speeds from 80-1,800 m³h^-1. It includes sensing system that detects seal deterioration inside pump, allowing user to operate pump for long periods while maintaining confidence in seal integrity.

Edwards Vacuum Technology    Wilmington, MA 01887
Jul 14, 2004 Intended for stringent demands of 300 mm applications, iGX platform is also effective in 200 mm fabs. Active Utility Control feature helps cut utility consumption during idle periods. The iGX provides Ethernet connectivity and web page publishing of key data, as well as comprehensive set of other networking options to assure pump availability.

SICK, Inc.    Minneapolis, MN 55438
Jul 14, 2004 Utilizing receiver with color-independent, complementary metal oxide semiconductor (CMOS) technology, OD series detects surfaces with different reflectance for stable, linear measurement. Self-contained photoelectric sensor and measurement device lets users detect objects and determine their heights and offers continual process checks through digital display. With digital signal processing, series offers measurement ranges from 30 ±4 mm to 250 ±150 mm.

ADMET    Norwood, MA 02062
Jul 14, 2004 Portable Gauge Buster enables technicians to collect tension/compression test data in the field. Unit displays live load, load rate, and peak load/stress numerically and with bar graph. Permanent memory saves test procedures and up to 400 results, even when batteries are removed. Test results can be downloaded to computer for viewing results and load/stress vs time graphs. Indicator runs on 4 AA rechargeable batteries, providing 8 hr of continuous operation.

Tritera Incorporated    San Diego, CA 92138
Jul 14, 2004 BuildSim v2.0 - Windows version provides engineering simulation tool with C++ and Java code generators. It includes Threaded Simulation, which accelerates simulation speed, as well as user interface. Simulations are built using block diagrams and point and click connections, while data plots can be created from simulation data. Bronze, Silver, and Gold editions are available, each with different capabilities.

RAE Systems    San Jose, CA 95134
Jul 14, 2004 Model ppbRAE Plus detects volatile organic compounds in concentrations of 1 part per billion. Photoionization feature extends its upper detection range from 200 parts per million up to 2,000 parts per million. Unit has self cleaning lamp and sensor to minimize need for maintenance and calibration, and resists moisture and dirt. More than 100 built-in correction factors enable unit to measure over 300 different VOCs. System complies with UL, cUL and ATEX certifications.

Fingertip Solutions, Inc.    League City, TX 77573
Jul 14, 2004 Construction Manager Professional v2.5 enables project managers to use handheld computers to manage multiple contractors, deliverables, contracts and proposals, punch list items, and customer lists as well as cost and scheduling information. Suited for any size project, software also lets managers exchange project data using PDA, and download all project data to central location for dissemination. Wide range of downloadable reports are available for printing.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jul 14, 2004 SuperGlazeâ„¢ aluminum MIG wire, in 200 lb Accu-Pakâ„¢ box, is available in 3/64 in. dia for 5356 aluminum-alloy electrode type. When wire is used up, operator removes ring, cardboard core, and corner supports; collapses box, and places all in recycle bin. Accu-Trakâ„¢ precision wire delivery system provides twist-free wire placement in arc and eliminates wire flipping during feeding. Package incorporates lifting strap to easily move box with forklift.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jul 14, 2004 Mini Flexâ„¢ can be used in confined spaces and offers automatic start/stop function. Engineered 4-stage filtration system employs LongLife-H® and secondary HEPA filters, providing filtration capacity of up to 99.9%. Standard wheel set and optional wall-mounting bracket enable unit to be moved around or positioned off work floor. Powered by two 1.34 hp motors, product operates at noise levels of 70 dB(A).

Schneider Packaging Equipment Co., Inc.    Brewerton, NY 13029 0890
Jul 14, 2004 Robotic Case Packer-Palletizer provides automated, end-of-line solution that loads, labels, scans, and palletizes cases. Utilizing 5-axis Motoman robot, with XRC Controller, capable of moving up to 176 lb, it accepts pallet sizes up to 48 x 48 in. and unit loads to 72 in. high. Features include flexible, custom-designed End of Arm Tooling; programmable Allen Bradley Logix controller with touchscreen operator interface; and product and case infeed conveying system.

Opal-RT Technologies    Montreal, QC H3K 1G6  Canada
Jul 14, 2004 RT-LAB Electric Drive Simulator features OP5000â„¢ technology for Hardware-in-the-Loop simulation applications. Based on Xilinx Virtex IIâ„¢ FPGA processor, OP5000 series captures and generates digital events to 10 ns resolution. It includes modules that offer 16-bit analog signal conversion with 16 simultaneous sample/hold channels at up to 1 MHz per channel. Fully integrated software and hardware solution has multiple parallel Pentium 4 processors.

Comtech AHA Corporation    Pullman, WA 99163
Jul 14, 2004 Low Density Parity Check Code Core supports numerous codes, modulation schemes, and data rates, which can be changed on-the-fly to accommodate changing channel conditions. LDPC codes provide a bit error rate that is closer to Shannon Limit than other error correction technologies for all code rates. Core implemented in FPGA supports block sizes up to 30 kbits, input quantization up to 6 bits, and programmable iterations up to 256 per block.

Techno Sommer Automatic    New Hyde Park, NY 11040
Jul 14, 2004 Featuring T-slotted jaw design, GH6 Series Long Stroke Parallel Grippers include T-slot jaw guide that is fully supported along entire jaw travel. Jaw synchronicity is ensured via rack and pinion drive, while 2 cylinders that power jaws are connected through internal porting. Main air ports are located on side, and alternate ports on bottom allow connection to manifold plate. Grippers are available with up to 660 lb gripping force.

Ultra Motion    Cutchogue, NY 11935

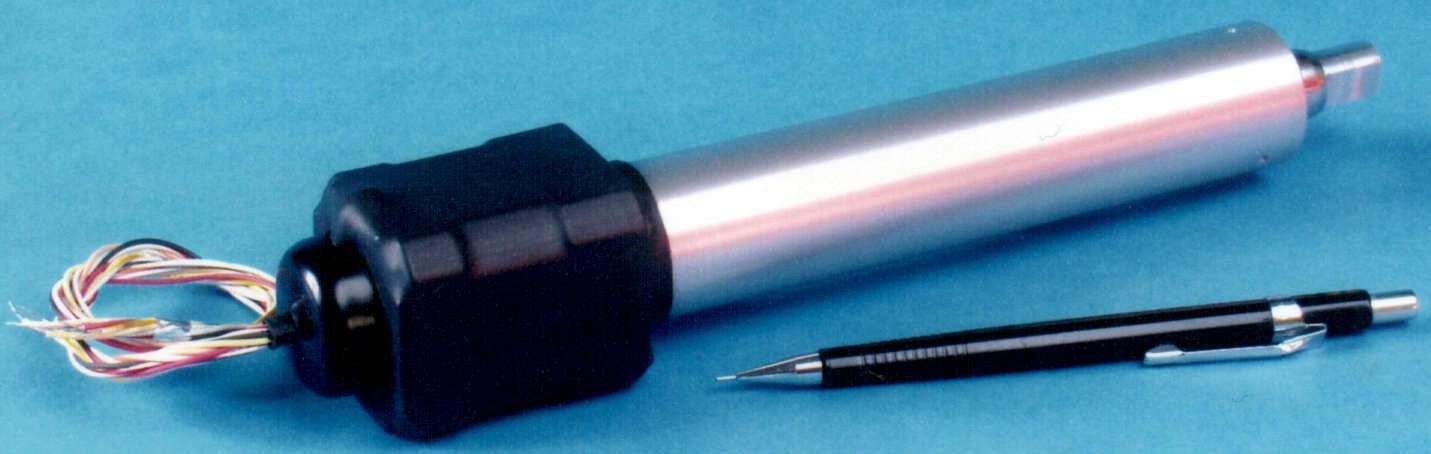

Jul 14, 2004 Models ESLA-17 and ESLA-23 are NEMA 17 and 23 size Environmentally Sealed Linear Actuators based on DIGIT(TM). Motor end is sealed with polyolifin shrink tubing and polyurethane adhesive sealant, while non-magnetic, polished stainless steel shaft features Buna-N U-Cup seal. Both models come in 2, 4, and 8 in. stroke lengths with linear step resolutions to 2,400 steps/in. and max speeds to 16.0 ips. Max force for ESLA-17 and -23 is 97 and 392 lb, respectively.

Communications Specialties, Inc.    Hauppauge, NY 11788
Jul 14, 2004 Pure Digital Fiberlink® 7220 Series transmits high-resolution RGB and stereo audio over one single mode or multimode fiber optic core at 1,550 nm wavelength. It is compatible with any type of display device that supports VGA, SVGA, XGA, and WXGA, plus HDTV resolutions of 480 p, 720 p, and 1,080 i. System uses all digital processing and transmission and requires no adjustments, equalization, or de-skewing during installation.

Handmark Inc.    Kansas City, MO 64106
Jul 14, 2004 Available for Palm OS and Windows Mobile devices, Pocket Expressâ„¢ v1.2 provides PageOne view for access to news, stocks, weather, sports, 411 directory search, movie details, and maps. Features include US News and Life news categories, photos in all news channels, street level maps and directions, weather watches and warnings, and Doppler radar images. Package also enables wireless search of residential and business directories.

Huntingdon Fusion Techniques-USA Inc.    Melbourne, FL 32936-1175

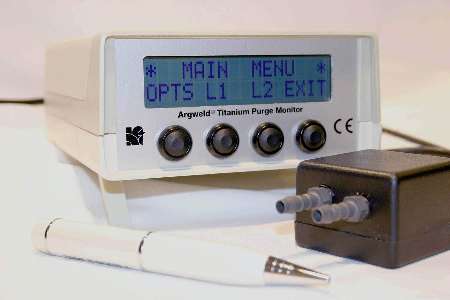

Jul 14, 2004 Titanium Purge Monitor incorporates universal cut-off feature for interlocking with automatic or manual TIG/GTAW welding equipment. Feature allows welding to be stopped when oxygen levels reach preset concentrations so that welds are protected from oxidation, porosity, and unwanted reactions. Suited for welding titanium, exotic metals, and stainless steel, unit is calibrated at 10 ppm or 0.001% oxygen and allows monitoring in real-time.

TRUMPF Power Tools    Farmington, CT 06032

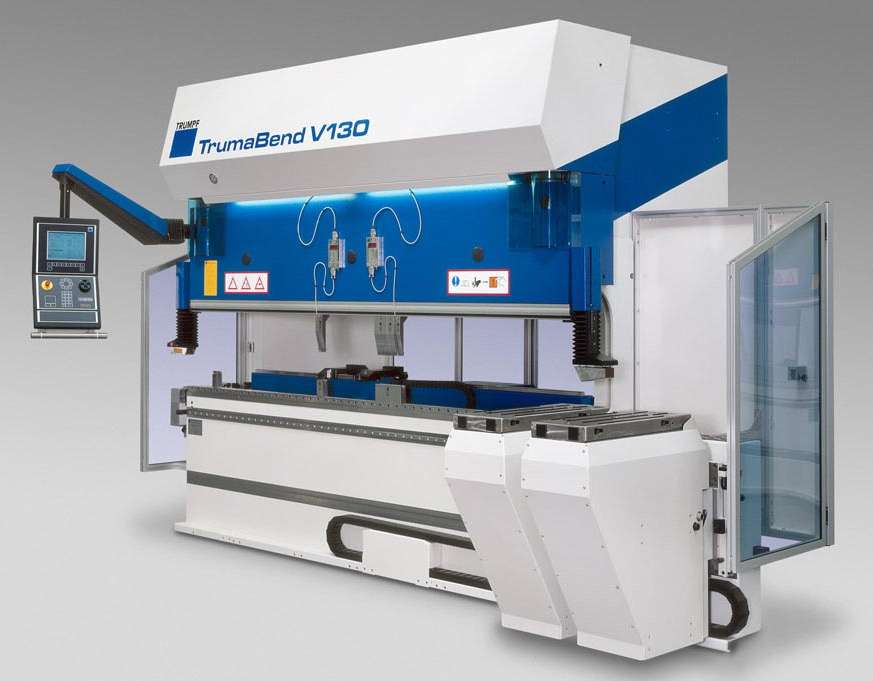

Jul 13, 2004 Equipped with graphic-interactive interface, TrumaBend V Series press brakes apply press force uniformly to press beam and tool. Tonnage is measured in kilonewtons, and repeat accuracy is rated at 5 µm. Equipment can reach up to 519 ipm on upstroke and downstroke with same motor power. Backgauge system and bending aid are equipped with measuring system, and rapid pressing function during sheet hemming reduces cycle time.

AEMC Instruments    Foxborough, MA 02035

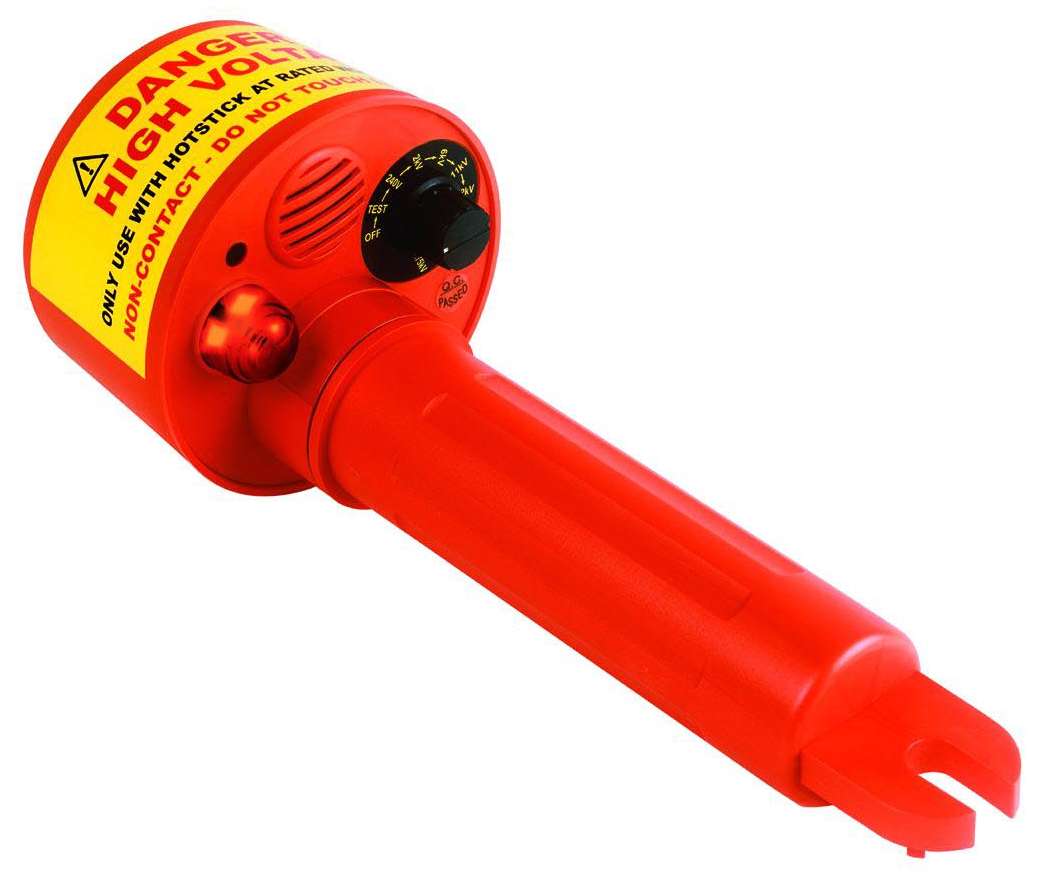

Jul 13, 2004 Able to detect presence of voltages from 80 V to 275 kV without physical contact, Model 280HVD employs 10-position rotary switch that selects detection range. As lightweight sensor is moved closer to voltage-carrying conductor, sensor head picks up radiated electric field. Once range threshold is reached, audible and visual indicators warn operator of live conductors. Universal spline on back-end facilitates attachment to any standard hot stick.
