Bivar, Inc.    Irvine, CA 92618 2593

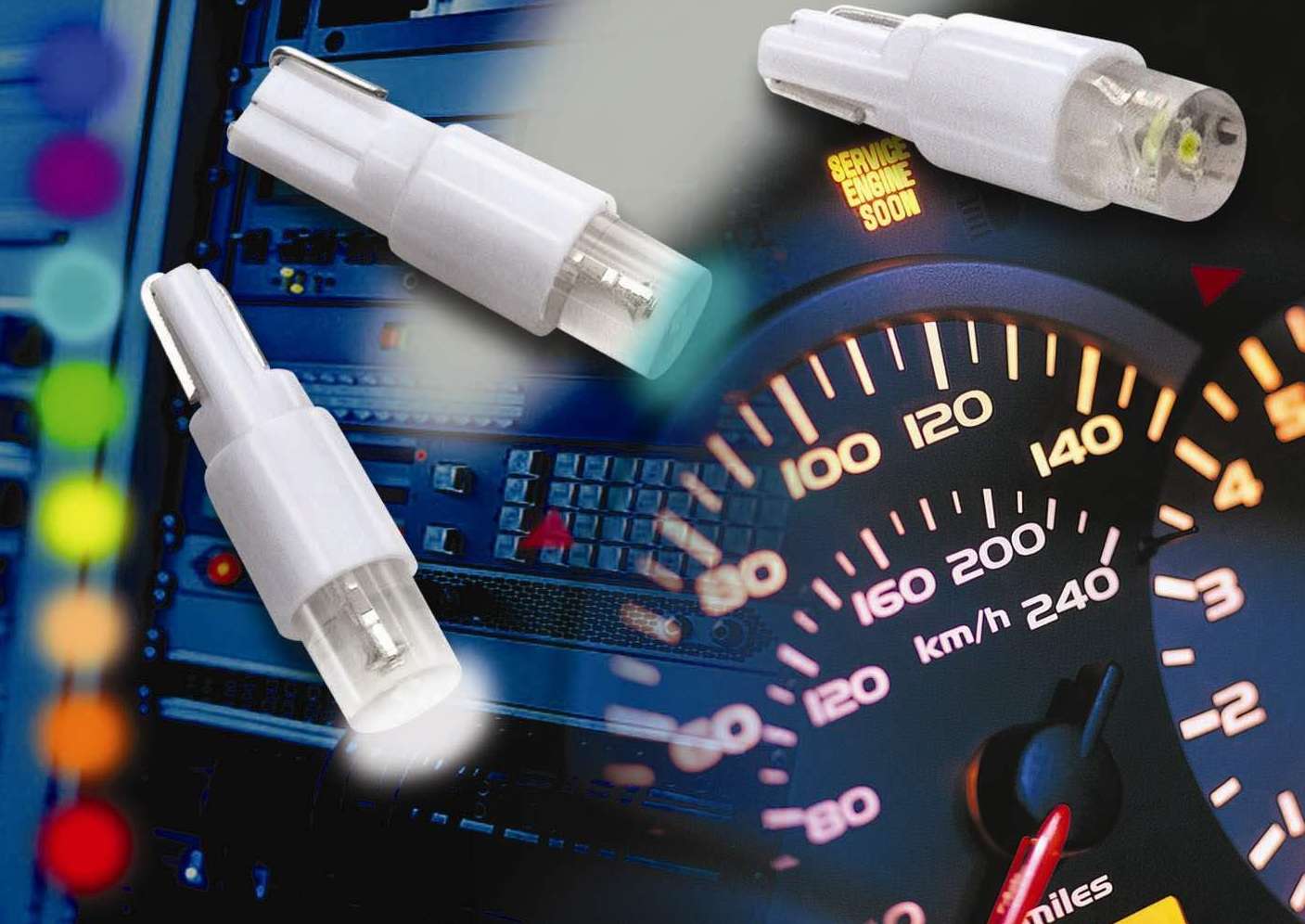

Jul 28, 2004 Designed to replace T-1 ¾ wedge-based incandescent bulbs, WB5 Series LEDs feature flat-faced lens design with internal reflector for light intensity. Subminiature products, rated 2.5–48 Vdc, measure 0.80 in. long and 0.230 in. in diameter. With service life rated at up to 100,000 hr, LEDs require typical operating current from 10–30 mA and come in 10 standard colors. Custom colors and electrical characteristics are available.

B & R Industrial Automation Corp.    Roswell, GA 30076
Jul 28, 2004 Power Panel 100 features flat, fan-free construction, as well as Compact Flash and many display choices up to 15 in. XGA TFT. Thin client software manages connections between industrial PCs, Power Panel 100 devices, and server. Thin clients act as I/O units since applications are executed on server itself. Networked using Ethernet TCP/IP standard components, clients do not require passwords since preferred client automatically connects to server upon startup.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783

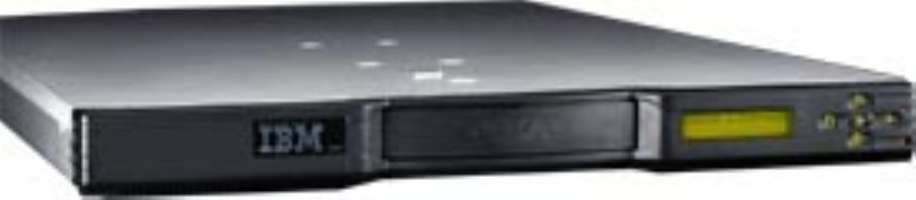

Jul 28, 2004 With 1U form factor, 7212 Model 312 VXA-2 Autoloader supports unattended data storage, archiving backup, and retrieval for PC work groups in multiserver networks. Compatible with eServer pSeries® and RS/6000® servers, VXA-2 packet tape drive achieves physical data transfer rate of up to 12 Mbps and stores up to 160 GB of compressed data per cartridge. Up to 10 data cartridges can be stored on rotating carousel.

Caterpillar, Inc., Engine Div.    Mossville, IL 61552 0610
Jul 28, 2004 Driven by electronically controlled, lean-burn gas reciprocating engines, Cat® G3500E Series natural gas-fueled generator sets operate on Miller Combustion Cycle. They deliver mechanical efficiency up to 44.5% due to camshaft and turbocharger design. Models G3516E and G3520E are 16- and 20-cylinder units operating at 50 Hz/1,500 rpm and 60 Hz/1,200 rpm respectively. Both incorporate ADEMâ„¢ III digital microprocessor control and air/fuel ratio control.

Adaconn & Inserta Products, Inc.    Blue Bell, PA 19422

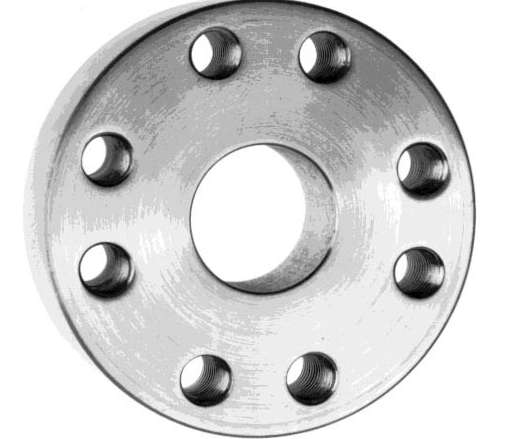

Jul 28, 2004 Made of steel, INSERTAâ„¢ 90° Flange Rotational Connectors range in size from 1/8–3 in. They are available with Code 61, Code U461, or Code 62 ports of same size. Models with different Codes or sizes of ports on connector are pressure-rated based on lower of 2 pressure-rated flange connectors. Code 61 connectors are used to connect Code 61 to Code 61 4-bolt flanges, while Code U461 retainers connect 2 Code U461 4-bolt flanges when higher pressure rating is required.

Bug-O-Systems, Inc.    Pittsburgh, PA 15204-1899
Jul 28, 2004 With welding torch clamped on, 4-wheel drive, battery-operated Mini-Vert will travel and carry welding gun in flat or vertical positions, allowing production of continuous, uniform fillet welds. Quick torch mount allows welding gun to be rapidly moved from one side of machine to the other.

MUEHLBAUER AG    Roding 93426  Germany

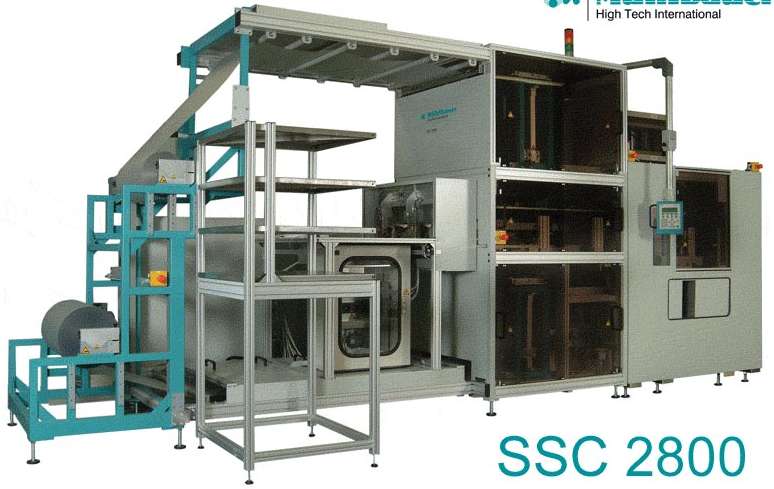

Jul 28, 2004 With SSC 2800 semiautomatic sheet collating system, core sheets are placed manually onto infeed table, aligned, automatically welded, and brought into machine. Overlay material is fed in automatically from roll, and features can be positioned before being welded to printed core. Complete set is cut into matching sheets and placed on output stacker. With collating accuracy of ±0.15 mm, machine features throughput rates to 600 sets/hr and steel welded framework.

Servo Dynamics    Chatsworth, CA 91311

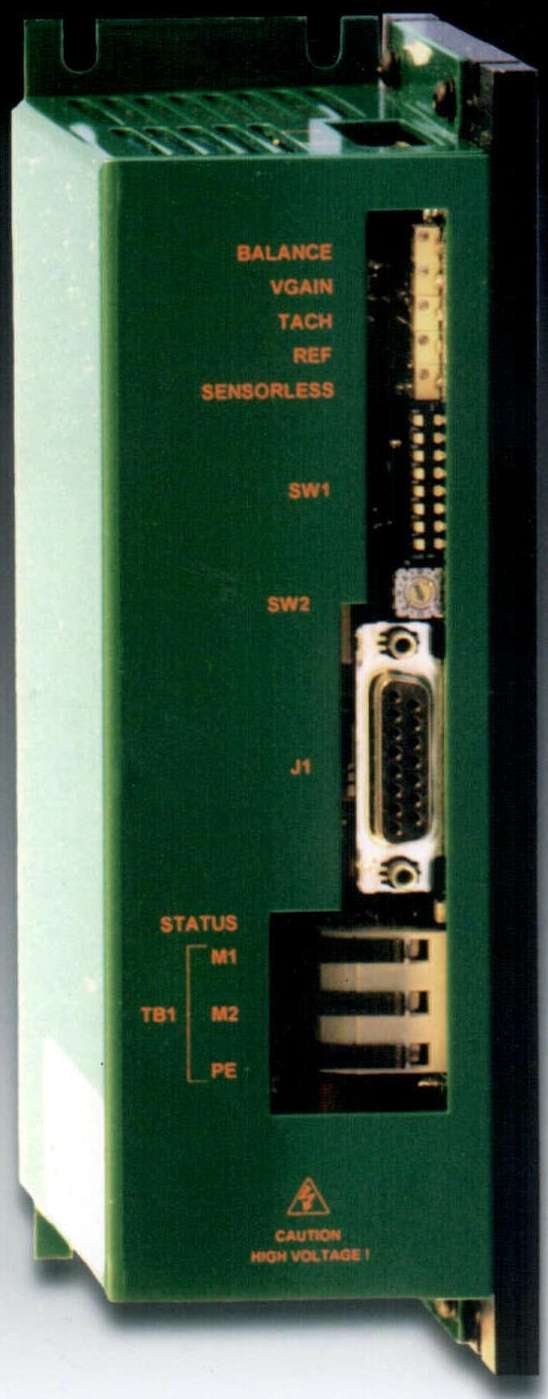

Jul 28, 2004 Compact servo drives in MB2 AC Series, available in 8, 16, and 24 A continuous models, can be configured for low- or high-inductance servomotors. Models rated 8 and 16 A operate from 40–220 Vac and have switch selectable peak currents of 2 or 3 times continuous current. Model rated 24 A operates from 40–120 Vac. All drives incorporate LED indicators and digital and analog circuitry and can operate in current, velocity, or position mode.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 28, 2004 Based on open standards, Lotus Workplace integrated collaborative products provide capabilities such as e-mail, calendaring and scheduling, instant messaging, and Web conferencing. It also includes team spaces, document and Web content management, and learning. Server-managed client model provides administrators with security-rich, no touch deployment model coupled with central policy-based management of end user's desktop environment.

Accutech Div., Adaptive Instruments Inc.    Hudson, MA 01749

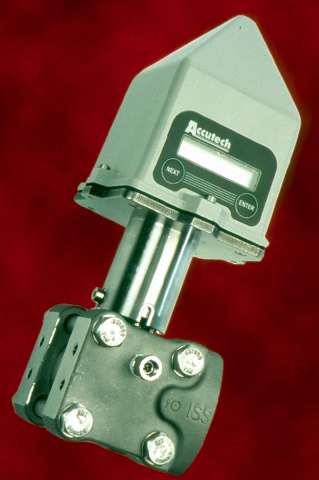

Jul 28, 2004 FM-approved, Wireless Field Units transmit differential pressure, orifice flow, open channel flow, and level readings to control center at regular intervals. Utilizing FHSS communications, 900 MHz ISM license-free units offer transmission range up to 3,000 ft and assure complete security. Sensors are available in 5 ranges, from ±100 in. H₂O, to 300 psi differential, all at 2000 psi max static pressure and with accuracy to ±0.1%.

Airguard Industries, Inc.    Louisville, KY 40218

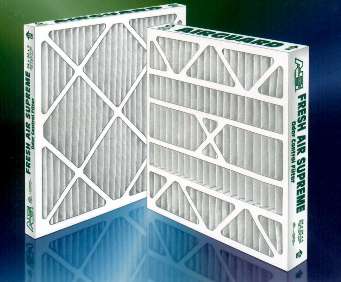

Jul 28, 2004 Available in 2 and 4 in. thicknesses, Fresh Air Supreme uses chemically-enhanced carbon to remove odors and compounds, including diesel fumes, mercaptans, sulphurous odors, hydrogen sulfide, acid gases, and VOCs. Unlike conventional activated carbon that relies exclusively on physical adsorption, media used in Fresh Air Supreme captures odors through chemical reaction and adsorption. Media is self-supporting and does not require metal backing to shape pleats.

B & K Precision Corp.    Placentia, CA 92870

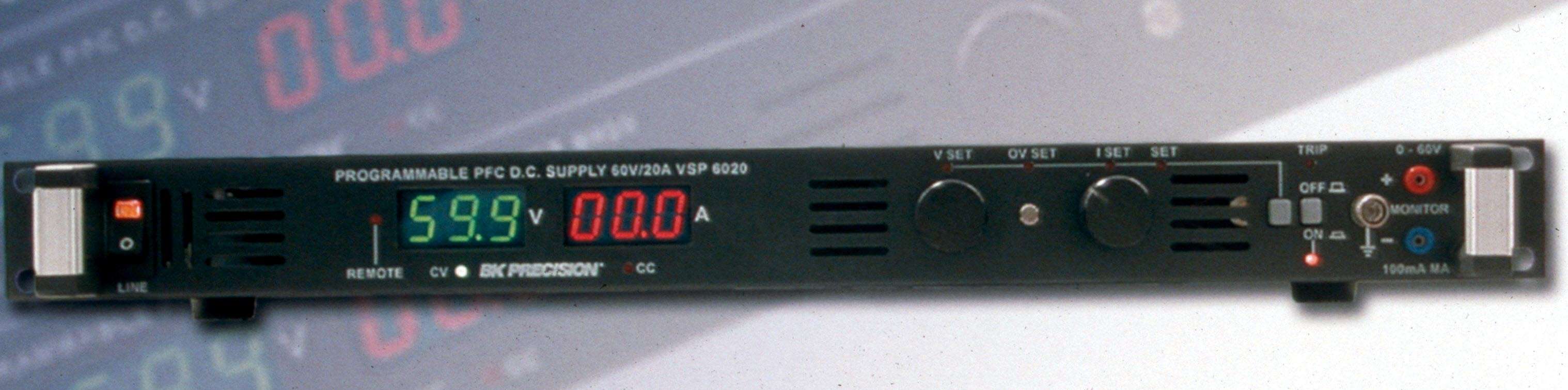

Jul 28, 2004 Utilizing switch mode technology, Model VSP6020 offers as much as 1.2 kW in 19 in. rack-mounted 1U chassis, while keeping noise levels under 20 mV. Analog remote sensing automatically maintains desired voltage at load level of power cable. With output of 0–60 Vdc/0–20 A, unit is suited for automatic test equipment, research and development labs, as well as telecommunications. Up to 9 units can be cascaded, producing more that 10 kW of dc power.

Spantech, LLC    Glasgow, KY 42141

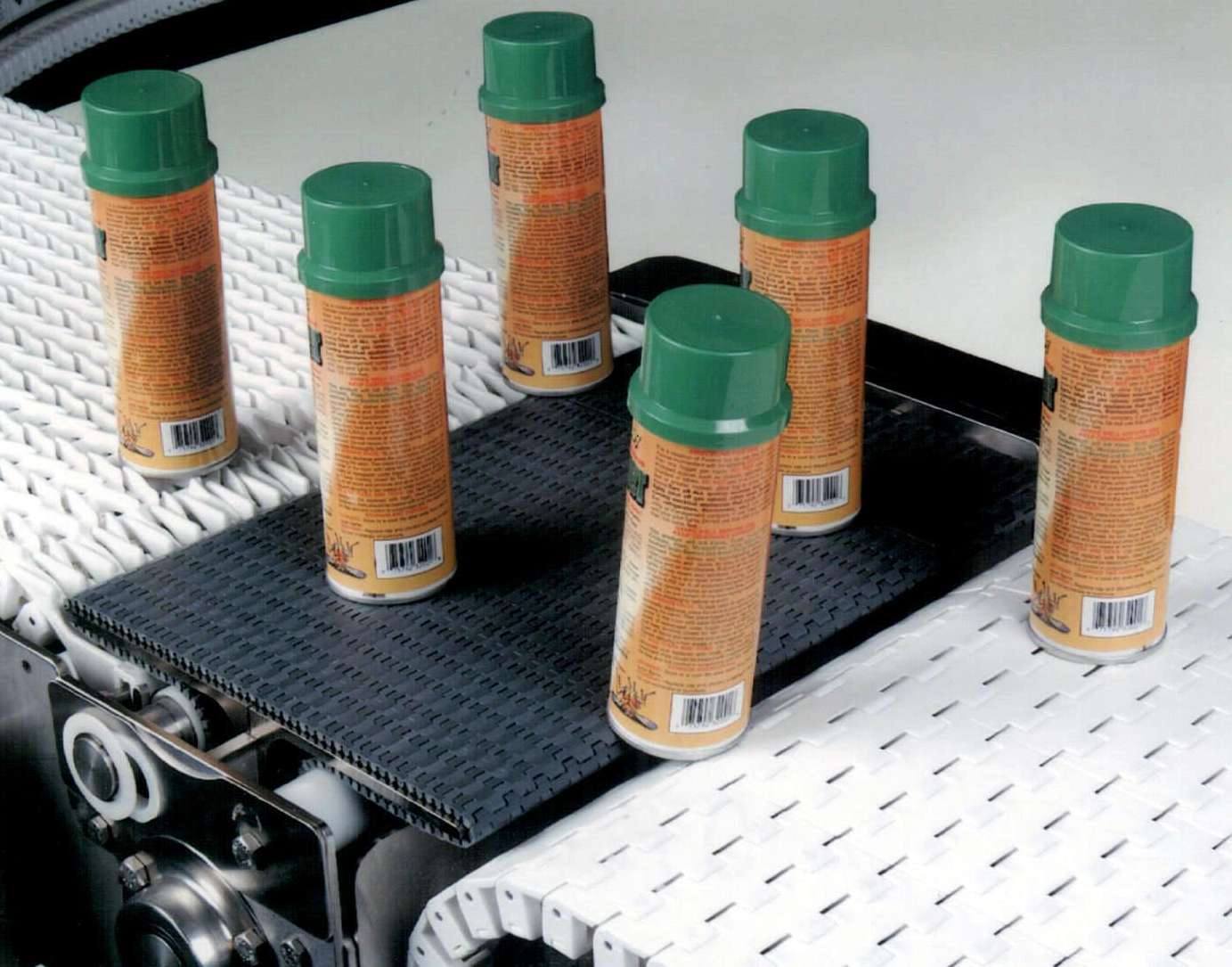

Jul 28, 2004 Sprocket-driven MicroSpan® Transfer features tight-knit MicroSpan chain, providing stable, flexible base for smooth transport of small, delicate products. Featuring stainless steel construction, plastic chain transfer is suited for washdown applications and can be either slave-driven by another conveyor or independently driven. It maintains product orientation and has max speed of 140 fpm. Both ends have profile height of .55 in., ensuring smooth transfers.

Trio Motion Technology Ltd.    Pittsburgh, PA 15238
Jul 28, 2004 Model PCI-208 and 3U Euro205X Motion Coordinatorsâ„¢ are available with Heidenhain's EnDAT and Tamagawa absolute encoder interfaces. Model PCI-208 can accommodate up to 8 axes of standard or absolute encoders in any mix on same hardware, while Euro205X handles up to 4 axes. Stand-alone and pcb level designs utilize Daughter Board and Feature Enable Code system to mix and match controller functionality. Command options include stepper, servo, SERCOS, and CAN drive command generation.

Contemporary Control Systems, Inc.    Downers Grove, IL 60515
Jul 28, 2004 Available in copper and fiber models, Series EICP includes 8 auto-MDI/X ports for attaching local devices, or for use as uplink port. Ninth port comprises conventional MDI/X port and MDI port that can be used as uplink port to allow cascading to another hub without crossover cable. LEDs show link/activity/data rate by color: green for 100 Mbps, and yellow for 10 Mbps. Powered from low-voltage ac or dc power sources, units include DIN rail clip for mounting.

Henkel Loctite Corporation    Rocky Hill, CT 06067

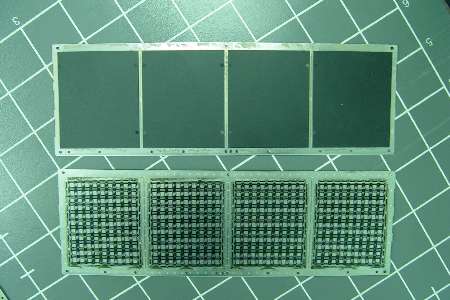

Jul 28, 2004 Hysol® GR9810 is used as overmold on laminate-based molded array packages including SIP and flip-chip packages. Flat nature of product allows entire package to be processed in non-warped state. Non-antimony, non-bromine, non-phosphorous compound can also underfill small ICs and passive components. It is capable of achieving JEDEC Level 2 requirements at 260°C reflow temperature.

Clearline Technologies    Winnipeg   Canada
Jul 28, 2004 Offered as alternative to wood products, C-Port consists of non-degenerating, environmentally friendly, 100% recycled rubber rooftop support system. It provides non-penetrating rooftop support for gas, refrigeration, electrical, and HVAC applications in addition to duct and roof walkway support.

Georgia-Pacific Corp.    Atlanta, GA 30303-1801
Jul 28, 2004 DensGlass Silverâ„¢ exterior gypsum wall sheathing resists moisture and mold in residential applications. It features glass mats on front and back of board along with moisture-resistant core. Product can be used as wall sheathing over steel or wood framing up to 24 in. on center. Almost any cladding, including composition, stone, metal, brick, wood, stucco and plywood siding, can be applied over DensGlass Silver when cladding is fastened directly into framing.

Georgia-Pacific Corp.    Atlanta, GA 30303-1801
Jul 28, 2004 DensGlass® Ultra Shaftlinerâ„¢ consists of moisture-resistant, noncombustible 1 in. gypsum core with coated glass mat face and back. It resists growth of mold that can occur from exposure to wet weather during construction. Suited for vertical and horizontal shaft wall assemblies, as well as stairwell and area separation wall applications, product achieves 2 hr fire endurance rating in full-scale ASTM E 119 and CAN/ULC-S101-M fire tests.

Missler Software    Evry Cedex 91055  France
Jul 28, 2004 TopSolid/Cam 2005 can pilot all complex multi-axis machines, including full dynamic simulation. It allows manufacturing of parts with undercut areas, and enables removal of material left by helicoidal cycle in areas where material to be removed is vertical. Unnecessary toolpaths can be removed in any direction in which operator works. Program automatically calculates adequate profile of revolution for turning operations with non-cylindrical elements.
