Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 26, 2004 Available in 10-pin MSOP package, SiP1759 provides solution for obtaining stable voltage from batteries in portable electronic systems. It delivers 3.3 V fixed output or 2.5–5.5 V variable output voltage with 1.6–5.5 V input voltage range. Requiring 3 compact external ceramic capacitors, product offers 1.5 MHz operating frequency, 100 mA output current, foldback short-circuit protection, and soft-start feature.

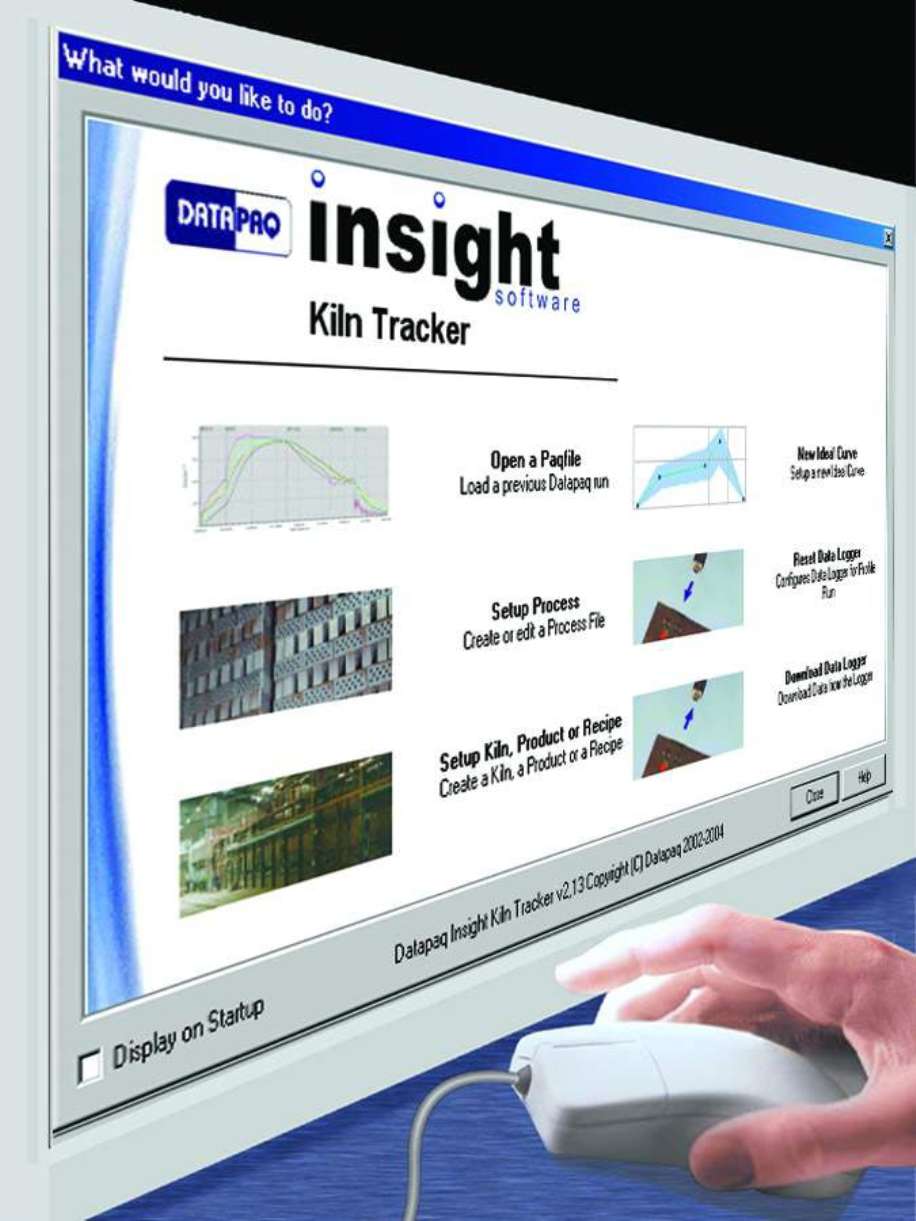

Datapaq Inc.    Wilmington, MA 01887
Jul 26, 2004 Insight Software, suited for kiln industry, provides wizards that guide users through profiling process. Users can program changes in sampling interval, and measurement axis can be set up to measure kiln cars, pushes, or distances. Equipped with alarm feature, software warns of potential faults before they happen, while Quartz Inversion Index delivers instant evaluation of transient rate changes as ware passes by exhaust ports in cooling zone.

Piezo Technology    Orlando, FL 32804
Jul 26, 2004 ASIC-based, temperature-compensated, Model XO3091-004 provides HCMOS output at 38.88 MHz. Housed in 0.8 in. square package with max height of 0.39 in., unit features 5 V operation, less than 20 mA current draw, and ±0.3 ppm stability from 0–70°C. Accuracy is ±4.6 ppm for all causes.

Misumi USA    Schaumburg, IL 60173
Jul 26, 2004 Miniature Linear Guides offer rigidity, smooth operation, and dynamic load capacity in small footprints. Users can choose from short block, long block, wide rail, heat-resistant, and interchangeable block designs. Guides come in carbon steel or corrosion-resistant stainless steel for high temperature or high humidity environments. Two-row Gothic arch bearing arrangement featured on several guides ensures proper preloads for clearance-free motion.

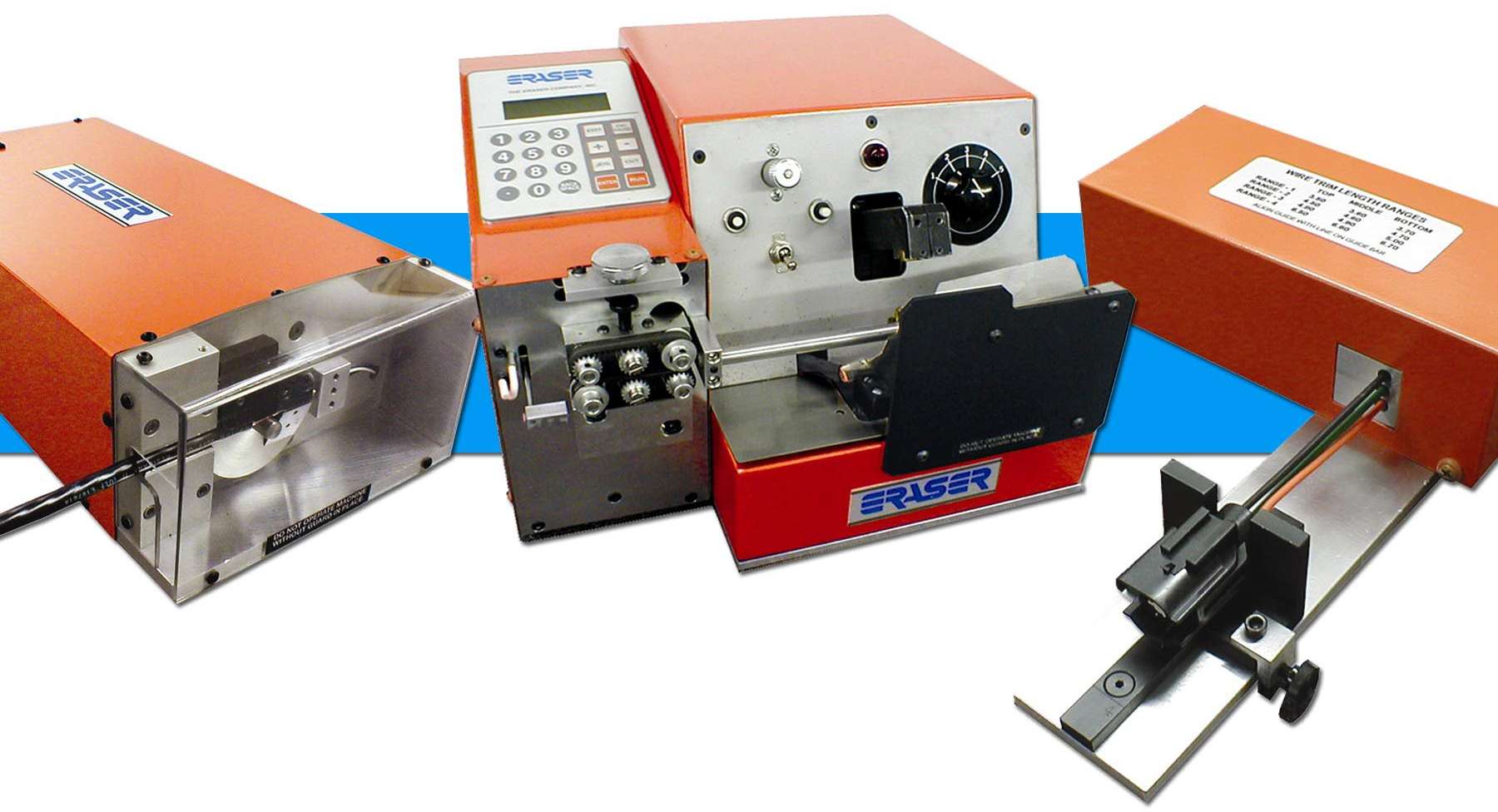

Eraser Company, Inc., The    Syracuse, NY 13221
Jul 26, 2004 Custom Design Service addresses material processing requirements specifically tailored to individual needs of various applications. Service includes custom wire, cable, and tubing cutters; wire and cable strippers; and wire twisters. It also provides custom wire brush wheels, dereelers, infrared heating equipment, measuring tools, and fybRglass erasers.

Arcom Control Systems    Overland Park, MO 66085
Jul 26, 2004 Embedded Linux Development Kit is available for IXP425 XScale based network processor board, which includes two 100baseTx Ethernet ports, 4 USB 2.0 ports, 3 RS-232 ports, and one RS-422/485 port. Kit consists of ready-to-run embedded Linux system with full support for all on-board peripherals. It includes AC PSU, cables to connect to host system, and IXP425 based MERCURY PC/104 SBC fitted with 64 Mbytes DRAM, 16 Mbytes AMD MirrorBit Flash, and 256 Kbytes SRAM.

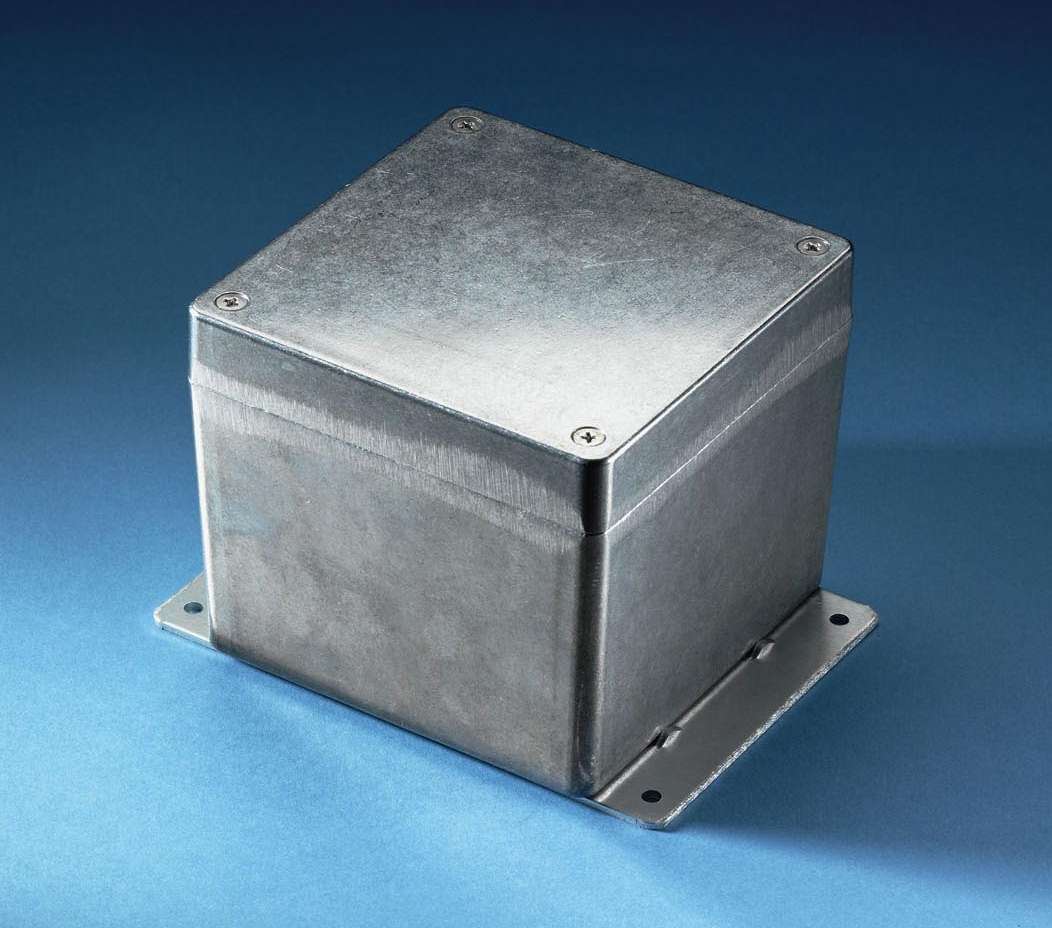

Bud Industries, Inc.    Willoughby, OH 44094
Jul 26, 2004 NEMA 4X-rated, Series AN provides EMC protection and can be mounted on wall or panel without removing gasketed cover and exposing internal components. Permanently-fastened mounting bracket is 0.09 in. thick and accepts up to No. 10 mounting screws. Available in natural aluminum or black powder coat finish, boxes range in size from 1.95 x 1.77 x 1.12 in. up to 8.75 x 5.75 x 3.25 in. Cover mounting holes are roll threaded and screws are captive and recessed.

Linear Technology Corp.    Milpitas, CA 95035
Jul 26, 2004 Model LT3020 has low dropout voltage of 150 mV while delivering up to 100 mA of output current. Low VIN capability enables it to operate across voltage range of single-cell alkaline and NiMH batteries. Unit offers micropower operation with 120 µA of quiescent current and less than 3 µA in shutdown. Available in 8-lead DFN or MSOP package, regulator includes reverse-battery protection, current limiting, thermal limiting with hysteresis, and reverse-current protection.

Ocean Optics, Inc.    Dunedin, FL 34698
Jul 26, 2004 Model HR4000 has 3648-element CCD-array detector that enables optical resolution of 0.02 nm. It features dynamic range of 2.5 x 109 and signal-to-noise of 2500:1 for single integration period. Integrated onboard module has 10 user-programmable digital I/O lines, 13-bit analog input, 9-bit analog output, and pulse generator for triggering other devices. USB 2.0 interface enables full spectral scans into memory every 4 msec.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 26, 2004 BladeCenterâ„¢ Copper Pass-Thru Module provides unconfigured network connection that enables blade servers in BladeCenter unit to connect to existing Gigabit Ethernet network infrastructure. Unit requires no configuration, conforms to mechanical and electrical requirements for BladeCenter, and provides self test and diagnostics capability. It allows up to 14 blade connections per module and up to 5 blade connections per cable.

Tailor Made Software, Ltd.    Covington, WA 98042-0041
Jul 26, 2004 CADViewer Release 8 enables anyone with Internet browser to view, print, or markup design data using DWF format. It includes extension for DWF batch printing, extension for raster image viewing and mark-up, and extension that allows customer to save PDF files from client. Additional features include redline tools, API support for measurement tools, and capability to add snap point for measurements.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jul 26, 2004 Rackmounted system facilitates passing connection of voice and data lines from designated equipment to existing building network. It can also disconnect same set of lines from building network, isolating all equipment in designated room or area. System includes Secure/NonSecure Indicator Unit and Fiber Optic SC, 16-Channel Ethernet, 16-Channel Telco, and 6-Channel ISDN Data Pass/Off-Line Switches. All systems are switched via front panel keylock actuator.

Syware, Inc.    Cambridge, MA 02142
Jul 26, 2004 Wireless Pocket PC Software mEnable® v2.0 provides mobile users with interactive, real-time access to enterprise data. Users can run Visual CE® database applications on their handheld and directly connect to any ODBC-enabled database residing on server. Developers can create data-driven applications that wirelessly connect Windows, Windows CE, and Windows Mobile Pocket PC devices with servers in one of two ways: Sometimes Connected or Always Connected.

Alpine Electronics of America, Inc.    Torrance, CA 90501
Jul 26, 2004 Type-X Subwoofers provide maximum excursion with high sound quality. Combination of High Amplitude Multi-Roll Surround with woofer's carbon fiber and aluminum honeycomb cone provides higher output and improved sound quality. Models offered are 12 in. dual 4 ohm SWX-1242D and 10 in. dual 4 ohm SWX-1042D. Subwoofers use vented basket and billet copper shorting sleeves with thermal coupling plate for voice coil cooling.

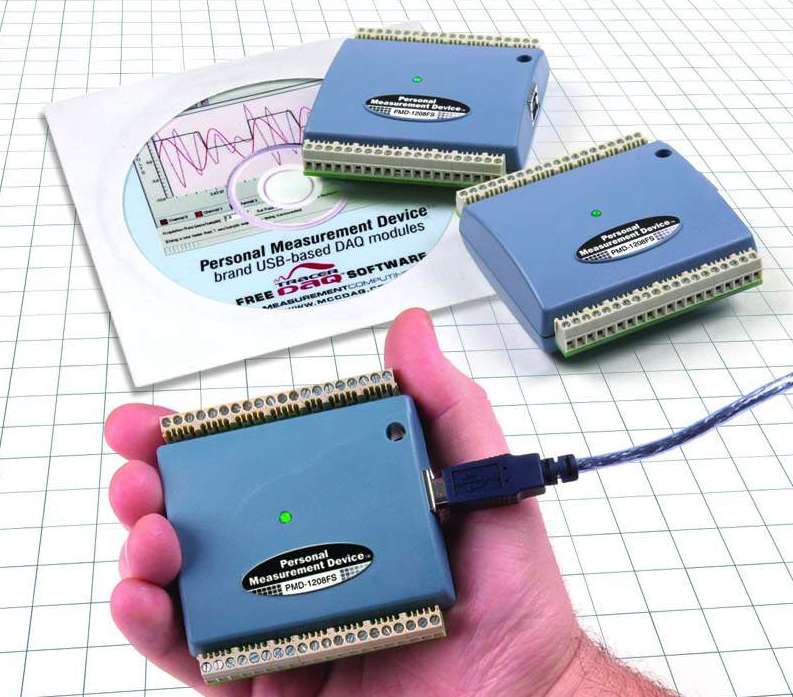

Measurement Computing Corp.    Norton, MA 02766
Jul 26, 2004 Personal Measurement Device (PMD) PMD-1208FS provides 8 single-ended or 4 differential analog inputs, 12 bit resolution, and 8 software selectable input ranges. Capable of sample rates to 50 kilosamples/sec, product provides 2 channels of 12 bit analog output, one 32 bit counter, and 16 bits of digital I/O. Available with various mounting options, it measures 3.25 x 3.125 x 1 in. and includes InstaCAL and TracerDAQ software and language interface.

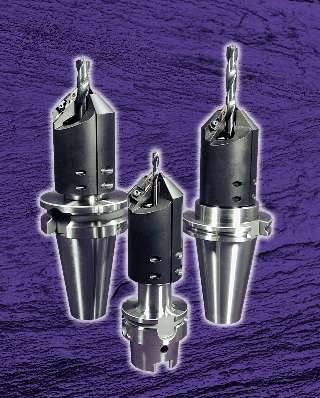

Sumitomo Electric Carbide    Mount Prospect, IL 60056
Jul 26, 2004 Featuring collar that fits securely around solid caride drills, sumiChamfer Systems allow drilling and chamfering in single operation. Models ER20, ER25, and ER32 can drill diameters from 4.00-20.0 mm and operate at recommended drill parameters to full depth of hole. They use 2 standard inserts each, which yield 2 indexes and are available with or without chipbreaker.

SNK America Inc.    Elk Grove Village, IL 60007
Jul 26, 2004 Prodigy GT-27 Single Spindle Lathe features polymer composite base that resists oxidants, thermal distortion, and vibration. Precision is achieved through incorporation of non-heat generating collet closers, absence of turret, and standard third indexing axis. Since lathe can index in 1° increments, live tooling can be used for side drilling and milling operations. Maximum spindle speed is 6,000 rpm and maximum production bar work is up to 1 1/16 in. diameter.

Georg Fischer Piping Systems    Tustin, CA 92780
Jul 26, 2004 Polyvinylidene fluoride (PVDF), high-purity sheet material meets requirements of Factory Mutual (FM) Clean Room Materials Flammability Test Protocol, Class 4910. FM 4910, manufactured from Kynar® 740 resin, features double-masked surface, fully traceable and verifiable resin, chemical-resistance, and UV-stability. It measures 4 x 8 ft with thicknesses from 1/8-1 in. Sheet features tolerance consistency per ASTM D6713-01 and combustibility approvals by FM 4910, UL2360, and ASTM E84.

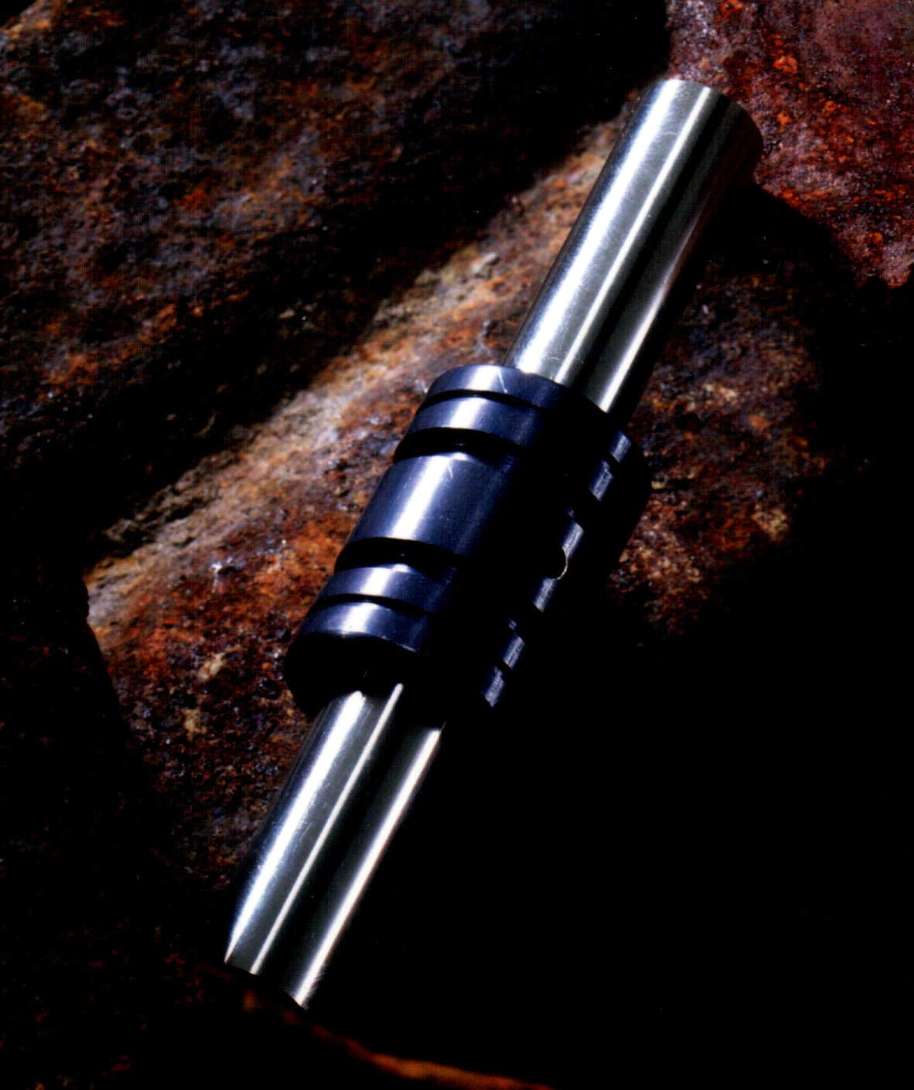

Igus, Inc.    East Providence, RI 02914 0349
Jul 23, 2004 DryLin R plastic linear bearings consist of iglide® J polymer material that requires no lubrication or maintenance. Bearings are dimensionally interchangeable with standard, re-circulating ball bearings. DryLin S anodized aluminum shafting can be customized with flats, grooves, through-holes, or other modifications. Products suit extreme dirt conditions, underwater, food, and wash down applications.

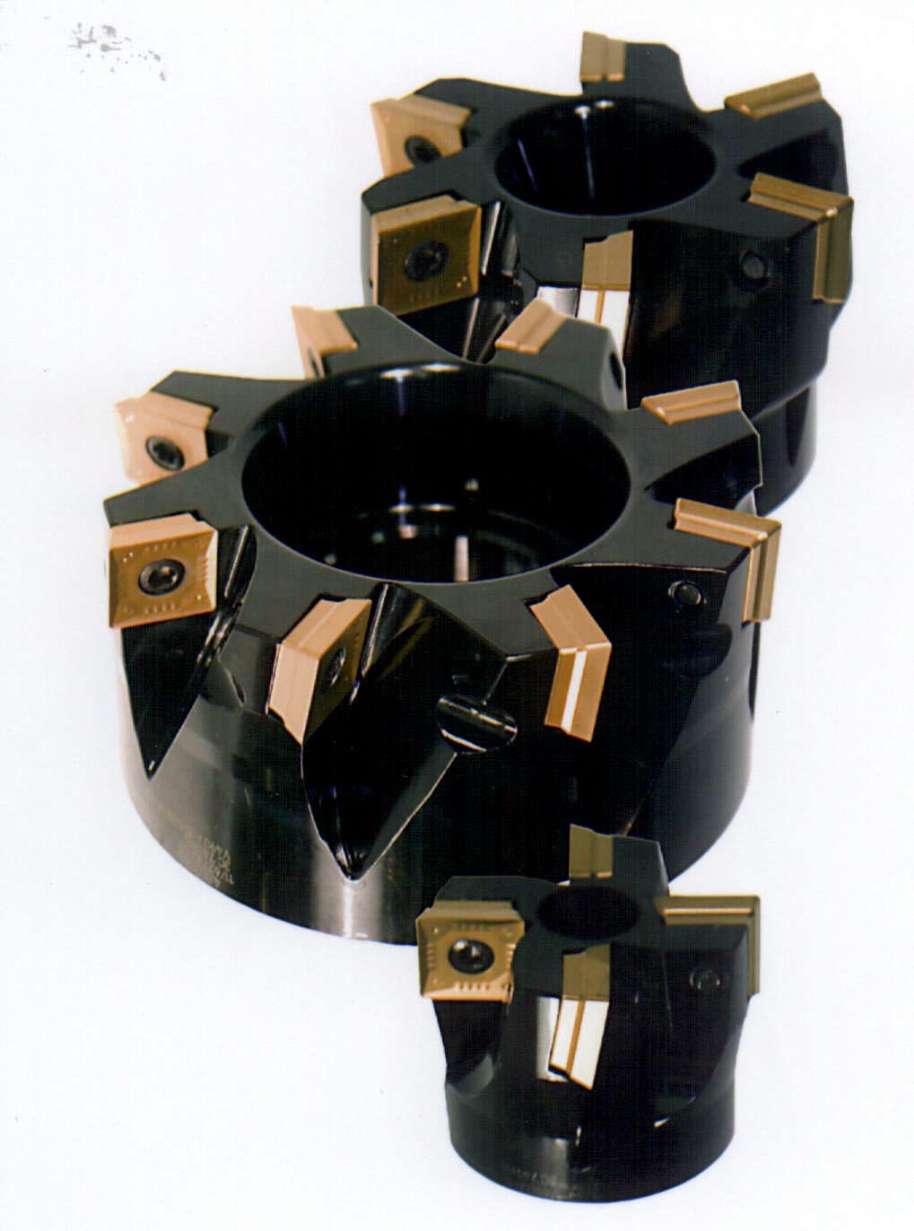

Valenite, Inc.    Madison Heights, MI 48071 9636
Jul 23, 2004 ValMILLâ„¢ V490 Series square-shoulder face mills have 90° geometry that enables multitask cutting for applications such as shoulder milling, slot and channel milling, edge trimming, and face or surface milling. Three coated grades of inserts include 2 multi-layer PVD TiAIN/TiN coatings and TiN/A1₂0₃/TiCN MTCVD for tough machining. Mill sizes available are 2, 2.5, 3, 4, 5, and 6 in. dia with insert numbers ranging from 4 on 2 in. dia to 10 inserts for 6 in. size.
