Viking Industries L.L.C.    Lake Forest, IL 60045
Jul 27, 2004 Suited for automotive and industrial applications, Heavy Duty Reversible Air Drill Model 341 features ½ hp motor and 2,500 rpm capacity. It includes caged planetary gear design and steel gear case.

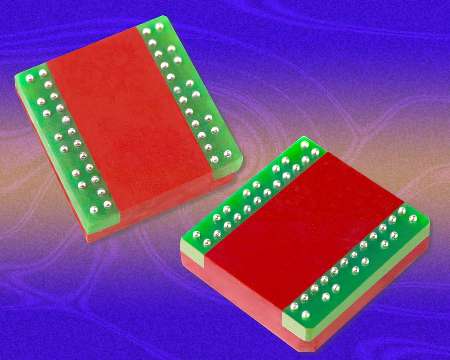

Coto Technology    Providence, RI 02907 3105
Jul 27, 2004 Series B41 four independent-channel, form-A planar relay requires no slot or hole in PC board for mounting. Unit allows short RF paths in controlled 50 ohm environment to minimize signal attenuation. Each channel has RF insertion loss of greater than 8 GHz. Combination of coaxial and magnetic shielding helps reduce adjacent closed inter-channel RF crosstalk to -40 dB at 1 GHz test signal. Magnetic interaction between channels is less than 16%.

Kawasaki Motors Corp., USA    Irvine, CA 92618-2014
Jul 27, 2004 Powered by 90°, 4-stroke, V-twin engine, BRUTE FORCEâ„¢ 750 4x4i employs Kawasaki Engine Brake Control and transfers power from engine to wheels through continuously variable transmission. Features include user-selectable 2- or 4-wheel-drive operation, front drive shafts with Cardan joints, and differential, sealed rear braking system. Double-cradle frame, made of tubular steel, carries combined weight of 264 lbs on cargo racks and tows up to 1,250 lbs.

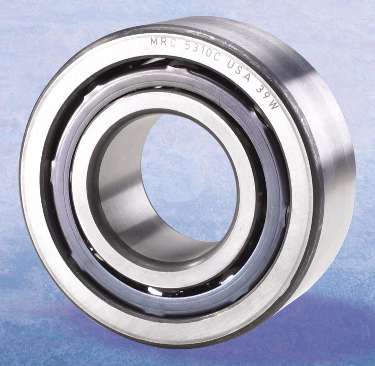

MRC Bearings    Lansdale, PA 19446
Jul 27, 2004 Series 5200C and 5300C double-row, angular contact ball bearings are made from bearing steel with low oxygen content. Rings are cold rolled blanks, heat-treated to provide dimensional stability up to 300°F. Bearings are engineered to ABEC-3 (P6) tolerances to reduce runout, allowing smooth operation at high speeds. They feature 1-piece, heat-treated, pressed-steel crown cages and inwardly diverging 30º contact angles, which resist misalignment.

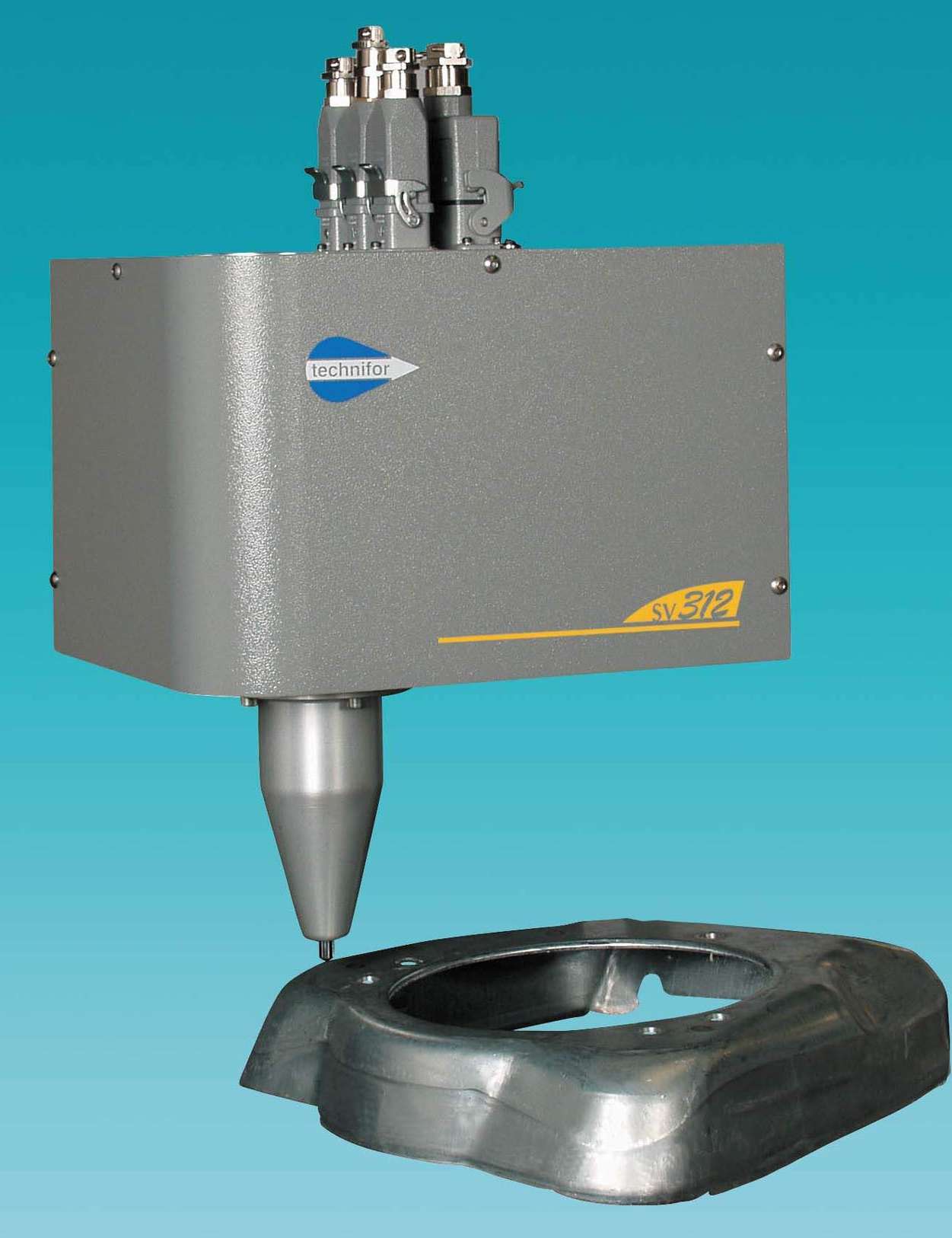

Technifor, Inc.    Charlotte, NC 28273
Jul 27, 2004 Suited for metallic parts, Model SV312 creates continuous line mark at speed of 19 characters, 7 mm tall, in less than 10 sec. Max scribing depth is 0.3 mm in steel at 110 HB and 0.25 mm in cast iron. Marker utilizes UC312 control unit with screen, internal software, and keyboard, eliminating need for PC or PLC. It can create, modify, and store data to mark. Carbide point is available for rough surfaces, while diamond point is suited for smooth surfaces.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003
Jul 27, 2004 MAEâ„¢ N Series includes 4 models with precision-honed stators, ground rotors, and step resolutions of 1.8° in full-step mode. Offered in lengths of 2.64, 3.70, or 4.92 in., MAE Size 34 motors achieve holding torques of 397, 680, or 1,076 oz-in. Size 42 motors are 5.51 in. long and achieve holding torque of 1,024 oz-in. Available with 4, 6, or 8 leads, motors are optimized for microstep operation. Rotation can run clockwise or counterclockwise.

Ameripack Corp.    Cranbury, NJ 08512
Jul 27, 2004 Double-entry, 24 in. Roto Shock Rack Cases are available in 10U, 12U, 14U, and 16U units. They protect electronics and instrumentation for shipment and deployment in virtually any environment. Frame has threaded steel rails and aluminum cross components forming H-shaped rigid configuration. All sizes come with 8 in., HM-245 elastometric shock mounts with load range of 40–150 lb. Standard rack depth front to rear rail is 24 in. and each lid is 4.5 in. deep.

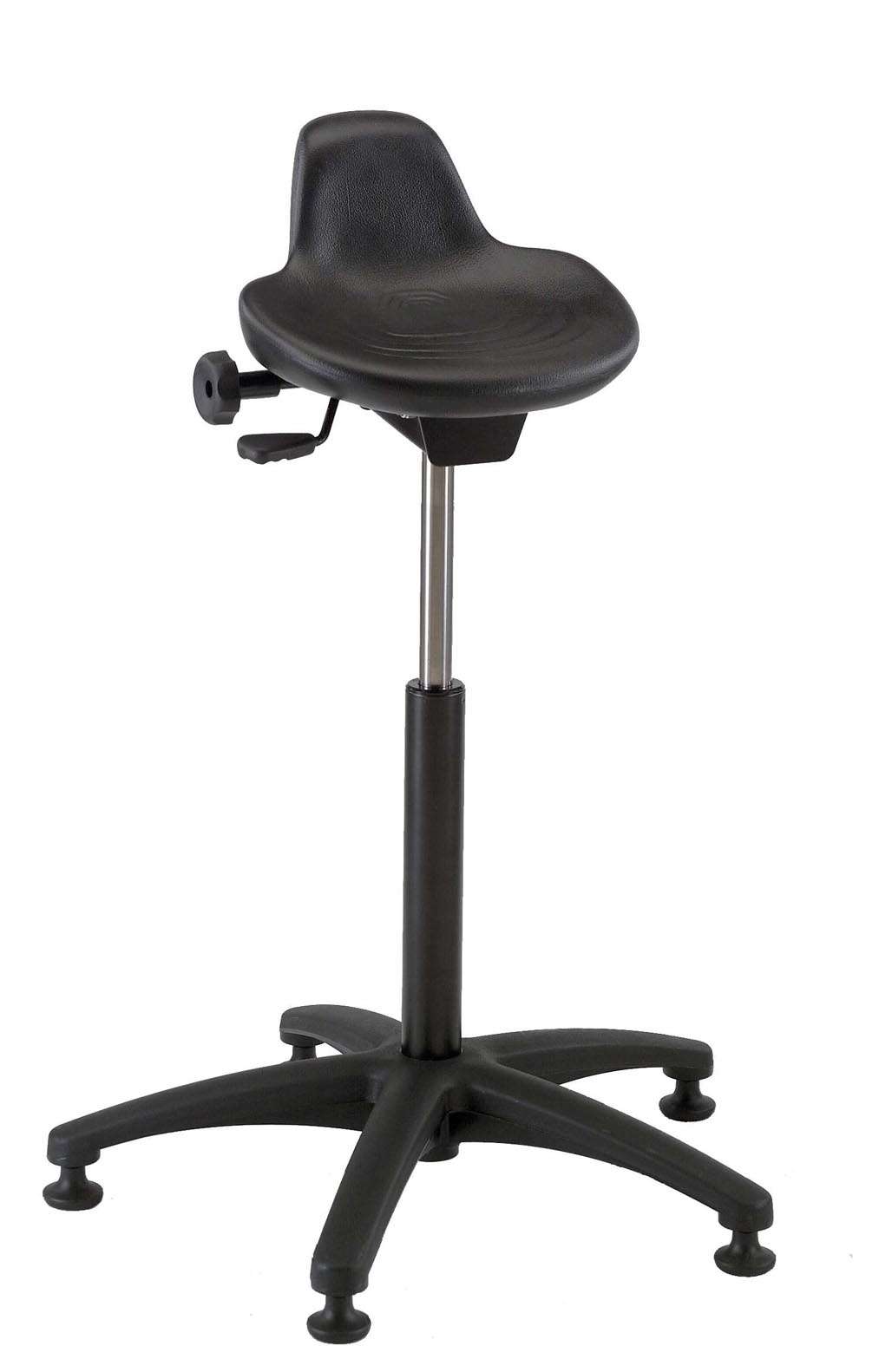

BEVCO Ergonomic Seating    Waukesha, WI 53186
Jul 27, 2004 Suited for workers who must stand for extended periods, Sit-Stand Stools do not limit reach or restrict movement. They feature soft-formed, polyurethane seat with pneumatic seat height adjustment, 360° swivel, and tilt controls. Certified for class 1 cleanroom usage, Model 3555 has polished aluminum base and other chrome components. Stools exceed ANSI/BIFMA chair standards for safety and quality construction.

Yaskawa Drives    New Berlin, WI 53151
Jul 27, 2004 Available in 240 and 480 V ratings, Model G7 incorporates 3-level inverter architecture capable of minimizing or eliminating problems associated with IGBT switching. In open loop vector mode, flux observer algorithms extend speed range, and in closed loop vector mode, 0.01% speed regulation and 1000:1 control range can be achieved. Drive includes auto tuning methods, LCD display, intuitive keypad, and network communication options.

Siemens Energy & Automation, Inc.    Alpharetta, GA 30005
Jul 27, 2004 Able to control up to 16 axes, 317T Integrated Technology PLC provides positioning in absolute, relative, and superimposed operating modes. Using STEP 7 software technology, only one program is needed for PLC and motion control. Other functions include geared synchronous motion, electronic cam disc and cam functionality, moving to positive stop, and measuring probe functionality for print mark correction.

LEVITON    Melville, NY 11747
Jul 27, 2004 Panel-mount 51110-001 protects residential power lines from high-energy transient voltage surges. It also protects circuitry in power line carrier home control systems without interfering with control signals. Rated for use in residential 120/240 V single-phase power lines, it features NEMA 4X-rated enclosure suited for indoor and outdoor use and real-time diagnostic visual indicator that shows power and suppression status for each protected phase.

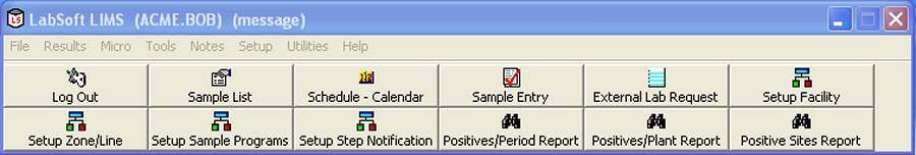

Computing Solutions, Inc.    Evansville, IN 47710
Jul 27, 2004 LabSoft LIMS Micro Add-In Module manages microbiology testing environment to promote efficiency, accuracy, and workflow standardization. Designed to meet microbiological needs of food processing industry, it presents data to establish point of reference and consistently monitors microbiology sampling process. Features include true randomized sample site selection, scheduling, customized reporting, action item tracking, and E-mail notifications.

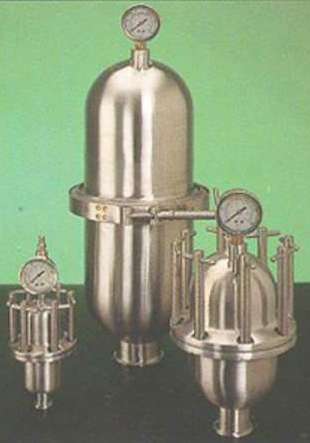

Blacoh    Riverside, CA 92507
Jul 27, 2004 Available with polished and bead blasted 316L stainless steel surfaces, SENTRY Pulsation dampeners reduce pump pulsation, pipe vibration, and shaking up to 99%. FDA compliant products, suited for any application that requires sanitary pumping conditions, feature tri-clamp inlets and autoclave safe wetted parts. They are available from stock with pressure ratings to 80 psi and capacities from 4 cu in. to 5 gal. Custom models are also available.

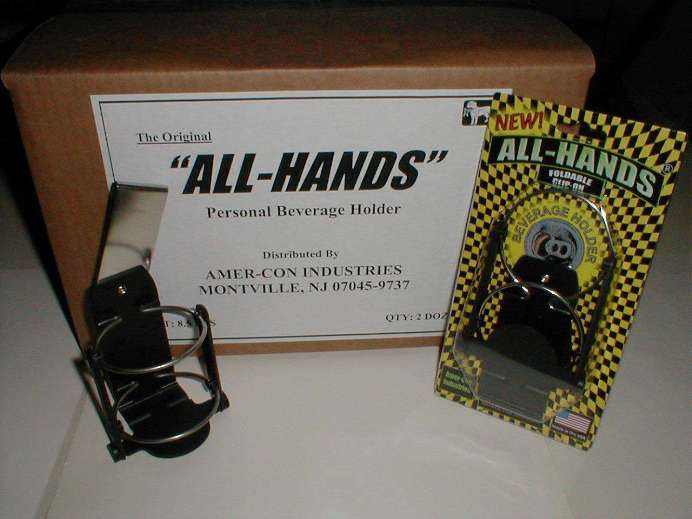

Amer-Con Industries    Montville, NJ 07045-9737
Jul 27, 2004 Made with non-rusting materials, holder allows fishermen to enjoy beverage of choice during fishing, even while tending to rod and reel. Hands-free design clips onto clothing and features stainless steel rings that hold cans and bottles in place. Folding action allows lightweight item to fit into tackle-box, and snap action holds product closed when not in use.

SICK, Inc.    Minneapolis, MN 55438
Jul 27, 2004 FLOWSIC 600 measures actual volume flow rate, actual accumulated volume, gas velocity, or velocity of sound in gases. Available in standard sizes from 3-16 in., unit features 1-4 measuring paths, bi-directional measurement, and overload protection. Standard ANSI flange ratings are from 150-600 lb. Non-intrusive meter can be calibrated with ambient air, and is suited for flows with high dynamics and wide temperature ranges.

TBA Electro Conductive Products    Lancashire OL12 7EY  United Kingdom
Jul 27, 2004 ECP I 214 Undershelf Ionizer provides non-contact solution to problems caused by electrostatic fields. Designed for use under workbenches, it works as part of integrated electrostatic control system described in BS IEC 61340-5-1 PT 1:1998. Ionizer features automatic balancing and shutdown operations, 3-speed airflow, and sensors to monitor ion output and pin contamination.

Asymtek    Carlsbad, CA 92008
Jul 27, 2004 Combining parts processing capabilities with jetting of underfill fluid, Axiomâ„¢ X-1020 High-Output (X-1020-HO) dispensing system increases throughput in underfilling die greater than 10 mm² that require longer flow-out time. Product consists of X-1020, DispenseJet® DJ-9000, loaders/unloaders, and conveyor module that contains heating stations. Jetting close to die edge, DJ-9000 shoots fluid stream down to 100 µm wide and produces wet-out areas down to 250 µm.

Infinity Photo-Optical Co.    Boulder, CO 80301
Jul 27, 2004 InfiniTube(TM) FM Series can be used with C-mount video cameras and infinity-corrected microscope objectives to provide high magnification images. Model FM-100 features 100 mm focal length for 1/3 in. and smaller sensors. Model FM-200 is for direct regulator-power use and is available in dual port version, Model FM-200/DP, and 90° bent version, Model FM-200/RA. All have internal focusing adjustment for touching-up focus from fixed position.

Separation Dynamics Inc.    Fountain Inn, SC 29644
Jul 27, 2004 SKIMZOILâ„¢ removes free-floating oils from washers, coolant sumps, and other process tanks. Floating suction head pulls oils from tank, which are trapped by weirs in separation tank and picked up by oil-attracting, rotating drum. Oils picked up by drum are scraped off with spring-loaded wiper tray and plumbed into separate waste vessel. Available in several sizes, system does not require frequent adjustment, monitoring, or flow balancing.

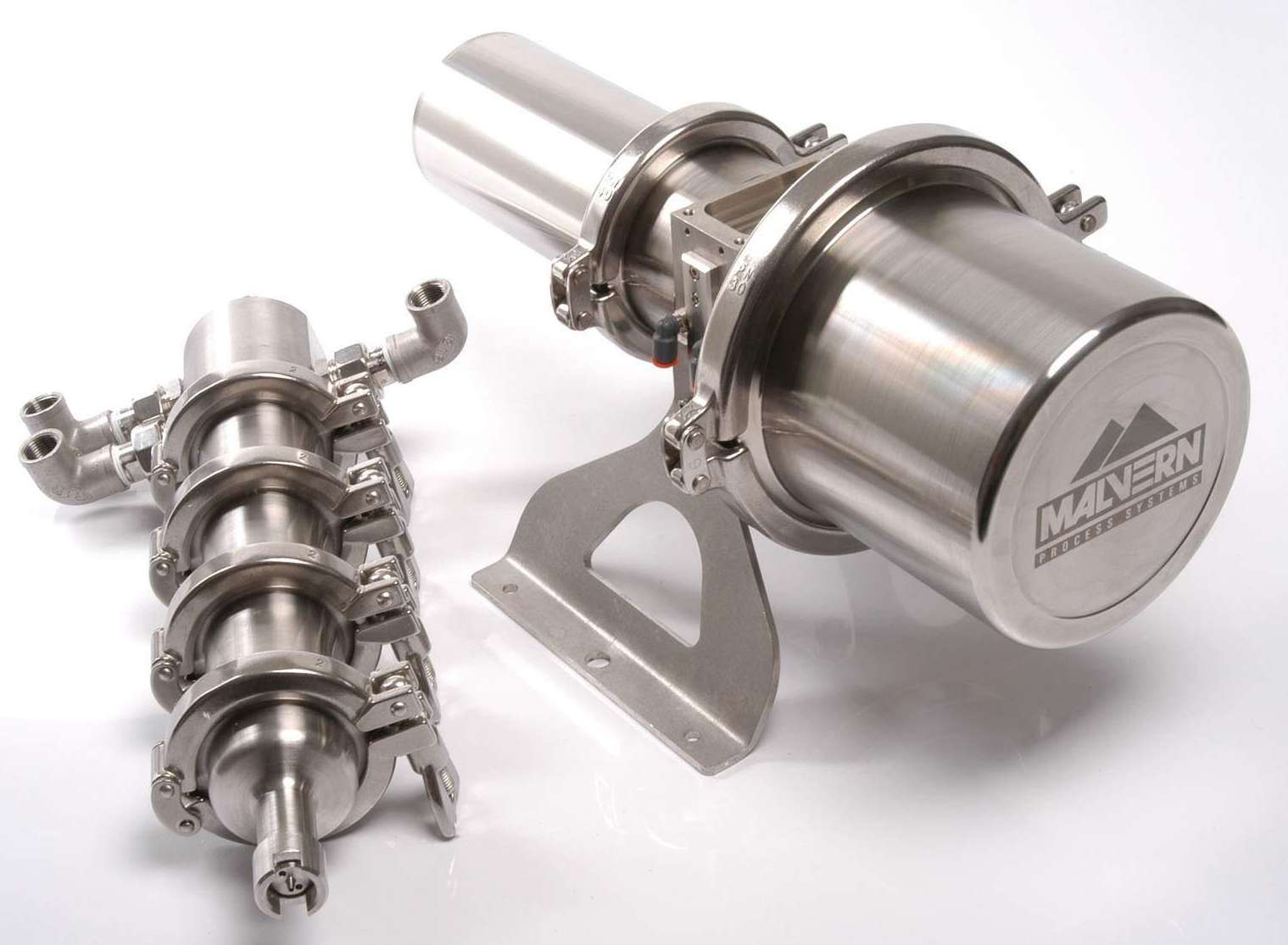

Malvern Instruments Ltd    Malvern Worcestershire WR14 1XZ  United Kingdom
Jul 27, 2004 Gulfstream multistage diluter provides continuous dilution to enable real-time particle size analysis of liquid process streams containing high concentration slurries of fine particles. Using laser diffraction technology, it generates complete size data for particles that range in size from 0.1-1,000 mm. Calibration-free product, powered by diluent flow, has no moving parts and fixed dilution ratio per stage of 1:5.
