Dadco, Inc.    Plymouth, MI 48170-2598
Jul 29, 2004 Compact Model SLN.090 Micro Nitrogen Gas Lifter has double-keyed guide rod, preventing rotation and eliminating need for additional guidance components. Micro 90™ gas spring, housed inside guide rod, provides reliable lifting force and facilitates repair. Forces on contact range from 40–200 lb and may be adjusted to meet individual requirements. Stroke lengths vary from 25–125 mm.

AEMC Instruments    Foxborough, MA 02035

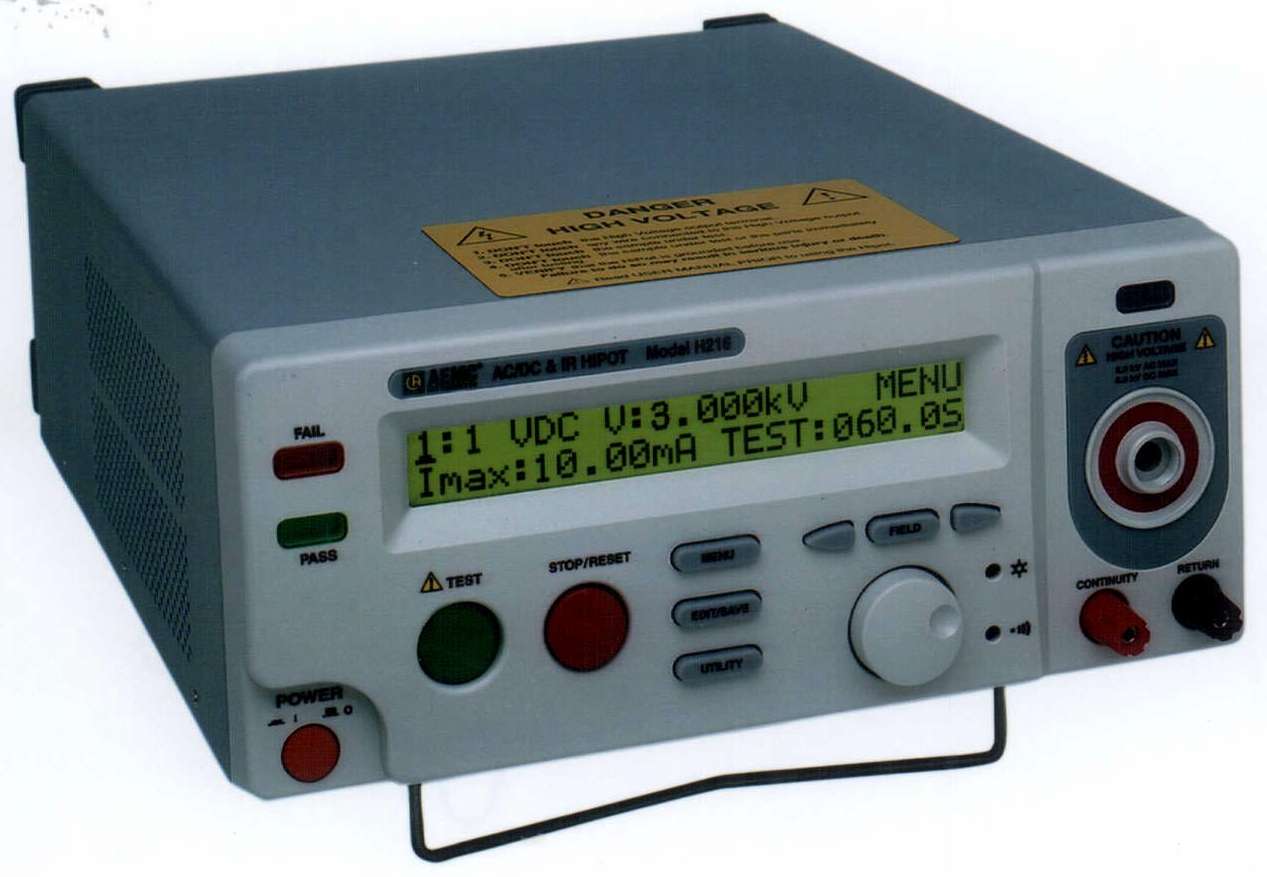

Jul 29, 2004 Bench-top safety testers H111 and H216 permit tests to UL, CSA, and IEC standards and can be used for ac and dc withstanding voltage tests up to 6 kV. Up to 10 tests/programs, each containing up to 16 steps, can be stored and initiated with pushbutton functionality, and remote operation is supported via PLC or RS-232 control. Model H216 also includes IR testing feature to 9,900 Megohms @ 500 and 1,000 Vdc and to 1,990 Megohms @ 50 and 100 V.

Endress + Hauser Inc.    Greenwood, IN 46143

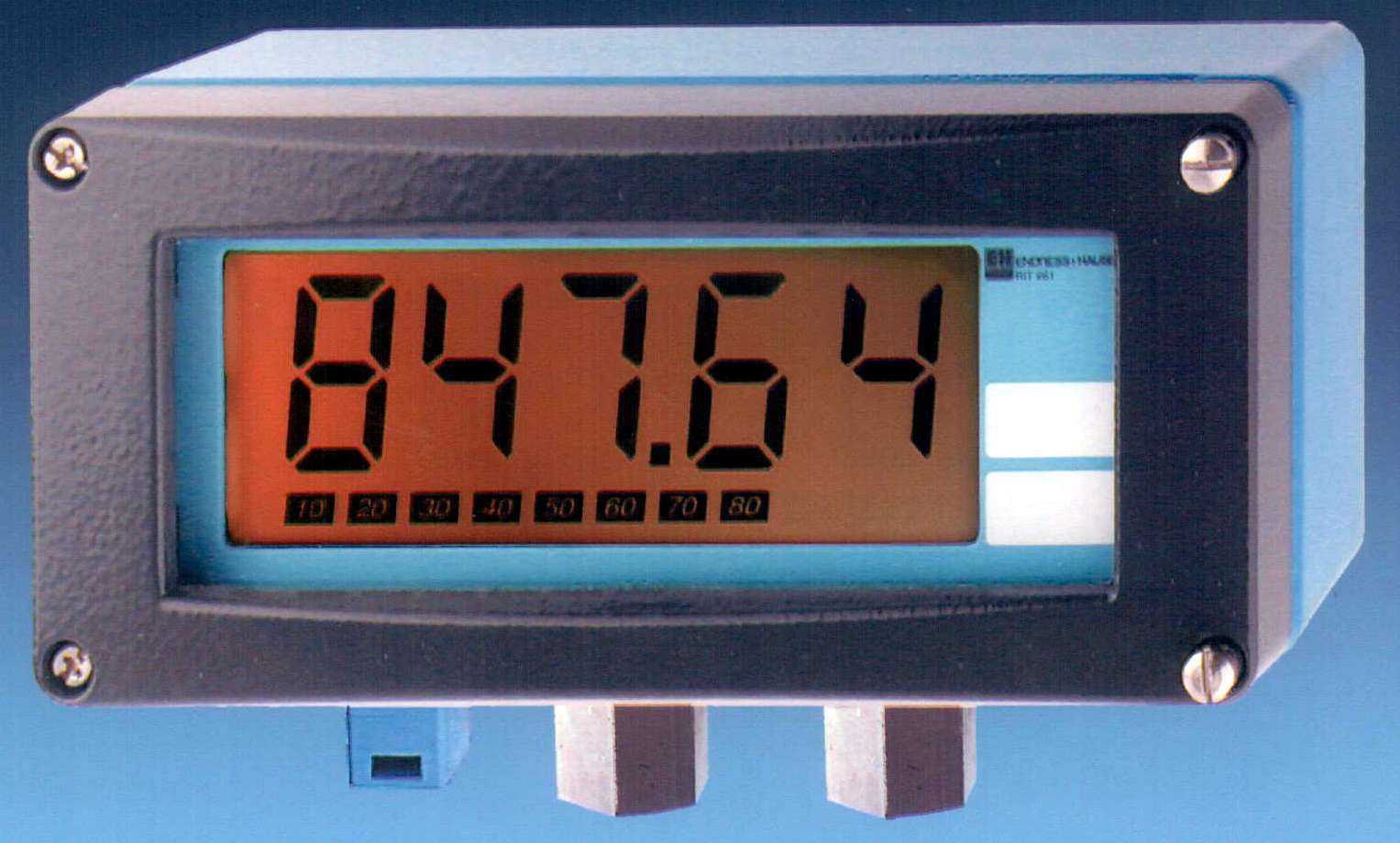

Jul 29, 2004 Universal field-mount RIT261 features galvanic isolation between temperature sensor and power supply. Unit, suited for RTD thermometers, thermocouples TC, Ohm, and mV inputs, incorporates metal housing, on-line setup capabilities, and 5-digit LC display with backlit temperature indication and 26 mm high characters. Trend bar graph depicts output in 10% increments for quick reference.

Anver Corp. - Anver.Com    Hudson, MA 01749

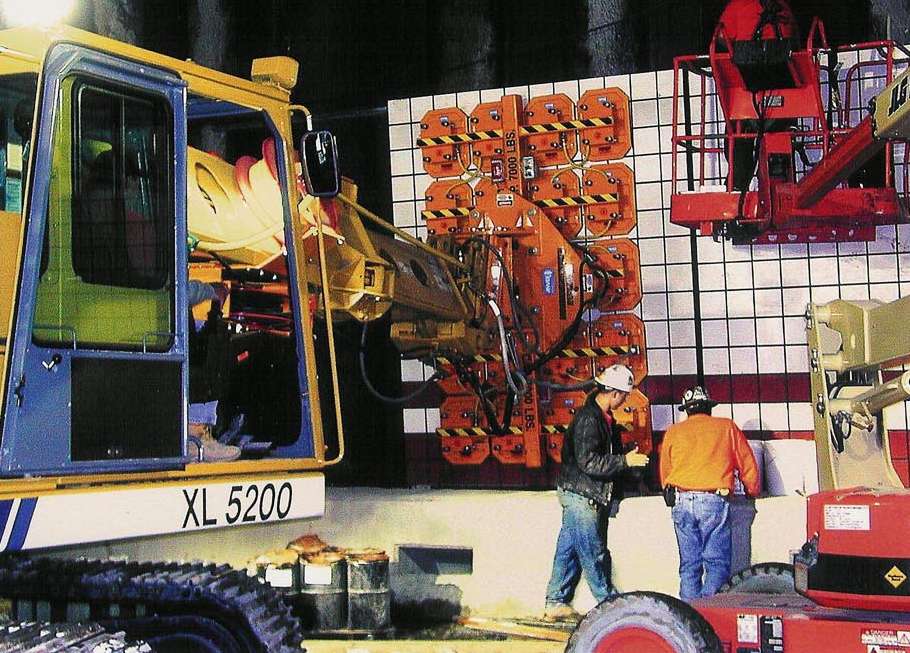

Jul 29, 2004 Utilizing foam vacuum pads, custom built Job Site End-Effector Systems bolt onto outdoor mobile cranes and boom extensions to handle tile, concrete, and glass panels that measure up to 10 x 40 ft and weigh up to 10,000 lb. Items are picked up from top surface without slings or blocking, facilitating alignment and installation processes and preventing damage. They employ fully redundant vacuum systems and are constructed with 4:1 safety factor.

Vestil Manufacturing Co.    Angola, IN 46703-0507

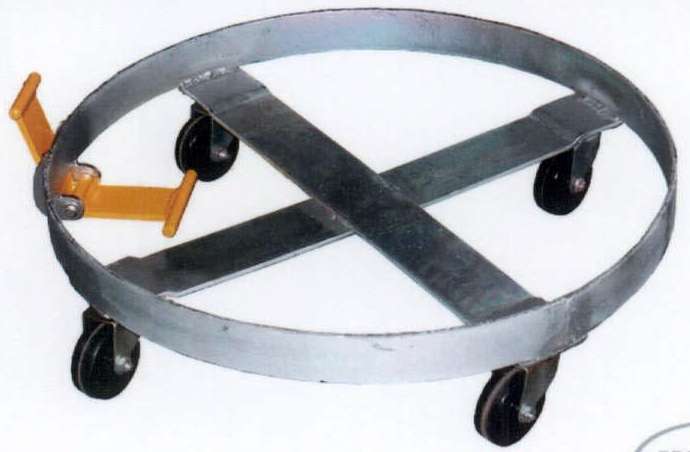

Jul 29, 2004 Designed to facilitate withdrawing last 2–3% of liquid out of drum bottoms, dolly provides tilt pedal that raises one edge of drum 3 in. In tilting drum 10°, remaining liquid flows to lower side of drum where drum pump can be used to extract it. Steel drum dolly is suited for use with 55 gal drums and is available with capacities of 900 lb with hard rubber casters and 1,200 lb with steel casters.

Nederman, Inc.    Westland, MI 48185

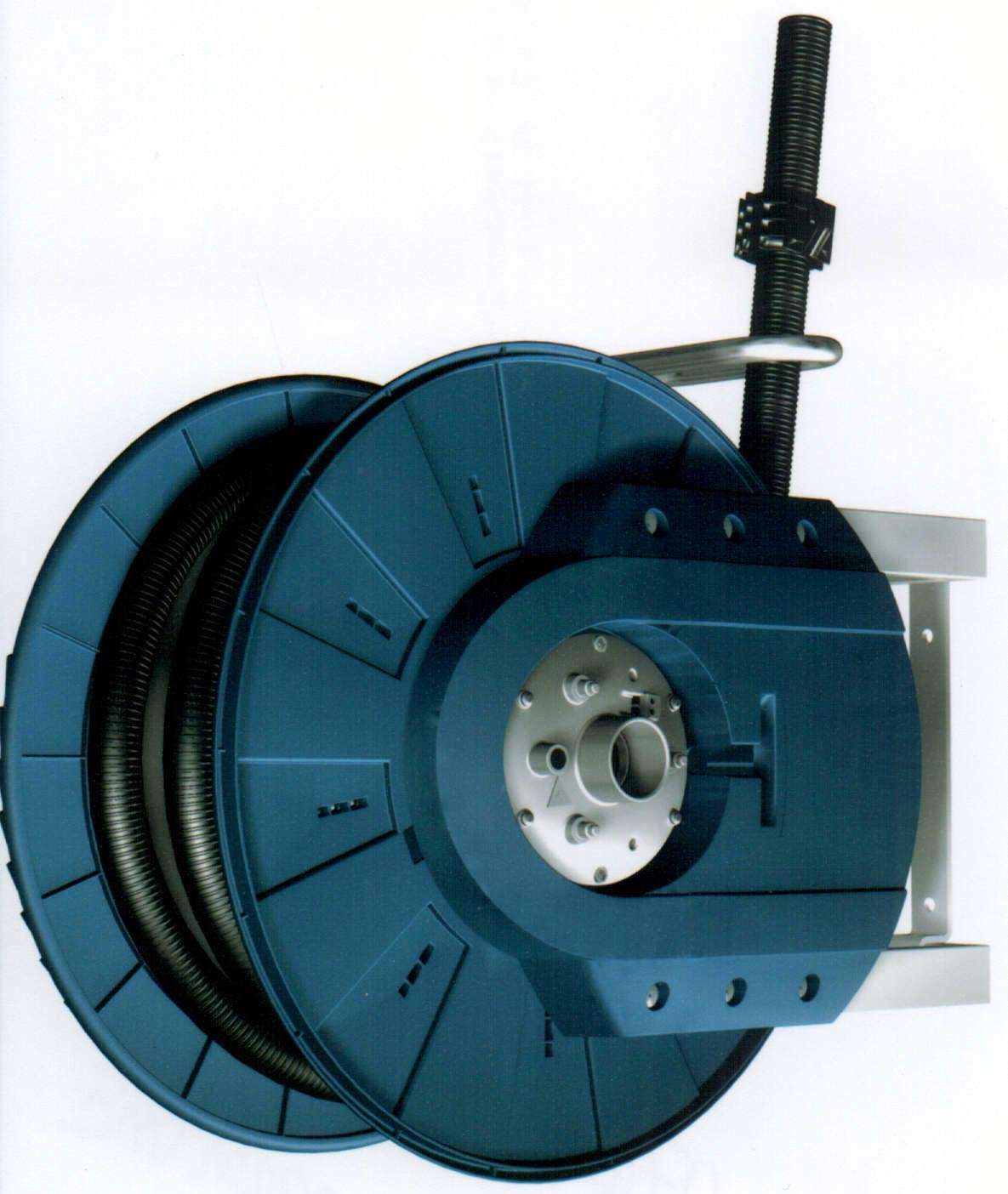

Jul 29, 2004 Suited for use with central or portable high vacuum systems, Series 881 provides practical solution for hose storage. Usage reduces occurrence of hose scattered across floor, decreasing risk of tripping. Heavy-duty design, available with or without hose, includes ratchet function that locks hose in desired out-drawn position. Unit comes with automatic valve and microswitch and carries various lengths of 1.5 or 2.0 in. vacuum hose.

Indium Corporation    Clinton, NY 13323
Jul 29, 2004 Designed for use in BGA bumping and board level attachment, WS-364 water-soluble paste-flux can be applied by pin-transfer or stencil printing. It can be cleaned using room-temperature water and offers high yield in BGA bumping process. Available in syringes or cartridges, halide-free product is suitable for Sn/Pb and Pb-free applications.

AVX Corp.    Myrtle Beach, SC 29578

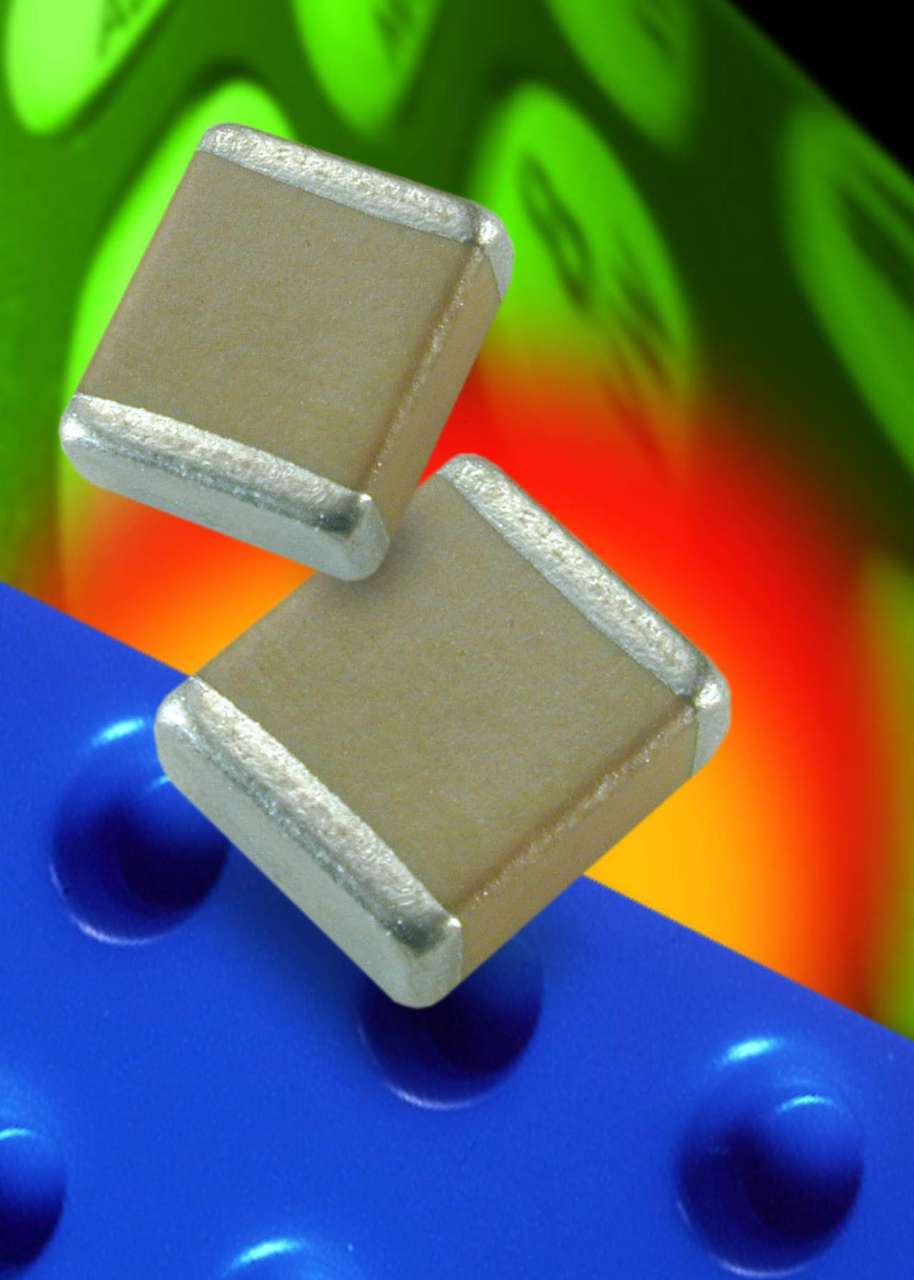

Jul 29, 2004 Hi-Q® Series MLC power capacitor handles high power and high voltage levels for RF applications. Capacitor features ultra-low ESR and dissipation factor at high frequencies as well as dielectric strength of 120% of rated WVdc. Capacitor is available in case sizes HQCC and HQCE, with capacitance values from 10–6,800 pF and tolerances to ±20%. It has temperature coefficient of ±30 ppm/ºC over the operating temperature range of –55º to +125ºC.

Engis Corp.    Wheeling, IL 60090 6038
Jul 29, 2004 DiaMoldâ„¢ High Intensity Polish restores surface finish and leaves high luster sheen. Non-hazardous, non-flammable, and non-corrosive polish cleans and removes haze from diamond-finished molds, dies, or fixtures without causing spiral webs, cattails, or other fine surface scratches. It also removes plate-out, oxidation, and stains on fine tooling surfaces quickly, leaving protective film that slows subsequent oxidation and wear. Polish works on brass, bronze, chrome, and aluminum.

Uhlmann Packaging Systems Inc.    Towaco, NJ 07082

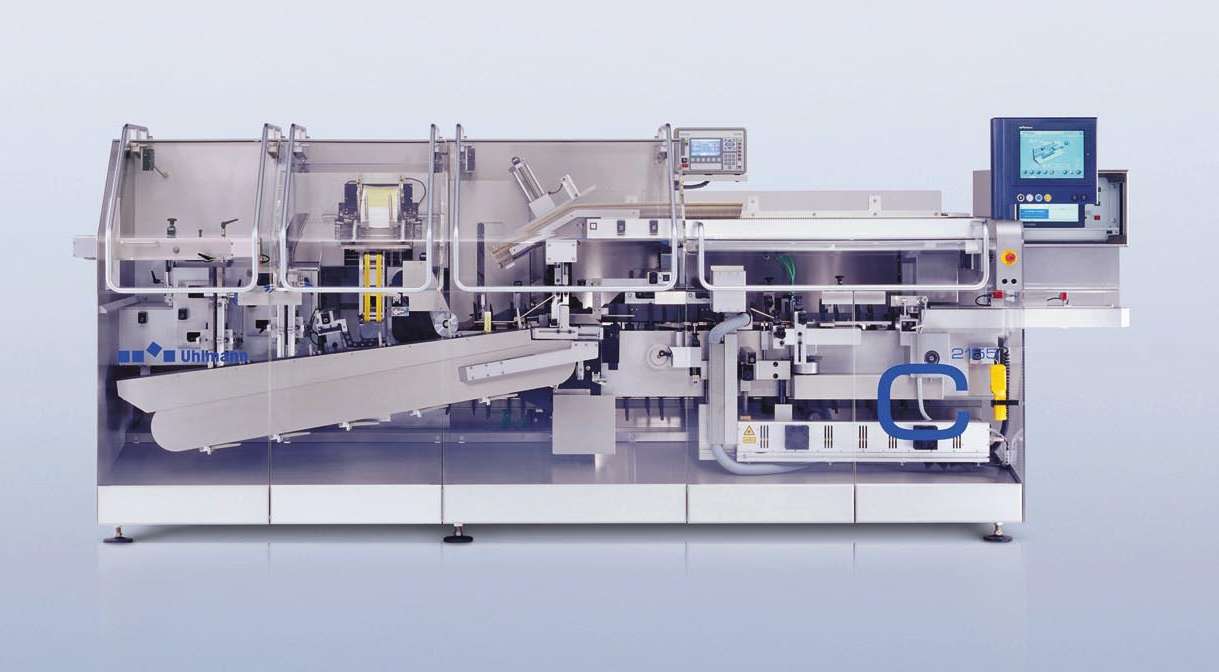

Jul 29, 2004 Model C 2155 features intermittent processing with precision of servo-controlled pick-up and erecting. Visual instructions via touch screen monitor facilitate start-up and operation. With output from 25–150 cartons/min, self-cleaning machine offers GMP-compatible cantilevered construction and automatic system alignments.

SIXNET    Clifton Park, NY 12065 0767

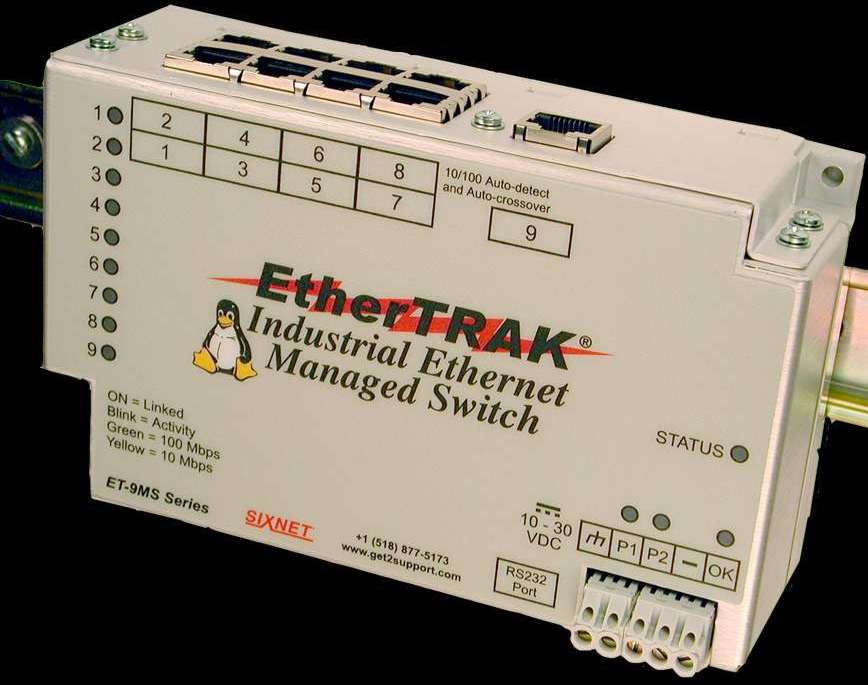

Jul 29, 2004 Provided with open-source Linux software, EtherTRAK offers real-time secure performance with SNMP network management and rapid spanning tree support rings. This ensures network reliability with automatic switchover on segment failure. Unit incorporates dual power inputs, self-test/alarm output contact, datalog and alarm RTU functions, and authentication and encryption features. Product has MIL-STD-1275 surge protection and -40 to +70°C operating temperature range.

PCB Piezotronics Inc.    Depew, NY 14043 2495

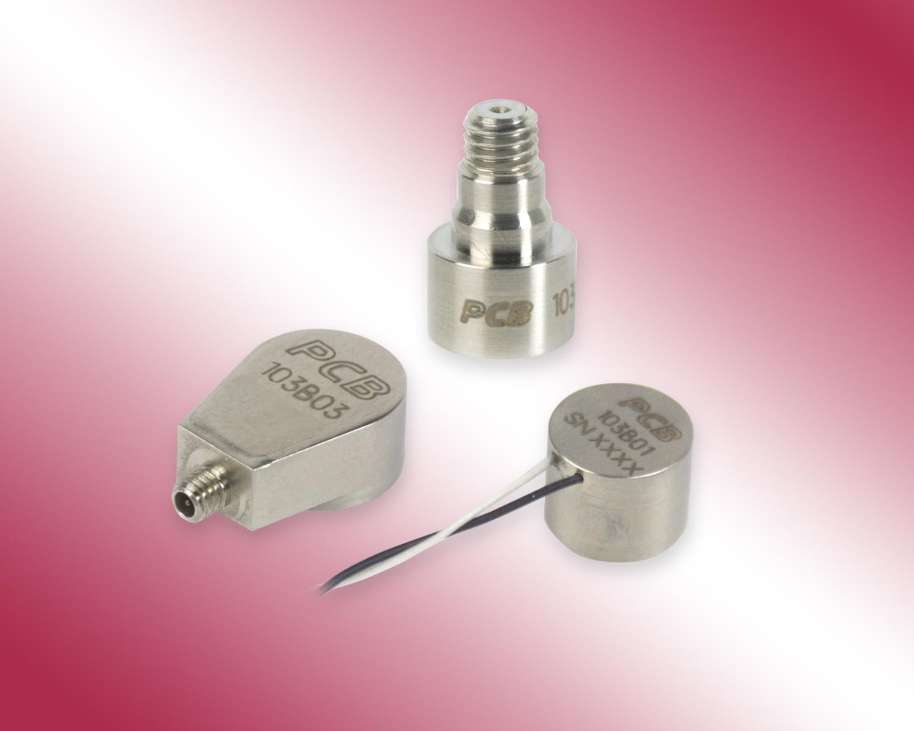

Jul 29, 2004 Series 103B ICP® Acoustic Pressure Sensors measure pulsating, transient, and turbulent acoustic phenomena on transportation vehicles and other structures. Built-in signal conditioning microelectronics produce clean, low-impedance voltage output signals. Sensors are offered in 3 configurations: pigtail wire solder connection, 10-32 top connector, and 3-56 side connector. Each is available in sensitivities of 500 or 1,500 mV/psi and ranges of 10 or 3.33 psi.

PCB Piezotronics Inc.    Depew, NY 14043 2495

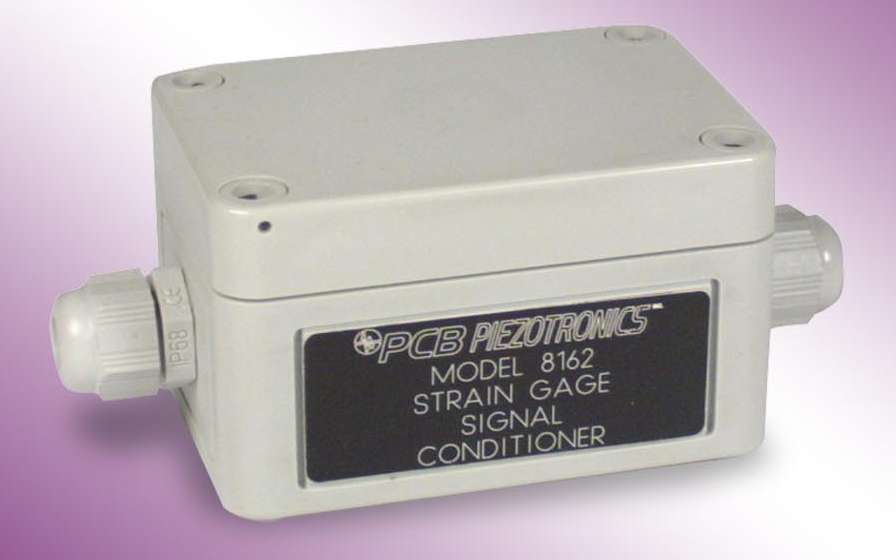

Jul 29, 2004 Series 8162 provides conditioned, amplified analog voltage and current output for strain gage based sensors such as load cells and reaction torque sensors. Operating from 12–28 Vdc power, signal conditioners deliver ±5 or ±10 Vdc and 4–20 mA output signals for recording, control, and analysis purposes. Products, with 0.45–11 mV/V output, are housed in fire-resistant, waterproof enclosures and feature integral shunt calibration switch and 2-pole active filter.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jul 29, 2004 Featuring aluminum housing and integral cable, piezoresistive Model 3901F3HB2000G minimizes mass loading and can fit into vehicle recesses, such as frame members, floor pan, and engine compartment, where crash data is required. Maximum range is ±2,000 g, with frequency range to 5,000 Hz, ±5%. This 2.0 gm sensor can be used for acceleration data in front, side, and rear crash testing.

Larson Davis, Inc., A PCB Group Co.    Provo, UT 84601
Jul 29, 2004 Pimento 5.1 features 4-channel analyzer with upgrade path to 24 channels. Pre-configured test procedures include basic octave and FFT analyzer, vehicle ride comfort, power tool handle vibrations, hand transmitted vibrations, vehicle interior noise, reverberation time, sound transmission loss, and room noise. LMS PolyMAX algorithm, available in Pimento Modal Analysis software, gives clear estimates for resonances, minimizing risk of making errors during pole selection.

Newport Corp.    Irvine, CA 92606
Jul 29, 2004 Fabricated from U-16 polyurethane, NewDamp ND60 provides vibration-isolation support for low-load applications, such as breadboards, optical rails, laser systems, and workstations. Use of multiple-cone geometry yields isolation performance that is load-independent. Isolator does not require electronic circuitry, air hoses, or other supporting hardware. U-16 material is fully cleanroom compatible and meets NASA spacecraft outgassing specifications.

WeldComputer Corp.    Troy, NY 12180

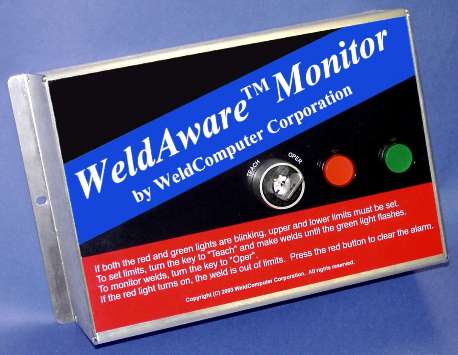

Jul 29, 2004 WeldAwareâ„¢ warns resistance welding manufacturers immediately if process drifts beyond acceptable limits. Unit is programmed by turning keyswitch to teach position and making welds. Accessible fault output and reset input allow integration of monitor with PLCs and other automated systems. Basic unit checks profile of secondary current, secondary voltage, resistance, and power for each weld and turns on red alarm light if user-selectable limits are exceeded.

Watlow Gordon    Richmond, IL 60071

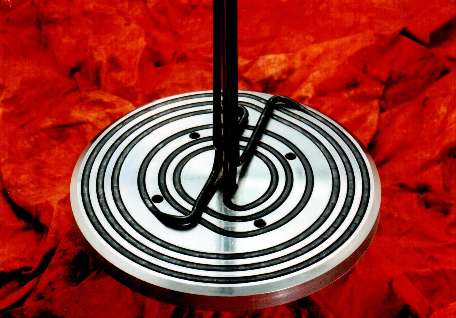

Jul 29, 2004 Interference Fit Construction Heated Parts offer alternative to milled grove or brazed assemblies for temperatures exceeding 450°C. With Finite Element Analysis or iterative prototyping, parts can achieve thermal transfer and temperature uniformity equaling ±1%. All joints can be welded to assure vacuum tight seal. Available in stainless steel, nickel, Inconel®, aluminum, copper, and bronze, heated parts can be customized into variety of shapes and sizes.

General Monitors    Lake Forest, CA 92630

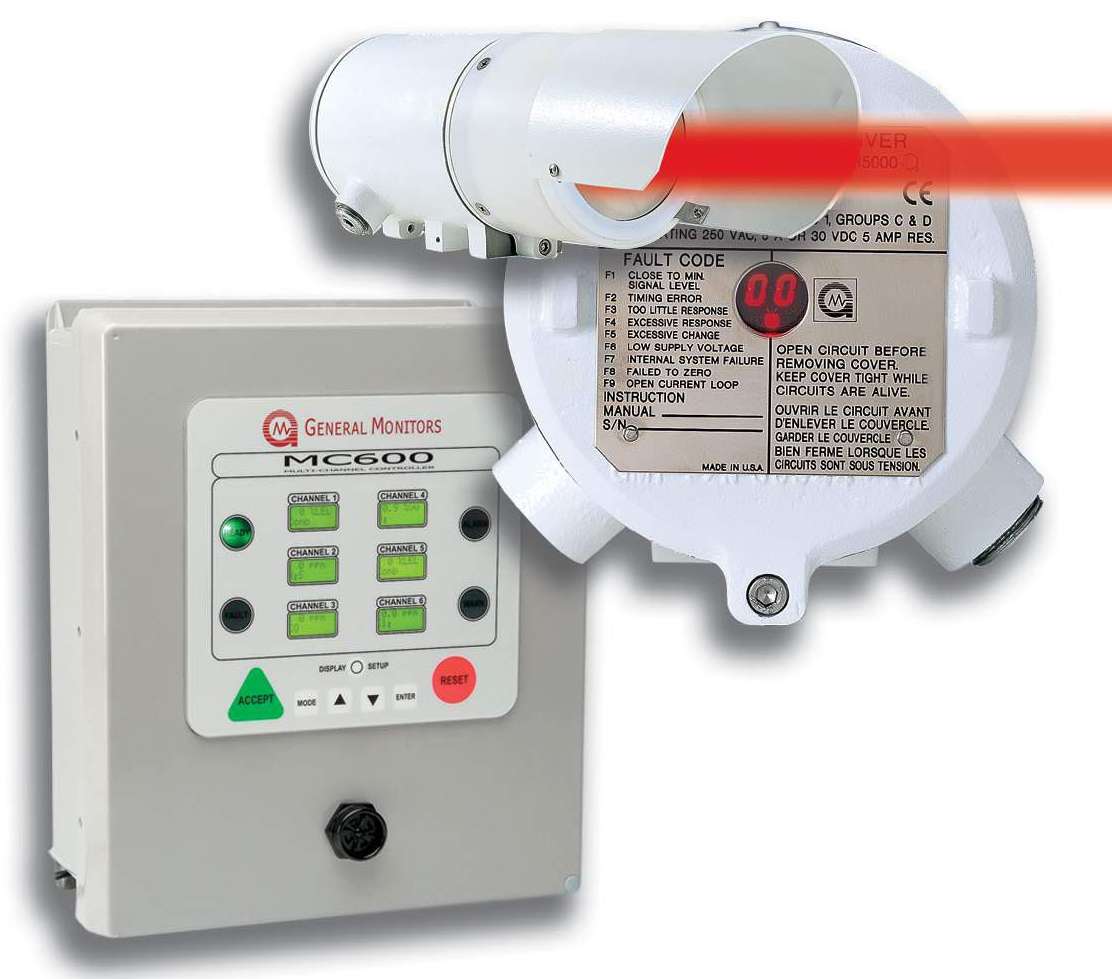

Jul 29, 2004 Modular IR5000 Open Path Hydrocarbon Gas Detection System combines single-beam, single-source, single-detector sensing design with intelligent multi-channel control. System consists of IR source unit and receiver unit, placed 16-330 ft apart, that measure gases active within IR spectrum. Corresponding output is expressed in parts-per-million meters, and lower-explosive-level meters, simultaneously.

EAD Motors, Eastern Air Devices    Dover, NH 03820
Jul 29, 2004 AC Inverter-Duty Induction Motor operates at 230 Vac with standard 3-phase AC inverter drive. Configured in 2 or 4-pole designs, power output is rated at 1/6–½ hp and 1/10–1/3 hp with fundamental frequencies from 10–80 Hz and 20–120 Hz respectively. Shaft extension, measuring ½ in. diameter provides heavy-duty load connections. Size 39 frame motor features open-frame housing, internal fan, electrically-insulated rotor, and center-tap Class-F thermal protector.
