Migatron Corp.    Woodstock, IL 60098
Sep 07, 2004 RPS-412A provides accuracy of ±0.002 in. or 0.05% of range, whichever is greater, at 25°C. Built-in temperature compensation target monitors and compensates for air temperature 50 times/sec. Sensor also compensates for changes in relative humidity, barometric pressure, and other factors that influence speed of sound. Analog input card determine resolution of system. Numerical values programmed into PLC/computer determine zero and span.

Artesyn Technologies    Framingham, MA 01701
Sep 07, 2004 Non-isolated, point-of-load, Series VRM10 meets core power requirements of high-end processors. Converters offer dynamic voltage programming and continuous current outputs up to 85 A. They use 4-phase buck conversion topology with interleaving to achieve switching frequency of 2.2 MHz, yielding conversion efficiencies up to 86% when delivering 85 A at 1.4 V. Complying with Intel's VRM10.0 and 10.1 specifications, units operate from 12 Vdc input and generate 0.8375-1.6 Vdc.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056

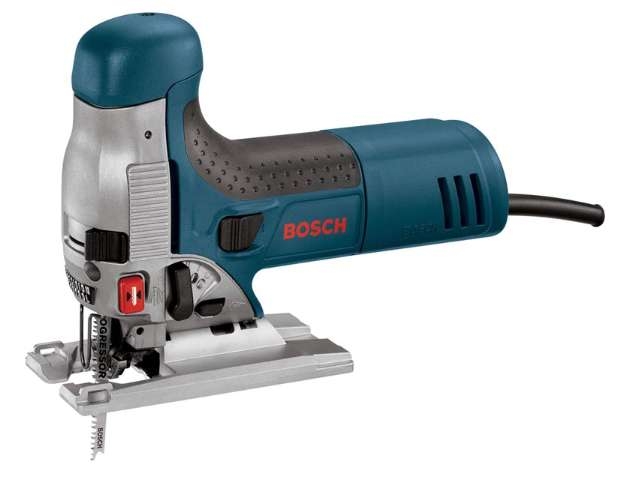

Sep 07, 2004 Rated 6.4 A, Model 1591EVSK includes constant response circuitry and variable-speed dial for cut speeds from 500-2,800 spm. Precision Control Blade System, designed to eliminate blade wander, complements T-shank 3-point blade holding system by utilizing clamp to grasp blade. Tool-less foot bevel adjusts up to 45°. Built-in lever and tension dial lock and restrain foot into place. Four-stage orbital action adjusts blade motion to adapt to work piece.

Foster Transformer Co.    Cincinnati, OH 45223 2571
Sep 07, 2004 Suited for lighting control panels, transformers automatically reset after experiencing overload situation. Various UL and C-UL listed models are available, each with 40 VA continuous and 75 VA intermittent capacity ratings for 50/60 Hz service. Input voltages include 115, 220, 240, 277, 347, and 115/277 or 115/240/277 V, all with 24 V output. Each size/model includes UL Recognized Class 130 (B) insulation.

Aromat Corp.    New Providence, NJ 07974 1507

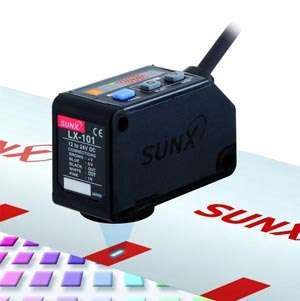

Sep 07, 2004 SUNX LX-100 offers Mark and Color mode detection with 4-digit display that enables numerical sensing control and minute settings. Mark mode selects single color from 3 RGB LEDs to realize 45 msec response time, while Color mode utilizes all 3 RGB LEDs to determine RGB ratio of mark sensor. Automatic optimal LED selection determines most suitable LED for largest contrast between mark and base. Built-in 12-bit A/D converter enables 1/4000 resolution judgments.

AccuWeb, Inc.    Madison, WI 53707
Sep 07, 2004 Utilizing 4 ultra-high intensity LED light sources, AccuBeam® II recognizes and guides any printed line or pattern regardless of color or surrounding graphics. To compensate for different reflective qualities of matte, glossy, or holographic webs, unit provides 3 projection ports. A 20 MHz microprocessor performs frame-by-frame analysis of captured images to optimum scanning accuracy. Up to 25 settings can be stored in non-volatile memory and recalled.

Kurt Manufacturing    Minneapolis, MN 55421
Sep 07, 2004 Available in 2 and 4 face models and 4 different sizes, ToolBloxâ„¢ modular tombstones are highly rigid, A36 HRS steel and help to attain workpiece immobility and to dampen cutter induced vibration. They accommodate all types of workholding devices including single, double, and multiple station vises, either manual or hydraulic. Bolt holes and dowel patterns are provided on each face for installation and removal of sub-plates and workholding components.

RAM Optical Instrumentation, Inc.    Tempe, AZ 85281-7215
Sep 07, 2004 Suited for visual inspection and detailed quality control, manufacturing, or assembly work, Hi-Eye(TM) incorporates color LCD monitor that allows direct line-of-sight viewing. Auto focus ensures crisp, sharp images at all magnifications, and unit is available with dual halogen, fluorescent ring light, or square-on surface lighting. Flexible articulating arm mounts to any table, and zoom lens options provide magnifications to 230x.

Igus, Inc.    East Providence, RI 02914 0349
Sep 07, 2004 Available with inner heights from .35-1.26 in. and inner widths from .24-3.94 in., zipper Energy Chain Systems® are built with interconnected lids which can be pulled back in zipper fashion. If application requires long travel, cables do not have to be snaked through, but can be laid out along cable carrier in their compartment. Interior separators can be used with Series 15 and Series 17 zipper chains for multiple cable configurations.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 07, 2004 XL Fortran Enterprise Edition v9.1 for AIX® provides development environment in which to build Fortran applications. Standard-based compiler is designed to exploit IBM RS/6000® and IBM pSeries® line of symmetric-multiprocessing hardware, including IBM PowerPC®, POWER3â„¢, and POWER4â„¢ architectures. Software fully supports OpenMP Fortran API V2.0, FORTRAN 77, Fortran 90, and Fortran 95 standards, and partially supports Fortran 2003 draft standard.

American Permalight, Inc.    Torrance, CA 90505 5245
Sep 07, 2004 Available pointing left or right, PERMALIGHT® Door Handle Markers speed up evacuation by making door release of exit doors immediately visible during darkness emergencies. They are made from polycarbonate with PERMALIGHT and exhibit luminance values of 150/22.

MGE UPS Systems    Costa Mesa, CA 92626
Sep 03, 2004 Intended for Pulsar UPS systems with power ratings from 500–3,200 Va, Pulsar PDUs are available with range of NEMA 120 Vac input plugs and receptacles ranging from 15–30 A. Maintenance Bypass Switch model enables users to eliminate downtime by maintaining power continuity during UPS maintenance while serving dual purpose as PDU. With 3.5 in. form factor, PDUs are suited for mounting in 19 in. equipment racks, telecom racks, or any wall-mount space.

InterTech Development Co.    Skokie, IL 60077 3220
Sep 03, 2004 Models M-1075 CAVAL-03 and -04 eliminate need to manually check and adjust instrument zero and span, or to manually verify flow measurement. CALVAL-03 offers upstream testing from 0.10–4.00 sccm, while CALVAL-04 offers downstream alternative for 0.01–0.25 sccm range. Both units automatically keep pass/fail totals and store up to 1,000 test records. Calibration is NIST-traceable to less than 5% R and R, with calibration accuracy traceable to 0.2% primary standard.

Weldlogic, Inc.    Newbury Park, CA 91320
Sep 03, 2004 Portable Oxygen Analyzer, Model OM-4 measures oxygen levels for welding stainless steel pipes, tubes, and tanks to prevent coking, oxidation, and discoloration. It shows when oxygen has been removed down to 0.01%, indicating there are no leaks. Featuring large digital display, analyzer operates from internal, temperature-compensated, electrochemical oxygen sensor. Power is provided by 9 V battery, delivering 3 years of operation before replacement.

LEDtronics, Inc.    Torrance, CA 90505
Sep 03, 2004 GardenLED(TM) Series GDL002 FloodLED(TM) features 198 warm white 5 mm discrete LEDs mounted on PCB. Unit provides ample light without generating light pollution, radiating excessive heat, or consuming large amounts of energy. Solid-state design renders LEDs impervious to electrical and mechanical shocks, vibrations, frequent switching, and environmental extremes. Requiring 12 Vdc, unit is suited for lighting walkways, small signs, landscaping, and building exits.

Linear Technology Corp.    Milpitas, CA 95035
Sep 03, 2004 Logarithmic Model LT5534 operates over RF input frequency of 50 MHz to 3 GHz and is capable of detecting full-scale RF changes with 38 ns delay. Output is directly proportional to logarithm of average RF voltage input. At 900 MHz, unit provides repeatable measurement of RF power within ±1 dB over 50 dB dynamic range, while spanning temperature extremes of -40 to +85°C. Operating from 2.7-5.25 V supply, detector comes in 6-lead, 2 x 2 mm surface-mount, SC-70 package.

Stack Limited    Bicester, Oxon OX26 4UL  United Kingdom
Sep 03, 2004 Miniature, solid-state Digital Video Recorder employs broadcast standard MPEG-2 video compression to record real-time video and audio direct to PC flash card. Up to 8 hr of full-resolution digital video can be recorded on 16 Gb memory card. Unit is sealed to IP68 and has operating temperature of -20 to +80°C. Data overlay allows date and time to be stamped onto recorded video. Recordings can be archived direct to DVD for playback on PC or DVD player.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Sep 03, 2004 Modular Syringe Pump Components allow users to build prototype systems or test pumping functions without sacrificing quality of pumping mechanism. They are fully supported with software, electronic diagrams, and engineering phone support. Modules include micro liter delivery, milliliter delivery, and high force delivery.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Sep 03, 2004 Integrated SiW4000â„¢ system-on-chip (SoC) Bluetooth solution, developed using 0.13 micron CMOS process technology, is housed in 4.5 x 4.5 mm BGA package to minimize footprint of pcb. Product requires only 8 external components: 6 capacitors, one inductor, and one band-pass filter. Features include coexistence interface, direct conversion architecture, and synchronous and asynchronous serial interface capable of supporting Enhanced Data Rate (EDR).

THK America, Inc.    Schaumburg, IL 60173 5340
Sep 03, 2004 Product incorporates vibration damper inside hollow ball screw shaft for improved positioning accuracy and lower noise levels. Available for ball thread shaft diameters from 16–50, it is interchangeable with all ball screw types.
