Research, Inc.    Brooklyn Park, MN 55428
Aug 09, 2004 Available in heated lengths of 10, 16, 25, and 38 in., ChamberIR Model 4069 provides clean heat source that does not contact product being heated. Quartz halogen lamps reach 90% of full operating temperature within 3 sec of cold start and cool down instantly in response to power control signals. Radiant energy dissipates to 10% at 5 sec after power supply is disconnected. Heater is suited for test specimens or products in continuous processes.

FAG Bearings Corp.    Danbury, CT 06813 1933
Aug 09, 2004 X-Lifeâ„¢ products include 4 types of bearings. E1 spherical-roller bearings feature optimized surface finishes and bearing and roller geometries. Angular-contact ball bearings are manufactured with brass, TVP, or pressed steel cages, while SL series cylindrical-roller bearings are available with brass or plastic cages. KUVE and RUE ball and roller monorail guidance systems, suited for dynamic traverse motion and positioning motion, help provide long-term mechanical accuracy.

Oseco, Inc., A Halma Group Co.    Broken Arrow, OK 74012-1449
Aug 09, 2004 PRO+ Rupture Disk features 95% operating ratio to guard against fatigue and premature disk rupture for both gas and liquid services. It operates without using cutting teeth. One-piece design and smooth surface prevent product buildup. With burst pressures from 8-750 psig, disk is compatible with wide range of applications and performs consistently in high- and low-pressure environments.

Newport Corp.    Irvine, CA 92606
Aug 09, 2004 Working with lasers over wide resistance range, Diode Laser Current Driver Circuit is based on switching power supply that drives output current regulator. Key design features include voltage regulator to power current regulator, circuitry to equalize voltage drop across circuit elements, and placement of each on separate heatsinks. By placing 2 heatsinks face-to-face, they can be cooled by single fan for physically compact configuration.

ITW Ransburg Electrostatic Systems    Toledo, OH 43612
Aug 09, 2004 Evolver is available in 60° and 90°, single- and dual-head modules, in either HVLP or conventional air spray, with adapters for all types of robots. Four different modular gun configurations allow correct gun to be selected that best fits application. All valves are grounded within manifold, allowing atomizer to apply more conductive solvent-borne materials, and change color sequence during spraying with no loss of tip voltage.

Times Microwave Systems    Wallingford, CT 06492 5039
Aug 09, 2004 Suited for LMR® low loss coaxial cables, clip hangers are available for sizes 600–1,700 and standard hangers for sizes 400–1,700. Designed for supporting single runs of cable in wireless systems, both types of hangers are fabricated from corrosion-resistant, stainless steel for use in extreme weather conditions. Clip hangers feature locking mechanism, while standard hangers have pre-formed design that allows cable to be snapped into place.

Crowcon Detection Instruments Ltd.    Erlanger, KY 41018

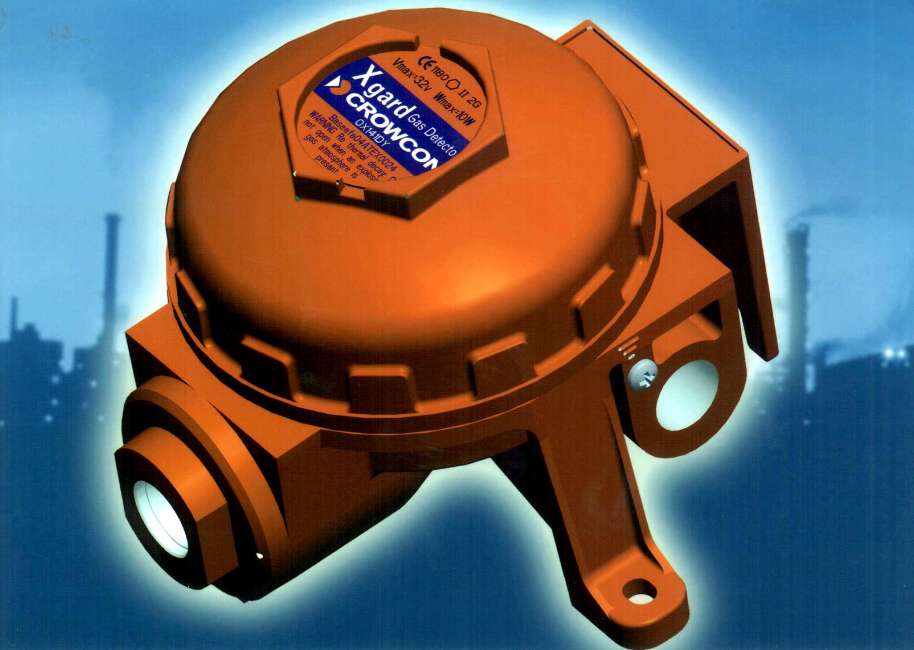

Aug 09, 2004 Xgard Gas Detector detects combustible and toxic gases, oxygen, high-volume concentrations of certain gases mixed with air or other gases, and hydrogen sulphide at high temperatures and high background gas levels. It is constructed from A356 marine grade aluminum with polyester coating and is UL approved for flameproof and intrinsically safe configurations. Detector offers accessories for harsh or wet conditions, and collector cone for lighter-than-air gases.

Wizard Industries, Inc.    Van Nuys, CA 91411

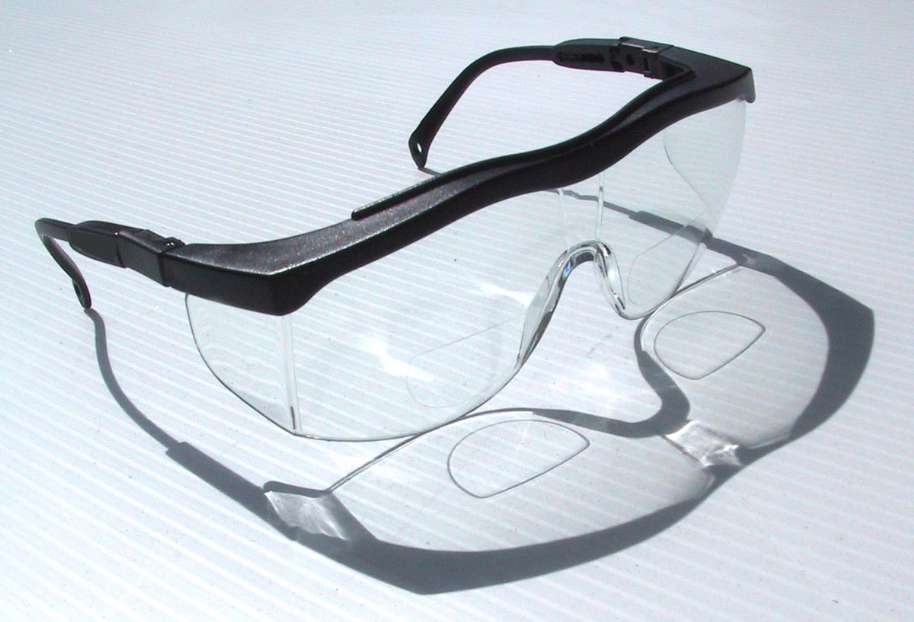

Aug 06, 2004 Safety Sport Specs are ANSI Z87.1-2003 compliant, bifocal glasses, offering full frontal impact protection. Side protection is provided by wraparound design that hugs the face curve. Glasses feature 28 mm flat-top bifocal reading segment, and are available in strengths from 1.0–3.0 diopter, in 0.5 diopter increments.

Crouse-Hinds Div., Cooper Industries, Inc.    Syracuse, NY 13221
Aug 06, 2004 Made of cast aluminum, Arktite CSR Interlocked Receptacle is epoxy-coated for corrosion resistance and features fiber-reinforced enclosure for impact resistance. Cover break line offers wide-open access, while direct-drive interlock provides positive locking action. Non-metallic receptacle is available in 30, 60, and 100 A versions, fused and non-fused. It is UL and cUL Listed, as well as NEMA 4X, watertight, and IP66 rated.

Times Microwave Systems    Wallingford, CT 06492 5039
Aug 06, 2004 Designed for LMR-400 Series low-loss coaxial cables, TC-400-TM-RT TNC Connector is suitable for unlicensed wireless communication applications in ISM frequency bands. Connector can be used at upper ISM bands of 2.4–5.8 GHz because of its low loss and low VSWR. Flexible, non-kinking, RF transmission line cables are suitable for antenna feeders, system jumpers, and interconnects.

Xenon Corp.    Woburn, MA 01801 1057
Aug 06, 2004 With compact, modular design, Xenon PWB (printed wiring board) Pulsed UV/Visible Curing System employs pulsed UV/visible light to cure multi-film flexible circuit boards without damaging products. Mercury-free system features serpentine lamp, with 1 x 3 in. optical profile, that produces peak power from 405–1,811 W/cm². It provides instant on/off and can be mounted onto stationary or moving equipment. System includes power supply and controller.

Image Industries, Inc.    Huntley, IL 60142

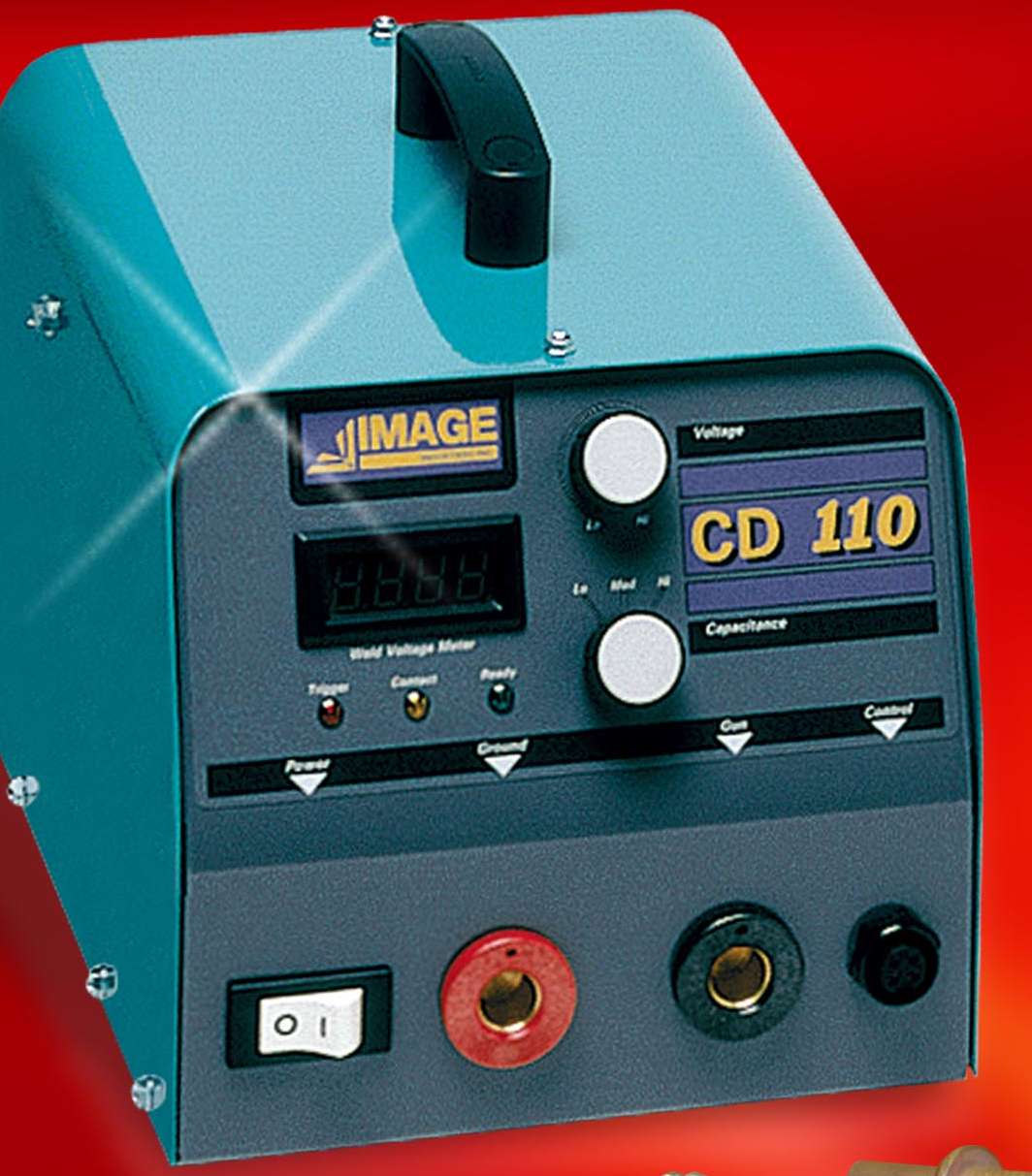

Aug 06, 2004 With weld times of 0.01 sec and charge time of under 3 sec, Capacitor Discharge (CD) 110 Stud Welder may be used for contact and gap CD stud welding. Abbreviated weld time minimizes heat buildup, resulting in minimal discoloration, burning, or reverse side dimples. Unit achieves single-sided welds with minimal distortion on materials as thin as 0.020 in. and offers 110,000 µF of user-selectable capacitance to handle up to 3/8 steel weld studs.

Rittal Corporation    Springfield, OH 45504
Aug 06, 2004 Operating in conjunction with CP-Vertical Pendant Arm systems, Universal Release Handle releases pendant arm, enabling operator to easily reposition control panel to new height or position. Handle can be installed in several locations on enclosure, offering motion control as well as flexible height adjustment.

Hypertherm, Inc.    Hanover, NH 03755 0010

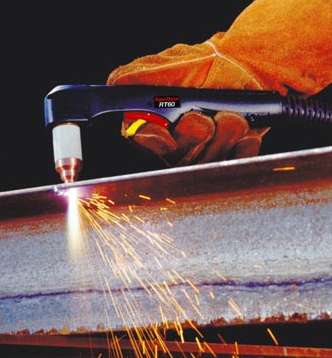

Aug 06, 2004 Used with Powermax® 600/800/900 and MAX® 42/43 plasma systems, 60 A Model RT60 features Coaxial-assistâ„¢ jet technology for cut speeds up to 41 ipm on ½ in. steel. Consistent cut quality is assured by blowback, contact-start torch technology. FineCutâ„¢ consumables are available for cutting thin-gauge metals. Based on Hypertherm T60 torch design, Model RT60 is fully compatible with Hypertherm G3 systems products.

JAI, Inc.    San Jose, CA 95134
Aug 06, 2004 Available in monochrome Model TM-1325 and color Model TMC-1325, miniature, progressive scan, CCD camera is based on 2/3 in. interline transfer sensor with 1392 x 1040 pixel resolution. Interline transfer CCD permits full vertical and horizontal resolution with electronic shutter speeds up to 1/16,000 sec. Incorporated look-up table allows full range control via externally selectable knee slopes and provides real-time 10- to 8-bit preprocessing.

Master Lock Co.    Oak Creek, WI 53154

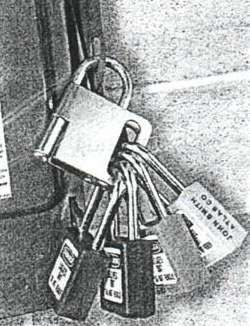

Aug 06, 2004 Safety Series(TM) includes spark-proof aluminum, non-conductive plastic, and pry-resistant steel hasps. Available to accept 6 or 8 padlocks, aluminum units feature rounded tips that fit into ¼ in. diameter holes. Steel, hinge-style hasps have 9/32 in. diameter shackles and accept 4 or 8 padlocks. Lightweight, plastic hasp features 1 in. diameter jaw, fits ¼ in. diameter holes, and accepts 6 padlocks.

Snap-on Industrial    Kenosha, WI 53141 1410

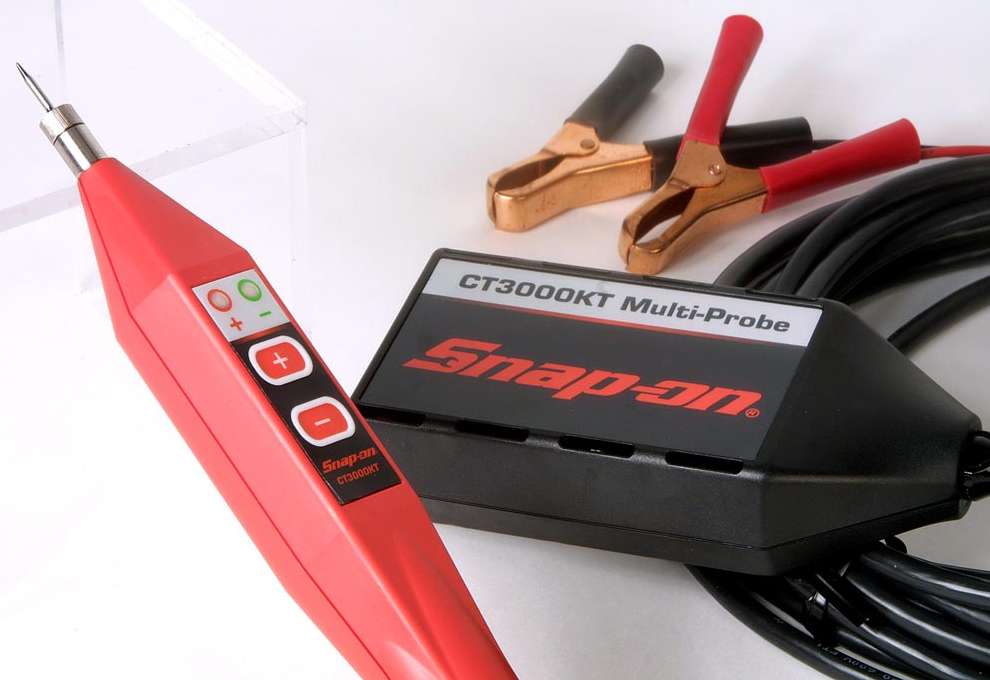

Aug 06, 2004 Used to test and troubleshoot wired components in transportation electrical systems, CT3000KT Multi-Probe is constructed with solvent-resistant, ABS plastic exterior. It tests continuity of electrical circuits and correct wiring polarity, operating on dc systems from 6–48 V. LED light and audible tone indicate positive, negative, or ground polarity, eliminating potential for incorrect connections, while recessed membrane-covered switches prevent accidental power-up.

Parvus Corp.    Salt Lake City, UT 84115 2913

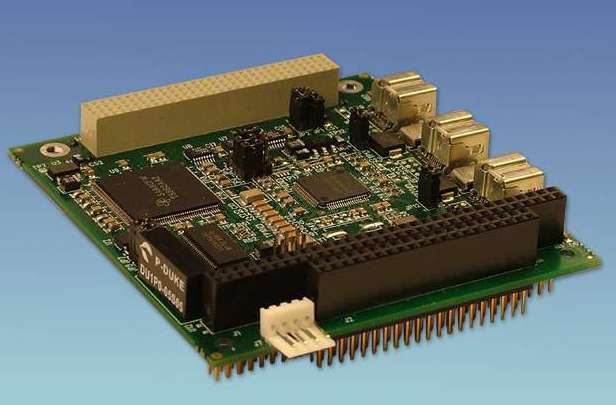

Aug 06, 2004 Fast1394(TM) 3-port IEEE-1394b controller card supports data transfer rates up to 800 Mbits/s over 3 plug-and-play, bilingual FireWire ports, galvanically-isolated between transceiver and link controller. Supporting hot pluggable connections, card provides automatic detection and configuration. It requires single 5 V power supply and is capable of supplying up to 45 W of power to external peripherals via 1394 cable. Fast1394 is fully compliant with OHCI v1.1 specification.

Skyjack Inc. / Boom Division    Guelph Ontario N1H 1B9, CD   Canada
Aug 06, 2004 Offered with choice of liquid-cooled dual fuel or diesel engines, FULL SIZE Rough Terrain (RT) Aerial Work Platform models 8831, 8841, and 9250 feature proportional joystick control. They have spring-loaded half gate on both sides of platform, hinged railing systems, and grip lug air filled tires. Equipped with 4WD, scissor lifts feature working heights up to 56 ft, capacities to 2,500 lb, gradeability to 30%, and 74 x 168 in. rollout platforms.

CyberResearch, Inc.    Branford, CT 06405 2932
Aug 06, 2004 To enable automatic control, PCIAO 04F8 and PCIAO 08F4 facilitate direction of 14-bit feedback to D/A board via feedback lines that keep system stable. Former offers 4 D/A lines with 8 A/D feedback channels, while latter has 8 D/A's with 4 A/D feedback channels. Both boards have output speeds of 1 MSample/s and input speeds of 400 KSample/s. Products calibrate themselves on command with on-board reference voltage or external reference.
