Beckhoff Automation LLC    Minneapolis, MN 55337

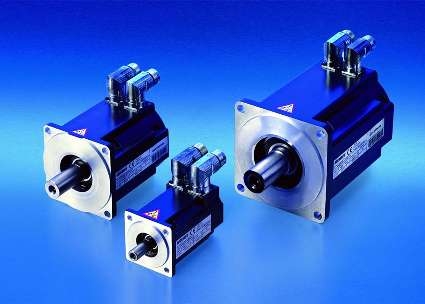

Sep 10, 2004 Series AM3000 Synchronous Servomotors feature sealed windings and are available with 7 flange sizes. Housings, made from single piece of metal, produce no negative impact on stability through material transitions that increase thermal resistance. Rotatable plug connectors for power and feedback facilitate machine wiring. Pressed bearings prevent axial motion of shaft. Tight tolerances result in symmetrical structure inside motor, minimizing cogging.

MicroStrain, Inc.    Williston, VT 05495
Sep 10, 2004 Model 3DM-GX1(TM) combines outputs from 3 angular-rate gyros with 3 orthogonal dc accelerometers and 3 orthogonal magnetometers. Embedded microprocessor contains programmable filtering algorithm, which blends static and dynamic outputs of sensors to provide stabilized pitch, roll, and yaw measurements under dynamic and static conditions. Operating over 360° of angular motion on all 3 axes, unit provides orientation in matrix, quaternion, and Euler angle formats.

Artesyn Communication Products Inc.    Madison, WI 53717
Sep 10, 2004 Katana(TM)752i is equipped with PowerPC® 750GX processor and Marvell Discovery III system controller. Configurable cPSB blade features 2 PTMC sites, 4 Gigabit Ethernet channels, multi-level cache, and CTBus/H.110 interconnect that enables product to acquire and process both TDM and packet data. PTMC sites support 32-bit PCI data transfers at 33 or 66 MHz and feature dedicated CTBus and RMII interfaces.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Sep 10, 2004 Model OS-250 detects leaks and spills around equipment such as microscopes, HPLCs, low-pressure columns, and cell perfusion systems. When spills occur, integrated, switched power controller can be used to turn off pumps, perfusion systems, or any item plugged into controller. Response is initiated after few drops of most liquids. System features disposable, moisture-sensitive mats, audible and visual alarms, and 8 A switched power supply.

STANDA    Vilnius 03012  Lithuania
Sep 10, 2004 Available in single- and 3-axis configurations, Stepper Motor Controller Card for PCI bus controls and supports all parameters of bipolar stepper motor, including velocity, acceleration, deceleration, amount of steps, and direction. Card supports 3 synchronization modes and step division up to 1/8 steps. Two end switches and rotation switch that operates in 2 modes can be connected to controller.

NP Photonics, Inc.    Tucson, AZ 85747

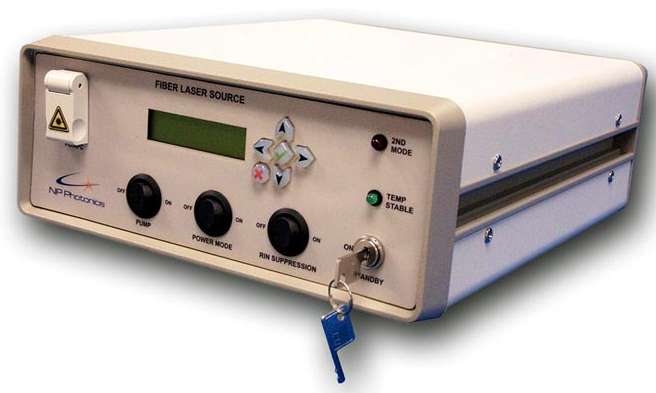

Sep 10, 2004 Stand-alone Scorpionâ„¢ Benchtop system includes fiber laser and controller housed in self-contained unit with front-panel controls, LCD display, and RS-232 interface. Providing up to 150 mW of power for any wavelength in 1,530–1,565 nm C band and any wavelength in 1,030–1,080 nm 1 micron band, product has mode stability of ±30 MHz/hr and maintains coherence over distances above 100 km.

ROMER/CimCore    Farmington Hills, MI 48331
Sep 10, 2004 INFINITE CMM articulating arm features infinite rotation, quick-change probes with automatic probe recognition, while integrated Wi-Fi 8.02.11b enables portability. Product also integrates low-profile, Zero-G counterbalance; USB video camera; and DOCSâ„¢ Lite software for basic prismatic measuring. Available in 6- and 7-axis configurations with measuring ranges of 4, 6, 8, 9, 10, and 12 ft, CMM features electronics with on-board diagnostics.

Vision Components GmbH    Ettlingen, BW 76275  Germany
Sep 10, 2004 Suited for progressive scan applications, Model VC2068/E acquires full frame 1,240 x 1,024 pixel images at 10 fps while executing real-time image processing functions. Offering 1,200 MIPS computational power, unit includes 16 Mbytes SDRAM image/data memory with 2 Mbytes flash EPROM for program and data storage, and built-in MMC. Process interface allows 4 inputs and 4 outputs. Website can be hosted inside camera and displayed using standard web browser.

Greencomputer Innovation    Edmonton T6N 1B4  Canada
Sep 10, 2004 With combination firewall, antispam, and antivirus engine, PowerElf II server appliance provides protection that can be implemented into any mail system, at any level. Employees on road can check e-mail via secure 128-bit encrypted webmail, and if network does not have firewall protection, PowerElf II can be implemented with Auto-defense firewall technology to protect e-mail servers and internal network.

Pelican Products, Inc.    Torrance, CA 90505

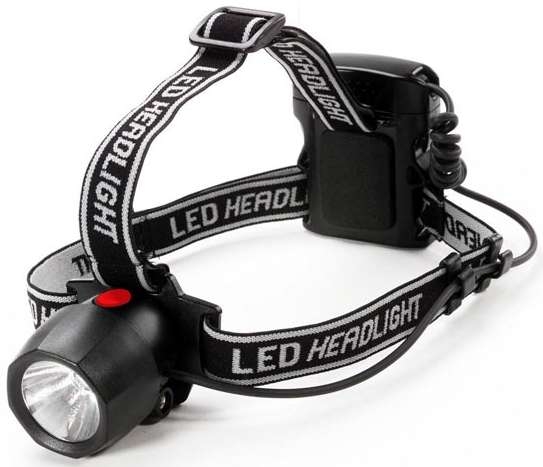

Sep 10, 2004 HeadsUP Liteâ„¢ 2630 features LED battery-power indicator and switch that allows for 100, 50, and 25% light regulation for close-quarter dimming and battery conservation. Headlight includes intermittent safety beacon mode and has water-resistant, ABS-plastic construction. Energy adjustment circuit regulates 30 lumen Luxeon® 1 W LED lamp, ensuring consistent light throughout battery life.

Oil-Rite Corporation    Manitowoc, WI 54221 1207
Sep 10, 2004 Infrared Lubrication System is equipped with solid-state PLC, 3-way solenoid valve, bank of PurgeX® pumps, power supply, and NEMA 12 enclosure. Independent pump operation allows individual adjustment of flow to each lube point from 0–.012 cu in./cycle. Clear, polycarbonate, ½ gal reservoir, with hinged top lid, feeds system and allows for visual confirmation of fluid level. System is suitable for -15 to +180°F applications. Standard systems are available with 1–12 pumps.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

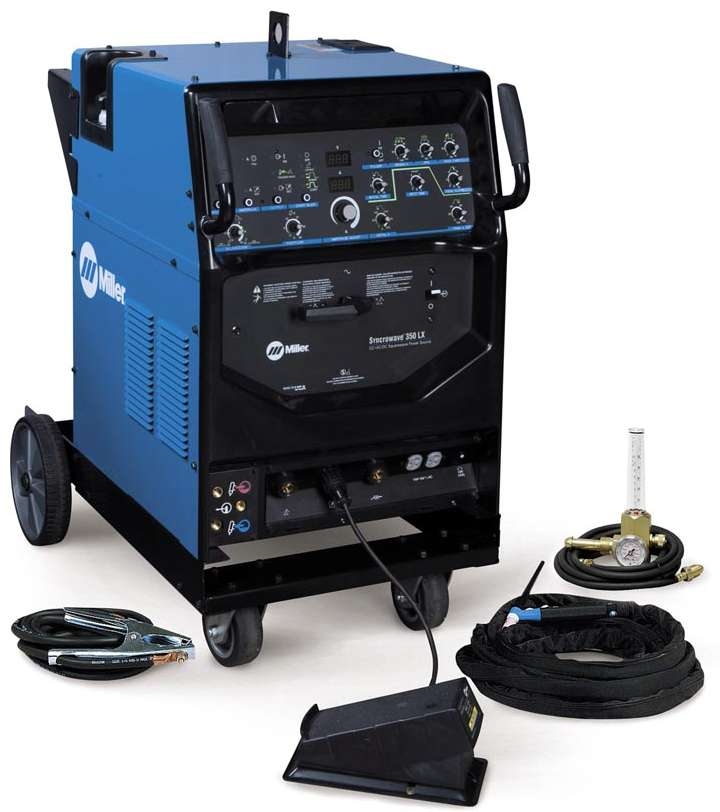

Sep 10, 2004 To prevent torch damage by monitoring coolant flow and temperature, Syncrowave® 250 DX and 350 LX incorporate Cool-On-Demandâ„¢ feature. Syncro-Startâ„¢ technology provides choice of 3 starting conditions to optimize starts to match tungsten diameter and material thickness. Power sources, with welding ranges of 3–310 A and 3–400 A, also incorporate built-in consumables storage drawer, cable hangers and tilted operator interface with dual digital meters.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 10, 2004 IBM 36232SX incorporates Super Digital Linear Tape (SDLT320) tape drive and 8-cartridge robotic carousel, providing unattended native backup capacities and speeds to 1.28 Tb at 16 Mb/sec. Using onboard hardware data compression, product is capable of up to 2.56 Tb capacity at 32 Mb/sec. It features 2U form factor, downward read/write compatibility to SDLT220 autoloader and SDLT220 drive, LVD SCSI interface, barcode reader, and Remote Management Unit.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 10, 2004 Available in business black, Model E74 features 17 in. CRT with viewable image size of 16.0 in. and 0.27 dot pitch. Maximum horizontal frequency is 69 kHz for flicker-free operation at recommended 1,024 x 768 pixels at 85 Hz. VESA Display Data Channel capability is provided for plug-and-play operation. Compliant with Energy Star power consumption guidelines, monitor is suited for word processing, e-mail/data entry, spreadsheets, and business graphics.

Hoffer Flow Controls, Inc.    Elizabeth City, NC 27909

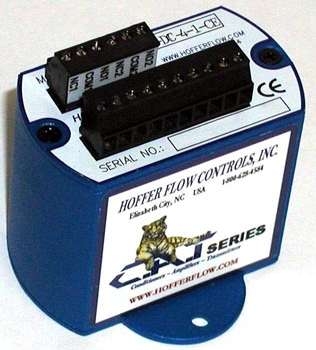

Sep 10, 2004 Microprocessor-based CAT Series devices are suitable for use with company's turbine flowmeters. CAT1 intelligent, loop-powered 4-20 mA transmitter offers linearization, CAT2 signal conditioner offers various output options, and CAT3 intelligent signal conditioner with linearization provides pulse output scaled per unit of flow. CAT2 and CAT3 offer high and low flow rate alarms. Combination of different circuit boards creates many options. Each unit holds 3 boards.

Columbia Machine Inc.    Vancouver, WA 98661

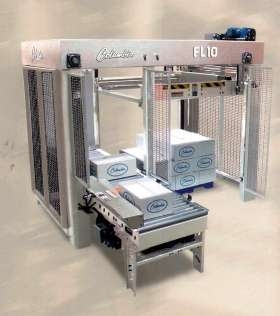

Sep 10, 2004 Floor-level Model FL10, with corrosion-resistant structural design, eliminates areas of potential bacterial growth and provides access for thorough sanitation and maintenance. Measuring ¼ in. thick, stainless steel frame features continuous welds. Running at speeds up to 15 cases/min, palletizer is suited for slow-speed production line applications. It comes with preprogrammed stacking patterns and fits through 8 x 8 ft doorways.

Fairchild Semiconductor Corp.    South Portland, ME 04106

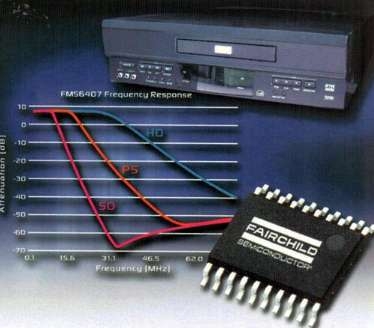

Sep 10, 2004 Model FMS6407 offers functionality of high definition, progressive scan, and standard definition filters in one chip. Triple 6th order filter features selectable 30, 15, or 8 MHz cutoff frequencies. All 3 outputs are driven by amplifiers with selectable gains of 0 or 6 dB, which can drive 1 Vpp or 2 Vpp signals into ac- or dc-coupled terminated video loads. Model FMS6407 features SD/PS/HD stopband attenuations of 56/48/40 dB, 0.26% differential gain, and 0.11° differential phase.

FARO Technologies, Inc.    Lake Mary, FL 32746 6204
Sep 10, 2004 Suited for small machine shops, FARO Gage and FARO Gage-PLUS provide .0004 and .0002 in. accuracy, respectively. Units set up in seconds, allowing user to inspect parts, molds, and assemblies directly on machinery producing them. Providing 3D measurement and statistical analysis, CMMs record all measurements and create comprehensive reports. They come with laptop computer and can be customized with accessories to best fit shop's needs.

TISCOR    Poway, CA 92064
Sep 10, 2004 Installed onto hand-held computers, File Track eliminates misplaced files in office environments when users scan individualized file bar codes to identify documents and enter data related to files. Files can be checked out to individual, checked in by individual, moved to different location, and reserved by individual for use at specified time and date. File Track package includes one single-user software license, hand-held computer, and 50 pre-printed bar code labels.

Ermanco, Inc.    Spring Lake, MI 49456 9652
Sep 10, 2004 CRUZchannel frame incorporates built-in side guards that eliminate need for guardrails on floor-mounted conveyors and reduce guardrail requirements when hung overhead. Side shroud panels protect controls from damage and dust, while side window channel openings allow convenient viewing of sensor operation. Optional heavy-duty splice plates allow hanger mounts to be installed where it is most efficient, rather than only at bed joints.
