Justice Laboratory Software    Denville, NJ 07834
Aug 12, 2004 Chrom Perfect v5.5.2 is available in two versions: Chrom Perfect LSi provides single instrument system, while Chrom Perfect Spirit delivers multi-instrument system that can run on one PC or in networked client server environment. Latter acquires data from up to 16 instruments connected to same PC or with direct interface between instrument and Network via Tigre E+ interface. All data is created in common file format, and system offers custom reporting options.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Aug 12, 2004 Model HG+ achieves efficiency above 96% with guaranteed backlash of less than 4 arc minutes. Available in 5 sizes, single-stage gearhead mounts to all servomotors using universal mounting system. It is suited for applications such as packaging and converting machinery, handling and gantry robots, and flat bed type machinery.

Scapa North America    Windsor, CT 06095
Aug 12, 2004 Thermoplastic Bioflex 130 is suited for wound dressings as well as surgical drape and gown fabrication. Available in thicknesses of 1-3 mils, product is supplied on casting sheet and can be laminated to variety of webs.

Labelmate    Henderson, NV 89014-2002
Aug 11, 2004 Automatic Model LD-100-RS has no mechanical switches to adjust. Reflective sensor sits below label and accurately senses leading edge. As user picks up label, next one is automatically advanced. Design presents label at front of machine, providing convenience for both left-handed and right-handed operators. Supply roll of labels up to 4½ in. wide slices onto Core Holder, which accepts up to 8½ in. roll size and any core diameter from 1½â€“3 in.

Imego    Gothenburg SE-41133  Sweden
Aug 11, 2004 Inertial Navigation System, Model IMT6000 consists of IMU sensor head that collects, digitizes, stores, and transmits sensory data. Stand-by laptop receives digital information via BlueTooth link and computes all requested motion parameters. System tracks motion for 10 seconds with positional accuracies, in x, y, z coordinates, of a few cm and angular accuracies surpassing 0.3°. It can track velocity during 60 seconds of motion to within 0.01 m/s.

Immersive Design Inc.    Acton, MA 01720
Aug 11, 2004 IPA v8.0 produces interactive document templates with text-to-speech (TTS) functionality and 3D graphics that facilitate user understanding of documentation. Text-to-speech functionality inside interactive 3D publications communicates assembly and service procedures, helping workers understand how products and machines operate and are serviced. For global operations, text-to-speech capabilities are offered in 10 languages.

Axon Cable Inc.    Schaumburg, IL 60173
Aug 11, 2004 Series AMB/A-RE-C relay-couplers transmit signal without distortion while maintaining network performance where groups of equipment need to be simultaneously disconnected. In addition to transmitting to device signals conforming to MIL-STD-1553B, they can also switch signal to another line or to particular component on demand. Suited for missile applications, Series AMB/A-E-D couplers can switch stub line to high impedance load of 3 Kohms.

Unex Manufacturing, Inc.    Jackson, NJ 08527
Aug 11, 2004 Flow Cell with Tilted Pick Shelf includes pre-punched posts, beams, and drop-in shelf. Offering 1,000 lb capacity, shelf is 18 or 24 in. deep with widths from 1–6 ft in 6 in. increments. It is angled at 22° to maximize view and access of picks. Made of 12 gauge galvanized steel, workbench is 12 or 18 in. deep with left and right brackets and total capacity of 3,000 lb. Casters are 4 in. dia x 2 in. wide, swivel or rigid with brakes.

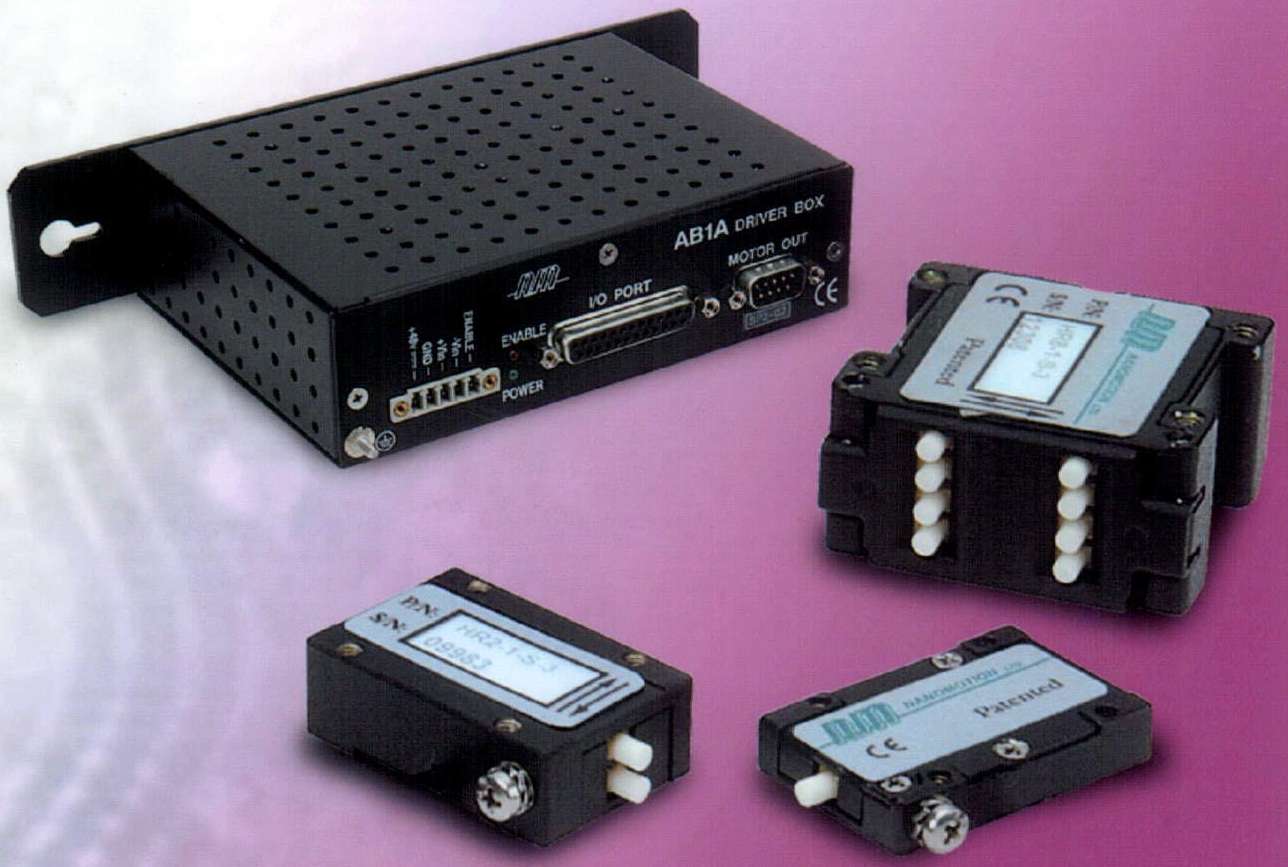

Nanomotion    Ronkonkoma, NY 11779
Aug 11, 2004 Able to drive linear and rotary stages, HR Series motors vary in size from single-element motors that provide .45 kg of force to 8-element motors that provide 3.6 kg of force. Speed ranges from several microns per second to 250 mm/sec. Operating characteristics provide inherent braking and ability to eliminate servo dither when in static position. Technology offers unlimited travel and no intrinsic magnetic field. Units mount to low-friction stages and other devices.

DEK International GmbH    Zurich Ch-8005  Switzerland
Aug 11, 2004 For true paste on pad repeatability, Europa features cycle time under 7 sec and total process Cpk 2.0 at ± 20 µm. Its DEK Instinctiv user interface, with graphical TimeToGo indications for consumable replenishment, provides on-board help and error recovery. Chassis offers torsional and thermal stability as well as single natural vibration frequency. Scaleable control system utilizes CAN technology, and Hawkeye post print vision system provides 100% print verification.

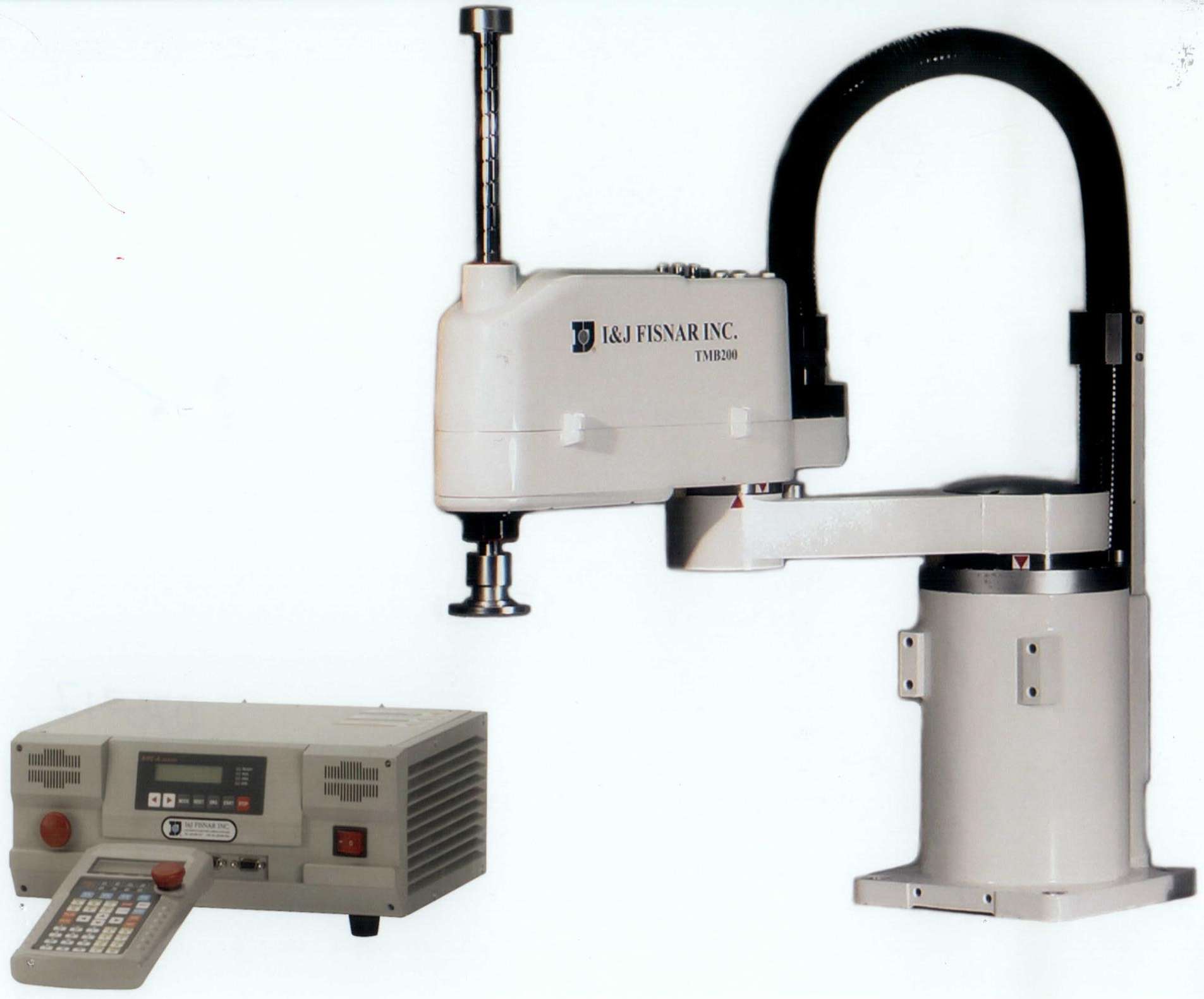

Fisnar Inc.    Wayne, NJ 07470
Aug 11, 2004 Multi-jointed industrial robot series TMB200R and TMB300R use digital servo controlled motors and ball screw transmission to facilitate repeatability. Multiple I/O communications and RS232C external interface are provided for machinery and conveyor integration, and both series include tool rotation (4-axis robots). Robots offer flexibility for automated manufacturing environments, including conveyors and work cells.

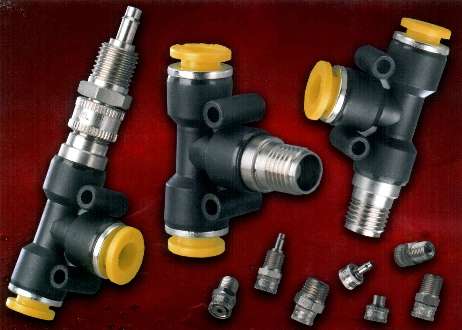

Clippard Instrument Laboratory, Inc.    Cincinnati, OH 45239
Aug 11, 2004 Push-Quick Fittings with MJQC Quick Connects provide connection point for temporary function or circuitry connection. Possible uses include air flow/pressure testing, valve dumping, or venting, as well as quick connection to valve, cylinder, or hose.

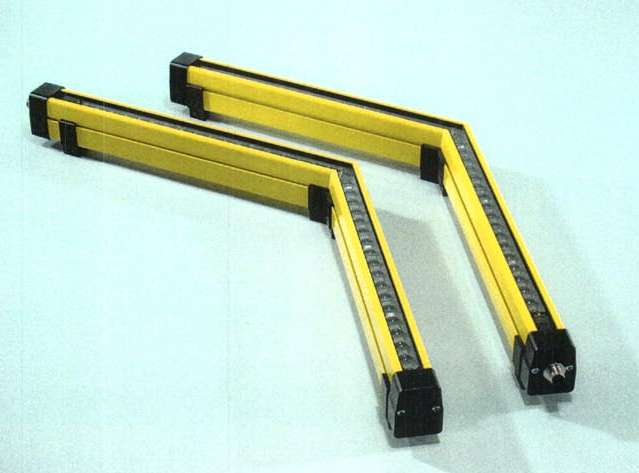

Tapeswitch Corp.    Farmingdale, NY 11735
Aug 11, 2004 Slant-Guard eliminates need for multiple light curtains in applications that require guarding in 2 different approach directions. Mounted horizontally, it provides protection on 2 sides, and used vertically it adds protection in diagonal plane. Offering category 4 safety protection, curtain includes interface that is compatible with standard safety relay units and fail-safe PLCs. Extruded aluminum body measures 1 3/8 x 1 ¾ in. and has IP65 environmental rating.

Guden, H. A., Co., Inc.    Ronkonkoma, NY 11779
Aug 11, 2004 Available in 7 models, spring hinges are designed for surface or concealed mounting, with or without holes, in sizes from 1.25–5.00 in. long and .025–.050 in. thick. Loaded to spring open or closed, products are available in plain and stainless steel. They are also available with zinc finish and include custom butt and continuous spring hinges made to individual specifications.

Pioneer Eclipse Corp.    Sparta, NC 28675
Aug 11, 2004 Water-based, Eclipse® Porous Surface Treatment provides stain resistance to concrete, natural stone, brick, unglazed ceramic tile, and grout. Spray-on product helps maintain clean appearance.

TAH Industries, Inc.    Robbinsville, NJ 08691 1603
Aug 11, 2004 Multi-Bolt Flange™ suits company's T-Series line of static mixers. Flange connects to standard ANSI 150 in. pattern as well as PN10 and PN16 Table D and E patterns, to facilitate smoother installation in metric systems. It is available in 2–8 in. diameters in PVC and CPVC materials.

Beckhoff Automation LLC    Minneapolis, MN 55337
Aug 11, 2004 KMxxxx Terminal Modules combine 16, 32, or 64 digital inputs or outputs in compact, slimline units, resulting in smaller control cabinets and terminal boxes. Compatible with all common fieldbuses, modules can be integrated into I/O system and connected with internal terminal bus. Bus Terminals with 1, 2, 4, or 8 channels are 12 mm wide and enable bit-precise configuration of required I/O channels.

Rusco, Inc.    Plymouth Meeting, PA 19462
Aug 11, 2004 Via web-based interface, InfoRMSâ„¢ Records Management Solution (RMS) delivers tool for entering, tracking, updating, discarding, and retrieving physical records, documents, journals, lab notebooks, and other information. Utilizing OmniRIMâ„¢ Solutions software package, system provides records management throughout lifecycle of vital business information. It includes indexing and search capabilities, bring-forward capabilities, and automatic ID tag technology.

Glocon Inc.    Parsippany, NJ 07054
Aug 11, 2004 Used for summer cooling and winter warm air circulation, Swifter industrial ceiling fans feature metal construction and are available in 36, 42, 48, and 56 in. dia. They consume less power than one 100 W light bulb and incorporate corrosion resistant, aerodynamically profiled, fiberglass props. Applications include industrial buildings, offices, agricultural barns, and high ceiling arenas such as theaters, auditoriums, or gymnasiums.

Clausing Industrial, Inc.    Kalamazoo, MI 49007 1822
Aug 11, 2004 The Professional, available in gap bed models with 13-21 in. swings and 25-120 in. centers, features cast iron, hardened and ground bedways with triangular webs mounted to cast iron base. Constant Surface Speed DRO is standard on 13 and 15 in. swing models. Equipped with 10 or 15 hp, AC, variable-speed spindle drive, products are available with 3 headstock gear ranges and incorporate anti-friction carriage ways, heavy-duty tailstock, and wheeled chip bin.
