Valenite, Inc.    Madison Heights, MI 48071 9636

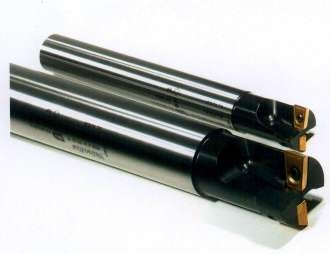

Sep 13, 2004 ValMILLâ„¢ V520 drill/end mills are available in 0.826, 1.023, and 1.299 in. diameters with shank diameters of 0.750, 1.000, and 1.250 in., respectively. Units feature 2 identical trapezoidal inserts located in same axial plane, allowing 2 cutting edges for plunging and end milling operations. Inserts have PVD-coated, micrograin grade and top-face geometry for resistance to wear and thermal shocks. Applications include steel, stainless steel, and iron.

Valenite, Inc.    Madison Heights, MI 48071 9636

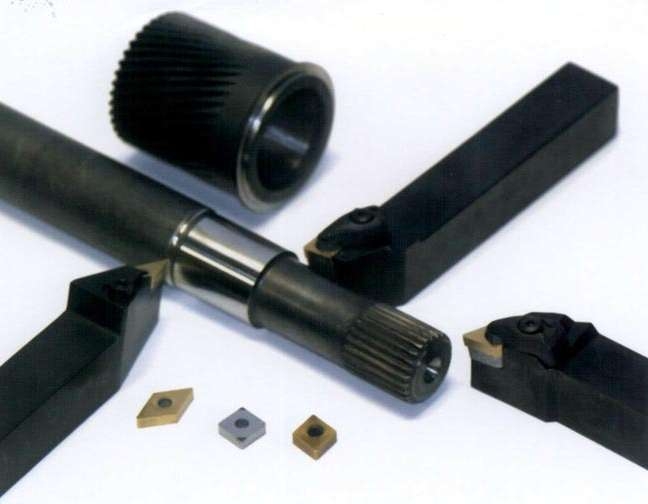

Sep 13, 2004 Capable of machining steels and alloys hardened to 45–62 Rc levels, ValEDGE™ utilizes proprietary ceramic and CBN inserts plus ValTURN™ ProGRIP™ family of toolholders. System takes advantage of stabilized microstructures and mechanical properties of materials while eliminating or reducing time consuming secondary finishing operations. It also provides tolerance and surface finish control from turning operations.

Valenite, Inc.    Madison Heights, MI 48071 9636

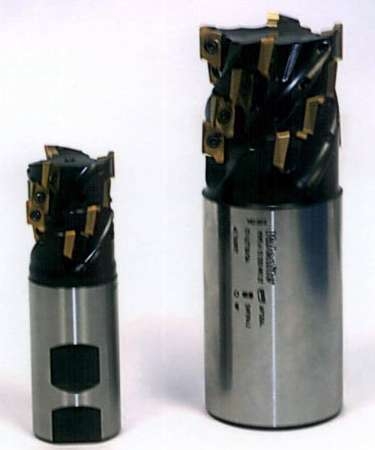

Sep 13, 2004 ValMILLâ„¢ V595 end mills employ cutter body design and geometry that deliver smooth cutting action for consistent dimensional and surface finish results. Products are available in 8 models that use AP10 or AP13 inserts and Weldon or cylindrical shank configurations. Cutting diameters range from 1.000–2.000 in., depending on model. Available coatings include multi-layer PVD TiAlN/TiN and TiN/Al₂O₃/TiCN CVD. Uncoated grade is also available.

Valenite, Inc.    Madison Heights, MI 48071 9636
Sep 13, 2004 ValMILLâ„¢ V555 Series inserts feature pentagonal shape with 5 cutting edges. Available in 6 cutter body diameters from 2–6 inches, products require 4–9 inserts each. Recommended max rpm ranges from 19,000–9,000, and depth of cut is 0.200 in. Suited for roughing, semi-finishing, and finish face or surface milling applications, face mills deliver consistent dimensional and surface qualities to parts. Inserts, mounted in cutter body, develop ~25° effective cutting angle.

Starrett, L.S., Co., The    Athol, MA 01331 1915

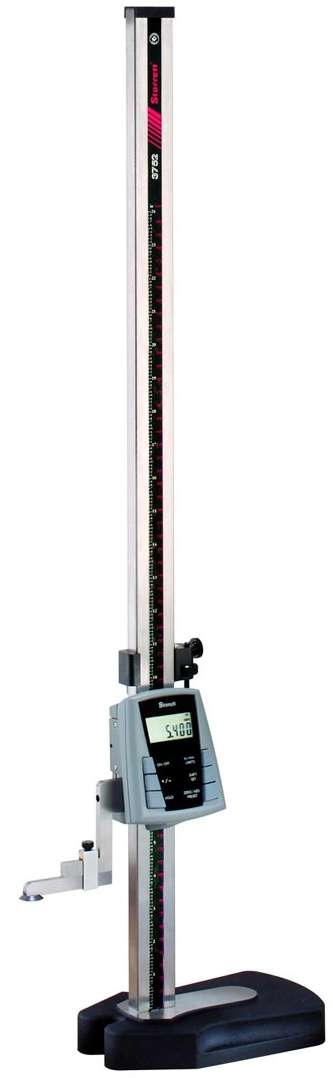

Sep 13, 2004 Model 3752, with intuitive control panel, provides .0005 in. resolution and RS232 output for data collection, analysis, and hard copy documentation. It is offered in 2 sizes, with ranges of 0–12 in. and 0–24 in., and clear bar graduations in .100 in. increments. Gauge provides inch-millimeter conversion, hold control for reading retention, and plus or minus indication. Overall accuracy is ±.0015 in. from 0–18 in. and ±.002 in. from 18–24 in.

Starrett, L.S., Co., The    Athol, MA 01331 1915

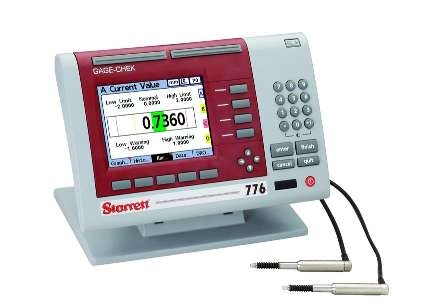

Sep 13, 2004 GAGE-CHECK Series 776 supports 2 outside relays and up to 8 probe/gauging inputs, which can be mathematically combined to display dimensions such as flatness, volume, or runout. Unit offers intuitive visual display, audio cues, and user-defined formulas. Microprocessor enables dynamic min/max measurements, SPC analysis from integrated database, and connectivity to PC. Users can view real-time gauge values such as pass/fail data for critical part dimensions.

Starrett, L.S., Co., The    Athol, MA 01331 1915
Sep 13, 2004 With IP65 protection, Series 797 resists coolant, water, dust, dirt, and metal chips. Calipers feature LCD display with .310 in. high characters, zero at any position, instant in./mm conversion, and manual on/off with auto-off after 4 hr of non-use. RS232-output port is provided for collecting and outputting data to devices. Offering .0005 in. resolution, calipers meet DIN862 linear accuracy and are available in measuring ranges of 0–6, 0–8, and 0–12 in.

Starrett, L.S., Co., The    Athol, MA 01331 1915
Sep 13, 2004 Horizontal, benchtop Model HE400 MkIII features screen with integral hood, precision crosslines, and calibration markings. Fan-cooled, halogen profile illumination, with high/low intensity, allows user to adjust lighting. Magnifications of 10x, 20x, 25x, 31.25x, and 50x to 100x are available. Product has 10 x 4 in. measuring travel and workstage with 18.9 x 4.7 in. top plate. It accommodates up to 55 lb with negligible deflection and includes Quadra-Chek Digital Readout System.

Starrett, L.S., Co., The    Athol, MA 01331 1915
Sep 13, 2004 Unified Shankâ„¢ series utilizes proprietary, break-resistant Bi-Metal Uniqueâ„¢ Saw Technology and eliminates need to have different blades for different jigsaws. Line includes 6 blades for cutting wood, 4 for cutting metal, and 6 multi-purpose blades. After initial use, teeth develop groove in center of backing material. As a result, cutting stroke produces dual chips that facilitate removal from cut.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 13, 2004 Model 5014 CM punches 13/16 in. hole in ¾ in. material, 1¼ in. hole in ½ in. material, and up to 2¼ in. hole in ¼ in. material, using 4 x 6 in. die holder. It includes adjustable stroke control, electrical box with emergency palm button, lock-out/tag-out accommodations, 230/460 V 3-phase electrics, and keyed punch ram. Angle shear will shear up to 4 x 4 x 3/8 in. at 90º, and both legs of 2 x 2 x 3/8 in. at 45º. Flat bar shear minimizes material distortion.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 13, 2004 Circular cold saw CPO 350 PKPD features electric controls, electric valves, and electric remote foot pedal that enables operator to run machine from up to 10 ft away. Also included, independent feed rate and feed pressure controls optimize cutting speeds and blade life. Saw has 135° mitering capability (45º to right and 90º to left), which makes it capable of slotting. With double clamping and self-centering vise, saw produces burr-free parts.

Scotchman Industries, Inc.    Philip, SD 57567
Sep 13, 2004 Dual Operator Hydraulic Ironworker, Model 8514-20M features 14 in. throat depth and can punch 1 1/16 in. hole in 1 in. material. Two pumps insure full hydraulic pressure and speed to both operations. Machine includes 6 x 6 x ½ in. angle shear, rod shear for round and square rod up to 1½ in. capacity, and rectangular notcher that can notch 2 x 4 in. through ½ in. material. Flat bar shear can shear up to 1 x 16 in. material with minimal distortion.

Witte L.P. USA    Tucker, GA 30084
Sep 13, 2004 Alugrip enables users to build stable measuring and checking fixtures that can be integrated and used together with existing Alufix material. Profiles that run lengthwise on bars enable teeth on connection elements to have firm hold and tight grip in any position on bar. Bars are constructed from high-tensile aluminum.

Witte L.P. USA    Tucker, GA 30084
Sep 13, 2004 Suited for serial production environments, Megalu provides complete fixture made of aluminum profiles as well as service involved in planning, project management, designing, manufacturing, assembling, and measuring. Right-angled profiles, manufactured in extruded aluminum, weigh 10.5 lb per meter. Machining time is minimized because outer surfaces do not need to be treated. Hole, running length of all profiles, allows connection of up to 3 ft 10 in. lengths.

Witte L.P. USA    Tucker, GA 30084
Sep 13, 2004 Available in standard size of 1,200 x 800 x 150 mm, Sandwich Plates feature standard grid of 200 mm, which allows positioning of workpiece supports over entire surface. Support comprises base plate with bayonet catch for connection to sandwich plate, and components of Alufix modular fixturing system made of high-tensile aluminum. Several workpieces can be fixed simultaneously on sandwich plates for assessment with regard to their position to one another.

Witte L.P. USA    Tucker, GA 30084
Sep 13, 2004 Checking Fixture with Dial Gauges inspects mounting surfaces which will support air bag. Steering wheel is set up and fixed in clamping sleeve. When fixing pin is released steering wheel can be rotated, without affecting X and Y axis, and measured in different positions, verifying roundness and surface accuracy. Fitting accuracy of area surrounding airbag is checked using separately machined dummy.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 13, 2004 WebSphere® Voice Server (WVS) for Multiplatforms v5.1 provides support for connectivity to multiple Interactive Voice Response vendors, including those who support Media Resource Control Protocol v1 draft 4. It includes WVS v4.2 for AIX® and delivers WebSphere Application Server infrastructure for common administrative console, install, deployment, and logging throughout enterprise. Software also supports Red Hat Enterprise Linuxâ„¢ WS/ES/AS for Intelâ„¢ v3.0 and SUSE SLES v8.0.

KineticSystems Co., LLC    Lockport, IL 60441-2200
Sep 13, 2004 Suited for DAQ systems, laboratory automation, and voltage monitoring, P580 double-width, 3U test and measurement module provides 34 differential input channels multiplexed onto 2 independent analog paths. Up to 4 external instruments can be connected via one of 4 LEMO connectors on front panel, and switching sequence is controlled via plug-and-play drivers or scanner memory. Product is also suited for industrial process control and ATE systems.

Rittal Corporation    Springfield, OH 45504
Sep 13, 2004 Suited for industrial enclosures requiring internal cabinet cooling using ambient air, TopTherm offers thermal output ranges from 17.5–90 W/K. Constructed of sheet steel, system features seamlessly sealed aluminum heat exchanger module with protection category of NEMA 12/IP 54 to EN 60 529/10.91, for resistance to dust and water ingress. External and internal air circuits can be controlled separately so airflow can be optimized for ambient conditions.

Ideal Shield, LLC    Detroit, MI 48209
Sep 13, 2004 Ideal Shield decorative sleeve slides over existing steel bollards, facilitating installation. Made from ¼ in. thick polyethylene thermoplastic (LDPE), each sleeve weighs 15 lb and can be customized with colors, pillars, emblems, rings, or grooves. It fits 10 in. pipe, and inserts are available to fit 6 and 8 in. pipe.
