Chicago Slitter, A Unit Of The RDI Group    Itasca, IL 60143 1365
Aug 13, 2004 Slitting Lines produce precision slit, tight, straight-walled slit coils at production rates up to 5 master coils per hour with as many as 20 different setups per shift. Systems handle 10,000–80,000 lb coils with speeds to 1,500 fpm, thicknesses from 0.005–0.375 in., and widths from 18–24 in. Features include dual indexing transfer slitter heads, keyless slitting arbors, power tooling lock-up, and roll-only tension stand for damage-free slit coils.

Steril-Aire, Inc.    Burbank, CA 91504
Aug 13, 2004 Fan Coil UVC Kit contains UVC Emitter(TM) and power supply, plus all necessary hardware components to retrofit fan coil with UVC. Emitter tubes, available in 6 lengths from 16-42 in. and installed across from cooling coil, irradiate high output UVC energy to eliminate surface contaminants and reduce airborne microbial contaminants. Applications include hotels, schools, apartments, office buildings, patient rooms, or anywhere fan coil units are located.

Pioneer Eclipse Corp.    Sparta, NC 28675

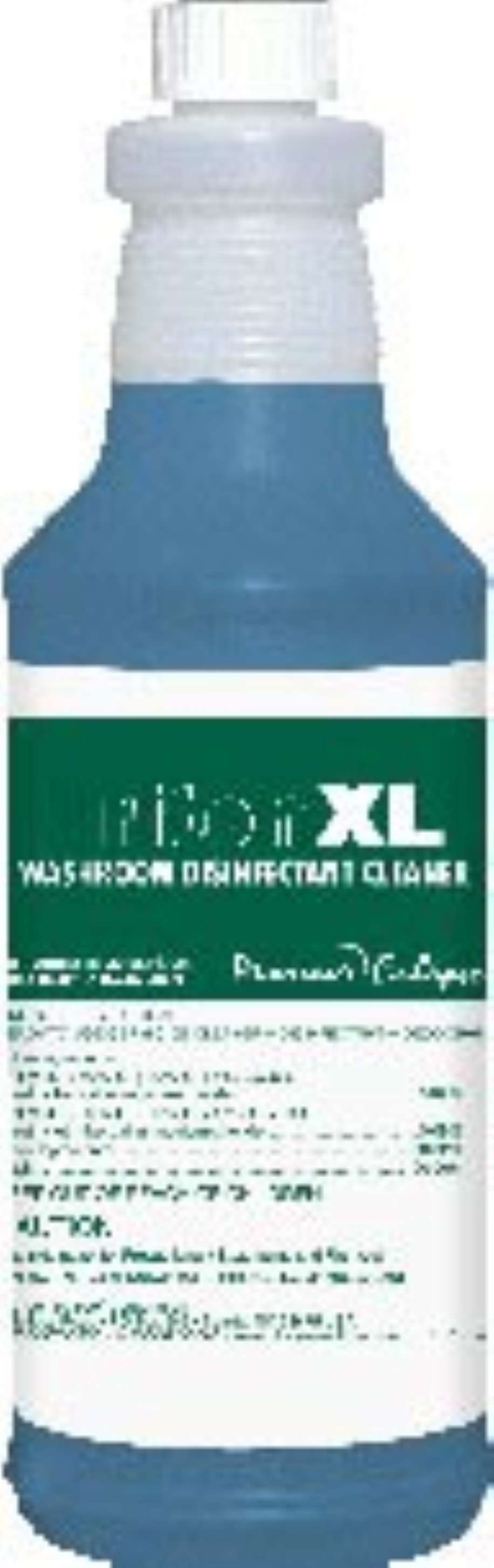

Aug 12, 2004 TritonXL cleans, disinfects, and deodorizes washroom surfaces in one step. Non-acid formula is EPA-registered and safe for use on all nonporous, hard surfaces including bowls, basins, sinks, and fixtures. Ready-to-use product has fresh floral fragrance and helps to maintain clean, safe washrooms.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003

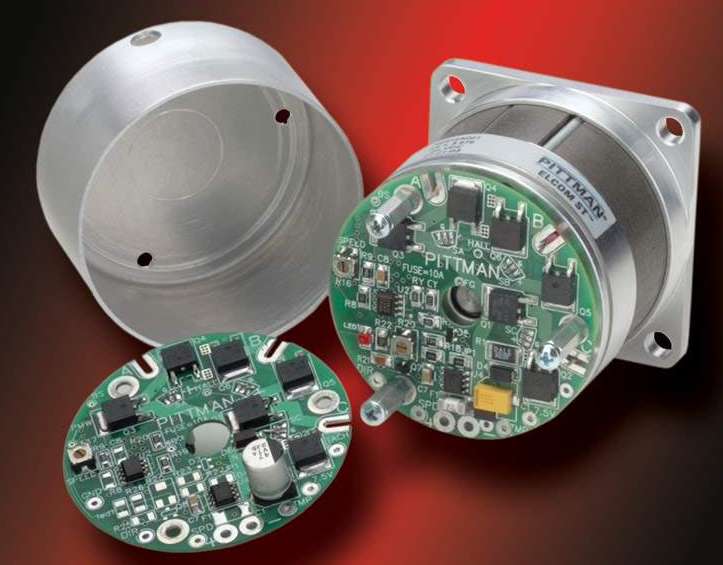

Aug 12, 2004 On-Motorâ„¢ controllers can be custom-designed completely within PITTMAN® brushless dc motor frames to eliminate external boxes, wires, and bulk. They enable multi-wire brushless dc motors to be converted into 2-wire motors with open loop speed control in voltages from 12–48 V, currents to 8 A, and shaft speeds from 100–15,000 rpm. Products govern shaft direction, speed, and braking, and also provide feedback to maintain required velocity.

Multitherm LLC    Malvern, PA 19355
Aug 12, 2004 MultiTherm ULT-170® remains pumpable at temperatures below -170°F and allows for retrofits with minimal equipment modifications. Biodegradable product exhibits thermal stability and is suited for use in critical applications with temperature range of -170 to +325°F.

Clark Solutions    Hudson, MA 01749

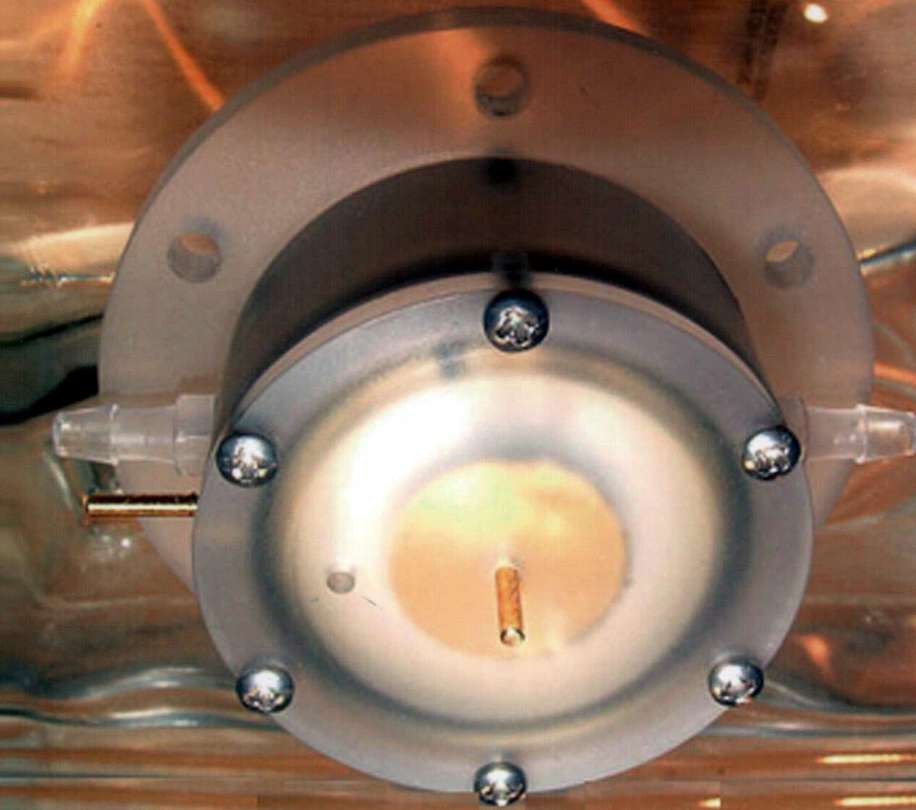

Aug 12, 2004 Utilizing piezoelectric crystals formed and bonded to metal diaphragm, miniature pump models DTI-200-12P and DTI-200-12A have design that eliminates electromagnetic noise. They deliver flow rates of 0–200 ml/min (water) or 0–7.5 scfh (air) and pressures to 12.5 psi. Fluid delivery rates are manipulated by varying amplitude and frequency of power supply. Model DTI-200-12.5P features polycarbonate pump housing, while DTI-200-12A has aluminum pump housing.

Astrodyne Corp.    Mansfield, MA 02048
Aug 12, 2004 Housed in miniature DIP package, Series ASD35 Converters accept single-range input from 4.5-6 Vdc and are available in 7 models that provide single and dual outputs from 5-15 Vdc. All contain continuous short circuit protection and internal input filter. Operating ambient temperature is -25 to +71°C without forced cooling. Up to 1,500 V I/O isolation can be provided. Units meet point-of-load power conversion requirements in board-level product applications.

Salvagnini America, Inc.    Hamilton, OH 45015
Aug 12, 2004 CAMformERâ„¢ 2004 for ROBOformERâ„¢ converts 2D and 3D CAD drawings to finished automated press brake programs. Optimal bending sequences, gripping maneuvers, and robot trajectories are calculated. GraspDesigner manages grasping devices used to hold parts during bending, while AutoRegrip allows for automatic regripping movements while being held by press brake. CollisionDetect facilitates collision detection when determining ideal robot and part trajectories.

Weiler Corporation    Cresco, PA 18326 0149
Aug 12, 2004 Suited for medium and high production environments, Tiger® flap wheels are made of Egyptian cotton and premium aluminum oxide grain for high cut rate. Intended for low to medium production environments, Vortecâ„¢ flap wheels have cotton backing and standard aluminum oxide grain. Applications include cleaning; edge blending; deburring and mismatch removal on machined parts; finish prior to painting and plating; and smoothing metal, plastic, and wood.

ITT Industries    Newton, MA 02458
Aug 12, 2004 Right angle, C&K ELUM™ illuminated switch features self-cleaning SPDT contact that withstands current voltage from 20 mV to 50 Vdc, and from 0.01–230 mA. Latching version suits switching functions such as mode select and power on/off, while momentary version is suited for test, reset, and notification functions. Available in through-hole and surface-mount configurations, switch is compatible with RoHS directives and high-speed reflow soldering lines.

KOA Speer Electronics Inc.    Bradford, PA 16701
Aug 12, 2004 Made of metal alloy, Series TLR 3AW offers resistance to heat and corrosion and is suited for currents up to 2 A. Units offer power rating of 2 W with standard tolerances of ±1% and ±5% and max TCR of ±150. Operating temperatures are -65 to +155°C for 1–3 mohm models and -65 to +170°C for 4–10 mOhm models. Current sensing resistors are suited for computer, telecommunications, medical, and power supply industries.

Ophir Optronics, Inc.    Danvers, MA 01923
Aug 12, 2004 Model PE9 combines measurement of long pulses up to 15 µS with high repetition rate up to 4 kHz, in same detector head. It provides pulse energy measurements from 0.2 µJ to 1 mJ and spectral response from 0.19–12µm, in which calibration is stored in EEPROM and is selectable in 1 nm increments. With average power up to 2 W, detector features energy scales of 2µJ, 20 µJ, 200 µJ, and 1 mJ.

Densitron Corp.    Santa Fe Springs, CA 90670
Aug 12, 2004 Measuring 3.15 x 1.38 in., DV4900 consists of 100 x 33 resolution display with 2.64 x 0.98 in. viewing area. It offers single IC controller with integrated charge-pump, software contrast adjustment, and temperature compensation. With -20 to +70°C operating temperature range and 3 or 5 V operating voltage, display works in portable, hand-held instrumentation used indoors and outdoors. Available with FSTN fluid, module provides clear, black on white display.

International Surface Preparation    Houston, TX 77054
Aug 12, 2004 Version MK3 of Blastrac® 1-10D and 1-10D Super systems includes permanently attached umbilical power cord, analog gauge for blast load amps, urethane feed spout for access to blast wheel components, and slide-out screen for debris removal. Running on 230/460 V, 3-phase power, self-propelled systems clean and profile simultaneously. Each includes blast unit with 10 in. cleaning path and dust collection system with pulse jet system that prevents filter clogging.

Elma Electronic Inc.    Fremont, CA 94538
Aug 12, 2004 Fully redundant 12U AdvancedTCA (ATCA) chassis incorporates 3 plug removable fan trays with six 130 cfm fans. Top of chassis is angled, facilitating escape of airflow exhaust when multiple chassis are stacked on top of each other in racks. Unit incorporates 7U ATCA backplane inside with 14-slot Dual Star topology. Other features include dual Power Entry Modules, dual shelf management modules, dual fabric slots, and rear I/O options.

Samtec, Inc.    New Albany, IN 47151 1147
Aug 12, 2004 Micro-rugged, Q2â„¢ Series QMSS/QFSS has signal pins on .025 in. pitch and .433 in. mated height. System is available with up to 160 I/Os per connector set in single-ended configuration and up to 64 pairs in differential pair configuration. It is hot-pluggable with shields and ground plane mating first, followed by signal pins. System offers various options such as positive alignment features, edge-mount designs, and EMI shielding.

McPherson, Inc.    Chelmsford, MA 01824
Aug 12, 2004 Model 231 Seya Namioka, with 1 m focal length, utilizes aberration corrected gratings to optimize beam shape around focus point. Optical geometry handles applications from 30 nm to visible. Optical system uses single reflective element to disperse and focus. Workspace around entrance and exit slits facilitates mounting and interface to experiments in vacuum chambers. Applications include vacuum UV laser interaction experiments and general photochemical, photolysis, harmonic generation research.

Baker Co., The    Sanford, ME 04073
Aug 12, 2004 IsoGARD® Series Class III glovebox, designed for research involving agents assigned to BSL-3 or -4 facilities, features plug-and-seal, canister-style HEPA exhaust filters. Supply HEPA filter, protected with 316L stainless steel diffuser, covers entire ceiling of primary working chamber. Offered in 3 models with 2-, 3-, and 4-glove primary working chambers, product has front-opening, glass-panel door and stainless steel gloveports with single-piece, sleeve-and-glove assembly.

Almco, Inc.    Albert Lea, MN 56007 2751
Aug 12, 2004 Suited for use in metal deburring and finishing applications, Model 142 includes rotary, 4-compartment hopper that drops finishing media into as many as 4 round-bowl or tub-type machines. Oscillator/screener separates finished parts from media, which returns by conveyor to hopper for reuse or storage. Features include compact size, ease of serviceability, and minimal required maintenance.

ANCA Pty Ltd    Bayswater North VIC 3153  Australia
Aug 12, 2004 Based on company's machine environment, CIM3D models, tests, and optimizes grinding process before tool is ground on machine. It measures distance, probe, shadowgraph, and protractor during grinding process. Projection arrangement offers view of modeling process simultaneously from different perspectives on one screen. Users can view details on each pass made by grinding wheel and calculate relief, hook, helix, and axial rake angles for any point on tool.
