Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
Aug 17, 2004 Blu-Mol® quick change bi-metal hole saw system changes between accessories including hex shank screwdriver bits, spade bits, drill bits, masonry bits, and wood bits. Universal adapter fits 3/8 and ¼ in. straight or power grooved hex shanks, and can also be used with Speed-lock, DEWALT, Bosch, and other brands of hex shank power tool accessories. Also available, hole saw conversion kit converts 2-piece hole saws to Blu-Mol quick change system.

Martin Engineering    Neponset, IL 61345 9766

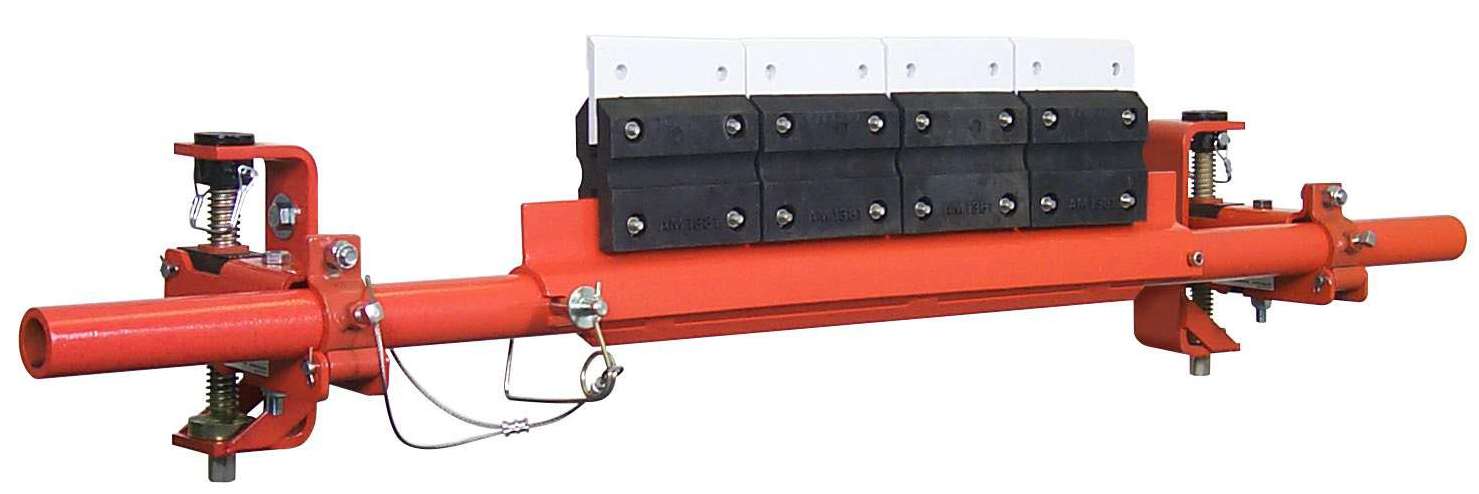

Aug 17, 2004 MARTIN® SQC2â„¢ is composed of individual 5.88 in. wide blade segments assembled on mainframe to remove residual material from belt’s load-carrying width. Each segment incorporates individual rubber buffer or cushion to absorb impact and allow splices to pass without damage. Cleaner is suited for use on conveyors with belt speeds up to 1,000 fpm, with mechanical belt splices, or that reverse or suffer rollback.

IQinVision    San Clemente, CA 92672
Aug 17, 2004 With IQlibrarian software, IQeye101 manages its own recording and playback using commodity hard drive storage. Image quality exceeds NTSC/PAL/DVD with 800 x 600 resolution CMOS progressive scan imager. Digital pan/tilt/zoom in live and recorded images allows multiple simultaneous users to view different parts of total scene while IQlibrarian is recording entire field of view. IQeye101 is powered over Ethernet, so there is no power connection required at camera.

Bartels Media    Trier 54296  Germany
Aug 17, 2004 Running under Windows 2000/XP, MaxiVista® turns any existing desktop, laptop, or tablet secondary PC into additional display for primary PC. Its virtual graphics adapter fakes primary PC into believing that additional monitor display is installed. Screen content of extra display is transmitted to secondary PC via network connection and displayed by MaxiVista viewer program. Software provides lossless image quality without adding much to CPU or network load.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828
Aug 17, 2004 Model AST 4600 Explosionproof Pressure Sensor features one-piece 316L diaphragm free of internal O-rings, welds, and fill fluids. Construction resists hydrogen permeation and embrittlement. Approved to CSA 30 (UL 1203) Class 1, Div. 1, Explosionproof, Groups A, B, C and D, unit withstands vibration and temperature extremes associated with hydrogen applications. Sensors provides measurement in sealed gauge up to 10,000 psi and is temperature compensated.

Sira    Chislehurst BR7 5EH  United Kingdom
Aug 17, 2004 Intended for companies in sensor, measurement, and instrumentation markets, Technology Roadmapping Service provides needs analysis session culminating in technology roadmap that is tailored to company’s business and technology requirements. Roadmap identifies direction for business success, enabling company to make informed decisions on technology development and investment. Team also offers advice and aids client in establishing collaborative technology planning process.

Profile Components    Shrewsbury, MA 01545
Aug 17, 2004 Self-Aligning T-nuts have additional material that fits in t-slot and facilitates alignment, also providing ability to be rolled in at any location along t-slot. Standard t-nuts sit below slot and can flip or turn, but, with self-aligning t-nut, hole is always in center of t-slot. Products are suited for blind installations.

Parvus Corp.    Salt Lake City, UT 84115 2913
Aug 17, 2004 Featuring 40-pin and 44-pin IDE connectors, remote CompactFlash® to IDE adapter, Model CFII-IDEâ„¢ enables both solid-state CompactFlash and IBM® Microdrive® media to be used as bootable IDE disk drive in any computer with IDE interface. It includes power and drive activity LEDs, master/slave selection jumper, 4 mounting holes, and front panel mounting brackets. Model CFII-IDE does not require device drivers to work with DOS®, Windows®, Linux®, or any other PC-based OS.

K-Tron Process Group    Pitman, NJ 08071

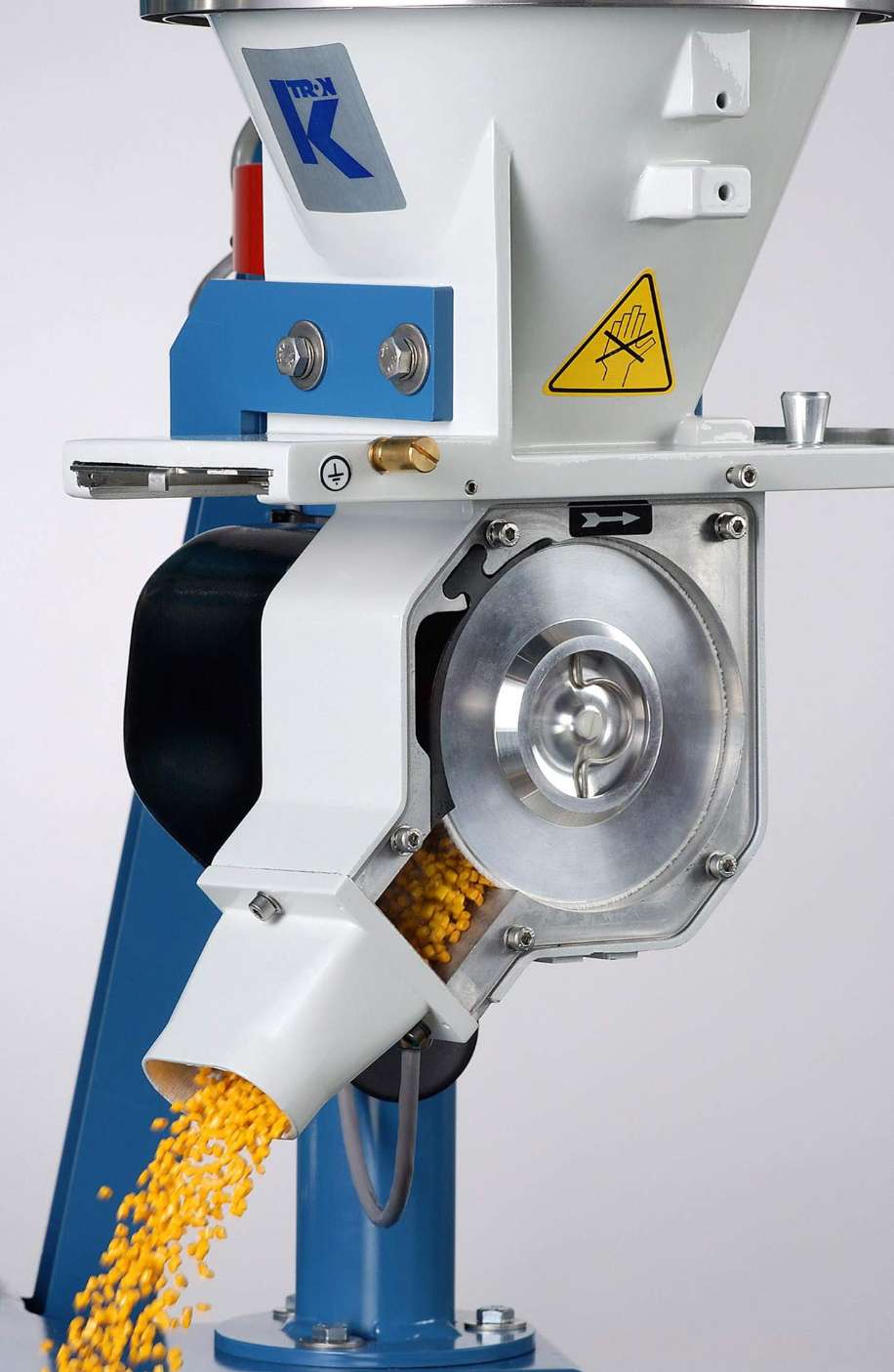

Aug 17, 2004 Available in gravimetric, volumetric, and loss-in-weight models, Bulk Solid Pump (BSP) feeders utilize positive displacement to feed free-flowing materials. They offer uniform discharge, consistent volume, and gentle handling. Vertical rotating discs create product lock-up zone, smoothly conveying material from storage hopper to discharge outlet and achieving true linear mass flow. Feed rates range from 0.07-7 to 1.6-160 cubic ft/hr.

Flexco    Downers Grove, IL 60515-4200
Aug 17, 2004 Clipper Roller Lacer® provides on-site manual installation of Clipper® Wire Hook Lacing in light-duty conveyor belts. Tool deeply embeds splice into belt for less wear on splice-contacting conveyor components. Lacer guide blocks are same width as lacer head, providing maximum bearing surface with wear resistance. Face-strip locking is done with knurled knob, which allows finger tightening in place of flathead screw. Sizes accommodate belt widths of 24, 36, 48, and 60 in.

Athena Controls, Inc.    Plymouth Meeting, PA 19462 1129

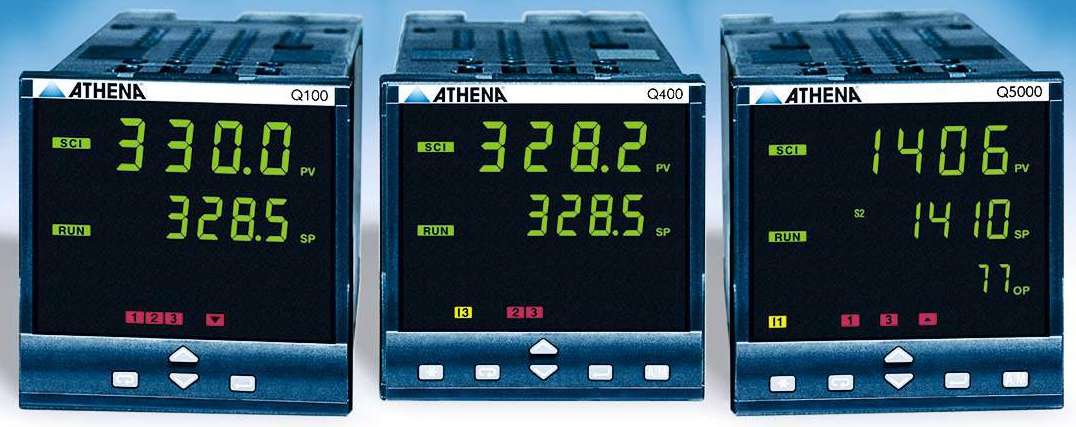

Aug 17, 2004 Platinum Q Series, which includes Q100 and Q400 Temperature Controllers and Q5000 Process Controller, is suited for thermal processing applications. With features such as heat/cool capability; ergonomic keypad display; and absolute, band, and deviation alarms, 1/4 DIN controllers offer various lines of I/O. Products are also available with optional serial communications (9,600 baud Modbus/Jbus protocol).

Spence Engineering Co., Inc.    Walden, NY 12586-0230
Aug 17, 2004 Pilot-operated, Type EDT14 consists of Type E Main Valve and T14 vapor tension temperature pilot. Valve is available in cast iron or cast steel, in sizes 3/8-12 in. for pressures to 600 psig at 750°F. Thermostatically-controlled, spring-operated temperature pilot controls temperatures from 20-500°F, opening and closing on a few degrees change at thermostat bulb. Self-operated regulator is not affected by power outages.

Noran Engineering Inc.    Westminster, CA 92683
Aug 17, 2004 NEiWorks design analysis tool is fully integrated within SolidWorks 3D modeling environment, which can work with any Nastran FE solver, allowing designers to send usable data directly to analytical engineers. Analysis data is seamlessly updated when geometry is changed. Finite element mesh generation and display technology are combined with user interface to assist both designer and analyst.

FeinFocus USA, Inc.    Stamford, CT 06902
Aug 17, 2004 With low-dose radiation mode, FEINFOCUS Graphical User Interface instantly switches off radiation during sample manipulation and motion. X-ray system automatically blocks unnecessary radiation by deflecting X-ray beam within milliseconds to shield assembly or component under inspection from exposure. Other features include single-button AVI recording; 16-bit, real-time image processing capabilities; and seamless integration of Direct Digital Detectors.

LIT Industries, Inc.    Bessemer City, NC 28016
Aug 17, 2004 Composed of borosilicate glass fibers that are incombustible and non-hygroscopic, Model CM-26 will not support fungi or vermin and is unaffected by oil, grease, and most acids. Blanket resists settling, sagging from vibration, and damage from impact. Countless air spaces provide sound absorption, reducing perceived noise from air movement and mechanical equipment. Insulation forms around corners and curved surfaces and can be cut with knife or die-cut press.

Dr. DWG (A Division of CSWL Inc.)    Pleasanton, CA 94566
Aug 17, 2004 Offering viewing, redlining, and zooming, PDA-based Mobilite enables field staff to access drawings for maintenance reference, layout reference, design verification, sales presentation, and cost estimation. Software facilitates decision making by allowing users to view drawings anytime, anywhere. It can be integrated with drawing or PDM servers to provide suitable solution for archive data reference.

Renco Electronics, Inc.    Rockledge, FL 32955
Aug 16, 2004 POWER POTSâ„¢ Series RL-7300 has 23 standard values for each of 5 different sizes. Units offer inductances from 10 mH to 1 H and handle currents from 12 mA to 1 A. Pot core design is capable of handling dc currents while maintaining stable inductance due to high saturation currents and self-shielding. Typical applications include dc chokes, differential mode chokes, filters, switching circuits, and low power circuits.

Linde Lift Truck Corp.    Summerville, SC 29483-9621
Aug 16, 2004 With capacities from 3,000-5,500 lb, Series H internal-combustion, cushion-tire lift trucks are equipped with hydrostatic drive technology. They have no torque converters, clutches, mechanical transmissions, friction brakes, or differentials. VW OHC 4-cylinder engine powers all functions while governed at low rpms. Intended for continuous stop/go/forward/reverse-duty cycles, trucks include protective chassis belly pan and sealed, pressurized hydraulic sump.

Bray International, Inc.    Houston, TX 77041
Aug 16, 2004 Pneumatic Actuators are available with full line of accessories. The 4- and 3-way solenoid valves provide electrical operation of on-off functions, while pneumatic positioners automatically position output shaft to valve angles between 0–90°. Electro-pneumatic positioners offer direct or reverse operating modes. Valve status monitor signals actuator and valve position to local and remote stations. Proximity position indicator provides 2 inductive proximity switches in sealed enclosure.

Times Microwave Systems    Wallingford, CT 06492 5039
Aug 16, 2004 Suited for LMR-240 low-loss coaxial cable, QMA EZ non-solder connectors provide snap-on version of SMA interface. They are available in straight and right angle versions, designated EZ-240-QMAM (3190-1533) and EZ-240-QM-RA (3190-1539), respectively. LMR® cables are flexible, non-kinking, low-loss RF transmission line cables that are suitable for use as antenna feeders, system jumpers, and interconnects.
