Chassis Plans Inc.    San Diego, CA 92123
Aug 31, 2004 Rack-mount 1U display drawer, CPRSD1-19HD, incorporates 19 in. UXGA TFT LCD that provides .2415 mm dot pitch, 500:1 contrast ratio, and 250 cd/m2 brightness. Optional touchscreen is available, and contrast filters can be installed to enhance daylight visibility. Clamshell-style drawer includes Cherry full travel keyboard with 83 keys and trackball.

Hitachi Power Tools    Norcross, GA 30093

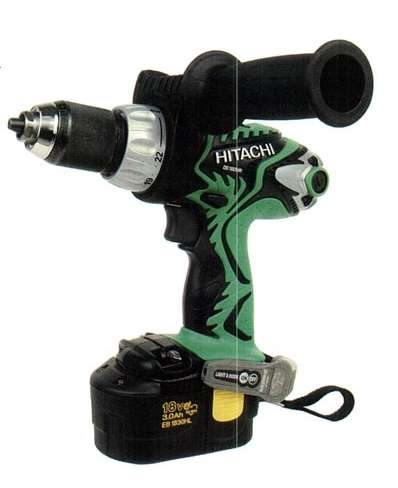

Aug 31, 2004 Rated 18 V, Model DS18DMR delivers 550 lb-in. torque and comes with two 3.0 Ah batteries. Using two 2.0 Ah batteries, 14 V Model DS14DMR produces 450 lb-in. torque. Both feature 2-speed transmissions with no-load rpms of 0-400/1,600. Drills include rare earth magnet motors, replaceable armatures, externally accessible carbon brushes, industrial-grade Rohm chucks, 22-stage ratcheting slip-clutch, and 5-position belt hook with integrated LED work light.

Talgajarda, Inc.    Gardner, MA 01440
Aug 31, 2004 Utilizing As and When Network Appearance and Disappearance Mechanism, Wavebend Scalable Access System provides seamless local and global roaming for 802.11 network mobile hosts. Product does not incorporate Home/Foreign Agents or middlemen; there is direct one-to-one connection between mobile host and correspondent node(s). Mobile host will have persistent connection to Internet without disruption of service or incurring bandwidth drain to network.

RAE Systems    San Jose, CA 95134

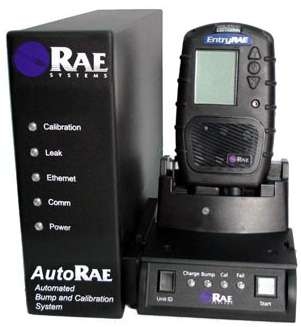

Aug 31, 2004 AutoRAE scales from PC-free, push-button bump test, calibration, and charging system to PC-driven, automated calibration system with bi-directional communication to docked monitor. It calibrates O₂, CO, LEL, H₂S and PID sensors and handles up to 10 cradles per controller. Single rigid mechanism, containing power, data, and gas throughputs, snaps one cradle to another. LEDs inform user of gas detector pass or fail and charging or charged status.

Ampac Flexibles    Cary, IL 60013

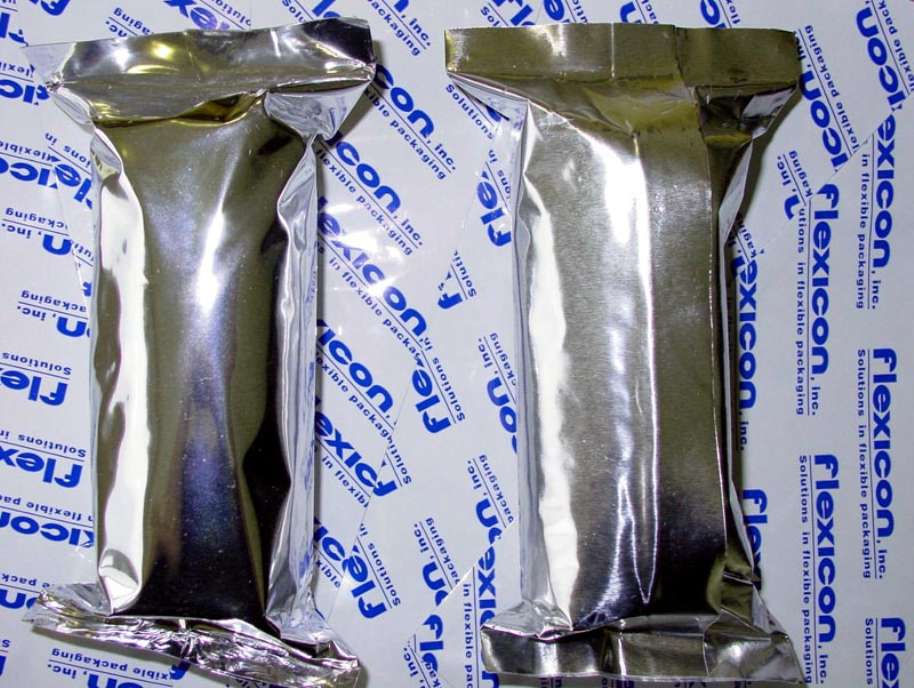

Aug 31, 2004 Flexi 6648 is suited for overwrapping materials impregnated with liquids and lotions. Laminate features PET/foil/clear PE and offers optimized moisture vapor and oxygen permeability; MVTR is <.001 g/100 sq in./24 hr, and oxygen permeability is <.001 cc/100 sq in./90% RH. Up to 10 colors can be printed on laminate. Specific product types include cosmetic wipes, antiseptic pads, facial towelettes, baby wipes, and medical gauze.

Saelig Co., Inc.    Pittsford, NY 14534
Aug 31, 2004 Model VMD-19 is 18-pin, 0.6 in. wide mini IC board that directly connects to composite video signal to detect motion of objects within video signal, transforming vision system into intelligent video motion-detecting surveillance device. When movement is detected, an output signal is given that starts VCR to record the scene. Once motion stops, VCR stops recording. It eliminates need for external triggering devices or separate PIR motion sensor.

JVI Vibratory Equipment    Houston, TX 77240-0564
Aug 31, 2004 Dual-drive, vibratory dosing feeder and storage hopper features infinitely adjustable potentiometer, which offers 0-100% feed rate control and allows extremely fine trickle of material. It is suited for spreading applications and processing of dry bulk food products, feed/grain, and chemicals. Feeder can be engineered to specific application requirements.

Porter-Cable Corp.    Jackson, TN 38302
Aug 31, 2004 Model 3700L 10 in. compound miter saw incorporates fully adjustable TWINLASER® system that shows line of cut on both sides of blade kerf, regardless of angle, lighting, or blade motion. It incorporates 15 A, 120 V motor; horizontal handle with trigger switch, and Riptide® 40-tooth, carbide-tipped blade. Dovetail jig Models 4210 and 4212 cut joints into wood measuring ¼â€“1¼ in. thick and up to 12 in. wide. They include router bit, templets with alignment lines, and locknut.

H2I Technologies    Nîmes 30900  France
Aug 30, 2004 Using optoelectronic technology, Human-Machine Interfaces meet requirements of harsh environments, offer resistance to wear, and require no maintenance as there are no moving mechanical parts. Units are suited for data entry systems in industrial and medical equipment as well as for household appliances, consumer electronics, multimedia kiosks, and ATMs used by general public.

Delavan Spray Technologies    Bamberg, SC 29003
Aug 30, 2004 Available in 12 sizes, Cool-Castâ„¢ nozzle and lance system produces rectangular pattern with spray angles between 60–120°. Consistent droplets in 130–200 micron range facilitate control of cooling process. Machined stainless steel components provide dimensional stability. Water flow rates range from 2.50–8.00 gpm and airflows range from 7–24.5 scfm. Straight or angled lances are available.

Interpower Corporation    Oskaloosa, IA 52577-0115

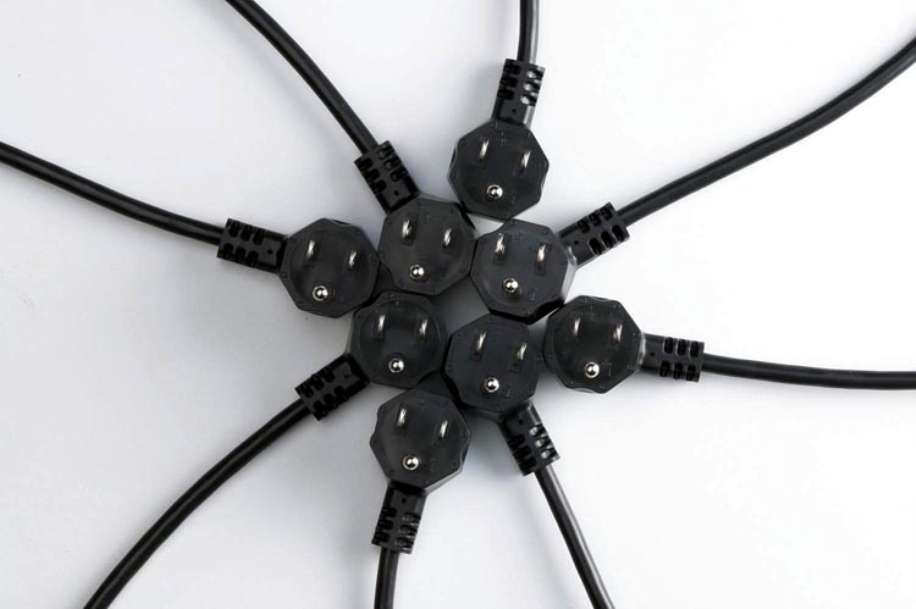

Aug 30, 2004 Angled NEMA 5–15 power cords are suited for equipment rated up to 15 A with service at 125 Vac. UL- and CSA-approved products are available with 3 x 18, 3 x 16, and 3 x 14 AWG cable in stock lengths of 6, 8, and 10 ft. Cords are configured with one of 8 different angles of NEMA 5–15 plug and terminated with bare conductor wires. Custom lengths, special packaging, and color options are available.

Starrett, L.S., Co., The    Athol, MA 01331 1915

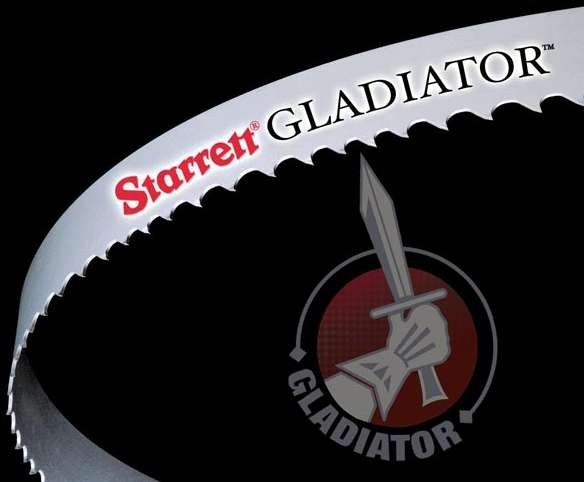

Aug 30, 2004 Offered in 7 widths and thickness from ¾ x .035 in. to 3 1/8 x .063 in., Gladiatorâ„¢ cutting blades feature bi-metal construction with fatigue-resistant alloy steel backing. Tooth design includes triple-tempered M42 steel teeth with 8% cobalt at up to 12° rake angle. Products cut steels up to 42 HRC as well as nickel-based and non-ferrous alloys. Gladiator Pulsator line features aggressive, surging cutting action for solid sections of exotic and nickel-based alloys.

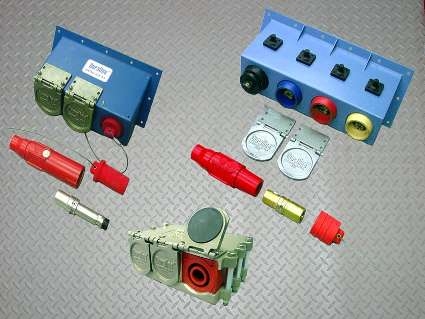

Duraline Div., J.B. Nottingham & Co., Inc.    Islandia, NY 11749
Aug 30, 2004 Single and Multi-Gang 600 V Connectors lock tight and stay tight, but can be quickly unlocked by depressing insulated external button. They feature water-tight receptacles and male connectors, eliminating need for lugging or taping. Designed to ensure positive connecting, non-corroding electrical connection for high amperage power distribution, units are suited for industries that require heavy-duty, temporary connections for power equipment or lighting.

Load Cell Central    Monroeton, PA 18832
Aug 30, 2004 Used with any load capacity, PBI-CG automatically determines and monitors center of gravity. Computerized weight sensing eliminates human error, as unit calculates, pinpoints, and displays center of gravity in terms of distance coordinates from known reference points for lateral and longitudinal dimensions. Product requires one setup for each load type and stores multiple craft settings for any kind of equipment.

Pericom Semiconductor Corp.    San Jose, CA 95131
Aug 30, 2004 Registered Buffers PI74SSTU32864A/SSTU32866 and Phase-Locked Loop Clock Driver PI6CU877 are optimized to drive DDR2-400 and DDR2-533 Memory Modules. Model PI74SSTU32866 includes parity logic function that provides security feature of detecting data error. Registered buffers feature 25-bit 1:1 or 14-bit 1:2 configurable buffer, 270 MHz clock frequency, and 2.15 ns max speed. Clock driver features 270 MHz frequency, 40 ps skew, and 140 ps jitter.

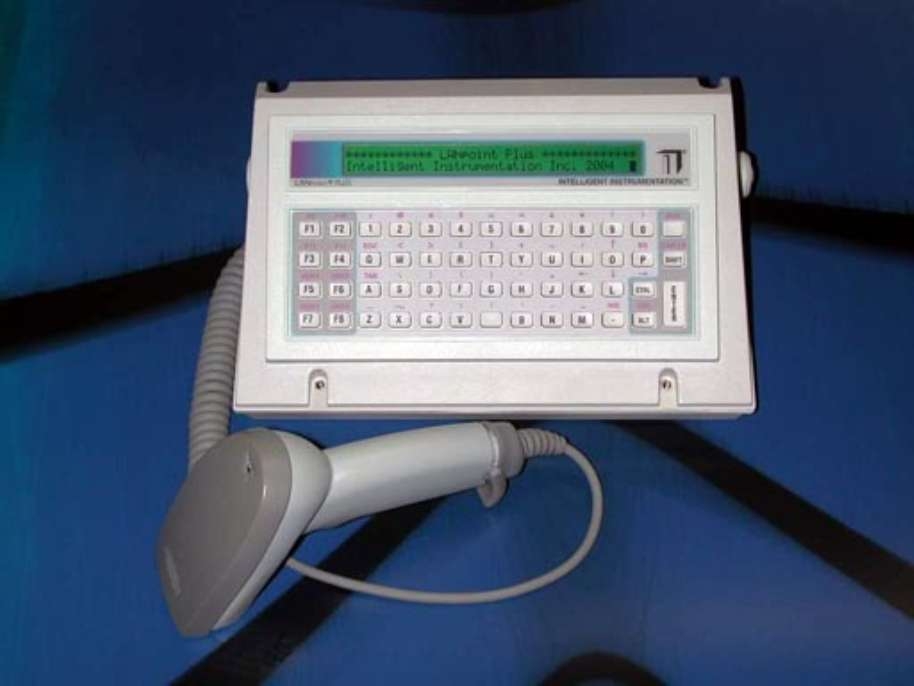

Intelligent Instrumentation, Inc.    Tucson, AZ 85706
Aug 30, 2004 LANpoint®-PLUS Computer has NEMA 12, IP54, rated case that resists water and dust, allowing installation in harsh conditions. Featuring Intel® XScale(TM) processor, onboard non-volatile storage expandable to 500 Mb, and no moving parts, unit provides real-time data collection. Computer runs embedded Windows CE.NET operating system with remote network management provided by WebDevice.

Sherwin-Williams Co. c/o Ultimate Lead Systems    Berea, OH 44017

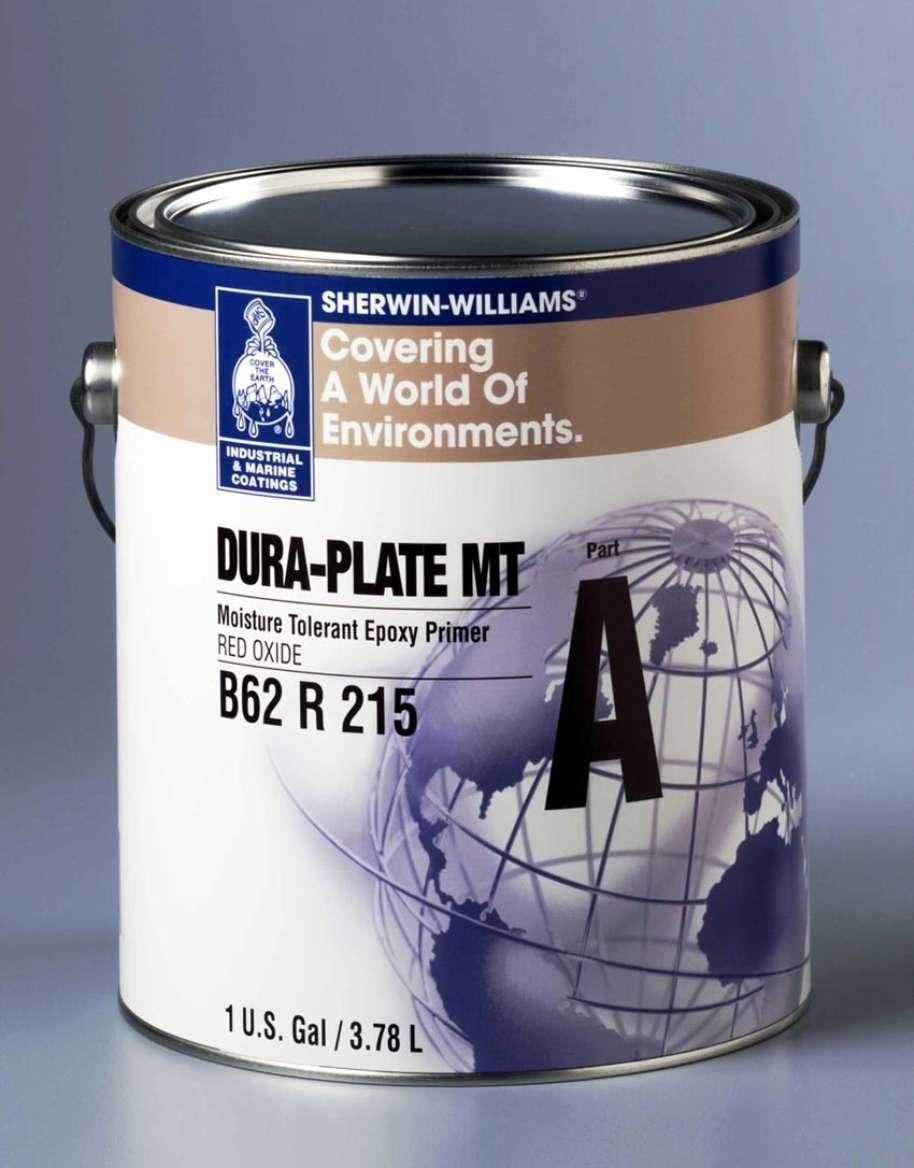

Aug 30, 2004 Dura-Plate® MT Epoxy, low-VOC, 2-component, bisphenol A, epoxy-amine coating, adheres directly to damp or dry metal surfaces. Low-odor coating can be applied without regard to dew point. It provides performance comparable to MIL-P-23236C, Type VII, Class 15b and 17. Epoxy is suitable for ships, including bilge areas, and other offshore and marine structures as well as oil and fuel storage tank interiors, pulp and paper mills, and water treatment plants.

Igus, Inc.    East Providence, RI 02914 0349

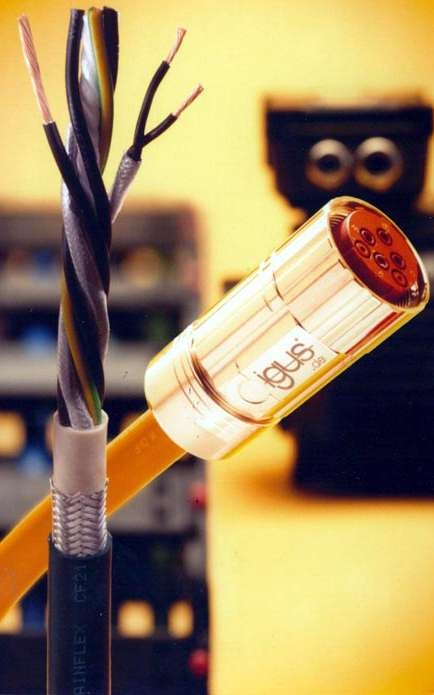

Aug 30, 2004 Oil- and UV-resistant, flame-retardant Chainflex® CF21 and CF27 perform under long or short travel conditions and at small bend radius of 7.5 times OD of cable. Designed for installation in Energy Chain® cable carriers, products withstand stress of tight bending radii and moving applications. CF21 and CF27, with outer jackets of PVC and polyurethane, respectively, feature construction with 4 power conductors and one or 2 signal pairs.

Hilti Inc.    Tulsa, OK 74121
Aug 30, 2004 Model UH 650 ½-in. Universal Hammer Drill offers 2 speeds, variable speed trigger, and forward and reverse functions. Constant-on button helps reduce fatigue, while rubber grips help reduce vibration for worker comfort. Grease chamber prevents leakage to keep gearing and pinion well-lubricated at all times. Model UH 650 is suited for rotary drilling into wood, steel, or plastic as well as hammer drilling into masonry.

Lyndex-Nikken Inc.    Mundelein, IL 60060

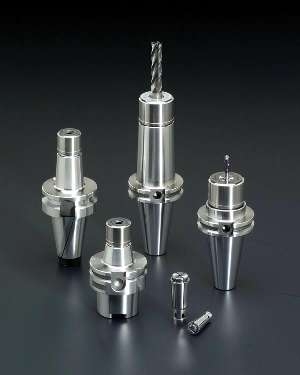

Aug 30, 2004 Available in 30, 40, and 50 tapers, VC Toolholder features slim, smooth profile that eliminates noise related to high-speed rotation. Dampening of micro harmonic vibrations is achieved with use of groove under nut. Eight degree collet design contributes to rigidity and gripping torque, while extended straight portion of collet pilots and maintains concentric placement of tool. Flat shoulder design results in heightened perpendicular force transfer.
