Hancor, Inc.    Findlay, OH 45839
Sep 02, 2004 StorMasterâ„¢ storm water management system incorporates chambers, injection molded in high-density polypropylene, that ensure uniform sidewall leaching ports on each unit. Each chamber is 50 in. long and weighs 43 lb, allowing one-person handling. Chambers are available with prefabricated inlets and are equipped with carrying handle that promotes safe installations. Amount of inspection/vent ports promotes jobsite and maintenance flexibility.

NewSoft Technology Corporation    Fremont, CA 94538
Sep 02, 2004 Presto! DVD PowerSuite v2.0 video and data-burning software supports 16x DVD drives in addition to double layer DVD recording. Users can burn 8.5 GB of data, 4 hours of DVD-quality video, 16 hrs of VHS-quality video, or more than 2,000 songs on single DVD+R DL disc. Software detects DVD drive being used and adjusts to parameters that are most compatible with firmware. It includes direct-to-disc video capture, step-by-step video editing, and real-time encoding.

Servo Magnetics, Inc.    Canoga Park, CA 91303
Sep 02, 2004 Featuring 0.51 in. profile and 3.77 in. diameter, 12 V Model 000-0317 is capable of delivering in excess of 75 oz-in. of torque. Large inner-rotor dimension accommodates variety of mounting configurations including light beam passage or wire/cable channeling. Stator is molded, high-temperature plastic with 4 screw-mount tabs. Commutation feedback utilizes Hall-Effect sensors, although various electrical and mechanical options are also available.

SMC Networks    Irvine, CA 92618
Sep 02, 2004 ADSL2 Barricade g, Model SMC7904WBRA is a multifunctional Annex A ADSL router that combines 2.4 GHz 54 Mbps 802.11g wireless access point, four 10/100 Mbps RJ45 ports for connection to PC or network, and RJ11 WAN port that connects to ADSL/ADSL2 line. Unit supports full-rate G.dmt for download speeds of 12 Mbps and upload speeds of 1 Mbps. Built-in DHCP server facilitates implementing and expanding networks.

Blue Mountain Quality Resources    State College, PA 16804-0830
Sep 02, 2004 Calibration Manager® v4.1 delivers 4th generation of ER/ES functionality. Equipment Master Records, Measurement Data Records, and Equipment History Records can be electronically signed. Measurement Data Collection accepts instrument readings or 4-20 mA process data. Out Of Tolerance conditions create user alert flags, and alert messages can be sent to In-Box as well as email addresses. Software includes 50 standard reports and 18 KPI reports to track business metrics.

Greenheck    Schofield, WI 54476 0410
Sep 02, 2004 Available in 8 sizes, horizontal Model LFC Low Profile Fan Coil covers performance range from 300–4,700 cfm and up to 3.5 in. wg. It features insulated double wall housing, removable stainless steel drain pan, 4 access panels, and internally-isolated drive frame to help eliminate potential for noise transmitting through ductwork. Unit is suited for cooling and/or heating schools, office buildings, churches, apartments, and condominiums.

Doosan Machinery USA Inc.    Sterling Heights, MI 48310

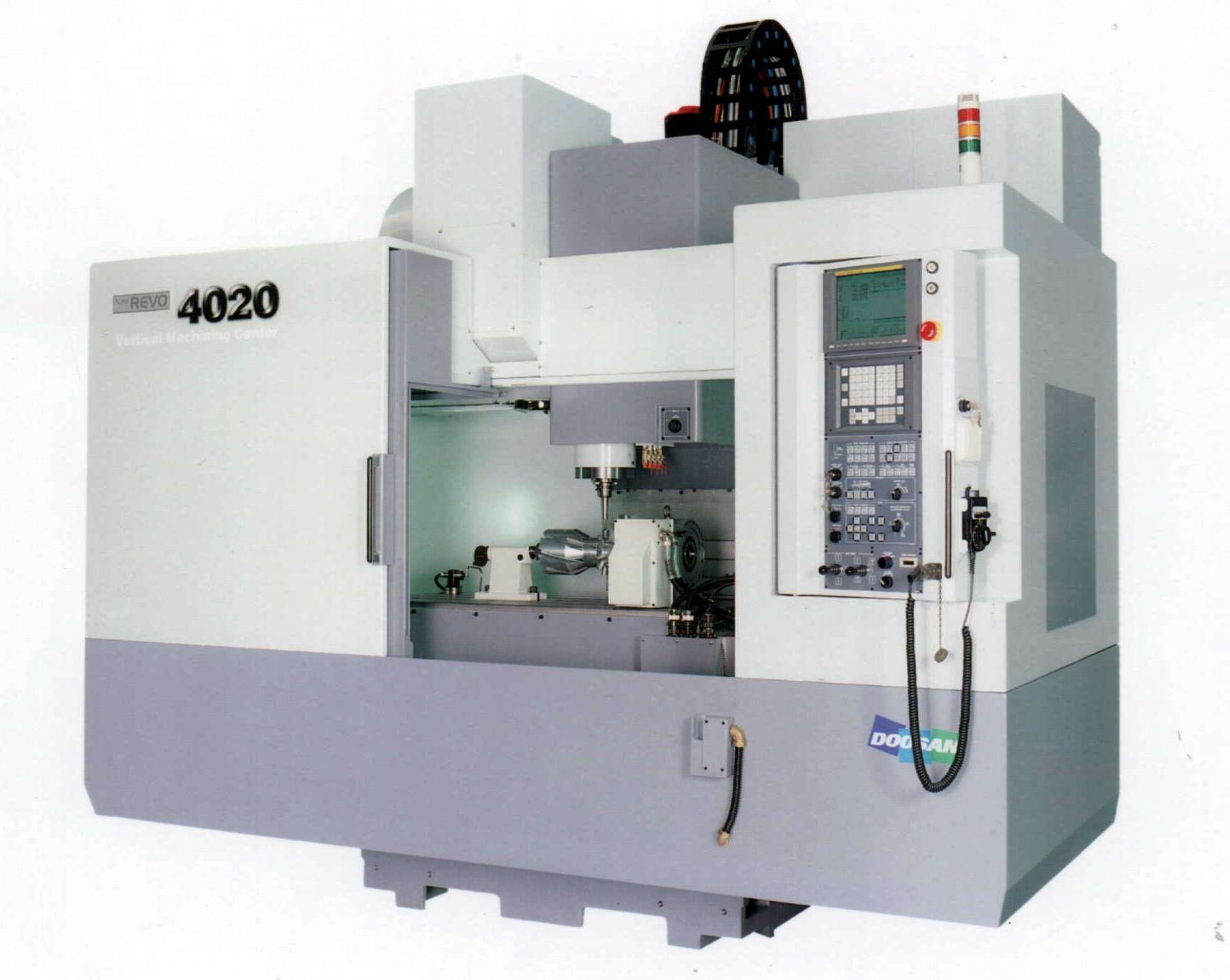

Sep 01, 2004 Intended for milling, drilling, and tapping, Revo 4020 features rigid structure with boxed column and single cast bed. Table is 48 x 24 in. with load capacity of 2,204 lb. X, Y, Z travels are 40.2 x 20.1 x 20.1 in., and rapid traverse is 1,574 x 1,574 x 1,417 ipm. Machine includes 30-tool magazine with tool change time of 1.2 seconds and feedrate of 390 ipm. Rigid tapping, coolant system, splash guard, cycle finish buzzer, and electric torque limit are standard.

Allied Analogic, Inc.    Weatherford, TX 76087
Sep 01, 2004 Model ADM 2400 monitors both sides of modem data traffic for 300, 1,200, and 2,400 bps communications for both asynchronous and synchronous modes. It includes LCD display, keypad, memory storage, and battery power for completely portable operation. Unit facilitates development and troubleshooting of modem data communication applications such as credit card terminals.

All Star Products, Inc.    Memphis, TN 38138

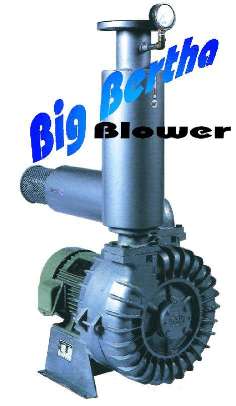

Sep 01, 2004 Rated from 20–75 hp, Big Bertha is available in direct drive or packaged v-belted arrangement. Unit can replace existing rotary blowers and multistage centrifugal blowers used in municipal and industrial aeration and material handling applications.

Elscint Automation    Pune 411026  India

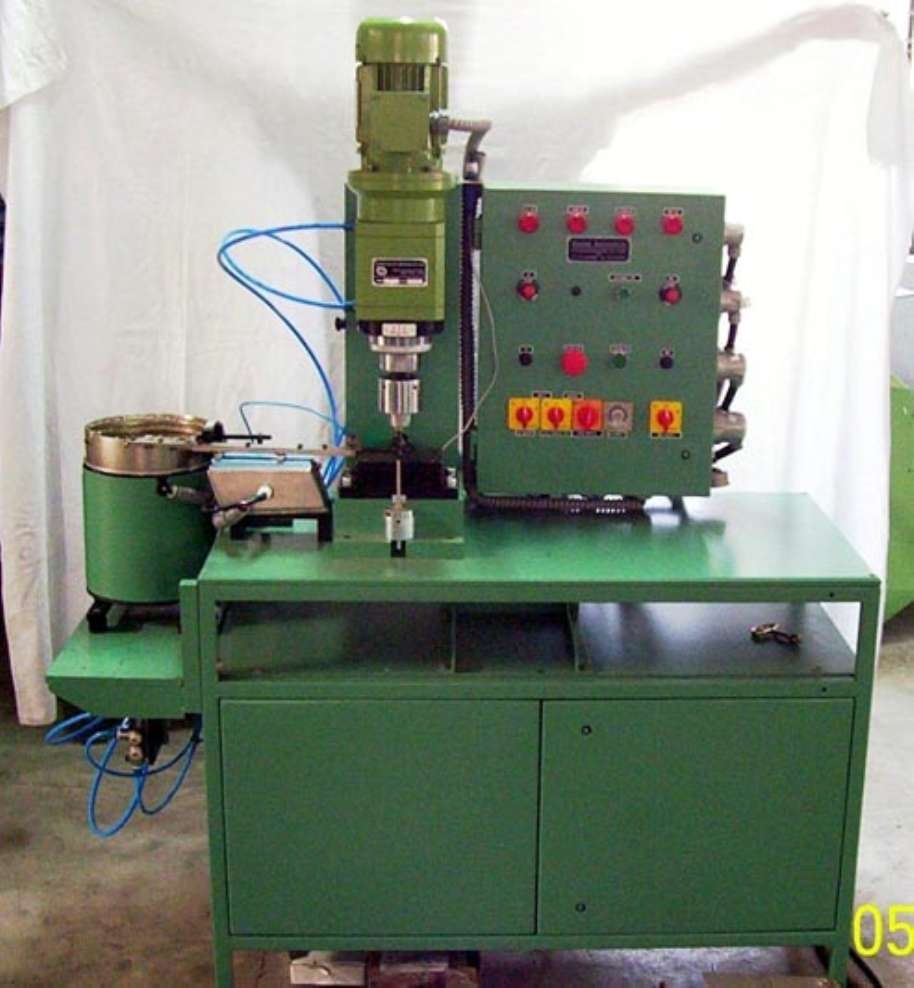

Sep 01, 2004 Automatic Riveting Machine feeds rivets through vibratory bowl feeder to riveting station. Other part can either be placed manually or automatically from another feeder. Strip can also be fed through de-reeler and cut as per requirement and fed automatically. Options include checking spring/strip before riveting, counting number of pieces riveted, and automatic stoppage of machine when wrong rivet/spring is fed.

Bivar, Inc.    Irvine, CA 92618 2593
Sep 01, 2004 PBLP Series offers integral prism design within light pipe, directing surface-mounted LED light down the center of light pipe. It includes slide-on base for easy mounting on standard push-button shafts of through-hole or surface-mounted PCB-mounted switches. When used in conjunction with surface-mounted LED chip sets, it enables non-lighted switch models to perform same function as lighted push-button switch types.

CyberResearch, Inc.    Branford, CT 06405 2932

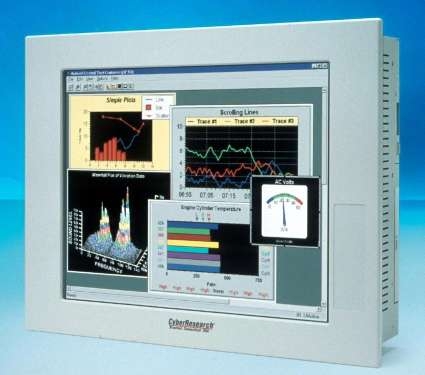

Sep 01, 2004 Models STE 15 and STE 17 are 15 and 17 in. panel PCs with 250-nit LCD displays providing 1,024 x 768 and 1,280 x 1,024 resolution, respectively. STE 15 accommodates cards up to 5.75 in., while STE 17 accepts cards up to 10.84 in. long. Both offer Pentium® 4 power, two 2.5 in. drive bays, optional touchscreen, and NEMA 4 sealing. Network-ready communication and data ports include 10/100/1000Base-T and 10/100Base-T ports, two USB 2.0 ports, FireWire port, and 4 COM ports.

C & D Technologies    Mansfield, MA 02048-1151
Sep 01, 2004 Offered in vertical or horizontal orientations, LSN-16A Series enables true point-of-use (point-of-load) power processing. Non-isolated power converters accept 3.3/5 V inputs for W3 models and 12 V inputs for D12 models and deliver 0.75/1/1.2/1.5/1.8/2/2.5/3.3/5 V outputs, fully rated at 16 A. Fixed-frequency, 220/300 kHz, synchronous buck topologies deliver conversion efficiencies to 96% with output noise as low as 30 mVp-p. They come in 2 x 0.5 x 0.36 in. single-in-line package.

NTC America Corporation    Novi, MI 48377

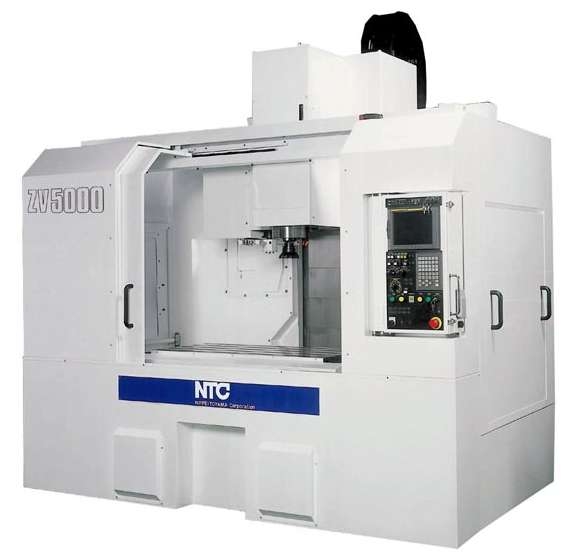

Sep 01, 2004 With near-zero down time, Ultra ZV5000 vertical machining center is designed for mass- to medium-production of near-net shaped parts. Standard configuration includes CAT40 taper tool shank, 25 hp spindle with 12,000 rpm max speed, 25-tool ATC, and 3 axes of travel with 44 x 22 x 22 in. machining range. Rapid traverse rates for X and Y axes are 2,362 ipm, while Z axis rapid transverse rate is 1,653 ipm.

Lyndex-Nikken Inc.    Mundelein, IL 60060

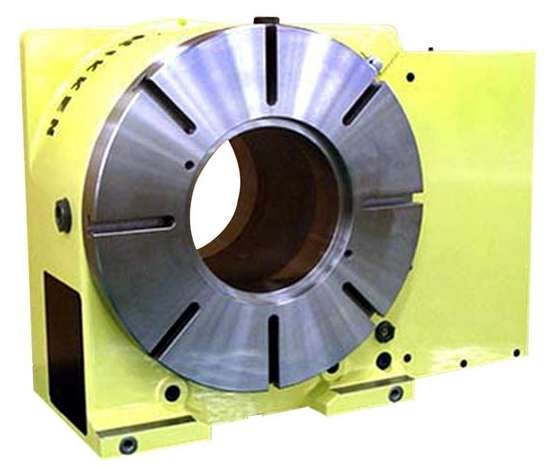

Sep 01, 2004 Ultra Large Bore Rotary Table model CNCB450, suited for large diameter bar work and oil patch applications, features 8 in. dia through hole and clamping system. Table is designed with carbide worm system, which incorporates carbide worm screw and ion nitrided worm wheel to help in reduction of friction and wear. Product also includes steel way hardened to 58–60 Rc.

Grieve Corporation, The    Round Lake, IL 60073-2898

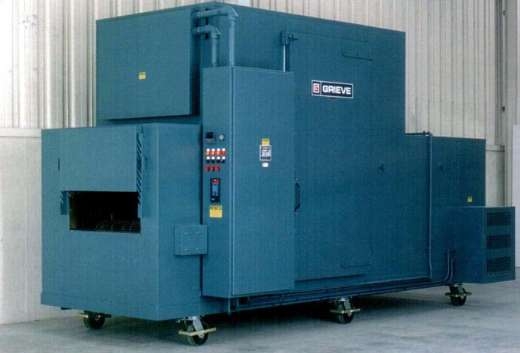

Sep 01, 2004 Offering workspace dimensions of 36 in. x 15 ft. x 15 in., electrically-heated, 1,000°F No. 823 features 16 ga, Type 316L stainless steel interior, aluminized steel exterior, and 8 in. thick insulated walls. Rated at 7,800 cfm, 5 hp recirculating blower provides vertical downward air flow. Workload passes through unit on 30 x 1 x 1 in. 316L stainless steel flat wire conveyor belt with ¼ hp motor drive and digital controller, variable from 0.5-10 fpm.

Photron USA, Inc.    San Diego, CA 92126

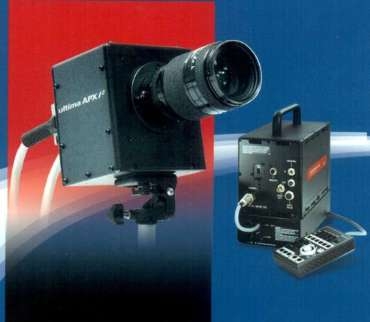

Sep 01, 2004 Ultima APX-i2 uses interchangeable camera heads and high-speed camera processor. Fast-cycle function can record every cycle of ultra high-speed cyclical mechanism with 1 ns time offset, providing 1 million fps at mega-pixel resolution. CMOS sensor is fiber-optically integrated with 25 mm Micro Channel Plate image intensifier. System offers 1,024 x 1,024 full pixel resolution at up to 2,000 fps or operates up to 120,000 fps at reduced resolution.

Thermadyne Industries, Inc.    St. Louis, MO 63017

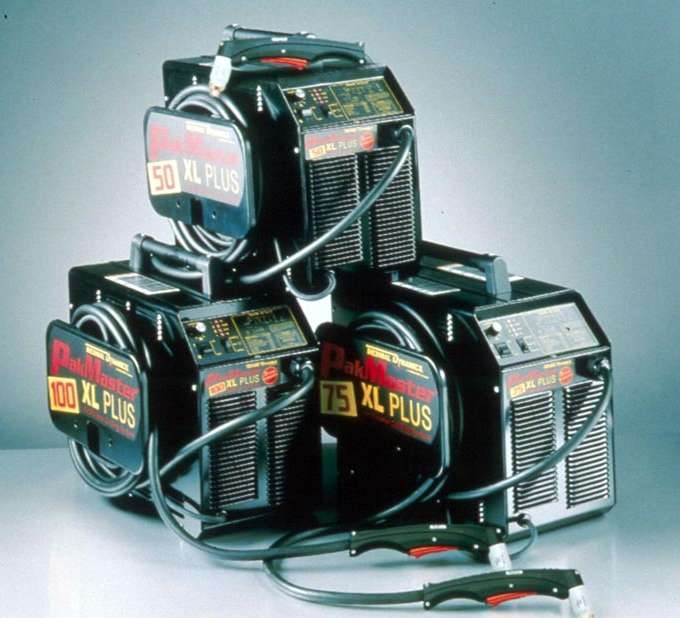

Sep 01, 2004 PakMaster® XL PLUS Series includes 50XLP, 75XLP, and 100XLP machines with respective output currents of 15-40, 15-60, and 15-80 A and cut capacities of ½, ¾, and 1 in. Units use 1 Torch(TM) plasma torch featuring ATC(TM) Advanced Torch Connector, which adapts to more than 150 other plasma systems in seconds. Surelok® electrode, start cartridge, and tip combination maximize parts life.

Touch International    Austin, TX 78758

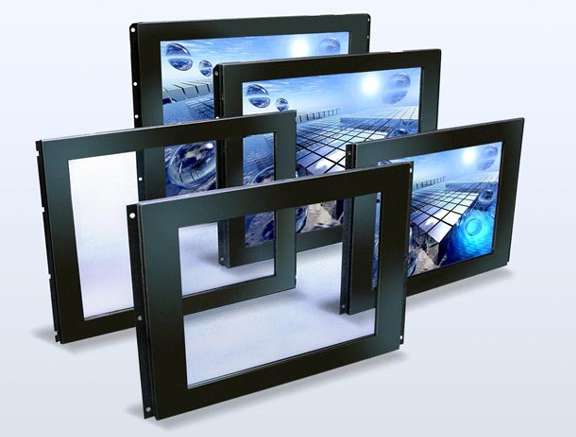

Sep 01, 2004 IRTouch touch screens are highly transparent units that provide maintenance-free and calibration-free operation. Since there are no films or conductive layers, standard transparency is over 92% with 100% possible. Sealed to IP65 standard, screens operate over temperature range of -41 to +70°C. Standard LCD sizes range from 12.1–29 in. with response time of 10–35 ms. Units provide vandal-resistant operation in ATMs, POS displays, and outdoor kiosks.

Renishaw, Inc.    Hoffman Estates, IL 60192

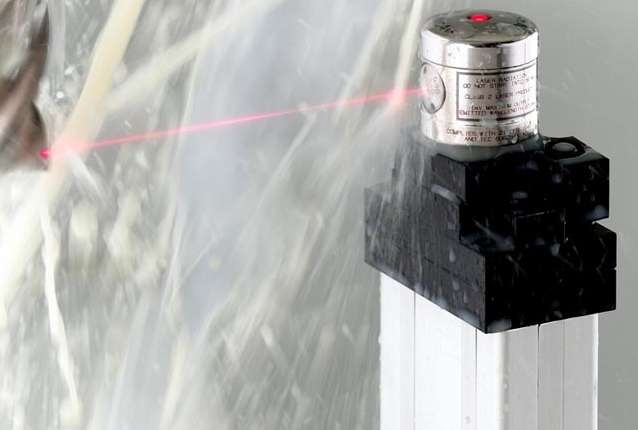

Sep 01, 2004 Housed in stainless steel, NC4 non-contact laser tool setting system features transmitter and receiver units that measure 30 mm in diameter x 35 mm high. It offers repeatable toolsetting at system separations of up to 5 m, and tools as small as 0.2 mm dia can be measured at any selected point along laser beam. Breakage detection can be carried out on tools as small as 0.1 mm. LED, mounted on top of transmitter unit, delivers constant feedback on system status.
