RAM Optical Instrumentation, Inc.    Tempe, AZ 85281-7215

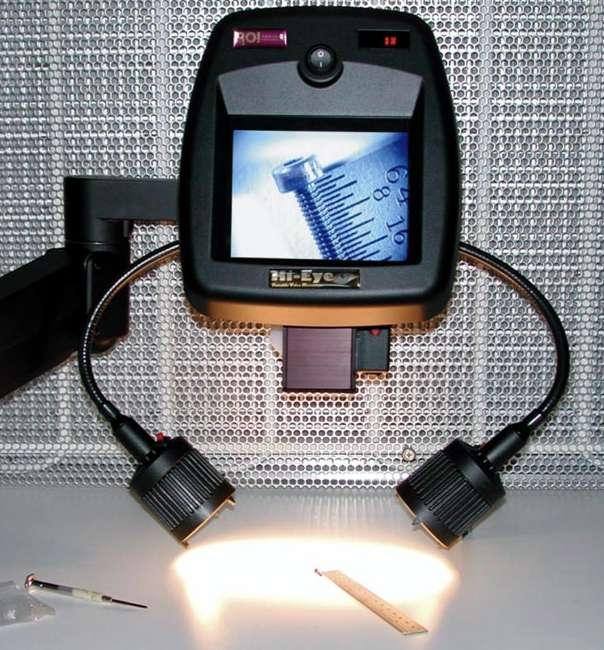

Sep 07, 2004 Suited for visual inspection and detailed quality control, manufacturing, or assembly work, Hi-Eye(TM) incorporates color LCD monitor that allows direct line-of-sight viewing. Auto focus ensures crisp, sharp images at all magnifications, and unit is available with dual halogen, fluorescent ring light, or square-on surface lighting. Flexible articulating arm mounts to any table, and zoom lens options provide magnifications to 230x.

Igus, Inc.    East Providence, RI 02914 0349
Sep 07, 2004 Available with inner heights from .35-1.26 in. and inner widths from .24-3.94 in., zipper Energy Chain Systems® are built with interconnected lids which can be pulled back in zipper fashion. If application requires long travel, cables do not have to be snaked through, but can be laid out along cable carrier in their compartment. Interior separators can be used with Series 15 and Series 17 zipper chains for multiple cable configurations.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 07, 2004 XL Fortran Enterprise Edition v9.1 for AIX® provides development environment in which to build Fortran applications. Standard-based compiler is designed to exploit IBM RS/6000® and IBM pSeries® line of symmetric-multiprocessing hardware, including IBM PowerPC®, POWER3â„¢, and POWER4â„¢ architectures. Software fully supports OpenMP Fortran API V2.0, FORTRAN 77, Fortran 90, and Fortran 95 standards, and partially supports Fortran 2003 draft standard.

American Permalight, Inc.    Torrance, CA 90505 5245
Sep 07, 2004 Available pointing left or right, PERMALIGHT® Door Handle Markers speed up evacuation by making door release of exit doors immediately visible during darkness emergencies. They are made from polycarbonate with PERMALIGHT and exhibit luminance values of 150/22.

MGE UPS Systems    Costa Mesa, CA 92626
Sep 03, 2004 Intended for Pulsar UPS systems with power ratings from 500–3,200 Va, Pulsar PDUs are available with range of NEMA 120 Vac input plugs and receptacles ranging from 15–30 A. Maintenance Bypass Switch model enables users to eliminate downtime by maintaining power continuity during UPS maintenance while serving dual purpose as PDU. With 3.5 in. form factor, PDUs are suited for mounting in 19 in. equipment racks, telecom racks, or any wall-mount space.

InterTech Development Co.    Skokie, IL 60077 3220
Sep 03, 2004 Models M-1075 CAVAL-03 and -04 eliminate need to manually check and adjust instrument zero and span, or to manually verify flow measurement. CALVAL-03 offers upstream testing from 0.10–4.00 sccm, while CALVAL-04 offers downstream alternative for 0.01–0.25 sccm range. Both units automatically keep pass/fail totals and store up to 1,000 test records. Calibration is NIST-traceable to less than 5% R and R, with calibration accuracy traceable to 0.2% primary standard.

Weldlogic, Inc.    Newbury Park, CA 91320
Sep 03, 2004 Portable Oxygen Analyzer, Model OM-4 measures oxygen levels for welding stainless steel pipes, tubes, and tanks to prevent coking, oxidation, and discoloration. It shows when oxygen has been removed down to 0.01%, indicating there are no leaks. Featuring large digital display, analyzer operates from internal, temperature-compensated, electrochemical oxygen sensor. Power is provided by 9 V battery, delivering 3 years of operation before replacement.

LEDtronics, Inc.    Torrance, CA 90505
Sep 03, 2004 GardenLED(TM) Series GDL002 FloodLED(TM) features 198 warm white 5 mm discrete LEDs mounted on PCB. Unit provides ample light without generating light pollution, radiating excessive heat, or consuming large amounts of energy. Solid-state design renders LEDs impervious to electrical and mechanical shocks, vibrations, frequent switching, and environmental extremes. Requiring 12 Vdc, unit is suited for lighting walkways, small signs, landscaping, and building exits.

Linear Technology Corp.    Milpitas, CA 95035
Sep 03, 2004 Logarithmic Model LT5534 operates over RF input frequency of 50 MHz to 3 GHz and is capable of detecting full-scale RF changes with 38 ns delay. Output is directly proportional to logarithm of average RF voltage input. At 900 MHz, unit provides repeatable measurement of RF power within ±1 dB over 50 dB dynamic range, while spanning temperature extremes of -40 to +85°C. Operating from 2.7-5.25 V supply, detector comes in 6-lead, 2 x 2 mm surface-mount, SC-70 package.

Stack Limited    Bicester, Oxon OX26 4UL  United Kingdom
Sep 03, 2004 Miniature, solid-state Digital Video Recorder employs broadcast standard MPEG-2 video compression to record real-time video and audio direct to PC flash card. Up to 8 hr of full-resolution digital video can be recorded on 16 Gb memory card. Unit is sealed to IP68 and has operating temperature of -20 to +80°C. Data overlay allows date and time to be stamped onto recorded video. Recordings can be archived direct to DVD for playback on PC or DVD player.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Sep 03, 2004 Modular Syringe Pump Components allow users to build prototype systems or test pumping functions without sacrificing quality of pumping mechanism. They are fully supported with software, electronic diagrams, and engineering phone support. Modules include micro liter delivery, milliliter delivery, and high force delivery.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Sep 03, 2004 Integrated SiW4000â„¢ system-on-chip (SoC) Bluetooth solution, developed using 0.13 micron CMOS process technology, is housed in 4.5 x 4.5 mm BGA package to minimize footprint of pcb. Product requires only 8 external components: 6 capacitors, one inductor, and one band-pass filter. Features include coexistence interface, direct conversion architecture, and synchronous and asynchronous serial interface capable of supporting Enhanced Data Rate (EDR).

THK America, Inc.    Schaumburg, IL 60173 5340

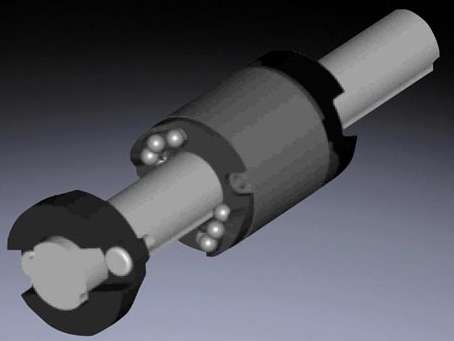

Sep 03, 2004 Product incorporates vibration damper inside hollow ball screw shaft for improved positioning accuracy and lower noise levels. Available for ball thread shaft diameters from 16–50, it is interchangeable with all ball screw types.

THK America, Inc.    Schaumburg, IL 60173 5340

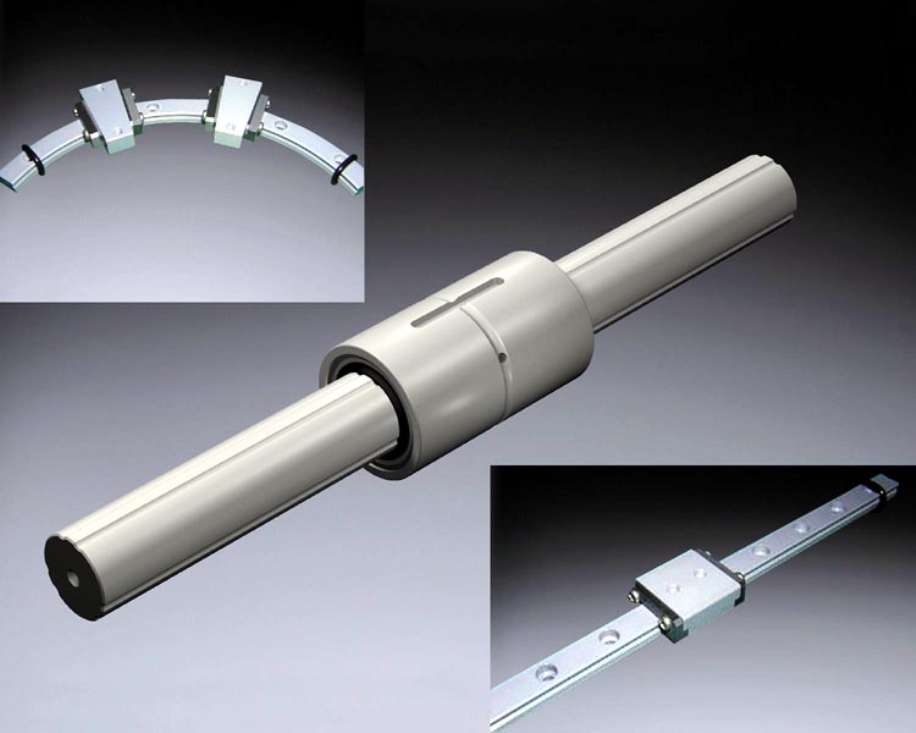

Sep 03, 2004 Ceramic LM Guide Type RCR, Ceramic LM Guide Type RSR, Ceramic LM Guide HCR, and Ceramic Ball Spline LT use ceramic rails, blocks, and, in most cases, ceramic balls. This contributes to non-magnetic characteristics, increasing application potential. Products are suited for use in medical equipment and semi-conductor manufacturing equipment. They reduce weight of overall product and eliminate possibility of corrosion.

THK America, Inc.    Schaumburg, IL 60173 5340
Sep 03, 2004 Measuring 65 mm wide, Mini Actuator Type RDM reaches speeds of 5 m/s and accelerations of 9 G. At 10 mm/s, speed ripple is less than 11%. Max thrust power is 59.7 N, and continuous thrust power is 8.0 N. Micro Ball Spline Type LT features 2 gothic grooves and low rolling resistance that allows for increased stability. It is suited for harsh environments, as nut, shaft, and balls are all constructed of martensitic stainless steel.

THK America, Inc.    Schaumburg, IL 60173 5340
Sep 03, 2004 Measuring 976 x 540 x 300 mm, Type SNS300 LM Guide features 4-direction, equal load rating. Available in sizes up to 12025, Heavy Load Ball Screw Type HBN performs 100,000 cycles without problems when tested for durability under 118 kN load, 48 mm stroke, 3.8 m/min max conditions. Operation at higher ambient temperatures is identical at 20 and 80°C temperatures. Ball screw achieves increase in max nut rpm, 130,000 DN.

ITECH ELECTRONIC CO.,LTD    Nanjing City 210012  China
Sep 03, 2004 Able to be used in series or parallel mode, IT6800 series power supplies incorporate VFD display, leaning numeric keypad, and intellective fan cooling. It features over-current and over-temperature protection in addition to limit voltage protection. With storage for 16 operating states, product provides constant voltage and constant current outputs as well as output on/off control. Software for calibration and control are included.

Strategic Test Corporation    Woburn, MA 01801-1915
Sep 03, 2004 Running Linux or Windows CE v5.0, TRITON-270 is optimized for mobile embedded designs that require low-power consumption and small size. On DIMM200 module, card uses 512 MHz Intel PXA270 processor and is supplied with 64 Mb mobile SDRAM and 16 Mb wireless Flash memory. It has options for 312 and 416 MHz CPUs, 32 Mb SDRAM, and 8 Mb Flash. Card incorporates Programmable Core Voltage Generator and USB 1.1 host controller.

Hielscher USA, Inc.    Ringwood, NJ 07456
Sep 03, 2004 Used for deagglomeration, dispersing, degassing, and cell disruption, UIP250MTP allows for consistent sonication of entire microtiter plate within sonotrode. Ultrasonic power is distributed evenly through each well of microtiter plate to produce reproducible sonication effects. Amplitude of oscillation is adjustable and maintained for entire sonication period. Product consists of 250 W generator, sonotrode, and required sound protection hood made of acrylic glass.

Sharp Electronics Corporation / Computer Products Division    Mahwah, NJ 07430
Sep 03, 2004 Intended for CDMA2000® and WCDMA 3G cellular phones, Model LR38869 ensures high-speed and mass data transfer of 400 Mbps between LCD panel and MSM chipset. Number of signals of hinge part is reduced from conventional 21 to 4, and development of sophisticated designs, such as rotation type display, is promoted. Device can control QVGA size main display as well as sub display to max QVGA size. Load of Baseband IC is mitigated by built-in graphic processing function.
