Raindrop Geomagic    Durham, NC 27713
Sep 08, 2004 Geomagic Qualify v7 processes scan data from physical part, enabling instant graphical comparisons between CAD models and as-built parts. With functionality for geometric dimensioning and tolerance (GD&T) and turbine blade analysis, software provides graphical menu, single-button commands, and automatic recording of all test data. Other features include reporting mechanism, blade section analysis, 2D twist analysis, and object averaging.

Micronas GmbH    Frieburg D-79108  Germany
Sep 08, 2004 Single-chip, picture-in-picture, Model PVP 9390A accommodates up to 4 video sources without external multiplexer. PIP size is user-programmable from half screen and ¼ zoom down to 1/81. Digital, multi-standard color decoder allows chip to decode and display all versions of NTSC, PAL, and SECAM standards. Model PVP 9390A provides upgrade for 50 and 60 Hz CRT single-scan TVs, double-scan 100 Hz and flat panel TVs, or PC monitors with VGA or SVGA inputs.

Yokota Manufacturing Co., Ltd.    Hiroshima 730-0826  Japan
Sep 08, 2004 Utilizing degassing pump with interlocked vacuum pump, Series ASP includes multiple types of impellers that generate strong decompression and centrifugal force to continuously extract and separate dissolved gas from liquid. Since system degasses liquid mechanically without using chemical additives, it does not cause contamination. Models are available with bores from 25–40 mm, flow capacity from 0.01–0.06 ton/min and total head from 5–25 m.

Global Display Solutions    Bingley West Yorks BD16 1PE  United Kingdom
Sep 08, 2004 Large Screen LCD Displays, Models G320, G370, and G460, suited for digital signage market, provide information, advertising, and crowd-control opportunities. All units have removable frame and modular, vandalproof design. Features include 16:9 aspect ratio; 500 and 600 cd/m2 brightness, depending on model; and WXGA and HDTV resolution, depending on model. Equipped with antiglare glass panels, displays offer 170º vertical and horizontal viewing angles.

Aremco Products, Inc.    Valley Cottage, NY 10989

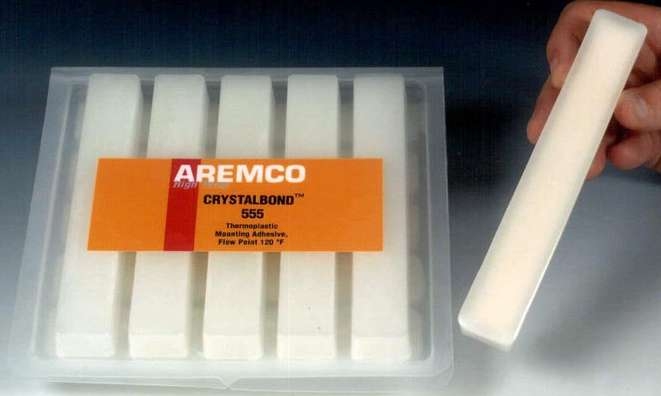

Sep 08, 2004 Crystalbondâ„¢ 555 temporarily mounts ceramic substrates, semiconductors, and optical crystals that require dicing, polishing, and other machining processes. Ethoxylated-nonyl-phenol material bonds to ceramics, glasses, and metals. It becomes flowable at 120°F and dissolves in hot water. Transparency in thin cross-sections allows user to observe part during processing. Adhesive comes in 10-stick package.

Electronic Development Laboratories, Inc.    Danville, VA 24540

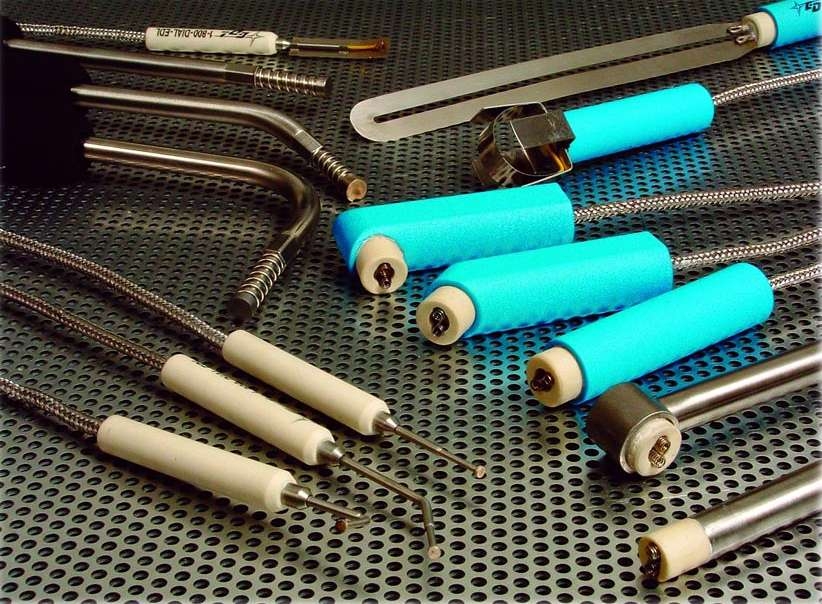

Sep 08, 2004 Available in variety of sizes and styles, Roller Contact Sensors feature glass-filled nylon block that can withstand temperatures up to 815°C. Protected thermocouple enables use on drums, rollers, pipes, hoses, tanks, tubes, and objects with surface speed up to 10 fps.

Dixon Valve & Coupling Co.    Chestertown, MD 21620 1135
Sep 08, 2004 Offered in sizes up to 12 in., Agri-Lock fittings and couplings provide quick-disconnect capability for non-hazardous applications. Suited for agricultural suction and discharge of water, as well as for irrigation and dewatering applications, products are made of galvanized steel and feature ball-head design that allows for offset coupling. Pin-locking device is available to provide extra security.

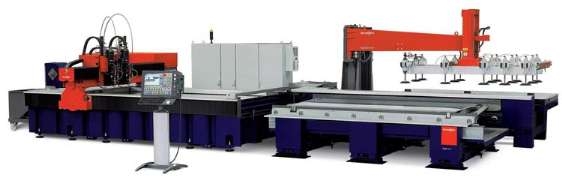

Bystronic, Inc.    Elgin, IL 60123
Sep 08, 2004 Available with optional shuttle table and material handling system, Byjet abrasive, cold cutting system machines variety of flat sheet, tubular, and profiled materials without heat-induced structural changes. AC direct drives provide positioning accuracy at high acceleration rates, enabling machining of intricately shaped parts and contours. HPT High-Precision Tool cutting head delivers precision and ensures optimal flow of abrasive.

Jerome Industries Corp.    Elizabeth, NJ 07201 2005

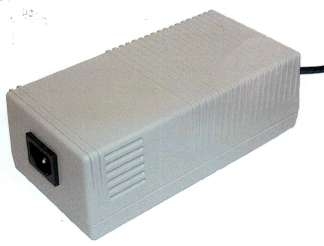

Sep 08, 2004 Fan-cooled, Max Power Series features universal input voltage of 90–264 Vac, 47–63 Hz. Available in desktop version for medical and information technology equipment, units are short-circuit and overload protected. They are are approved to UL, CSA, and EN for Domestic, European, and International standards.

Bystronic, Inc.    Elgin, IL 60123

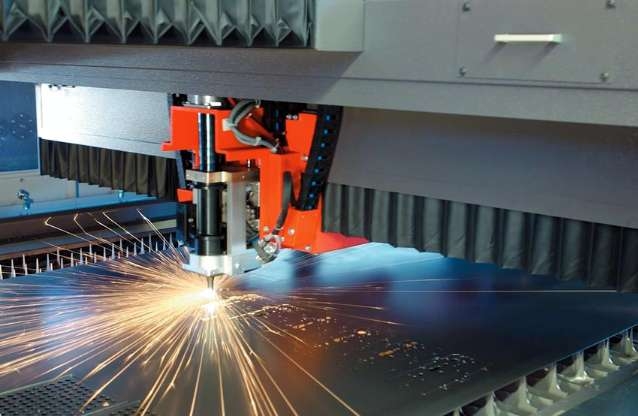

Sep 08, 2004 Bylaser 5200 ARC features Adaptive Radius Control, which provides automatic optimization of beam diameter for piercing and cutting of all sheet metal thicknesses and materials. Operation and diagnostics use Laserview via touch screen on operating terminal. Appropriate materials include steel up to 25 mm, stainless steel up to 20 mm, and aluminum up to 12 mm.

Total Lubricants USA, Inc. (formerly Keystone Lubricants)    Linden, NJ 07063

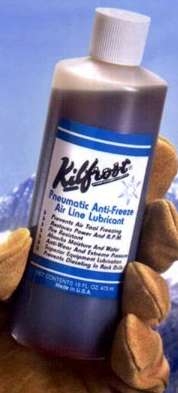

Sep 08, 2004 Kilfrost® provides needed lubrication to air tools, absorbs air line moisture, and lowers tool's freezing point. Fluid maintains tight grip on working surfaces, reducing lubricant consumption and lubricating cycles. Able to lock-up moisture, product prevents equipment corrosion year-round in wet or humid conditions and is also useful in underground operations. Semi-synthetic formula is non-toxic, non-flammable, and non-corrosive.

Bystronic, Inc.    Elgin, IL 60123

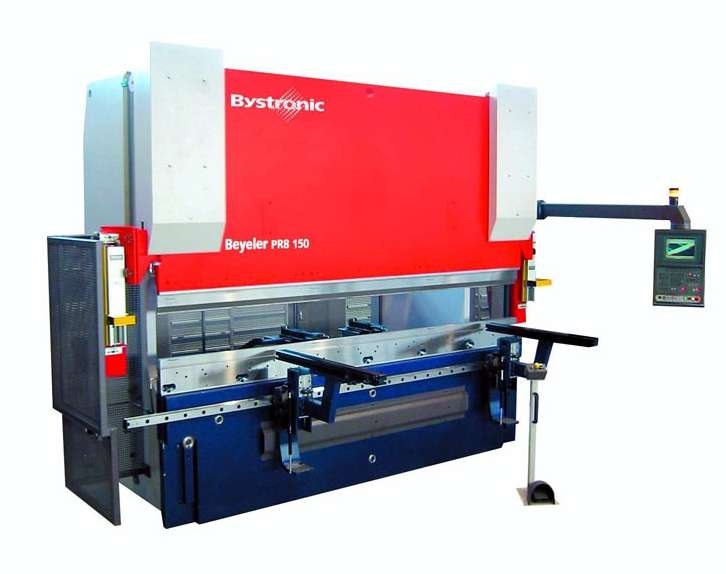

Sep 08, 2004 Series PR includes Integrated Process Control technology, which provides precise springback compensation and thickness measurement for processing wide range of materials and thicknesses. Pressure Reference system provides dynamic crowning, side frame deflection compensation, pressure regulation, temperature compensation, and tool overload protection. All models offer CNC control and offline software integration to develop bending programs without machine interruption.

Jergens, Inc.    Cleveland, OH 44110

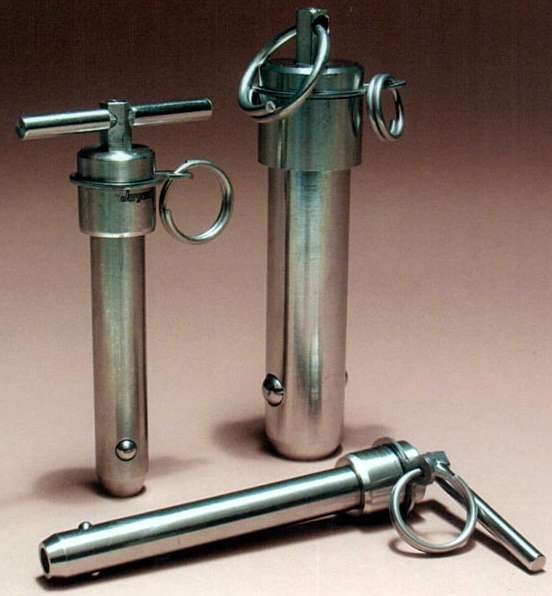

Sep 08, 2004 Activated by push or pull motion, Kwik-Lok™ Double Acting Pins feature corrosion-resistant, solid stainless steel construction and are suited for quick insertion and removal. Products are offered with ring, L, and T handles, and 4 ball configurations are available upon request. Ring is included for attachment of optional lanyard. Standard sizes range from 3/16–1 in. for nominal pin diameters, and metric sizes are available from 5–25 mm for nominal pin diameters.

RF Engines    Newport, Isle of Wight PO30 5WB  United Kingdom

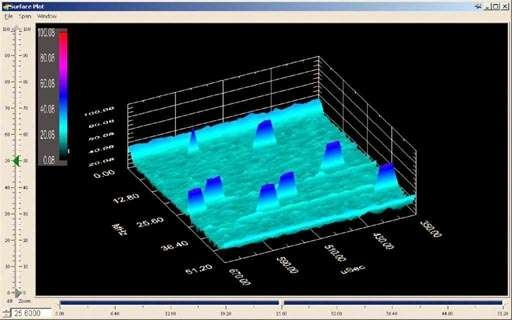

Sep 08, 2004 SpectraChipâ„¢ IF offers digital replacement for analog intermediate frequency filtering used in spectrum analyzers and is supplied as IP core for embedding on FPGA devices. Standard design will accept high-speed digitized data stream with signal IF centered at ±21.4 MHz and signal bandwidth up to 10 MHz. Core configures itself to correct settings and produces filtered signal output, converted to power reading for analysis.

Acton Research Corp.    Acton, MA 01720
Sep 08, 2004 No. 1900 is a DUV broadband Al+MgF2 optical coating that provides greater than or equal to 88% reflectance at 193 nm. Applied to various glass substrates, coating is suited for applications such as ellipsometery and thin film measurement systems. It can improve throughput of spectrophotometers up to 10% reflectance per surface in DUV wavelengths.

Dimas North America    Olathe, KS 66061
Sep 08, 2004 Equipped with Cummins 85 hp turbocharged diesel engine and 26 in. blade, RS 8500 has inline right angle gearbox configuration that uses 14 belts to transfer power to drive bladeshaft. Protective sealed bladeshaft assembly operates 250+ hr before requiring grease, and unit suits partial- to full-depth cutting jobs. Riding saw has 4 mph max travel speed, zero-turn radius, and single-handle control for forward/reverse travel and blade raising/lowering.

Rite-Hite Aftermarket Corp.    Milwaukee, WI 53223

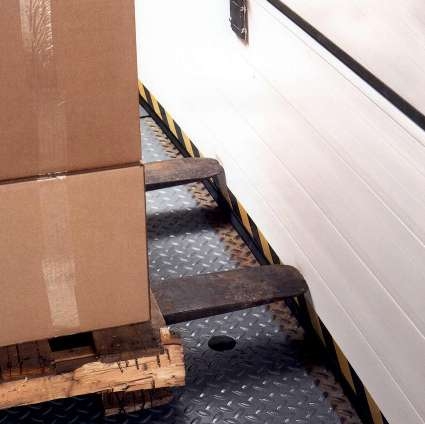

Sep 08, 2004 Universal GX-4000 features interlocking design that allows for configuring different sectional door panel heights. Available in 2 or 3 in. thicknesses and lengths up to 18 ft 2 in., extruded vinyl panel incorporates integral support system, which allows it to withstand common bumps and fork truck impacts. Universal GX-4000 is suited for bottom, intermediate, or top section panel replacement. Modular design permits single slat replacement.

Altera Corp.    San Jose, CA 95134-1941
Sep 08, 2004 Able to facilitate designs using Stratix II high-density FPGAs, development kits include high-speed interface kit, DSP kit, and embedded design kit. Each includes Stratix II development board, 16 Mbyte flash memory, CD with documentation and reference designs, power supply, USB Blaster download cable, and other cables. Also available, MAX® II Development Kit helps build general-purpose, low-density logic applications using MAX II CPLD family.

Eurobex Mfg. Ltd.    Blainville, QC J7C 5E2  Canada
Sep 08, 2004 Available in 54 sizes from 24 x 12 x 6 in. to 42 x 36 x 16 in., 5412 ESCS console top enclosure has slanted top with 60° angle that facilitates mounting of pushbuttons, pilot lights, selector switches, graphic terminals, and other industrial controls. NEMA 4-12 enclosure accepts electrical and automation equipment installed on back panel. Upon request, product may be customized with cut-outs, colors, and other modifications.

Saelig Co., Inc.    Pittsford, NY 14534
Sep 08, 2004 Measuring only 3.2 x 1.3 x 0.95 mm, x-cut, 32.768 kHz Model EQ157 features calibration tolerance of ±20 ppm at 25°C and operating range of -40 to +85°C. It is suited for applications where small component size is essential.
